Toyota RAV4 后组合灯 — Figure 8111

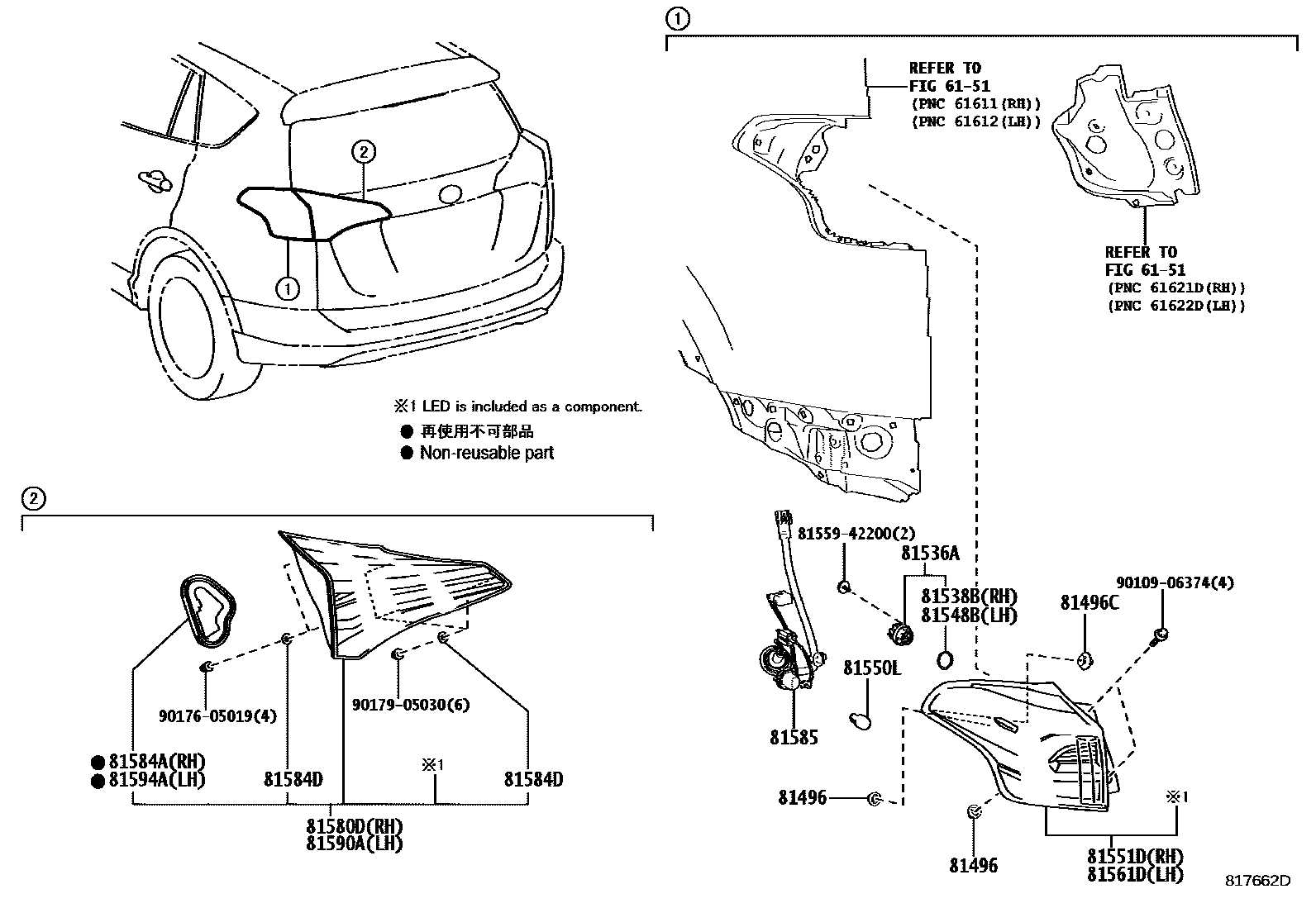

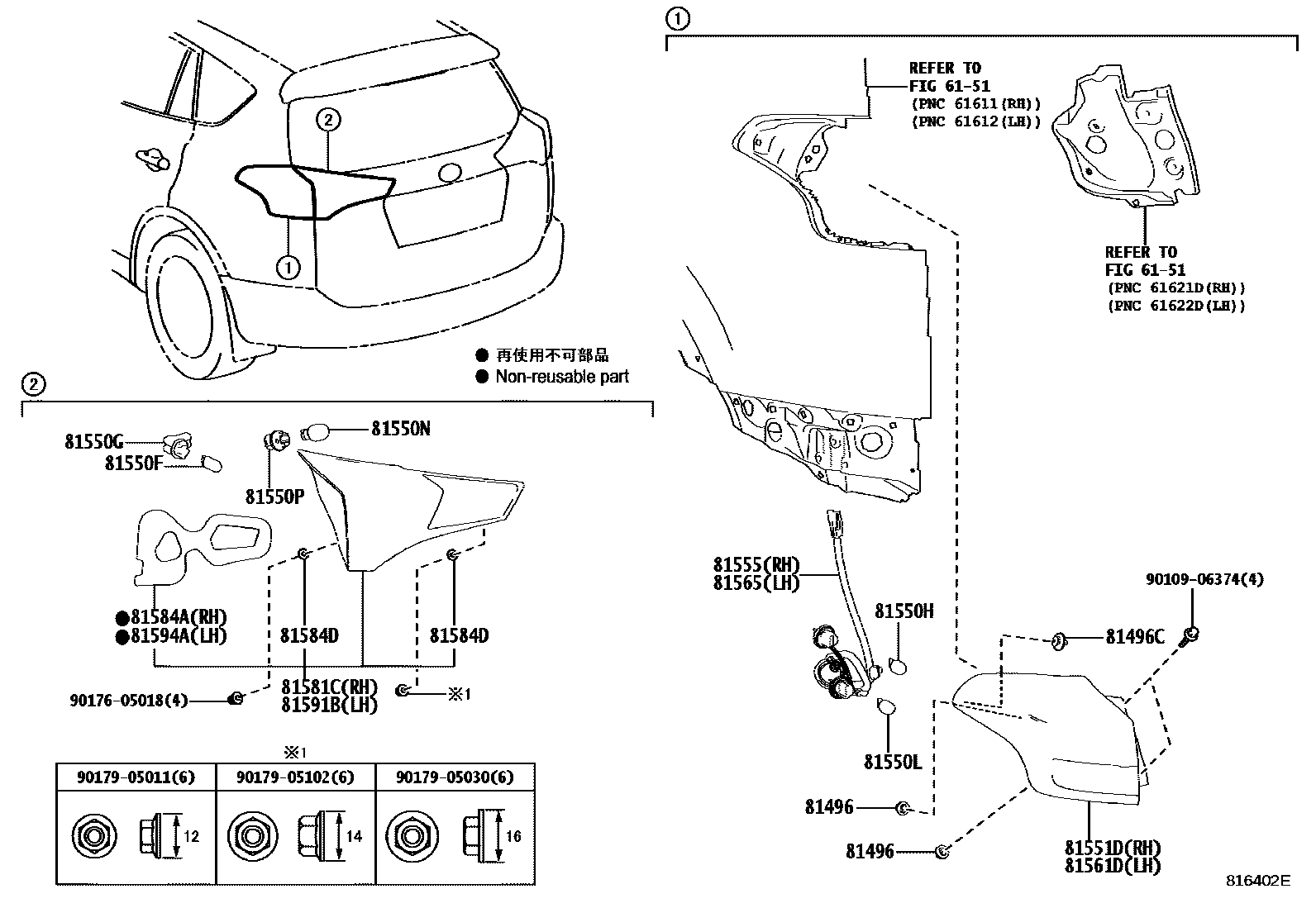

Toyota RAV4 EPC diagram 8111, 后组合灯, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-60010 |
| 81536A | Rear LED combination light | 81536-42200 |
| 81538B | No. 3 right rear combination light gasket | 81538-42200 |
| 81548B | No. 3 left rear combination light gasket | 81538-42200 |
| 81550F | tail light bulb | 90981-11067 |
| 81550G | Tail light lamp holder | 81275-12501 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550L | Rear turn signal light bulb | 90981-13043 · 90981-15011 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550P | Reversing light lamp holder | 81615-12590 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-42170 · 81551-42171 · 81551-42200 · 81551-42201 · 81551-42202 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-42160 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-42170 · 81561-42171 · 81561-42200 · 81561-42201 · 81561-42202 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-42160 |
| 81580D | Right rear light assembly | 81580-42030 · 81580-42031 · 81580-42032 |
| 81581C | Right rear light lampshade and lamp body | 81581-42050 |
| 81584A | Right rear light gasket | 81584-42050 · 81584-42060 |
| 81584D | rear light gasket | 81584-22040 |
| 81585 | Rear lamp holder and wiring harness | 81555-42200 |
| 81590A | Left rear light assembly | 81590-42030 · 81590-42031 · 81590-42032 |
| 81591B | Left rear light shade and body | 81593-42010 |
| 81594A | Left rear light gasket | 81584-42050 · 81594-42020 |
