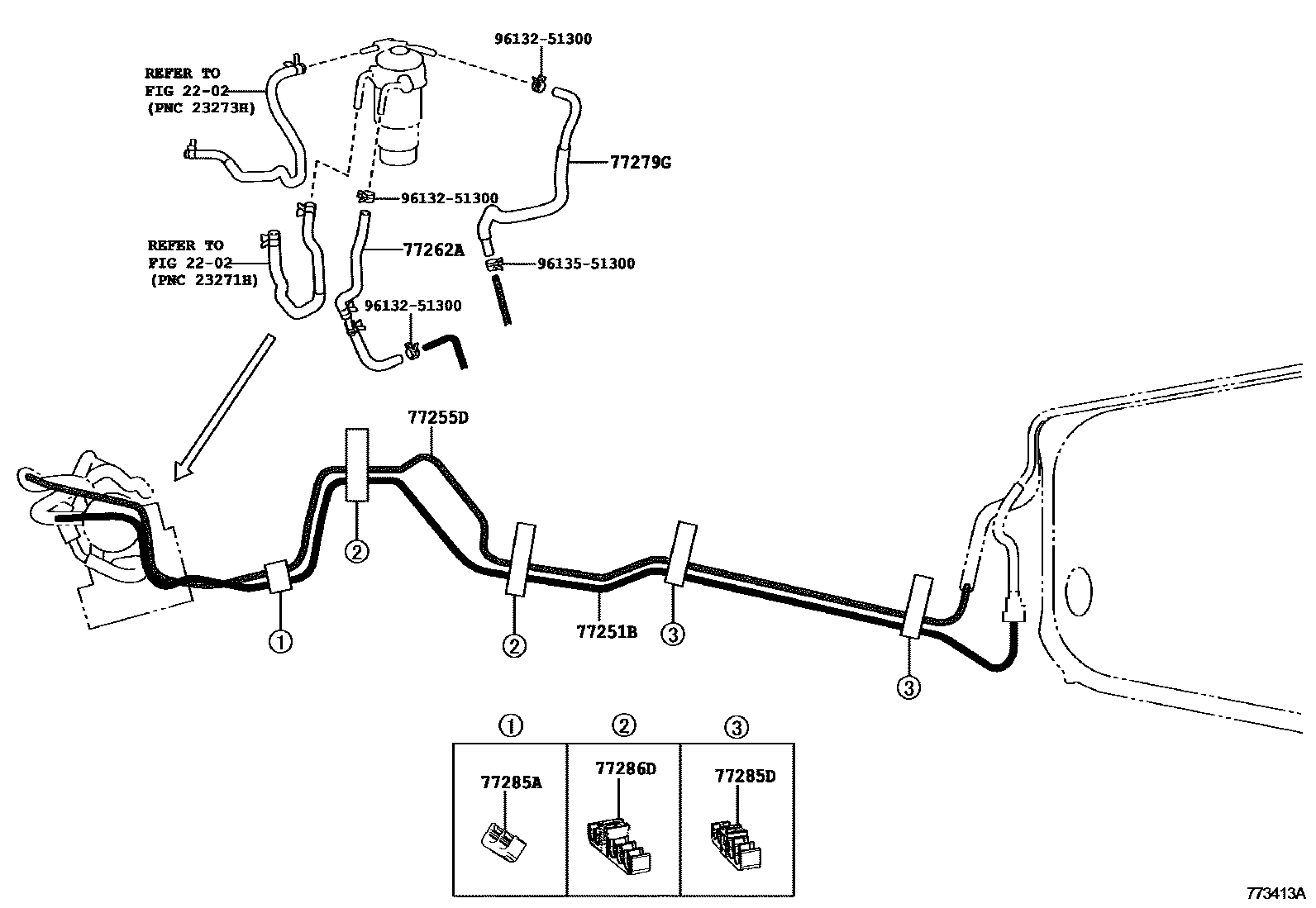

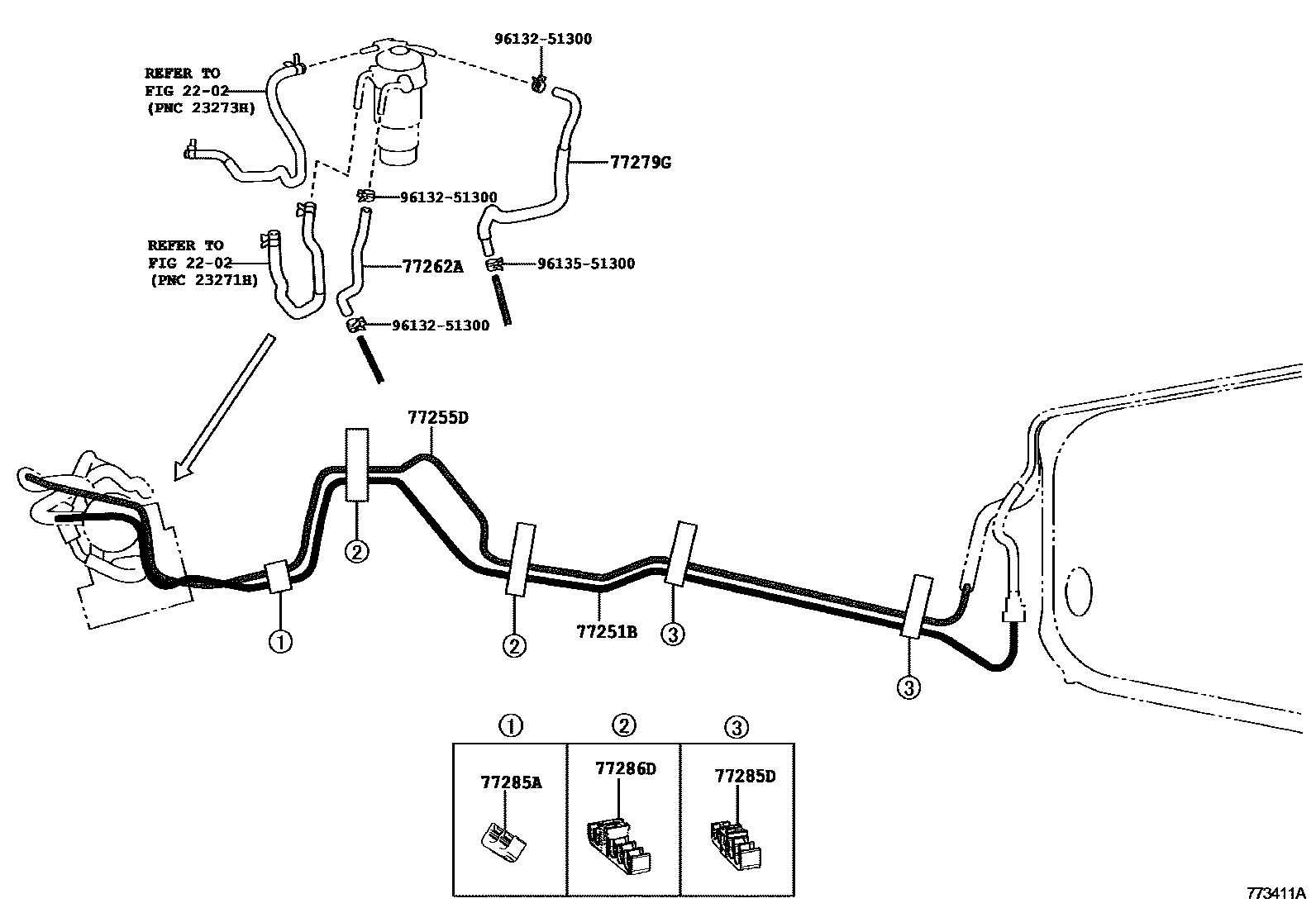

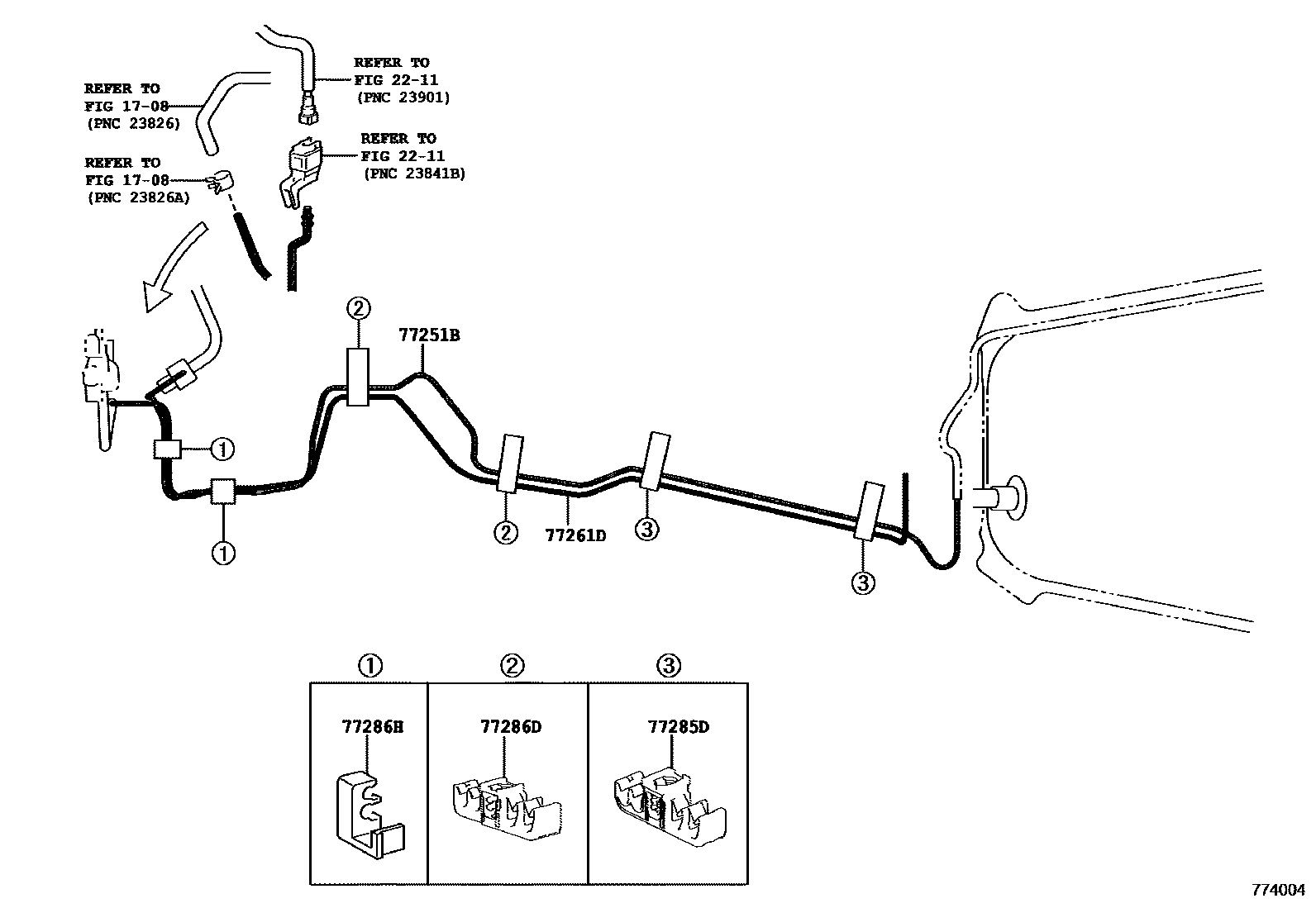

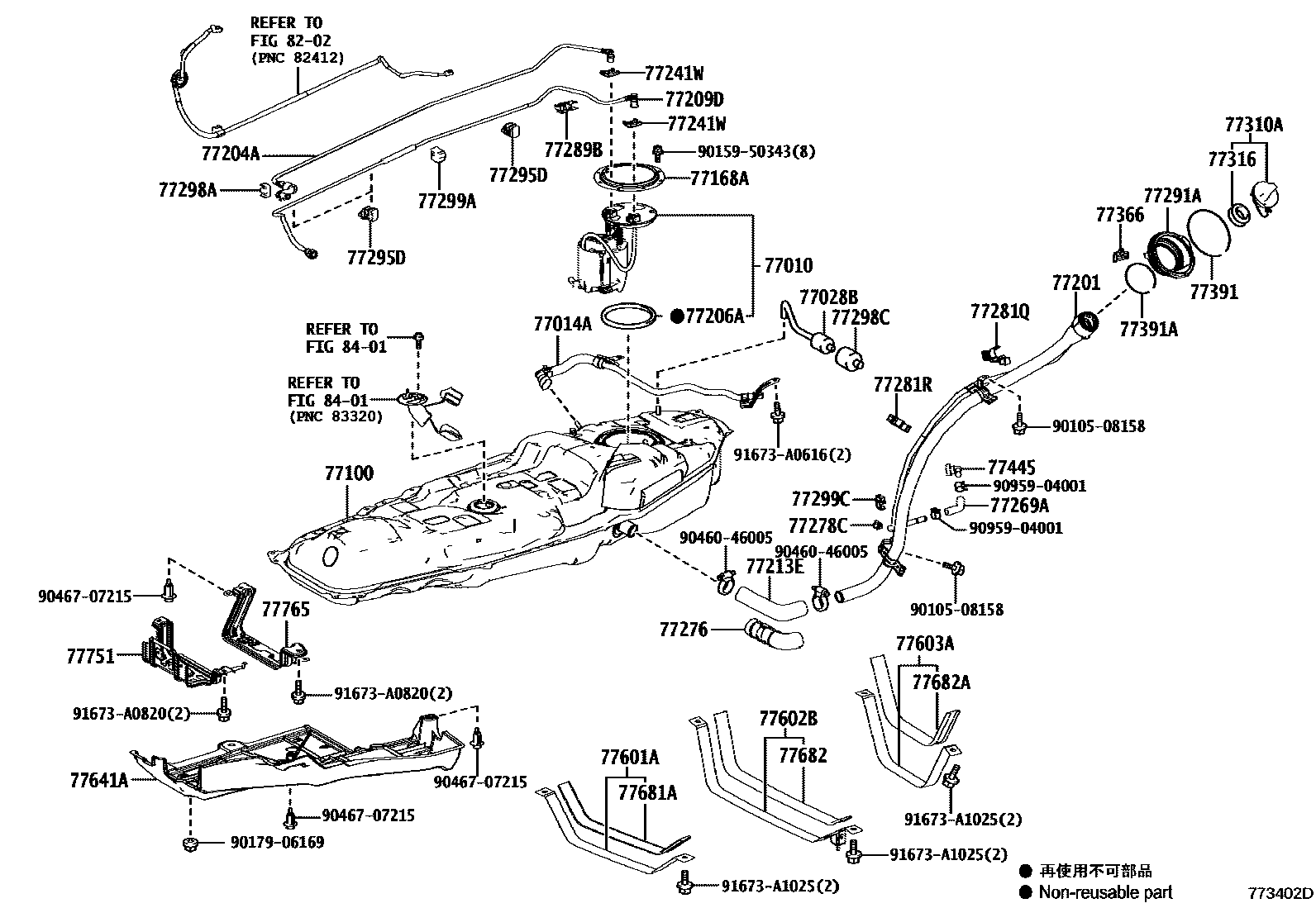

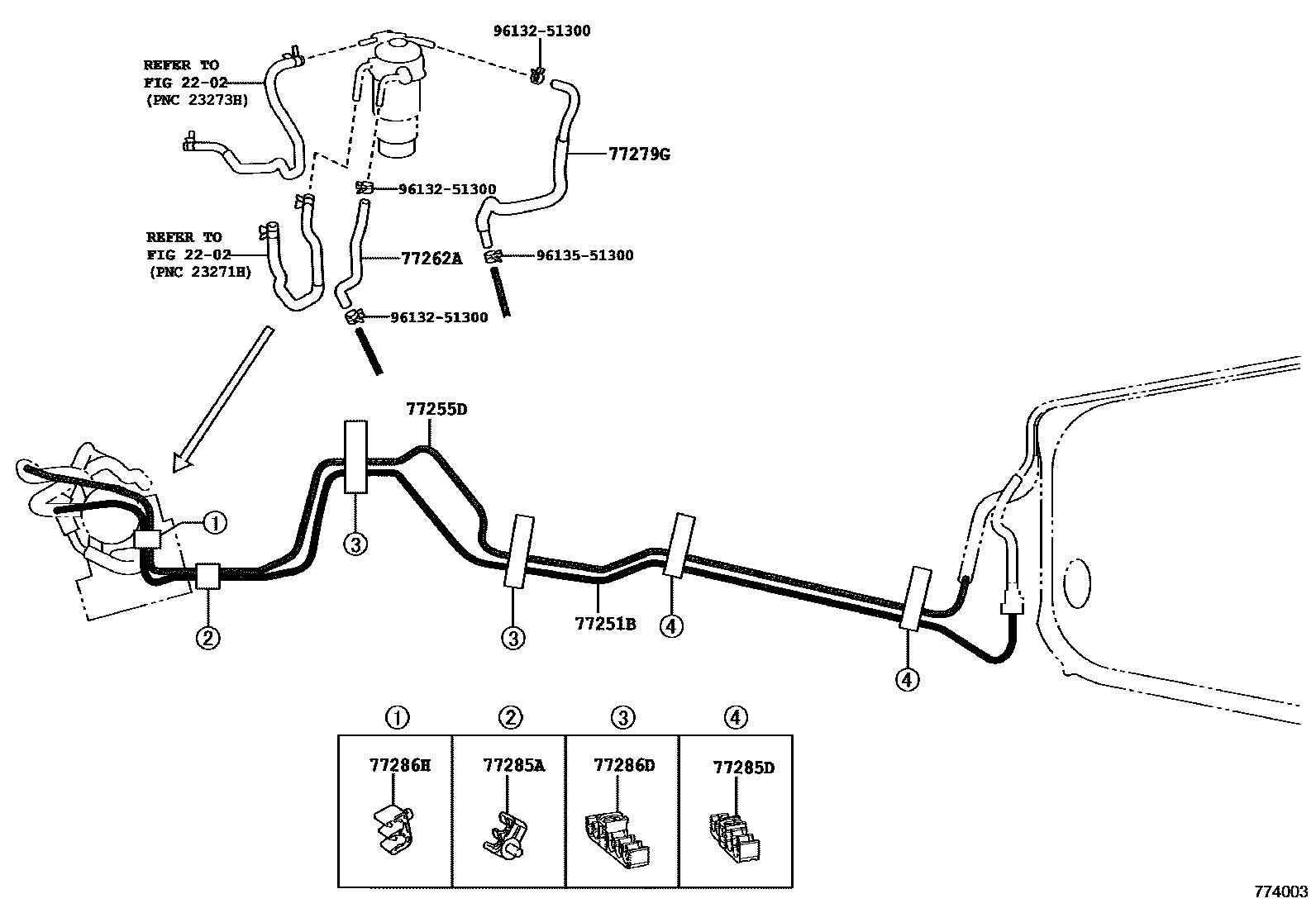

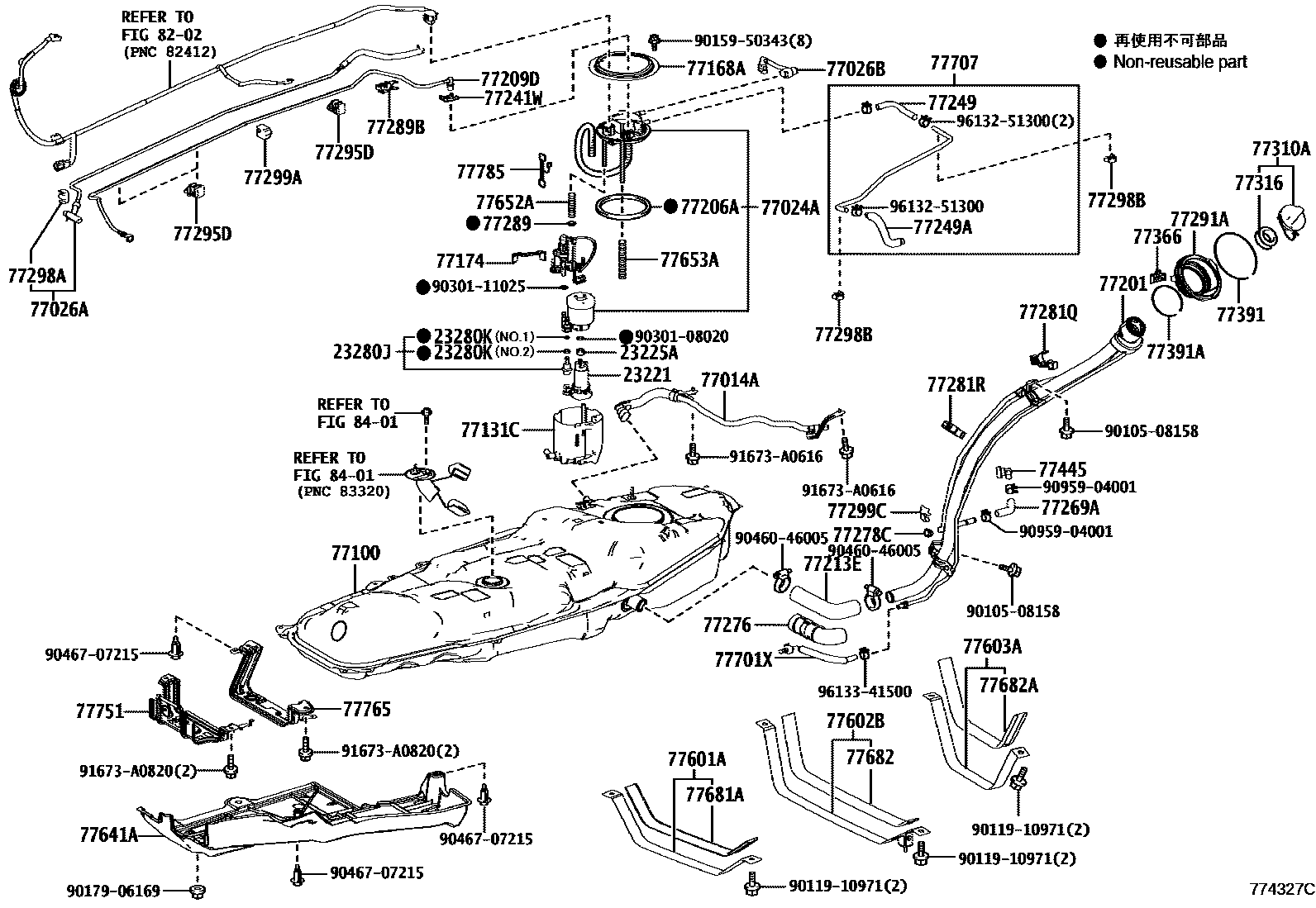

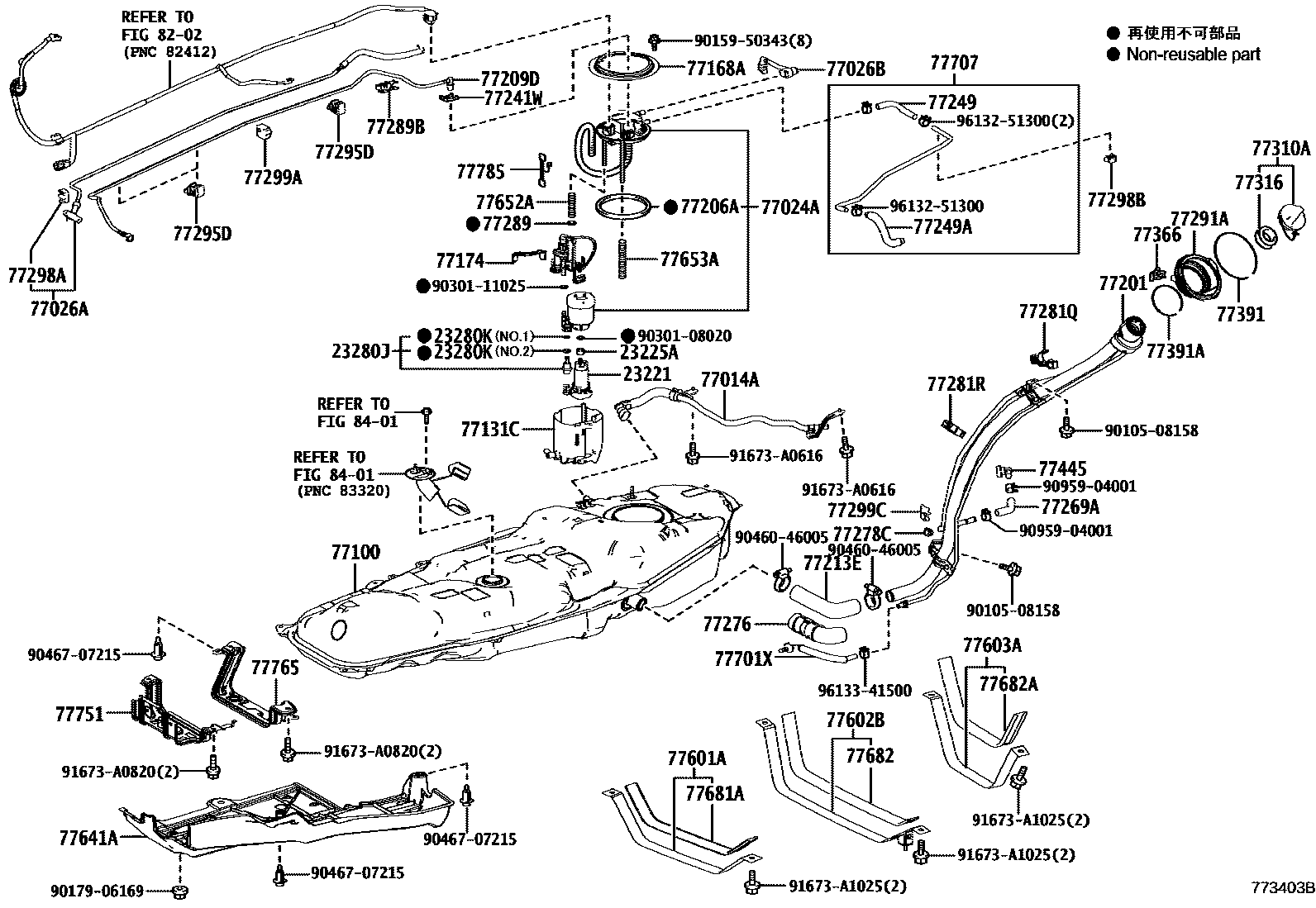

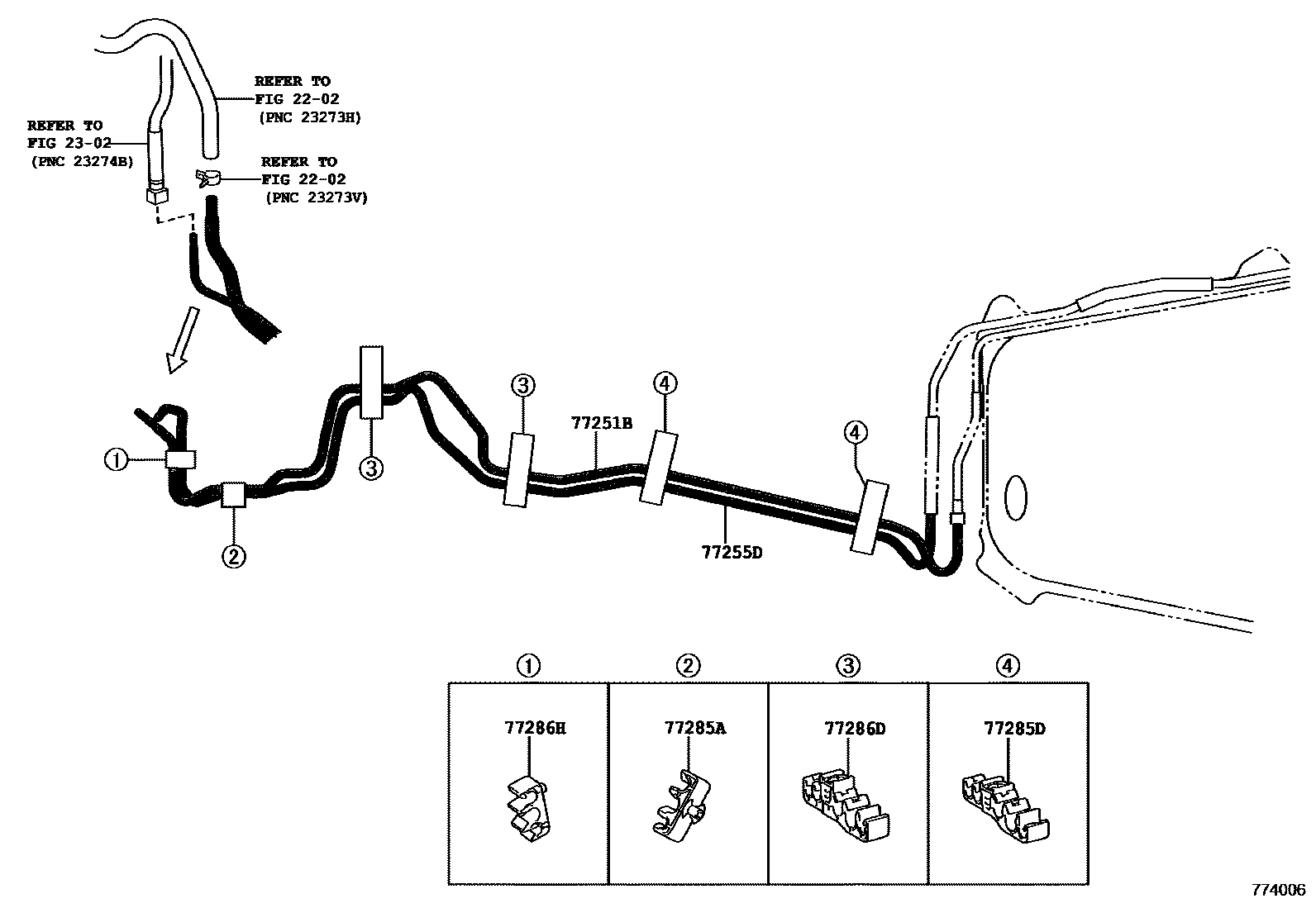

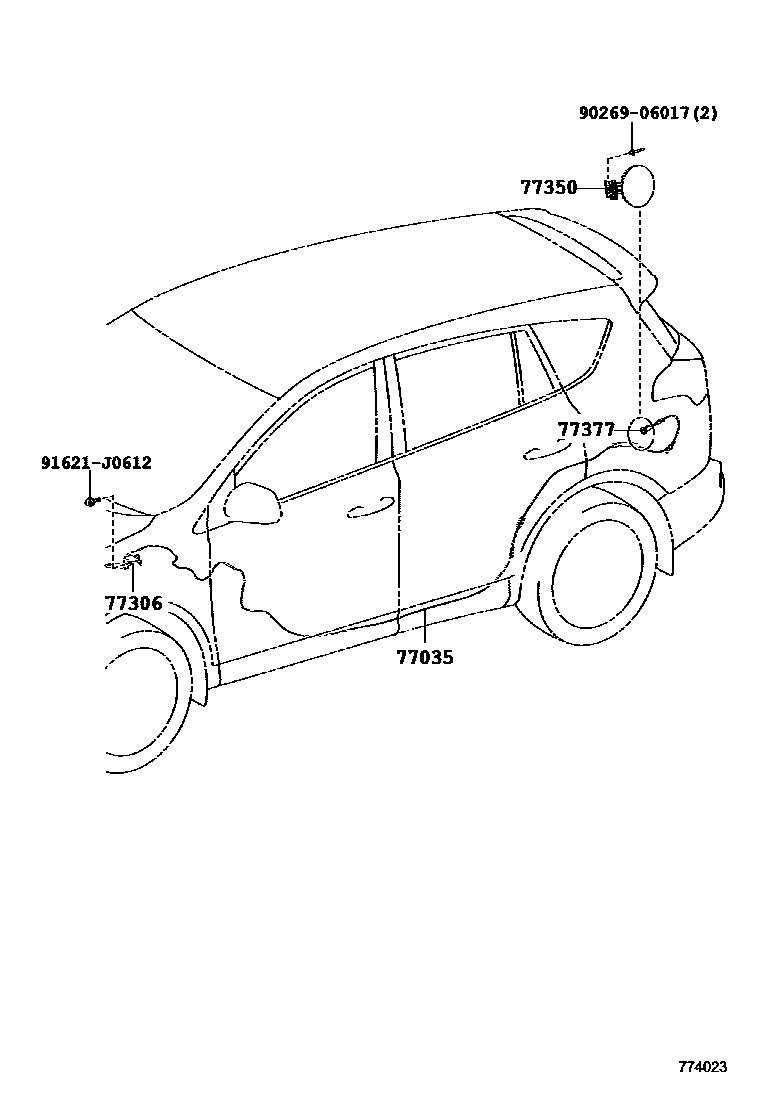

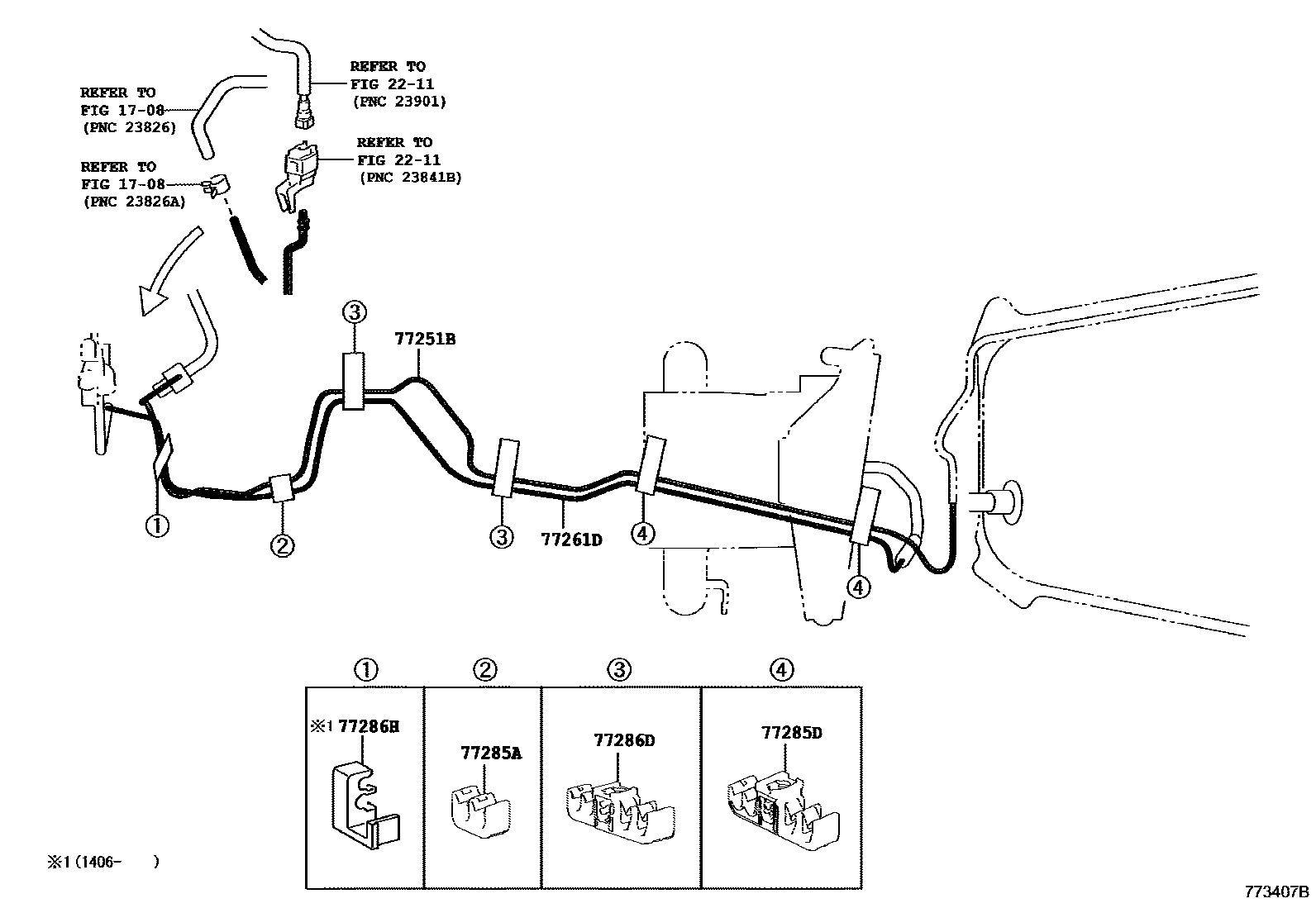

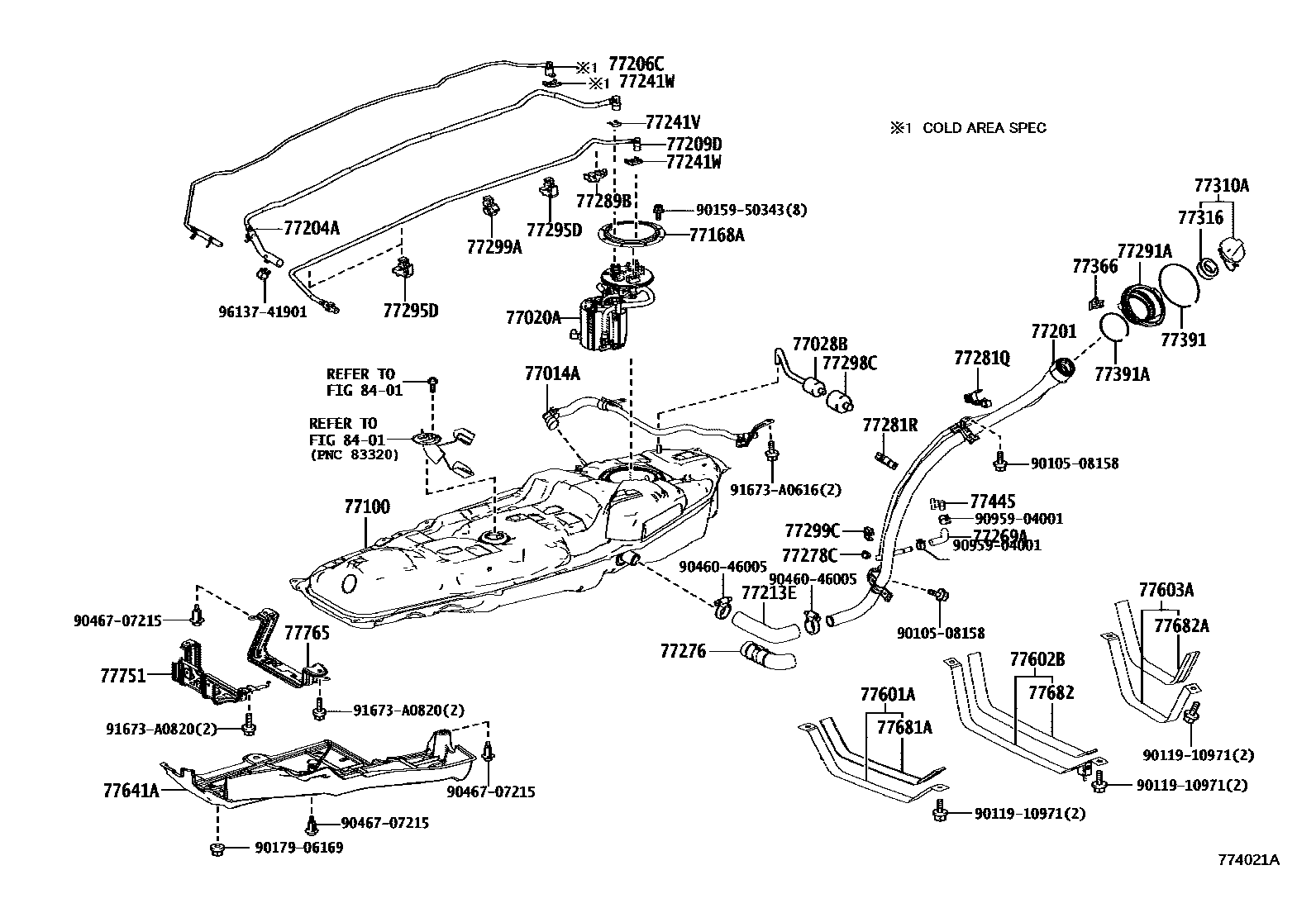

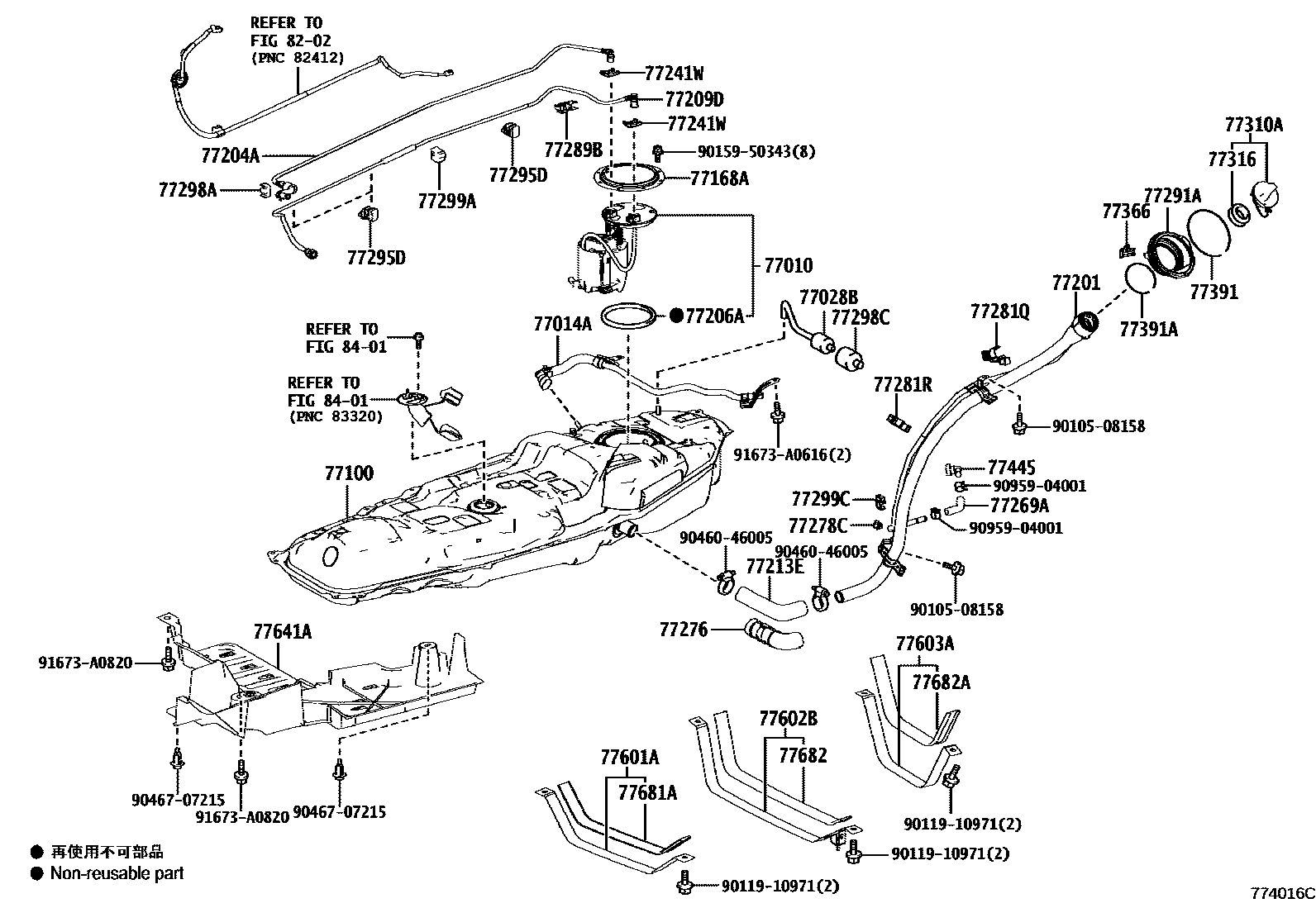

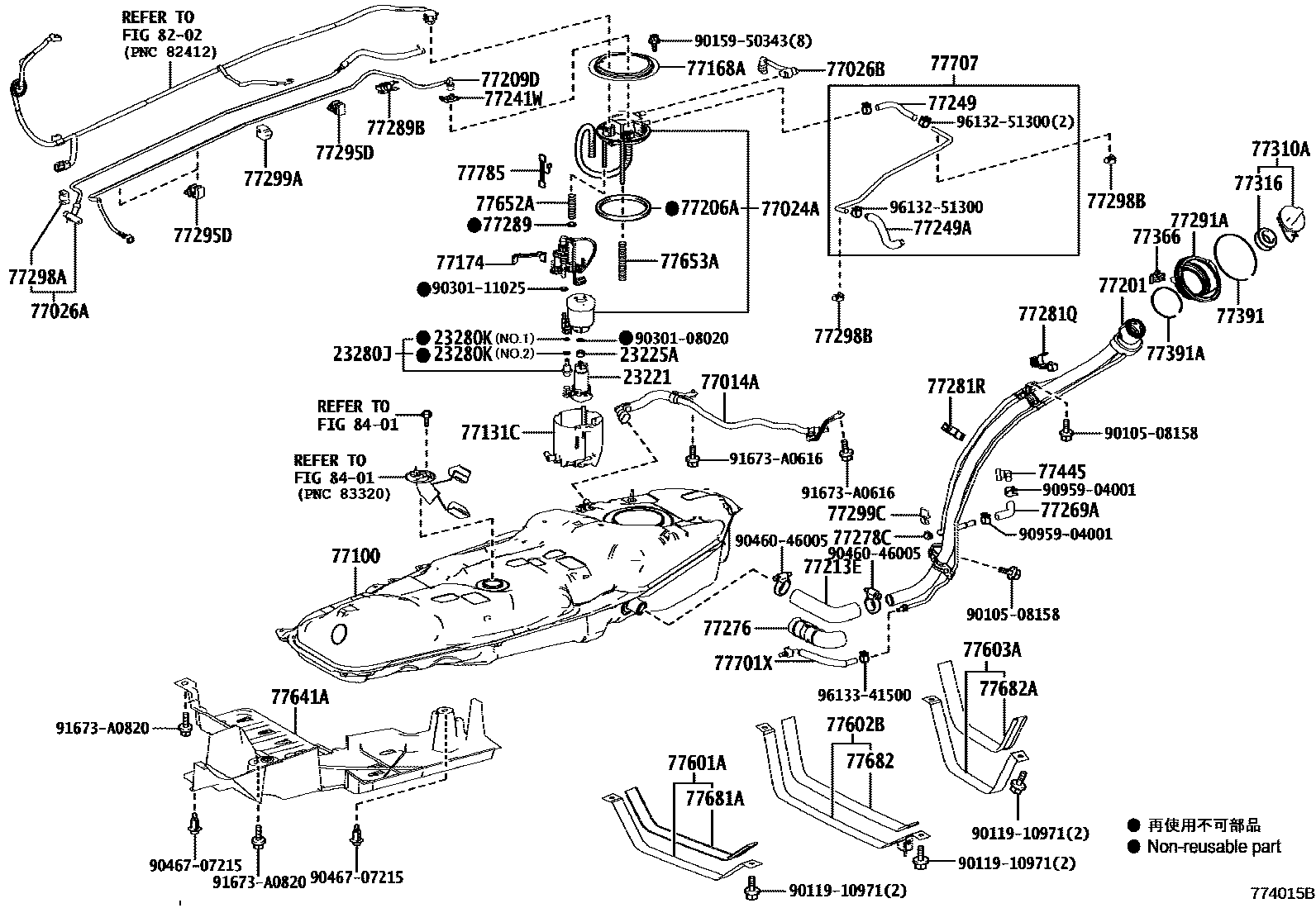

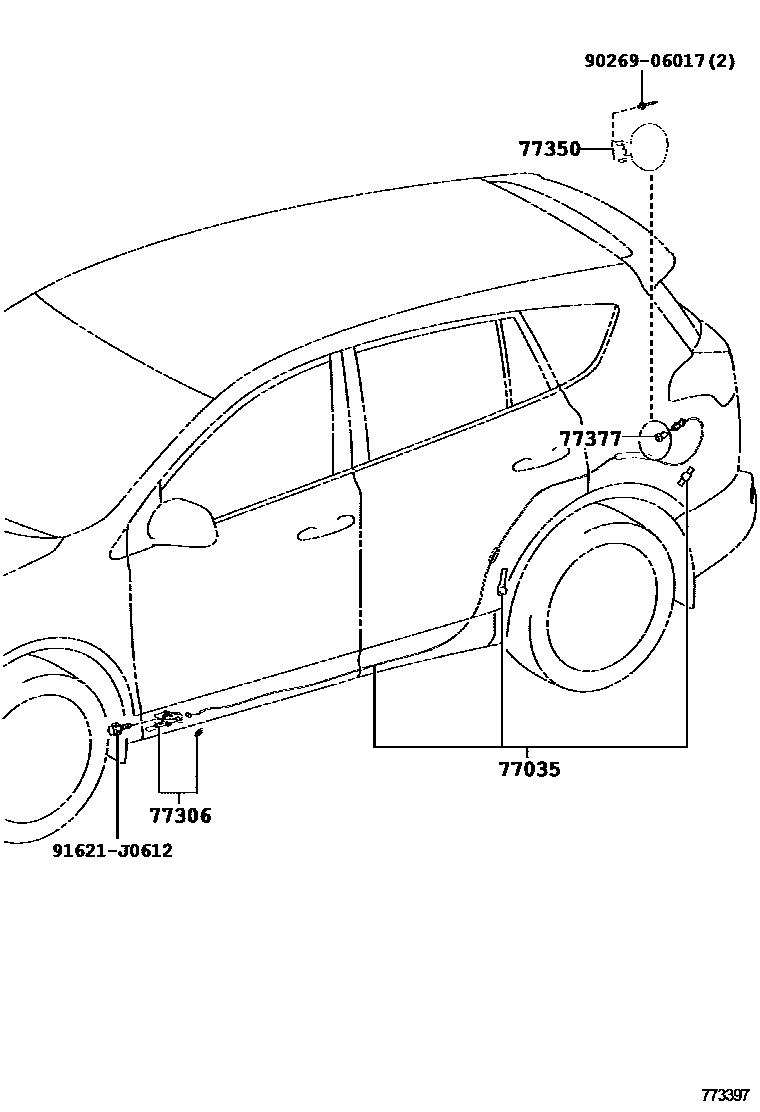

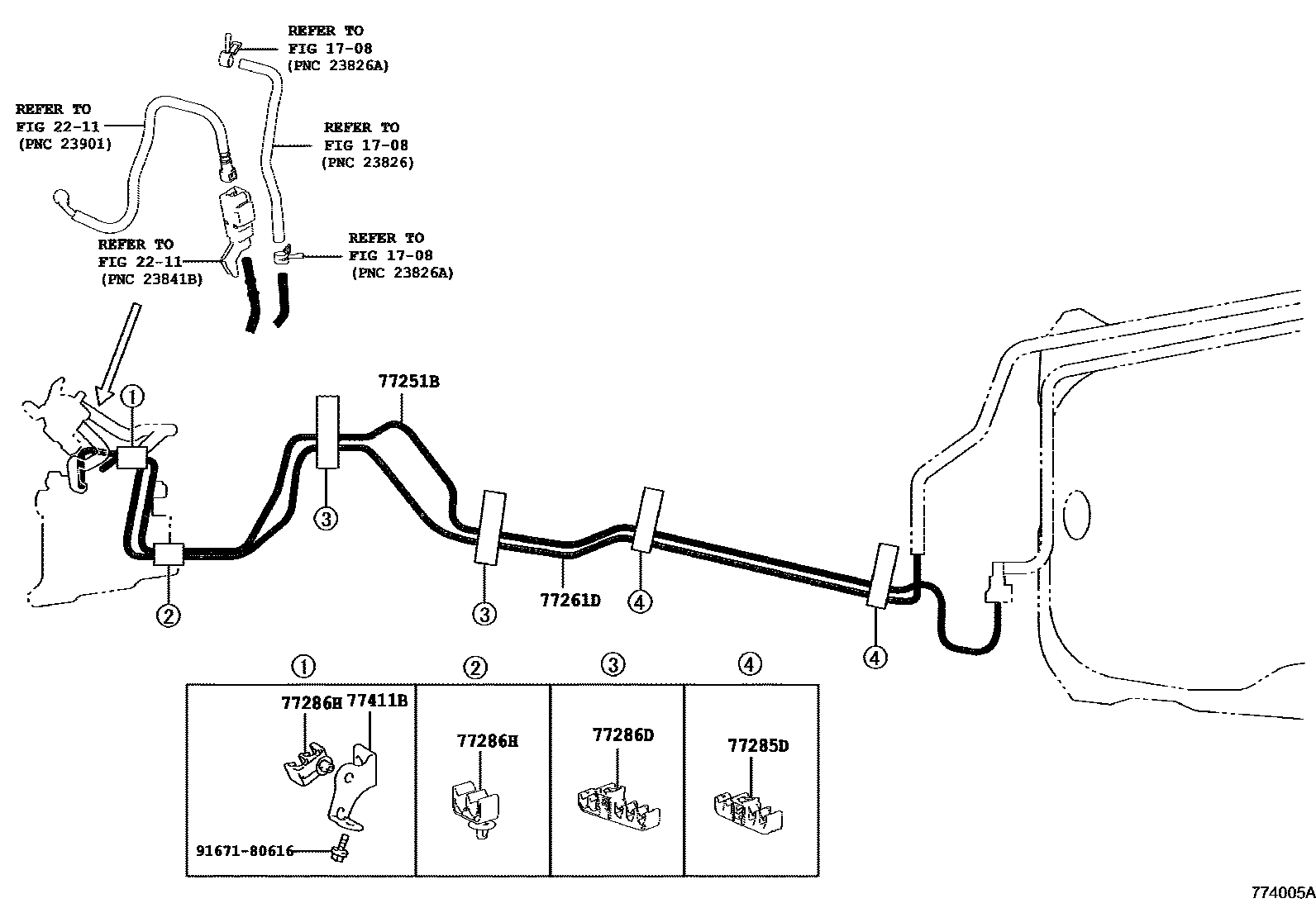

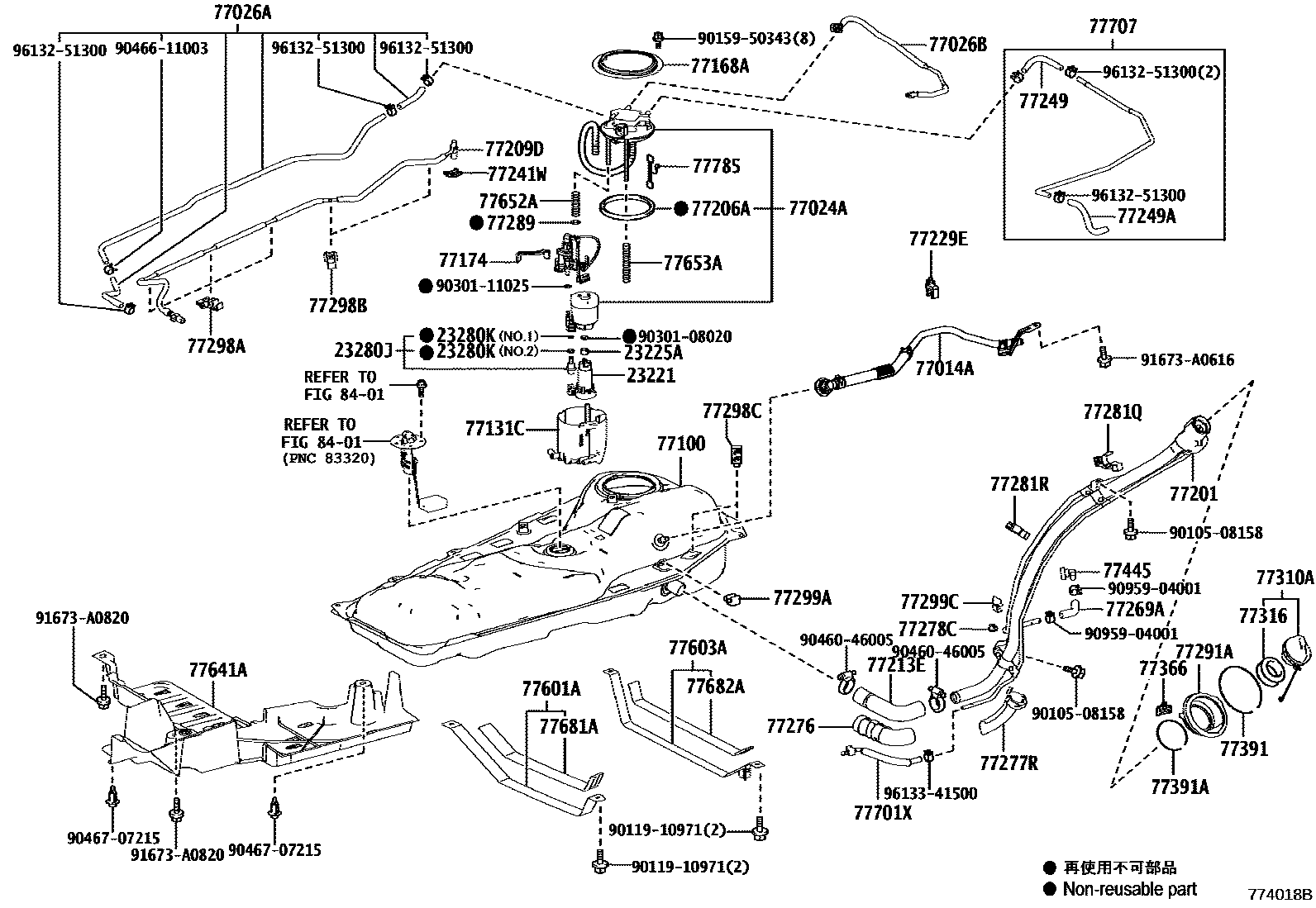

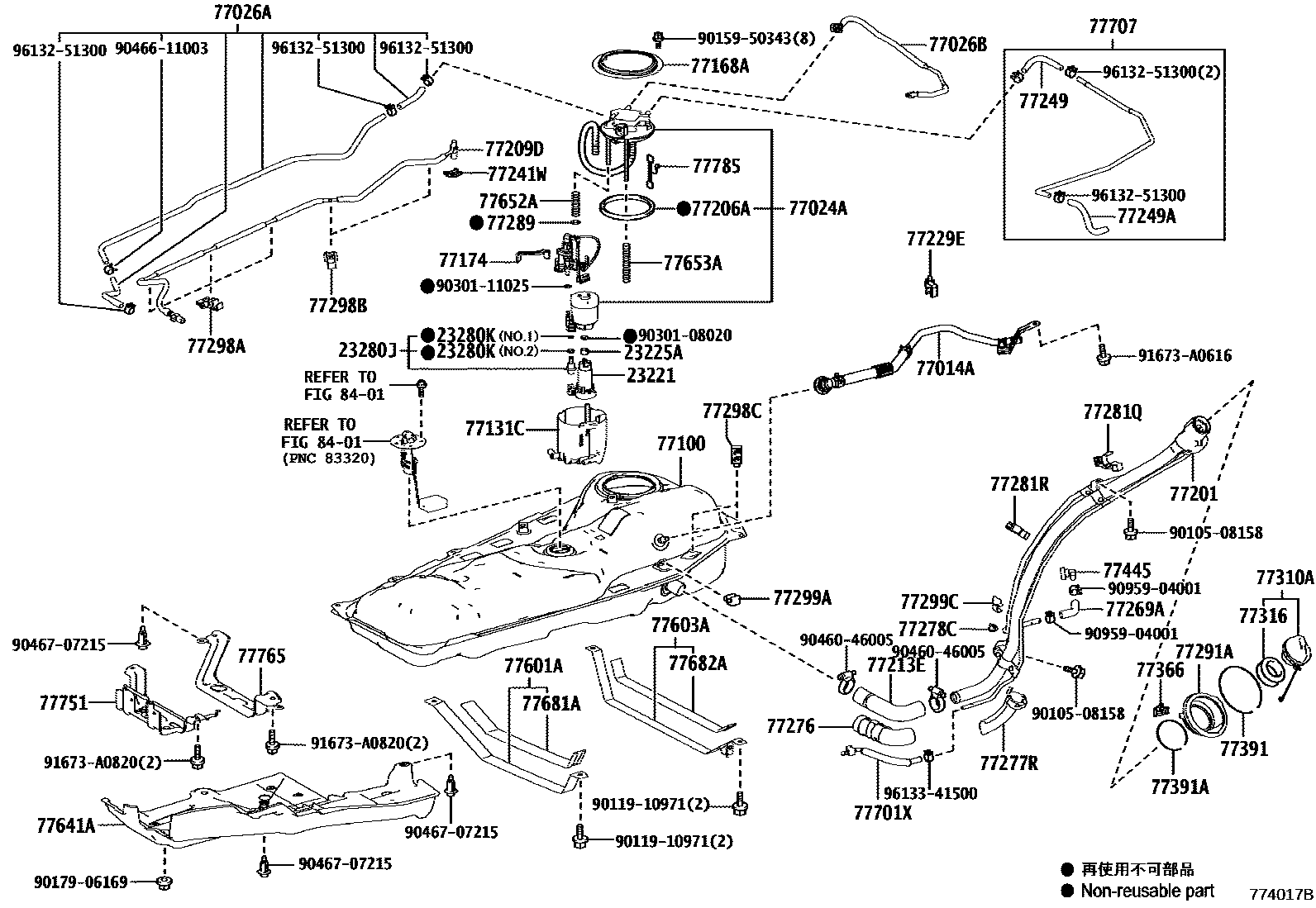

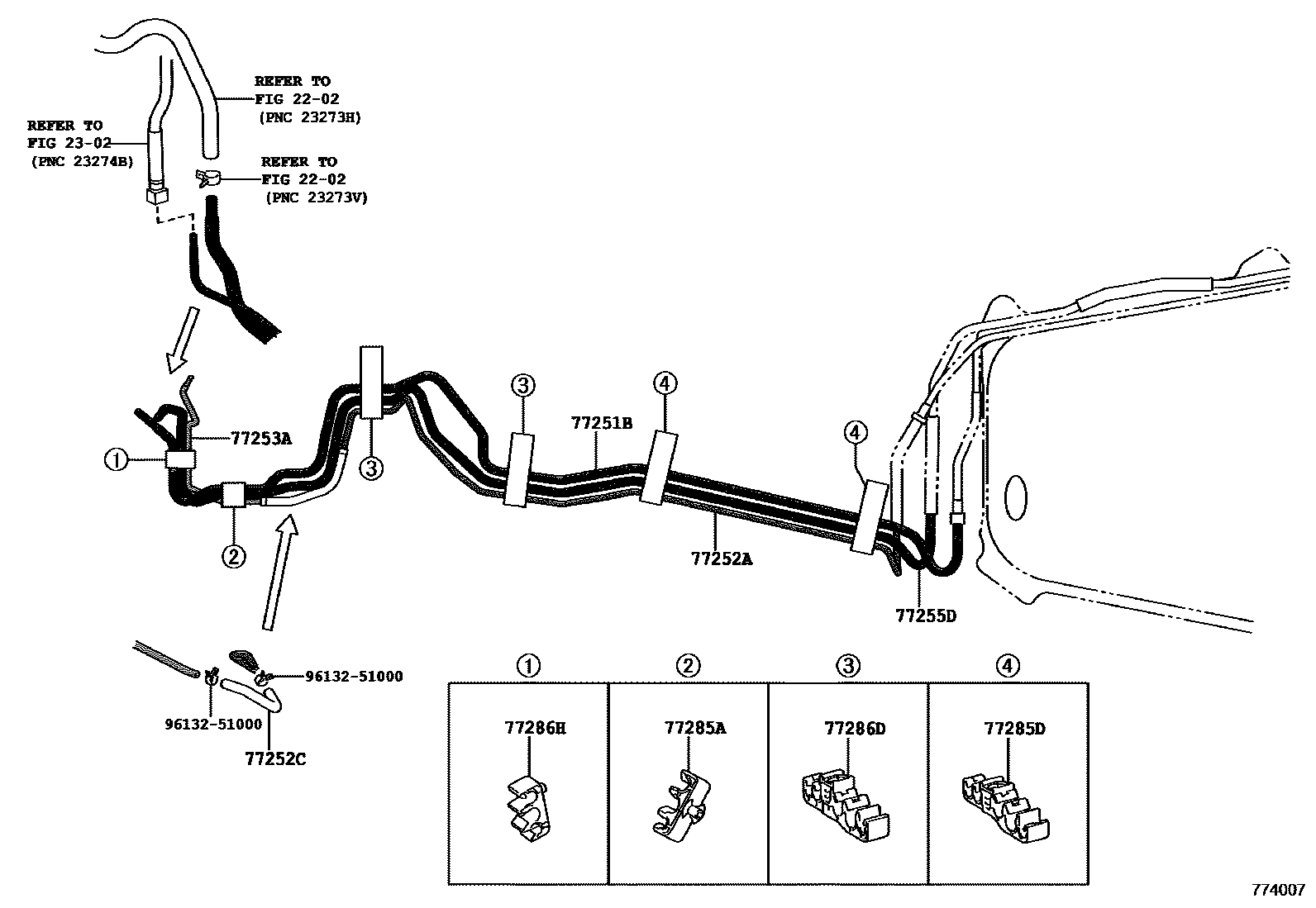

Toyota RAV4 燃油箱和燃油管 — Figure 7751
Toyota RAV4 EPC diagram 7751, 燃油箱和燃油管, with 19 images and 78 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23221 | fuel pump | 23220-36011 |
| 23225A | fuel pump septum | 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 77010 | Fuel tank vent pipe assembly | 77010-42040 |
| 77014A | No. 3 fuel tank breather pipe sub-assembly | 77014-42010 · 77014-42020 · 77014-48011 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-42210 · 77020-42220 |
| 77024A | Fuel absorber sub-assembly | 77024-42110 · 77024-42160 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-42040 · 77026-48030 |
| 77026B | No. 1 fuel evaporation pipe sub-assembly | 77026-42030 · 77026-48020 |
| 77028B | No. 3 fuel evaporation pipe sub-assembly | 77028-42010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-42170 · 77035-42171 · 77035-42180 |
| 77100 | fuel tank assembly | 77001-42221 · 77001-42231 · 77001-42250 · 77001-42270 · 77001-42290 · 77001-42370 · 77001-42380 · 77001-48190 · 77001-48270 |
| 77131C | No. 1 auxiliary fuel tank | 77131-52082 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-52020 |
| 77174 | No. 1 oil suction pipe bracket | 77174-52070 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-42211 · 77201-42212 · 77201-42220 · 77201-42221 |
| 77204A | fuel tank return pipe | 77204-42080 · 77204-42090 |
| 77206A | Gasket (for fuel tank suction pipe) | 77169-52010 |
| 77206C | No. 2 main fuel pipe sub-assembly | 77206-42010 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-42170 · 77209-42180 · 77209-42200 · 77209-48110 |
| 77213E | Fuel tank to filler pipe hose | 77213-42080 · 77213-42100 |
| 77229E | Snorkel clamp | 77229-48060 |
| 77241V | Pipe joint clip | 77241-35450 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77249 | fuel drain hose | 77249-42050 · 77249-48090 |
| 77249A | fuel drain hose | 77249-42070 |
| 77251B | main fuel pipe | 77251-0R070 · 77251-0R080 · 77251-42210 · 77251-42220 · 77251-42230 · 77251-42240 · 77251-48240 · 77251-78030 |
| 77252A | No. 2 main fuel pipe | 77252-42010 |
| 77252C | No. 2 fuel hose (for No. 2 main fuel line) | 95337-04014 |
| 77253A | No. 3 main fuel pipe | 77253-42010 |
| 77255D | fuel return pipe | 77255-0R010 · 77255-42150 · 77255-42160 · 77255-42170 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-0R070 · 77261-42100 · 77261-48250 · 77261-78040 |
| 77262A | No. 1 fuel hose (for the intermediate pipe from the fuel tank to the canister) | 77205-42010 · 77259-42100 |
| 77269A | fuel tank breather hose | 77269-42030 |
| 77276 | Fuel hose protector | 77276-42020 |
| 77277R | Fuel tank filler pipe protection device | 77278-48020 |
| 77278C | No. 2 fuel tank filler pipe protection device | 77278-42030 |
| 77279G | No. 2 fuel hose | 77279-42060 · 77279-42061 |
| 77281Q | PINCE, REMPLISSAGE DU CARBURANT, NO.1 | 77281-42030 |
| 77281R | PINCE, GOULOT DE REMPLISSAGE DU CARBURANT, NO.2 | 77281-42040 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-42110 · 77286-12120 · 77286-42130 · 77286-42140 |
| 77285D | No. 1 fuel pipe clamp | 77298-42040 · 77298-52070 |
| 77286D | No. 2 fuel pipe clamp | 77298-42050 · 77298-68010 |
| 77286H | No. 3 fuel pipe clamp | 77286-42120 · 77286-42130 · 77286-42140 · 77286-48100 · 77286-48180 · 77286-78030 |
| 77289 | Fuel tank pipe holder | 77289-52110 |
| 77289B | No. 3 fuel pipe clamp | 77289-42020 · 77289-42030 |
| 77291A | Fuel tank filler pipe cover | 77291-42050 |
| 77295D | Fuel pipe retaining ring | 77295-42110 · 77295-42130 |
| 77298A | No. 4 fuel pipe clamp | 77298-42030 · 77298-48110 |
| 77298B | No. 4 fuel pipe clamp | 77298-30170 · 77298-48120 |
| 77298C | No. 4 fuel pipe clamp | 77298-42010 · 77298-48130 |
| 77299A | No. 5 fuel pipe clamp | 77298-48140 · 77299-42010 · 77299-42020 |
| 77299C | PINCE (POUR GOULOT DE REMPLISSAGE DE CARBURANT) | 89639-28130 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-32010 · 77306-32020 |
| 77310A | Fuel tank cap assembly | 77300-20020 · 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-42090 |
| 77366 | Fuel filler cap hinge spring | 77366-52010 |
| 77377 | Fuel filler cap lock retainer | 77377-75010 |
| 77391 | fuel inlet ring | 77391-30020 |
| 77391A | fuel inlet ring | 77391-12020 |
| 77411B | No. 1 fuel pipe retaining ring bracket | 77411-48080 |
| 77445 | No. 2 fuel tank vent connector | 77445-42020 · 77445-42050 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-42090 · 77601-42091 · 77601-78010 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-42030 · 77602-42031 |
| 77603A | No. 2 fuel tank strap sub-assembly | 77602-42040 · 77603-42030 · 77603-42031 |
| 77641A | No. 1 fuel tank protective shell | 77641-42040 · 77641-42060 |
| 77652A | No. 2 fuel tank liner | 77652-42020 |
| 77653A | No. 3 fuel tank liner | 77652-42030 |
| 77681A | Fuel tank strap seat | 77681-42020 · 77681-60210 |
| 77682 | Fuel tank left side strap seat | 77681-21010 |
| 77682A | No. 2 fuel tank strap seat | 77681-42010 · 77681-78010 |
| 77701X | No. 1 carbon canister outlet hose sub-assembly | 77701-42040 |
| 77707 | Carbon canister outlet hose sub-assembly | 77707-42030 · 77707-48070 |
| 77751 | Carbon canister base bracket | 77751-0R030 · 77751-78020 |
| 77765 | Carbon canister protective cover | 77765-0R030 · 77765-78020 |
| 77785 | fuel pump wiring harness | 77785-42050 |
