Toyota RAV4 防护条 — Figure 7552

Toyota RAV4 EPC diagram 7552, 防护条, with 1 images and 21 PNC and OE references.

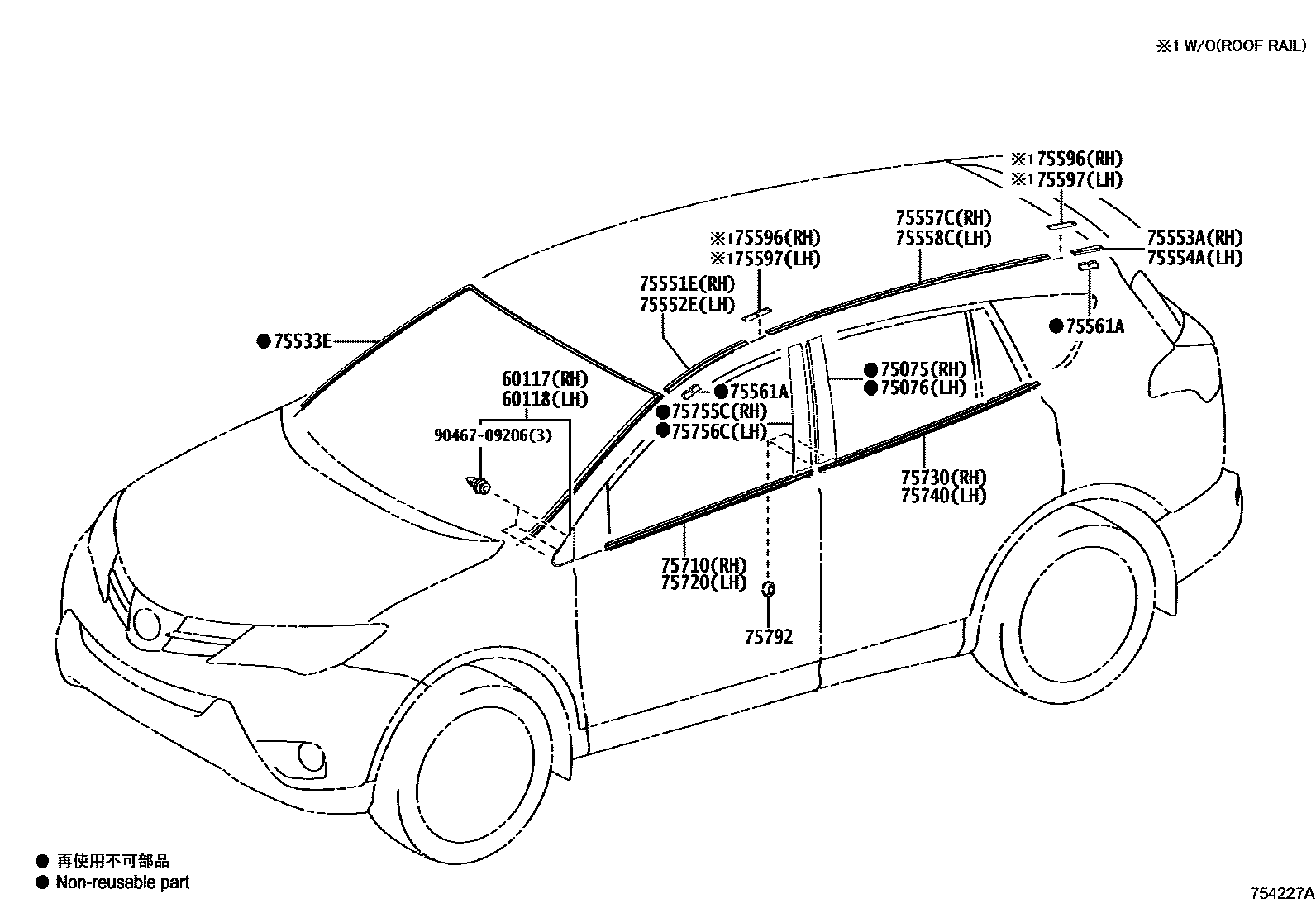

Toyota RAV4 防护条 EPC diagram — 754227A
防护条 — 754227A (201212 – 999999)

PNC and OE references

PNCPart nameOE numbers
60117Right front pillar upper cover sub-assembly60117-42020
60118Left front pillar upper cover sub-assembly60118-42020
75075Right rear door outer protective strip sub-assembly75075-42080
75076Left rear door outer protective strip sub-assembly75076-42080
75533EWindshield outer protective strip75533-42060
75551EDrainage groove side decorative strip on the right side of the roof75551-42040
75552EDrainage groove side decorative strip on the left side of the roof75552-42040
75553ADecorative strip on the right side of the roof, rear gutter side75553-42030
75554ADecorative strip on the left side of the roof, rear gutter side75554-42030
75557CDecorative strip on the middle section of the drainage channel on the right side of the No. 2 roof75557-42050 · 75557-42060 · 75557-42061
75558CDecorative strip on the side of the drainage channel in the middle section of the left roof of No. 2 car75557-42050 · 75557-42060 · 75557-42061
75561ARoof drain channel side decorative strip clip75561-52020
75596Drainage channel side decorative strip joint cover on the right side of the roof75596-35030
75597Drainage channel side decorative strip joint cover on the left side of the roof75596-35030
75710Right front door waistline protection strip assembly75710-42040
75720Left front door waistline protection strip assembly75720-42040
75730Right rear door waistline protection strip assembly75730-42040
75740Left rear door waistline protection strip assembly75740-42040
75755CRight front door window frame rear protective strip75755-42010
75756CLeft front door window frame rear protective strip75756-42010
75792Car door window frame protective strip clip75792-47010
