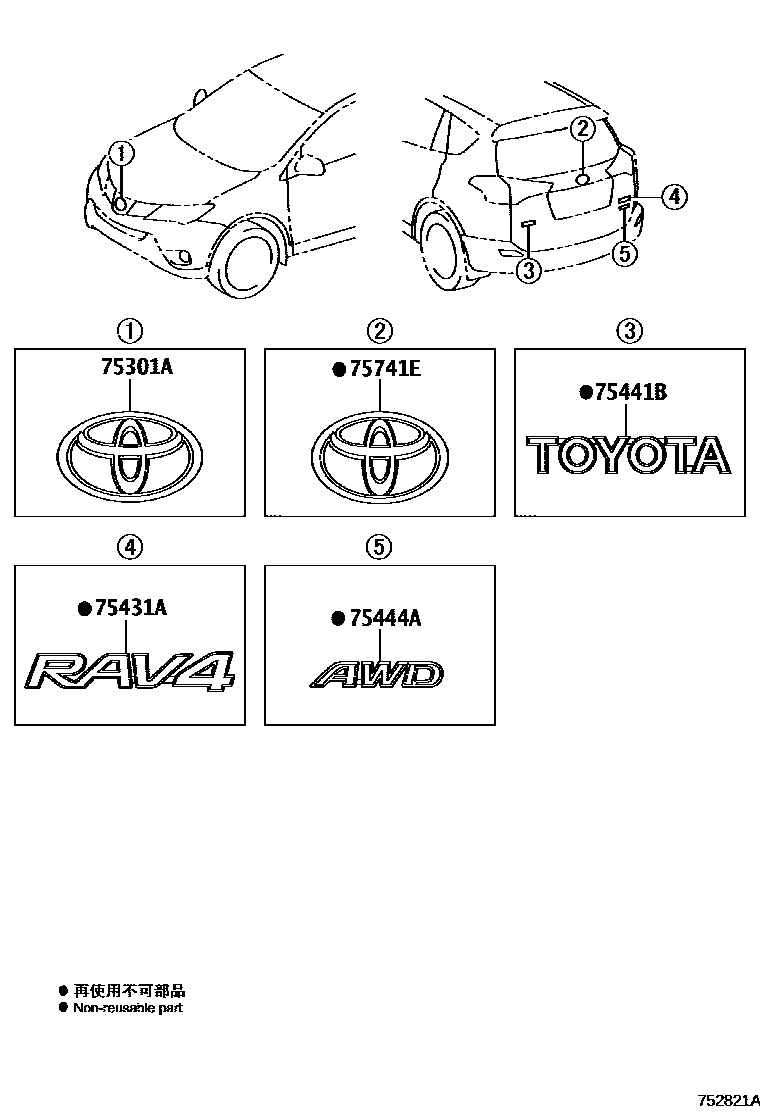

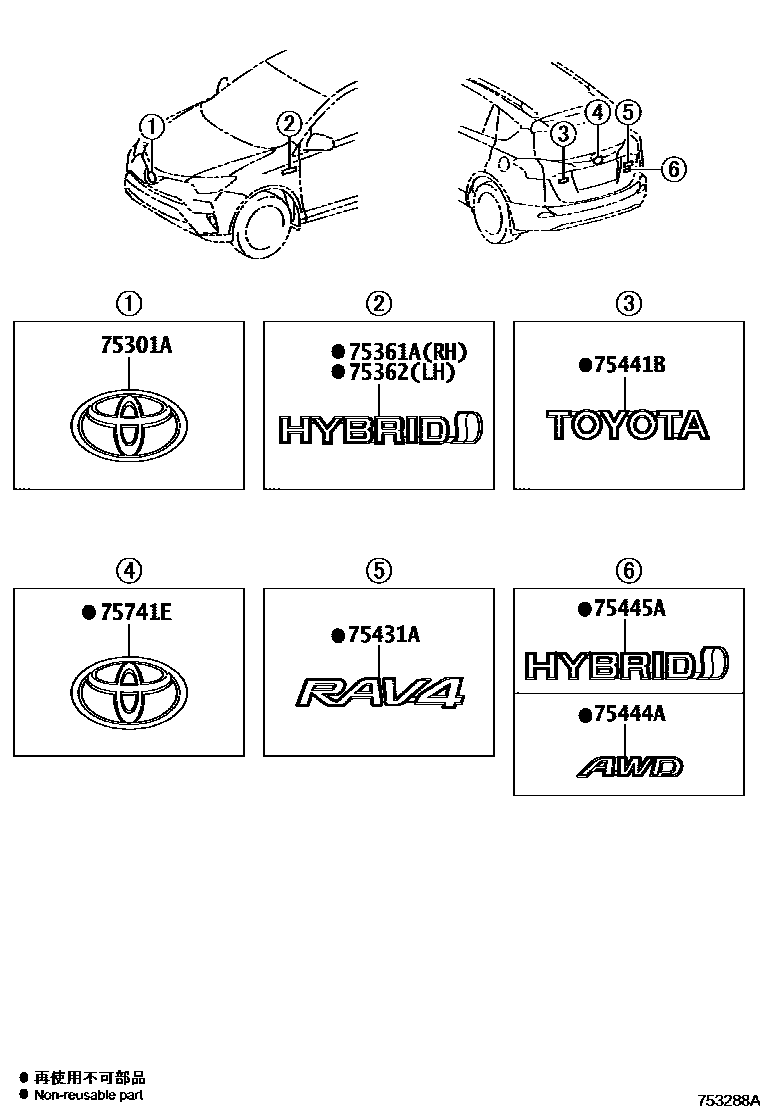

Toyota RAV4 徽标和铭牌 — Figure 7551
Toyota RAV4 EPC diagram 7551, 徽标和铭牌, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75301A | Front bumper sign sub-assembly | 53141-33130 · 53141-33140 · 53141-42020 · 53141-47030 · 75301-12400 · 75301-12430 · 75301-42050 · 75301-42051 · 75301-42070 · 75301-42071 · 75301-42080 · 75301-42081 |
| 75361A | Front fender No. 1 nameplate | 75361-42030 · 75361-42031 |
| 75362 | Front fender No. 2 nameplate | 75362-42030 · 75362-42031 |
| 75431A | No. 1 sign on back door | 75431-42100 · 75431-42120 · 75431-42160 · 75431-42170 |
| 75441B | Back door nameplate | 75441-42070 · 75441-42080 · 75441-42090 · 75441-42100 |
| 75444A | No. 4 nameplate on back door | 75444-42060 · 75444-42100 · 75444-42140 · 75444-42150 |
| 75445A | No. 5 nameplate on back door | 75445-42010 · 75445-42011 |
| 75741E | logo | 75403-42020 · 75403-42030 · 75403-42040 · 90975-02071 · 90975-02127 |
