Toyota RAV4 warning nameplate — Figure 7455

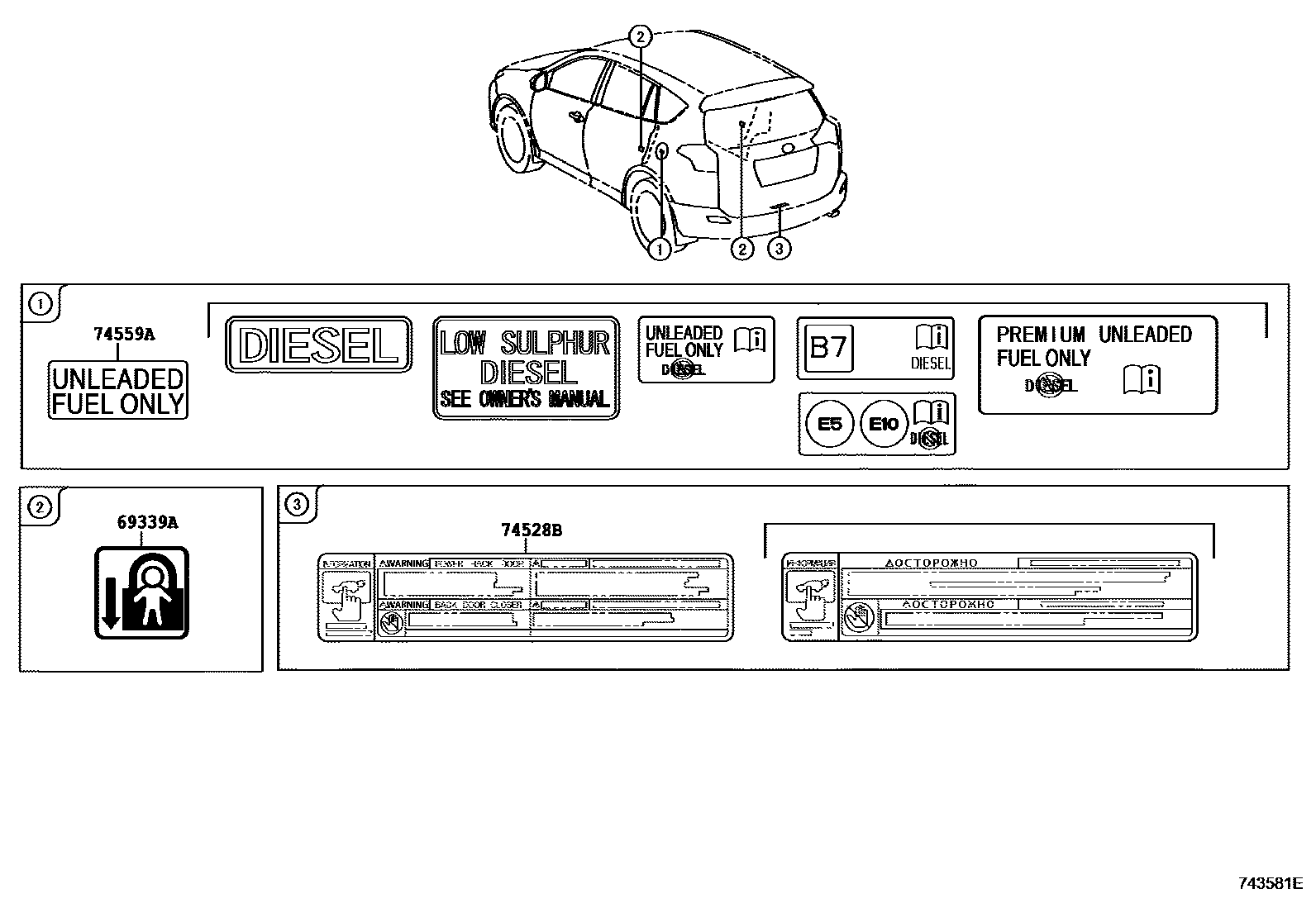

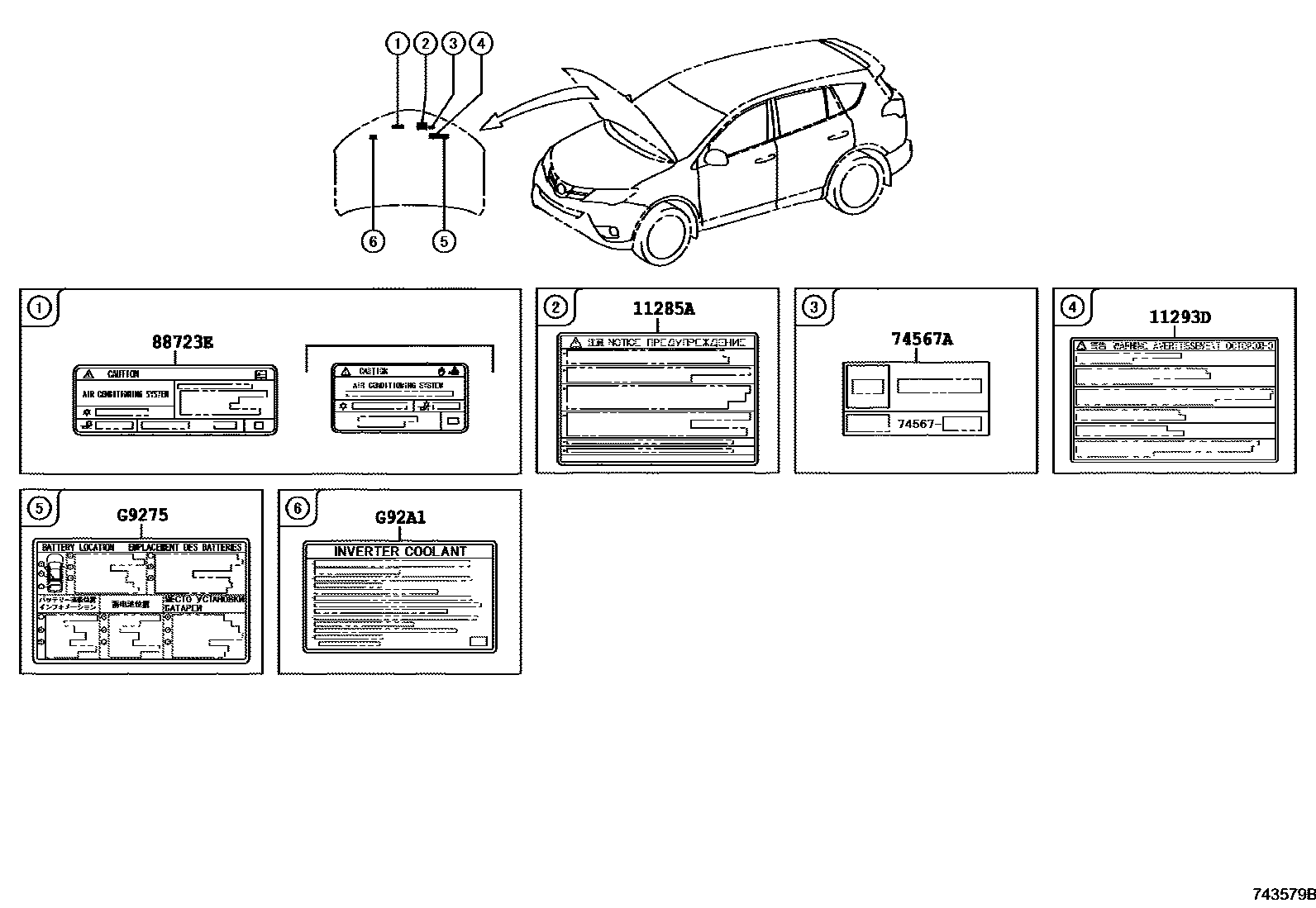

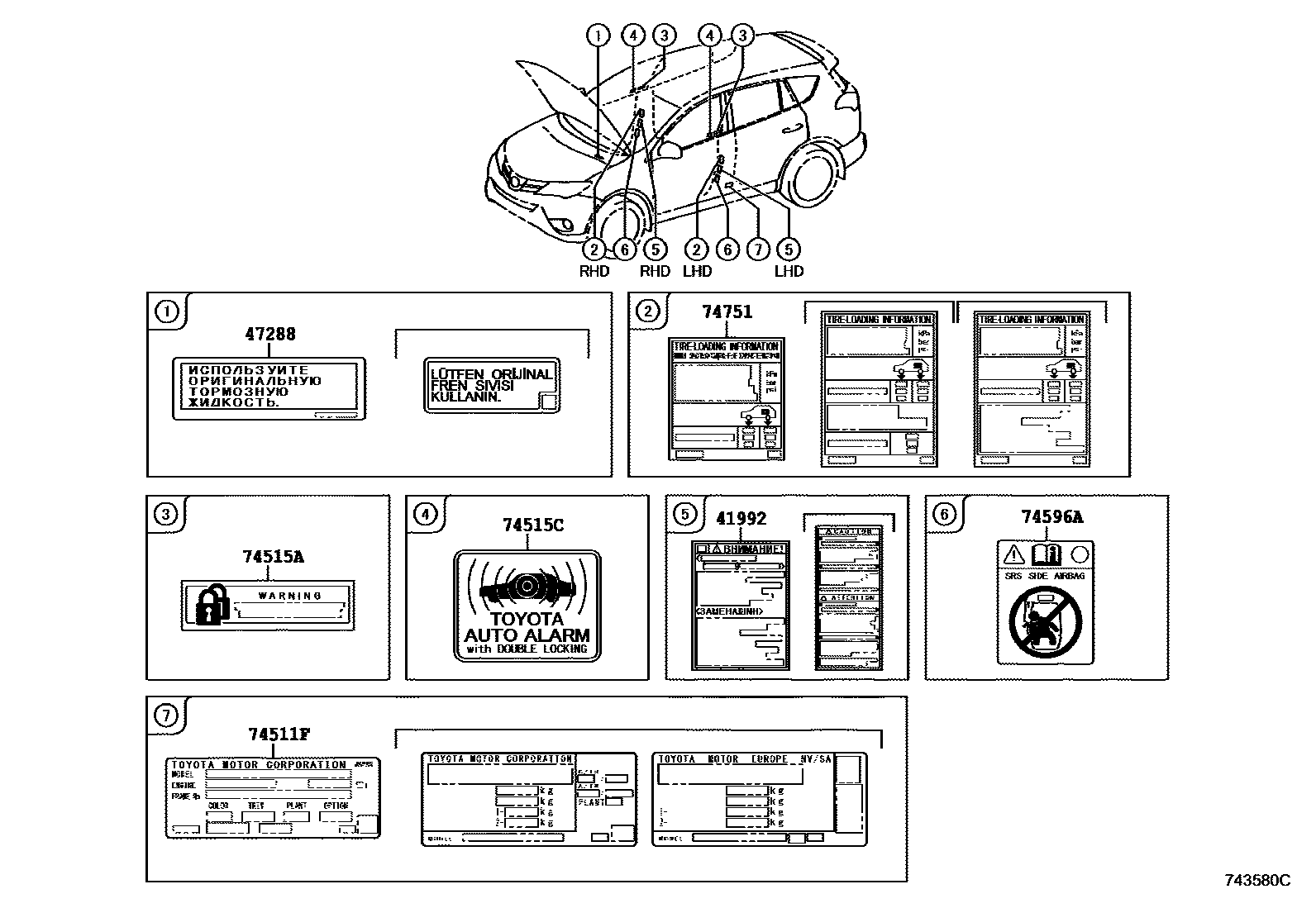

Toyota RAV4 EPC diagram 7455, warning nameplate, with 6 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-37060 |
| 11291B | PLAQUE INDICATRICE DE MOTEUR | 11291-36040 |
| 11293D | engine warning label | 11293-36070 |
| 16793E | ETIQUETTE, PRECAUTION VENT REFROIDISSEMENT | 16793-31040 · 16793-36030 · 16793-36050 |
| 28897B | ETIQUETTE, AVERTISSEMENT DE BATTERIE, NO.1 | 28897-36010 |
| 28897C | ETIQUETTE, AVERTISSEMENT DE BATTERIE, NO.2 | 28897-36020 |
| 41992 | Differential attention label | 41992-42040 · 41992-48020 |
| 47288 | Brake Fluid Caution Label | 47288-33010 · 47288-64010 |
| 69339A | Child Restraint Lock Warning Nameplate | 69339-33040 |
| 74501B | SERIE D'ETIQUETTES, AVERTISSEMENT | 74501-12010 · 74501-64010 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 · 74511-30A20 · 74511-48020 · 74511-48030 · 74511-60480 |
| 74515A | Anti-theft warning nameplate | 74515-20010 · 74515-42010 |
| 74515C | Anti-theft warning information label | 74515-42010 |
| 74528B | Back door warning label | 74528-42010 · 74528-42011 · 74528-42020 · 74528-42021 |
| 74541B | Small spare tire warning plate | 42668-42020 · 42668-42040 · 42668-42080 · 42668-52020 |
| 74541E | Small spare tire warning plate | 42668-42010 |
| 74559A | Fuel warning plate | 74559-11030 · 74559-14050 · 74559-20120 · 74559-20140 · 74559-42010 · 74559-60030 · 74559-89101 |
| 74567A | E.C.E approval number plate | 74567-20261 · 74567-25041 · 74567-64030 |
| 74596A | Side air bag warning label | 74596-53012 · 74596-74020 |
| 74598A | Passenger air bag warning label | 74598-20010 |
| 74751 | tire pressure information label | 42661-42350 · 42661-42370 · 42661-42480 · 42661-42520 · 42661-42610 · 42661-42620 · 42661-42630 · 42661-42660 · 42661-42670 · 42661-42680 · 42661-42681 · 42661-42690 · 42661-42750 · 42661-42760 · 42661-42770 · 42661-42790 · 42661-42820 · 42661-42831 · 42661-42850 · 42661-42860 · 42661-42870 |
| 88723E | Cooler maintenance warning label | 88723-30150 · 88723-30160 · 88723-30240 · 88723-42070 |
| G9275 | No. 1 battery warning label | G9275-48050 |
| G92A1 | HV coolant system information label | G92A1-76010 |
