Toyota RAV4 battery holder — Figure 7454

Toyota RAV4 EPC diagram 7454, battery holder, with 4 images and 9 PNC and OE references.

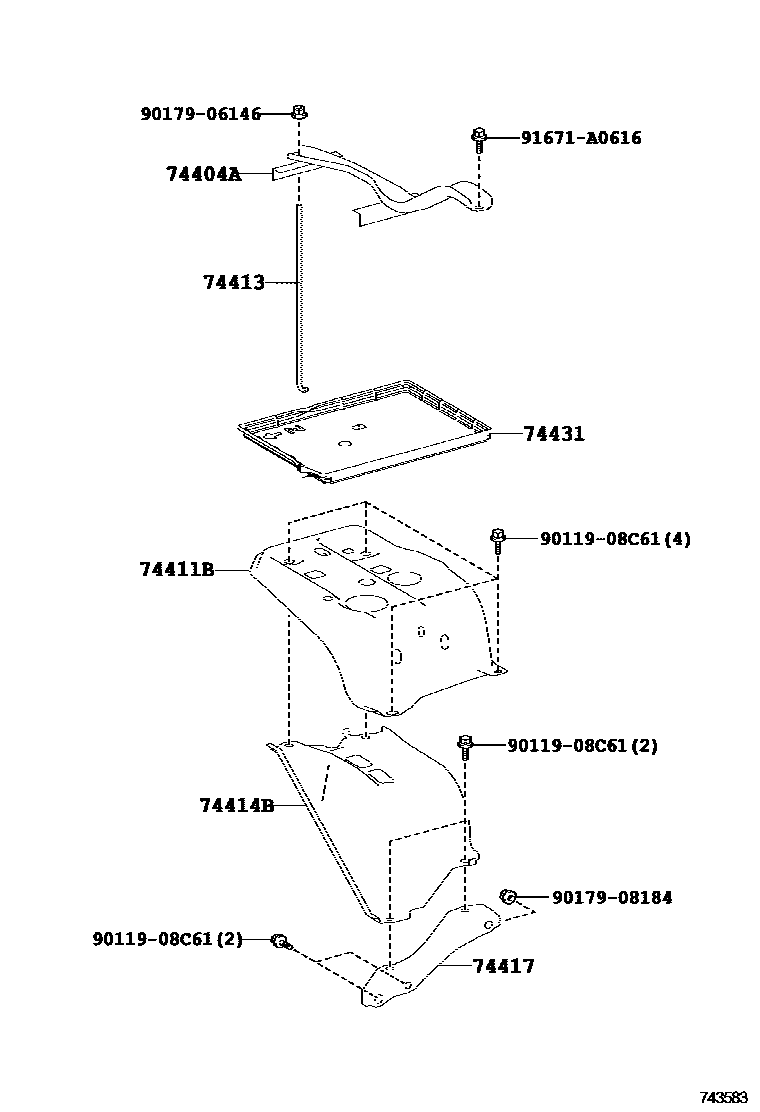

Toyota RAV4 battery holder EPC diagram — 743583
battery holder — 743583 (201212 – 999999)

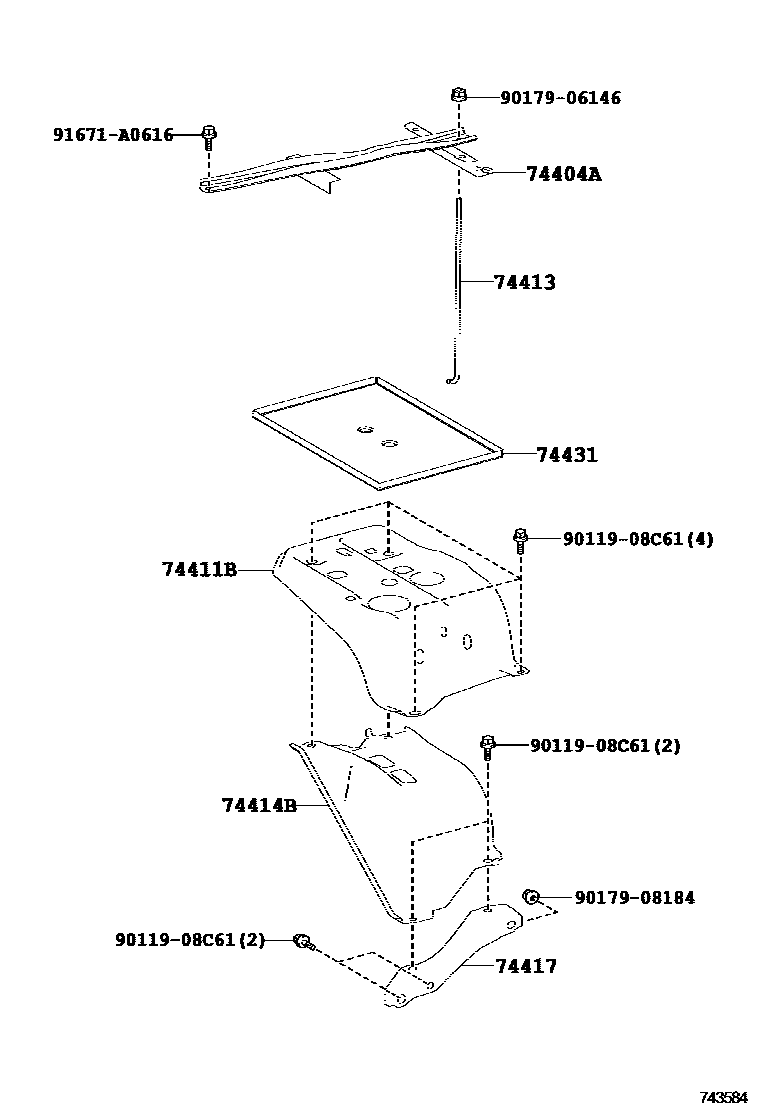

Toyota RAV4 battery holder EPC diagram — 743584
battery holder — 743584 (201212 – 999999)

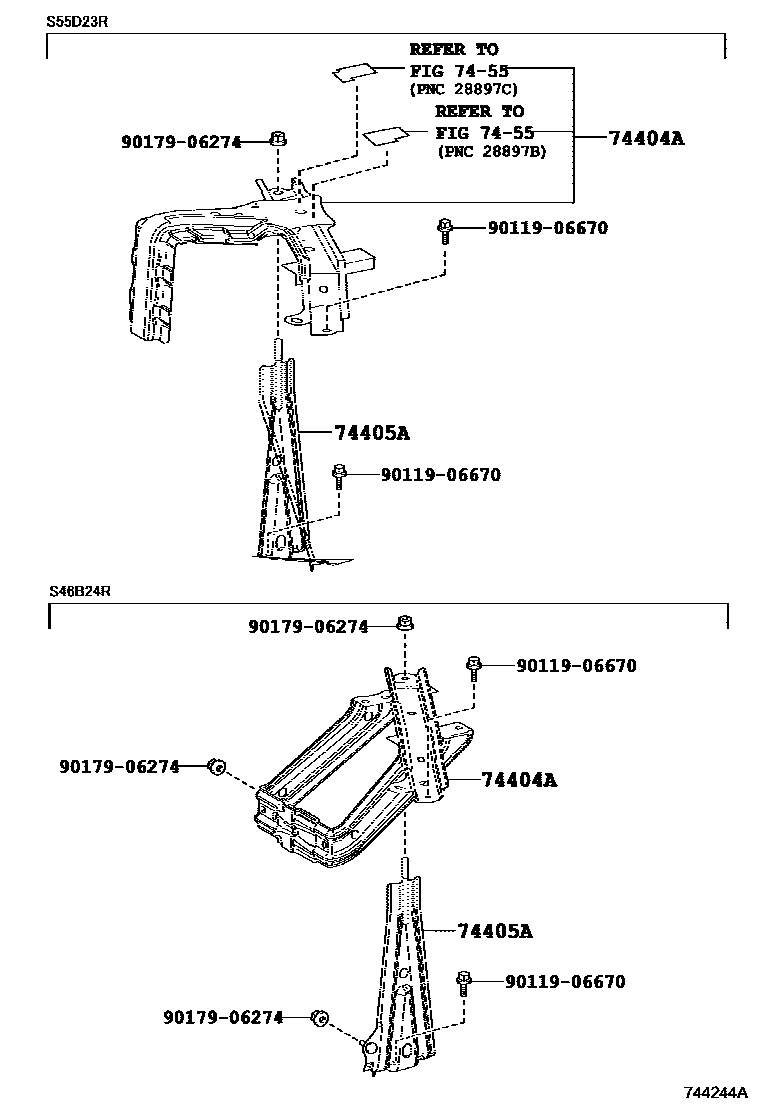

Toyota RAV4 battery holder EPC diagram — 744244A
battery holder — 744244A (201510 – 999999)

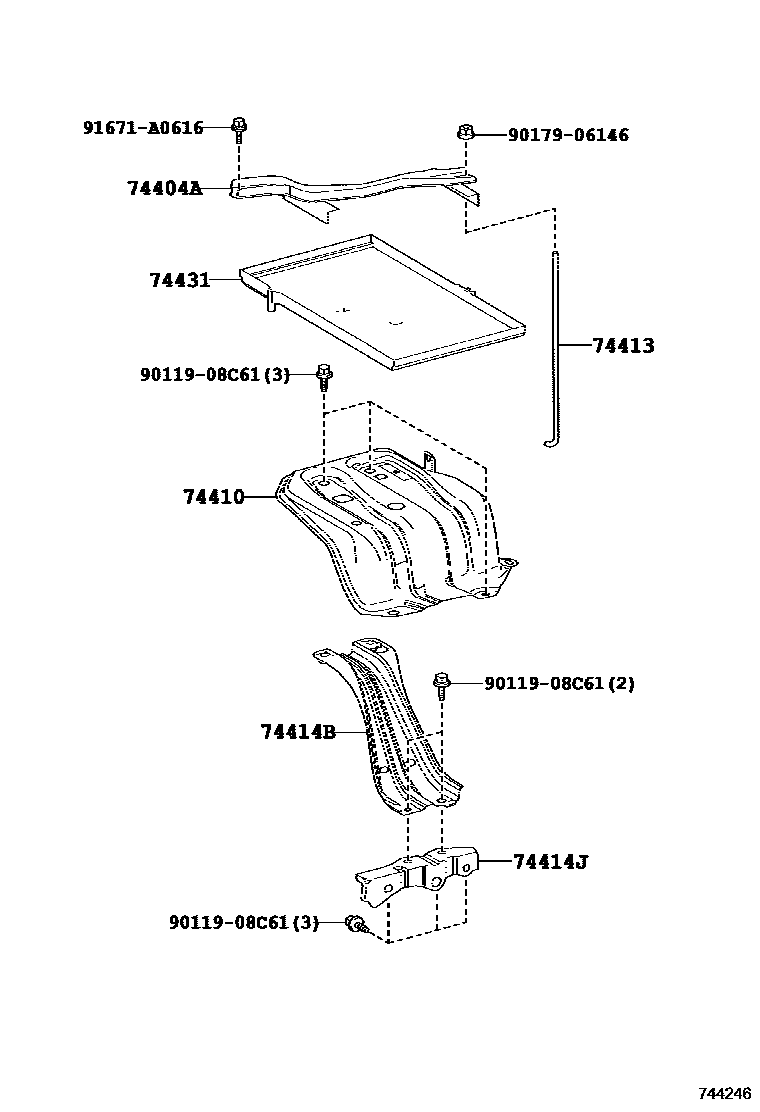

Toyota RAV4 battery holder EPC diagram — 744246
battery holder — 744246 (201510 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-42190 · 74404-42200 · 74404-42210 · 74404-42220 · 74404-42240 · 74404-42250
74405ABattery upper right bracket sub-assembly74405-42010 · 74405-48050
74410Battery bracket assembly74410-42030
74411BBattery front side bracket74410-42011 · 74411-42040
74413Battery clamp bolt74451-10060 · 74451-10061
74414BBattery bracket reinforcement74414-42011 · 74414-42020
74414JRENFORT, SUPPORT BATTERIE, NO.274414-42030
74417battery holder bracket74417-42030
74431battery tray74431-42101 · 74431-42110 · 74431-42140
