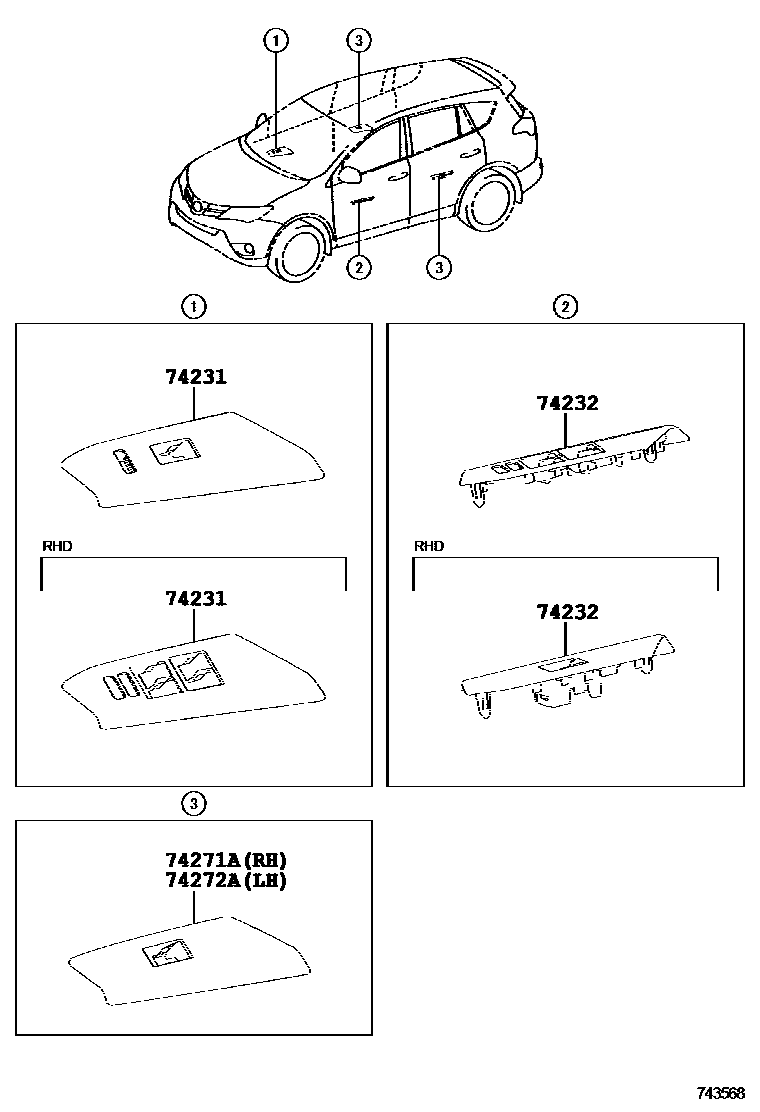

Toyota RAV4 扶手和遮阳板 — Figure 7451
Toyota RAV4 EPC diagram 7451, 扶手和遮阳板, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-42270 · 74231-42280 |
| 74232 | Left front armrest upper panel | 74232-42180 · 74232-42190 |
| 74271A | Right rear door armrest upper panel | 74271-42070 · 74271-42080 |
| 74272A | Left rear door armrest upper panel | 74272-42070 · 74272-42080 |
| 74614A | Auxiliary handle locking plate | 74614-12010 |
