Toyota RAV4 座椅和座椅滑轨 — Figure 7151

Toyota RAV4 EPC diagram 7151, 座椅和座椅滑轨, with 16 images and 114 PNC and OE references.

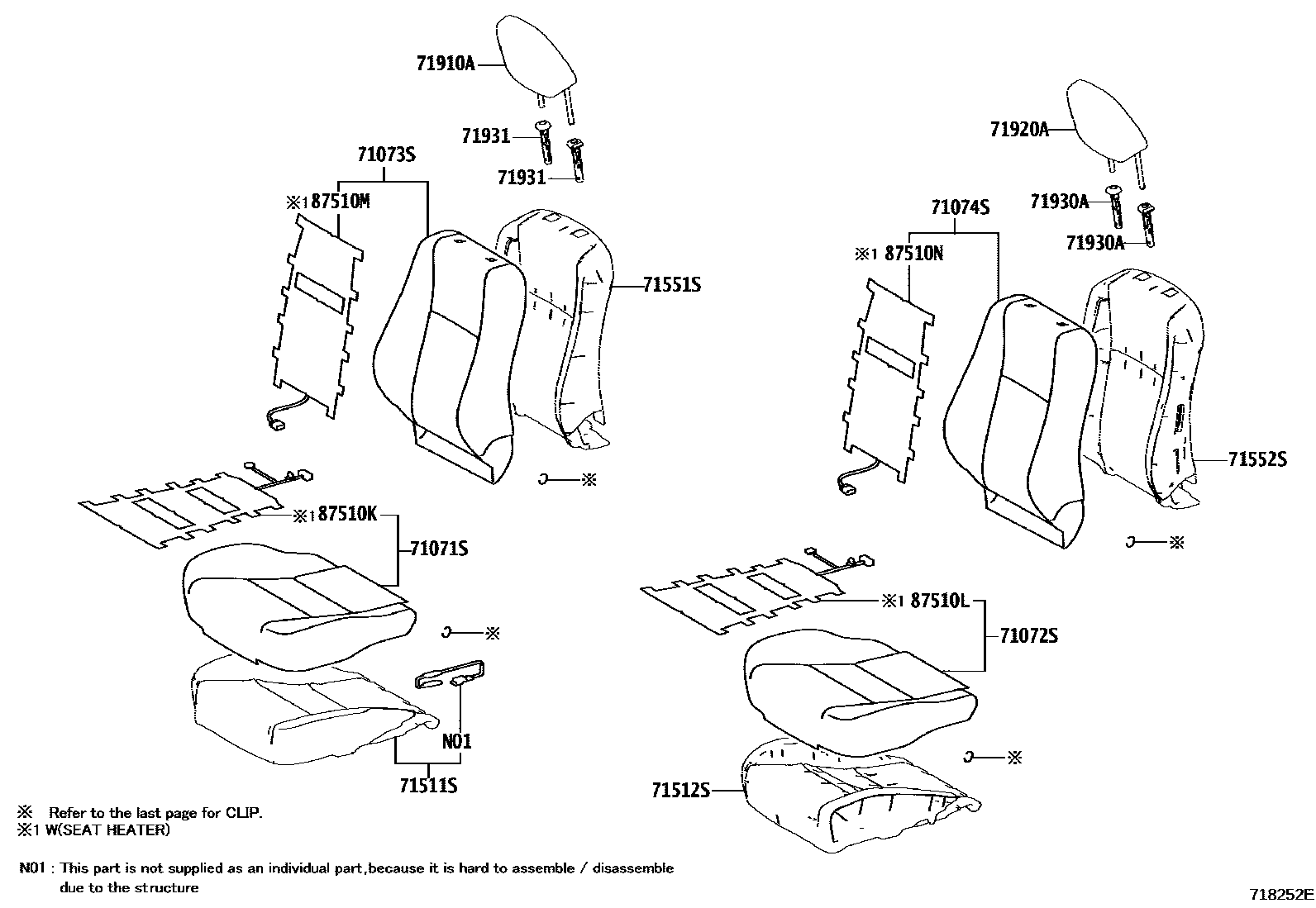

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 718252E — 座椅和座椅滑轨 — 718252E (201212 – 999999)

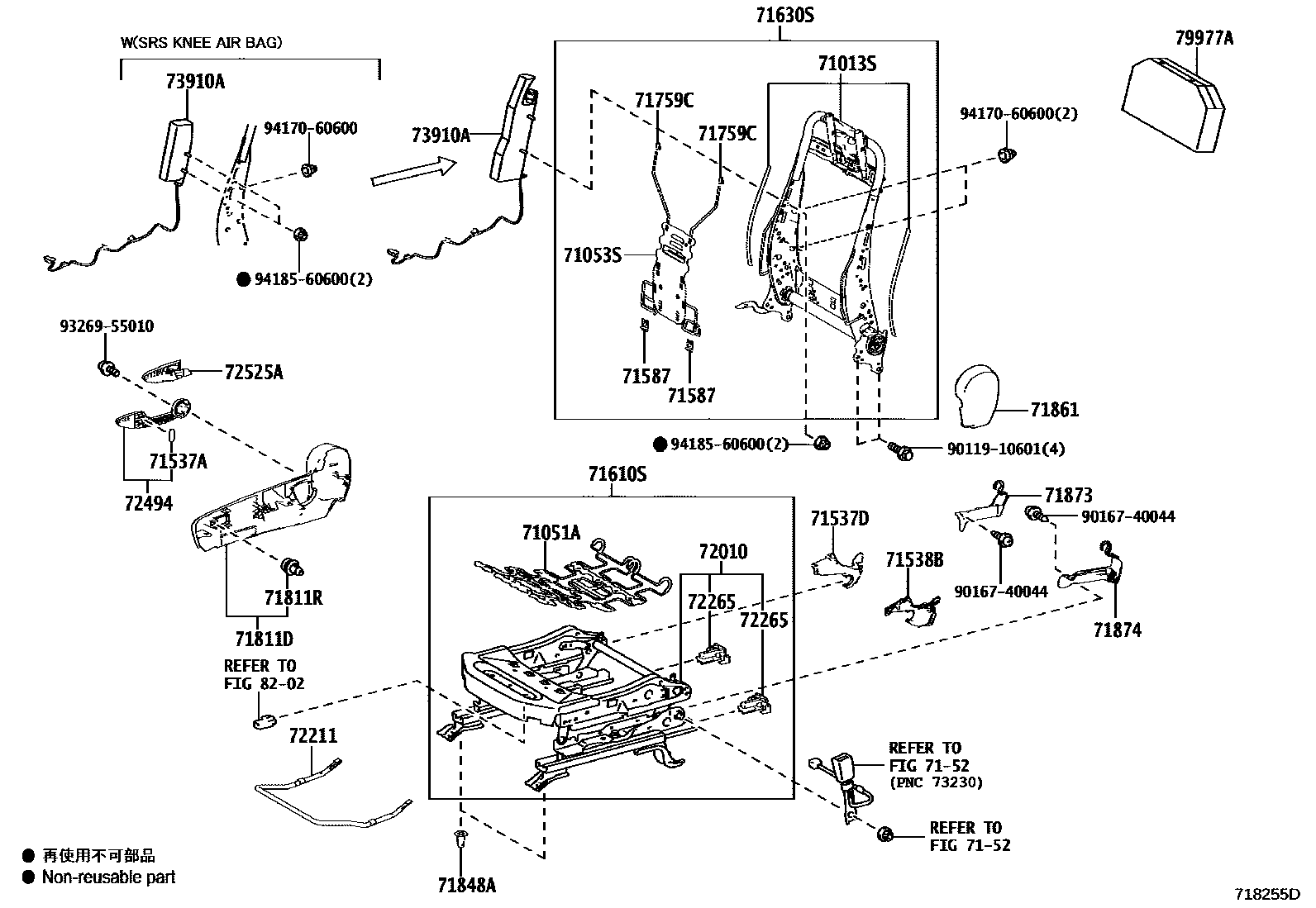

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 718255D — 座椅和座椅滑轨 — 718255D (201212 – 999999)

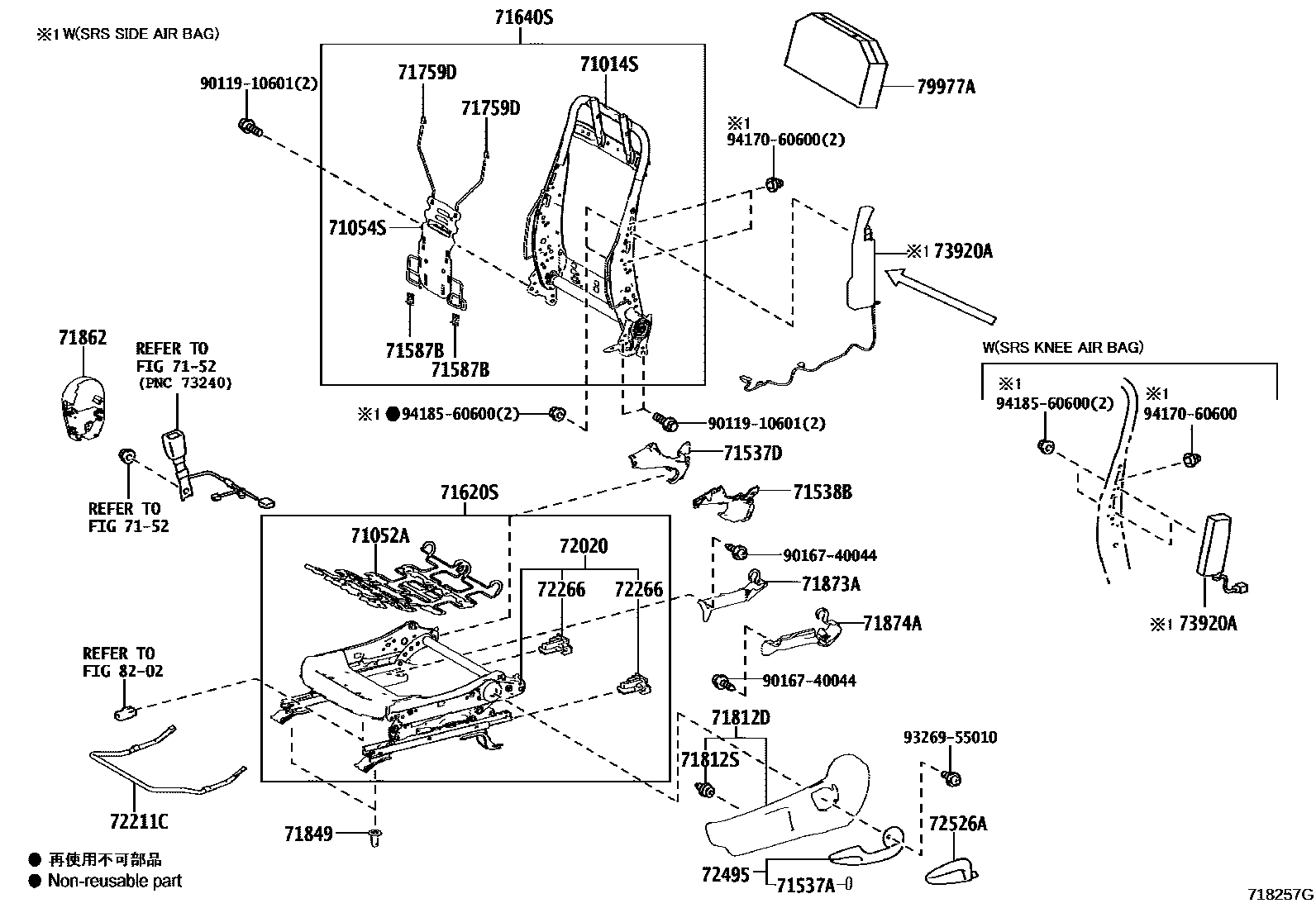

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 718257G — 座椅和座椅滑轨 — 718257G (201212 – 999999)

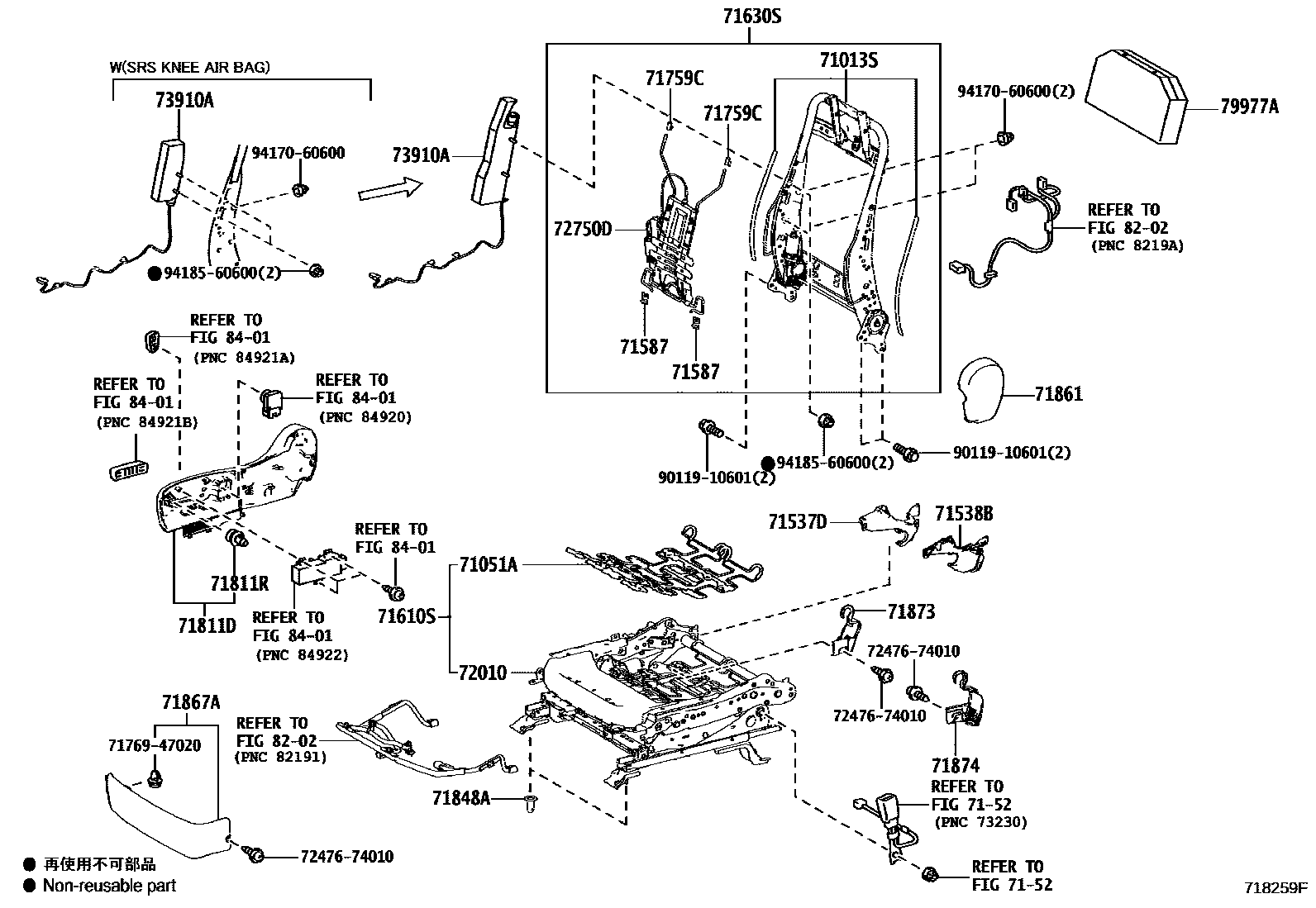

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 718259F — 座椅和座椅滑轨 — 718259F (201212 – 999999)

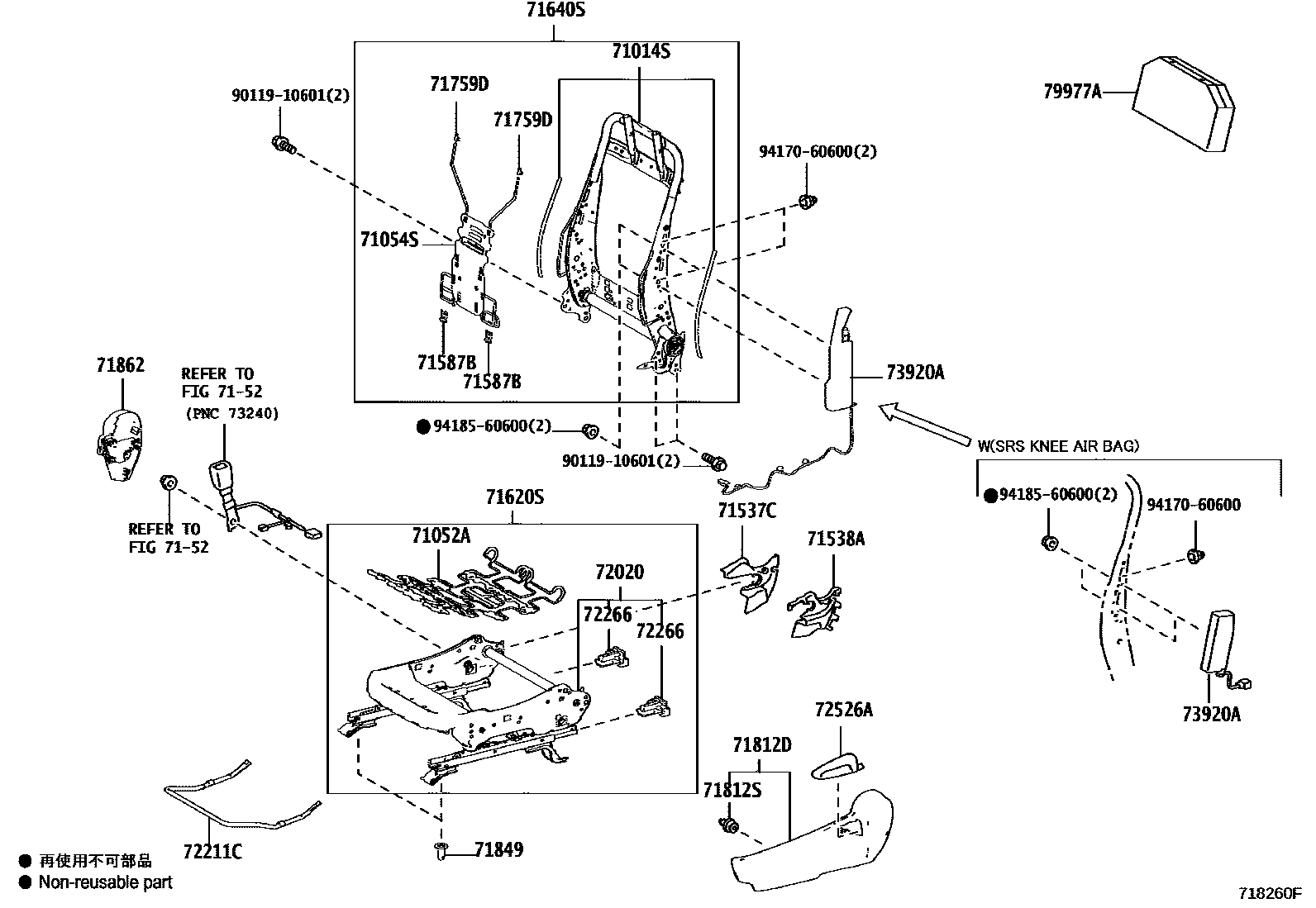

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 718260F — 座椅和座椅滑轨 — 718260F (201212 – 999999)

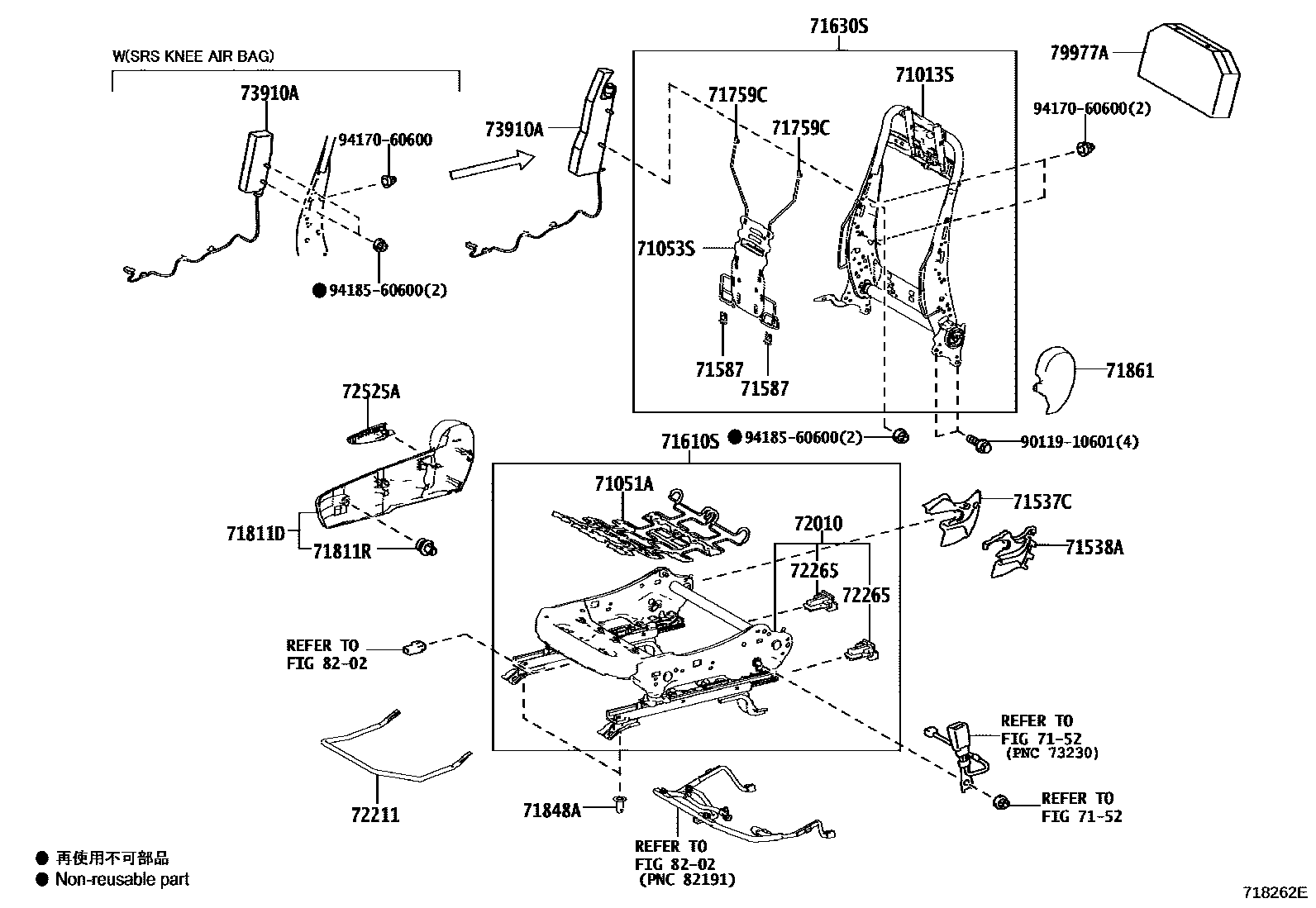

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 718262E — 座椅和座椅滑轨 — 718262E (201212 – 999999)

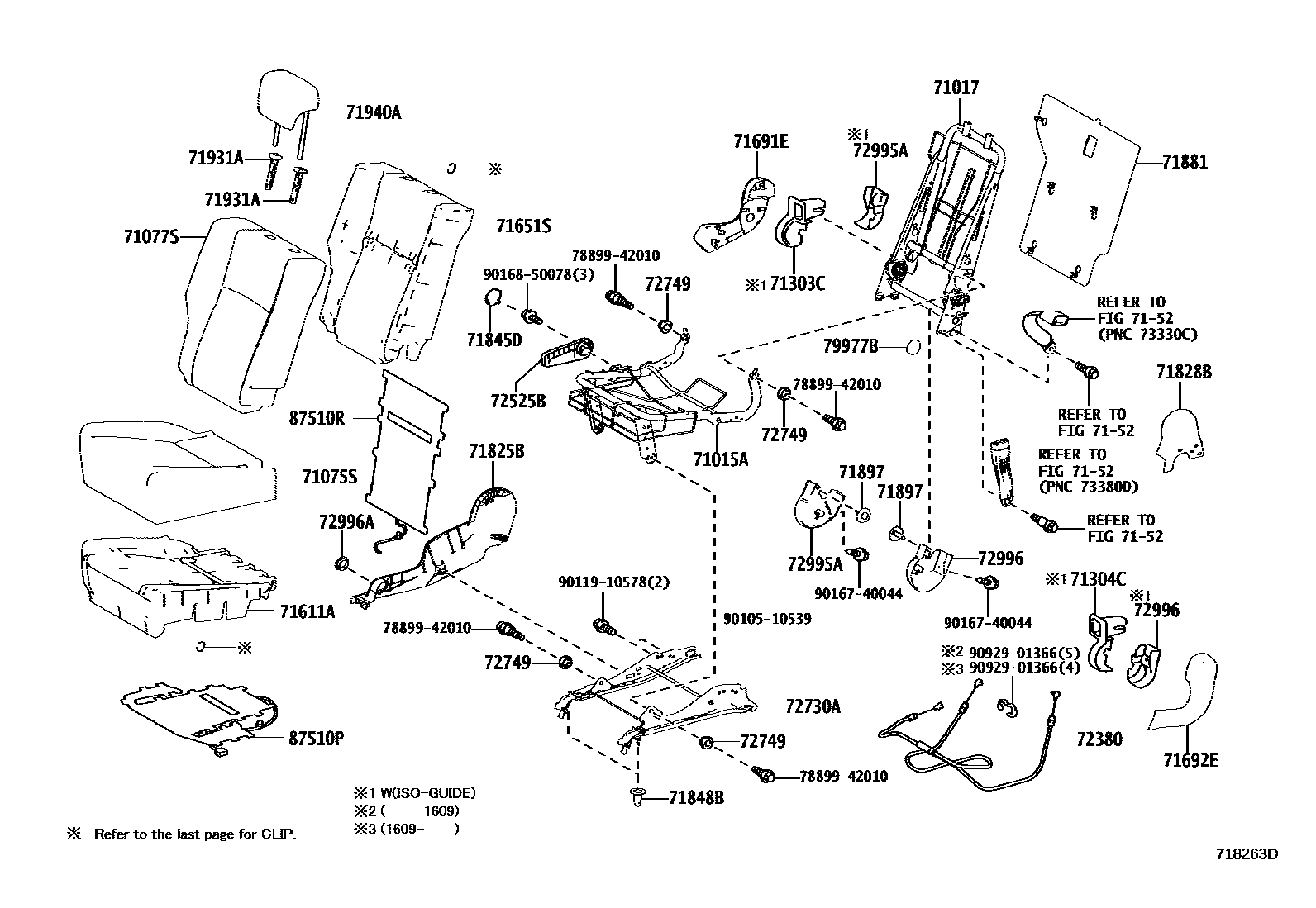

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 718263E — 座椅和座椅滑轨 — 718263E (201212 – 999999)

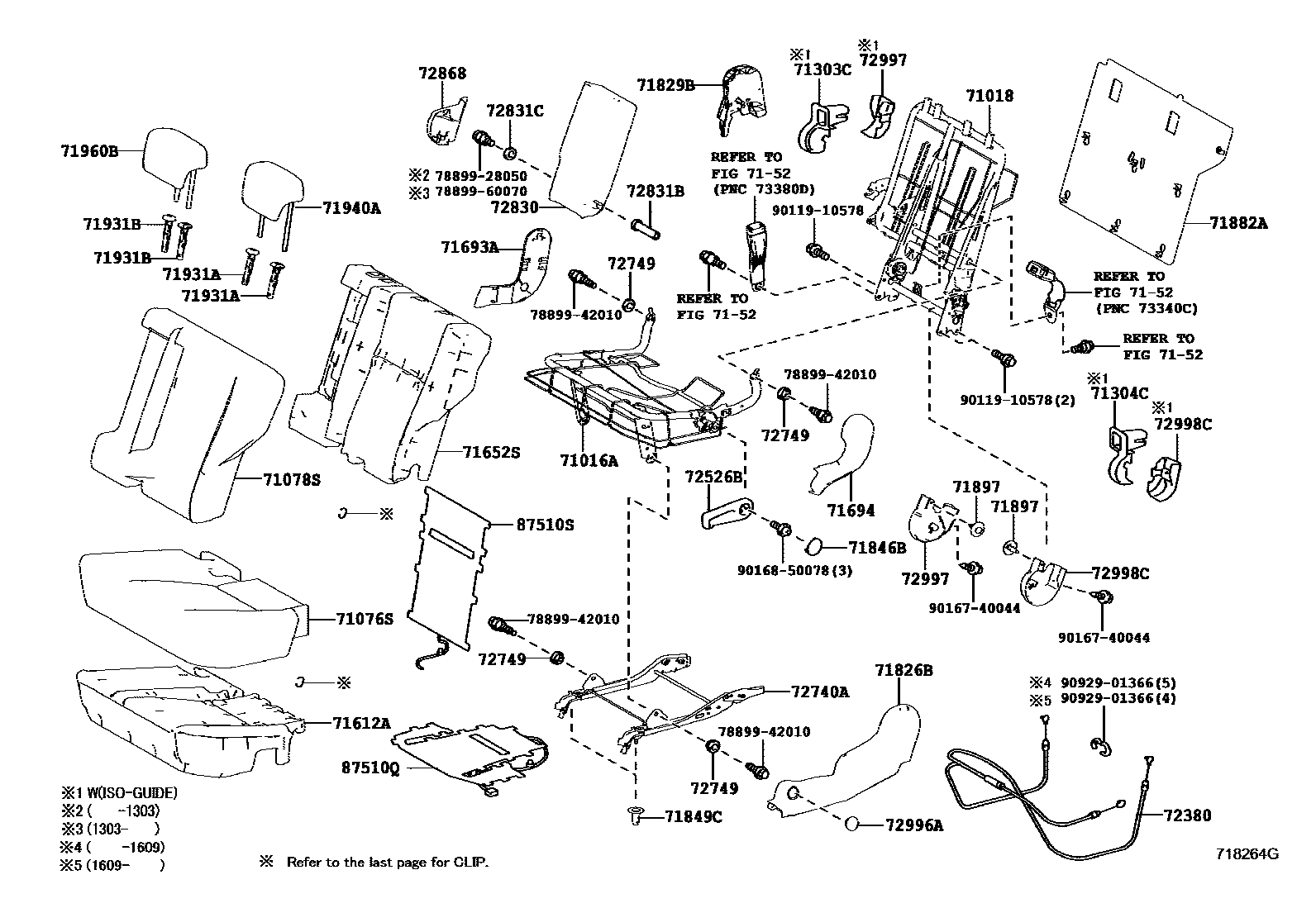

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 718264G — 座椅和座椅滑轨 — 718264G (201212 – 999999)

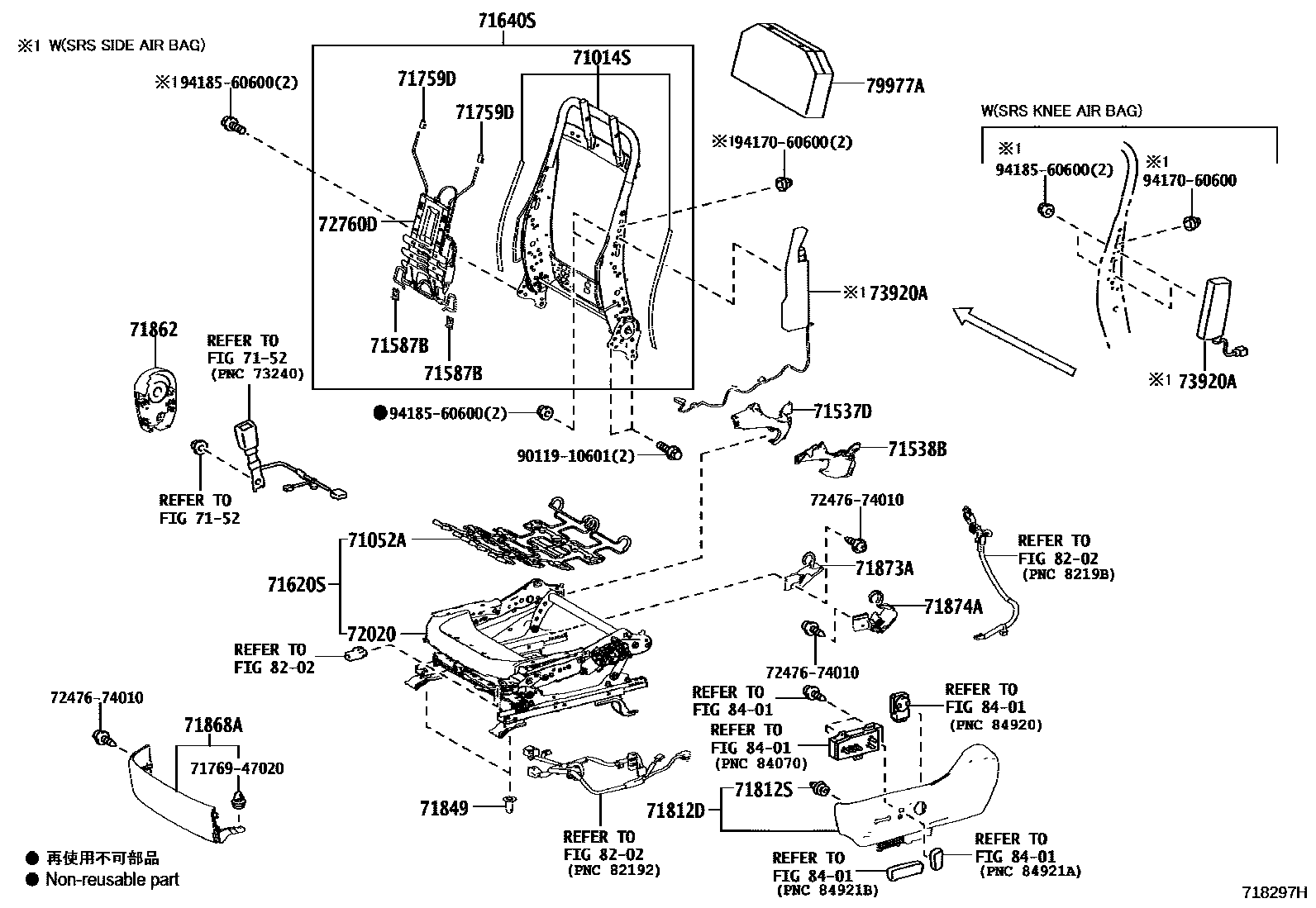

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 718297H — 座椅和座椅滑轨 — 718297H (201212 – 999999)

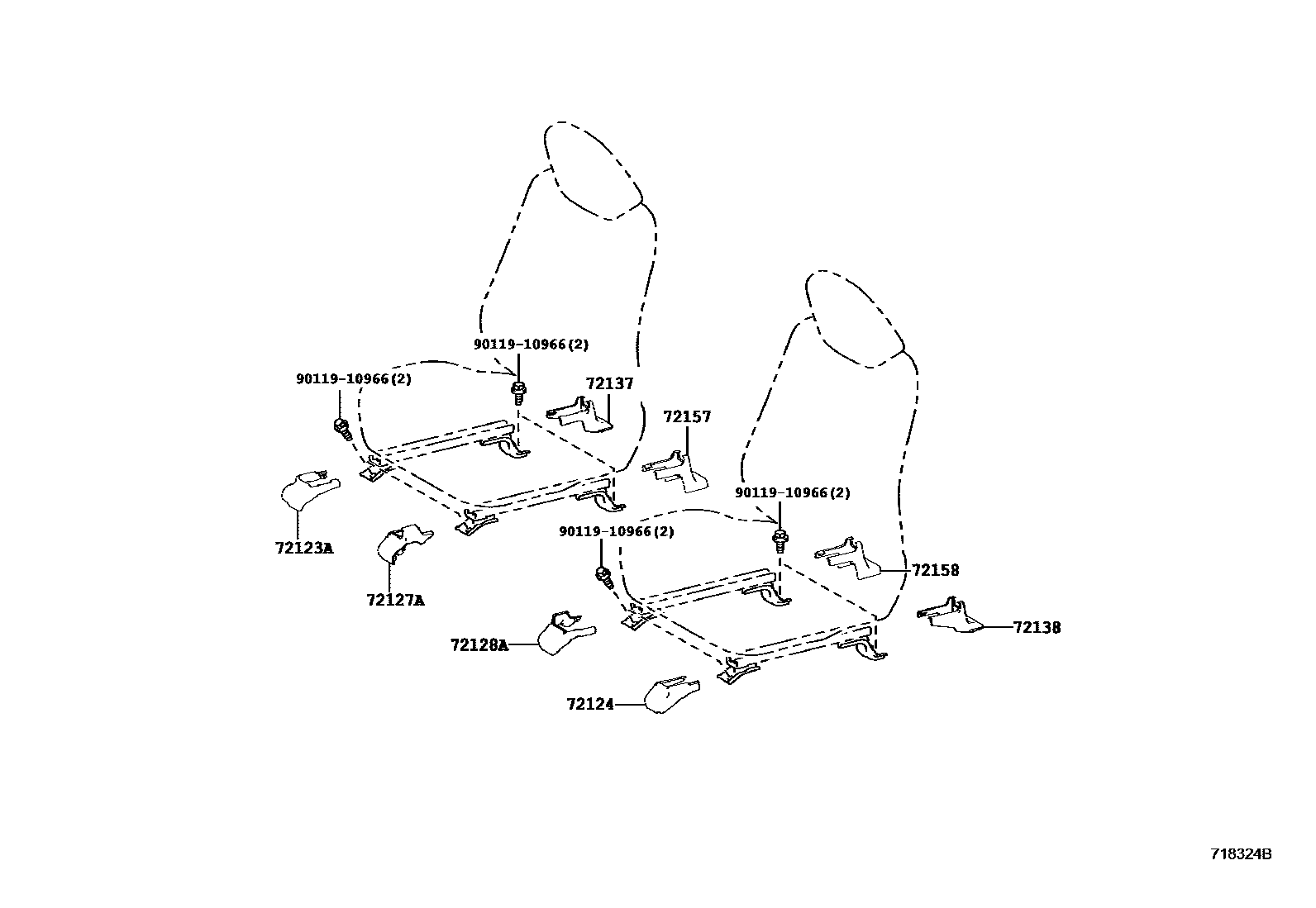

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 718324B — 座椅和座椅滑轨 — 718324B (201212 – 999999)

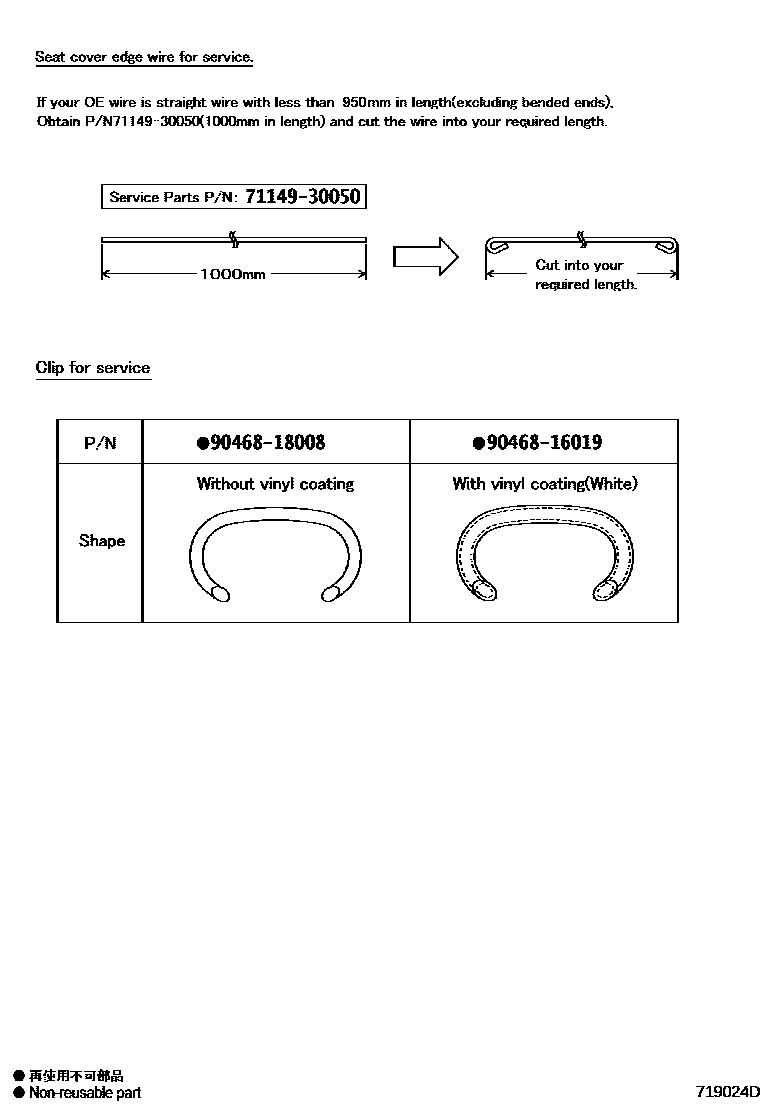

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 719024D — 座椅和座椅滑轨 — 719024D (201212 – 999999)

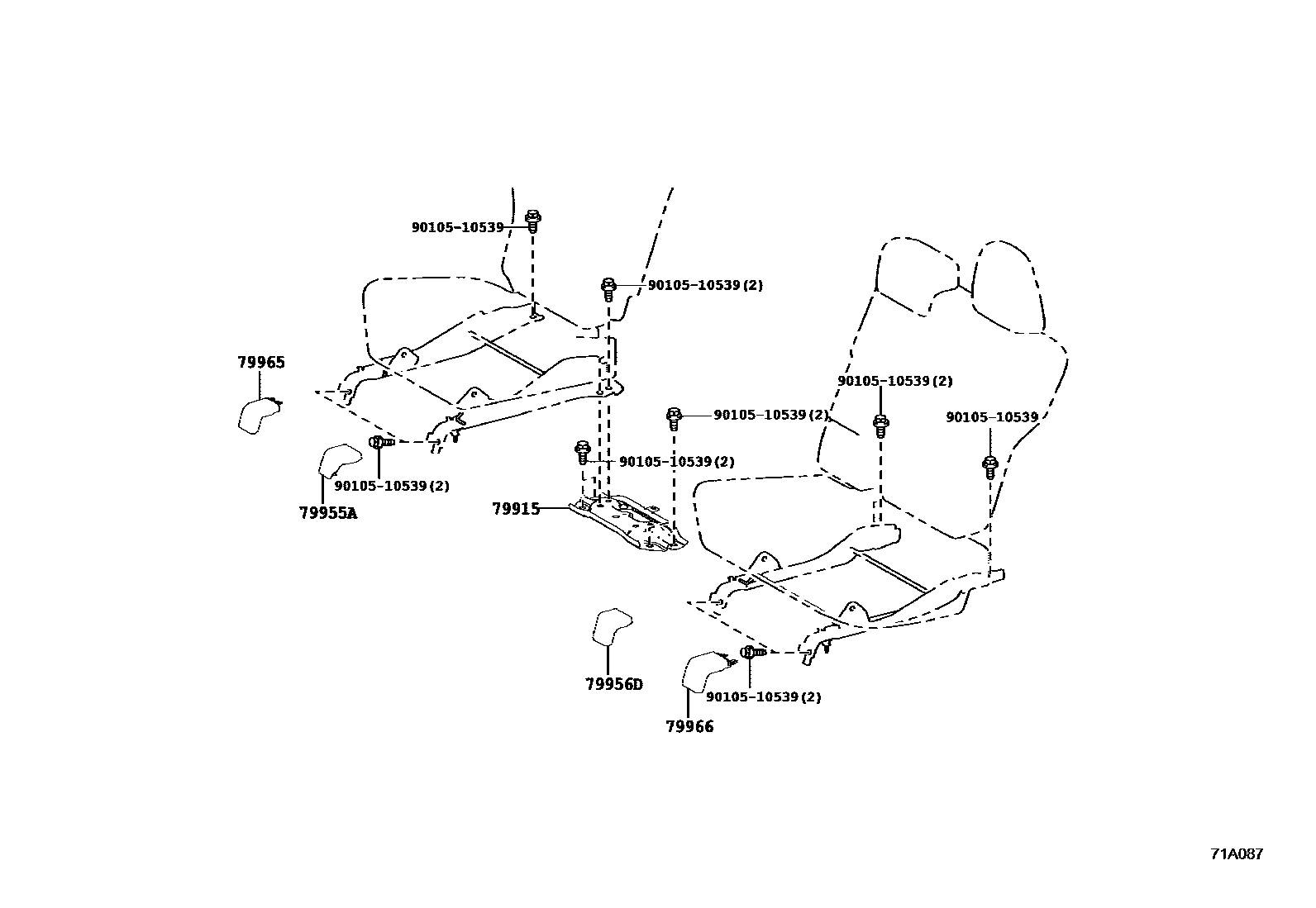

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 71A087 — 座椅和座椅滑轨 — 71A087 (201212 – 999999)

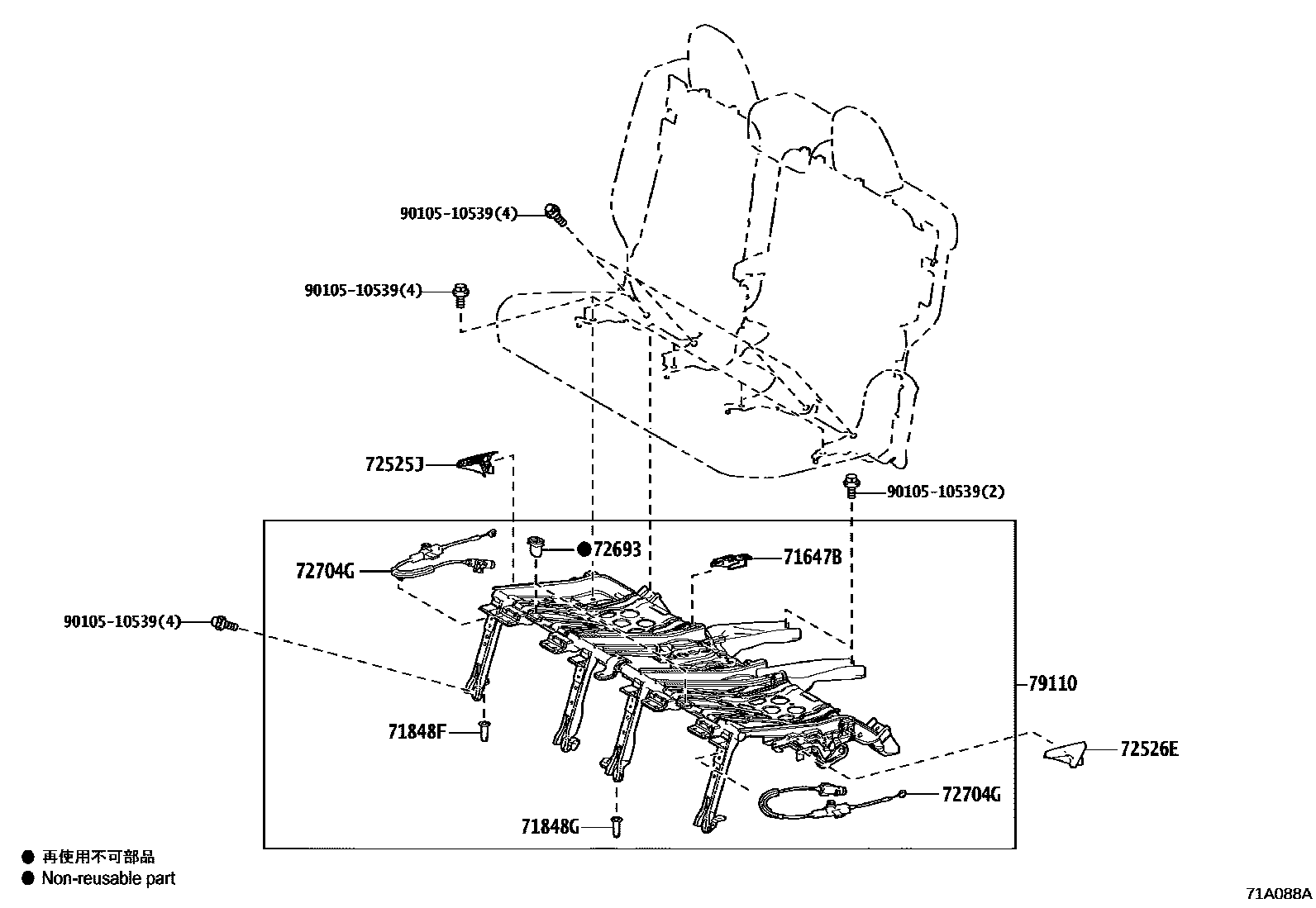

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 71A088A — 座椅和座椅滑轨 — 71A088A (201510 – 999999)

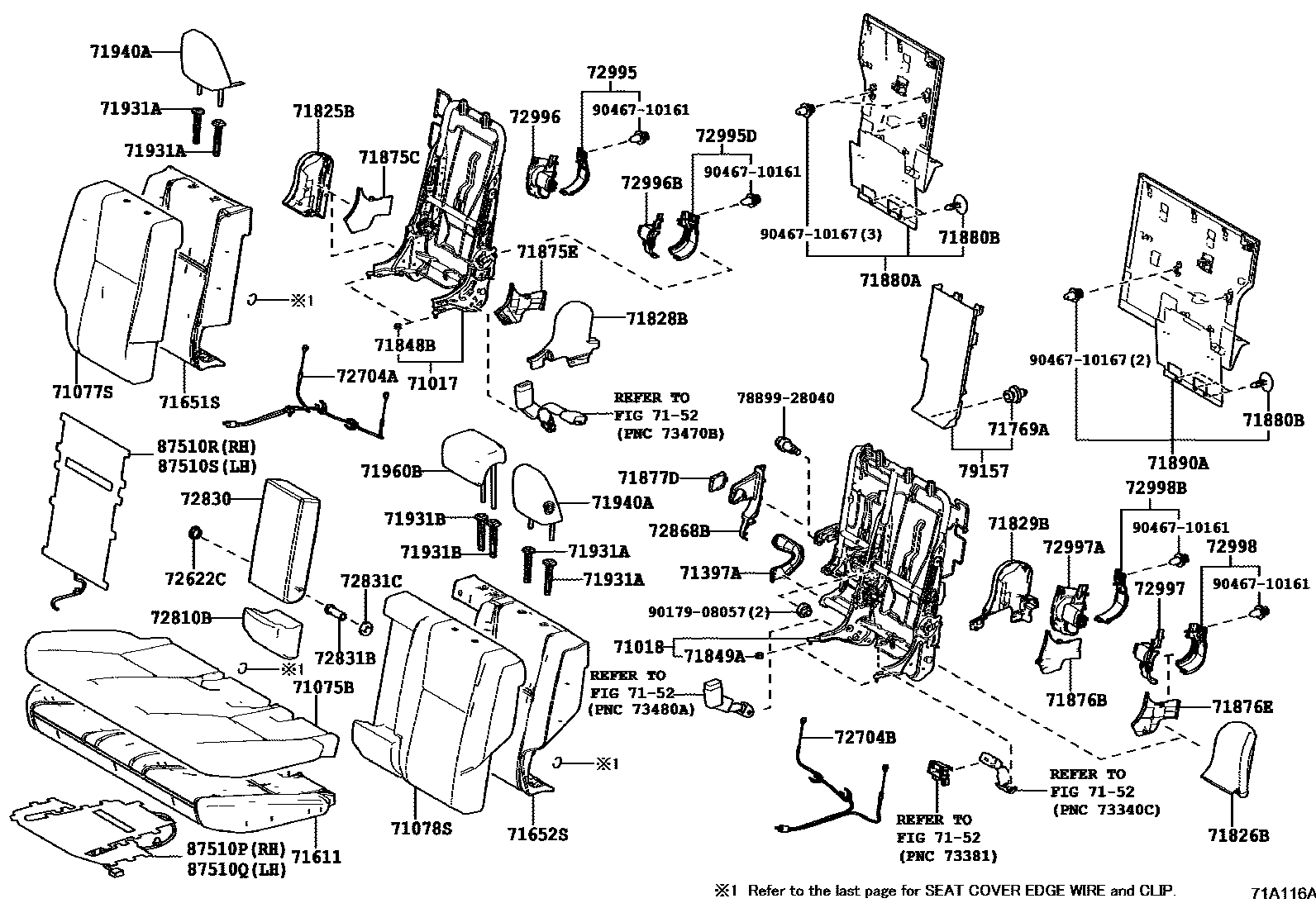

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 71A116A — 座椅和座椅滑轨 — 71A116A (201510 – 999999)

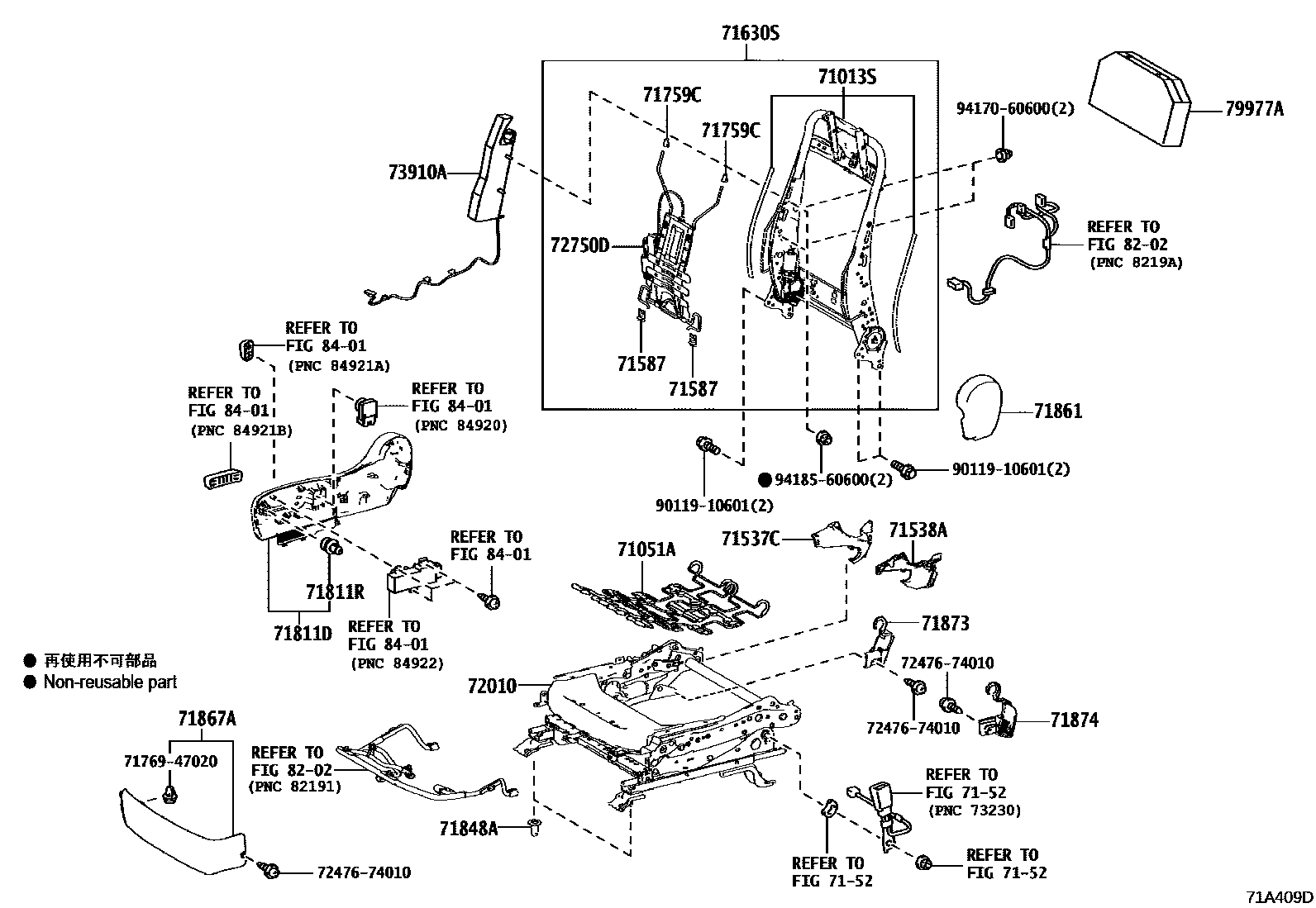

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 71A409D — 座椅和座椅滑轨 — 71A409D (201608 – 999999)

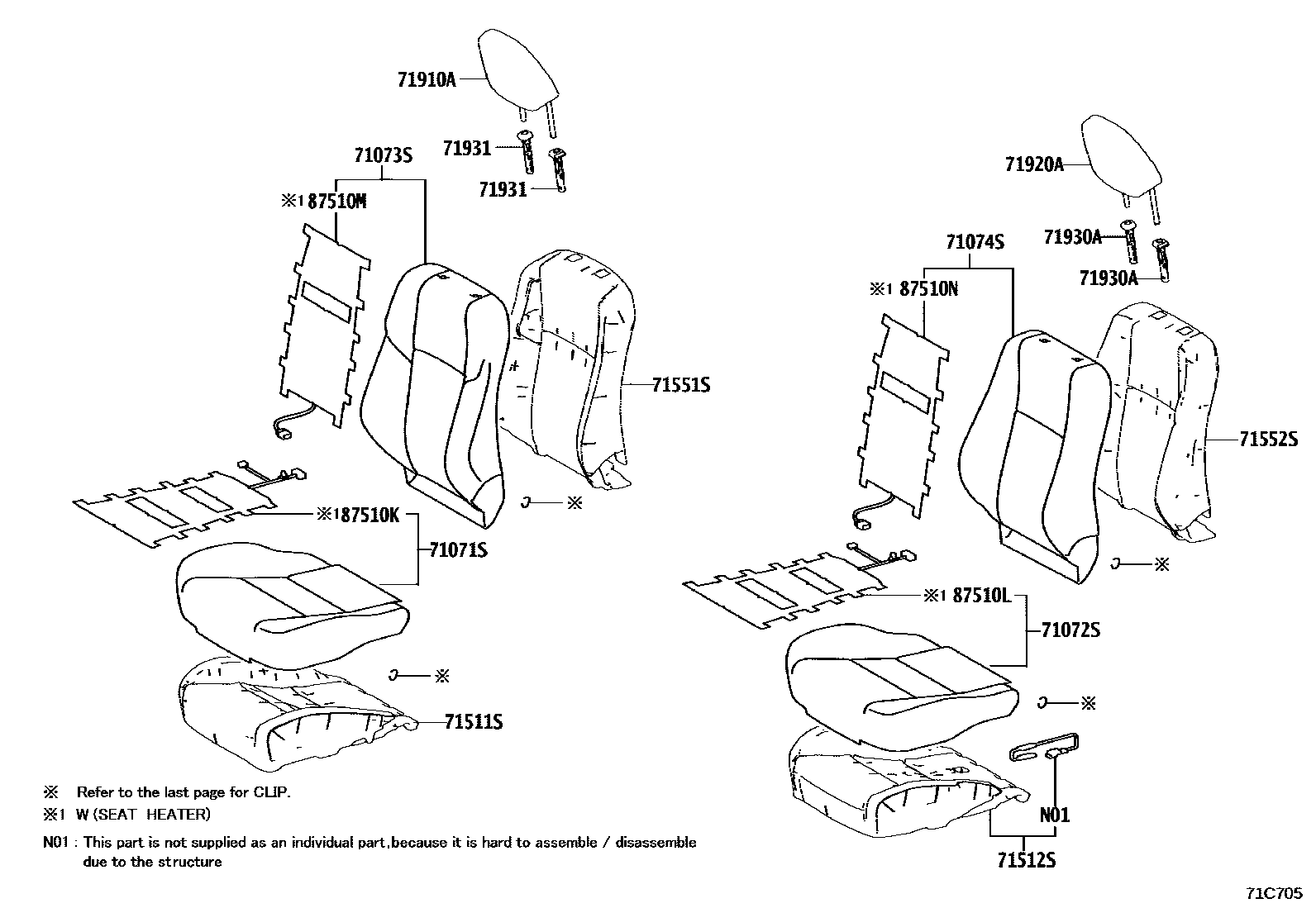

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 71C705 — 座椅和座椅滑轨 — 71C705 (201212 – 999999)

PNC and OE references

PNC	Part name	OE numbers
71013S	Front right seat back frame sub-assembly	71013-0R050 · 71013-42060 · 71013-42080 · 71013-42090 · 71013-42110 · 71013-42120 · 71013-42130 · 71013-42160
71014S	Front left seat back frame sub-assembly	71014-0R110 · 71014-0R120 · 71014-0R130 · 71014-33070 · 71014-42020 · 71014-42030 · 71014-42070 · 71014-42100 · 71014-42110 · 71014-42120 · 71014-42130
71015A	Rear right seat cushion frame sub-assembly	71650-0R050 · 71650-42030
71016A	Rear left seat cushion frame sub-assembly	71660-0R050 · 71660-42030
71017	Right rear seat back frame sub-assembly	71017-42150 · 71017-42160 · 71017-42170 · 71017-42171 · 71017-42180
71018	Rear left seat back frame sub-assembly	71018-42150 · 71018-42160 · 71018-42180 · 71018-42190 · 71018-42191 · 71018-42200
71051A	Front right seat cushion spring sub-assembly	71051-0D060 · 71051-47060
71052A	Front left seat cushion spring sub-assembly	71051-0D060 · 71051-47060
71053S	Front right seat back spring sub-assembly	71053-02090 · 71053-52050
71054S	Front left seat back spring sub-assembly	71053-02090 · 71053-52050
71071S	Front right seat cushion cover (for split seats)	71071-0R211 · 71071-0R221 · 71071-42692
71072S	Front left seat cushion cover (for split seats)	71072-0R211 · 71072-0R231 · 71072-42502
71075S	Rear right seat cushion cover (for split seats)	71075-42512
71076S	Rear left seat cushion cover (for split seats)	71076-42512
71077S	Right rear seat back cover (for split seats)	71077-42582 · 71077-42750
71078S	Rear left seat back cover (for split seats)	71078-0R161 · 71078-0R181 · 71078-42632 · 71078-42780
71303C	Rear right seat backrest hinge sub-assembly	71303-42010
71304C	Rear left seat back hinge sub-assembly	71304-42010
71511S	Front right seat cushion cushion (for split seats)	71501-0R060 · 71501-42010 · 71501-42020 · 71511-42190 · 71511-42220 · 71511-42230
71512S	Front left seat cushion cushion (for split seats)	71502-42010 · 71502-42020 · 71512-0R120 · 71512-0R130 · 71512-42120 · 71512-42130 · 71512-42140
71537A	Front seat cushion protective cover	71537-47040
71537C	Front right seat cushion edge protective cover	71537-42020
71537D	Front left seat cushion edge protective cover	71537-42010
71538A	Front seat cushion left edge guard (for right seat)	71538-42020
71538B	Front seat cushion left edge guard (for left seat)	71538-42010
71551S	Front right seat back cushion (for split seats)	71551-0R130 · 71551-42210 · 71551-42220 · 71551-42270 · 71551-42290 · 71551-42300 · 71551-42310
71552S	Front left seat back cushion (for split seats)	71552-0R170 · 71552-0R180 · 71552-42090 · 71552-42110 · 71552-42120 · 71552-42130 · 71552-42140 · 71552-42160
71587	Front seat back edge protective cover	71587-02020 · 71587-52030
71587B	Front seat back edge protective cover	71587-02020 · 71587-52030
71610S	Front right seat cushion spring assembly (for split seats)	71610-0R070 · 71610-42030 · 71610-42040 · 71610-42050
71611	Rear seat cushion cushion	71503-42010
71611A	Rear right seat cushion	71611-0R050 · 71611-42100
71612A	Rear left seat cushion	71612-0R050 · 71612-42100
71620S	Front left seat cushion spring assembly (for split seats)	71620-0R080 · 71620-0R090 · 71620-0R120 · 71620-42010 · 71620-42020 · 71620-42060 · 71620-42100
71630S	Front right seat back spring assembly (for split seats)	71630-0R060 · 71630-42100 · 71630-42120 · 71630-42130 · 71630-42150 · 71630-42170 · 71630-42180 · 71630-42200
71640S	Front left seat back spring assembly (for split seats)	71640-0R140 · 71640-0R150 · 71640-0R170 · 71640-42040 · 71640-42050 · 71640-42070 · 71640-42090 · 71640-42120 · 71640-42140 · 71640-42170 · 71640-42190
71647B	Rear seat cushion edge protective cover	71647-48010
71651S	Rear right seat back cushion (for split seats)	71651-0R060 · 71651-42120 · 71651-42130 · 71651-42140
71652S	Rear left seat back cushion (for split seats)	71652-0R050 · 71652-42120 · 71652-42130 · 71652-42140
71691E	Rear seat No. 1 seat cushion hinge cover	71691-42020
71692E	Rear seat 2 seat cushion hinge cover	71692-42030
71759C	Front seat back hook No. 1	71759-47010 · 71759-47011
71759D	Front seat back hook 2	71759-47010 · 71759-47011
71769A	Rear seat back panel clip	71769-47020
71811D	Front right seat cushion guard	71811-42130
71811R	Front right seat cushion guard clip	71769-47020
71812D	Front left seat cushion guard	71812-42180
71812S	Front left seat cushion guard clip	71769-47020
71825B	Rear right seat cushion protection strip	71825-42020 · 71825-78010
71826B	Rear left seat cushion protection strip	71826-78010
71828B	Rear seat cushion right rear protective strip	71828-42040 · 71828-78010
71829B	Rear seat cushion left rear protective strip	71829-78010
71848A	Right seat adjuster cover	71848-47010 · 71848-48050 · 71848-76010
71848B	Right seat adjuster cover	71848-42010 · 71848-78010
71848F	Seat adjuster cover No. 1	71848-48030
71848G	Seat adjuster cover No. 2	71848-48040
71849	left seat adjuster cover	71848-47010 · 71848-48050 · 71848-76010
71849A	left seat adjuster cover	71848-78010
71849C	Left-hand seat adjuster cover (for left-hand seat)	71848-42010
71861	Front right seat cushion inner guard	71861-42090
71862	Front left seat cushion inner guard	71862-42110
71868A	Front left seat No. 1 seat cushion inner protection panel	71868-42030
71873	Front right seat cushion lower guard panel	71873-47040 · 71873-60030
71873A	Front seat cushion lower guard	71873-02140 · 71873-47040 · 71873-60030
71874	Front left seat cushion lower guard	71874-47040 · 71874-60110
71874A	Front left seat cushion lower guard	71874-47040 · 71874-60110
71881	Rear right seat back panel	71881-42010
71882A	Rear left seat back panel	71882-42010
71897	Seat side hooks	71897-42010
71910A	Front seat headrest assembly	71910-42221 · 71910-42261
71920A	Front left seat headrest assembly	71910-42221 · 71910-42261
71930A	Front seat headrest bracket assembly	71932-42020 · 71932-42030
71931	Front seat headrest bracket	71932-42020 · 71932-42030
71931A	Rear seat headrest bracket	71930-47020 · 71931-47020
71931B	Rear seat No. 1 headrest bracket assembly	71930-47020 · 71931-47020
71960B	Rear center seat headrest assembly	71960-42100 · 71960-42121
72010	Front right seat adjuster assembly	72010-42190 · 72010-42191 · 72010-42200 · 72010-42201 · 72010-42210 · 72010-42211 · 72010-48071
72020	Front left seat adjuster assembly	72020-42210 · 72020-42211 · 72020-42220 · 72020-42221 · 72020-42260 · 72020-42261 · 72020-42300
72211	Seat slide adjustment handle	72211-47020
72211C	Seat slide adjustment handle	72211-47020
72265	Right seat rail upper rail cover	72265-42010
72266	Left seat rail upper rail cover	72265-42010
72380	No. 2 seat adjuster control cable assembly	72380-42070
72525A	Right seat back recliner release handle	72525-52050
72622C	Rear seat back protection shaft bushing	72622-48010
72693	Rear seat cushion hook	72693-12080
72704A	Rear seat backrest tilt control cable	72704-48110
72704B	Rear No. 2 seat backrest inclination control cable	72704-48130
72704G	Rear No. 4 seat backrest angle control cable	72704-48120
72730A	Rear right seat backrest tilt adjuster assembly	71308-42010
72740A	Rear left seat backrest angle adjuster assembly	71309-42010
72749	Rear seat backrest tilt cushion	72749-42010
72750D	Right lumbar support adjuster assembly	72750-33080
72760D	Left lumbar support adjuster assembly	72760-47020
72810B	No. 1 seat armrest assembly	72810-42030
72831B	No. 1 rear seat center armrest panel	72831-47010
72831C	No. 2 rear seat center armrest panel	72831-42020 · 72831-52010
72996	Right rear seat back cover	72996-48080
72996A	Rear seat back cover	72996-50100
72997	Rear left seat back cover	72997-48050
73910A	Front right seat airbag assembly	73910-42040 · 73910-42060
73920A	Front left seat airbag assembly	73920-42040 · 73920-42060
79110	No. 1 seat leg assembly	79110-42500
79915	seat leg bracket	79915-42010
79977A	Seat back felt pad	79977-0R020 · 79977-52120
79977B	Seat back frame felt pad	79977-0R030
87510K	Front right seat cushion heater assembly	87510-42180 · 87510-42181 · 87510-42190 · 87510-42191
87510L	Front left seat cushion heater assembly	87510-42180 · 87510-42181 · 87510-42190 · 87510-42191
87510M	Front right seat back heater assembly	87510-42170 · 87510-42171
87510N	Front left seat back heater assembly	87510-42170 · 87510-42171
87510P	Seat heater assembly	87510-42200 · 87510-42220
87510Q	Seat heater assembly	87510-42210 · 87510-42230
87510R	Seat heater assembly	87530-42010 · 87530-42030
87510S	Seat heater assembly	87530-42020 · 87530-42040
