Toyota RAV4 锁芯组件 — Figure 6765

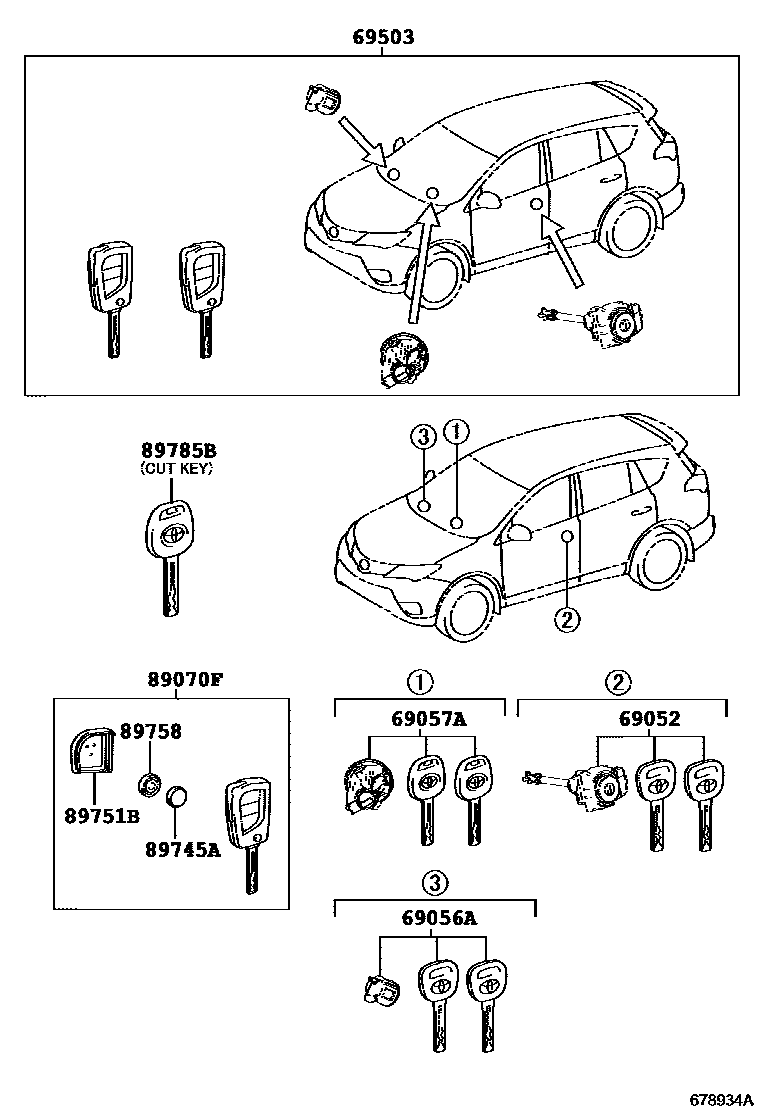

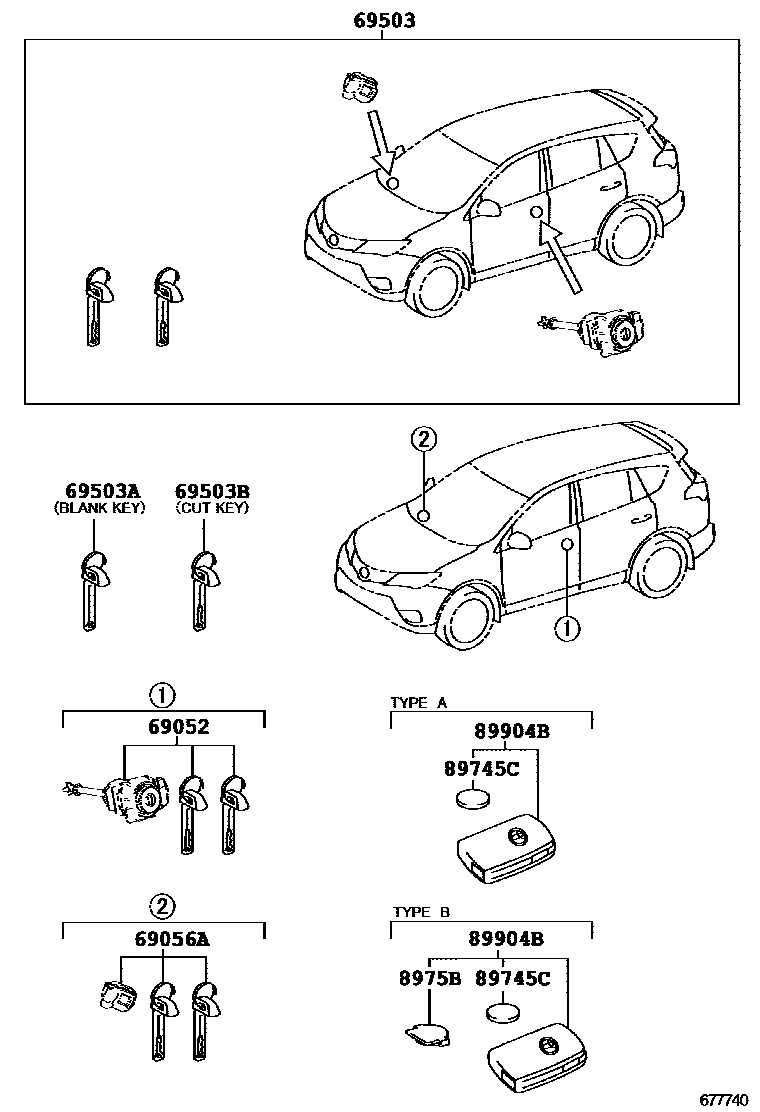

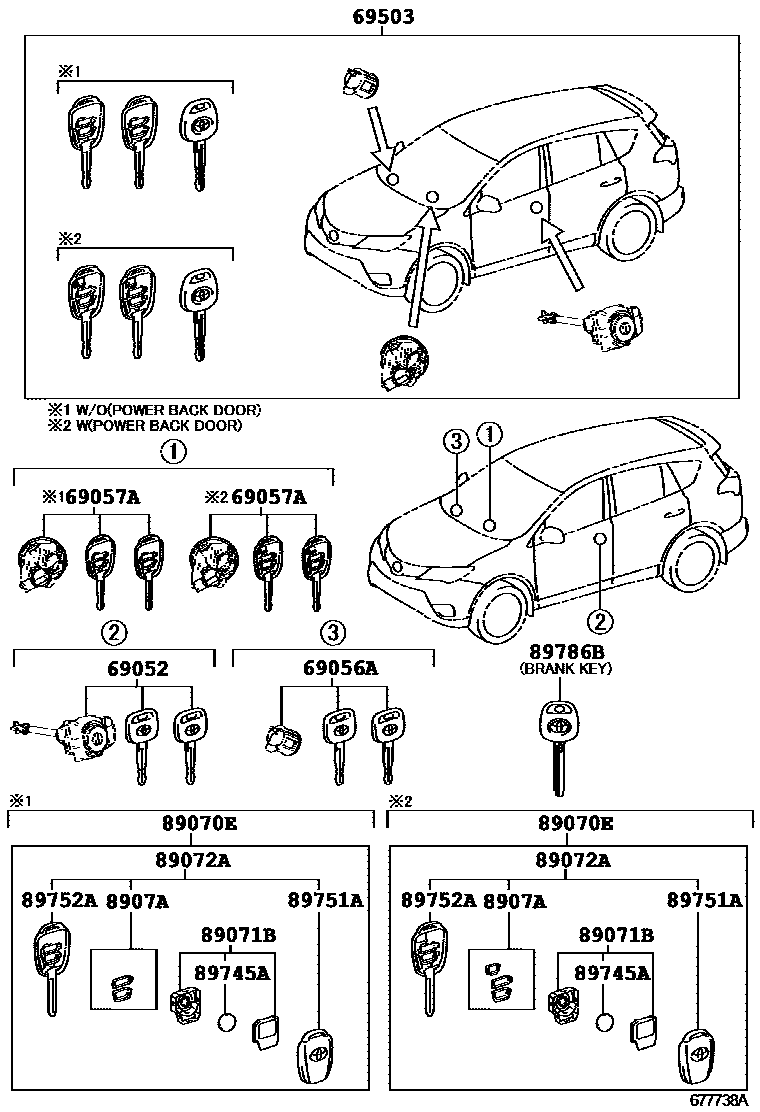

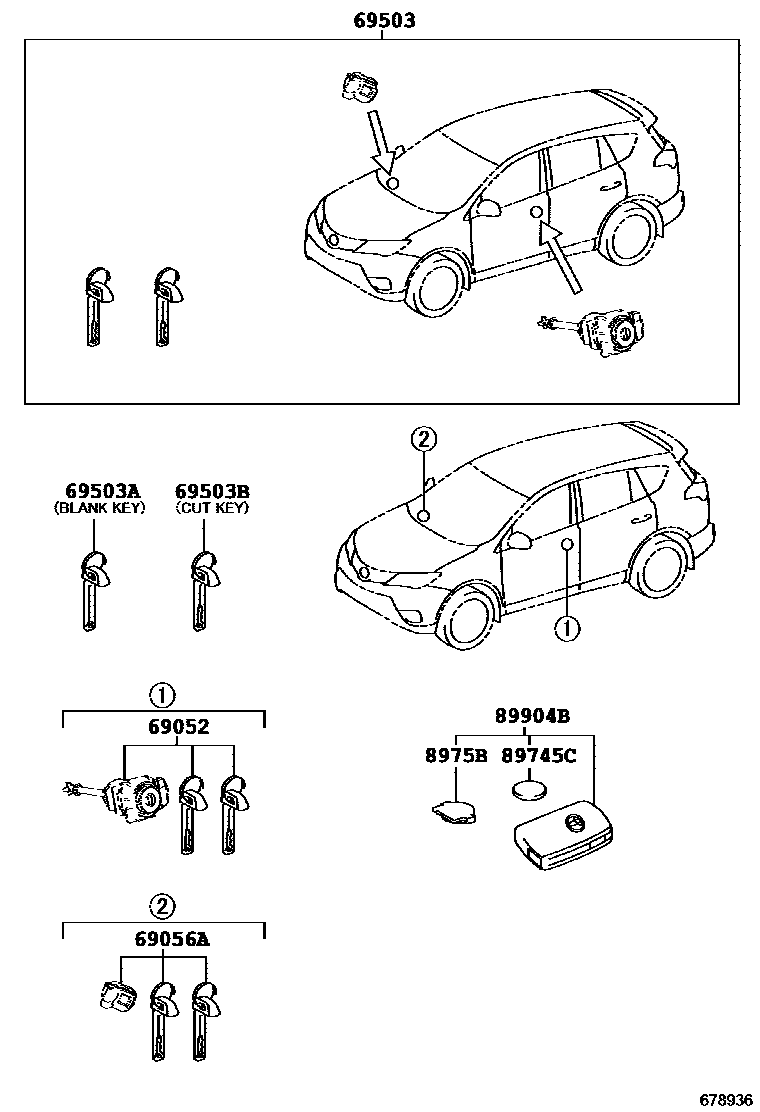

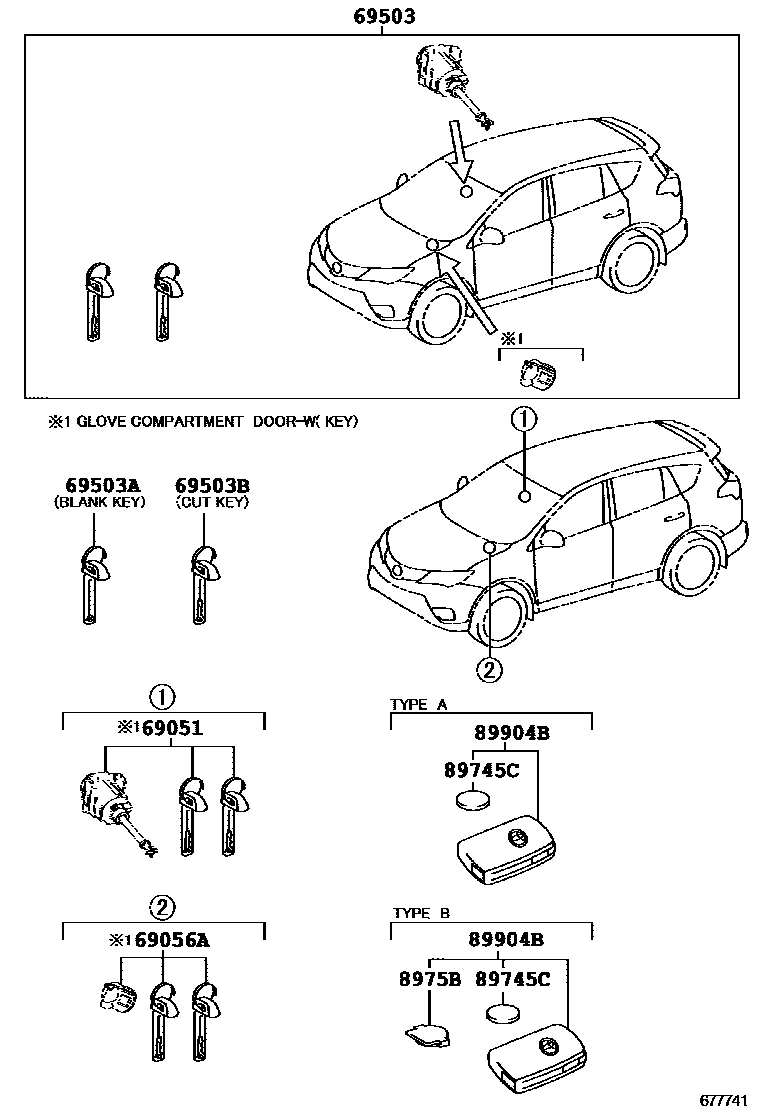

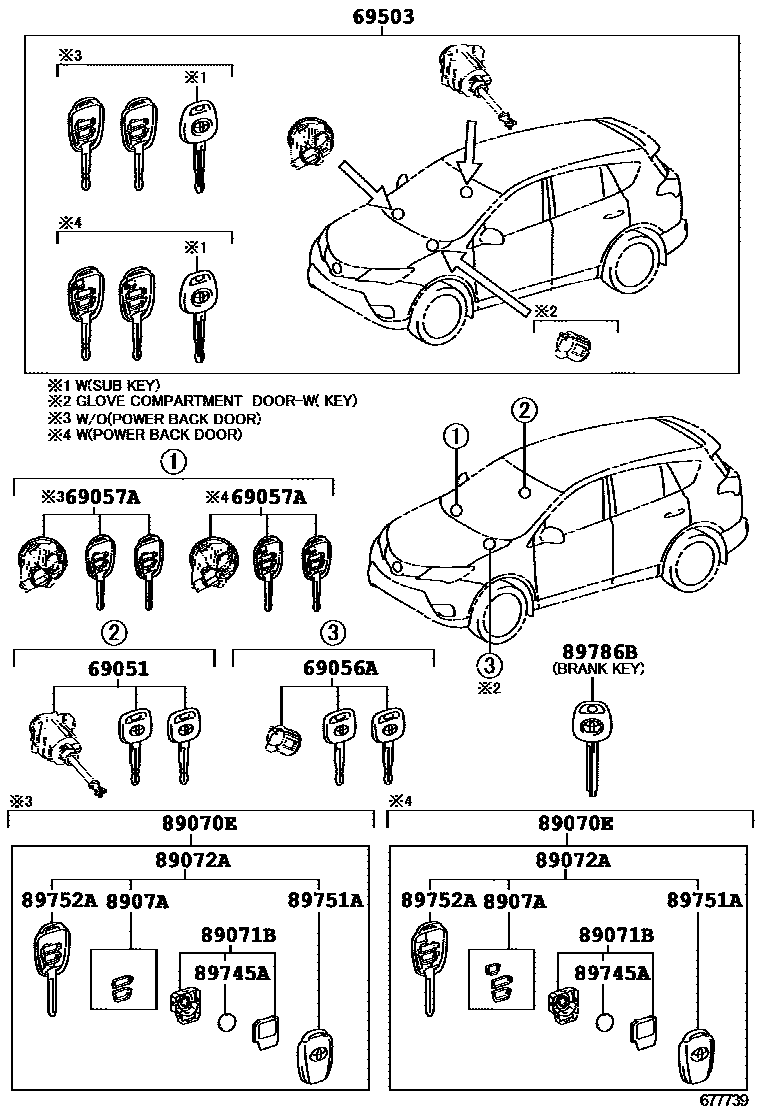

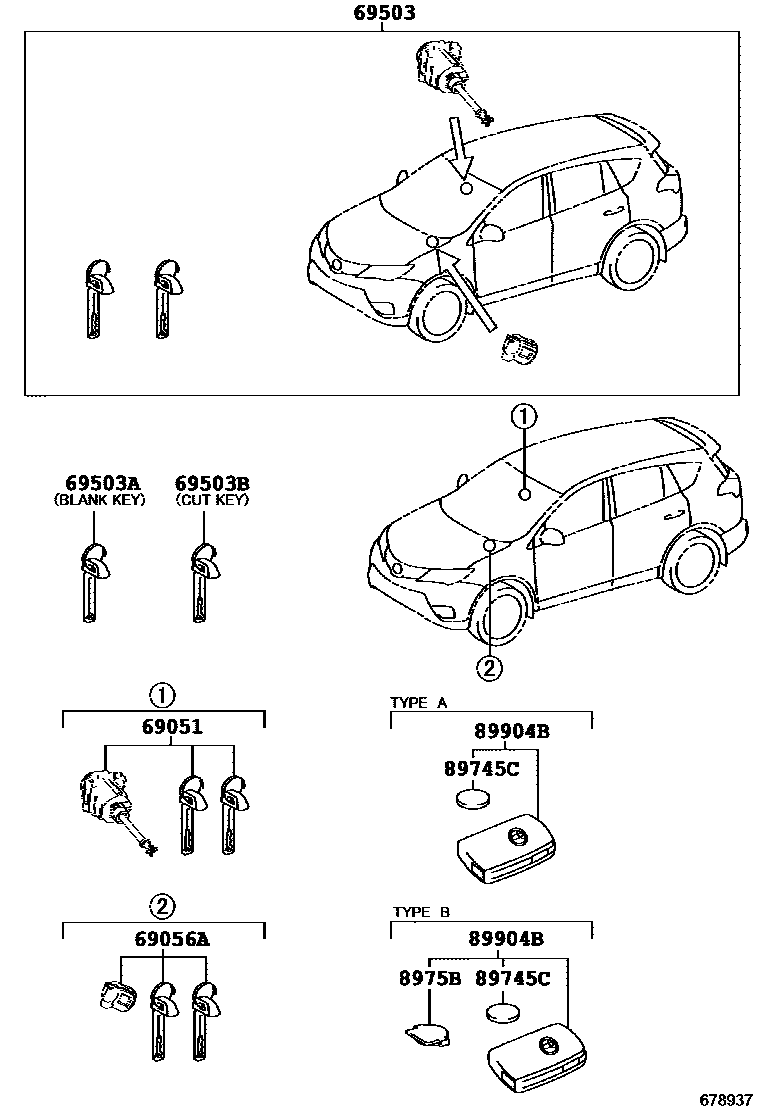

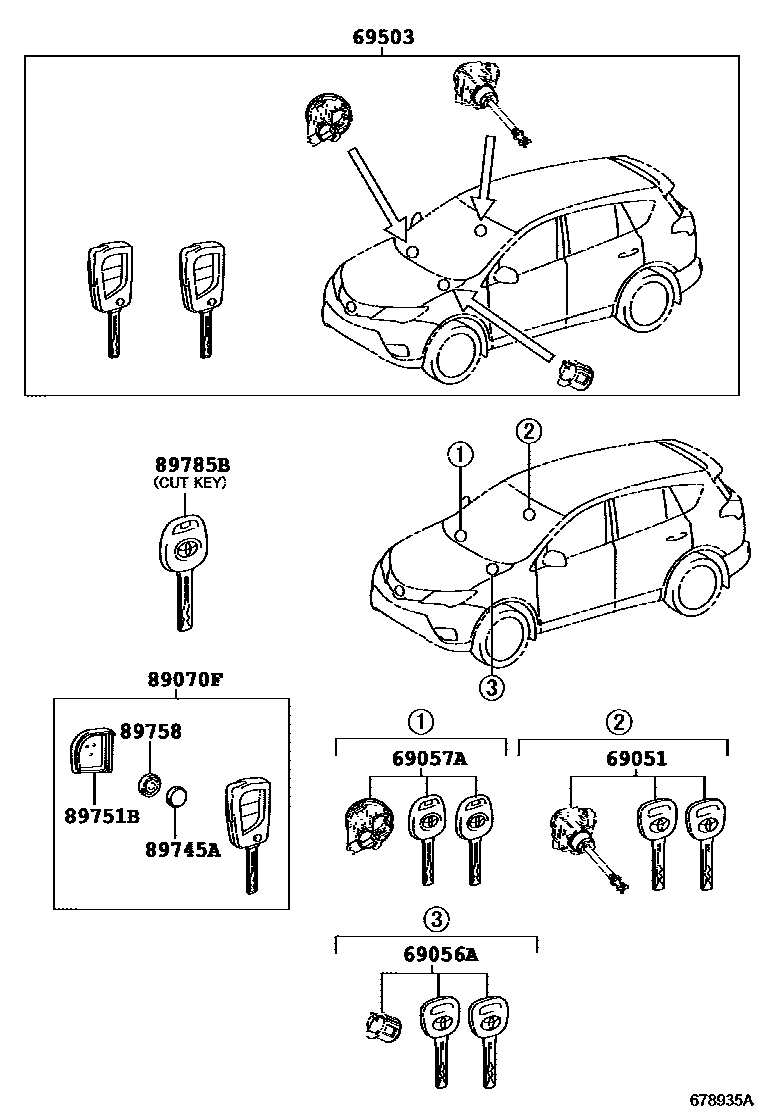

Toyota RAV4 EPC diagram 6765, 锁芯组件, with 8 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-42200 · 69051-42210 · 69051-42230 |
| 69052 | Left door lock cylinder and key assembly | 69052-42190 · 69052-42200 · 69052-42210 |
| 69056A | Glove box lock cylinder and key assembly | 69056-30240 · 69056-33230 · 69056-42100 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12880 · 69057-42320 · 69057-42330 |
| 69503 | Door lock cylinder components | 69005-42600 · 69005-42630 · 69005-42640 · 69005-42650 · 69005-42670 · 69005-42680 · 69005-42700 · 69005-42710 · 69005-42720 · 89704-42D00 · 89704-42D10 · 89704-42D20 · 89704-42D30 · 89704-42D40 · 89704-42D50 · 89704-42E40 |
| 69503A | external tooth key | 69515-33100 |
| 69503B | internal tooth key | 69515-33090 |
| 89070E | Remote key assembly | 89070-42840 · 89070-42850 · 89070-42880 · 89070-42881 · 89070-42890 · 89070-42A90 · 89070-42B10 · 89070-42B20 · 89070-42D60 |
| 89070F | Remote key assembly (internal tooth key) | 89070-42D70 · 89070-42D80 · 89070-42D90 · 89070-42E00 · 89070-42E30 |
| 89071B | Remote key sub-assembly module assembly | 89071-13010 · 89071-42120 · 89071-42130 · 89071-42170 · 89071-42180 · 89071-42220 · 89071-42230 · 89071-42340 |
| 89072A | Remote key shell assembly | 89072-42400 · 89072-42410 · 89072-42470 · 89072-42520 |
| 8907A | Transmitter switch assembly | 8907A-42030 · 8907A-52010 |
| 89745A | Transmitter battery | 89745-12010 · 89745-48030 |
| 89745C | Transmitter battery | 89745-45010 · 89745-50020 |
| 89751A | Transmitter housing cover | 89751-42080 · 89751-42090 · 89751-42100 |
| 89751B | Transmitter housing cover | 89751-12070 · 89751-42070 |
| 89752A | transmitter housing | 89752-42050 · 89752-42060 |
| 89758 | Remote key seal | 89758-12010 |
| 8975B | Remote control battery case cover | 8975B-33010 |
| 89785B | transceiver key master transmitter | 89785-12150 |
| 89786B | transceiver key secondary transmitter | 89786-42040 |
| 89904B | Electronic key transmitter sub-assembly | 89904-12350 · 89904-42120 · 89904-42121 · 89904-42170 · 89904-42180 · 89904-42210 · 89904-42250 · 89904-42251 · 89904-42350 · 89904-42410 |
