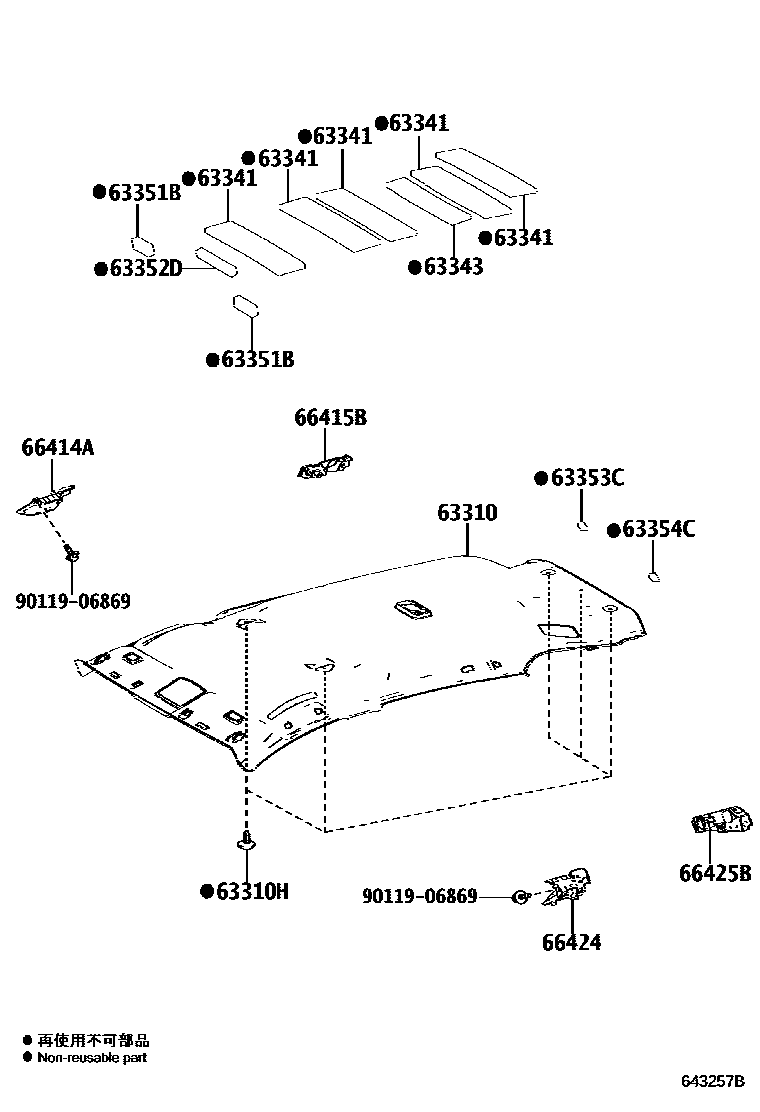

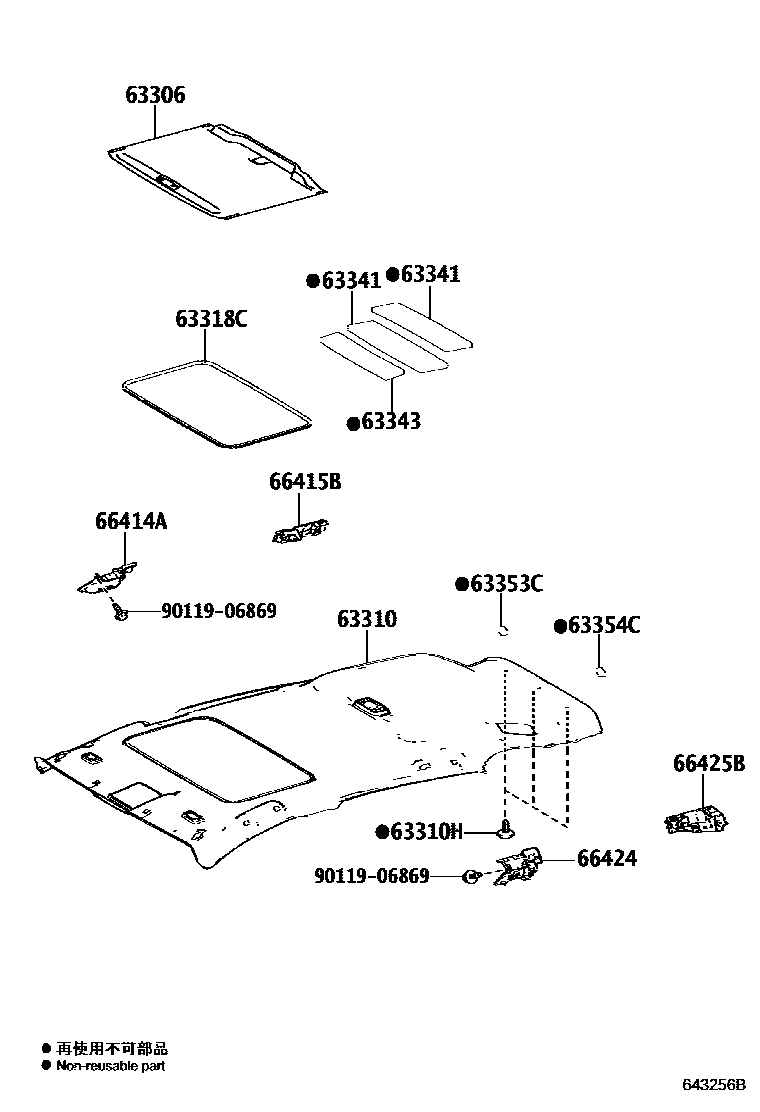

Toyota RAV4 车顶内衬和消声垫 — Figure 6452
Toyota RAV4 EPC diagram 6452, 车顶内衬和消声垫, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-68030 |
| 63343 | No. 3 roof muffler pad | 63343-42010 |
| 63351B | roof lining pads | 63351-42030 |
| 63352D | No. 2 roof lining lining block | 63352-42020 · 63352-42030 · 63352-42032 |
| 63353C | Center roof lining lining | 63353-42010 |
| 63354C | Headlining front side pads | 63353-42010 · 63354-42010 |
| 66414A | Right rear longitudinal member spacer | 66414-42150 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-42120 |
| 66424 | Left rear longitudinal member spacer | 66424-42130 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-42100 |
