Toyota RAV4 中央扶手箱和支架 — Figure 5855

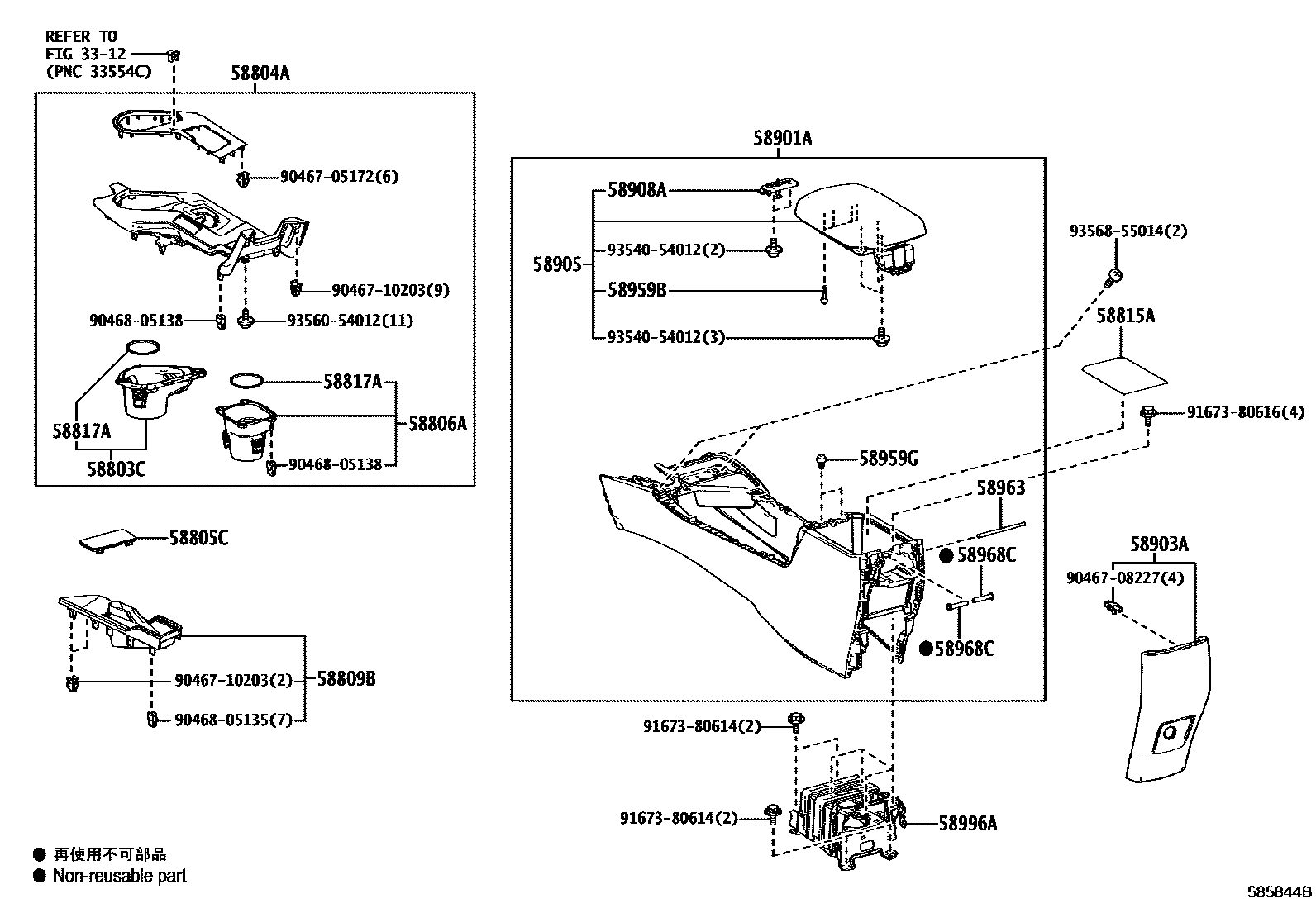

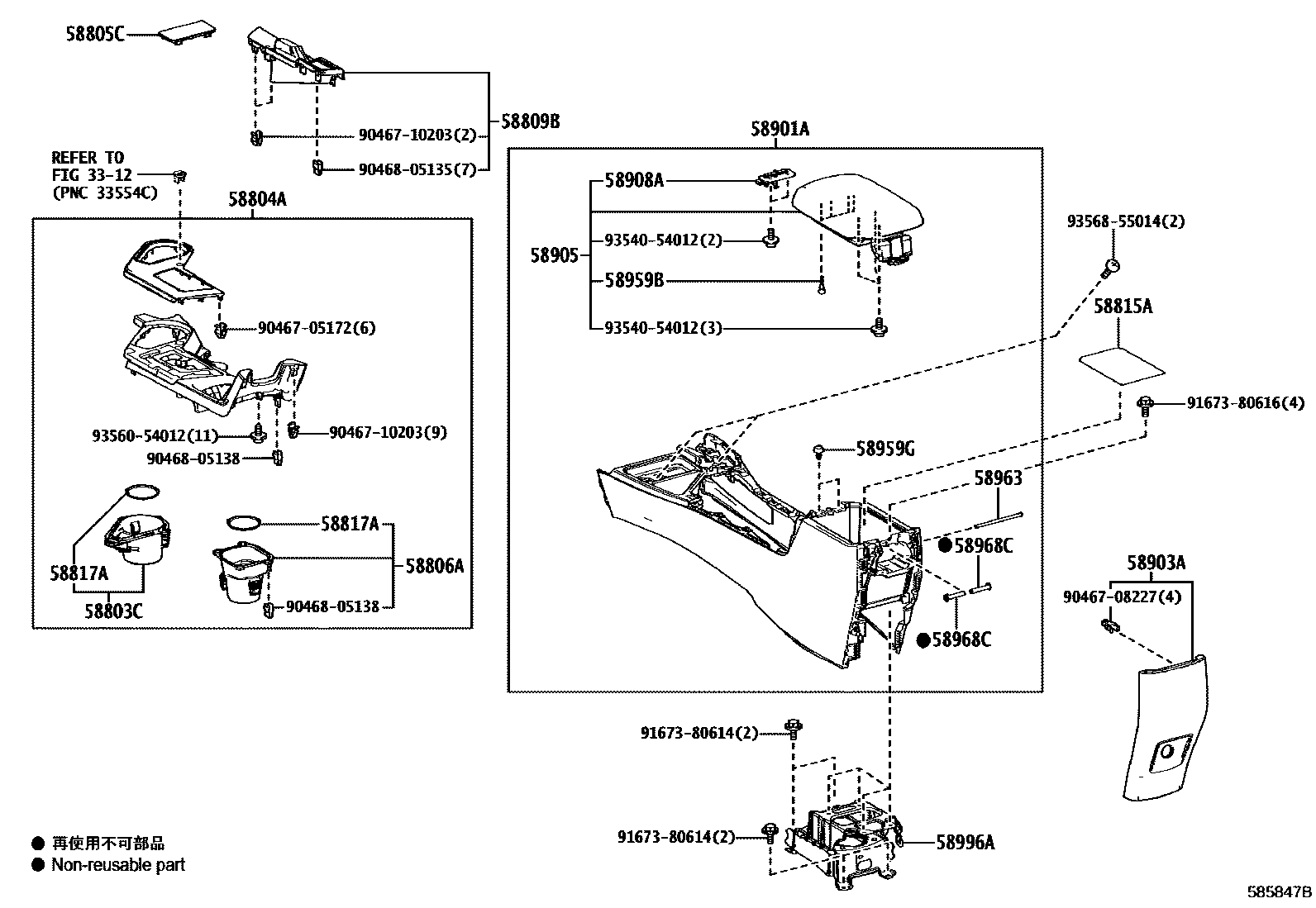

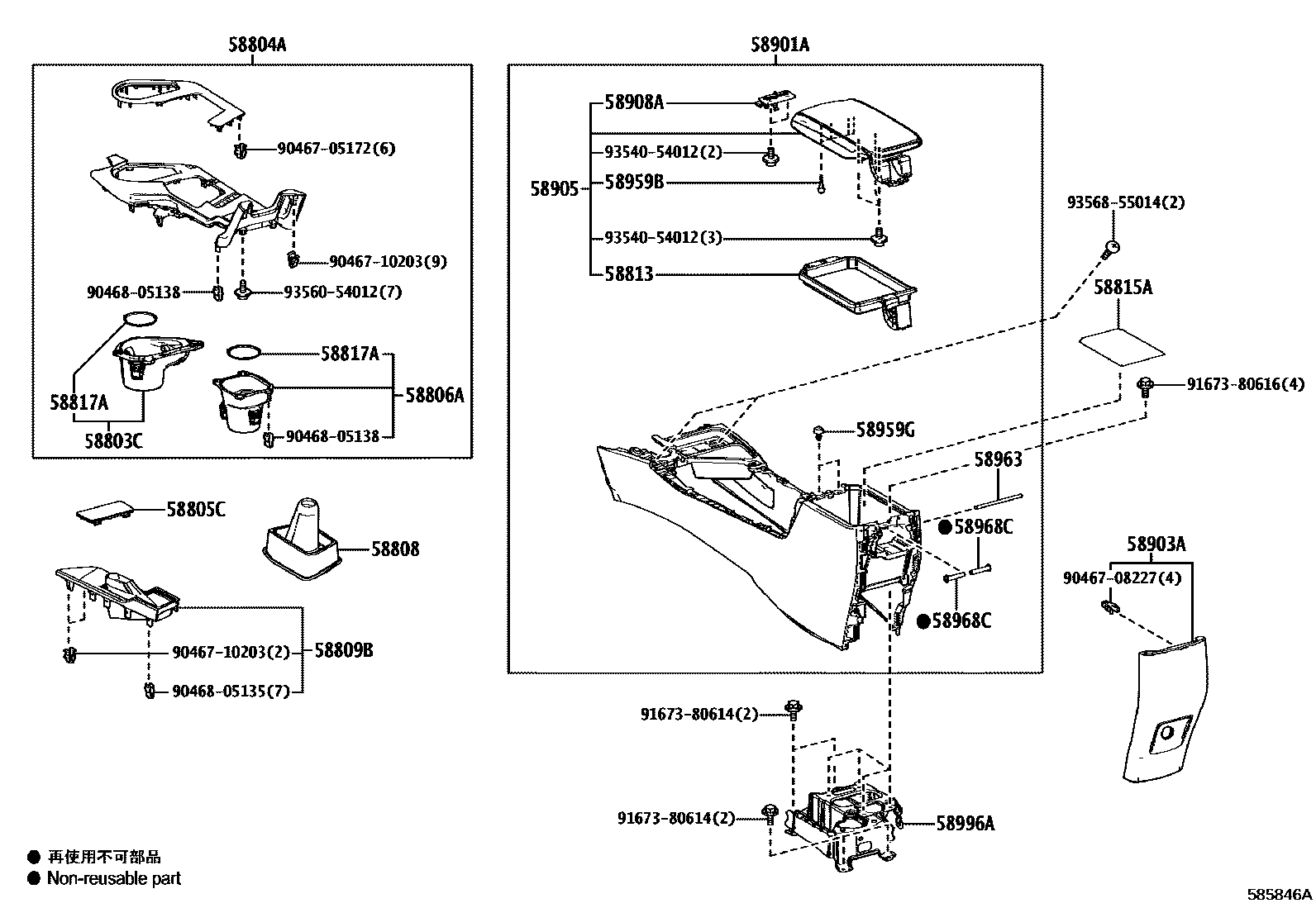

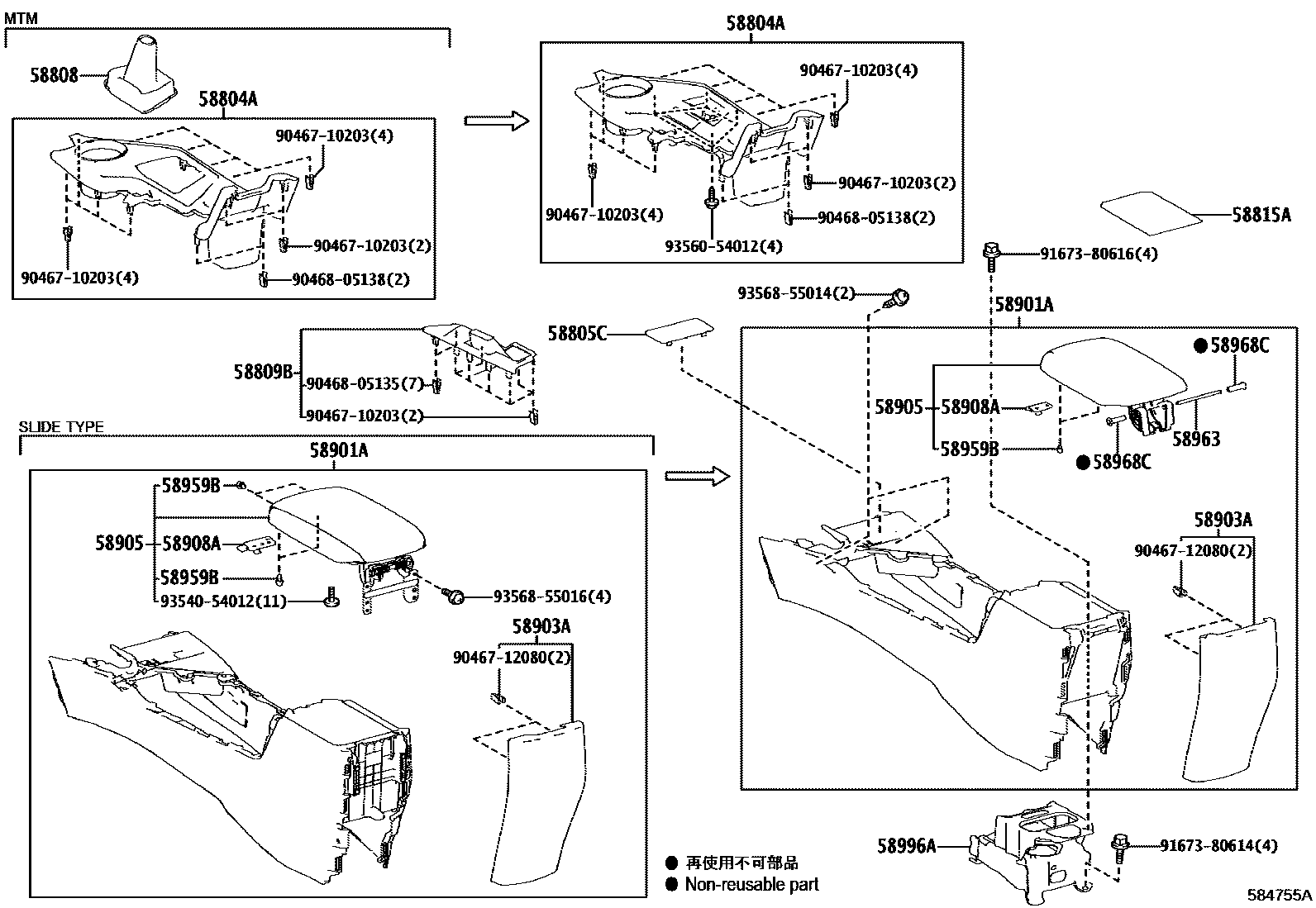

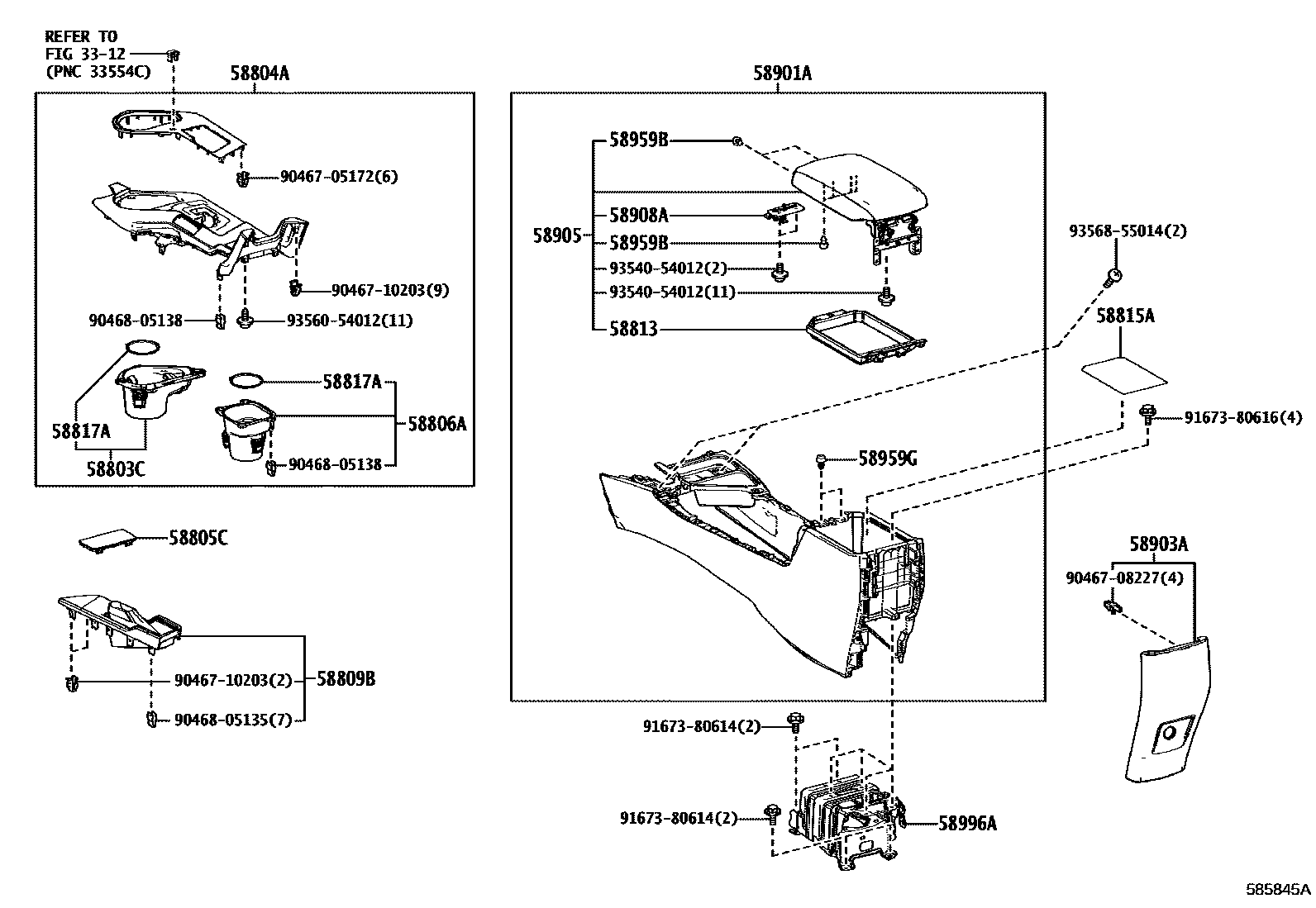

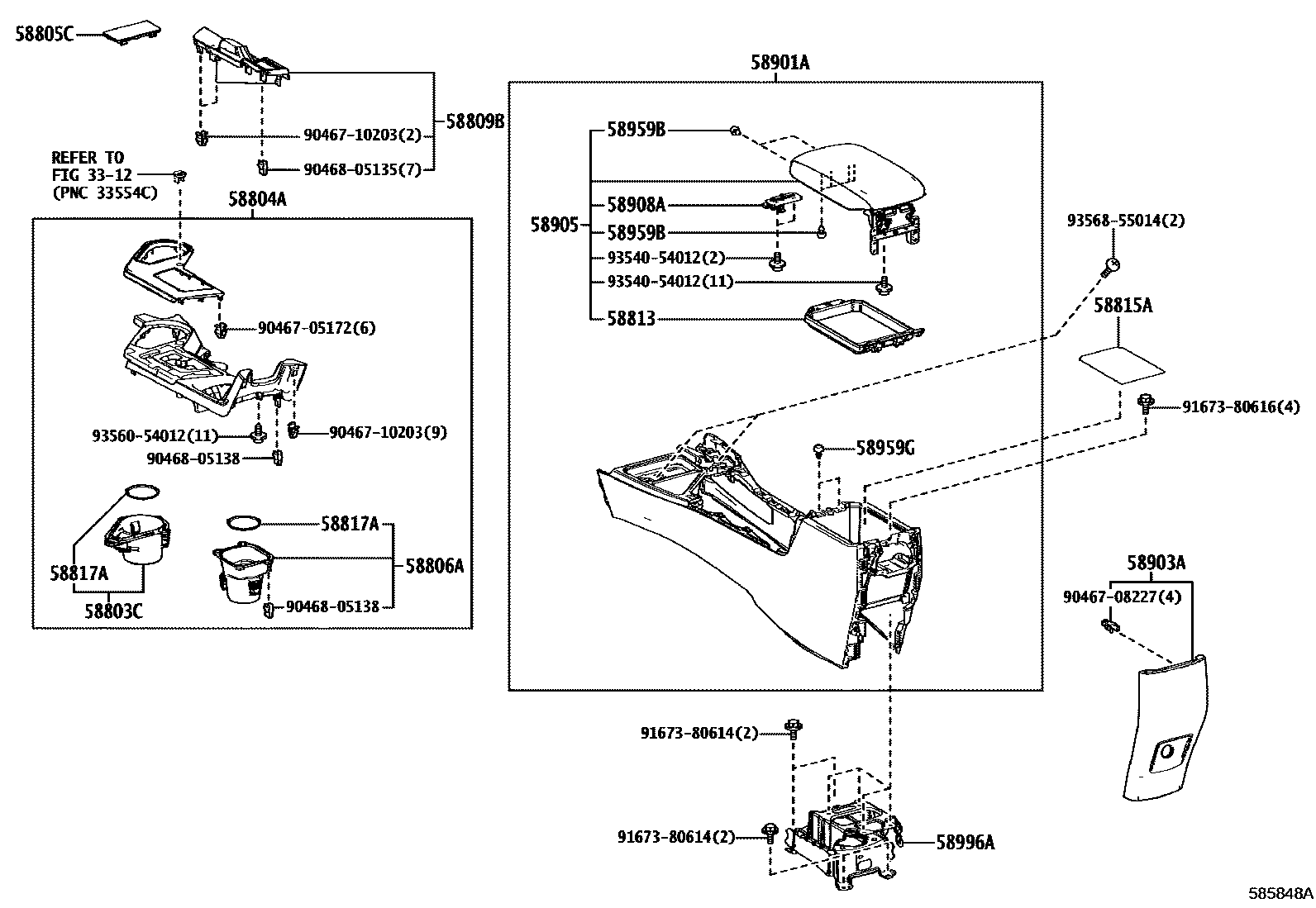

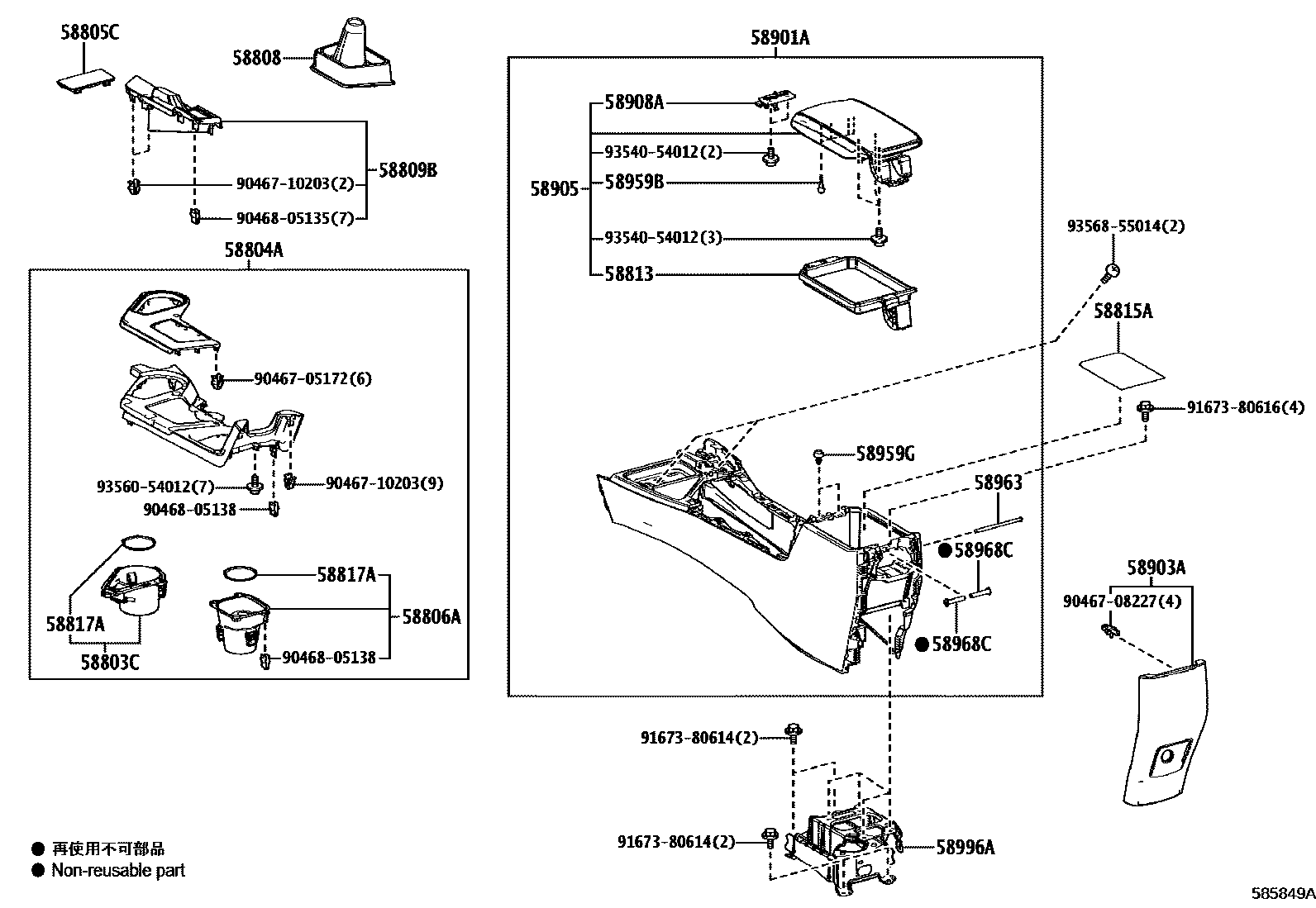

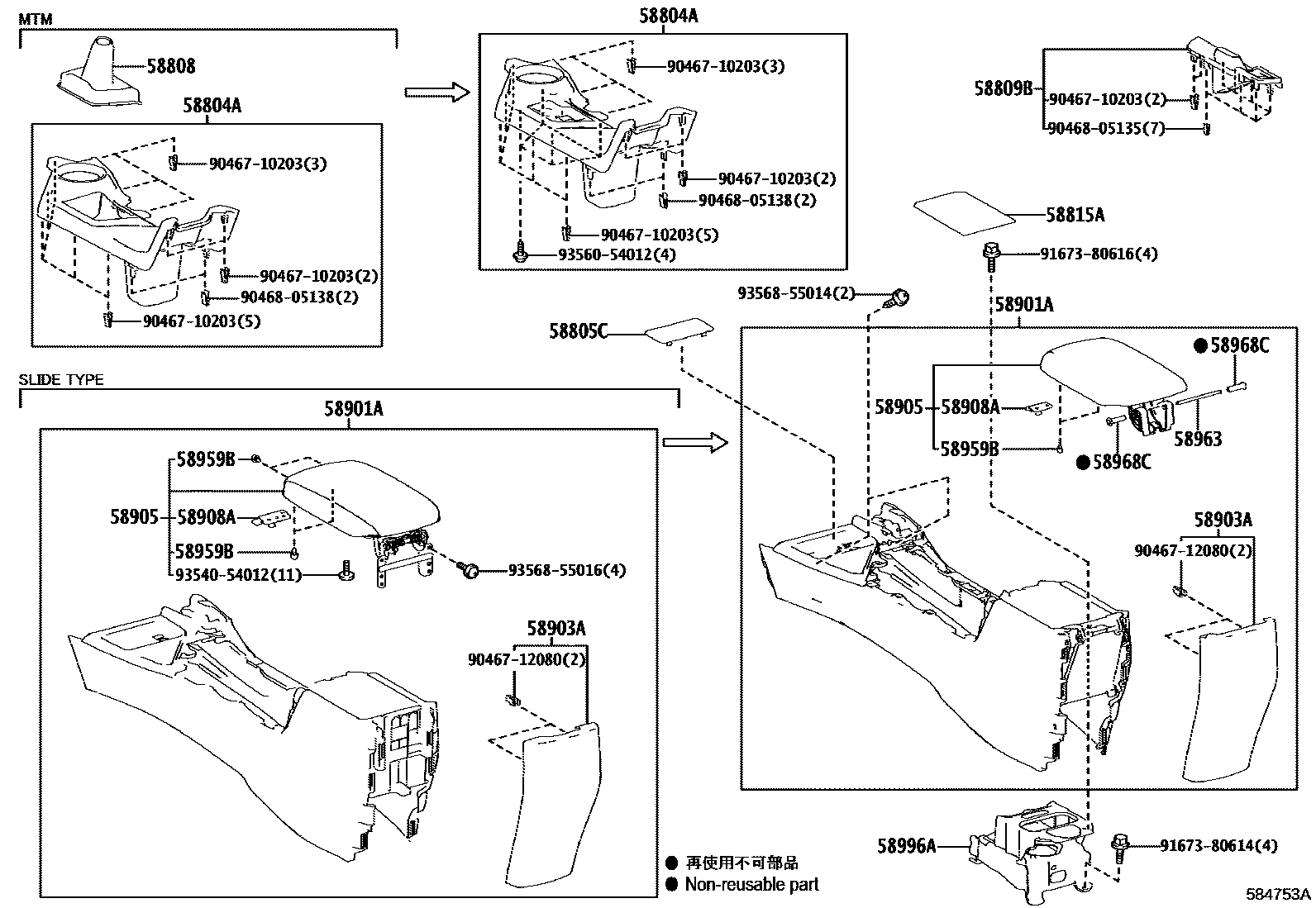

Toyota RAV4 EPC diagram 5855, 中央扶手箱和支架, with 8 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58804A | Armrest box upper panel sub-assembly | 58804-42360 · 58804-42370 · 58804-42380 · 58804-42390 |
| 58815A | Armrest box felt pad | 58815-0R050 · 58815-42030 |
| 58817A | Front armrest box insert No. 2 | 58817-42010 |
| 58908A | Armrest box lid lock assembly | 58908-12080 · 58908-42010 · 58908-42020 |
| 58959B | Armrest box cover cushion | 58959-35010 · 58959-42020 · 58959-60060 |
| 58959G | Armrest box cover cushion | 58959-35010 |
| 58963 | Armrest box lid hinge shaft | 58963-47010 |
| 58968C | Armrest box lid stopper gasket | 58968-42010 · 58968-42030 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-42050 · 58996-42070 |
