Toyota RAV4 地板隔热垫 — Figure 5853

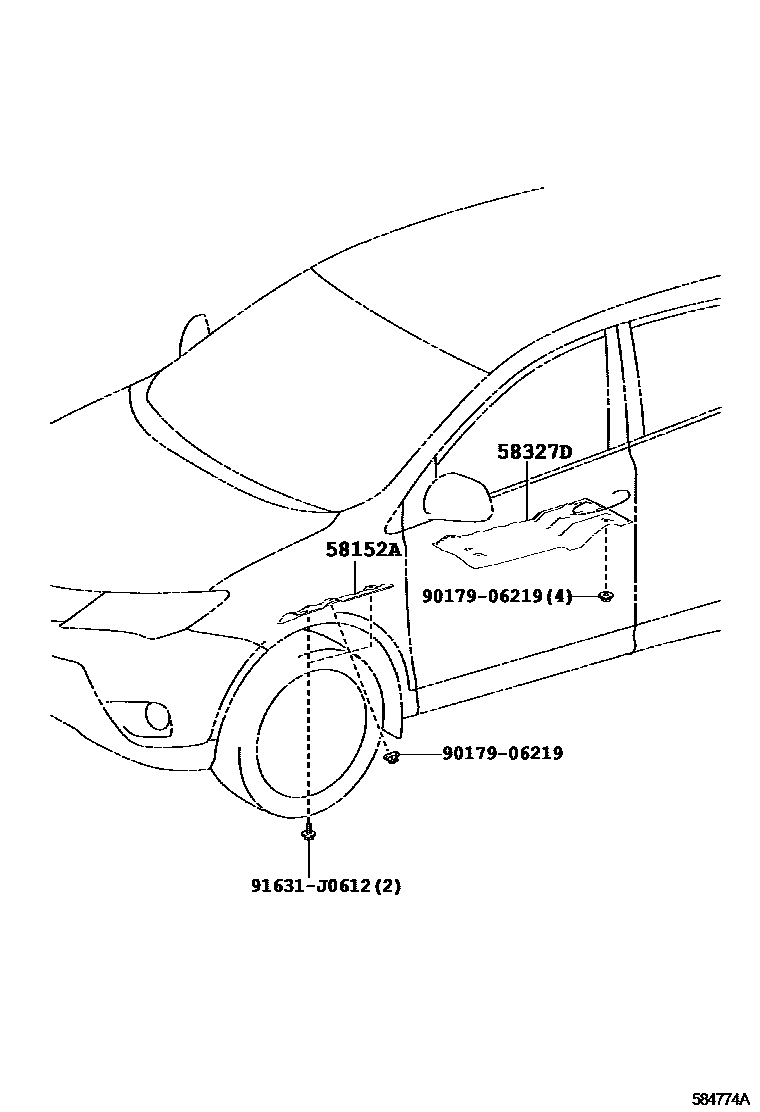

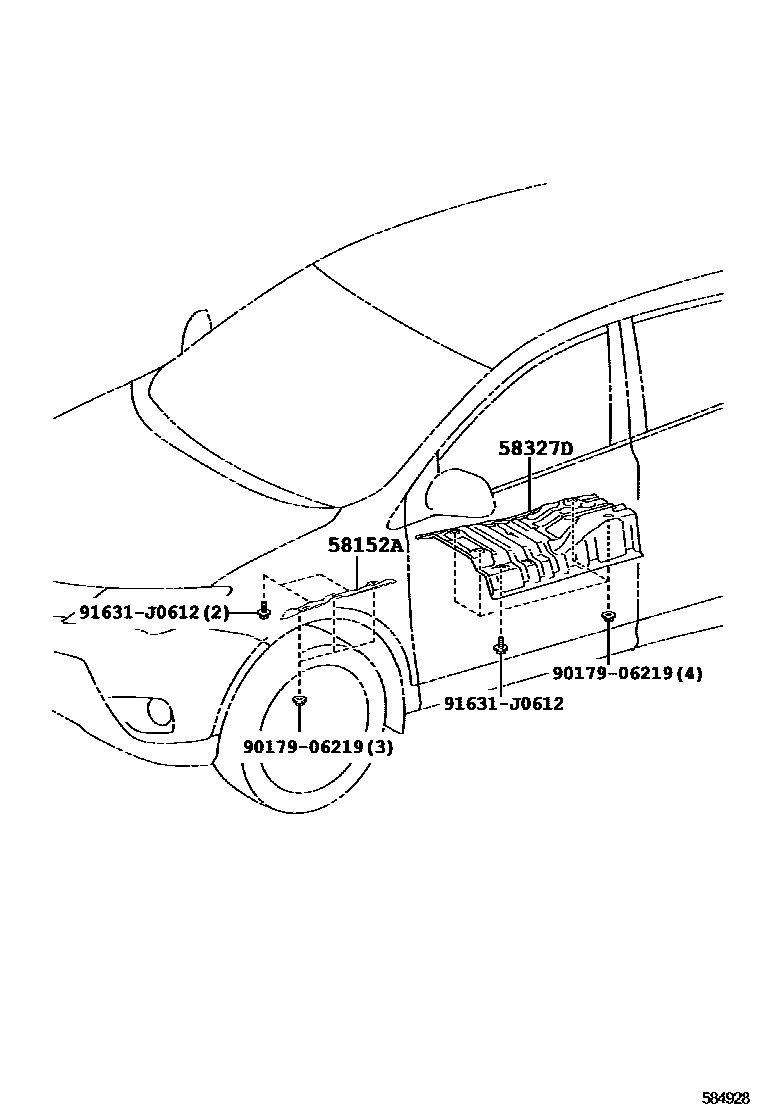

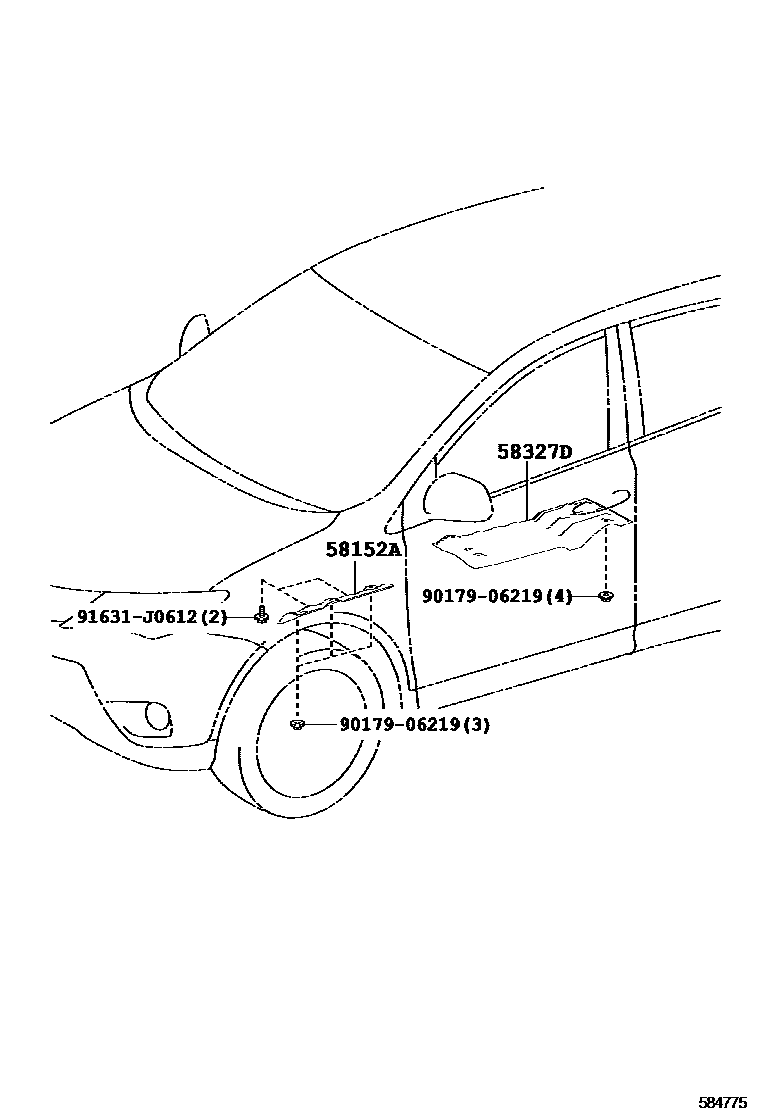

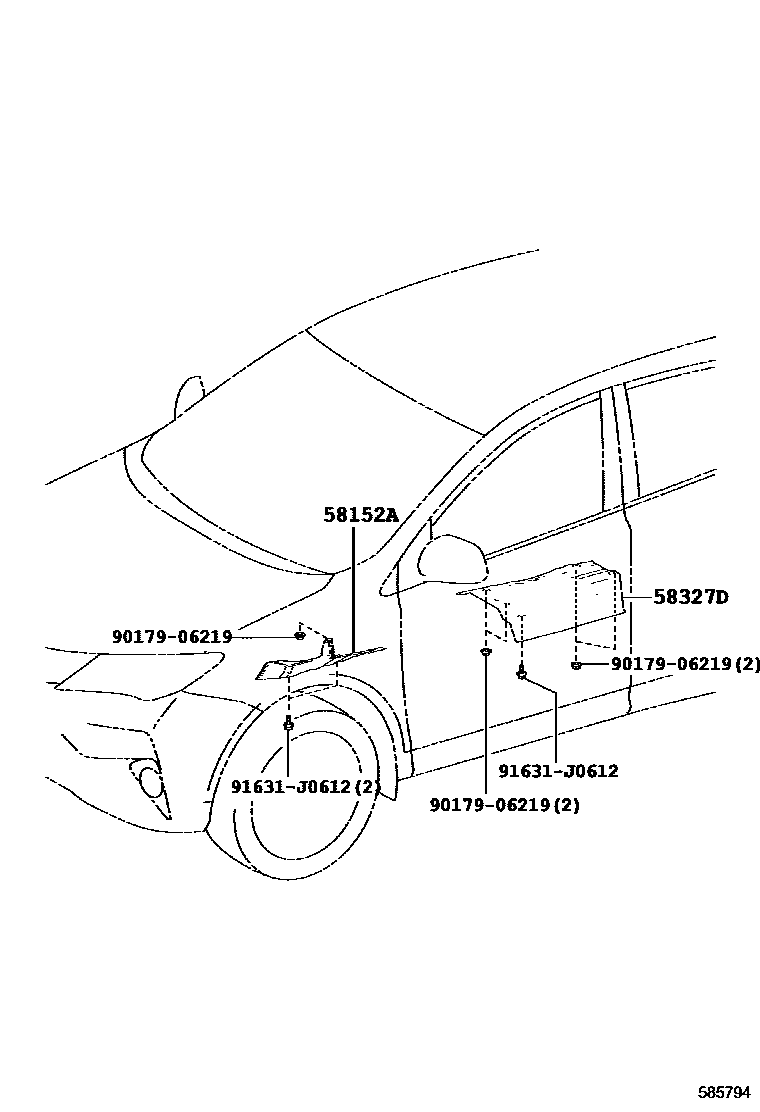

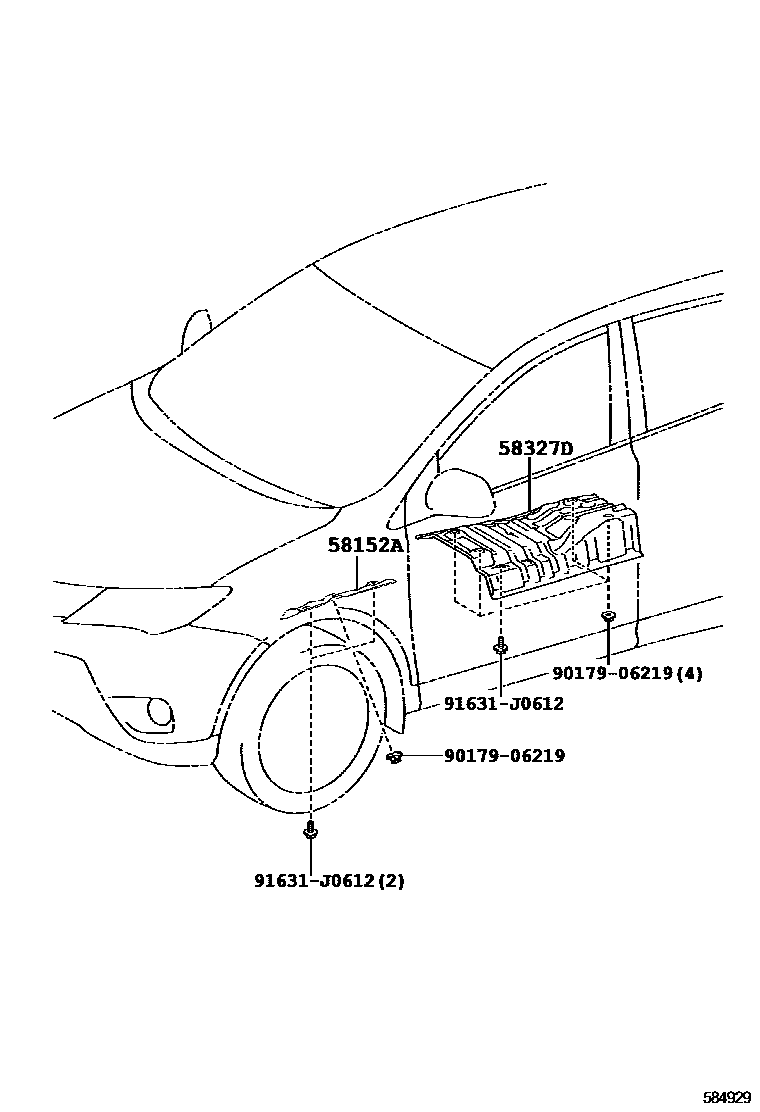

Toyota RAV4 EPC diagram 5853, 地板隔热垫, with 5 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58152A | Front floor No. 1 lower heat insulation pad | 58152-42010 · 58152-42030 · 58152-48031 |
| 58327D | Heat insulation pad on main muffler | 58327-42010 · 58327-42020 · 58327-48050 |
