Toyota RAV4 后地板和后地板梁 — Figure 5852

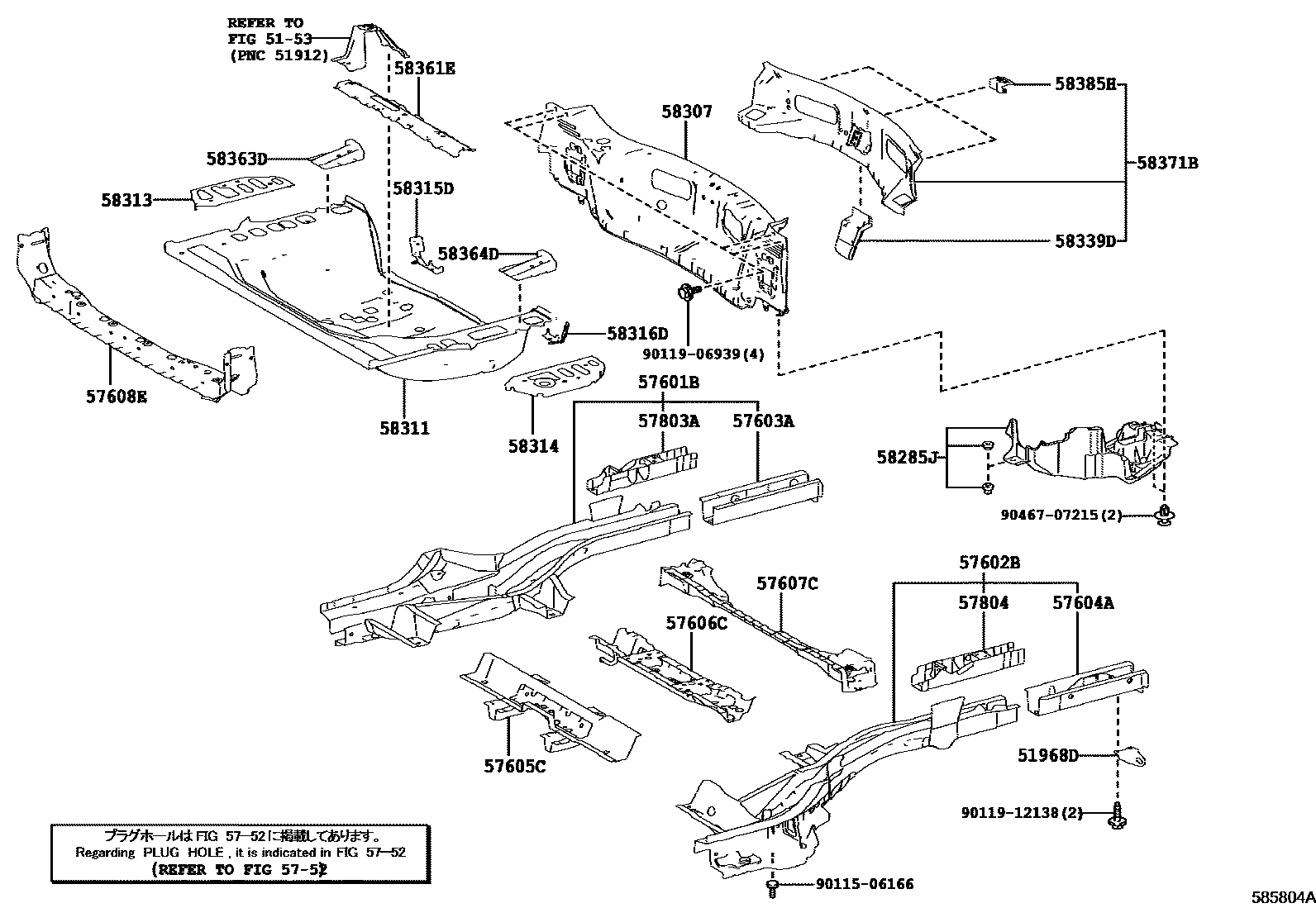

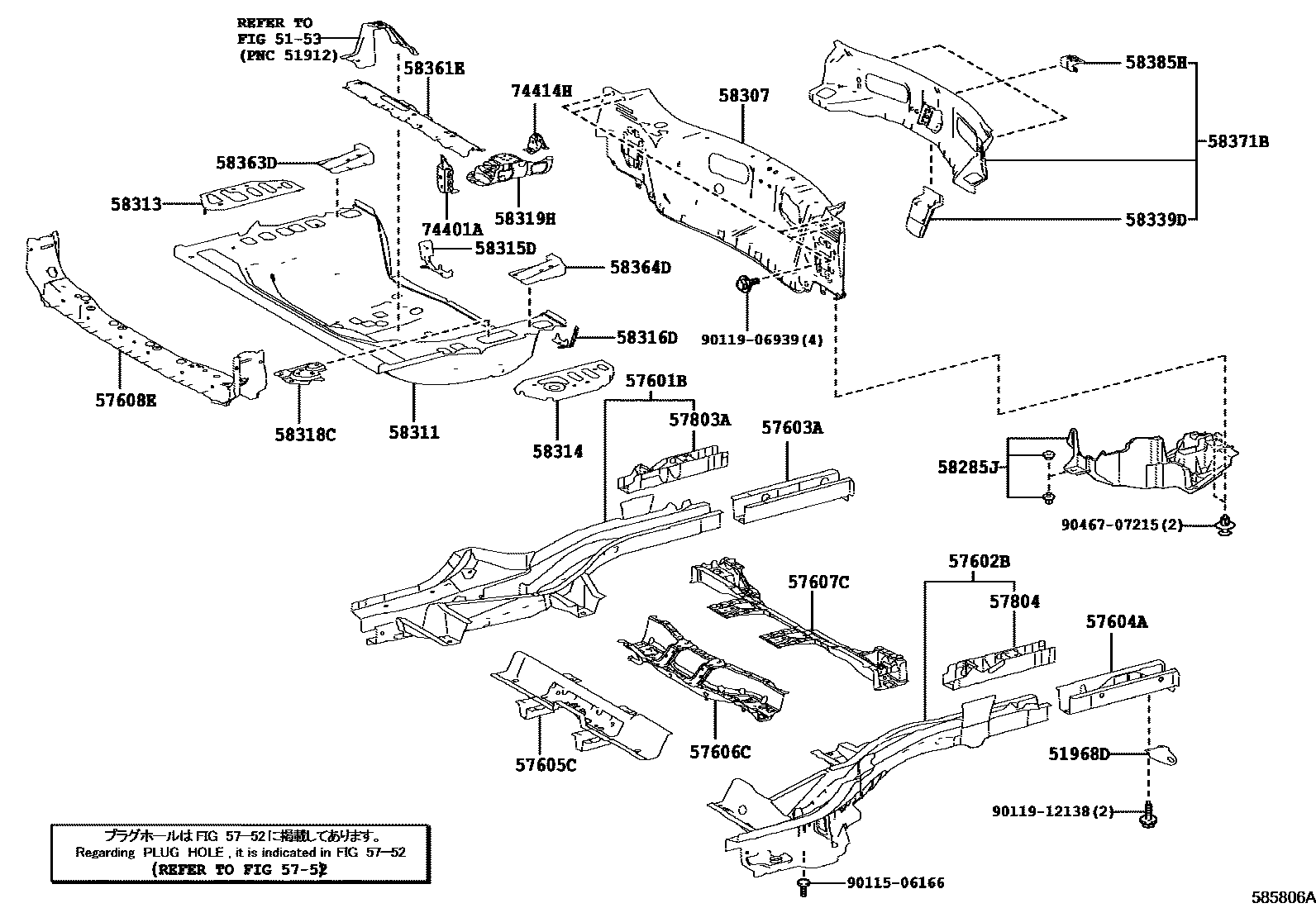

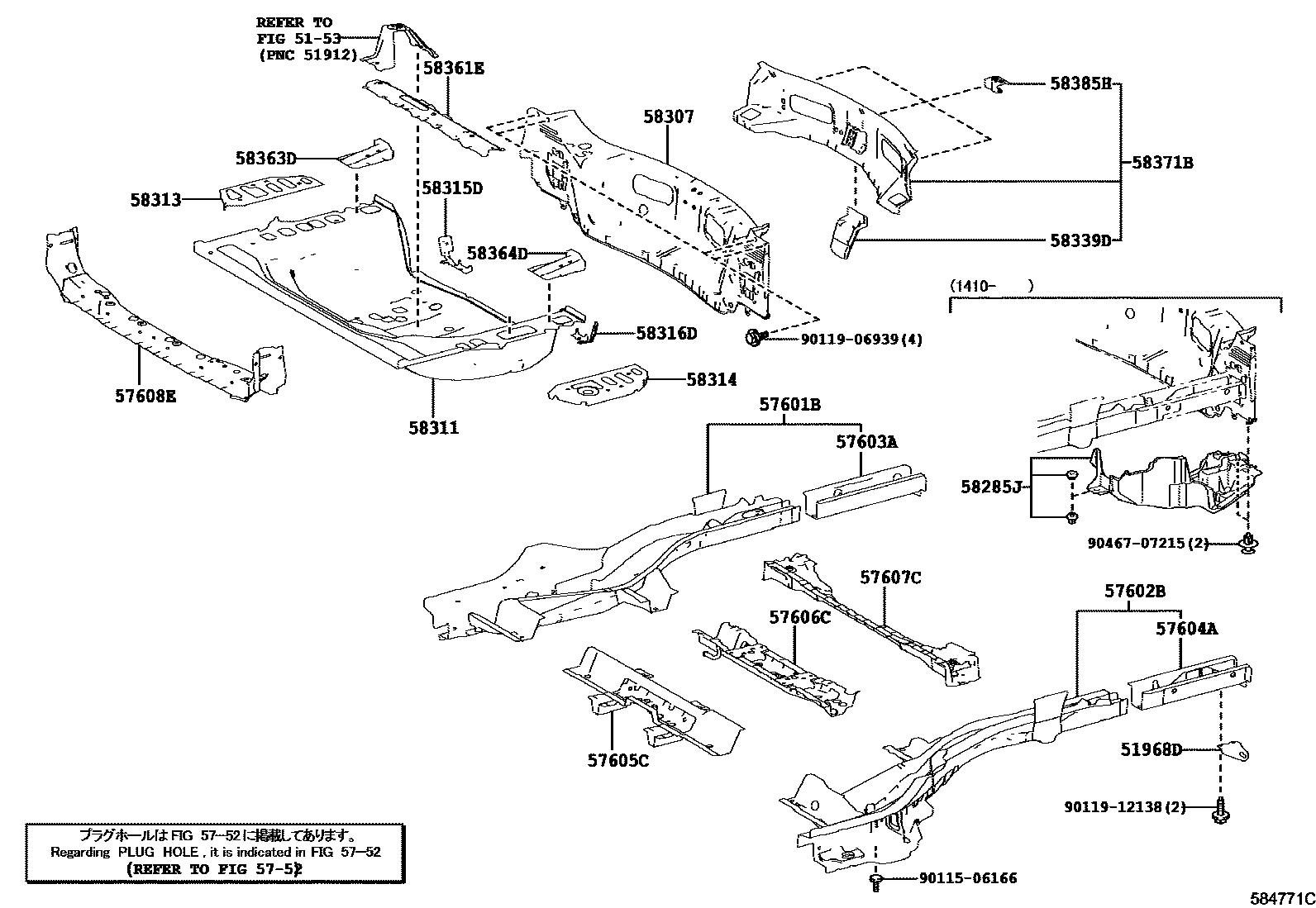

Toyota RAV4 EPC diagram 5852, 后地板和后地板梁, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51968D | Left rear transport hook | 51968-42010 |
| 57601B | Rear floor right front longitudinal beam sub-assembly | 57601-42907 · 57601-48918 · 57601-78020 |
| 57602B | Rear floor left front longitudinal beam sub-assembly | 57602-42905 · 57602-48917 · 57602-78020 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-42021 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-42020 |
| 57605C | Rear floor cross member sub-assembly | 57605-42010 · 57605-78020 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-42100 · 57606-48070 |
| 57607C | Rear floor No. 3 cross member sub-assembly | 57607-42070 · 57607-78010 · 57607-78020 |
| 57608E | Right longitudinal beam to floor reinforcement sub-assembly | 57608-42050 · 57608-48030 · 57608-78010 |
| 57803A | Rear floor right rear longitudinal beam reinforcement sub-assembly | 57803-42010 |
| 57804 | Rear floor left rear longitudinal beam reinforcement sub-assembly | 57804-42010 |
| 58285J | Center floor hole cover | 58285-42010 · 58285-42020 |
| 58307 | Body lower back panel sub-assembly | 58307-42020 · 58307-42021 · 58307-42030 |
| 58311 | rear floor pan | 58311-0R050 · 58311-42130 · 58311-42132 |
| 58313 | Rear floor right panel | 58313-42040 |
| 58314 | rear floor left panel | 58314-42040 |
| 58315D | Rear floor pan right extension | 58315-42070 |
| 58316D | Rear floor pan left extension | 58316-42080 |
| 58318C | Rear floor cross member bracket | 58318-42021 |
| 58319H | auxiliary floor | 58319-48020 |
| 58339D | Lift the bracket | 58339-42040 |
| 58361E | RENFORT, PANNEAU DE PLANCHER ARRIERE, NO.1 | 58361-42020 |
| 58363D | Rear floor No. 2 right reinforcement | 58363-42010 |
| 58364D | Rear floor No. 2 left reinforcement | 58364-42030 |
| 58371B | Body outer lower back panel | 58302-42020 |
| 58385H | Rear bumper cover No. 1 bracket | 58385-42020 |
| 74401A | SOUS-ENSEMBLE SUPPORT, BATTERIE, AVANT | 74401-48010 |
| 74414H | PANNEAU, SUPPORT BATTERIE, ARRIERE | 74414-48010 |
