Toyota RAV4 前围板和挡风玻璃 — Figure 5553

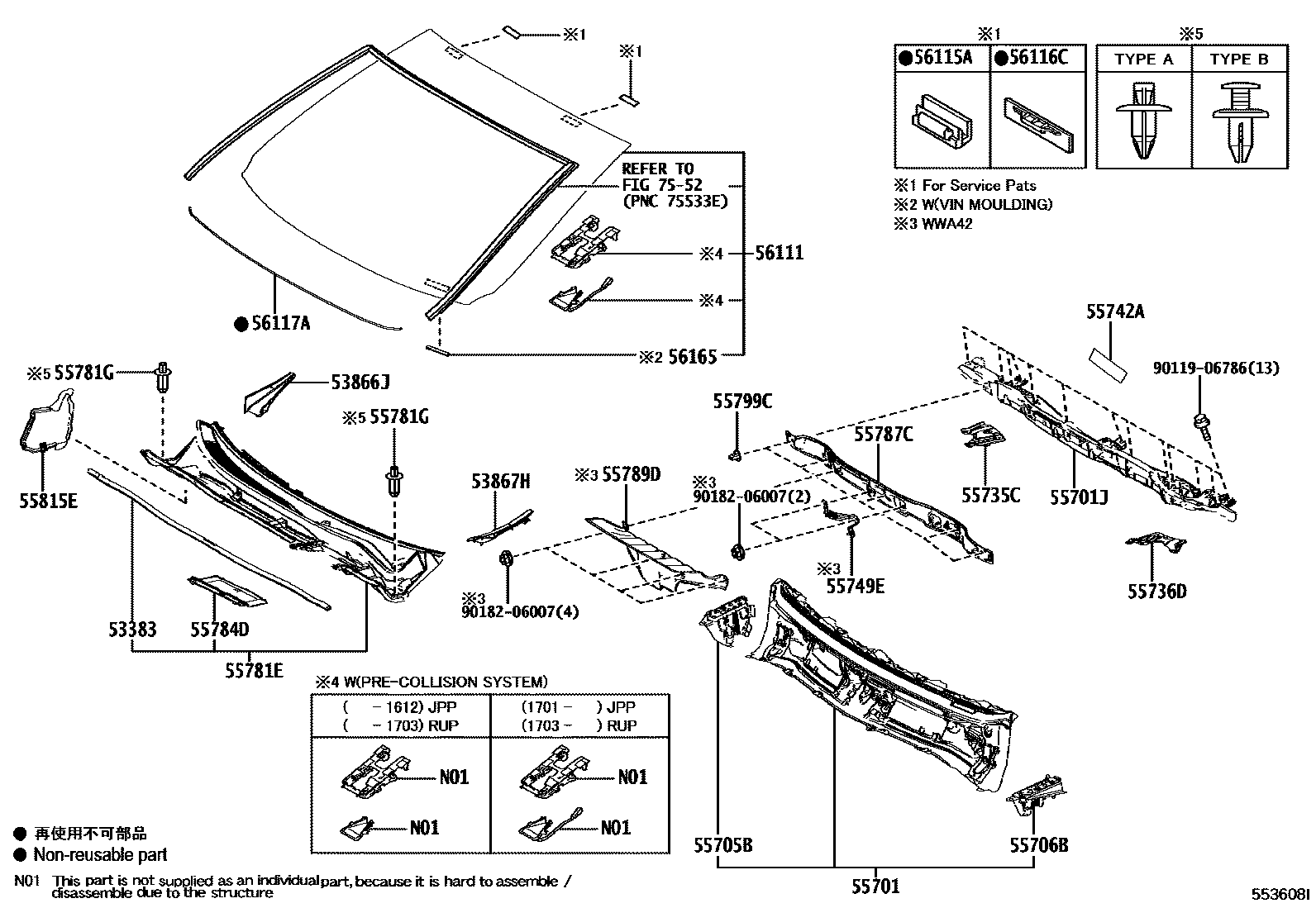

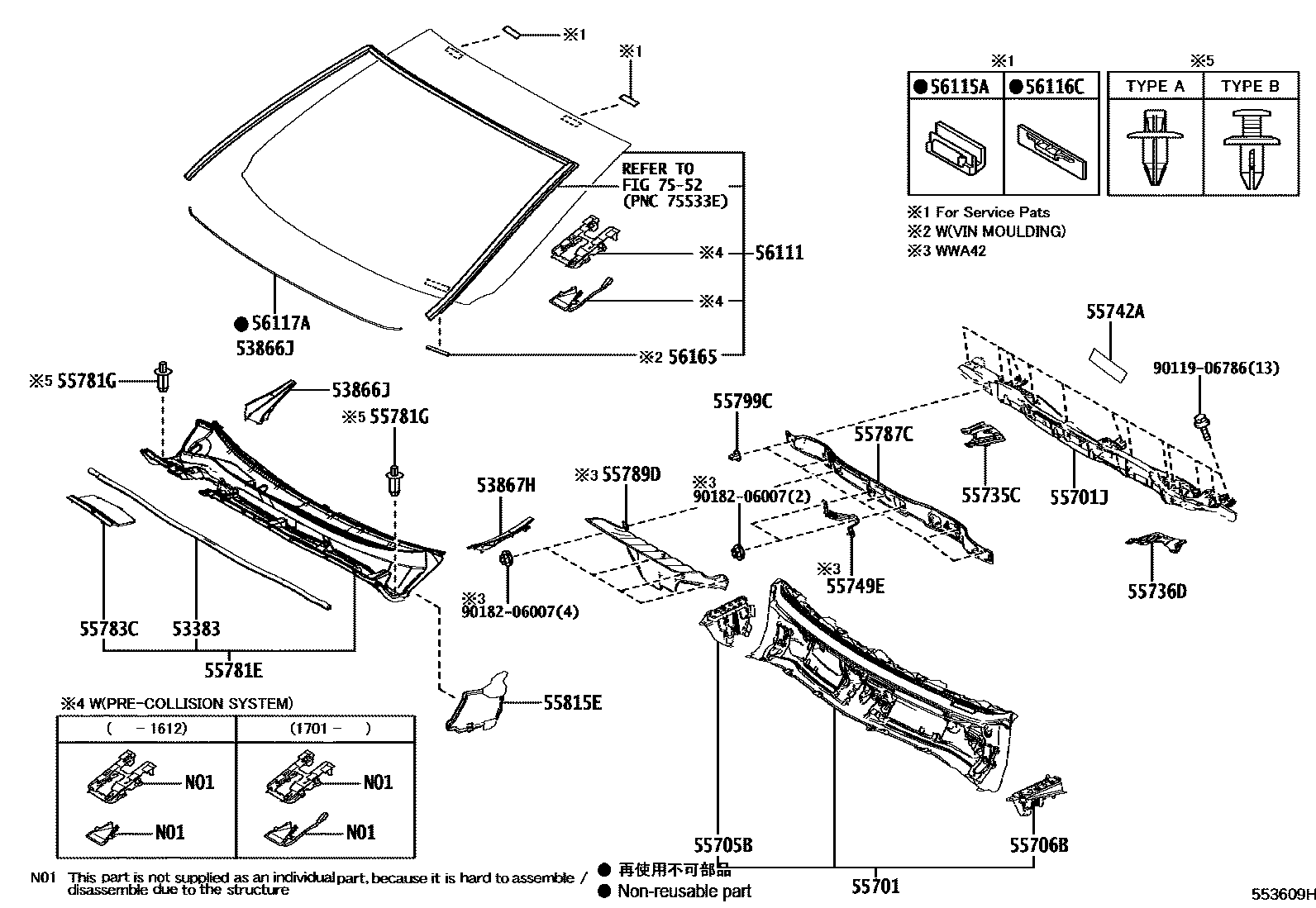

Toyota RAV4 EPC diagram 5553, 前围板和挡风玻璃, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383 | Engine cover to cowl upper cover seal | 53383-42040 |
| 53866J | Right front fender to cowl side seal | 53866-42020 |
| 53867H | Left front fender to cowl side seal | 53867-42020 |
| 55701 | Front apron sub-assembly | 55700-42480 · 55700-42490 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-42390 · 55701-42391 · 55701-42400 · 55701-42410 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-42070 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-42050 |
| 55735C | Right front wall body-mounted reinforcement | 55735-42020 |
| 55736D | Left front wall body mounting reinforcement | 55736-42040 |
| 55742A | Heat insulation panel on front wall | 55742-42050 |
| 55749E | Front wall upper cover No. 2 heat insulation panel | 55749-42020 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-42180 · 55708-42181 · 55708-42190 · 55708-42200 · 55708-42270 |
| 55783C | Ventilation grille bracket on right front apron | 55783-42060 |
| 55784D | Ventilation grille bracket on left front apron | 55783-42050 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-42050 · 55787-42051 |
| 55789D | ISOLANT, DESSUS DE TABLIER, NO.3 | 55789-42040 |
| 55799C | Ventilation grille clips on front apron | 90467-06197 |
| 55815E | No. 1 front vent seal | 55815-42020 · 55815-42030 · 55815-42040 |
| 56111 | windshield | 56101-0R200 · 56101-0R201 · 56101-0R210 · 56101-0R211 · 56101-0R220 · 56101-0R221 · 56101-0R222 · 56101-0R223 · 56101-0R230 · 56101-0R231 · 56101-0R232 · 56101-42190 · 56101-42200 · 56101-42210 · 56101-42220 · 56101-42230 · 56101-42240 · 56101-42250 · 56101-42260 · 56101-42280 · 56101-42320 · 56101-42400 · 56101-42410 · 56101-42420 · 56101-42430 · 56101-42440 · 56101-42460 · 56101-42461 · 56101-42470 · 56101-42471 · 56101-42490 · 56101-42491 · 56101-42500 · 56101-42501 · 56101-42510 · 56101-42511 · 56101-42520 · 56101-42521 · 56101-42530 · 56101-42550 · 56101-42560 · 56101-42570 · 56101-42580 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56165 | Left front window inner protective strip cover | 56165-30010 |
