Toyota RAV4 radiator grille — Figure 5351

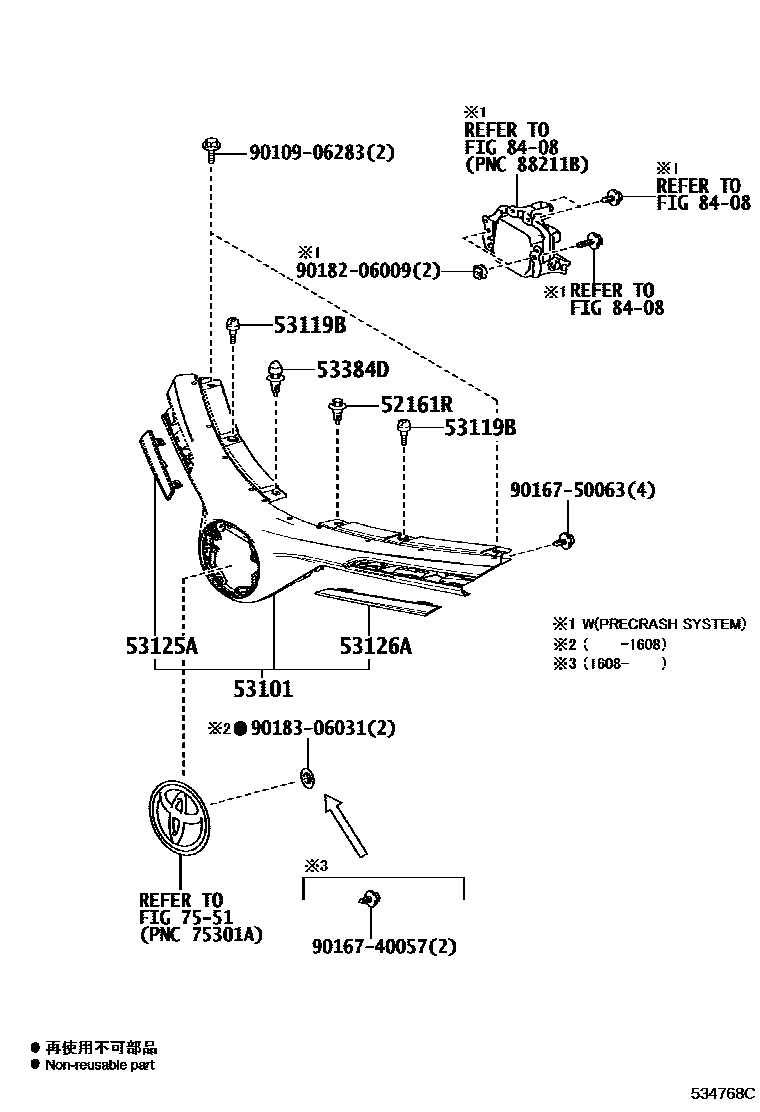

Toyota RAV4 EPC diagram 5351, radiator grille, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161R | front bumper insert | 52161-16010 |
| 53101 | Radiator grille sub-assembly | 53101-42410 · 53101-42411 · 53101-42420 · 53101-42421 |
| 53105A | SOUS-ENSEMBLE GARNITURE, GRILLE DE RADIATEUR, MD | 53105-42010 · 53105-42020 · 53105-42021 |
| 53106C | SOUS-ENSEMBLE GARNITURE, GRILLE DE RADIATEUR, MG | 53106-42010 · 53106-42020 · 53106-42021 |
| 53119B | Radiator grille protector | 53119-12150 |
| 53125A | Radiator grille right center protective strip | 53125-42100 · 53125-42110 |
| 53126A | Radiator grille left middle protective strip | 53126-42090 · 53126-42100 |
| 53384D | Engine cover center cushion | 53384-68010 |
