Toyota RAV4 悬架横梁和发动机底罩 — Figure 5152

Toyota RAV4 EPC diagram 5152, 悬架横梁和发动机底罩, with 12 images and 24 PNC and OE references.

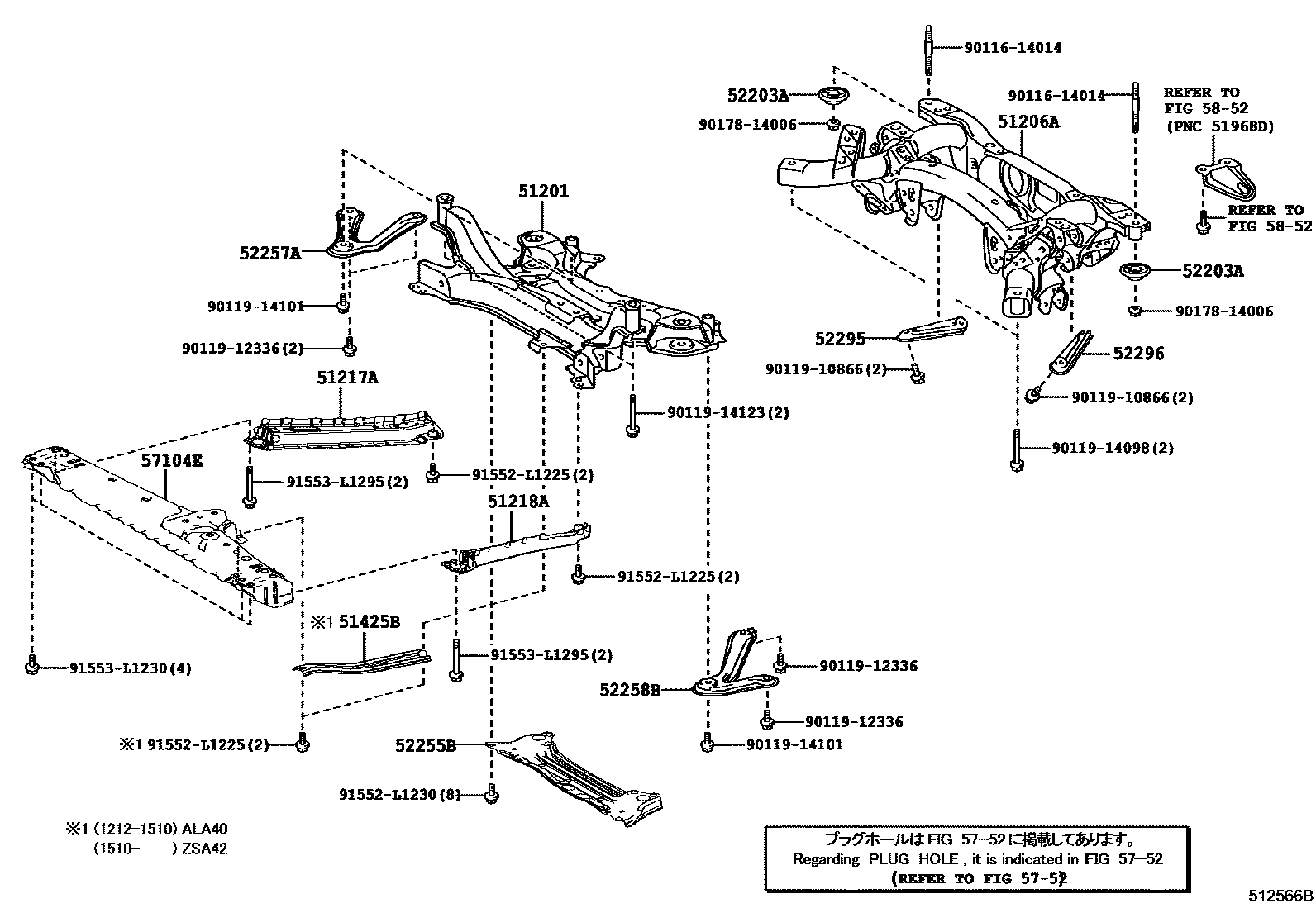

Toyota RAV4 悬架横梁和发动机底罩 EPC diagram — 512566B — 悬架横梁和发动机底罩 — 512566B (201212 – 999999)

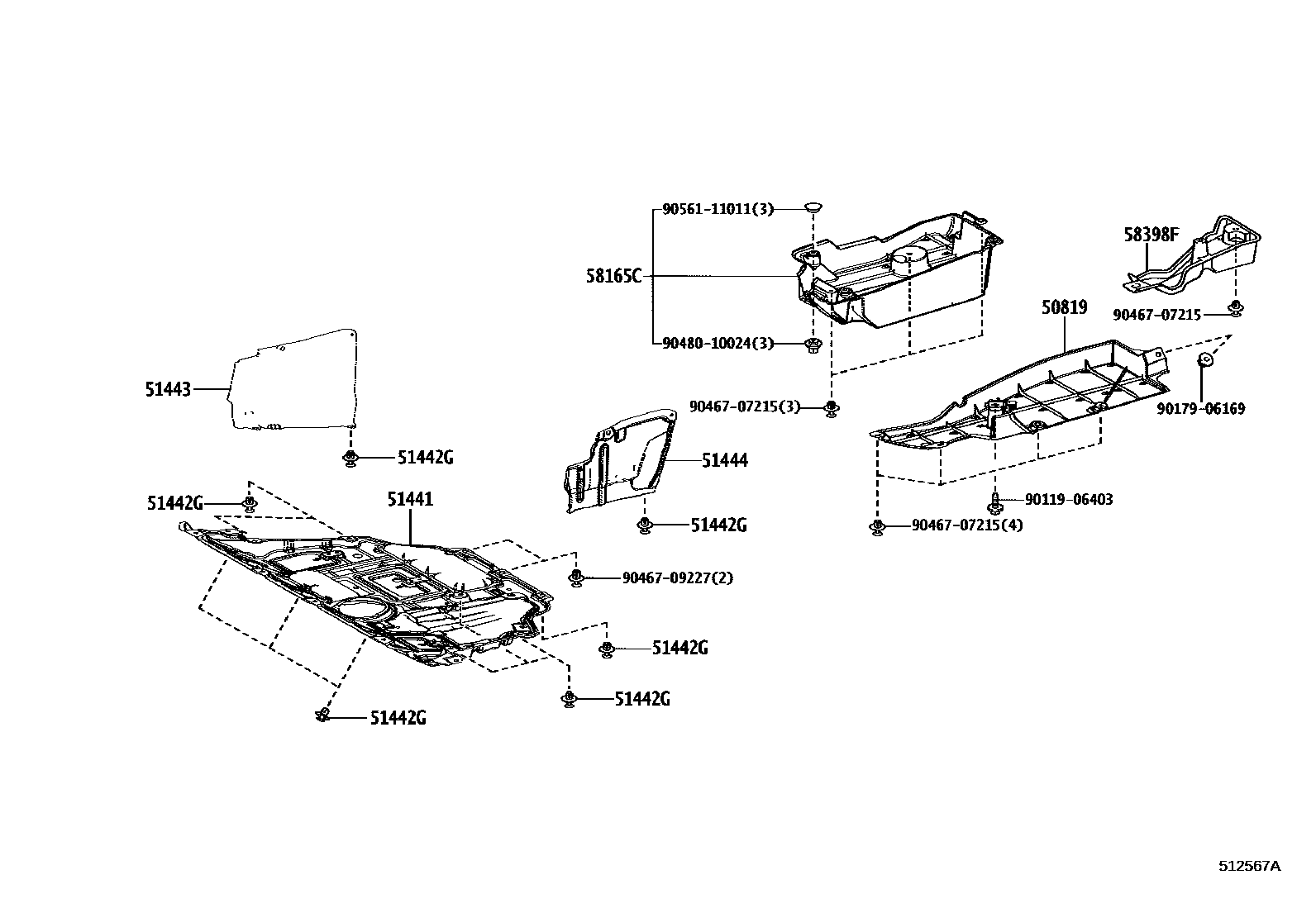

Toyota RAV4 悬架横梁和发动机底罩 EPC diagram — 512567A — 悬架横梁和发动机底罩 — 512567A (201212 – 201308)

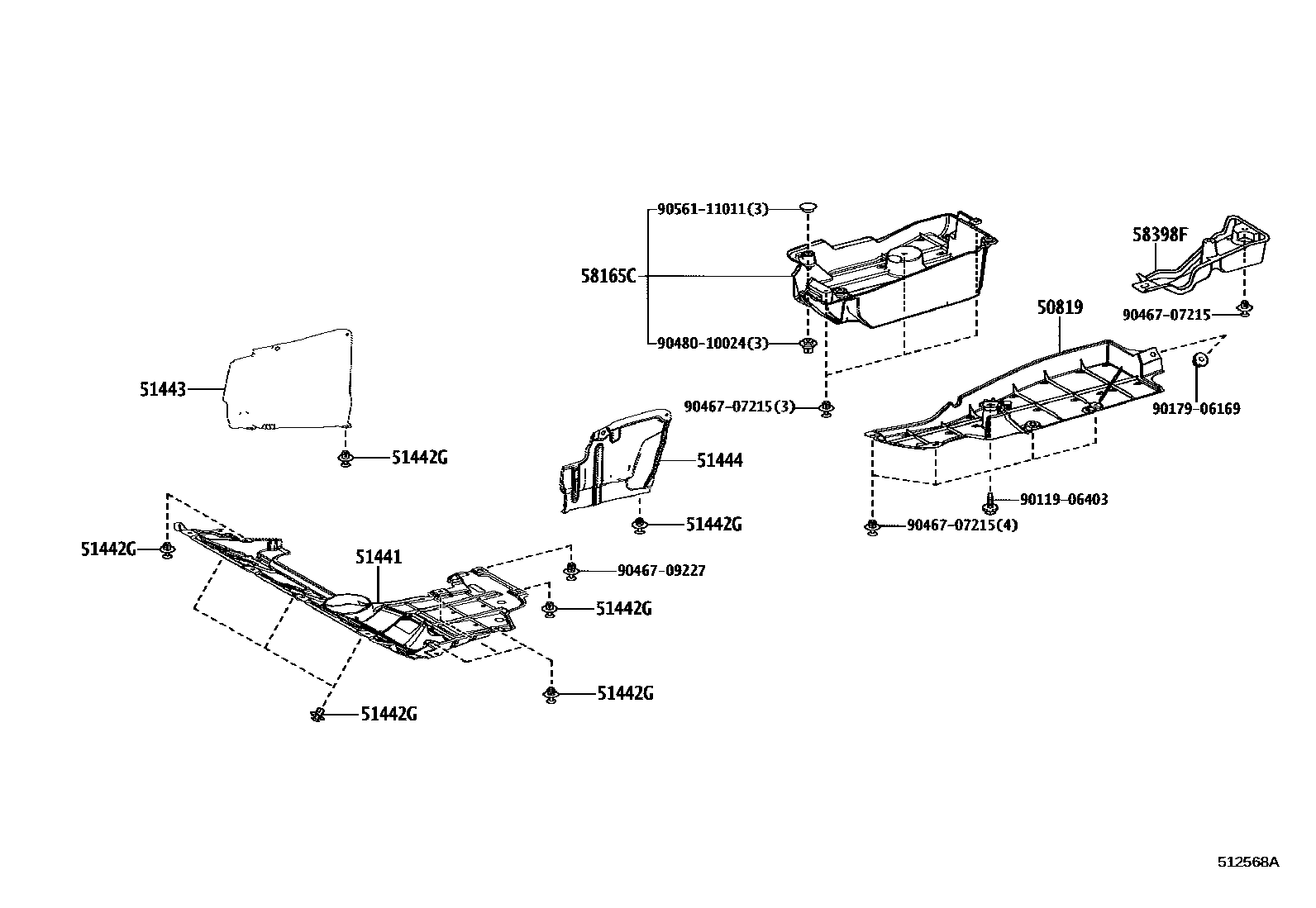

Toyota RAV4 悬架横梁和发动机底罩 EPC diagram — 512568A — 悬架横梁和发动机底罩 — 512568A (201212 – 201308)

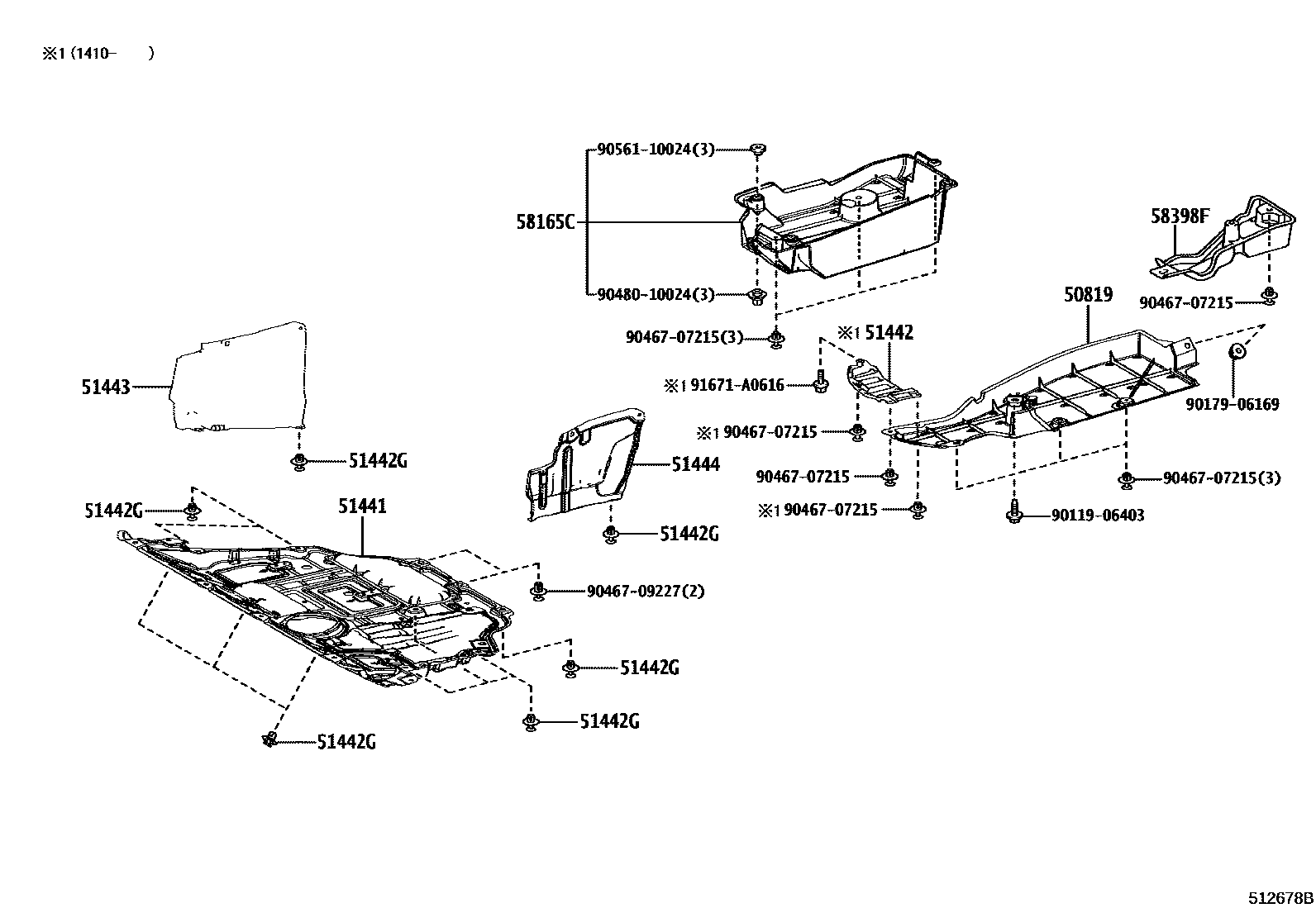

Toyota RAV4 悬架横梁和发动机底罩 EPC diagram — 512678B — 悬架横梁和发动机底罩 — 512678B (201308 – 201510)

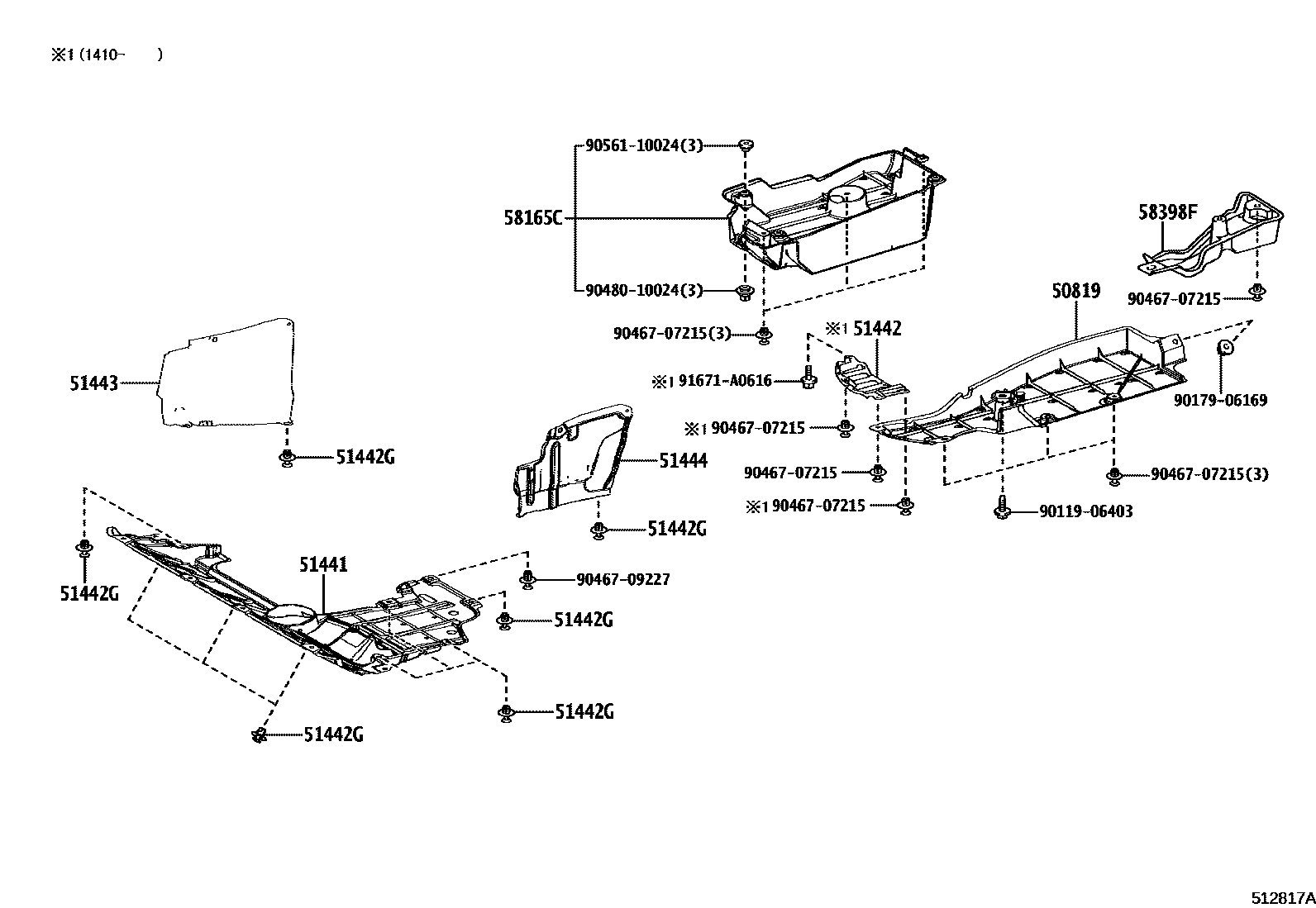

Toyota RAV4 悬架横梁和发动机底罩 EPC diagram — 512817A — 悬架横梁和发动机底罩 — 512817A (201308 – 201510)

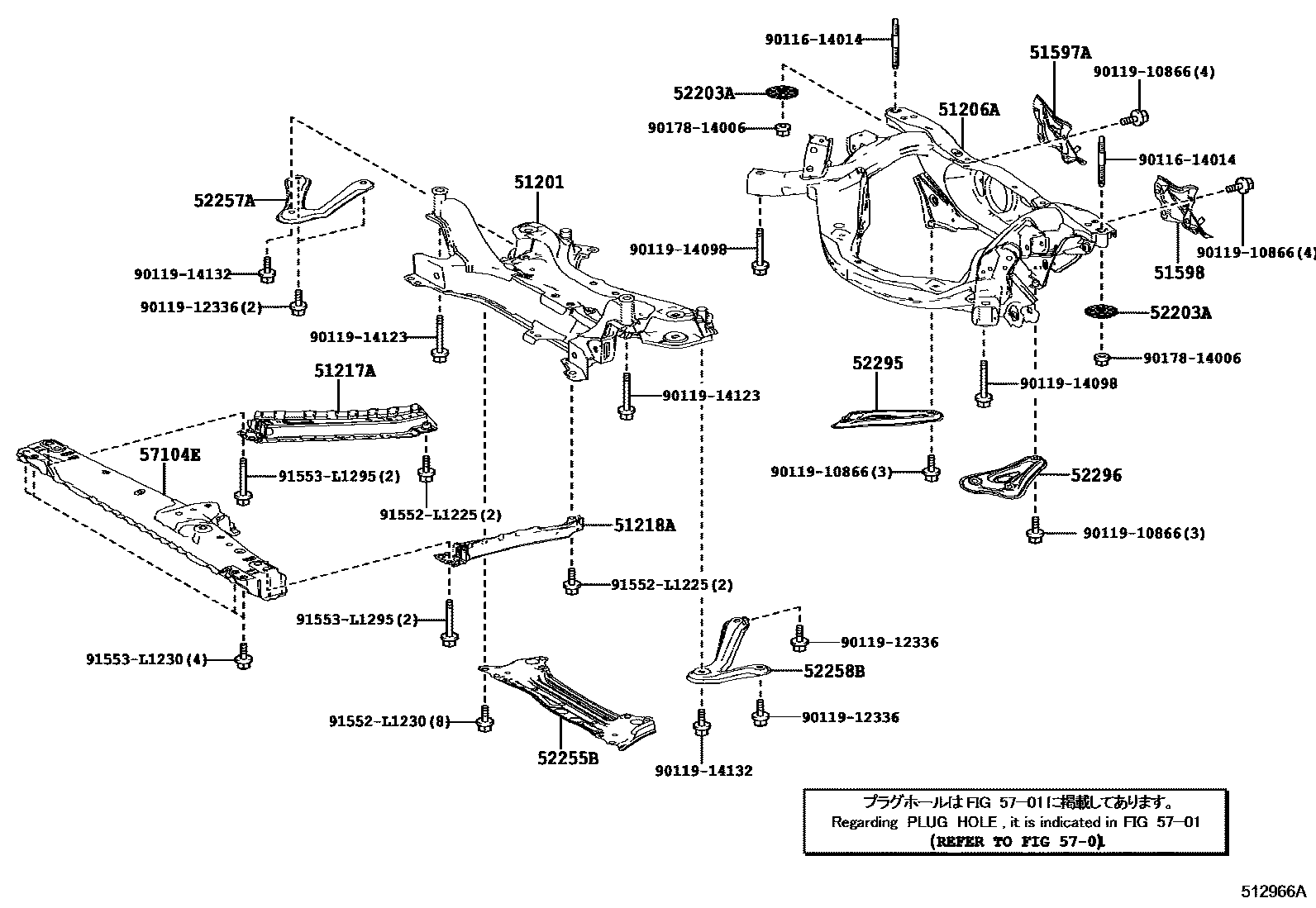

Toyota RAV4 悬架横梁和发动机底罩 EPC diagram — 512966A — 悬架横梁和发动机底罩 — 512966A (201510 – 999999)

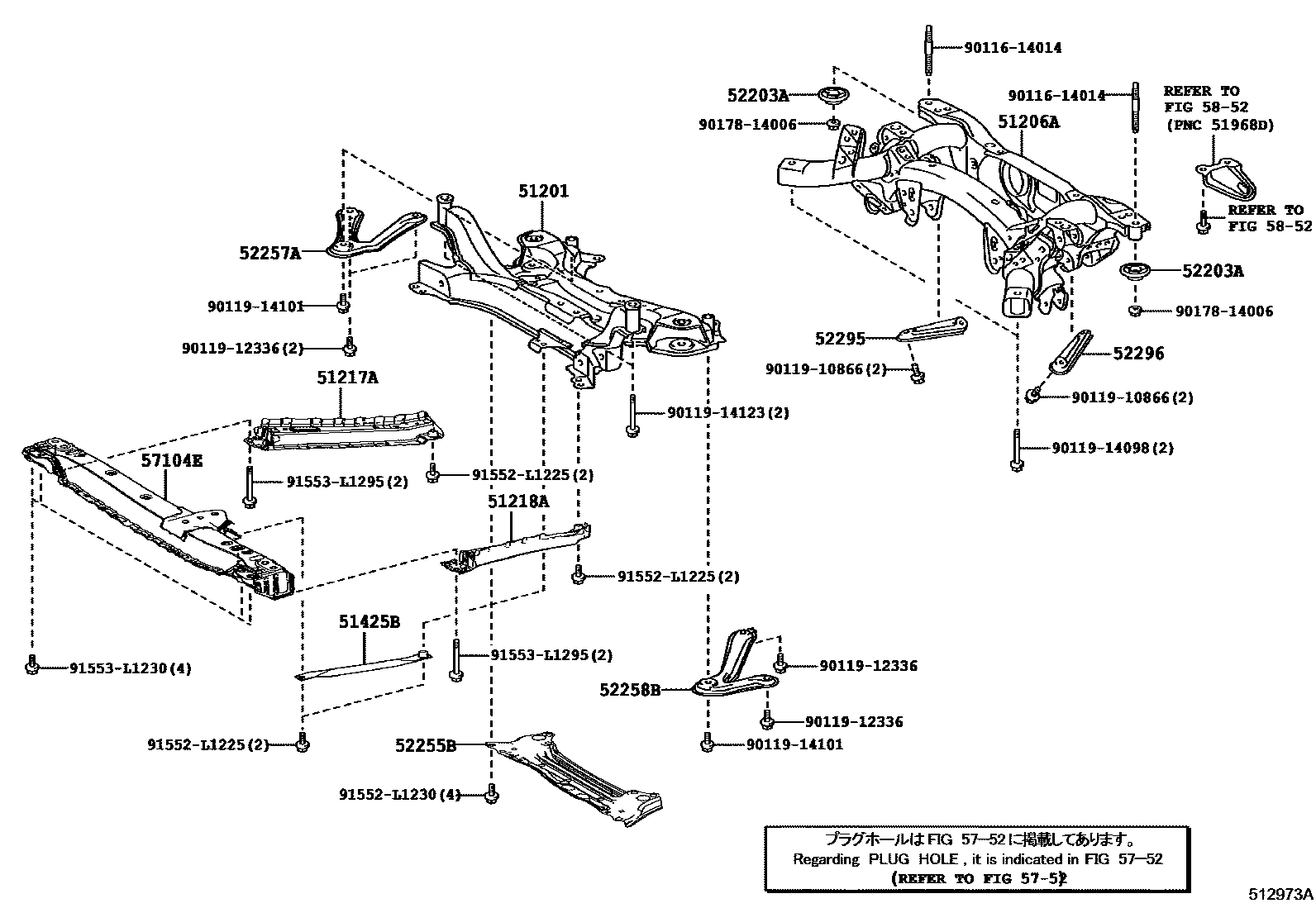

Toyota RAV4 悬架横梁和发动机底罩 EPC diagram — 512973A — 悬架横梁和发动机底罩 — 512973A (201510 – 999999)

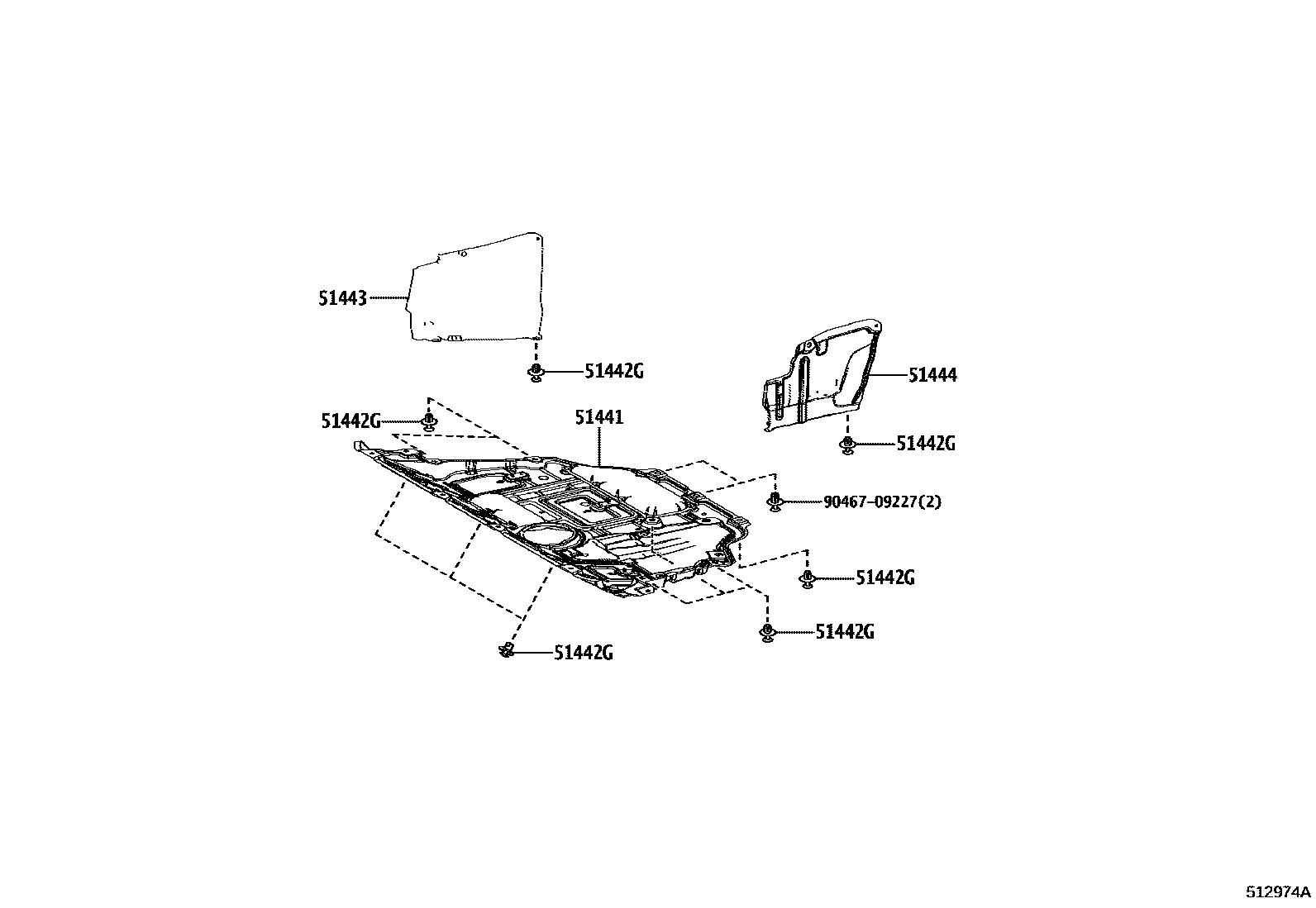

Toyota RAV4 悬架横梁和发动机底罩 EPC diagram — 512974A — 悬架横梁和发动机底罩 — 512974A (201510 – 999999)

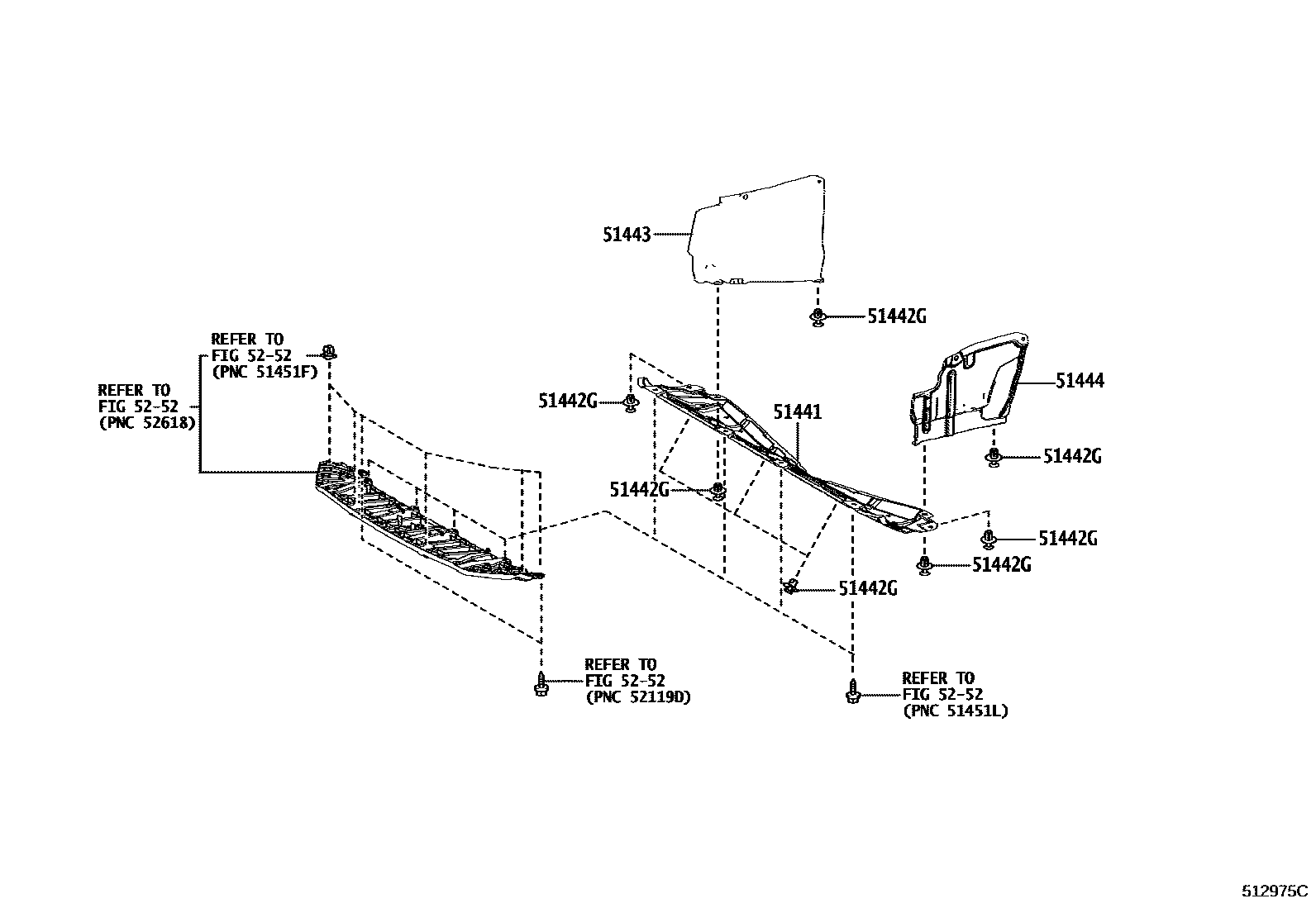

Toyota RAV4 悬架横梁和发动机底罩 EPC diagram — 512975C — 悬架横梁和发动机底罩 — 512975C (201510 – 999999)

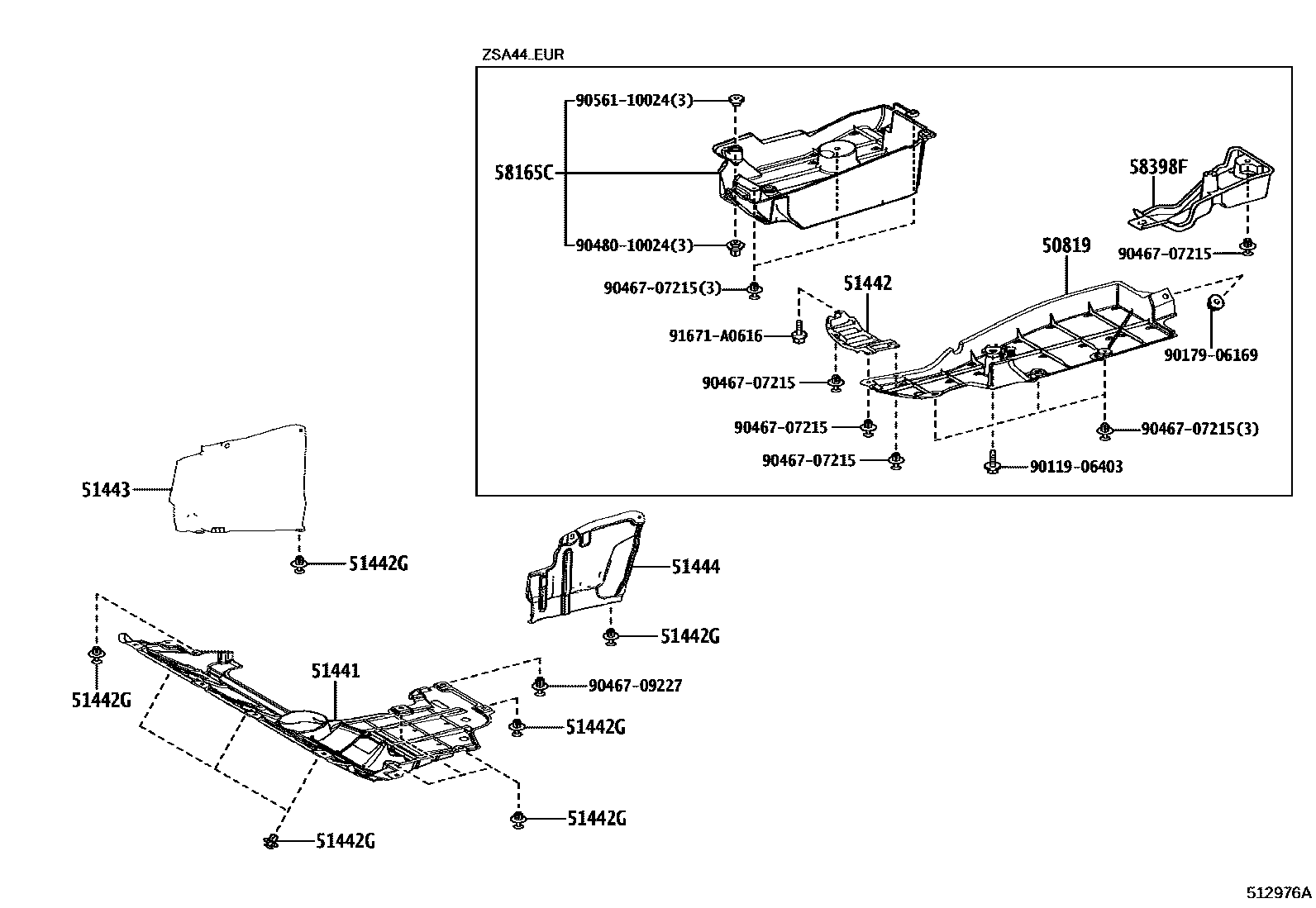

Toyota RAV4 悬架横梁和发动机底罩 EPC diagram — 512976A — 悬架横梁和发动机底罩 — 512976A (201510 – 999999)

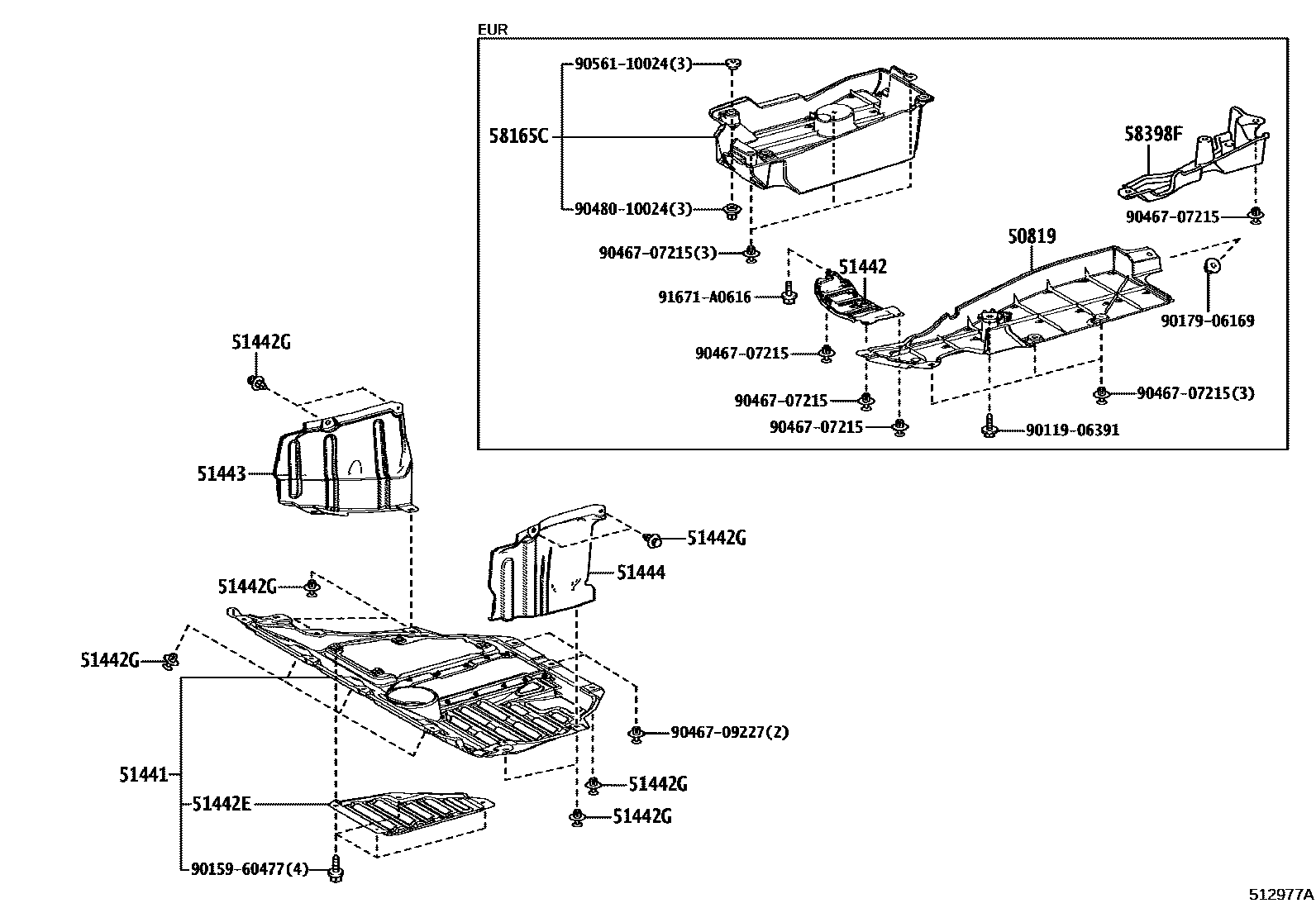

Toyota RAV4 悬架横梁和发动机底罩 EPC diagram — 512977A — 悬架横梁和发动机底罩 — 512977A (201510 – 999999)

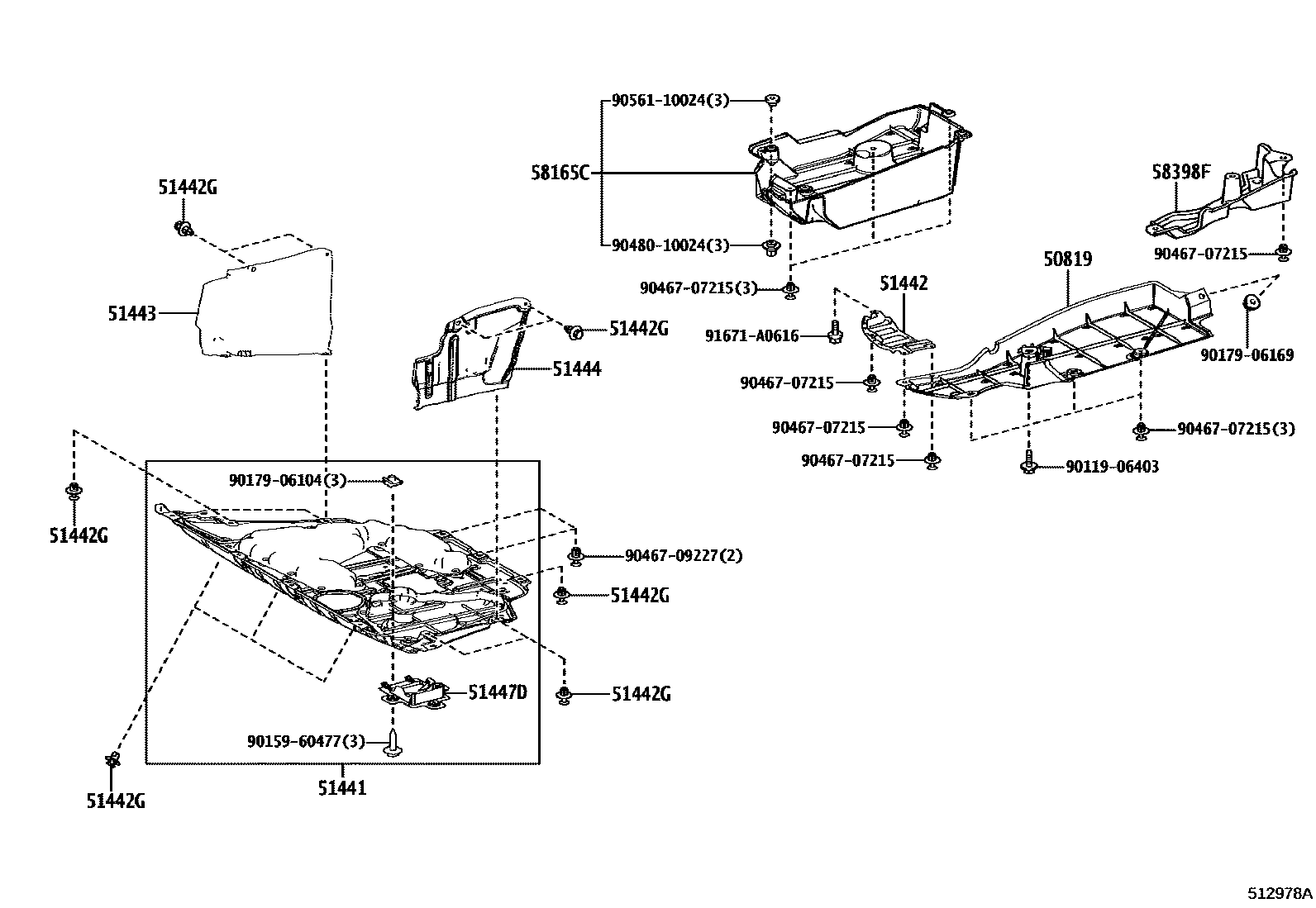

Toyota RAV4 悬架横梁和发动机底罩 EPC diagram — 512978A — 悬架横梁和发动机底罩 — 512978A (201510 – 999999)

PNC and OE references

PNC	Part name	OE numbers
50819	front floor cover	50819-42030 · 50819-42031 · 50819-48012
51201	Front suspension cross member sub-assembly	51201-02102 · 51201-12441 · 51201-12442 · 51201-12451
51206A	Rear suspension cross member sub-assembly	51206-42062 · 51206-42063 · 51206-48060 · 51206-78010
51217A	Right front suspension cross member reinforcement	51107-42020 · 51107-48020
51218A	Left front suspension cross member reinforcement	51108-42020 · 51108-48020
51425B	RENFORT, SUPPORT DE MONTAGE AVANT DU MOTEUR, INFERIEUR	51425-12060 · 51425-42010
51441	No. 1 engine bottom cover	51410-42080 · 51410-42100 · 51410-42110 · 51410-42120 · 51441-42150
51442	No. 2 engine bottom cover	51442-42090
51442E	No. 2 engine bottom cover	51442-42110
51442G	No. 1 engine bottom cover clip	90467-07215
51443	Engine right rear bottom cover	51443-42010 · 51443-48090
51444	Engine left rear bottom cover	51444-42040 · 51444-48030
51447D	No. 4 engine center bottom cover	51447-42050
51597A	SUPPORT, SUPPORT DE STABILISATEUR ARRIERE, MD	51597-48010
51598	SUPPORT, SUPPORT DE STABILISATEUR ARRIERE, MG	51598-48010
52203A	Rear body fixed cushion pad sub-assembly	52203-42020
52255B	Front suspension cross member front bracket	52255-76010
52257A	Right front suspension cross member rear bracket	52257-42010 · 52257-48040
52258B	Left front suspension cross member rear bracket	52258-42010 · 52258-48050
52295	Right rear suspension cross member bracket	52295-42010 · 53653-48020
52296	Left rear suspension cross member bracket	52296-42010 · 53654-48010
57104E	Front cross member sub-assembly	57104-42070 · 57104-42080
58165C	Front floor right cover	58165-42020 · 58165-42021
58398F	No. 1 floor under cover	58398-42022
