Toyota RAV4 Rear Spring & Shock Absorber — Figure 4804

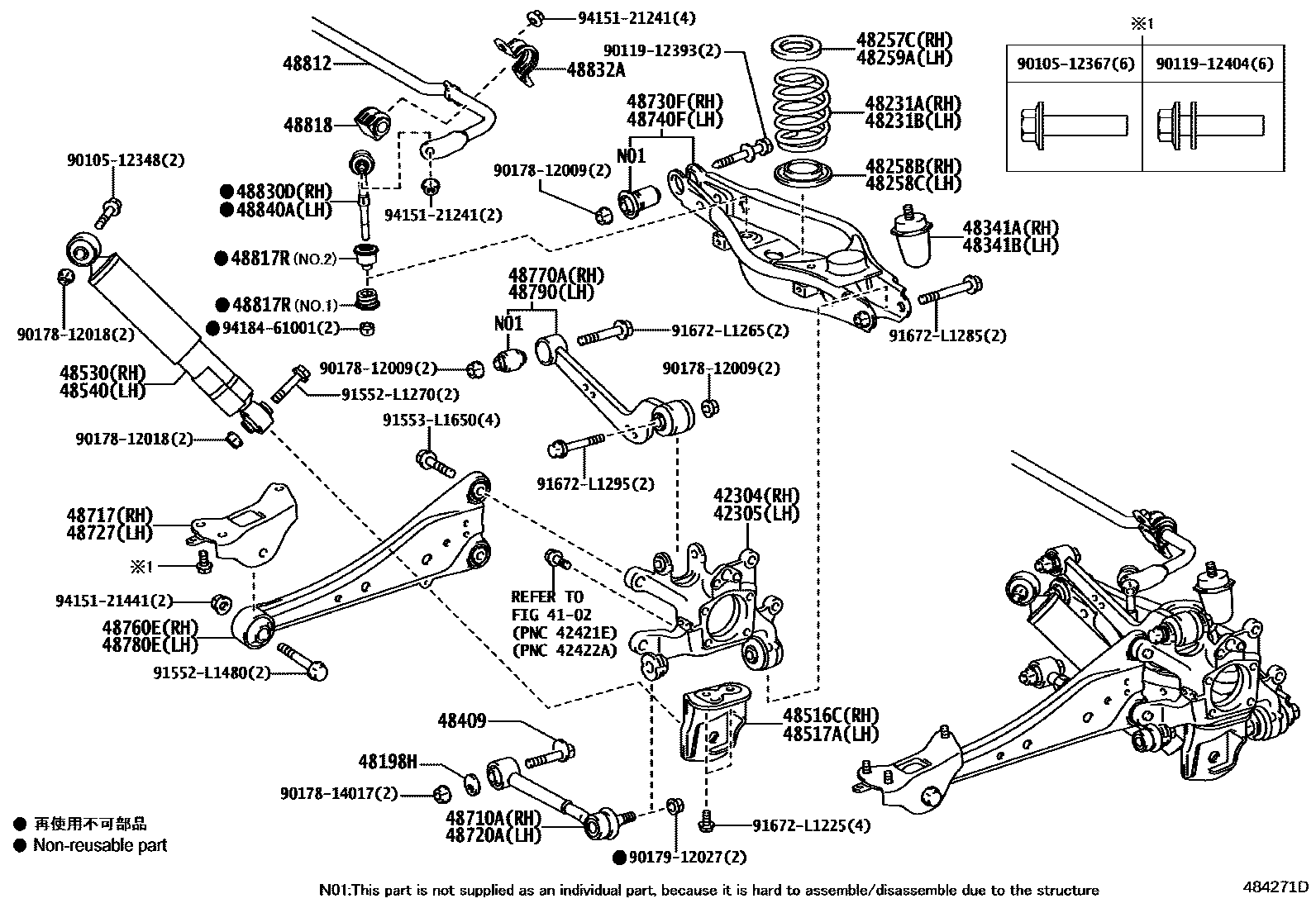

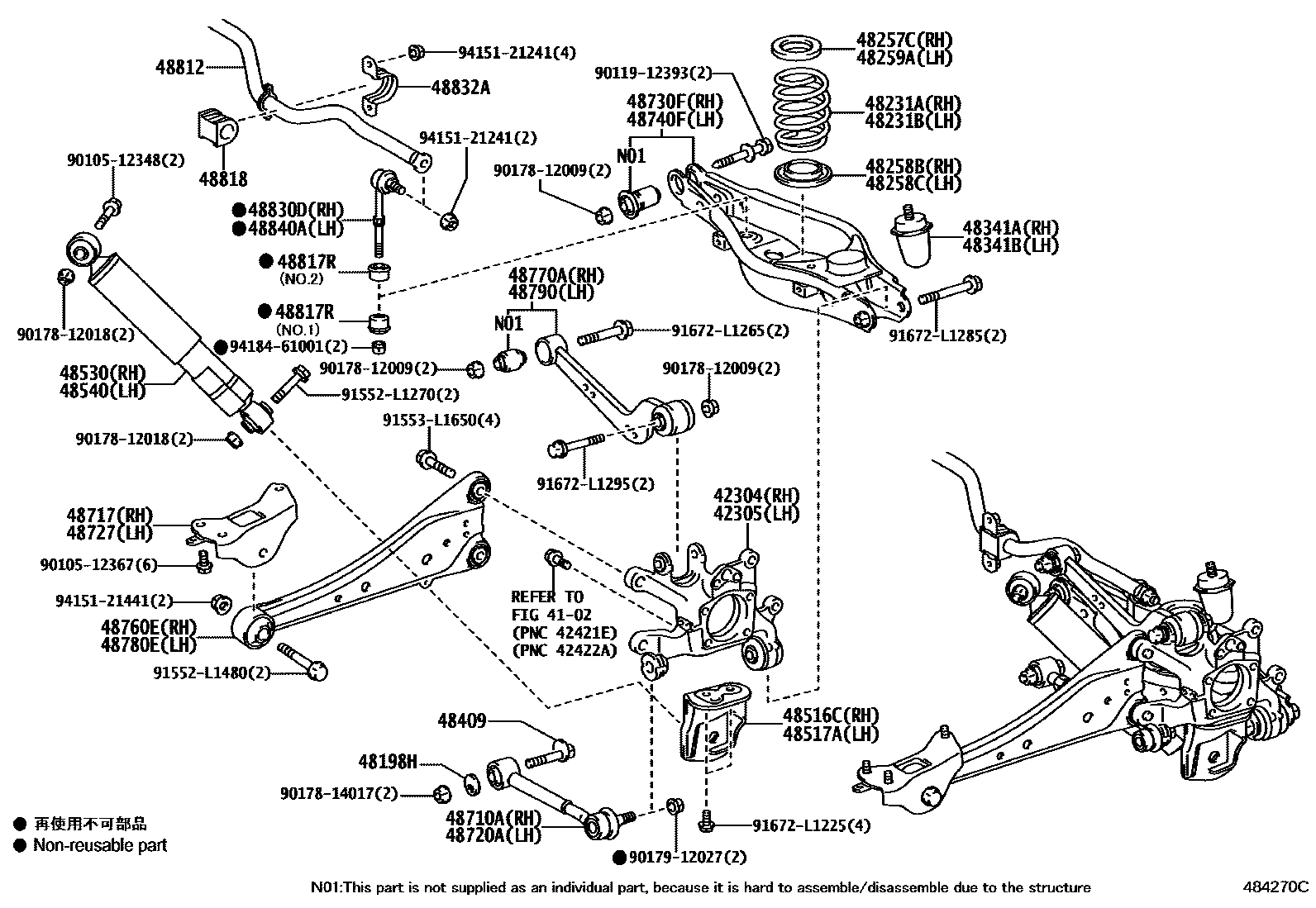

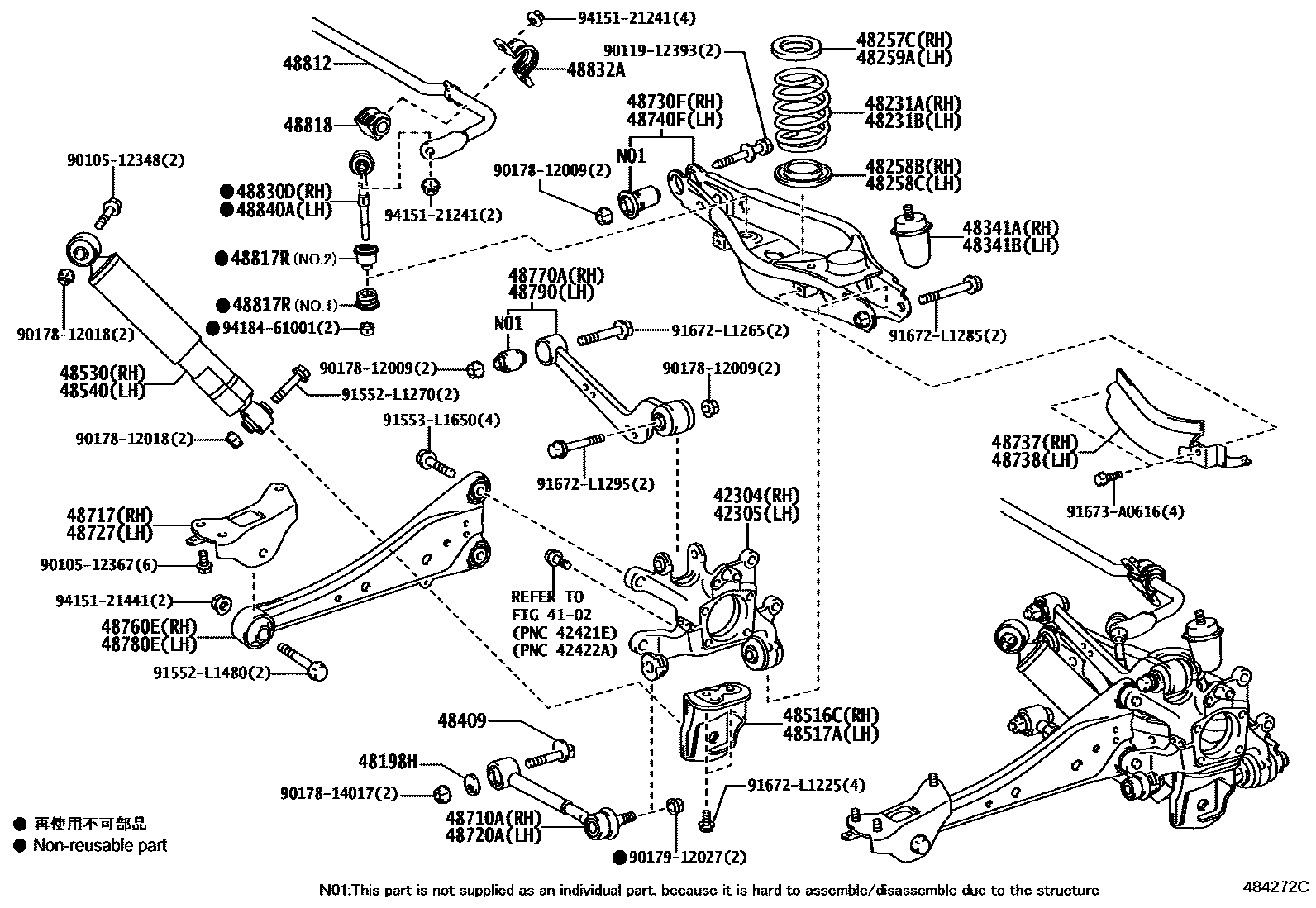

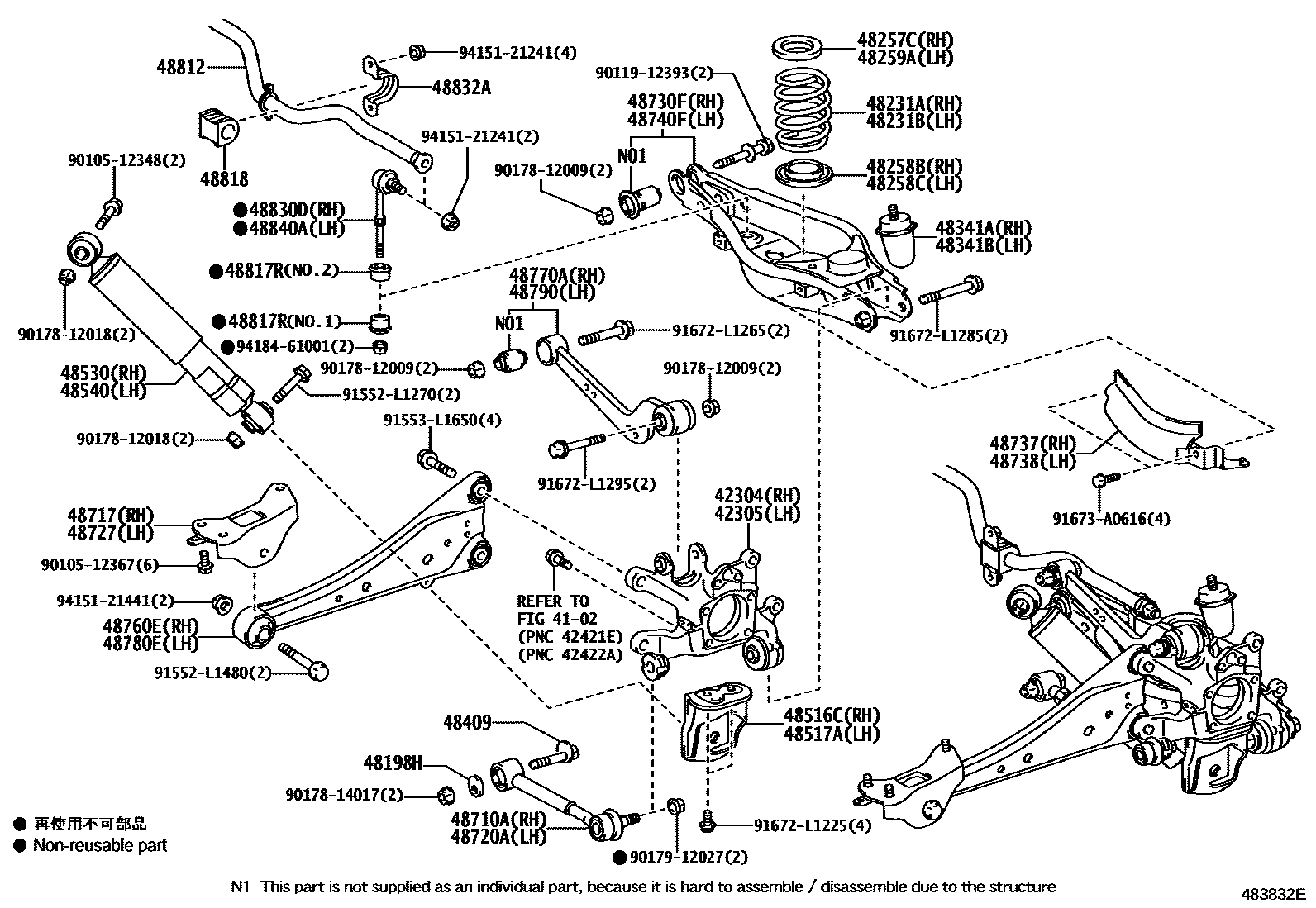

Toyota RAV4 EPC diagram 4804, Rear Spring & Shock Absorber, with 4 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-42020 |
| 42305 | Rear axle left bracket sub-assembly | 42305-42020 |
| 48198H | No. 2 camber angle adjustment cam | 48198-42010 |
| 48231A | Right rear coil spring | 48231-42320 · 48231-42330 · 48231-42340 · 48231-42360 · 48231-42370 · 48231-42380 · 48231-42390 · 48231-42420 · 48231-42440 |
| 48231B | Left rear coil spring | 48231-42320 · 48231-42330 · 48231-42340 · 48231-42360 · 48231-42370 · 48231-42380 · 48231-42390 · 48231-42420 · 48231-42440 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-42030 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-42020 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-42020 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-42030 |
| 48341A | No. 1 right rear spring buffer block | 48341-42010 |
| 48341B | No. 1 left rear spring buffer block | 48341-42010 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-42030 |
| 48516C | No. 1 right rear shock absorber bracket | 48505-42010 |
| 48517A | No. 1 left rear shock absorber bracket | 48506-42010 |
| 48530 | Right rear shock absorber assembly | 48531-42270 · 48531-42271 · 48531-42280 · 48531-42281 · 48531-42290 · 48531-42291 · 48531-42300 · 48531-42301 · 48531-42340 · 48531-42360 · 48531-42370 · 48531-42380 · 48531-42390 · 48531-42400 · 48531-42430 · 48531-42460 · 48531-42470 · 48531-42480 · 48531-42490 · 48531-42500 |
| 48540 | Left rear shock absorber assembly | 48531-42270 · 48531-42271 · 48531-42280 · 48531-42281 · 48531-42290 · 48531-42291 · 48531-42300 · 48531-42301 · 48531-42340 · 48531-42360 · 48531-42370 · 48531-42380 · 48531-42390 · 48531-42400 · 48531-42430 · 48531-42460 · 48531-42470 · 48531-42480 · 48531-42490 · 48531-42500 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-42030 |
| 48717 | Right rear suspension arm bracket | 48717-42010 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-42030 |
| 48727 | Left rear suspension arm bracket | 48727-42010 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-42040 · 48730-42050 |
| 48737 | Right rear suspension arm cover | 48737-42021 |
| 48738 | Left rear suspension arm cover | 48738-42021 |
| 48740F | Left rear suspension No. 2 arm assembly | 48740-42010 · 48740-42020 |
| 48760E | Right rear trailing arm assembly | 48760-42030 · 48760-42060 · 48760-48110 |
| 48770A | Right rear upper control arm assembly | 48770-42040 |
| 48780E | Left rear trailing arm assembly | 48780-42030 · 48780-42060 · 48780-48110 |
| 48790 | Left rear upper control arm assembly | 48790-42020 |
| 48812 | rear stabilizer bar | 48812-42040 · 48812-48220 |
| 48817R | Stabilizer bumper (for rear stabilizer link) | 48817-12020 · 48817-12030 · 48817-42040 · 48817-42050 · 48817-48010 · 48817-48020 |
| 48818 | Rear stabilizer bar bushing | 48818-42020 · 48818-48100 |
| 48830D | Right rear stabilizer bar link assembly | 48830-42021 · 48830-42022 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-42010 |
| 48840A | Left rear stabilizer bar link assembly | 48830-42021 · 48830-42022 |
