Toyota RAV4 Front Spring & Shock Absorber — Figure 4803

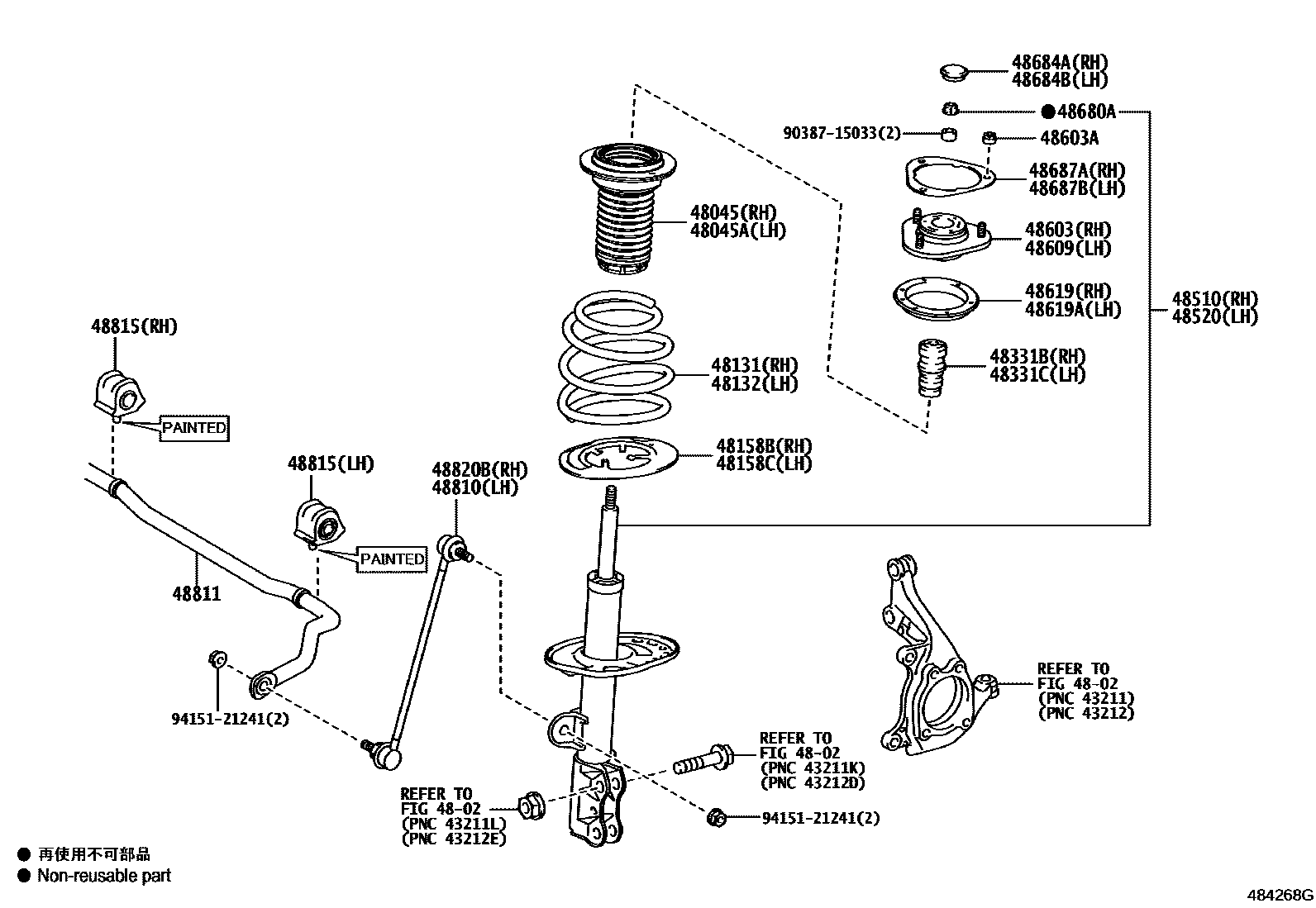

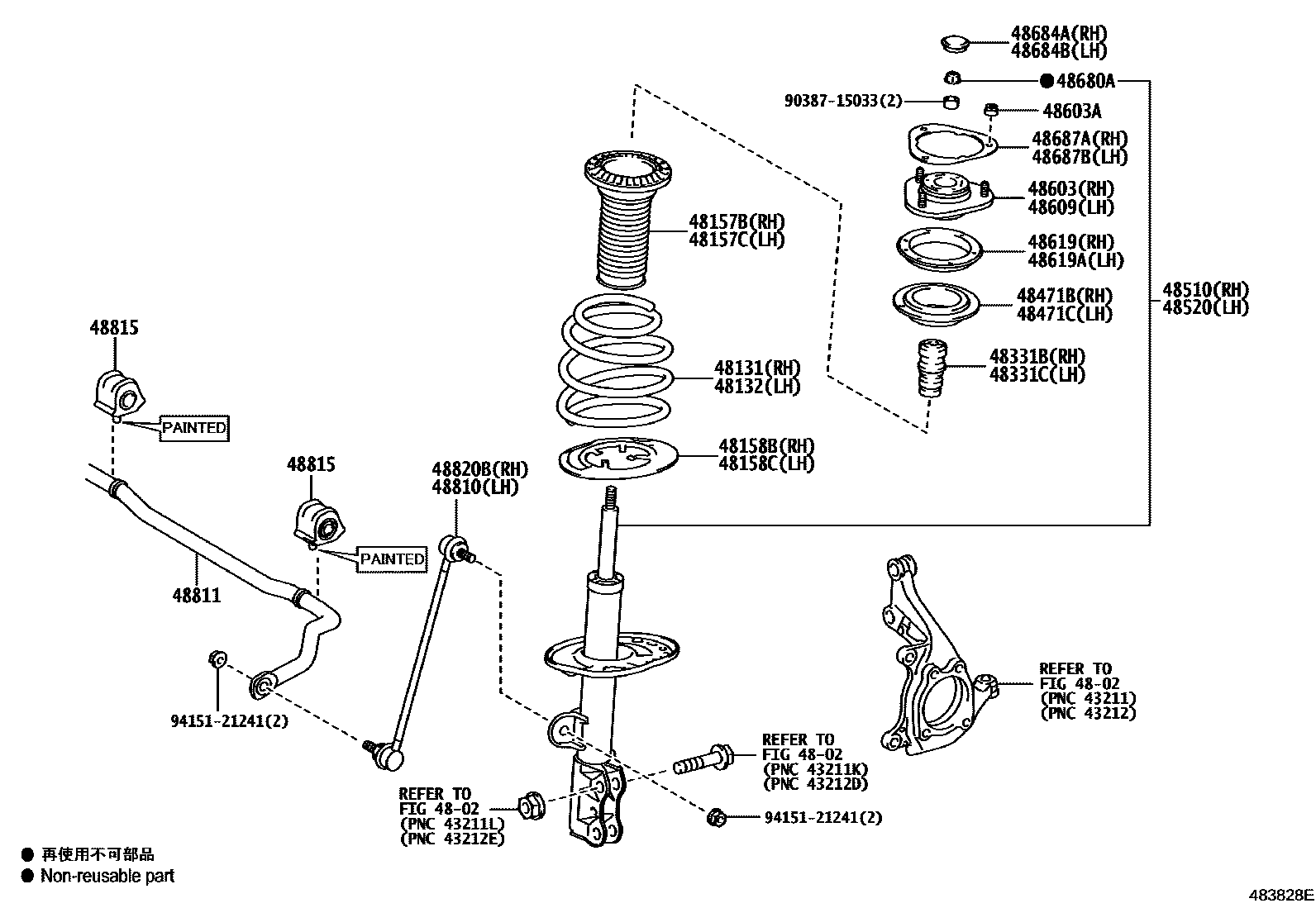

Toyota RAV4 EPC diagram 4803, Front Spring & Shock Absorber, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48045 | SOUS-ENS. SIEGE, RESSORT AVANT MD, AVEC ISOLANT | 48045-42010 |
| 48045A | SOUS-ENS. SIEGE, RESSORT AVANT MG, AVEC ISOLANT | 48045-42010 |
| 48131 | Right front coil spring | 48131-42640 · 48131-42650 · 48131-42680 · 48131-42690 · 48131-42700 · 48131-42720 · 48131-42740 · 48131-42760 · 48131-42820 · 48131-42830 · 48131-42840 · 48131-42850 · 48131-42890 · 48131-42A00 · 48131-42A10 |
| 48132 | Left front coil spring | 48131-42640 · 48131-42650 · 48131-42680 · 48131-42690 · 48131-42700 · 48131-42720 · 48131-42740 · 48131-42760 · 48131-42820 · 48131-42830 · 48131-42840 · 48131-42850 · 48131-42890 · 48131-42A00 · 48131-42A10 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-58010 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-58010 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-21010 · 48158-48050 · 48158-78010 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-21010 · 48158-48050 · 48158-78010 |
| 48331B | Right front spring buffer block | 48331-42080 · 48331-42120 |
| 48331C | Left front spring buffer block | 48331-42080 · 48331-42120 |
| 48471B | Front coil spring upper right seat | 48471-42010 |
| 48471C | Front coil spring upper left seat | 48471-42010 |
| 48510 | Right front shock absorber assembly | 48510-80599 · 48510-80600 · 48510-80601 · 48510-80602 · 48510-80644 · 48510-80645 · 48510-80646 · 48510-80647 · 48510-80729 · 48510-80732 · 48510-80733 · 48510-80734 · 48510-80735 · 48510-80796 · 48510-80797 · 48510-80819 · 48510-80820 · 48510-80821 |
| 48520 | Left front shock absorber assembly | 48520-80313 · 48520-80314 · 48520-80315 · 48520-80316 · 48520-80346 · 48520-80347 · 48520-80348 · 48520-80349 · 48520-80413 · 48520-80416 · 48520-80417 · 48520-80418 · 48520-80419 · 48520-80472 · 48520-80473 · 48520-80495 · 48520-80496 · 48520-80497 |
| 48603 | Right front suspension bearing sub-assembly | 48609-42040 |
| 48603A | Nut (for front suspension mount) | 90178-10030 |
| 48609 | Left front suspension bearing sub-assembly | 48609-42040 |
| 48619 | Bearing installed on the right sliding column | 48619-28010 |
| 48619A | Bearing installed on the left sliding column | 48619-28010 |
| 48680A | Nut (for front mount to front shock absorber) | 90177-14005 |
| 48684A | Right front suspension support dust cover | 48684-42020 |
| 48684B | Left front suspension support dust cover | 48684-42020 |
| 48687A | Right front suspension support plate | 48687-28010 |
| 48687B | Left front suspension support plate | 48687-28010 |
| 48810 | Left front stabilizer bar link assembly | 48820-42030 |
| 48811 | front stabilizer bar | 48811-42071 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-42110 · 48815-42111 · 48815-42120 · 48815-42121 · 48815-42130 · 48815-42140 · 48815-48080 · 48815-48090 |
| 48820B | Right front stabilizer bar link assembly | 48820-42030 |
