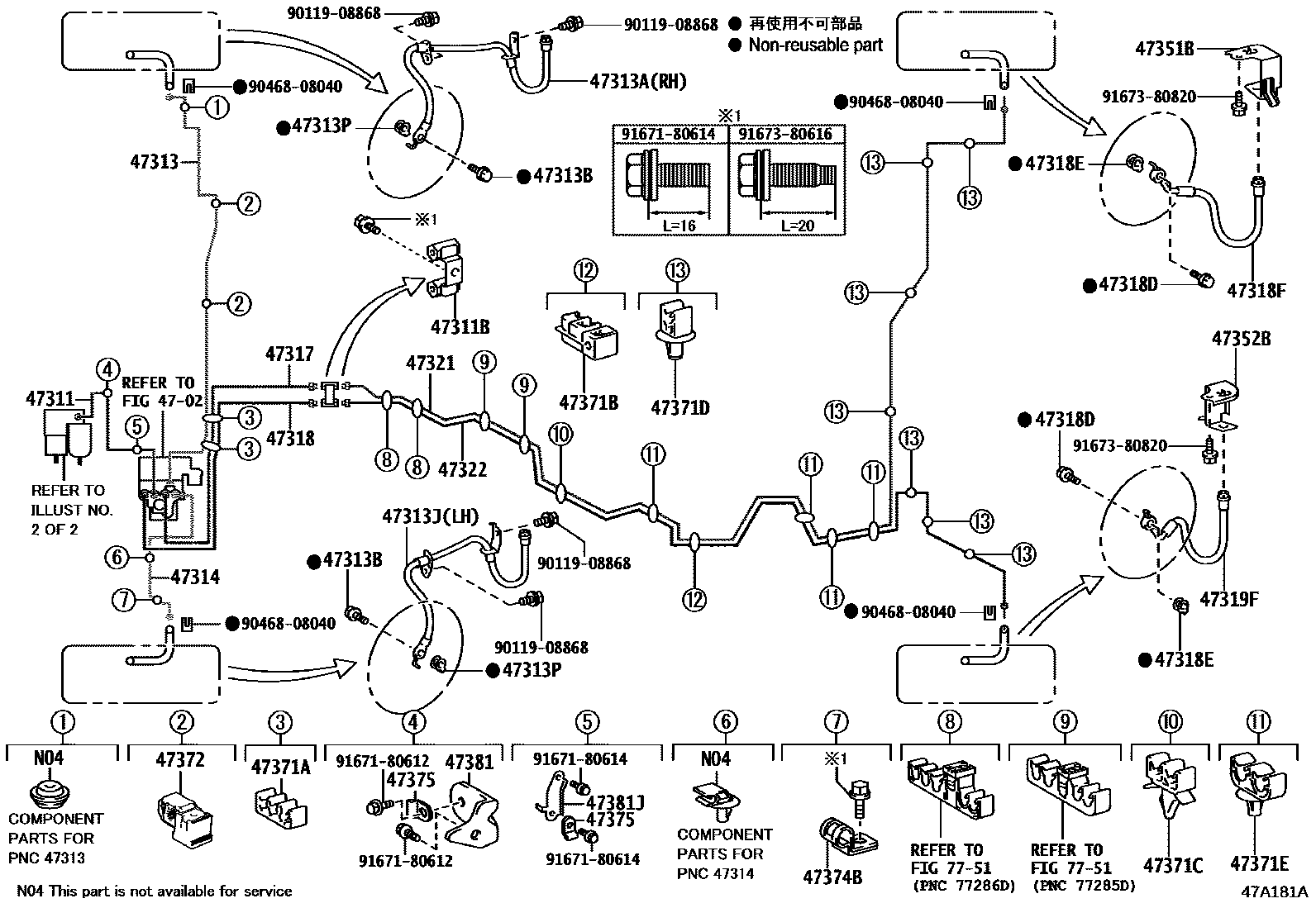

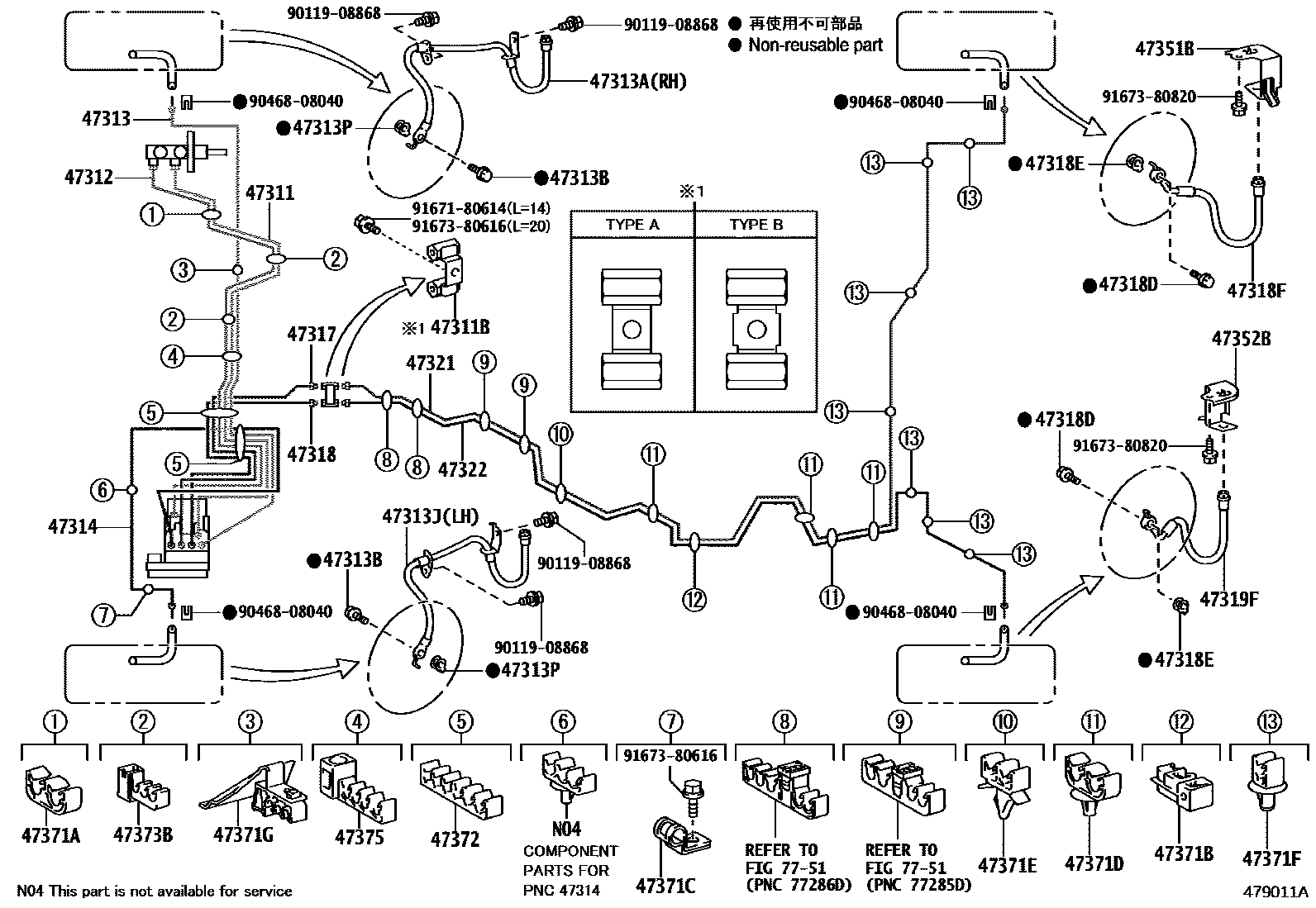

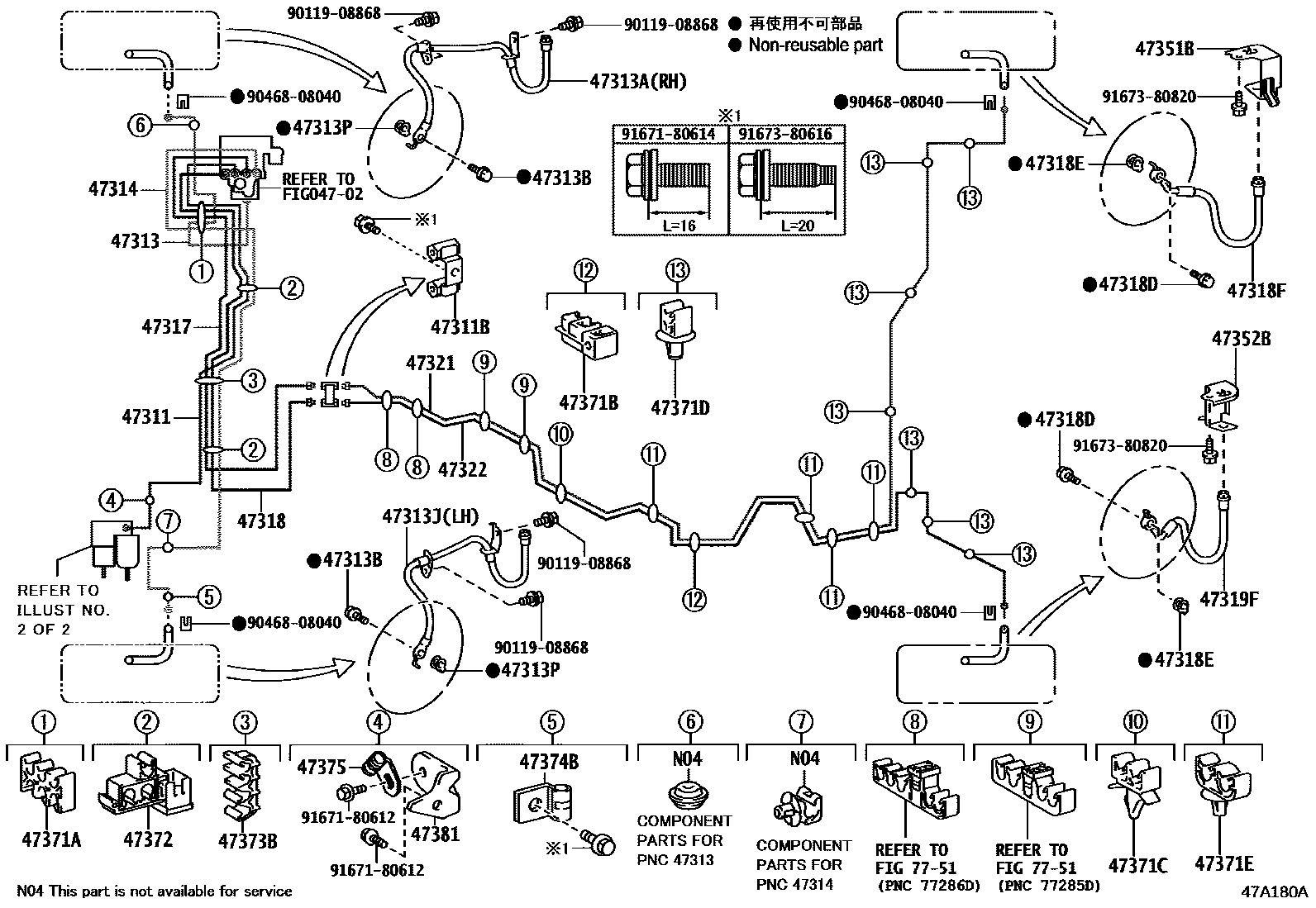

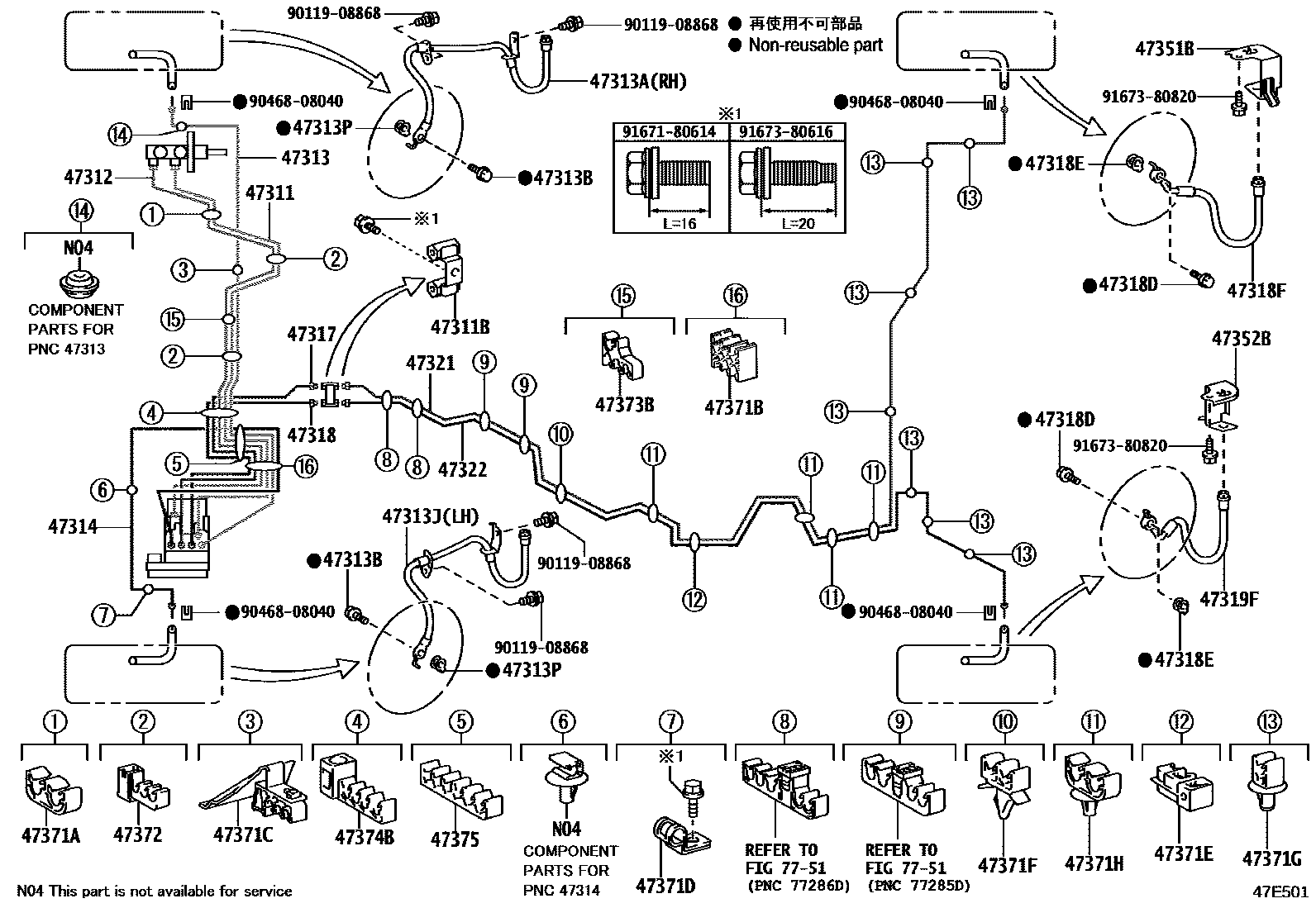

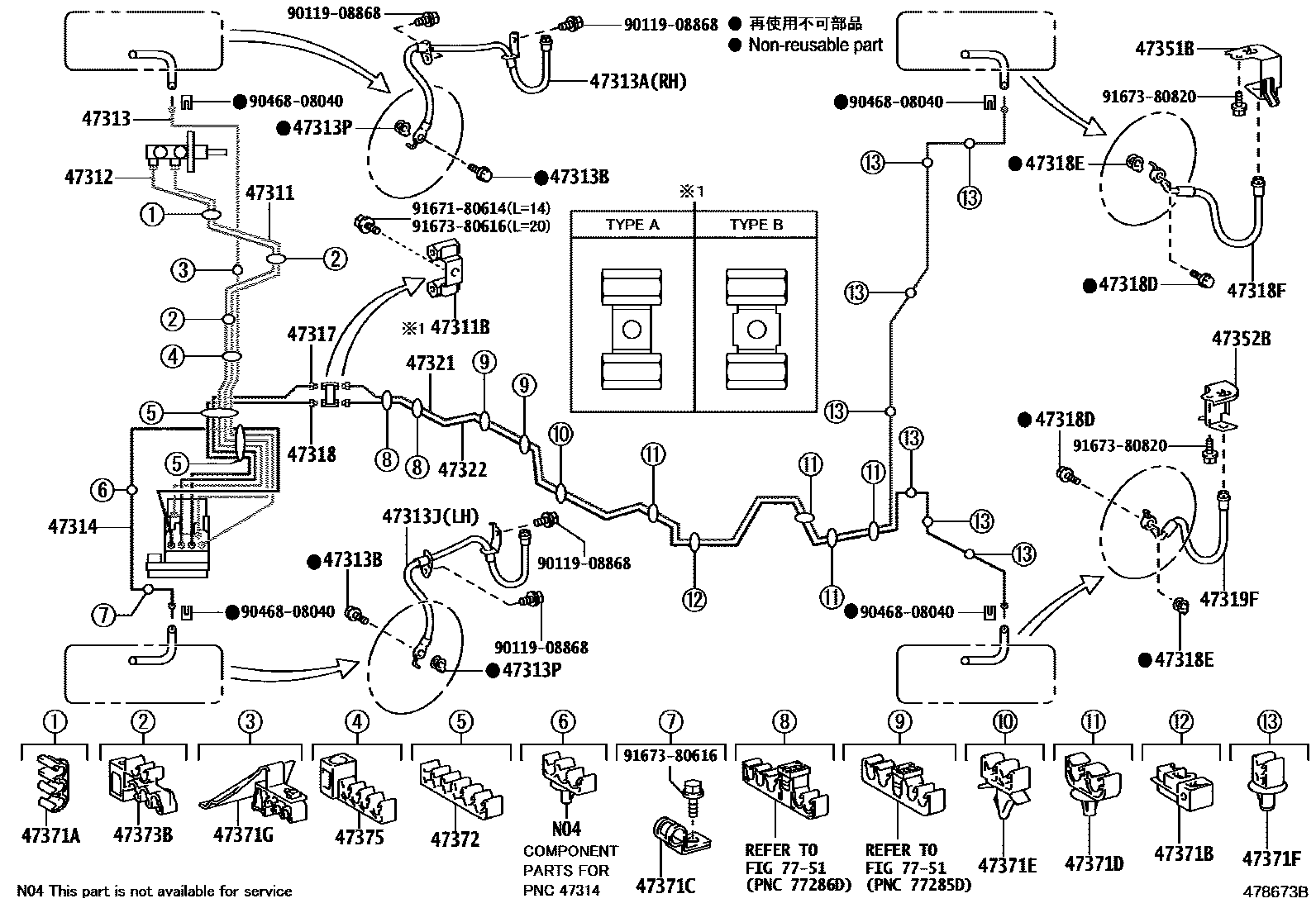

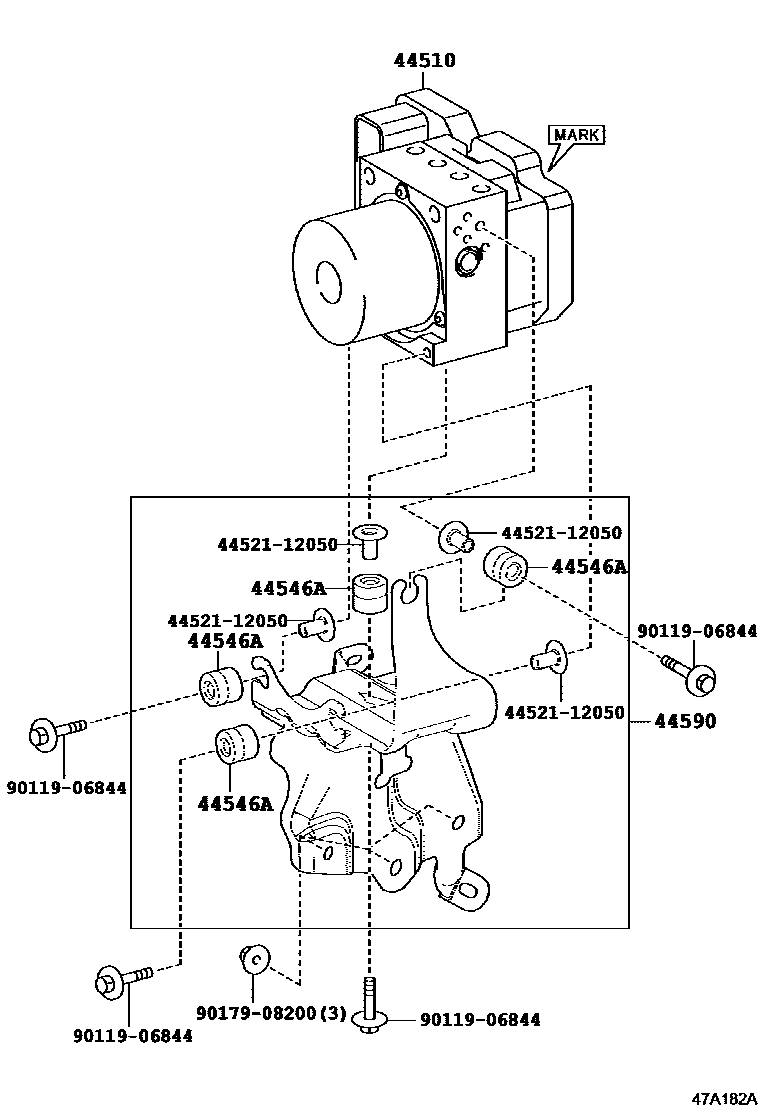

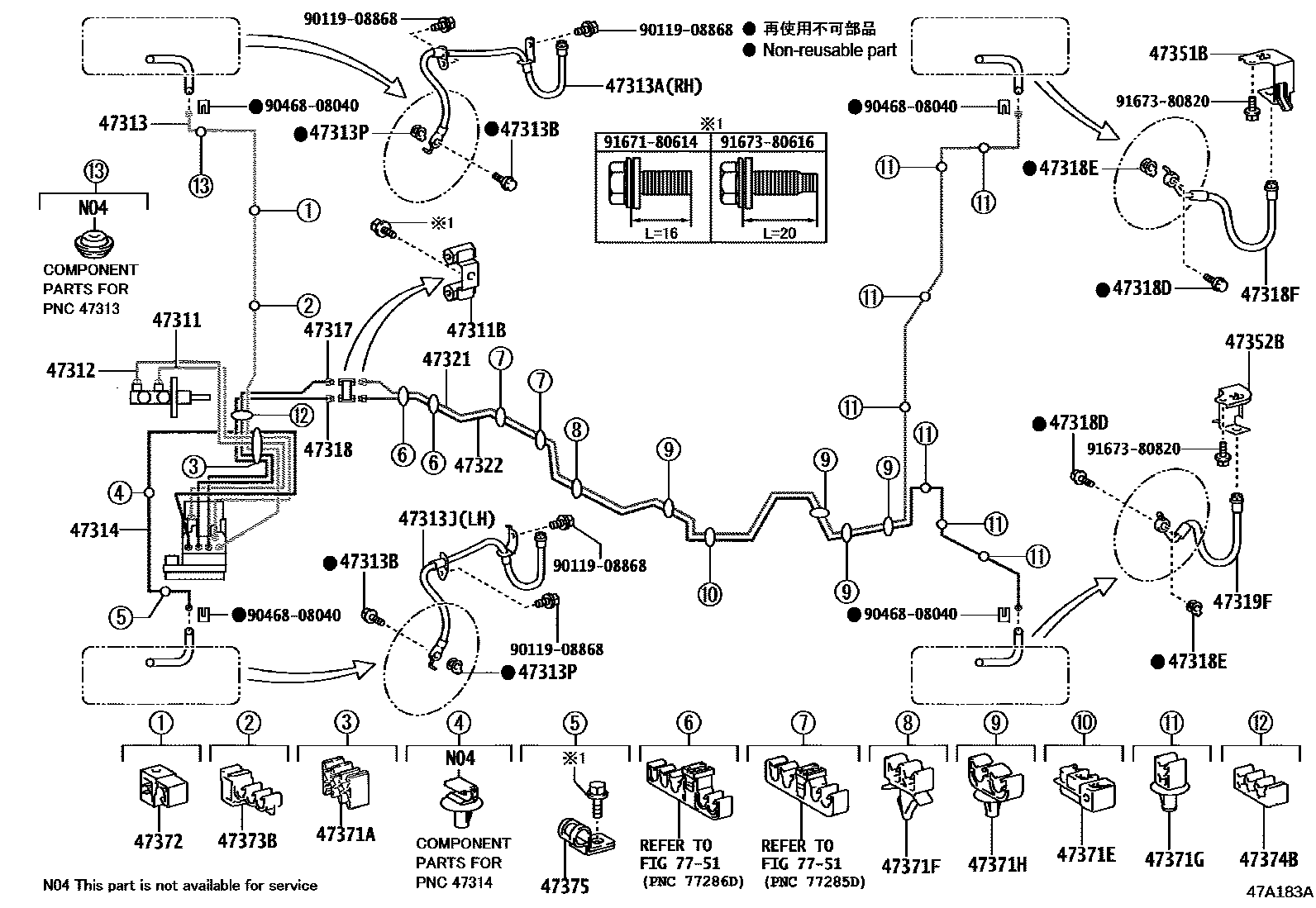

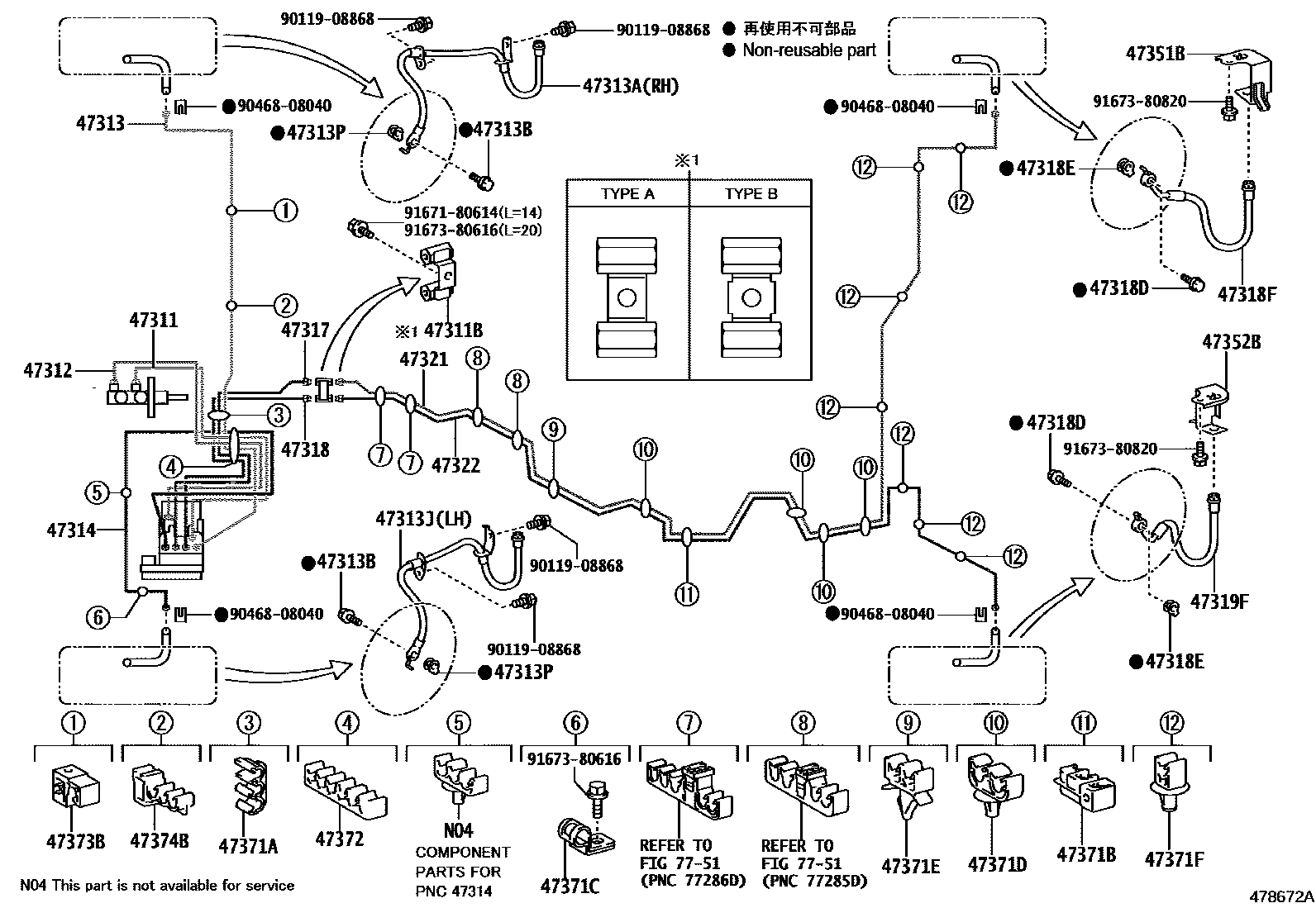

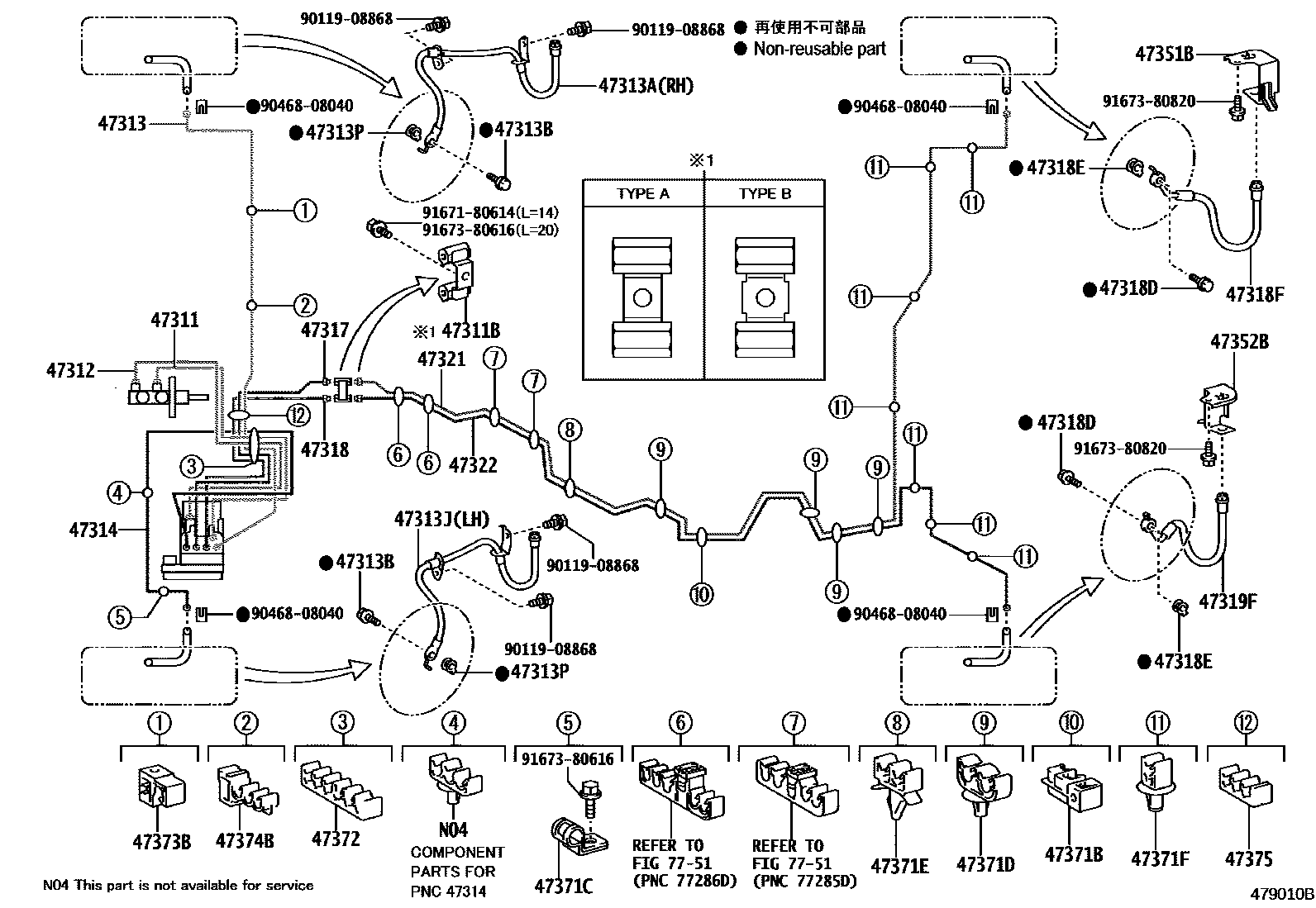

Toyota RAV4 制动配管和卡箍 — Figure 4708
Toyota RAV4 EPC diagram 4708, 制动配管和卡箍, with 12 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

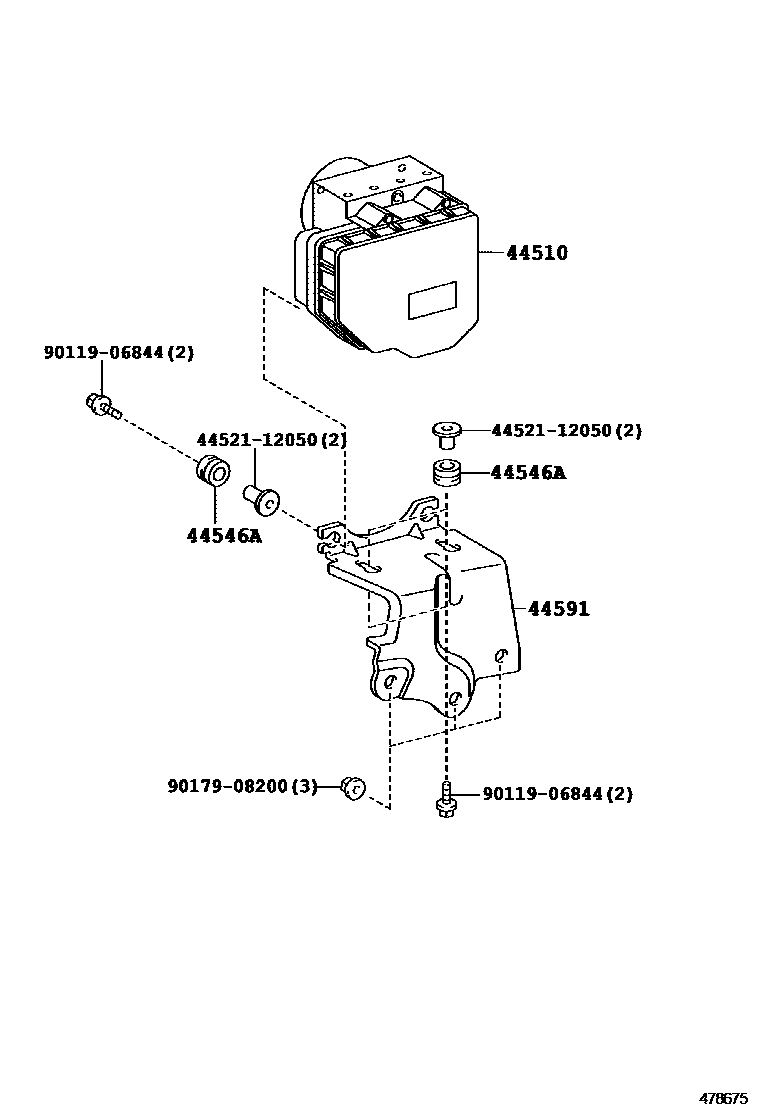

| 44510 | brake actuator assembly | 44050-42430 · 44050-42431 · 44050-42432 · 44050-42490 · 44050-42491 · 44050-42492 · 44050-42500 · 44050-42501 · 44050-42502 · 44050-42510 · 44050-42511 · 44050-42512 · 44050-42570 · 44050-42571 · 44050-42572 · 44050-42580 · 44050-42581 · 44050-42582 · 44050-42590 · 44050-42591 · 44050-42592 · 44050-42600 · 44050-42601 · 44050-42602 · 44050-42610 · 44050-42611 · 44050-42612 · 44050-42650 · 44050-42651 · 44050-42652 · 44050-42660 · 44050-42661 · 44050-42662 · 44050-42670 · 44050-42671 · 44050-42672 · 44050-42680 · 44050-42681 · 44050-42682 · 44050-42690 · 44050-42691 · 44050-42692 · 44050-42700 · 44050-42701 · 44050-42702 · 44050-42730 · 44050-42740 · 44050-42750 · 44050-42760 · 44050-42770 · 44050-42790 · 44050-42800 · 44050-42830 · 44050-42840 · 44050-42850 · 44050-42860 · 44050-42870 · 44050-42880 · 44050-42890 · 44050-42A10 · 44050-42A40 · 44050-42A70 · 44050-42A80 · 44050-42A90 · 44050-42B00 · 44050-42B10 · 44050-42B60 · 44050-42B61 · 44050-42B70 · 44050-42B71 · 44050-42B80 · 44050-42B81 · 44050-42B90 · 44050-42B91 · 44050-42C00 · 44050-42C01 · 44050-42C10 · 44050-42C11 · 44050-42C50 · 44050-42C51 · 44050-42C60 · 44050-42C61 · 44050-42C70 · 44050-42C71 · 44050-42C80 · 44050-42C81 · 44050-42D10 · 44050-42D20 · 44050-42D50 · 44050-42D60 · 44050-42D70 · 44050-42D80 · 44050-42D90 · 44050-42E00 · 44050-42E10 · 44050-42E20 · 44050-42E40 · 44050-42E70 · 44050-42E80 · 44050-42E90 · 44050-42F00 · 44050-42F10 · 44050-42J30 · 44050-42J40 |
| 44515A | Clamp (for brake actuator hose) | 96137-41501 |
| 44546A | Brake actuator bolt cushion | 44546-12110 |
| 44547B | brake actuator bracket cushion | 47131-47070 |
| 44551 | No. 1 brake actuator pipe | 44551-48060 |
| 44571 | brake actuator hose | 44571-48100 |
| 44572 | No. 2 brake actuator hose | 44572-48030 |
| 44590 | Brake actuator bracket assembly | 44590-48170 · 44590-78010 |
| 44591 | No. 1 brake actuator bracket | 44591-42060 |

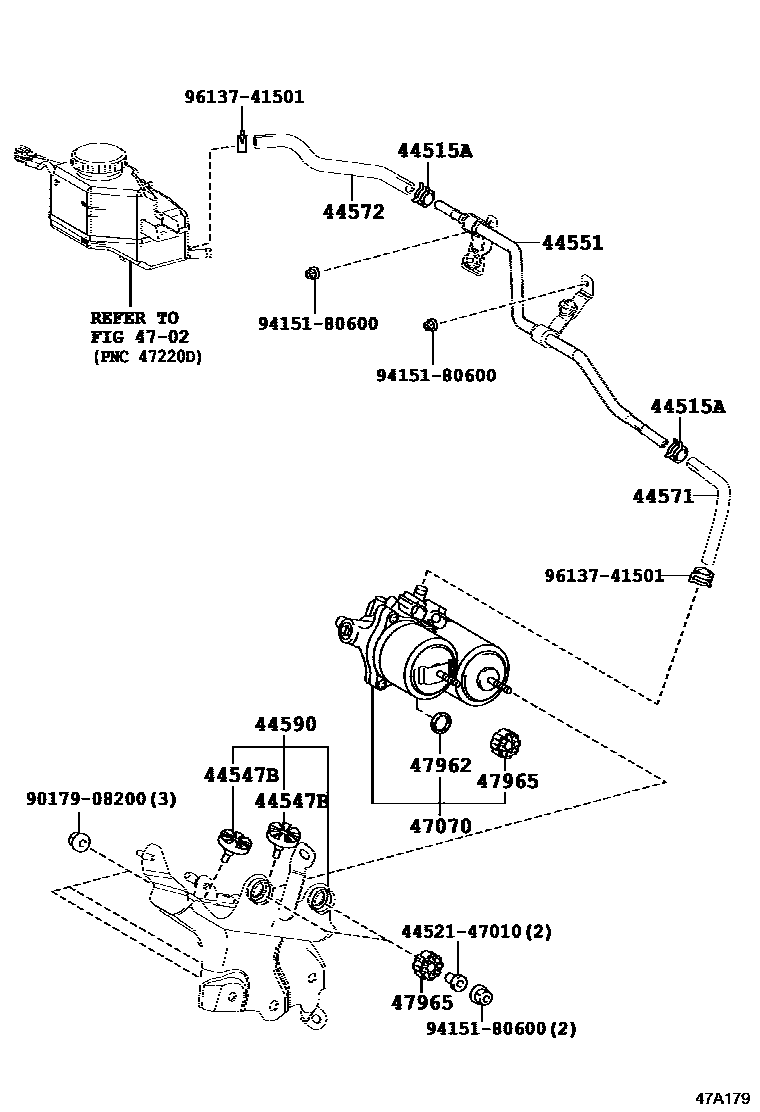

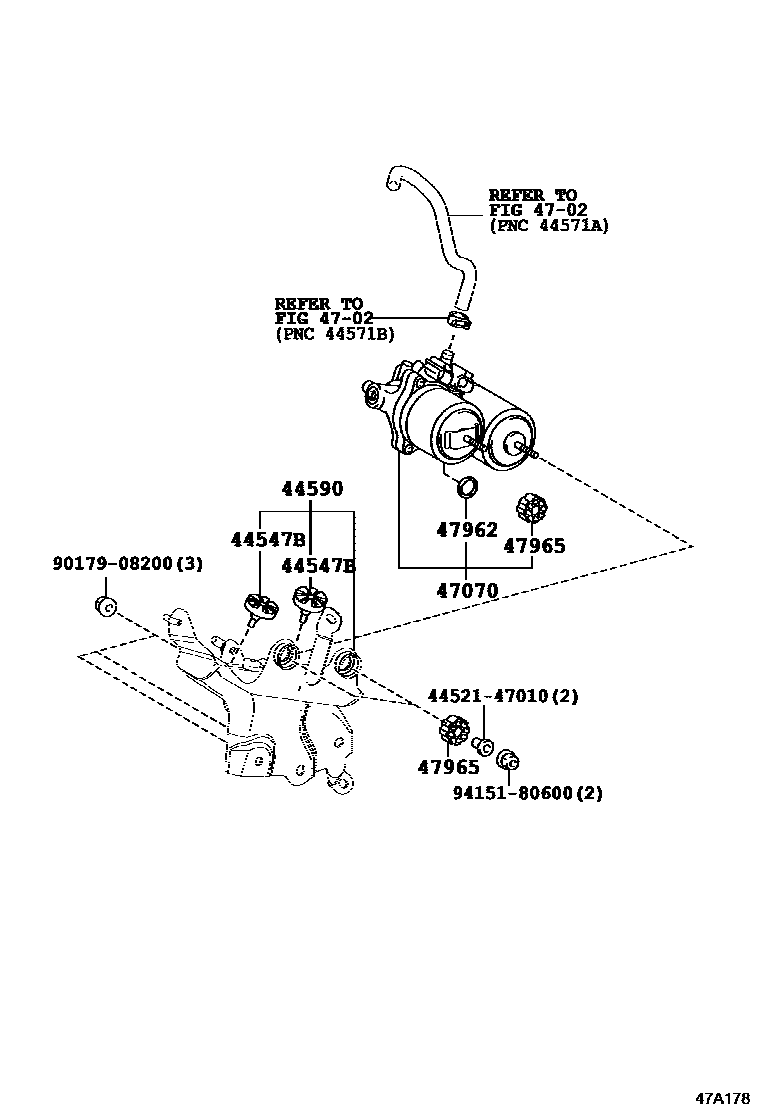

| 47070 | Brake booster pump assembly | 47070-47060 |
| 47311 | No. 1 front brake pipe | 47311-0R090 · 47311-42170 · 47311-42180 · 47311-42200 · 47311-42220 · 47311-42230 · 47311-48070 · 47311-48080 · 47311-78030 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 · 90412-10285 |
| 47312 | No. 2 front brake pipe | 47312-0R080 · 47312-42340 · 47312-42350 · 47312-42360 · 47312-42380 · 47312-42400 · 47312-48020 |
| 47313 | No. 3 front brake pipe | 47313-0R090 · 47313-42340 · 47313-42350 · 47313-42380 · 47313-42400 · 47313-42410 · 47313-48030 · 47313-48040 · 47313-78030 |
| 47313A | No. 1 front flexible hose | 90947-02F47 · 90947-02G85 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02F48 · 90947-02G86 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-0R080 · 47314-42220 · 47314-42250 · 47314-48030 · 47314-48040 · 47314-78020 |
| 47317 | No. 7 front brake pipe | 47317-0R090 · 47317-42210 · 47317-48320 · 47317-48330 · 47317-78010 · 47317-78030 |
| 47318 | No. 8 front brake pipe | 47318-0R090 · 47318-42210 · 47318-48190 · 47318-48200 · 47318-78010 · 47318-78030 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02G79 |
| 47319F | Left rear flexible hose | 90947-02G80 |
| 47321 | No. 1 rear brake pipe | 47321-0R070 · 47321-42150 · 47321-42200 · 47321-48130 · 47321-48140 |
| 47322 | No. 2 rear brake pipe | 47322-0R070 · 47322-42140 · 47322-48140 · 47322-48150 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-42071 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-42071 · 47352-42081 |
| 47371A | No. 1 brake pipe clamp | 90464-00857 · 90464-00868 · 90464-00880 · 90464-00903 · 90949-01C51 |
| 47371B | No. 6 brake pipe clamp | 77299-32030 · 90464-00880 |
| 47371C | No. 7 brake pipe clamp | 47371-42110 · 90461-10781 · 90469-07019 |
| 47371D | No. 8 brake pipe clamp | 90461-10781 · 90469-07020 · 90949-01E01 · 90949-01E02 |
| 47371E | No. 9 brake pipe clamp | 77299-32030 · 90469-07019 · 90949-01E02 |
| 47371F | No. 10 brake pipe clamp | 90469-07019 · 90949-01D29 · 90949-01E01 |
| 47371G | No. 11 brake pipe clamp | 47371-42110 · 90949-01E01 |
| 47371H | No. 12 brake pipe clamp | 90949-01E02 |
| 47372 | No. 2 brake pipe clamp | 90464-00890 · 90469-07026 · 90949-01C82 · 90949-01D05 · 90949-01D35 · 90949-01E06 |
| 47373B | No. 3 brake pipe clamp | 4476A-42010 · 90949-01540 · 90949-01C19 · 90949-01C82 · 90949-01D05 |
| 47374B | No. 4 brake pipe clamp | 90461-10781 · 90464-00953 · 90949-01D05 · 90949-01E16 |
| 47375 | No. 5 brake pipe clamp | 90461-10781 · 90461-10840 · 90464-00953 · 90949-01C85 · 90949-01D44 · 90949-01E16 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-48140 |
| 47381J | No. 2 brake pipe clamp bracket | 47381-75020 |
| 47962 | brake booster pump collar | 47962-60090 |
| 47965 | brake booster pump bushing | 47965-30010 |
