Toyota RAV4 制动助力器和真空管 — Figure 4703

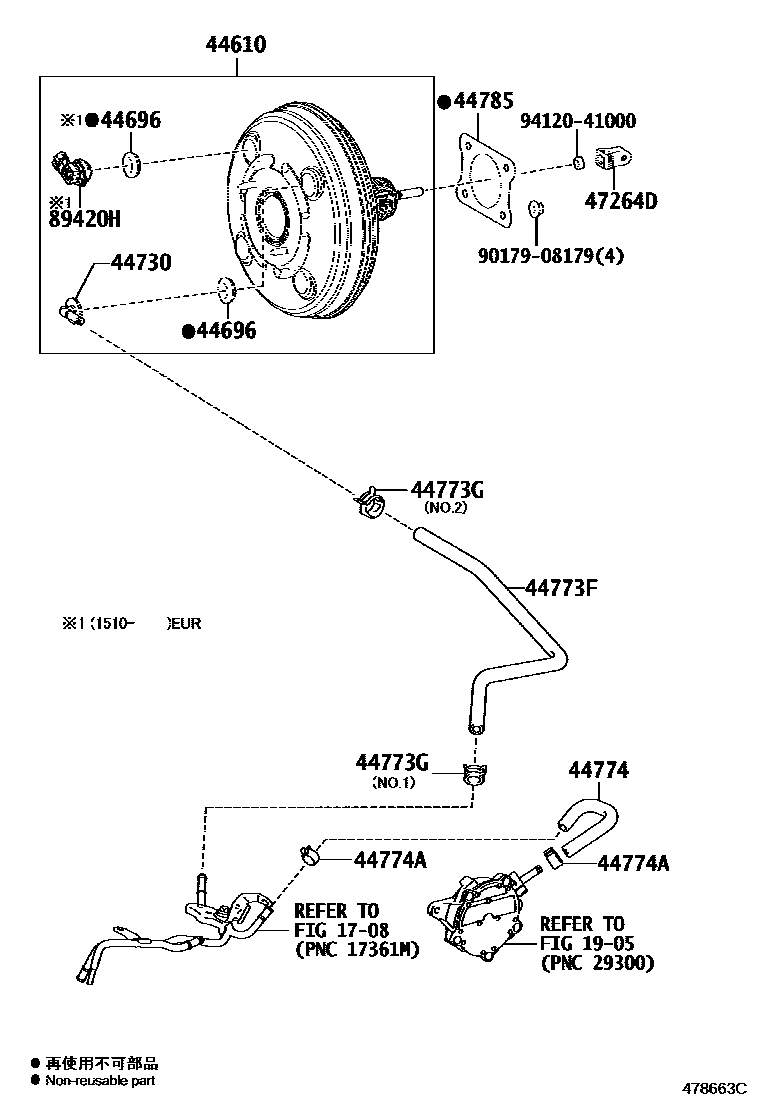

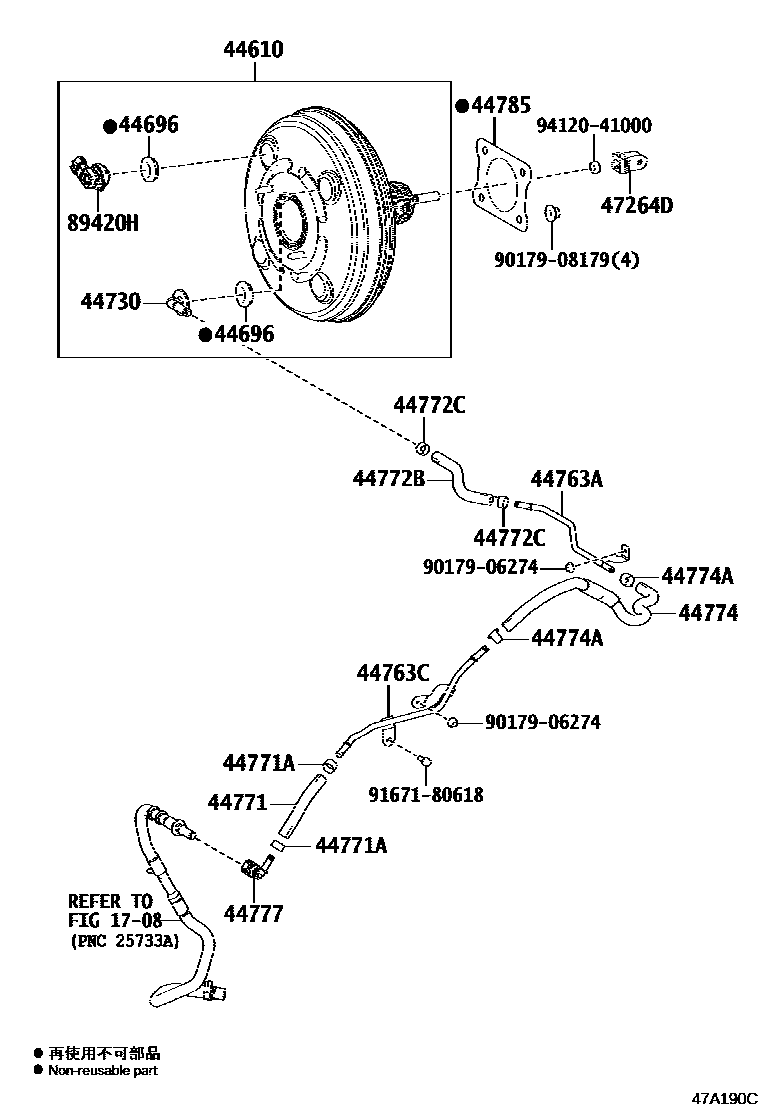

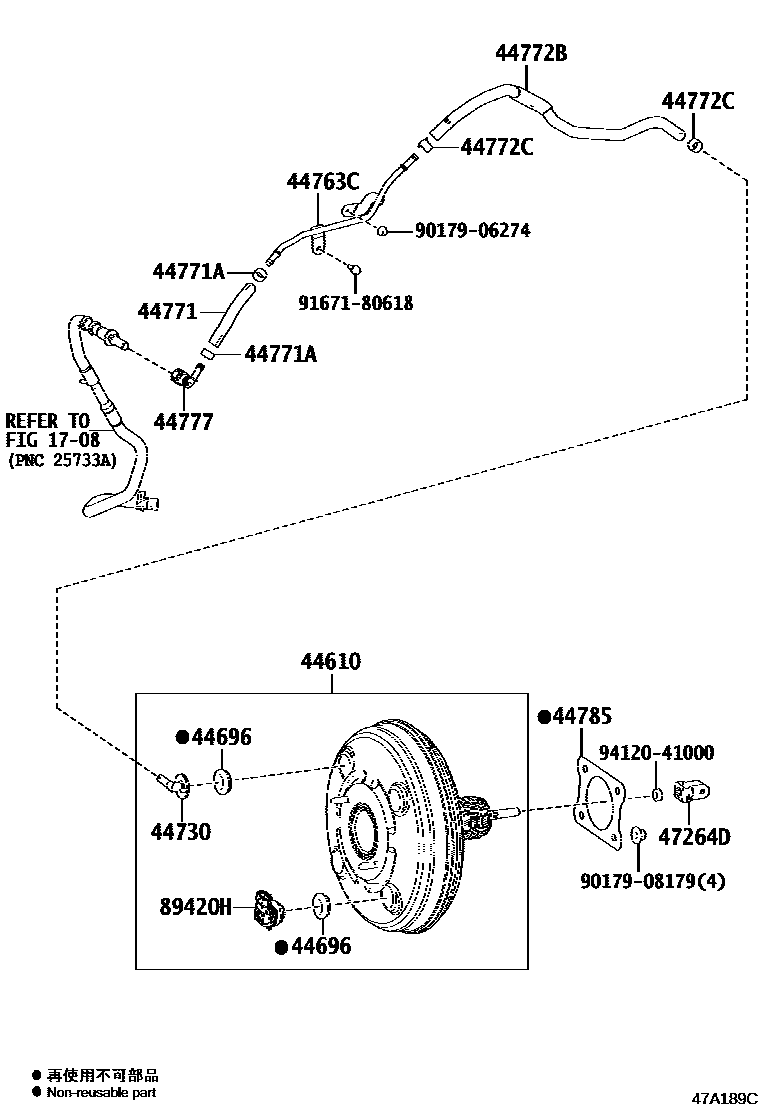

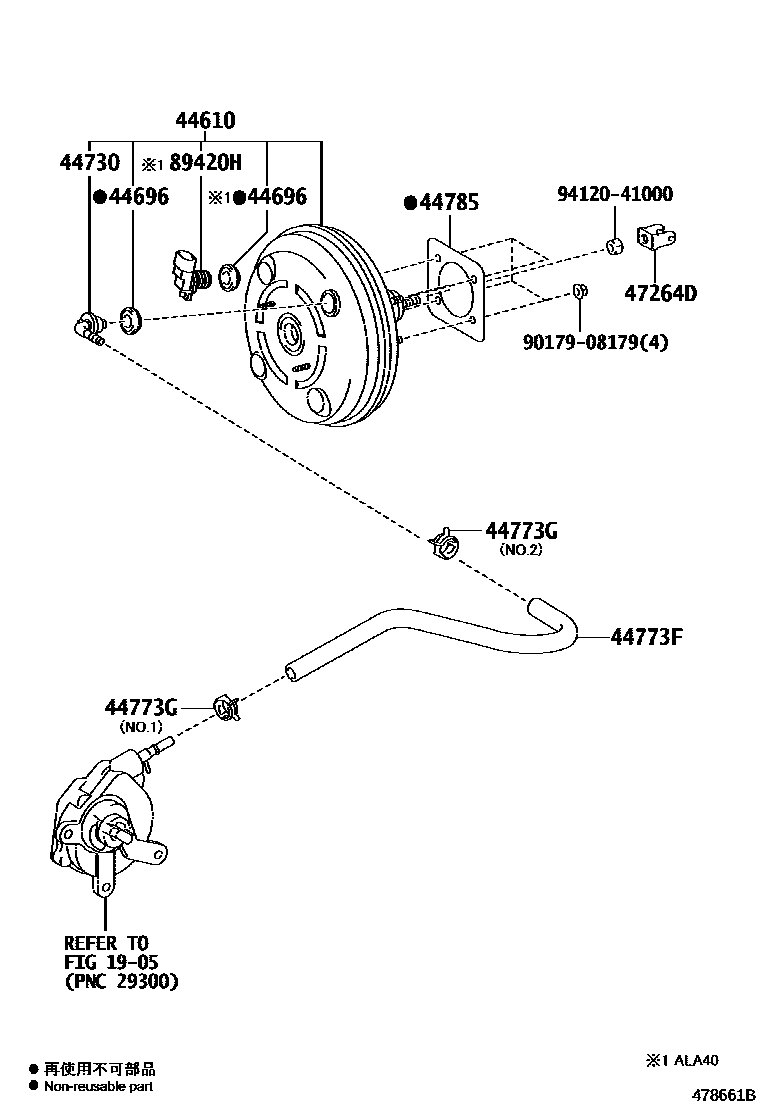

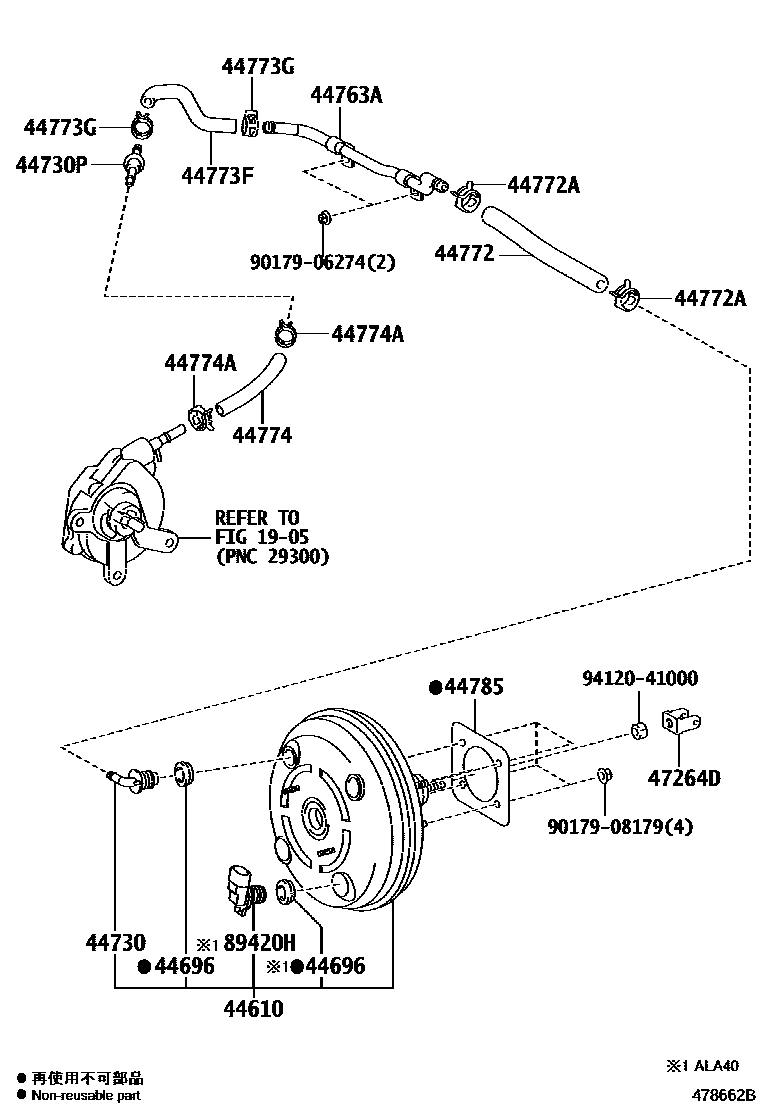

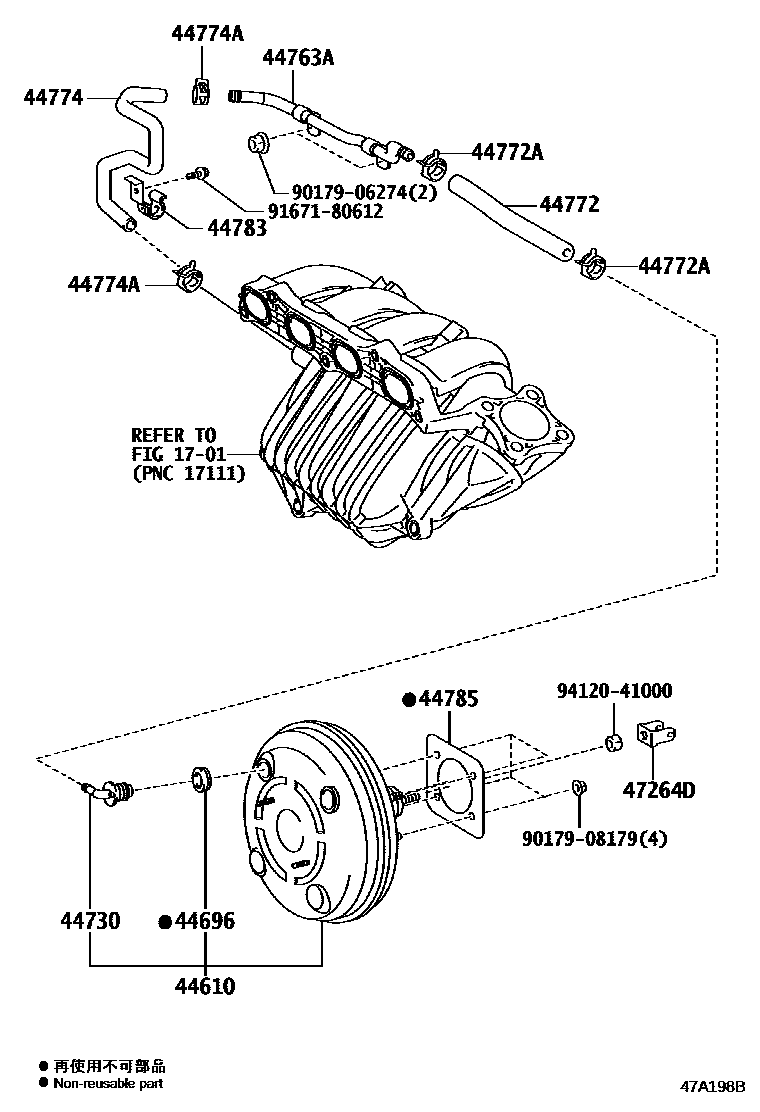

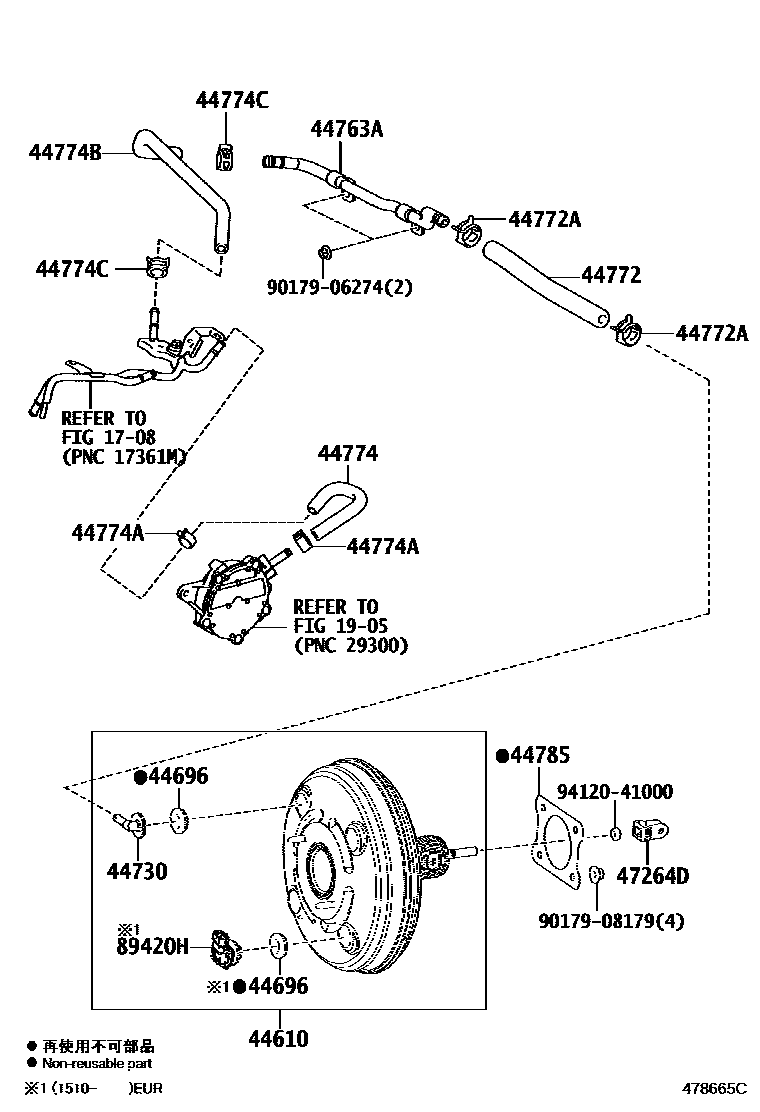

Toyota RAV4 EPC diagram 4703, 制动助力器和真空管, with 7 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-42380 · 44610-42390 · 44610-42400 · 44610-42410 · 44610-42420 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-20170 |
| 44730P | No. 1 vacuum check valve assembly | 44730-35010 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-42060 · 44763-42080 |
| 44763C | Pipe No. 2 (hose to hose) | 44763-64030 |
| 44771 | Vacuum tube connector hose | 44771-64010 |
| 44771A | Clip (for vacuum tube connector hose) | 90467-16014 |
| 44772 | Hoses (check valve to connector tube) | 44772-42070 |
| 44772A | Clip (for check valve to connector tube) | 96133-41500 |
| 44772B | Hoses (check valve to brake booster) | 44772-42090 · 44772-64020 |
| 44772C | Clip (for check valve to brake booster hose) | 90467-16014 · 96133-41500 |
| 44773F | Hoses (connector to check valve) | 44773-42131 · 44773-42170 · 44773-42180 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16014 · 96133-41500 |
| 44774 | Hoses (joints to connector tubes) | 44774-28320 · 44774-42061 · 44774-42110 · 44774-42170 |
| 44774A | Clip (for fitting to connector tube hose) | 96133-41500 |
| 44774B | Hoses (joints to connector tubes) | 44774-42160 |
| 44774C | Clip (for fitting to connector tube hose) | 96133-41500 |
| 44777 | No. 1 Vacuum Hose Connector | 44777-64010 |
| 44783 | Vacuum hose clamp | 44783-42030 |
| 44785 | brake booster pad | 44785-12040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-63010 |
| 89420H | Vacuum sensor assembly | 89421-52020 |
