Toyota RAV4 前转向齿轮和连杆 — Figure 4505

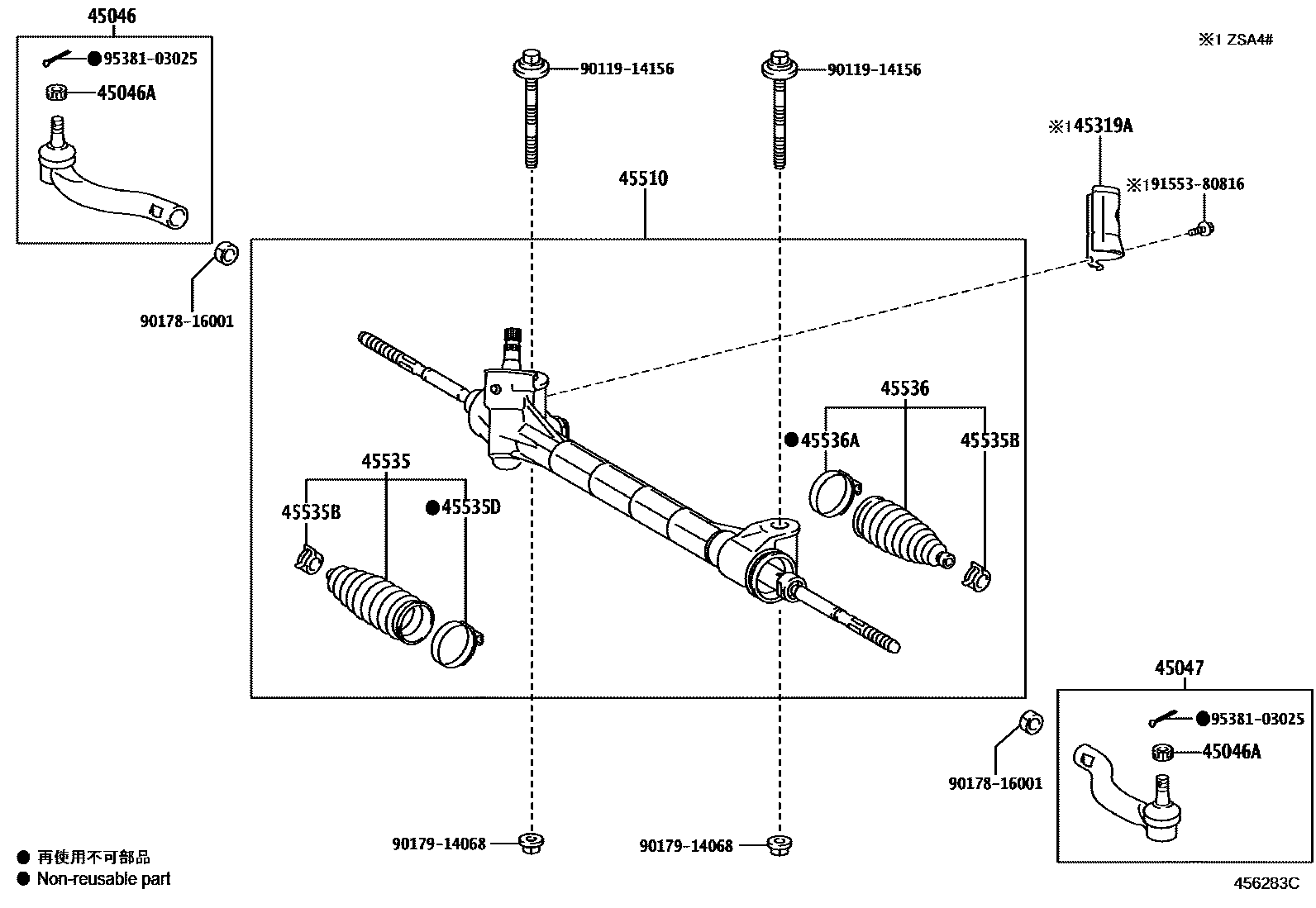

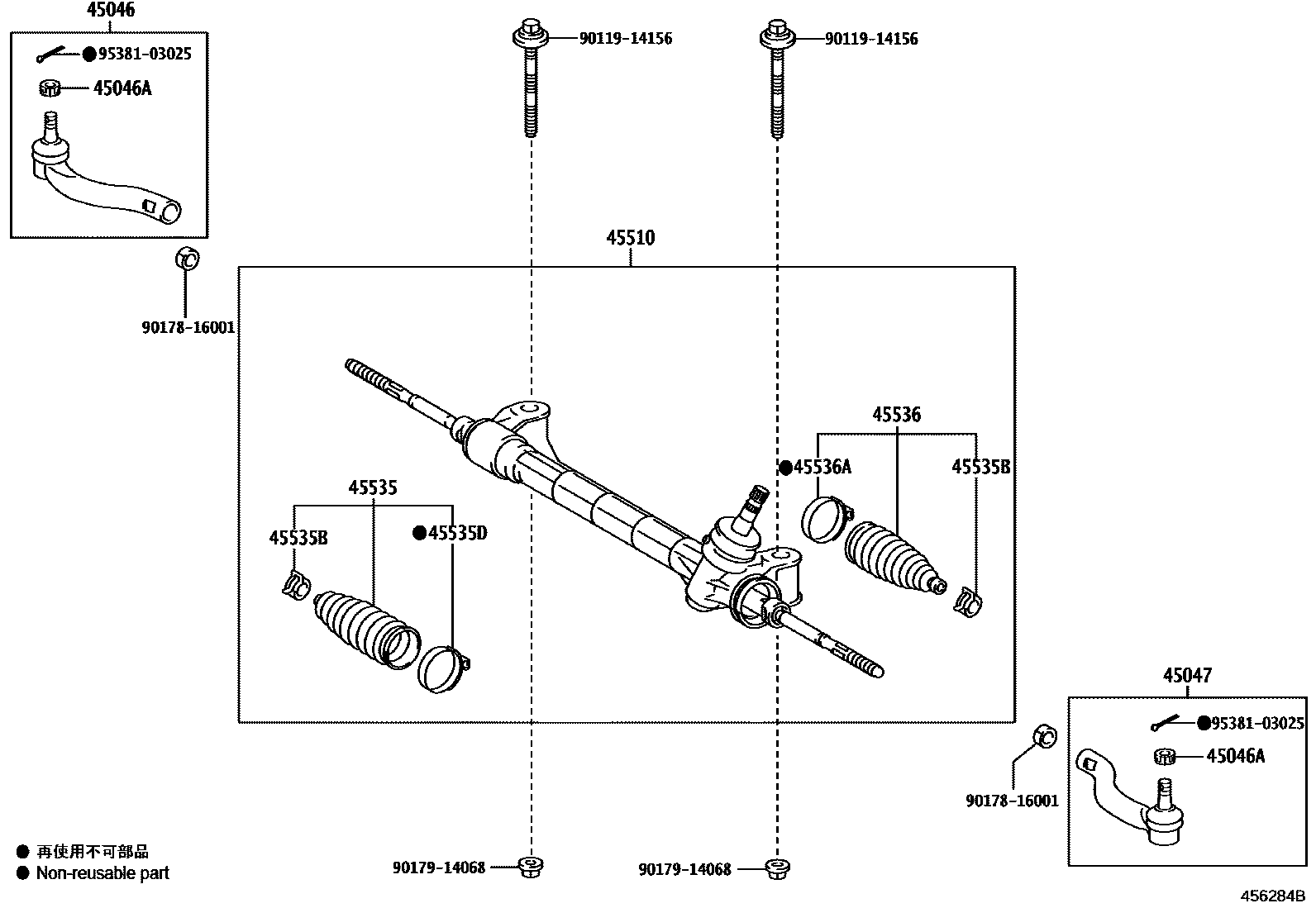

Toyota RAV4 EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45046 | Right tie rod end sub-assembly | 45046-49195 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45047-49135 |
| 45319A | Steering gear heat insulation pad | 45319-42010 |
| 45510 | Steering gear assembly | 45510-42120 · 45510-42121 · 45510-42130 · 45510-42131 · 45510-42140 · 45510-42141 · 45510-42150 · 45510-42151 · 45510-42160 · 45510-42161 · 45510-42170 · 45510-42171 · 45510-42250 · 45510-42251 · 45510-48050 · 45510-48051 · 45510-48060 · 45510-48061 · 45510-78022 · 45510-78023 |
| 45535 | No. 1 steering rack dust cover | 45535-49045 |
| 45535B | Clamp (for steering rack dust boot) | 45537-42020 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 45538-42010 |
| 45536 | No. 2 steering rack dust cover | 45535-49045 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 45538-42010 |
