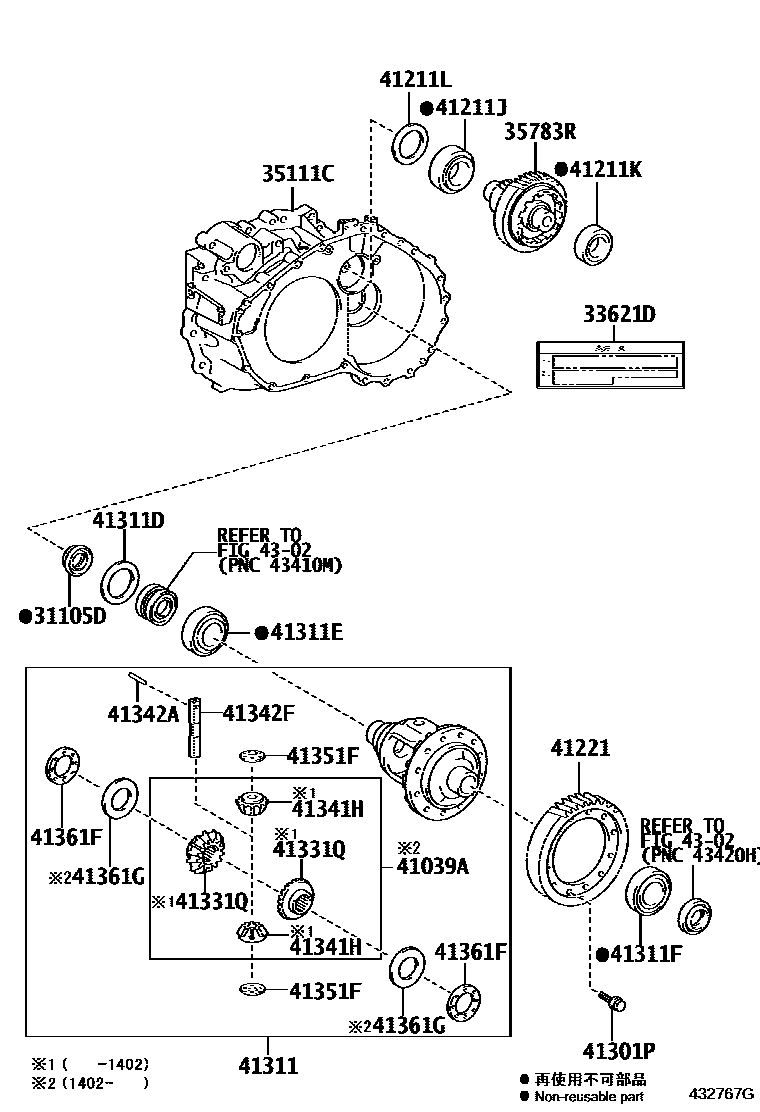

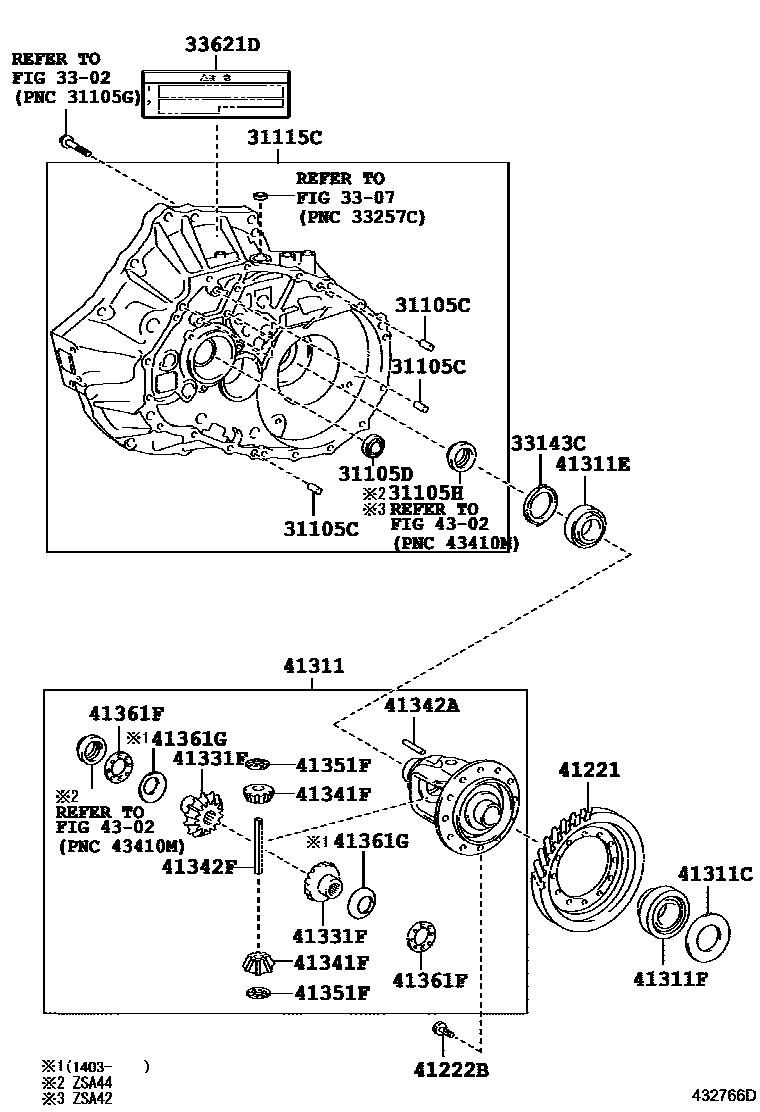

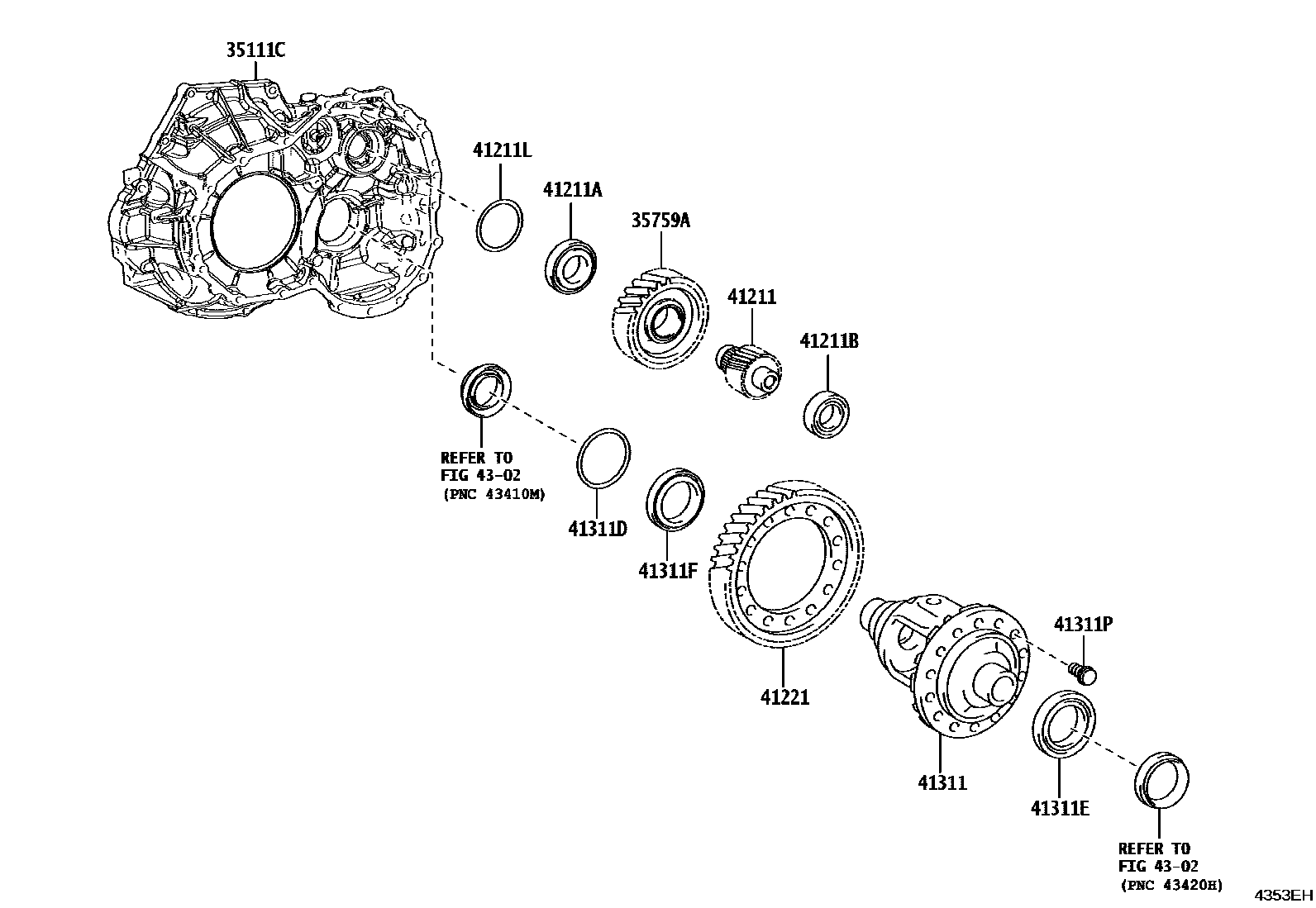

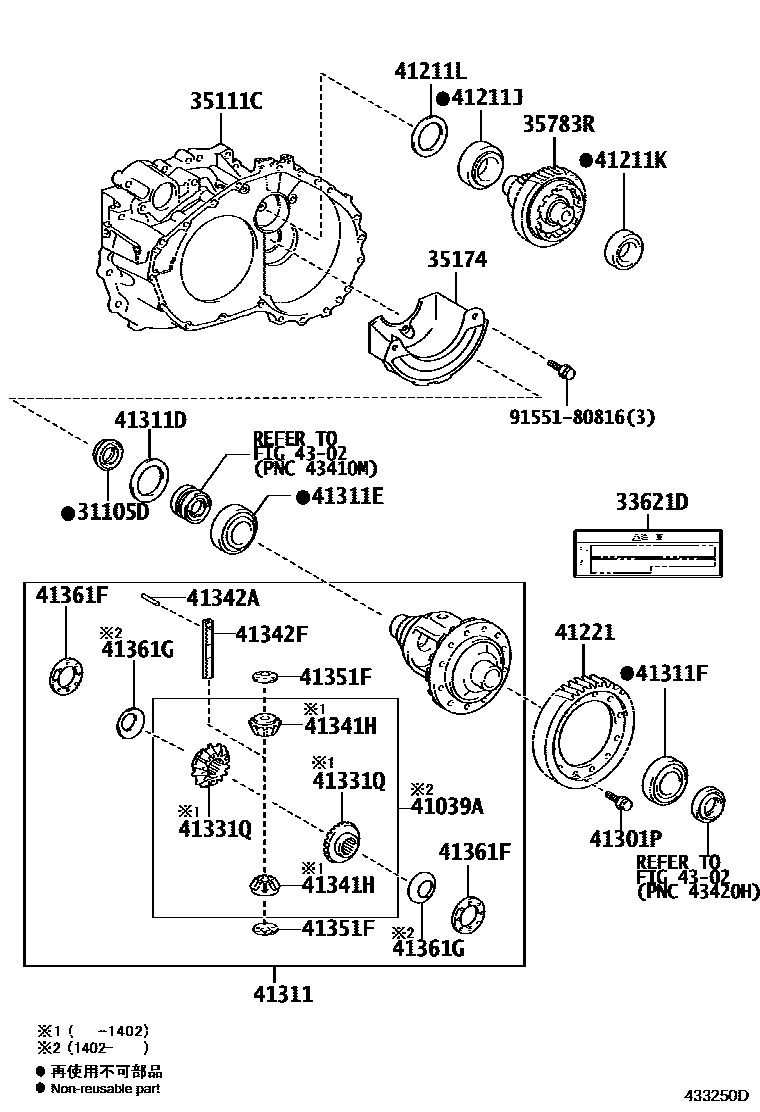

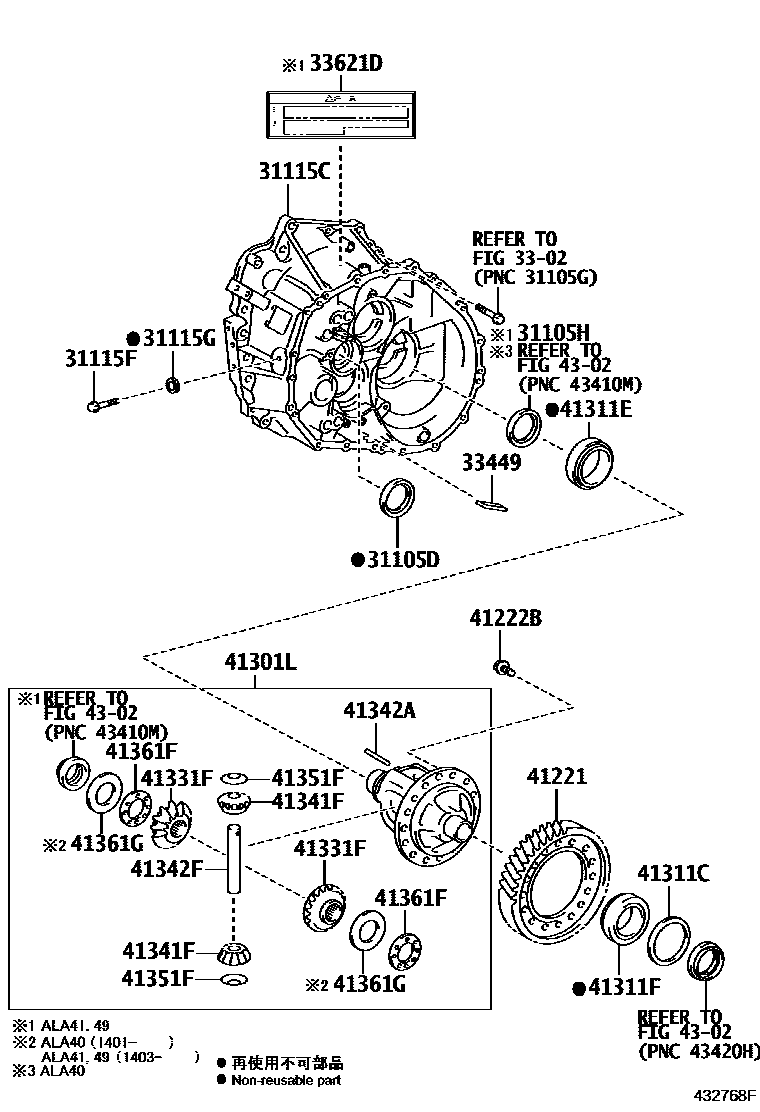

Toyota RAV4 前桥壳和差速器 — Figure 4301
Toyota RAV4 EPC diagram 4301, 前桥壳和差速器, with 5 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105C | Direct sales (for transmission axle housing) | 90250-08054 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-27010 · 90311-30017 · 90311-55005 |
| 31105H | No. 2 oil seal (for transmission axle housing) | 90311-55004 |
| 31115C | Front transmission axle housing (MTM) | 31105-20101 · 31105-42011 · 31115-20081 · 31115-42050 · 31115-64011 |
| 31115F | Bolt (for front transaxle housing) | 90105-12354 |
| 31115G | Gasket (for front transaxle housing) | 90430-13004 |
| 33143C | Front differential oil baffle | 33143-20060 |
| 33449 | derailleur magnet | 33449-60010 |
| 33621D | Transaxle oil information label | 33621-12150 · 33621-28021 |
| 35111C | Transmission axle housing | 35105-28120 · 35105-42040 · 35105-42050 · 35105-73040 |
| 35174 | Transmission axle housing oil separator | 35174-73020 |
| 35759A | PIGNON, MENANT DEMULTIPLICATEUR | 35759-63010 |
| 35783R | countershaft driven gear | 35705-28010 · 35705-42020 · 35705-42030 |
| 41039A | Differential gear assembly | 41039-48040 |
| 41211 | Differential drive pinion | 41211-44020 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-35173 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-30110 |
| 41211J | Right-hand tapered bearing (for differential drive pinion) | 90366-35167 · 90366-42006 · 90366-42012 |
| 41211K | Left side roller bearing (for differential drive pinion) | 90366-32034 · 90366-35160 · 90366-35176 |
| 41211L | Spacer (for differential drive pinion) | 90564-55061 · 90564-55062 · 90564-55063 · 90564-55064 · 90564-55065 · 90564-55066 · 90564-55067 · 90564-55068 · 90564-55069 · 90564-55070 · 90564-55071 · 90564-55072 · 90564-55073 · 90564-55074 · 90564-55075 · 90564-55076 · 90564-55077 · 90564-55078 · 90564-55079 · 90564-55080 · 90564-55081 · 90564-55082 · 90564-55083 · 90564-55084 · 90564-55085 · 90564-55086 · 90564-55087 · 90564-55088 · 90564-55089 · 90564-55090 · 90564-55091 · 90564-55092 · 90564-55093 · 90564-55094 · 90564-55095 · 90564-55096 · 90564-55097 · 90564-61022 · 90564-61023 · 90564-61024 · 90564-61025 · 90564-61026 · 90564-61027 · 90564-61028 · 90564-61029 · 90564-61030 · 90564-61031 · 90564-61032 · 90564-61033 · 90564-61034 · 90564-61035 · 90564-61036 · 90564-61037 · 90564-61038 · 90564-61039 · 90564-61040 · 90564-61041 · 90564-61042 · 90564-61043 · 90564-61044 · 90564-61045 · 90564-61046 · 90564-61047 · 90564-61048 · 90564-61049 · 90564-61050 · 90564-61051 · 90564-61052 · 90564-61053 · 90564-61054 · 90564-61055 · 90564-61056 · 90564-61057 · 90564-61058 · 90564-61059 · 90564-61060 · 90564-61061 · 90564-61062 · 90564-71014 · 90564-71015 · 90564-71016 · 90564-71017 · 90564-71018 · 90564-71019 · 90564-71020 · 90564-71021 · 90564-71022 · 90564-71023 · 90564-71024 · 90564-71025 · 90564-71026 · 90564-71027 · 90564-71028 · 90564-71029 · 90564-71030 · 90564-71031 · 90564-71032 · 90564-71033 · 90564-71034 · 90564-71035 · 90564-71036 · 90564-71037 · 90564-71038 · 90564-71039 · 90564-71040 · 90564-71041 · 90564-71042 · 90564-71043 · 90564-71044 · 90564-71045 · 90564-71046 · 90564-71047 · 90564-71048 · 90564-71049 · 90564-71050 · 90564-71051 · 90564-71052 · 90564-71053 · 90564-71054 |
| 41221 | Front differential ring gear | 41221-28150 · 41221-28160 · 41221-42110 · 41221-42140 · 41221-42160 · 41221-42180 · 41221-42210 · 41221-44030 · 41221-64010 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12319 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-12310 · 41301-20250 · 41301-42130 · 41301-42240 |
| 41301P | Screw (for front differential case) | 90105-12303 |
| 41311 | front differential case | 41301-21070 · 41301-28190 · 41301-42160 · 41301-42161 · 41301-42200 · 41301-42220 · 41301-42250 · 41301-48130 |
| 41311C | Rear gasket (for front differential case) | 90564-56109 · 90564-56110 · 90564-56111 · 90564-56112 · 90564-56113 · 90564-56114 · 90564-56115 · 90564-56116 · 90564-56117 · 90564-56118 · 90564-56119 · 90564-56120 · 90564-56121 · 90564-56122 · 90564-56123 · 90564-56124 · 90564-56125 · 90564-56126 · 90564-61095 · 90564-61096 · 90564-61097 · 90564-61098 · 90564-61099 · 90564-61100 · 90564-61101 · 90564-61102 · 90564-61103 · 90564-61104 · 90564-61105 · 90564-61106 · 90564-61107 · 90564-61108 · 90564-61109 · 90564-61110 · 90564-61111 · 90564-61112 |
| 41311D | Front gasket (for front differential case) | 90564-73001 · 90564-73002 · 90564-73003 · 90564-73004 · 90564-73005 · 90564-73006 · 90564-73007 · 90564-73008 · 90564-73009 · 90564-73010 · 90564-73011 · 90564-73012 · 90564-73013 · 90564-73014 · 90564-73015 · 90564-73016 · 90564-73017 · 90564-73018 · 90564-73019 · 90564-73020 · 90564-73021 · 90564-73022 · 90564-73023 · 90564-73024 · 90564-73025 · 90564-73026 · 90564-73027 · 90564-73028 · 90564-82009 · 90564-82010 · 90564-82011 · 90564-82012 · 90564-82013 · 90564-82014 · 90564-82015 · 90564-82016 · 90564-82017 · 90564-82018 · 90564-82019 · 90564-82020 · 90564-82021 · 90564-82022 · 90564-82023 · 90564-82024 · 90564-82025 · 90564-82026 · 90564-82027 · 90564-82028 · 90564-82029 · 90564-82030 · 90564-82031 · 90564-82032 · 90564-82033 · 90564-82034 · 90564-82035 · 90564-82036 · 90564-82037 · 90564-82038 · 90564-82039 · 90564-82040 · 90564-82041 · 90564-82042 · 90564-82043 · 90564-82044 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-50100 · 90366-50103 · 90366-50143 · 90366-57028 · 90366-58010 · 90366-62004 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-50100 · 90366-50103 · 90366-55063 · 90366-55071 · 90366-55074 · 90366-55077 · 90366-57028 · 90366-57033 |
| 41311P | Bolt (for front differential case) | 90105-12303 |
| 41331F | Front differential side gear | 41331-12140 · 41331-12170 · 41331-21020 · 41331-42040 |
| 41331Q | Differential side gear | 41331-33040 |
| 41341F | Front differential planetary gear | 41341-12090 · 41341-21010 · 41341-35050 |
| 41341H | differential planetary gear | 41341-35050 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-20070 · 41342-28010 · 41342-33050 · 41342-33051 · 41342-42040 |
| 41351F | Front differential planetary gear thrust washer | 41351-20050 · 41351-30060 · 41351-33030 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-20240 · 41361-20310 · 41361-20320 · 41361-20330 · 41361-20340 · 41361-20350 · 41361-20360 · 41361-20370 · 41361-20380 · 41361-20390 · 41361-20400 · 41361-20410 · 41361-20420 · 41361-20430 · 41361-20440 · 41361-28230 · 41361-28240 · 41361-28250 · 41361-28260 · 41361-33020 · 41361-33030 · 41361-33040 · 41361-33050 · 41361-33060 · 41361-33070 · 41361-33080 · 41361-33090 · 41361-33100 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-40003 · 90208-45001 |
