Toyota RAV4 阀体和滤油网(ATM) — Figure 3512

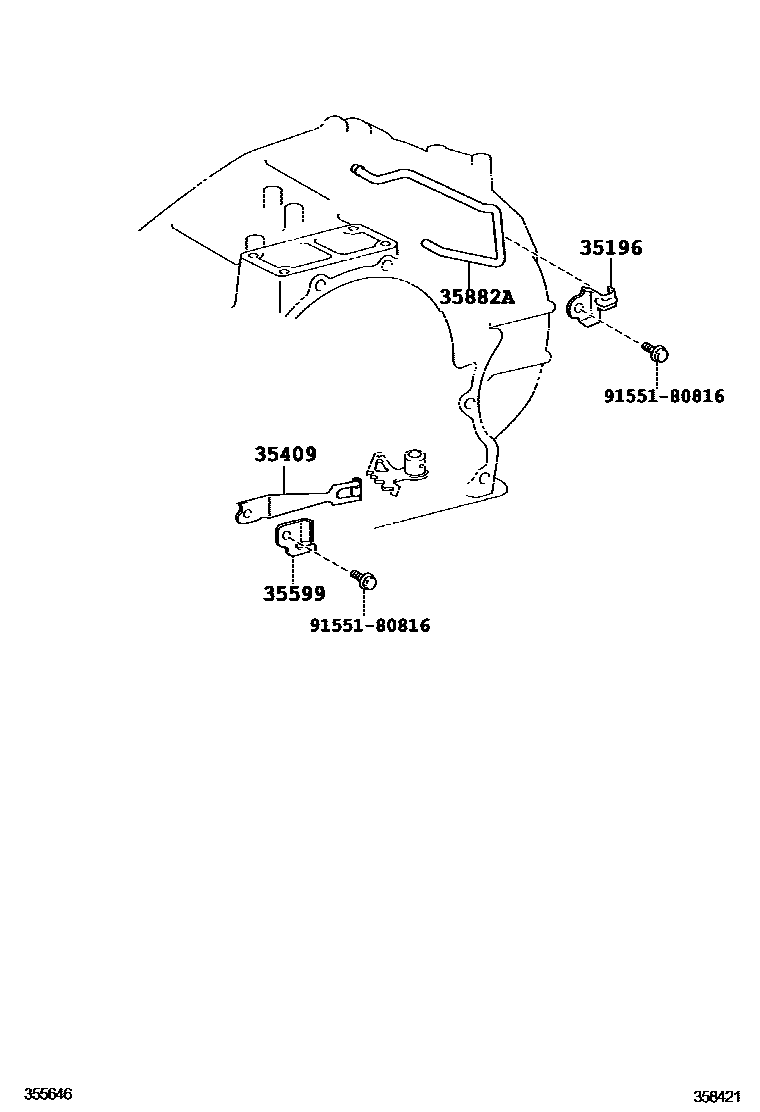

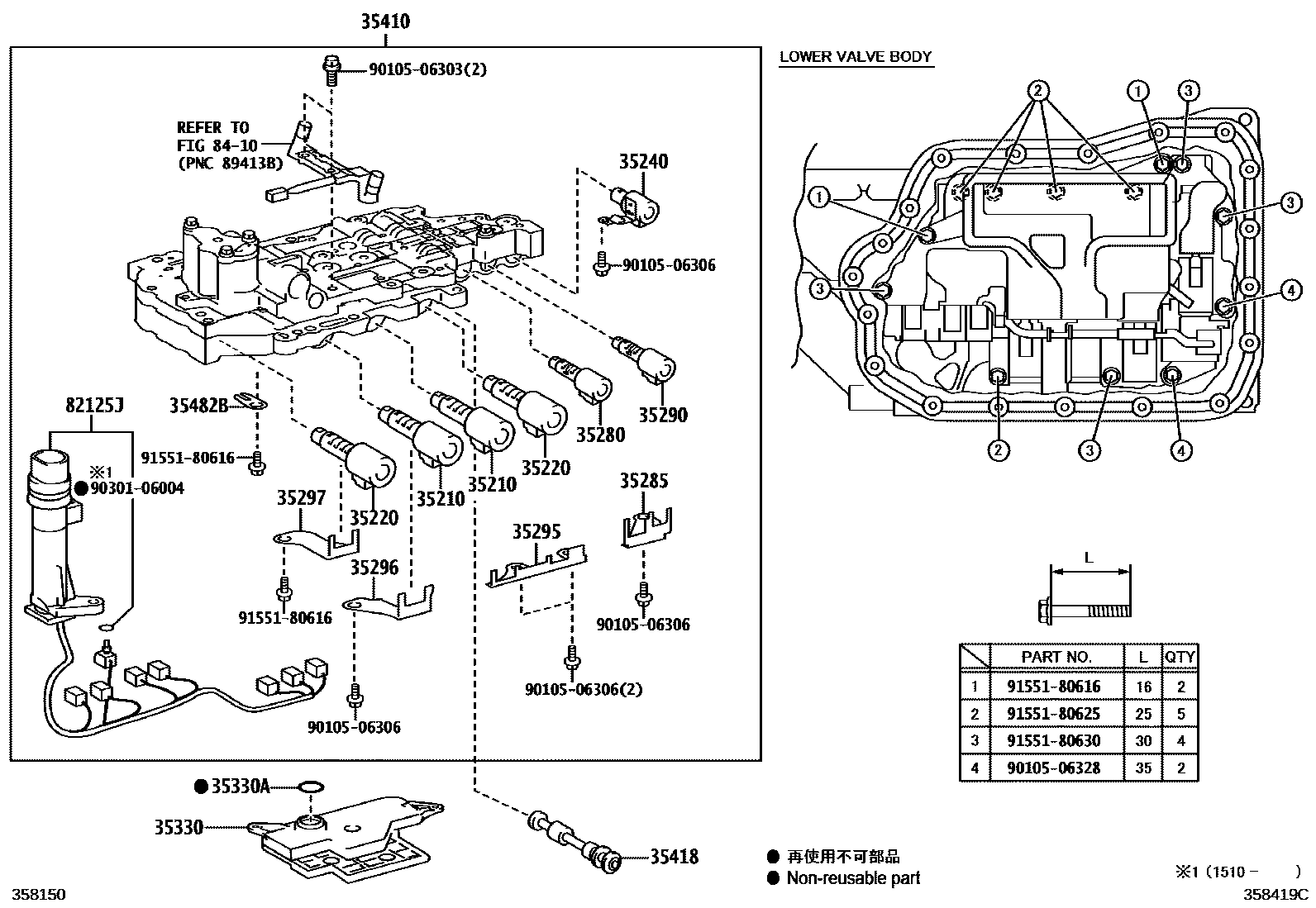

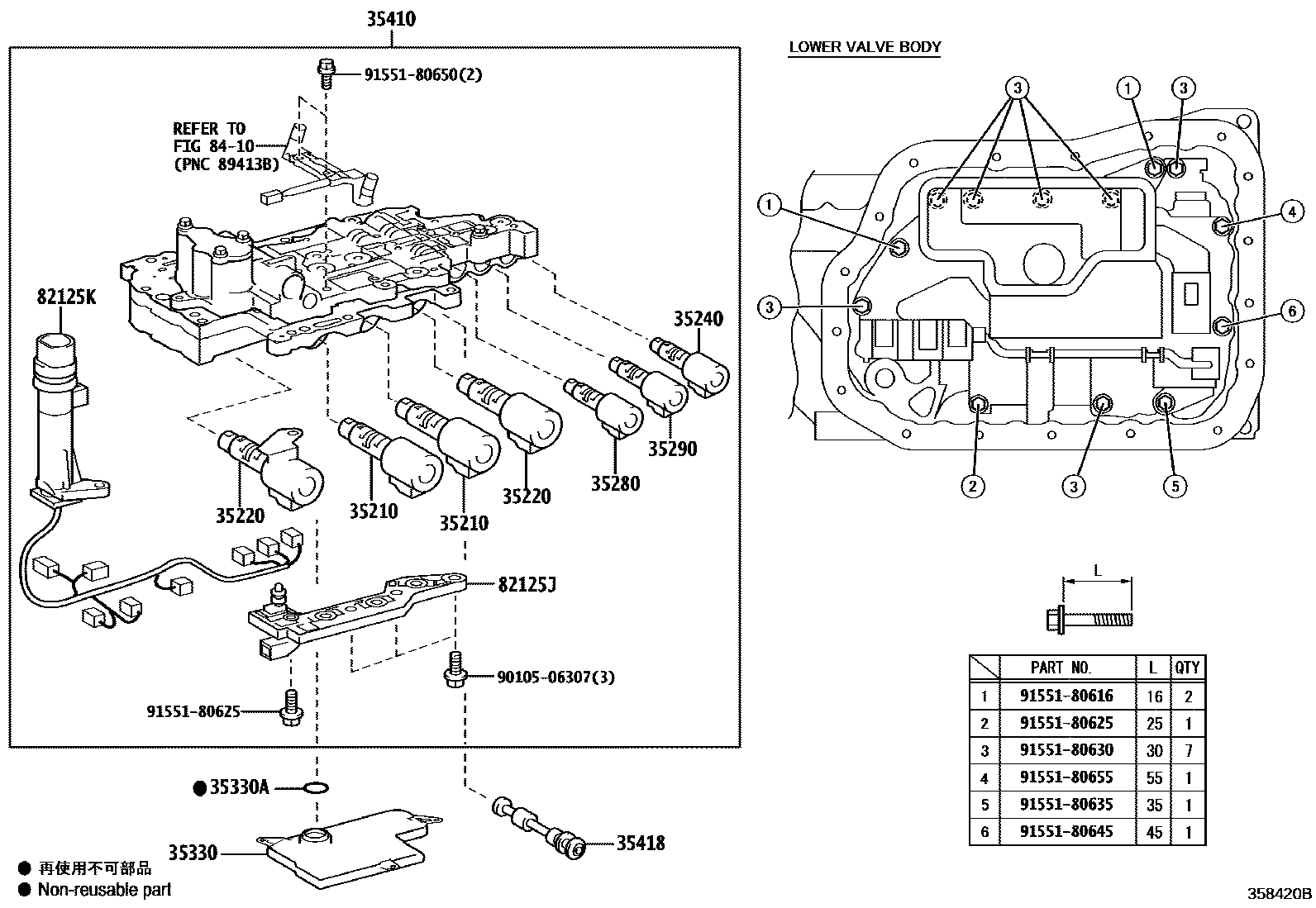

Toyota RAV4 EPC diagram 3512, 阀体和滤油网(ATM), with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35196 | No. 2 transmission axle fuel supply pipe clamp | 35196-33010 |
| 35210 | No. 1 clutch control solenoid valve assembly | 35210-33030 |
| 35220 | No. 2 clutch control solenoid valve assembly | 35220-33040 · 35220-48020 |
| 35240 | Automatic transmission three-way solenoid valve assembly | 35240-73010 |
| 35280 | Lock control solenoid valve assembly | 35280-33020 · 35280-52040 |
| 35285 | Solenoid valve lock plate | 35285-33070 · 35285-73010 |
| 35290 | Pipe pressure control solenoid valve assembly | 35290-33040 |
| 35295 | No. 2 solenoid valve locking plate | 35295-33050 · 35295-73010 |
| 35296 | No. 3 solenoid valve locking plate | 35296-33050 · 35296-73010 |
| 35297 | No. 4 solenoid valve locking plate | 35297-33020 · 35297-73010 |
| 35330 | Valve body oil filter assembly | 35330-33050 · 35330-48020 · 35330-73010 |
| 35330A | O-ring (for oil filter) | 90301-27015 |
| 35409 | Manual lock spring sub-assembly | 35409-33010 |
| 35410 | Transmission valve body assembly | 35410-33240 · 35410-33250 · 35410-33260 |
| 35418 | Manual valve | 35418-73010 |
| 35482B | temperature sensor clip | 35482-73010 |
| 35599 | Manual locking spring cover | 35599-33010 |
| 35882A | Differential gear lubricant oil supply pipe | 35882-33040 · 35882-73010 |
| 82125J | Transmission wiring harness | 82125-33150 · 82125-33151 · 82125-73010 · 82125-73011 |
| 82125K | Transmission wiring harness | 82125-33160 |
