Toyota RAV4 变矩器、前油泵和链条(ATM) — Figure 3502

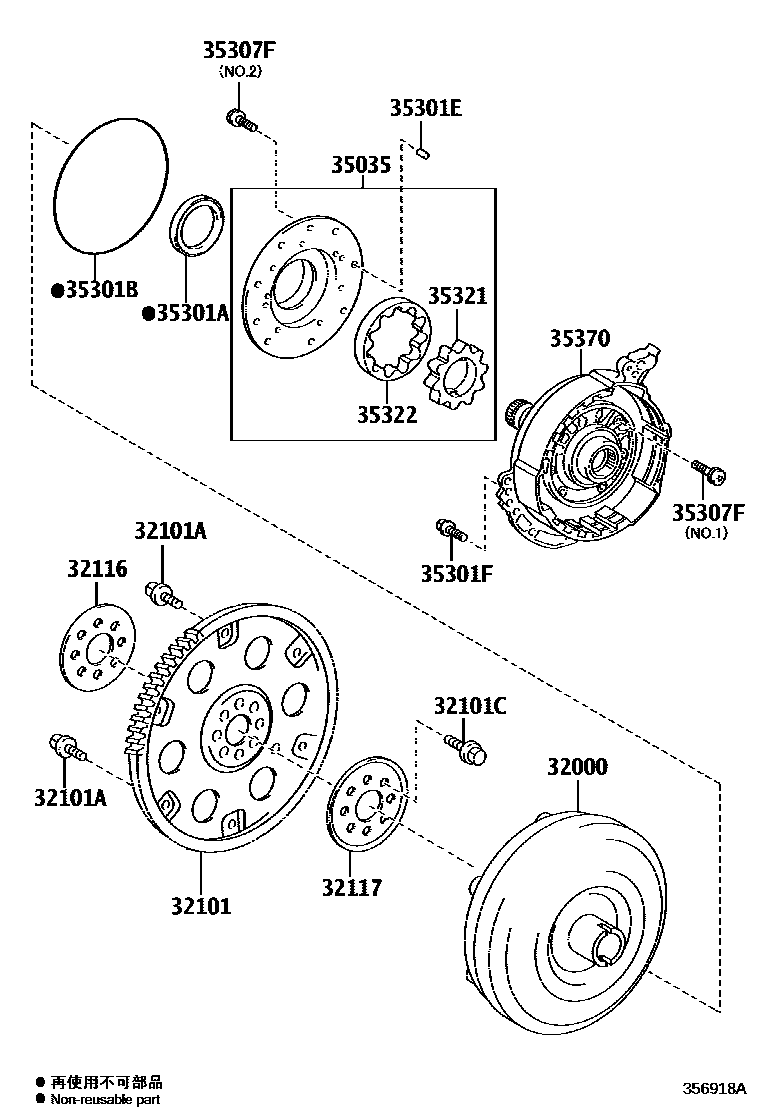

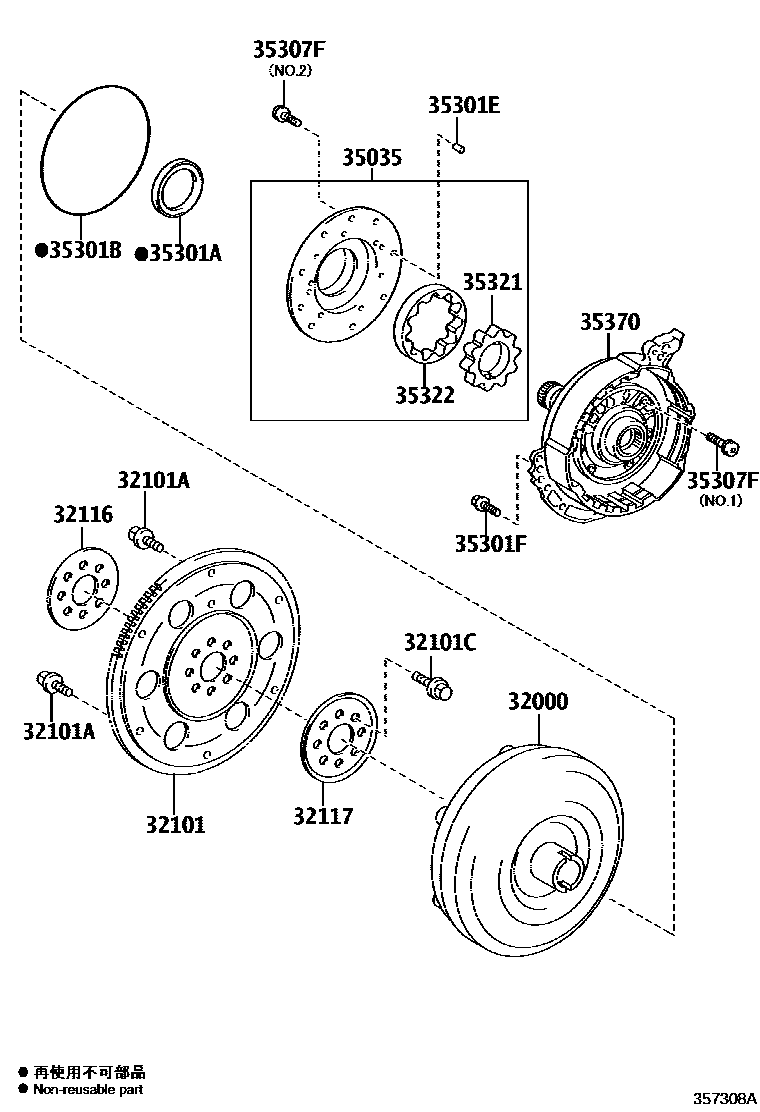

Toyota RAV4 EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-20351 · 32000-33143 · 32000-73013 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-06060 · 32101-20130 · 32101-73010 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90105-10567 · 90105-10568 · 90109-09001 · 90119-09025 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-10048 · 90105-12384 |
| 32116 | Front transmission plate spacer | 32116-20050 · 32116-20070 |
| 32117 | Rear transmission plate spacer | 32117-06010 · 32117-20060 · 32117-20080 |
| 35035 | Front oil pump and gear body sub-assembly | 35035-33031 · 35035-33043 · 35035-73013 |
| 35301A | Oil seal (for front oil pump) | 90311-43010 |
| 35301B | O-ring (for front oil pump body) | 35697-33010 |
| 35301E | Direct sales (for front oil pump) | 90250-08040 · 90250-08052 |
| 35301F | Bolt (used to secure the front oil pump) | 91551-80835 |
| 35307F | Bolt (for stator shaft) | 90148-60064 · 90148-60065 · 90148-60067 · 90148-60068 |
| 35321 | Front oil pump driving gear | 35321-33111 · 35321-33121 · 35321-33131 · 35321-33141 · 35321-33151 · 35321-73010 · 35321-73020 · 35321-73030 · 35321-73040 · 35321-73050 |
| 35322 | Front oil pump driven gear | 35322-33110 · 35322-33120 · 35322-33130 · 35322-33140 · 35322-33150 · 35322-73010 · 35322-73020 · 35322-73030 · 35322-73040 · 35322-73050 |
| 35370 | stator shaft assembly | 35370-33031 · 35370-33043 · 35370-73013 |
