Toyota RAV4 离合器壳和变速器壳(MTM) — Figure 3302

Toyota RAV4 EPC diagram 3302, 离合器壳和变速器壳(MTM), with 3 images and 27 PNC and OE references.

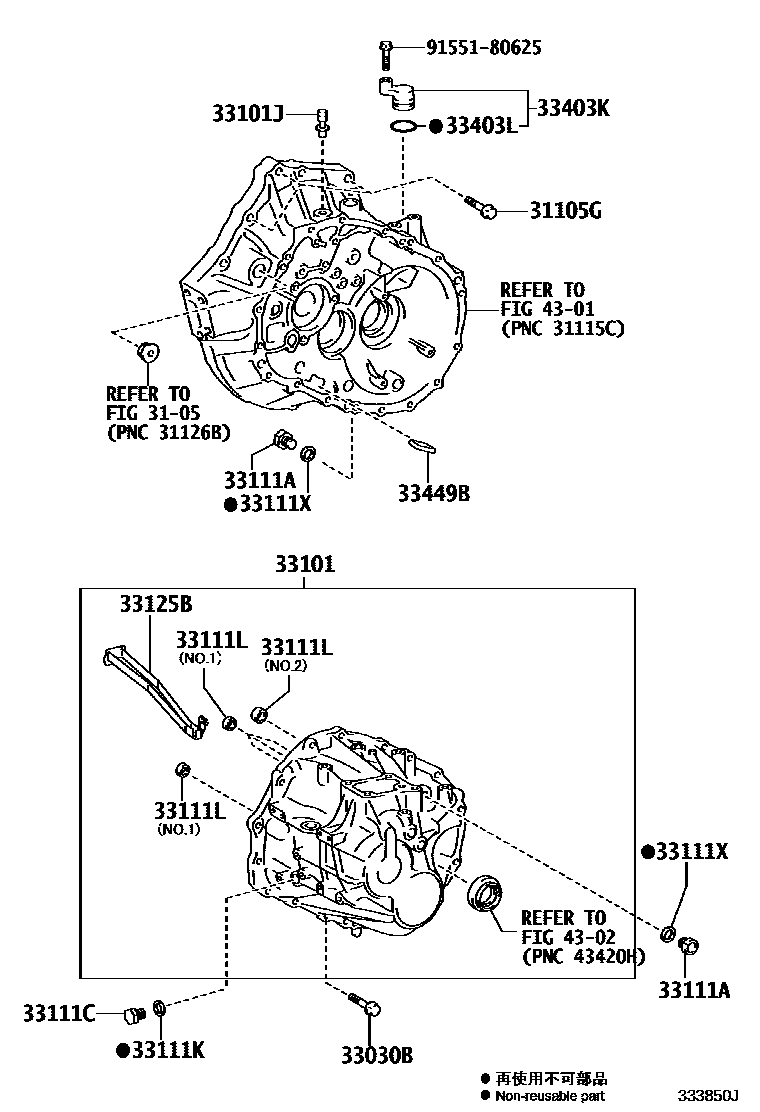

Toyota RAV4 离合器壳和变速器壳(MTM) EPC diagram — 333850J
离合器壳和变速器壳(MTM) — 333850J (201212 – 999999)

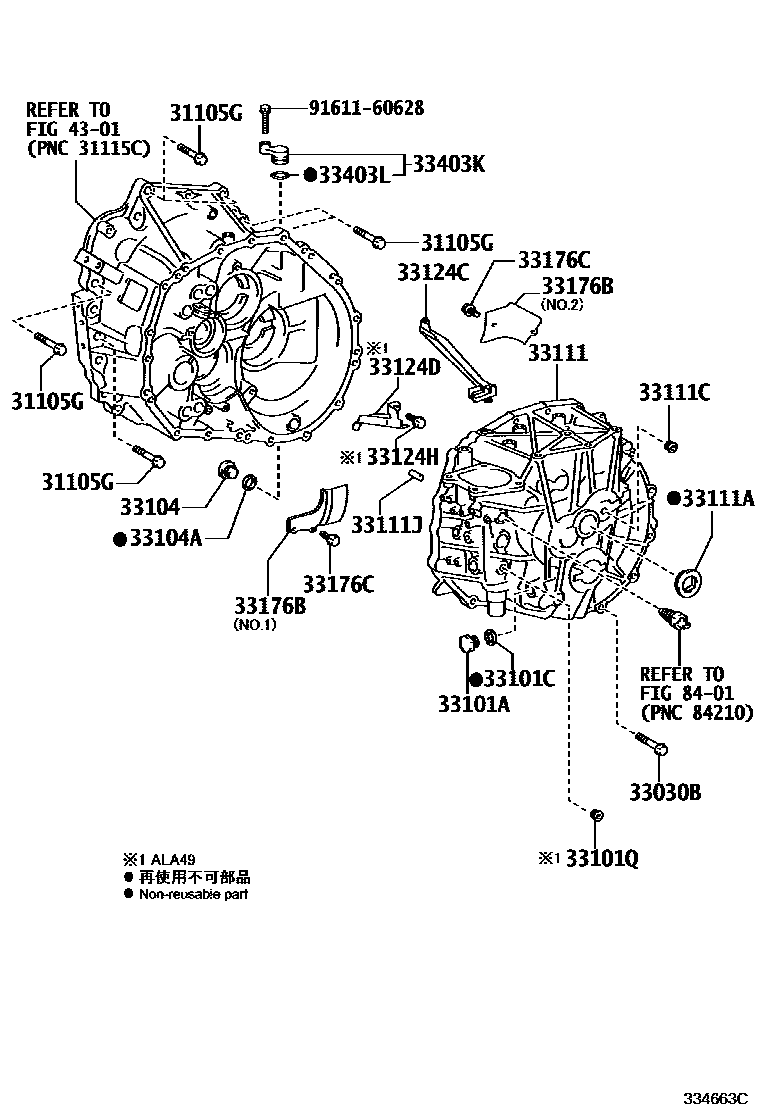

Toyota RAV4 离合器壳和变速器壳(MTM) EPC diagram — 334663C
离合器壳和变速器壳(MTM) — 334663C (201212 – 999999)

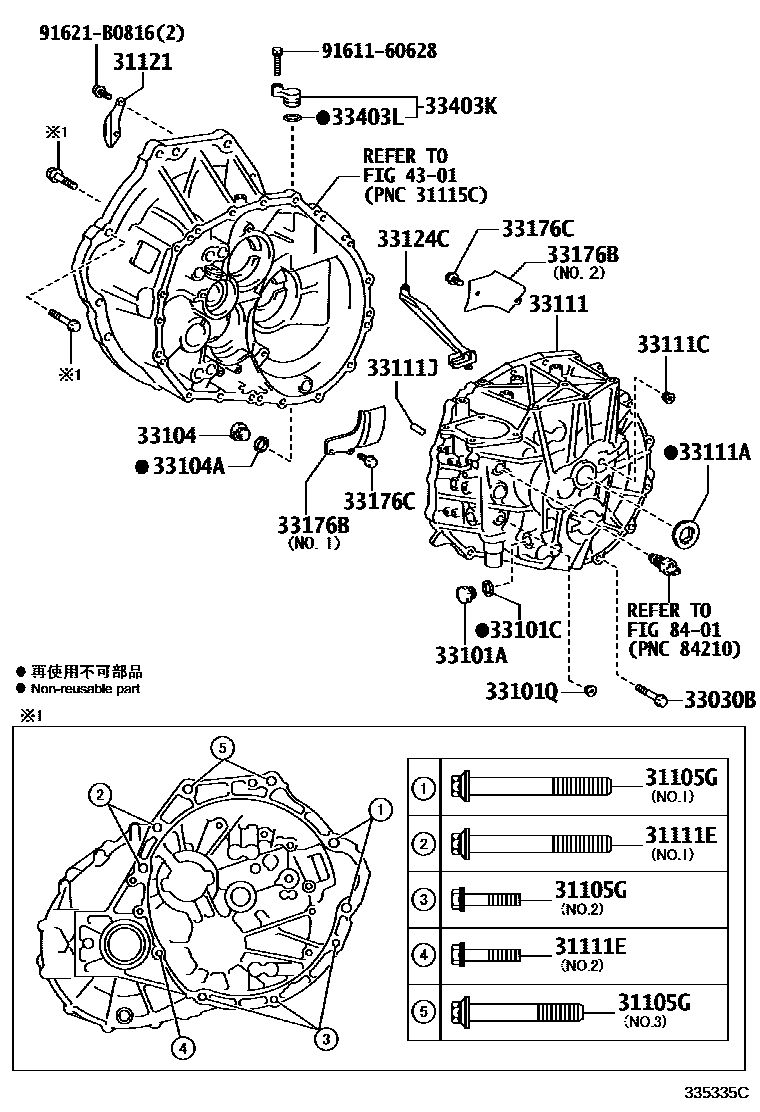

Toyota RAV4 离合器壳和变速器壳(MTM) EPC diagram — 335335C
离合器壳和变速器壳(MTM) — 335335C (201510 – 999999)

PNC and OE references

PNCPart nameOE numbers
31105GBolts (for securing transaxle housing and engine)90105-W0133 · 90107-12004 · 90107-12005 · 90107-WX001 · 90107-WX002 · 90119-12042 · 90119-12252 · 91512-61045 · 91512-61060 · 91512-61065 · 91551-80840
31111EBolts (for securing transaxle and engine)90105-W0133 · 90107-12004 · 90107-WX001 · 91551-80840
31121No. 1 clutch housing cover31121-42010
33030BBolts (for securing transaxle housing and gearbox)90105-08086 · 91551-10840
33101Manual transmission housing sub-assembly33101-20100 · 33101-42050
33101AScrew plug (for manual transmission oil filler port)90341-18033
33101CGasket (for manual transmission filler plug)90430-18008
33101Jvent plug90930-03085
33101QNo. 1 screw plug (for gearbox)90341-18019
33104Drain plug sub-assembly (MTM)90341-18006
33104ADrain plug gasket (MTM)90430-18008
33111Manual transmission housing33111-42060
33111AManual transmission plug90341-18006 · 90341-42002
33111CScrew plug (for gearbox)90341-12004 · 90341-18033
33111JDirect sales (for manual transmission)90250-08054
33111KGasket (for gearbox)12157-10010
33111LBimetallic bushing (for gearbox)90384-14008 · 90384-16005
33111XGearbox plug gasket12157-10010
33124CNo. 1 oil collecting pipe (MTM)33124-20040
33124DNo. 2 oil collecting pipe (MTM)33124-42010
33124HBolt (for oil collection pipe)91611-B0616
33125BManual gearbox oil collector33125-20020
33176BTransmission oil separator (MTM)33176-20010 · 33176-20020
33176CBolt (for transmission oil separator)91611-B0616
33403KSpeedometer driven gear hole cover sub-assembly33403-20230
33403LO-ring96711-24018
33449Bderailleur magnet33449-60010
