Toyota RAV4 喷油嘴 — Figure 2201

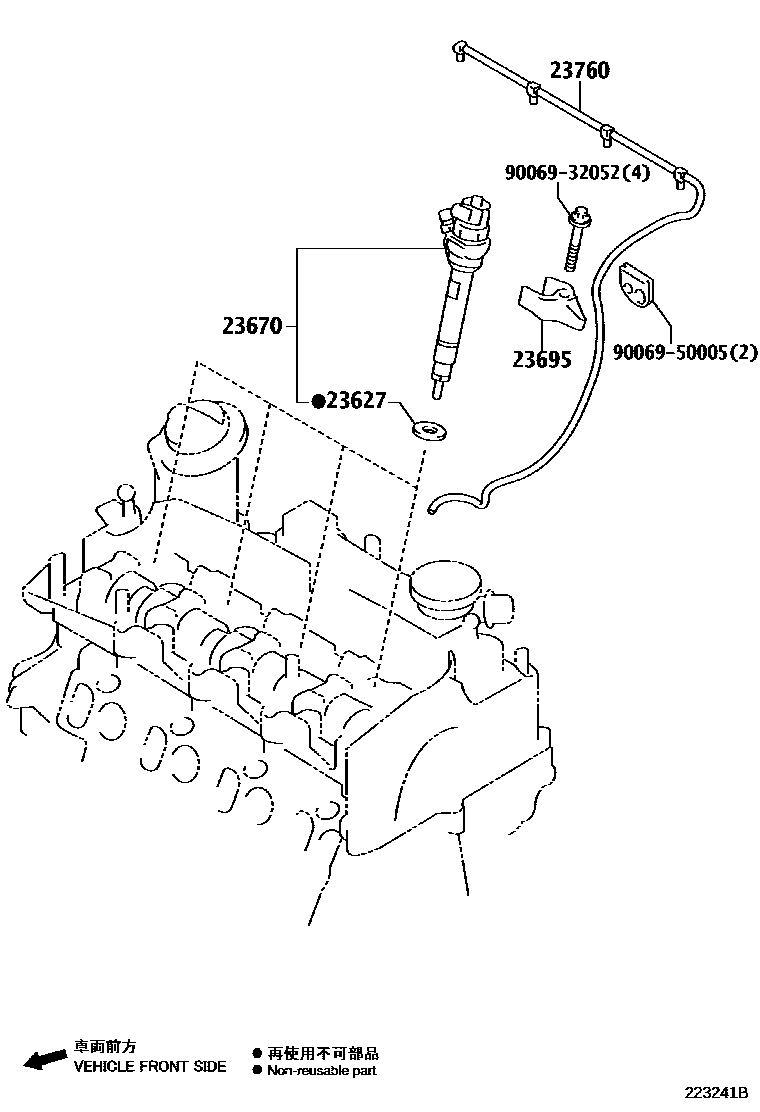

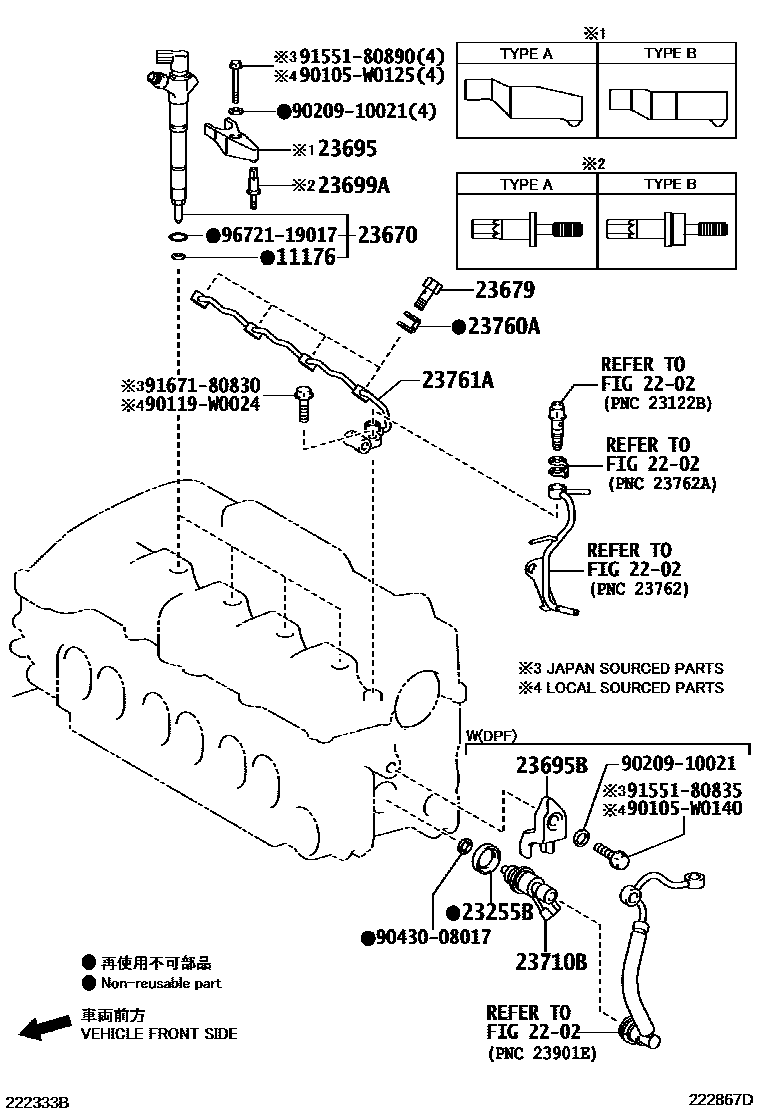

Toyota RAV4 EPC diagram 2201, 喷油嘴, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11176 | Injector seat | 11176-26020 |
| 23255B | Injector seal | 23255-26010 |
| 23627 | No. 1 sealing ring (for fuel injector) | 23291-WA010 |
| 23670 | Fuel injector assembly | 23670-29115 · 23670-29116 · 23670-29125 · 23670-29126 · 23670-WA030 |
| 23679 | Fuel injector hollow screw | 23679-26020 |
| 23695 | No. 1 injector body clamp | 23695-0R021 · 23695-26020 · 23695-WA010 |
| 23695B | No. 2 injector body clamp | 23695-26011 |
| 23699A | Injector body clamp seat | 23699-0R021 · 23699-26021 · 23699-26030 |
| 23710B | Exhaust fuel addition injector assembly | 23710-26012 |
| 23760 | Fuel injector overflow pipe assembly | 23761-WA021 |
| 23760A | padding | 90904-30008 |
| 23761A | No. 1 fuel injector overflow pipe | 23761-0R040 · 23761-26030 |
