Toyota RAV4 Alternator — Figure 1903

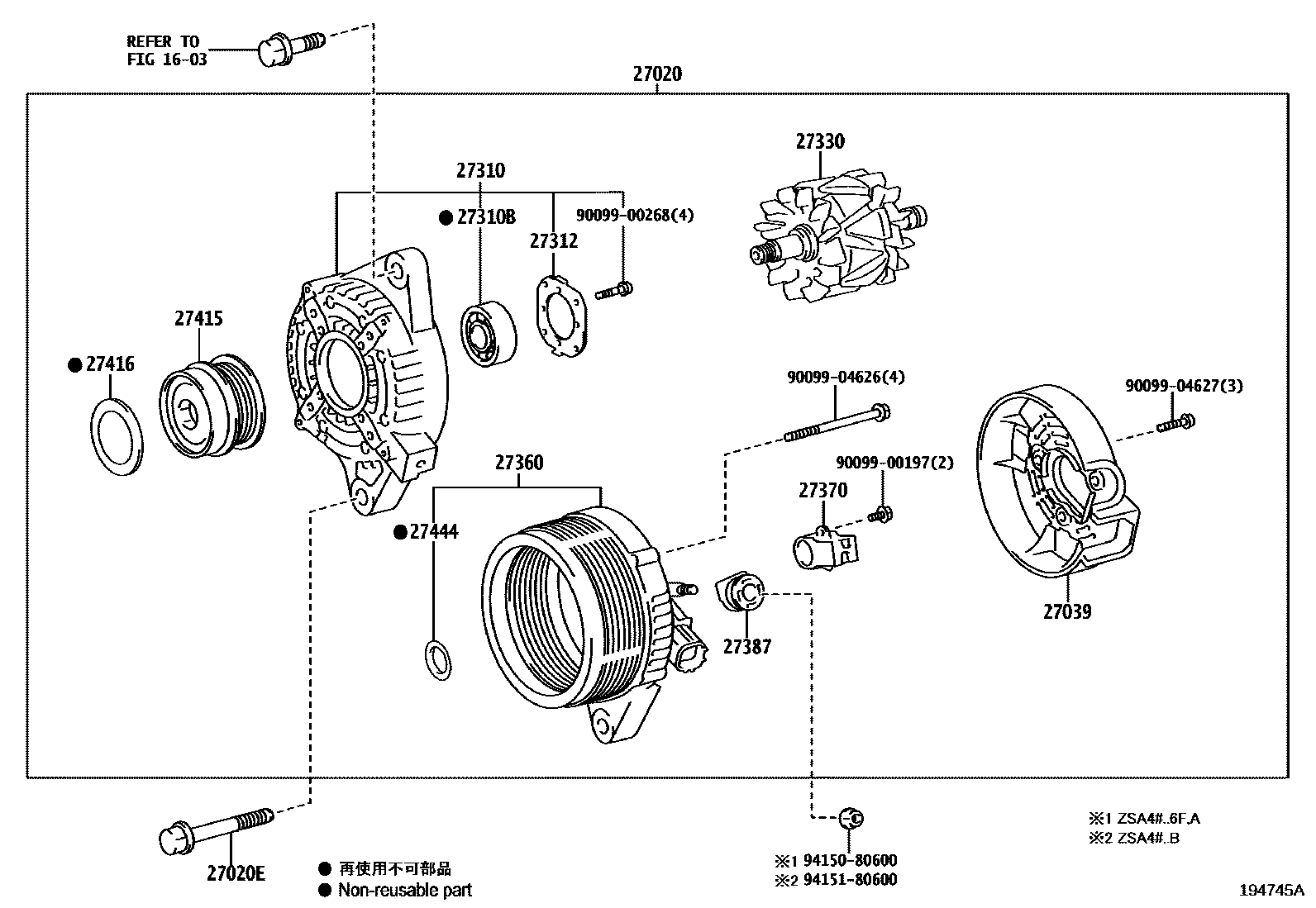

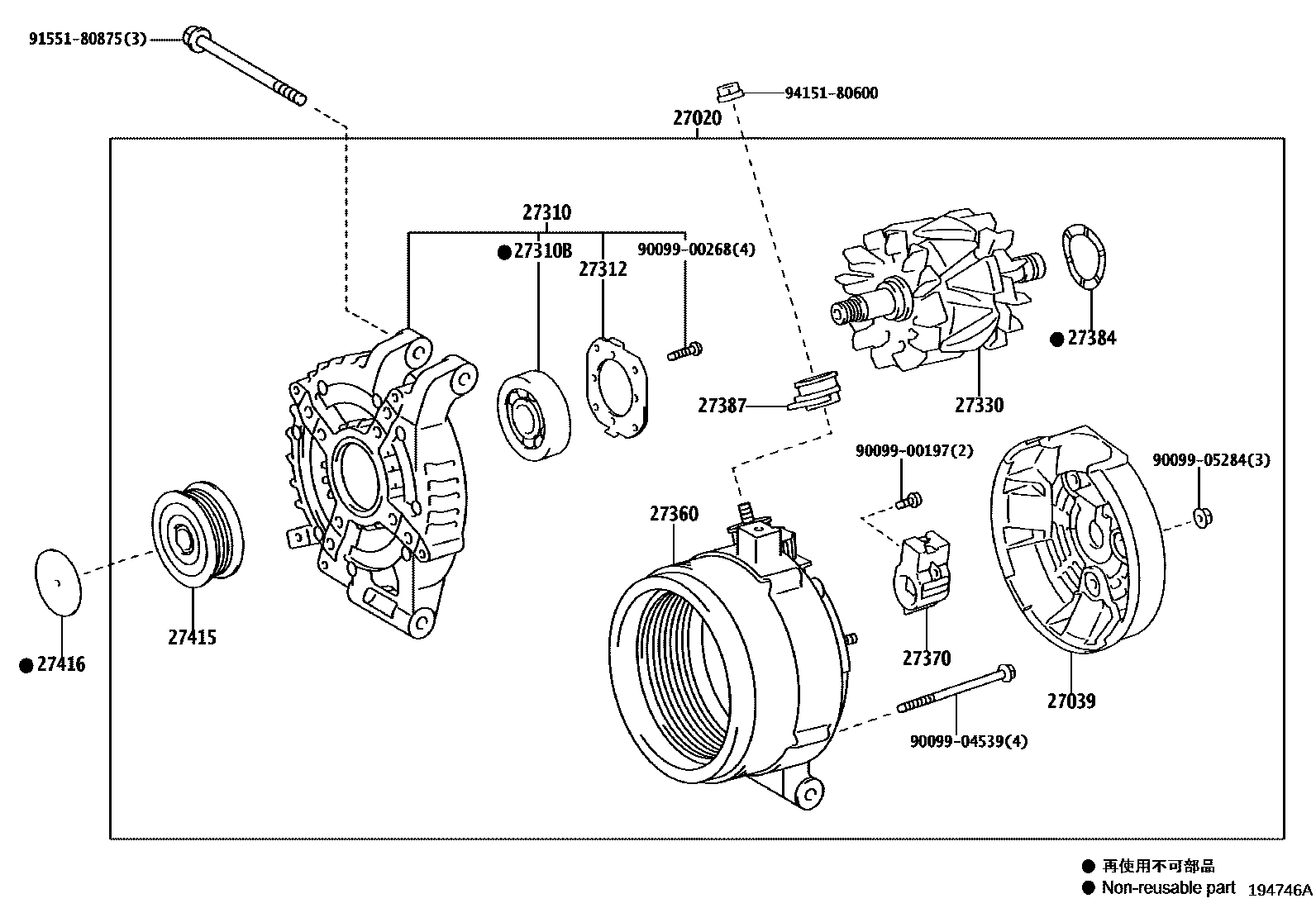

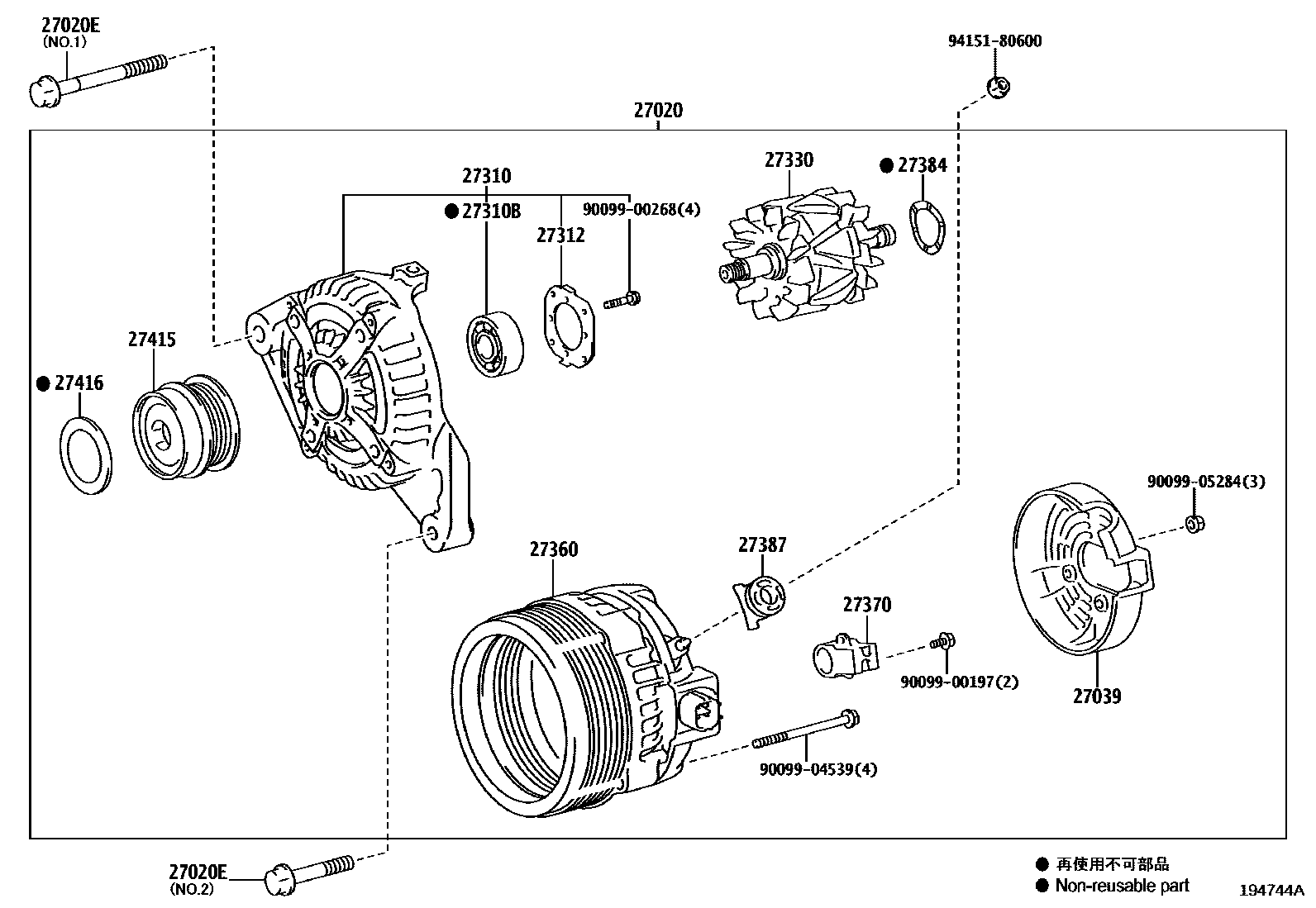

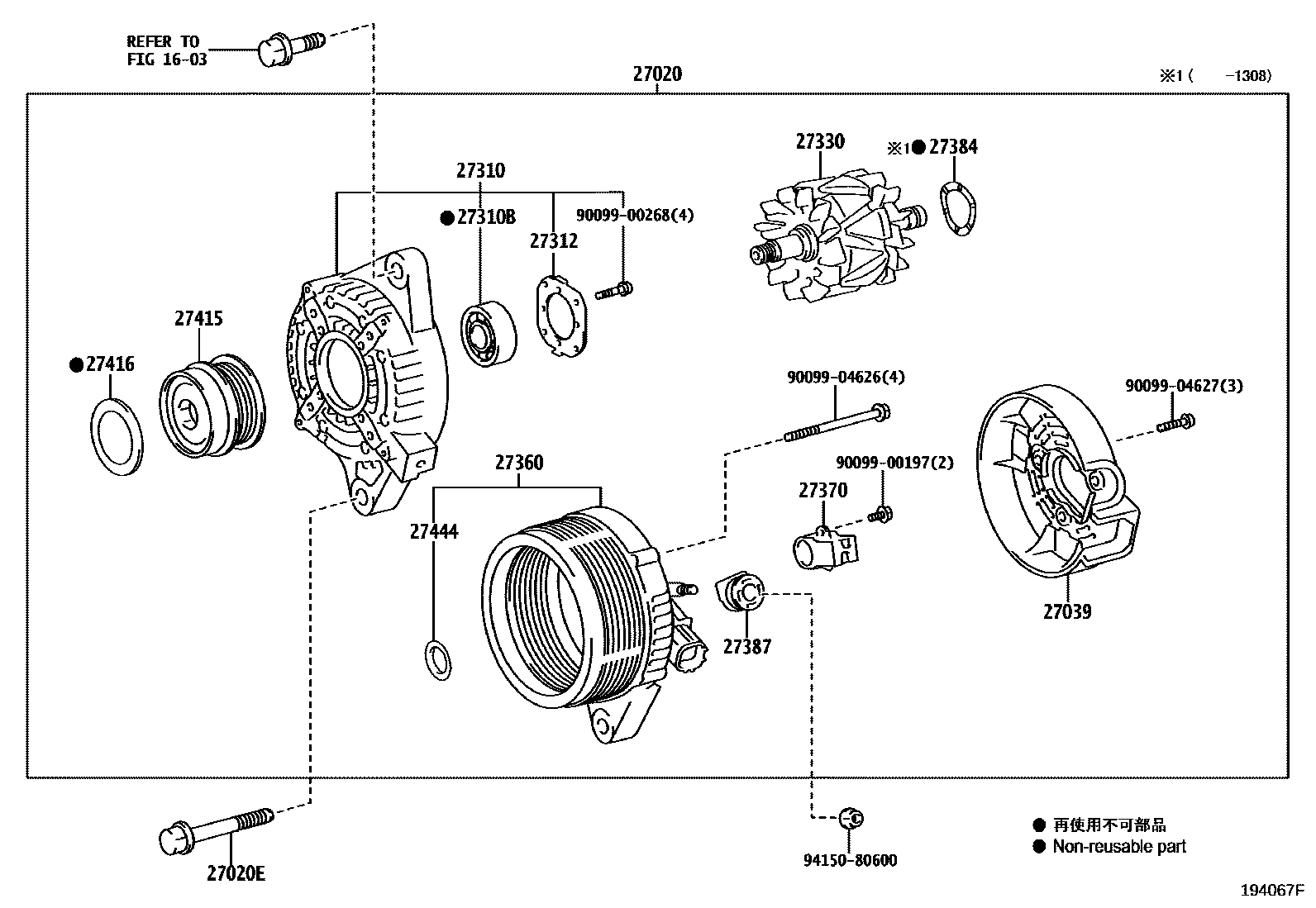

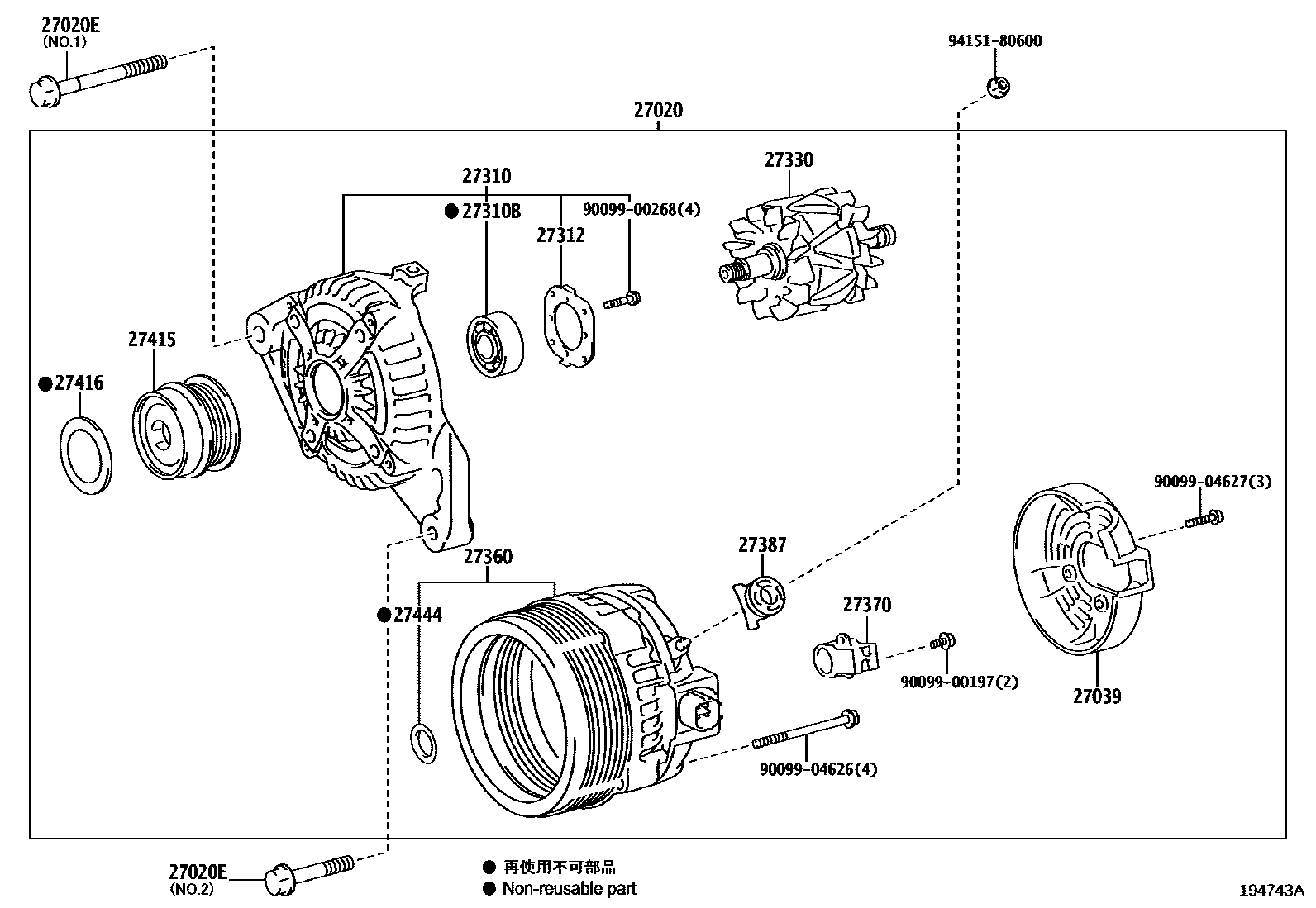

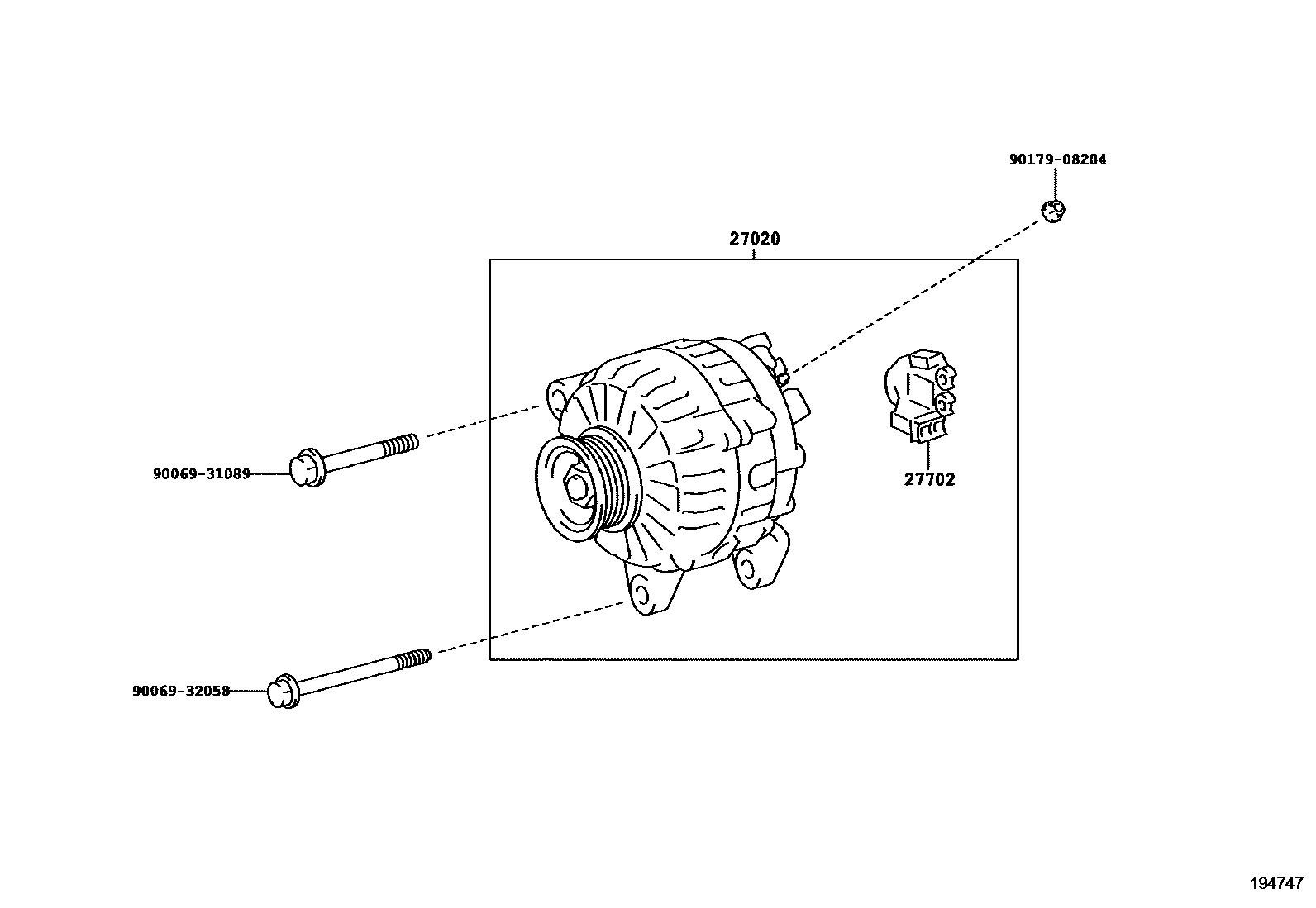

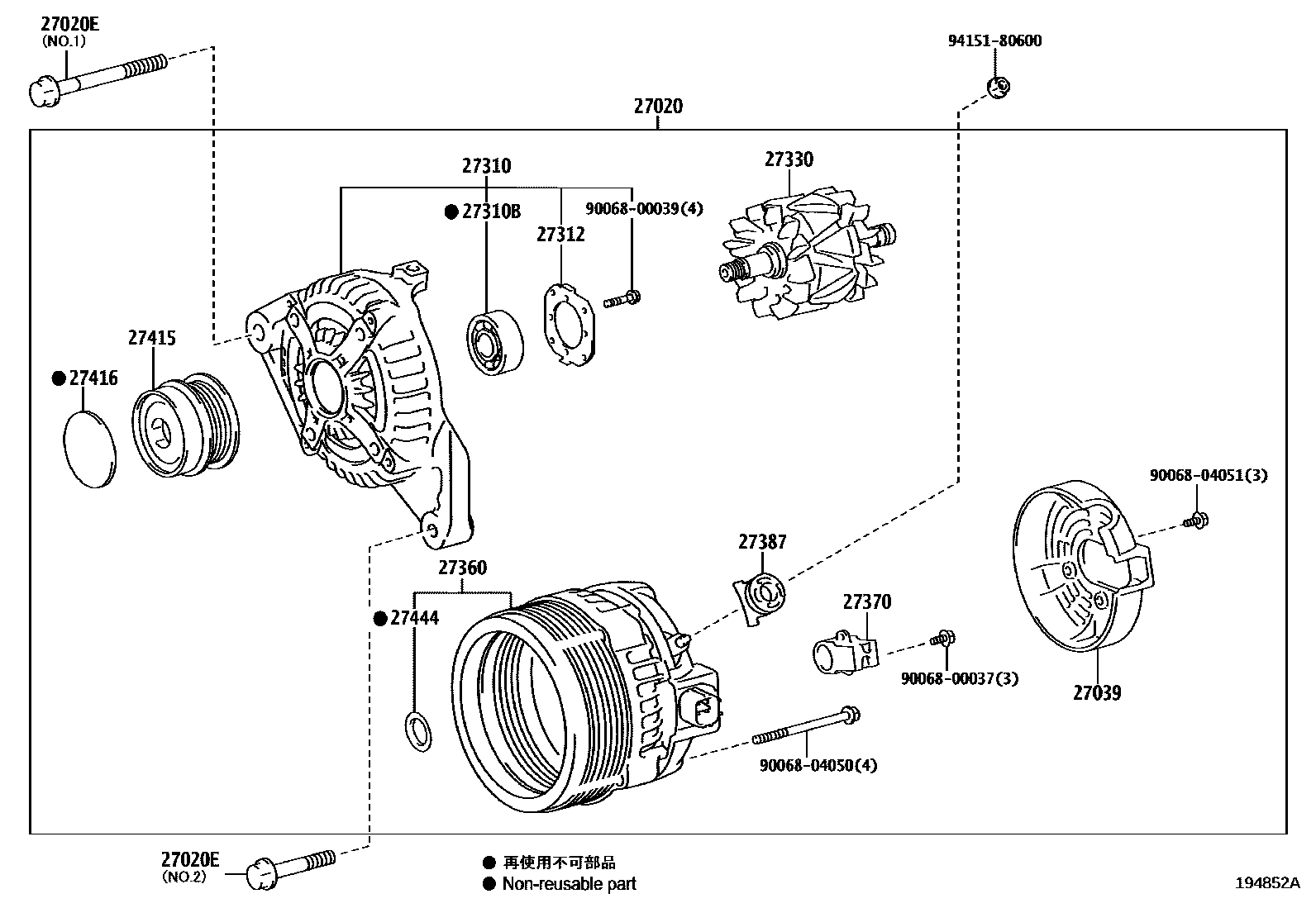

Toyota RAV4 EPC diagram 1903, Alternator, with 7 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0V190 · 27060-26041 · 27060-26081 · 27060-36061 · 27060-36080 · 27060-37101 · 27060-37150 · 27060-37180 · 27060-37190 · 27060-37191 · 27060-37200 · 27060-37210 · 27060-37240 · 27060-YV040 |
| 27020E | Bolts (for generator) | 90105-10307 · 90105-10562 · 91552-81045 |
| 27039 | Alternator Rear End Cover | 27039-0Y150 · 27039-27090 · 27039-31390 · 27039-37220 · 27039-47330 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0V180 · 27310-27090 · 27310-36090 · 27310-36160 · 27310-37130 · 27310-37220 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10033 · 90099-10223 |
| 27312 | Retainer Plate | 27312-0T300 · 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0Y150 · 27330-37220 · 27330-47330 · 27330-58460 |
| 27360 | Alternator Stator Coil Assembly | 27360-0V180 · 27360-26180 · 27360-26260 · 27360-36111 · 27360-36161 · 27360-37130 · 27360-37131 · 27360-37181 · 27360-37211 · 27360-37220 · 27360-37221 · 27360-37230 · 27360-37270 |
| 27370 | Alternator Brush Holder Assembly | 27370-0Y150 · 27370-31220 · 27370-58460 |
| 27384 | Washer | 27384-38130 · 27384-50030 |
| 27387 | Terminal Insulator | 27387-0Y150 · 27387-20130 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0T011 · 27415-0T060 · 27415-0W021 · 27415-26010 |
| 27416 | Generator pulley cover | 27416-0W020 · 27416-0W050 · 27416-27010 |
| 27444 | Generator bearing cap seals | 27444-0T300 · 27444-21190 |
| 27702 | Generator (with brush) voltage regulator sub-assembly | 27702-WA010 |
