Toyota RAV4 点火线圈和火花塞 — Figure 1901
Toyota RAV4 EPC diagram 1901, 点火线圈和火花塞, with 5 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

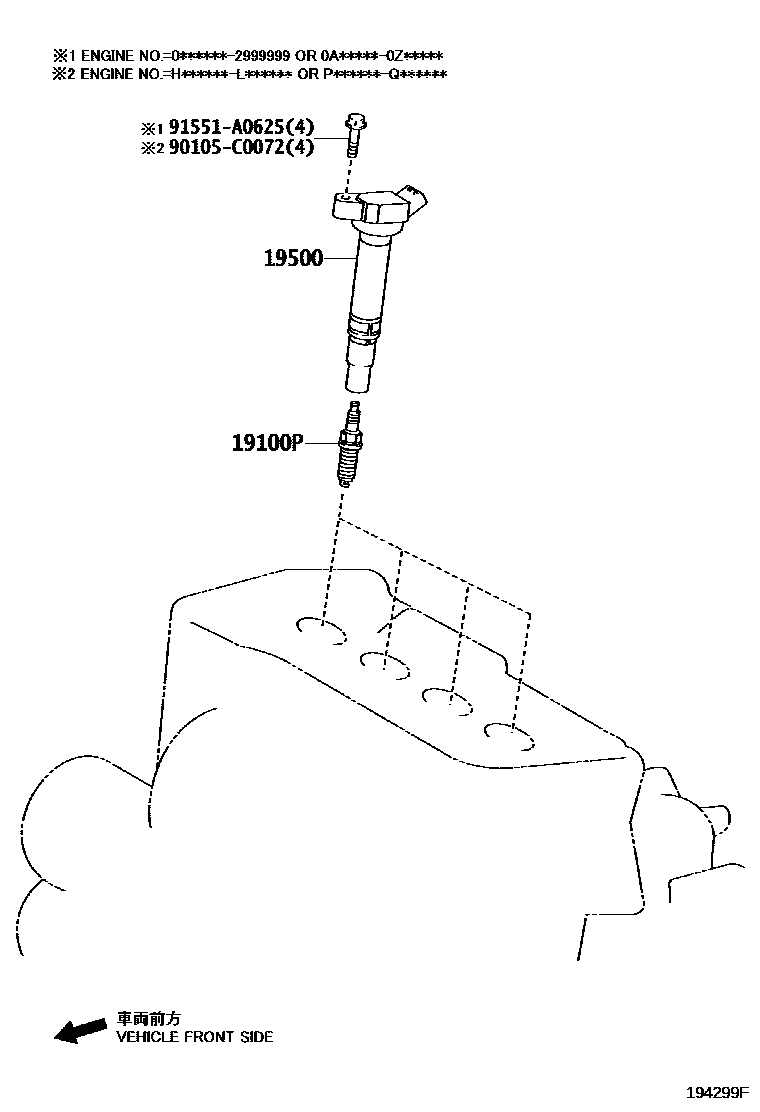

| 19100P | spark plug | 90919-01233 · 90919-01253 · 90919-01259 · 90919-01275 · 90919-C1008 |

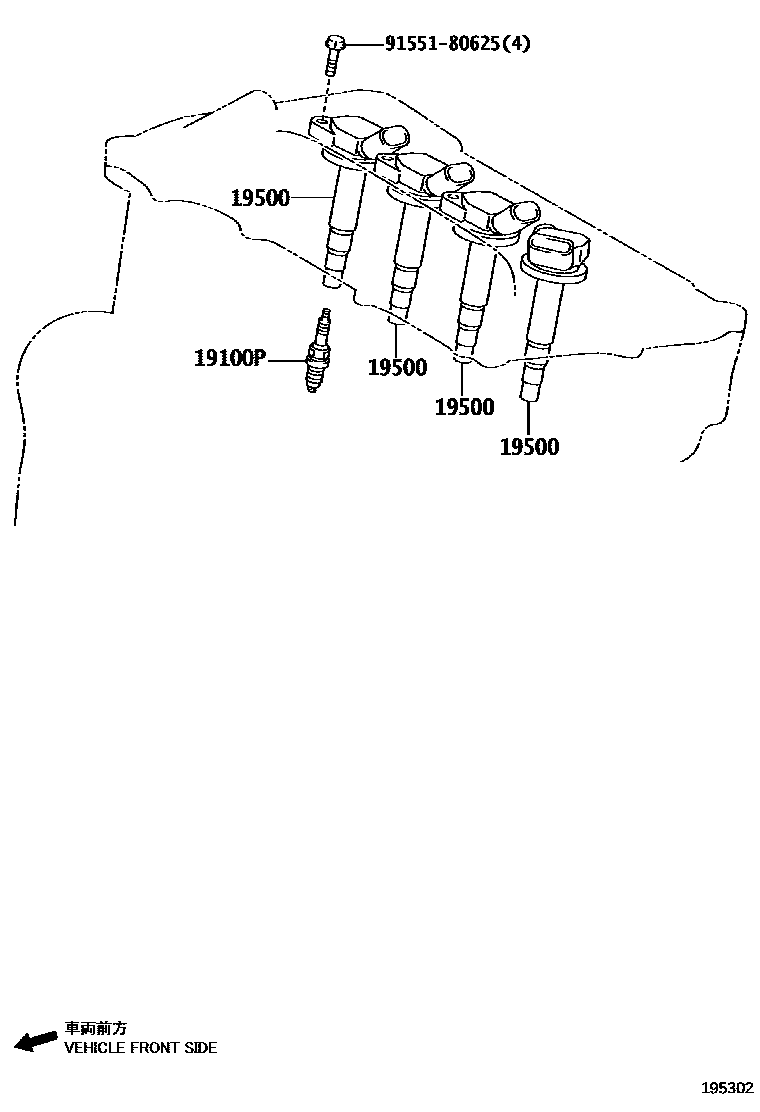

| 19500 | Ignition coil assembly | 90919-02256 · 90919-02258 · 90919-C2004 |

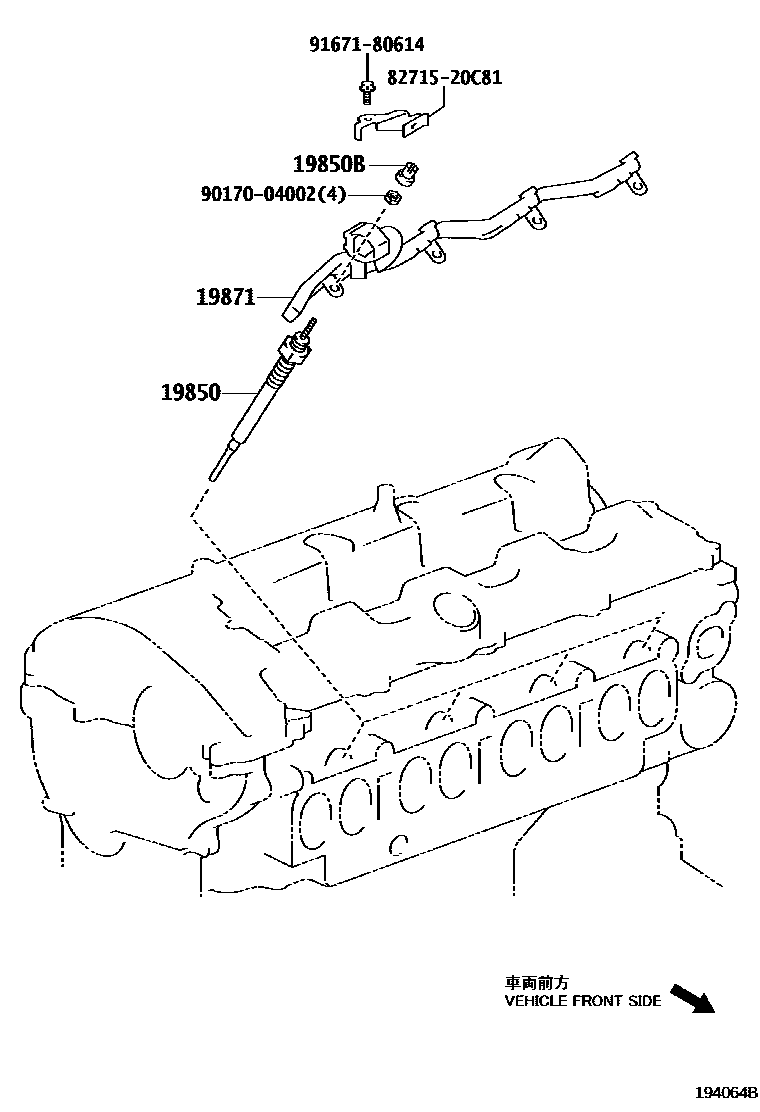

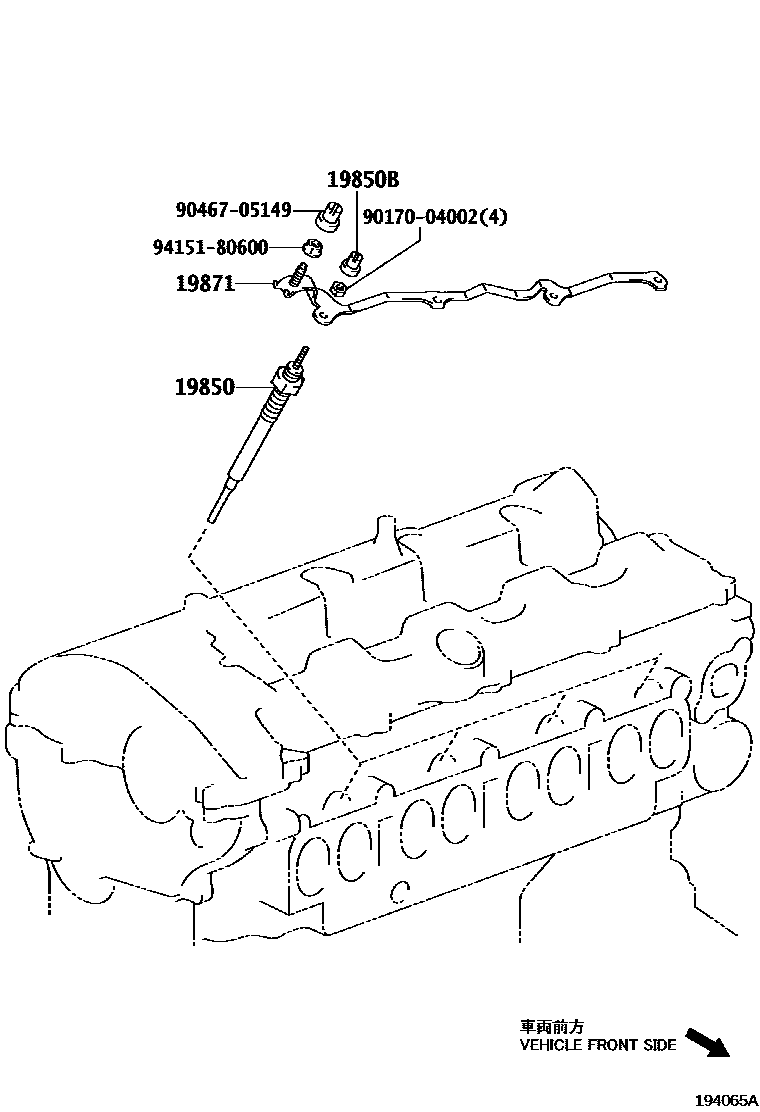

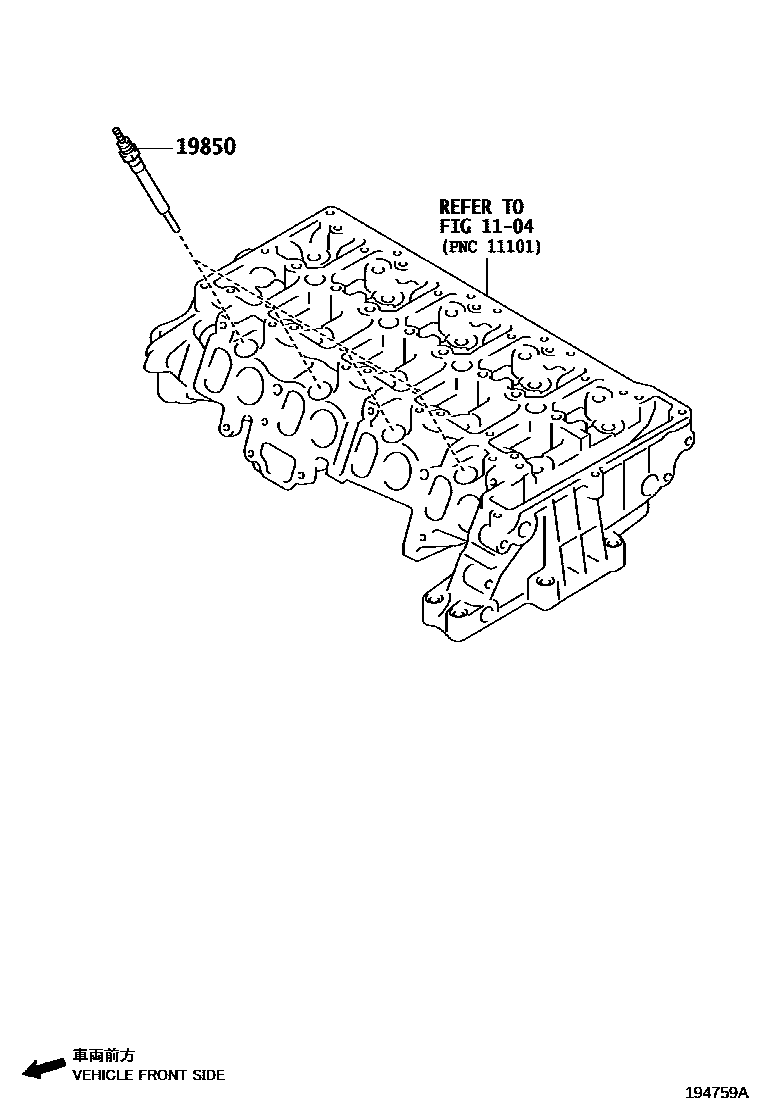

| 19850 | Glow plug assembly | 19850-26022 · 19850-26030 · 19850-WA020 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-0R010 · 19871-26010 · 19871-26030 |
