Toyota RAV4 Exhaust Pipe — Figure 1702

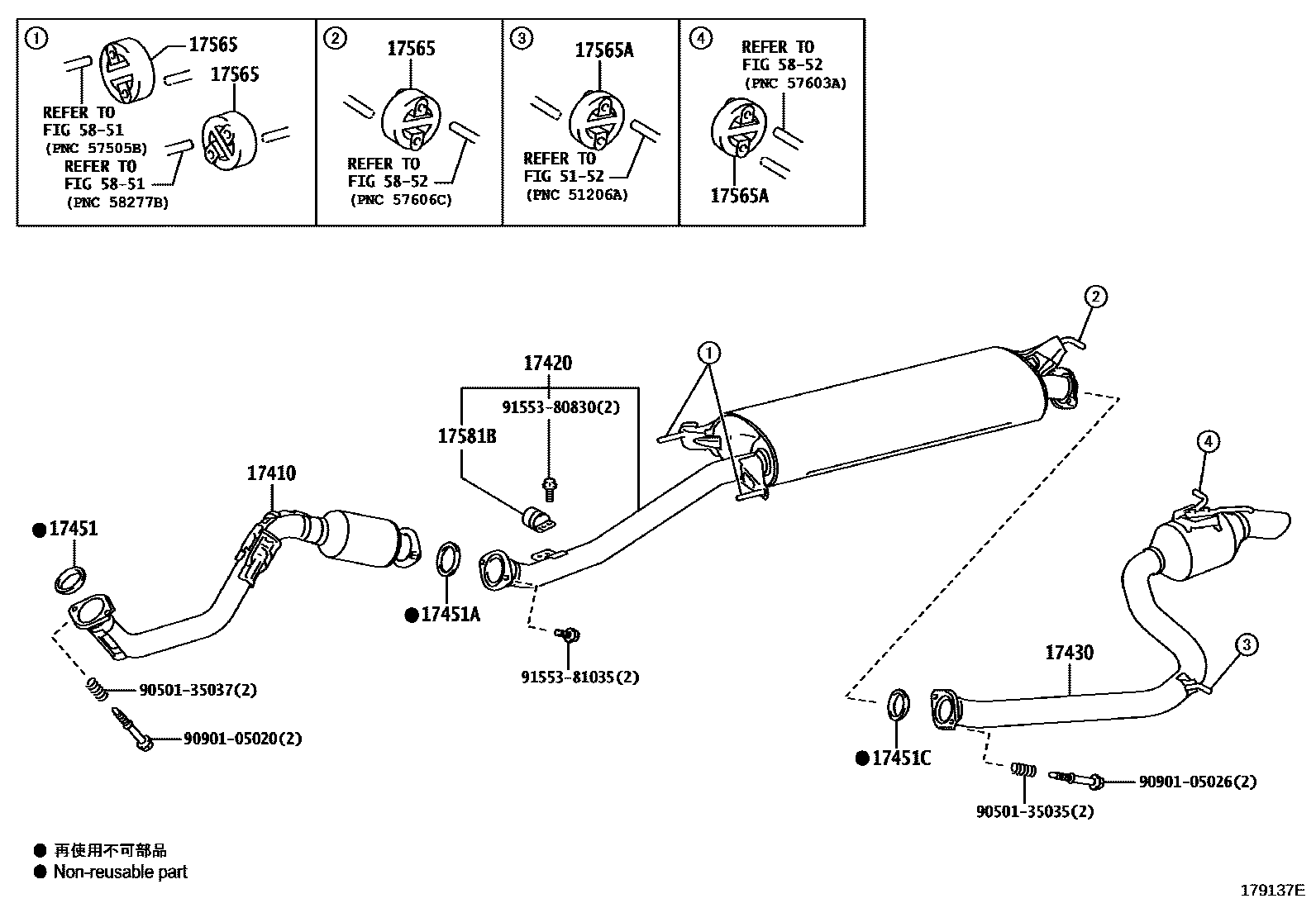

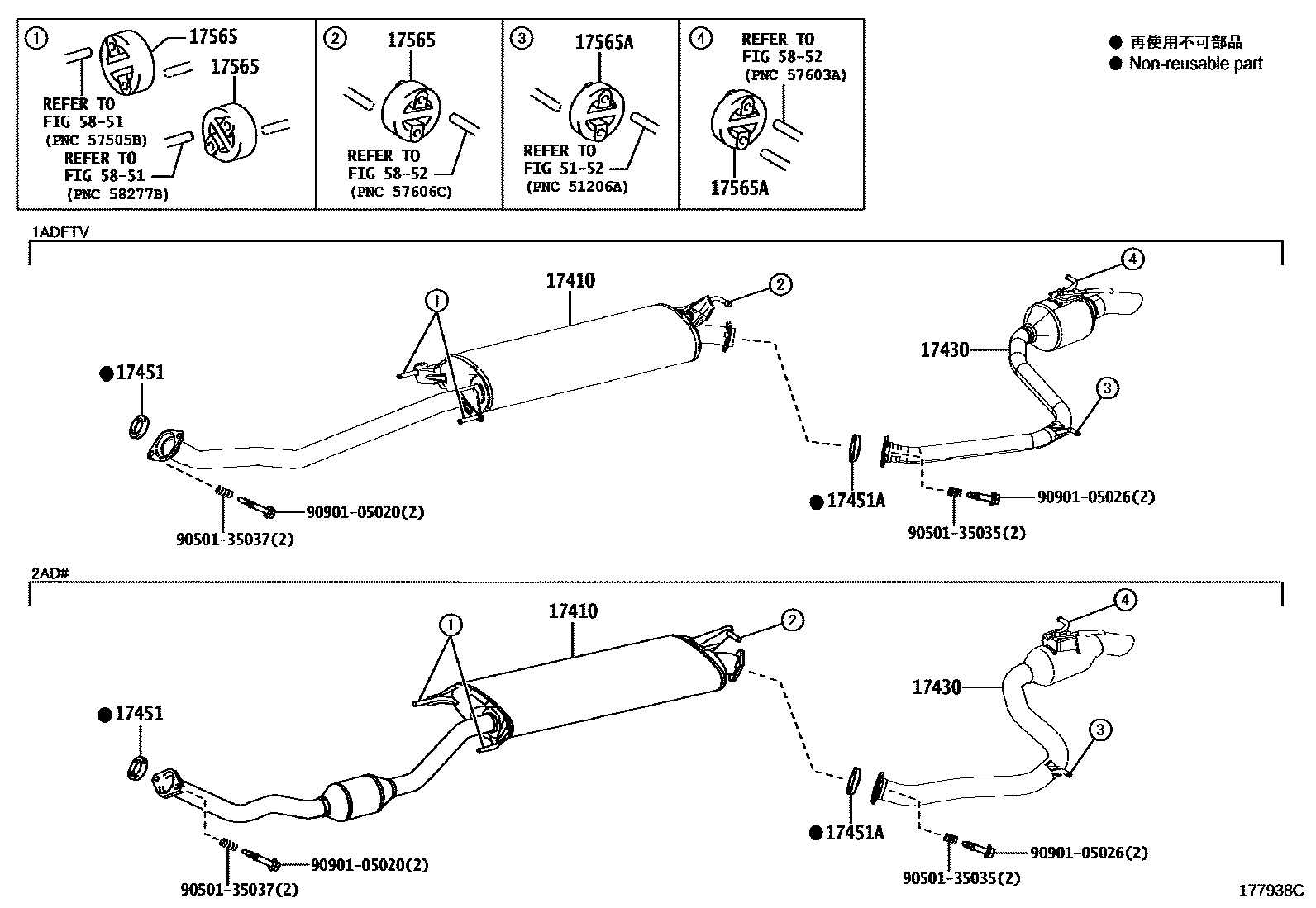

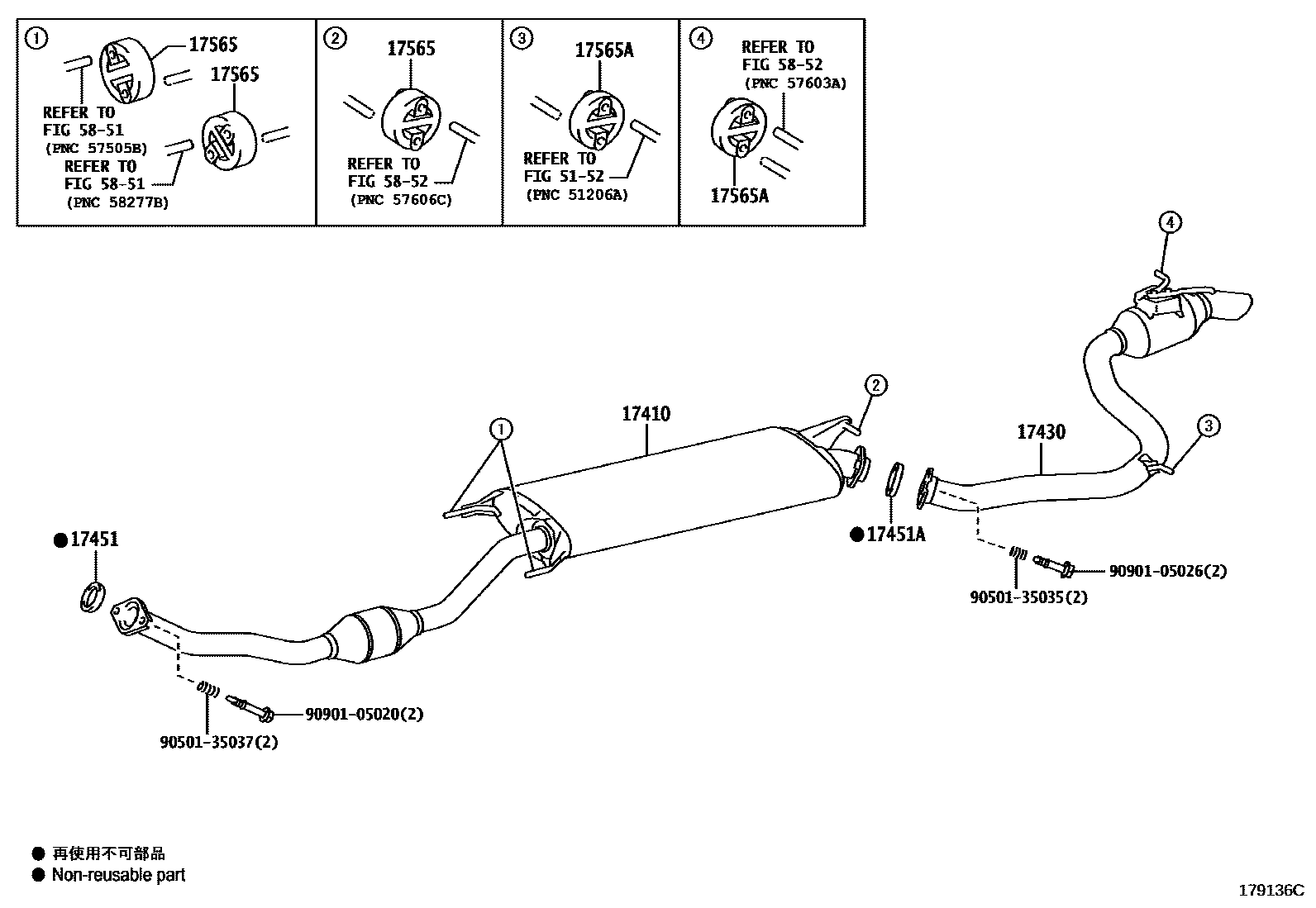

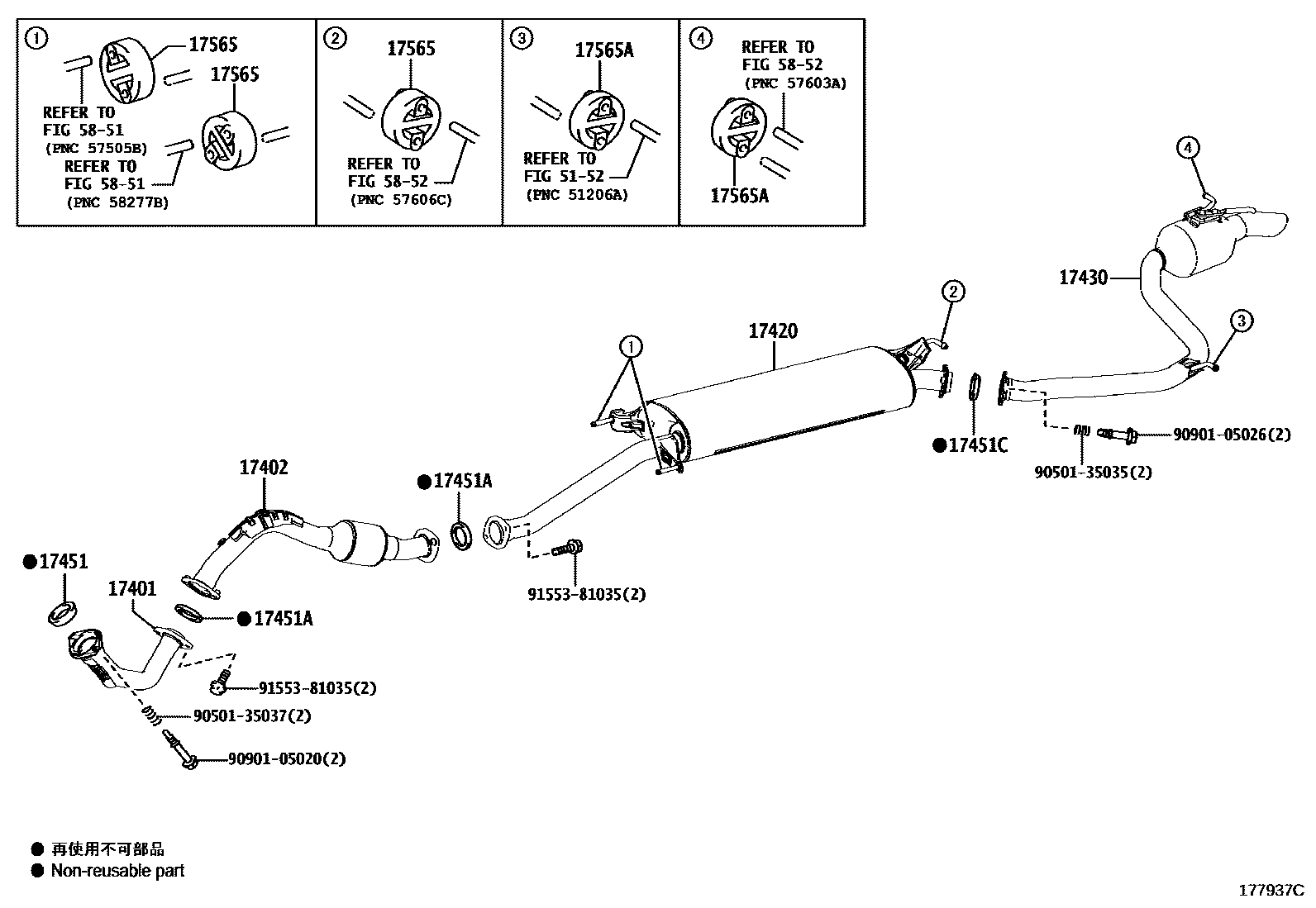

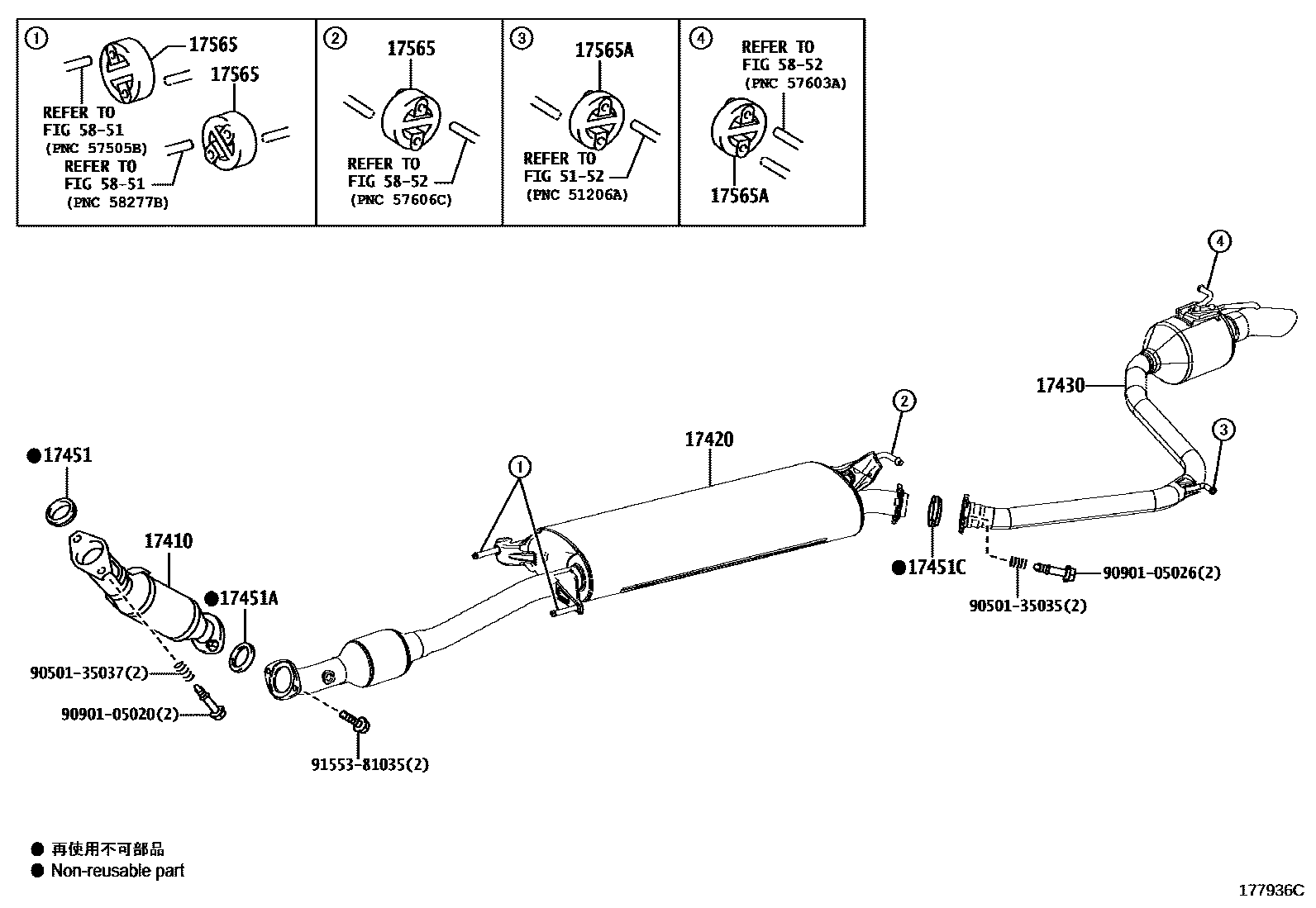

Toyota RAV4 EPC diagram 1702, Exhaust Pipe, with 5 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17401 | Front exhaust pipe sub-assembly | 17401-36010 |
| 17402 | No. 2 front exhaust pipe sub-assembly | 17402-36010 |
| 17410 | Front exhaust pipe assembly | 17410-26432 · 17410-26442 · 17410-26462 · 17410-26470 · 17410-26471 · 17410-26503 · 17410-26512 · 17410-26520 · 17410-26530 · 17410-26540 · 17410-36190 · 17410-37321 · 17410-37650 · 17410-37A80 · 17410-53020 |
| 17420 | Central exhaust pipe assembly | 17420-36170 · 17420-36181 · 17420-36220 · 17420-37100 · 17420-37110 · 17420-37111 · 17420-37120 · 17420-37140 · 17420-37230 · 17420-37290 |
| 17430 | Exhaust tailpipe assembly | 17430-26770 · 17430-26780 · 17430-26781 · 17430-26800 · 17430-26810 · 17430-36420 · 17430-36480 · 17430-36490 · 17430-37510 · 17430-37520 · 17430-37521 · 17430-37540 · 17430-37550 |
| 17451 | Exhaust pipe gasket | 17451-28040 · 17451-28070 |
| 17451A | No. 2 exhaust pipe gasket | 17451-28022 · 17451-31012 · 90917-06078 · 90917-06090 |
| 17451C | No. 3 exhaust pipe gasket | 17451-28022 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-22040 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-22030 |
| 17581B | No. 2 exhaust pipe damper | 17581-17020 |
