Toyota RAV4 V-Belt — Figure 1605

Toyota RAV4 EPC diagram 1605, V-Belt, with 2 images and 1 PNC and OE references.

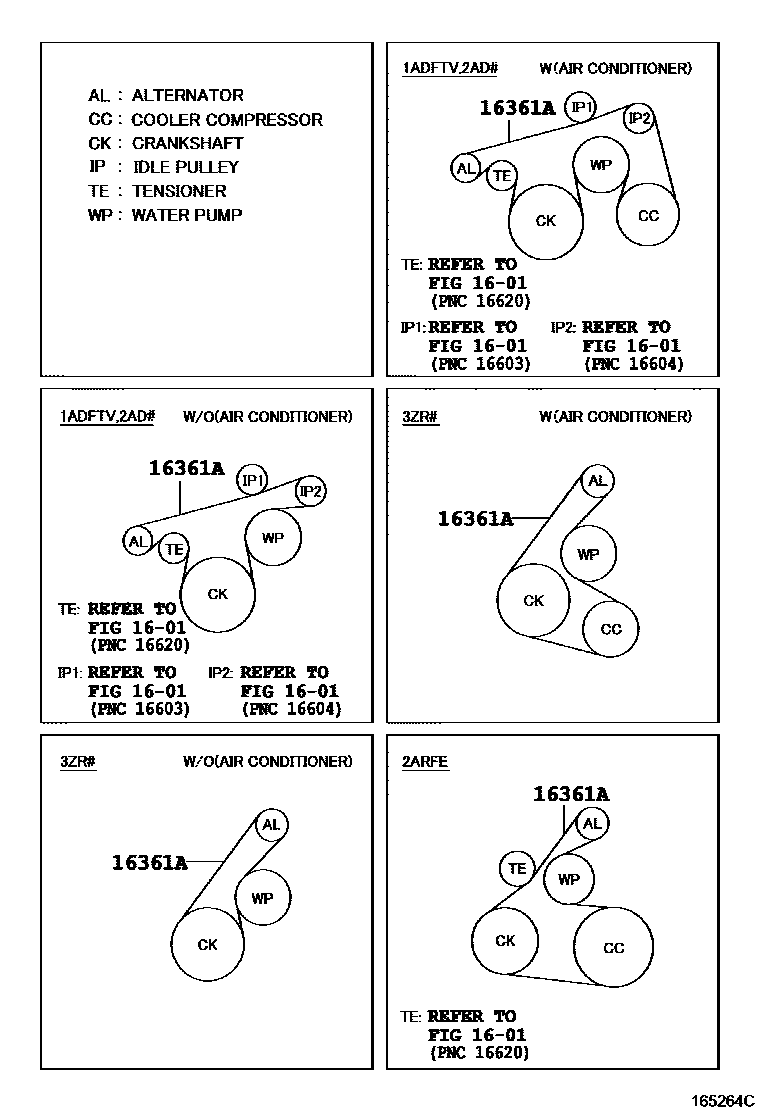

Toyota RAV4 V-Belt EPC diagram — 165264C
V-Belt — 165264C (201212 – 999999)

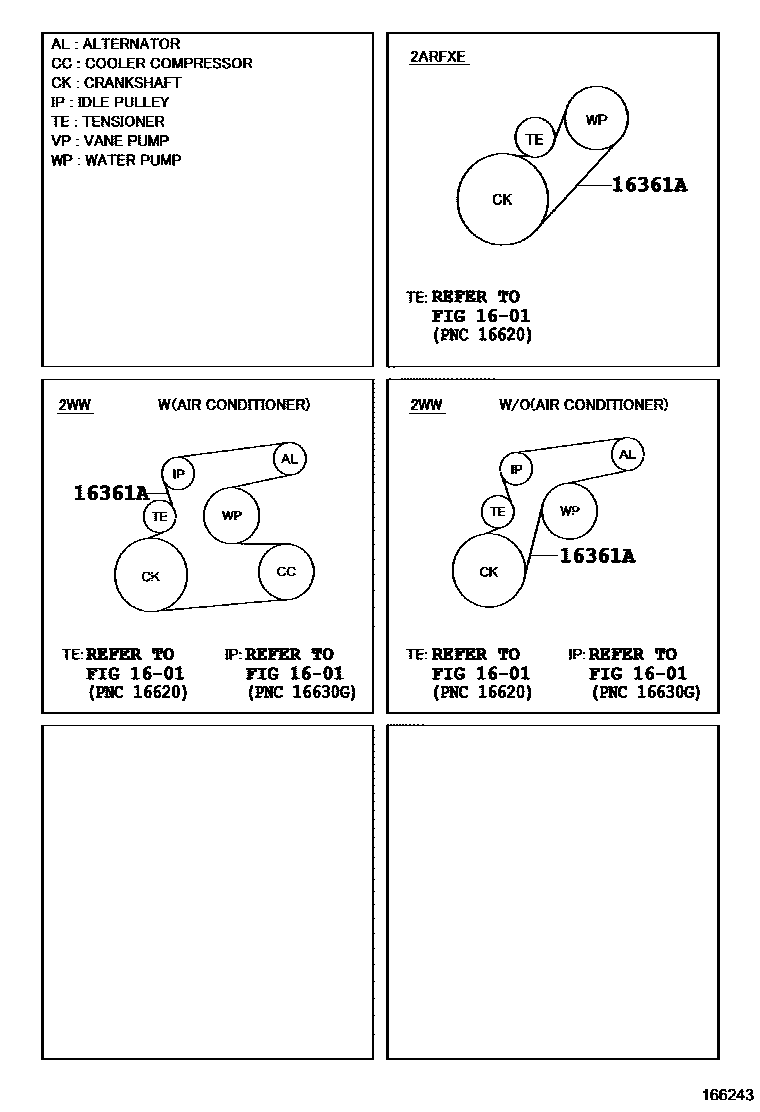

Toyota RAV4 V-Belt EPC diagram — 166243
V-Belt — 166243 (201510 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90916-02609 · 90916-02664 · 90916-02667 · 90916-02668 · 90916-02720 · 90916-02721 · 90916-WX005 · 90916-WX006 · 99366-K0910 · 99367-L1370
