Toyota RAV4 RADIATOR & WATER OUTLET — Figure 1603

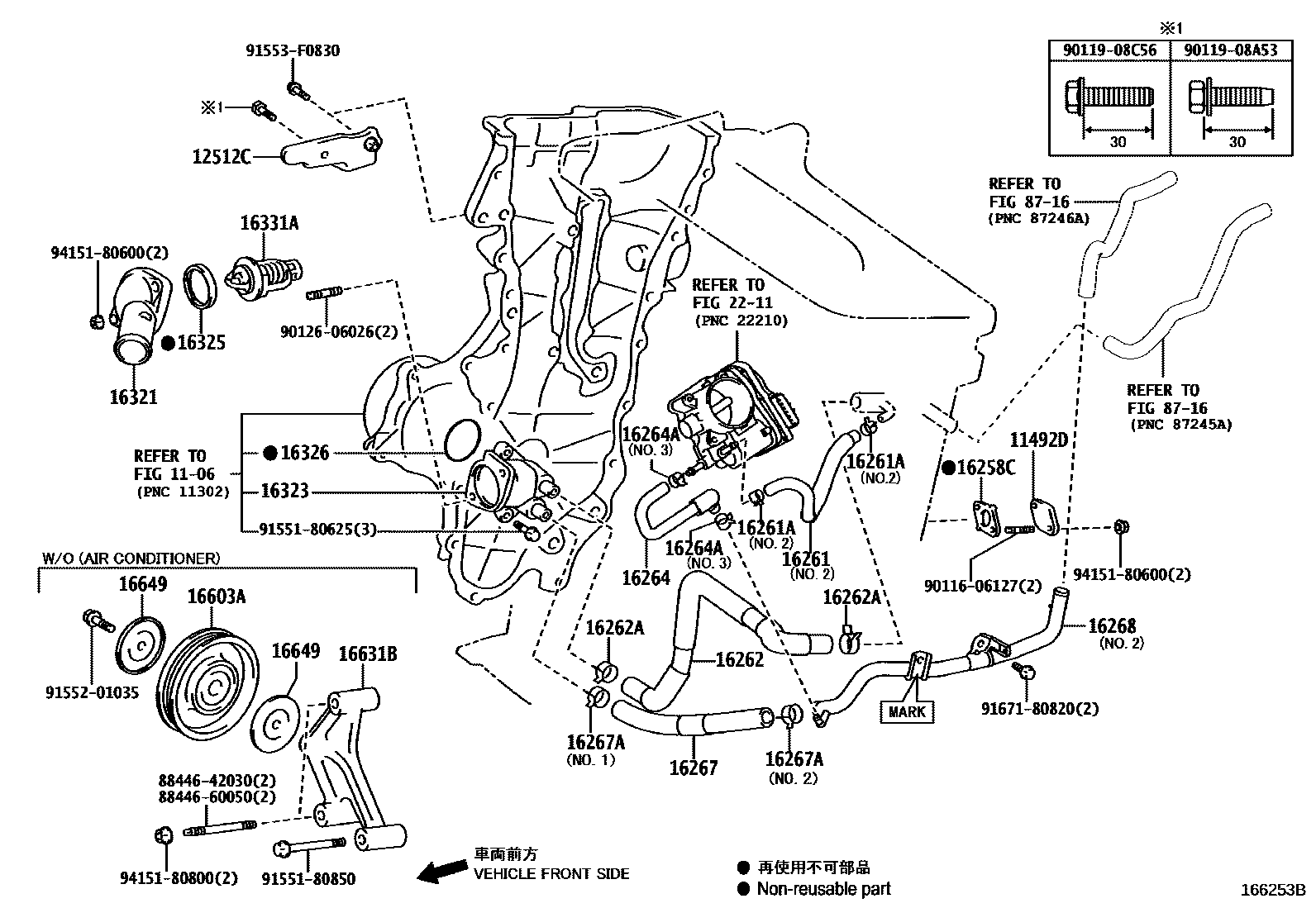

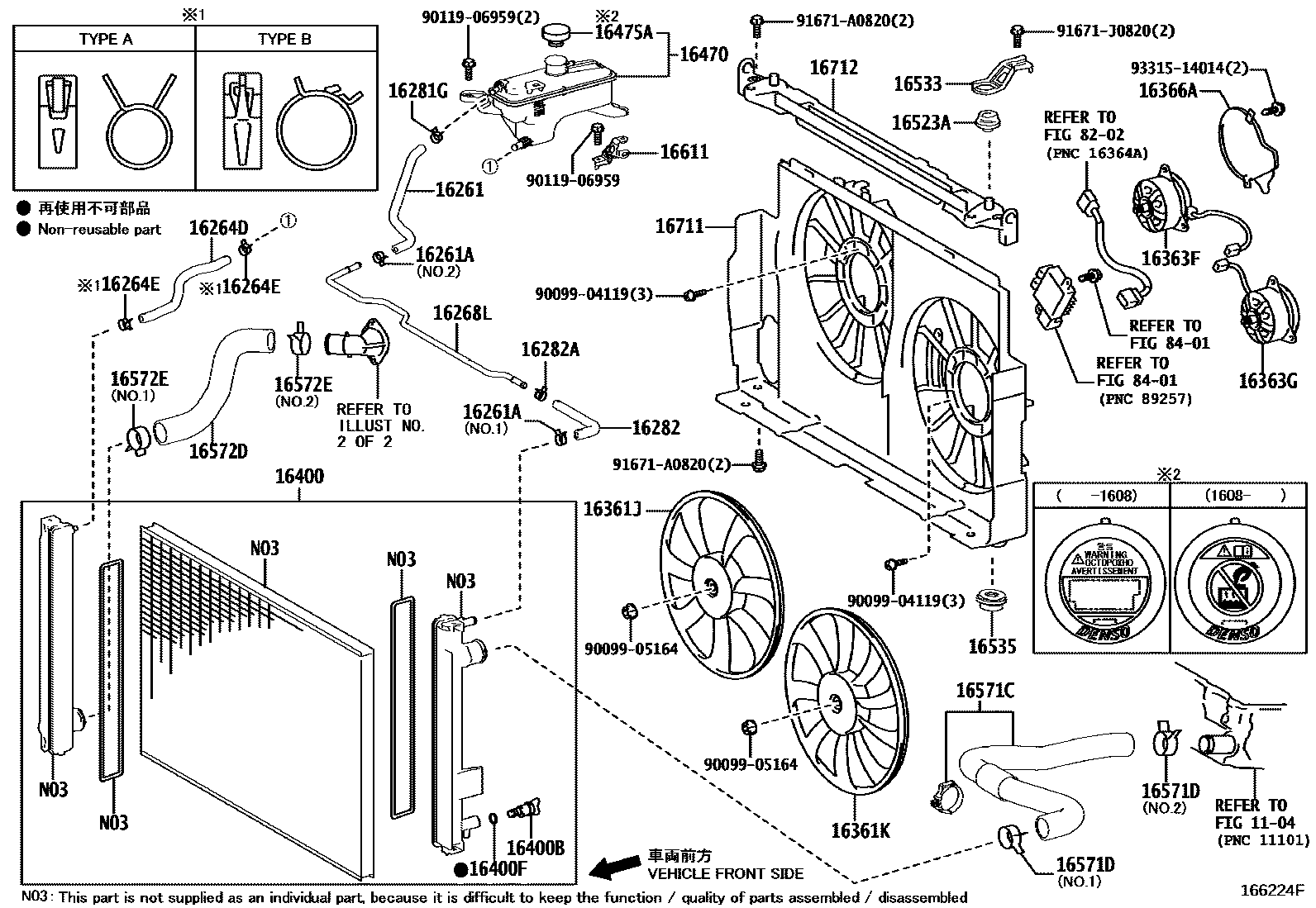

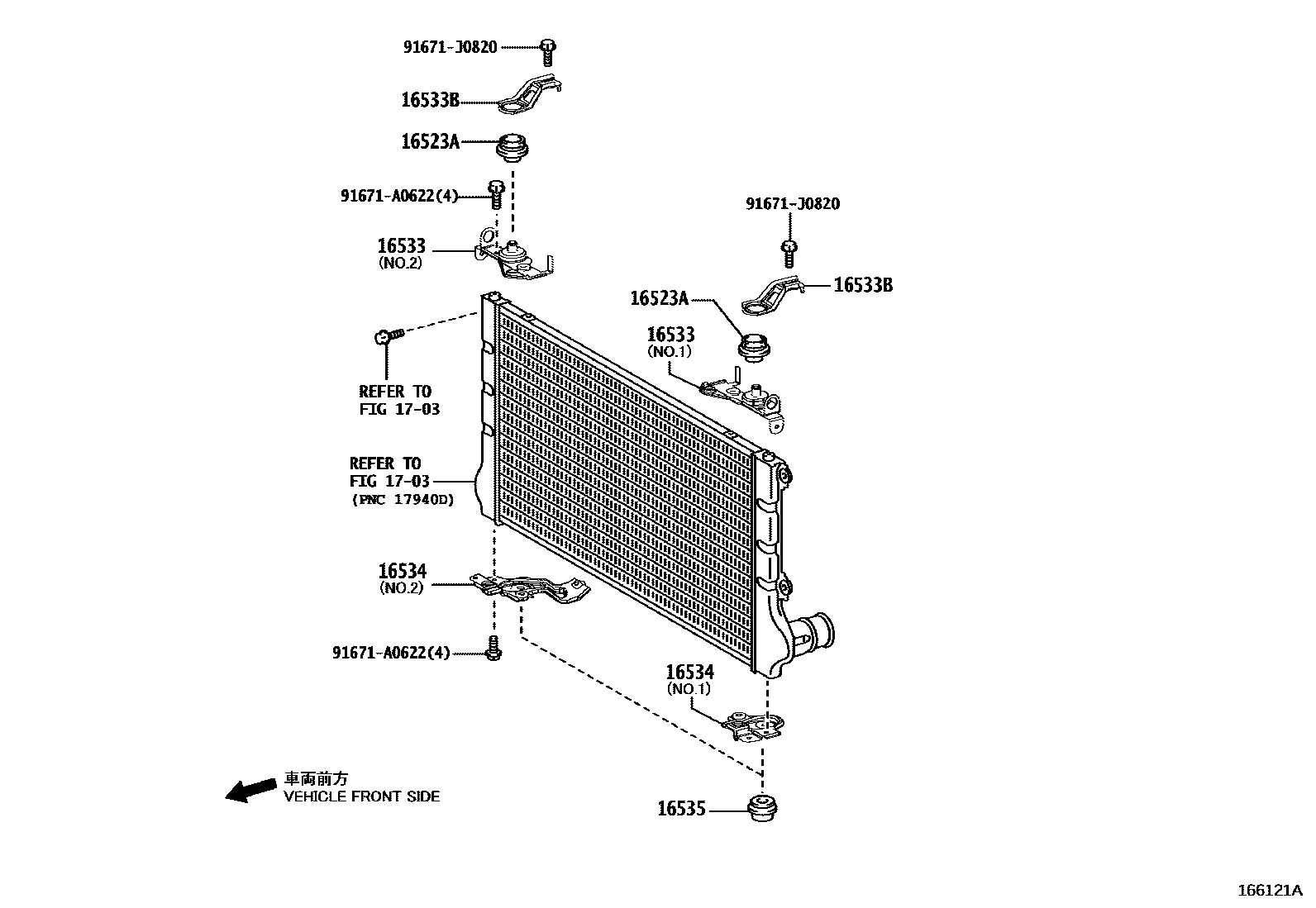

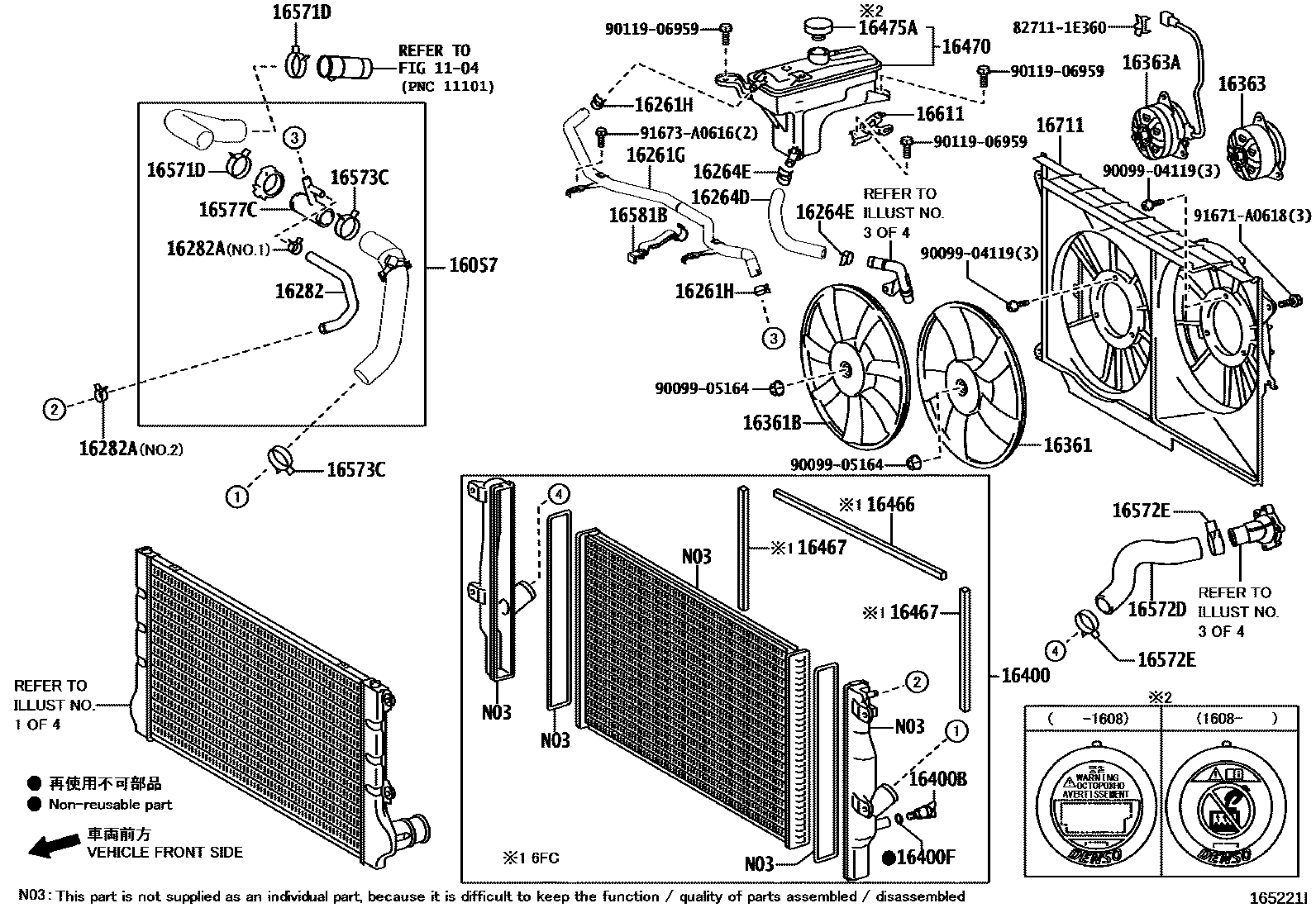

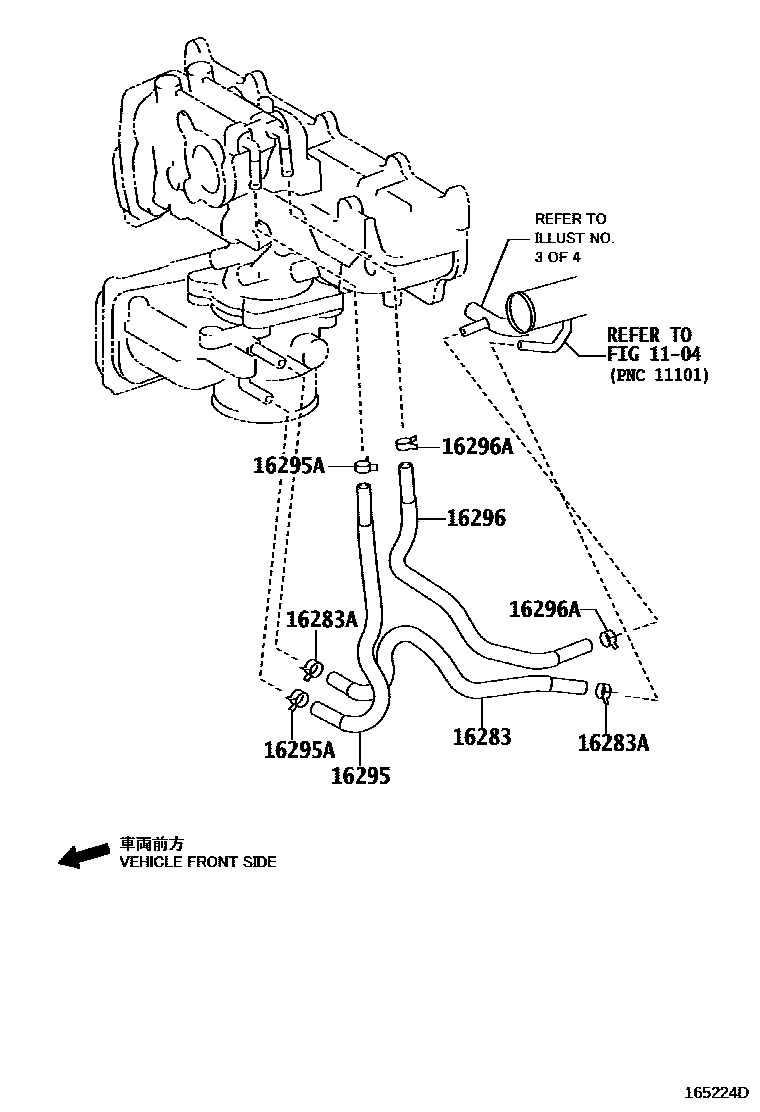

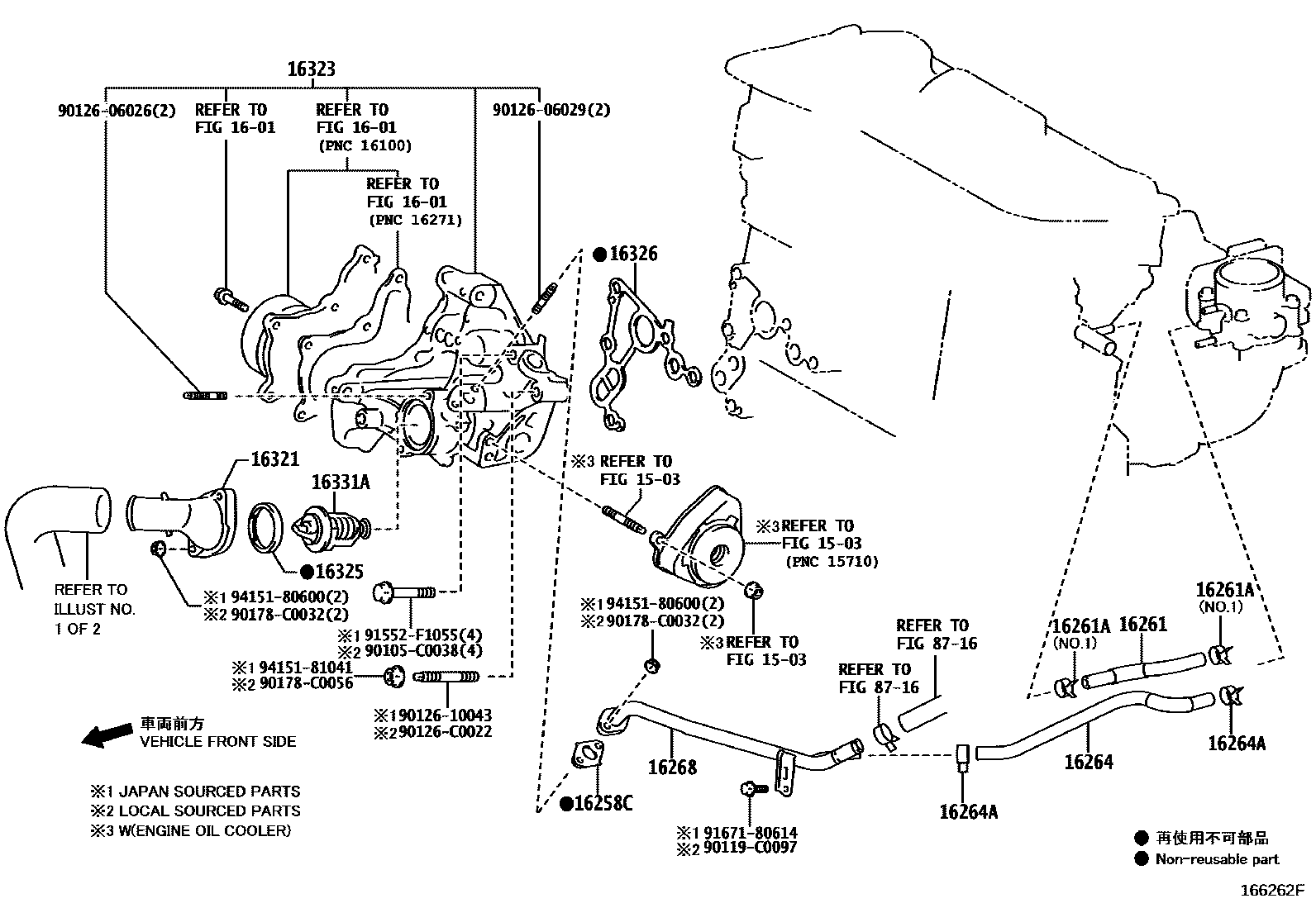

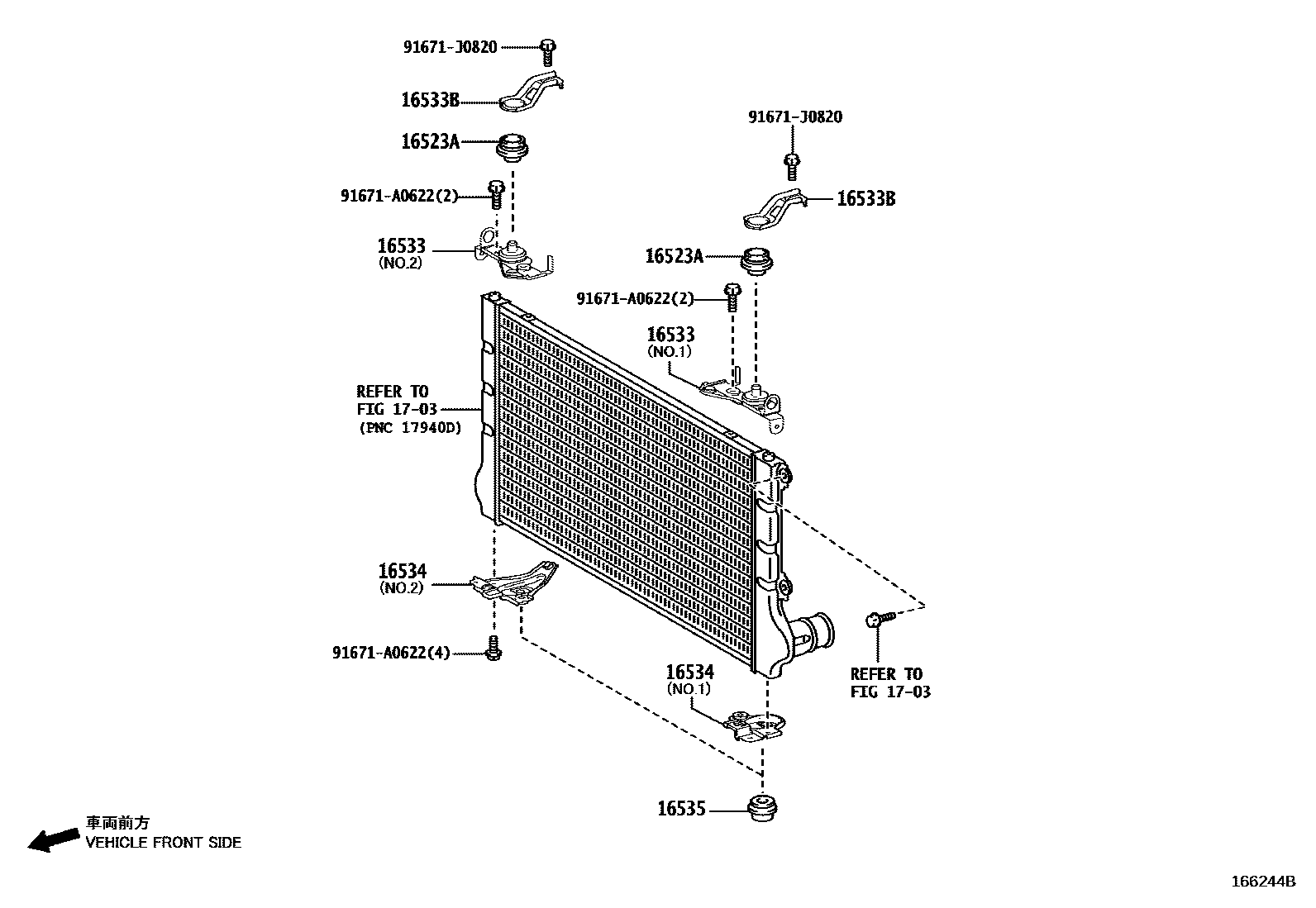

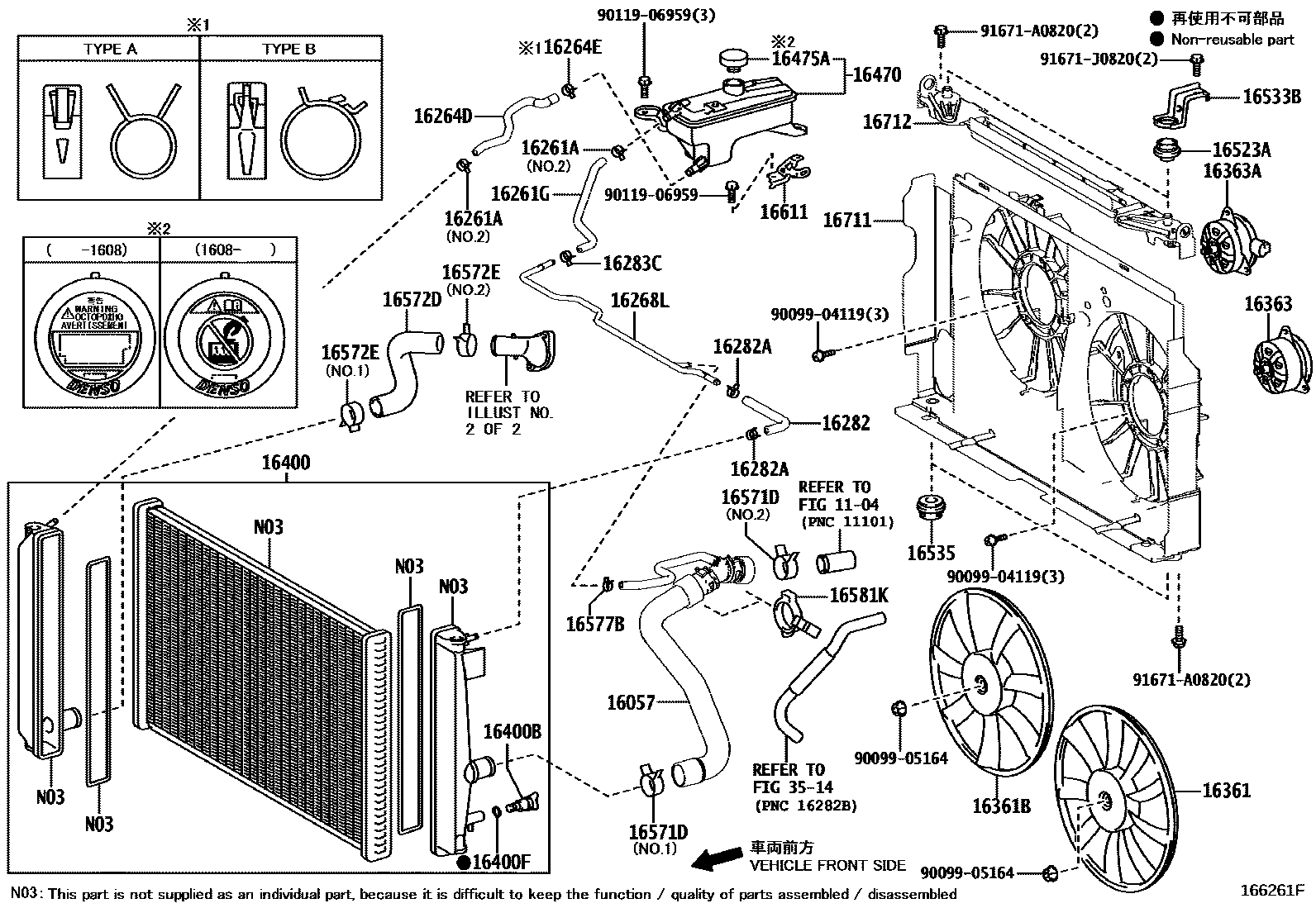

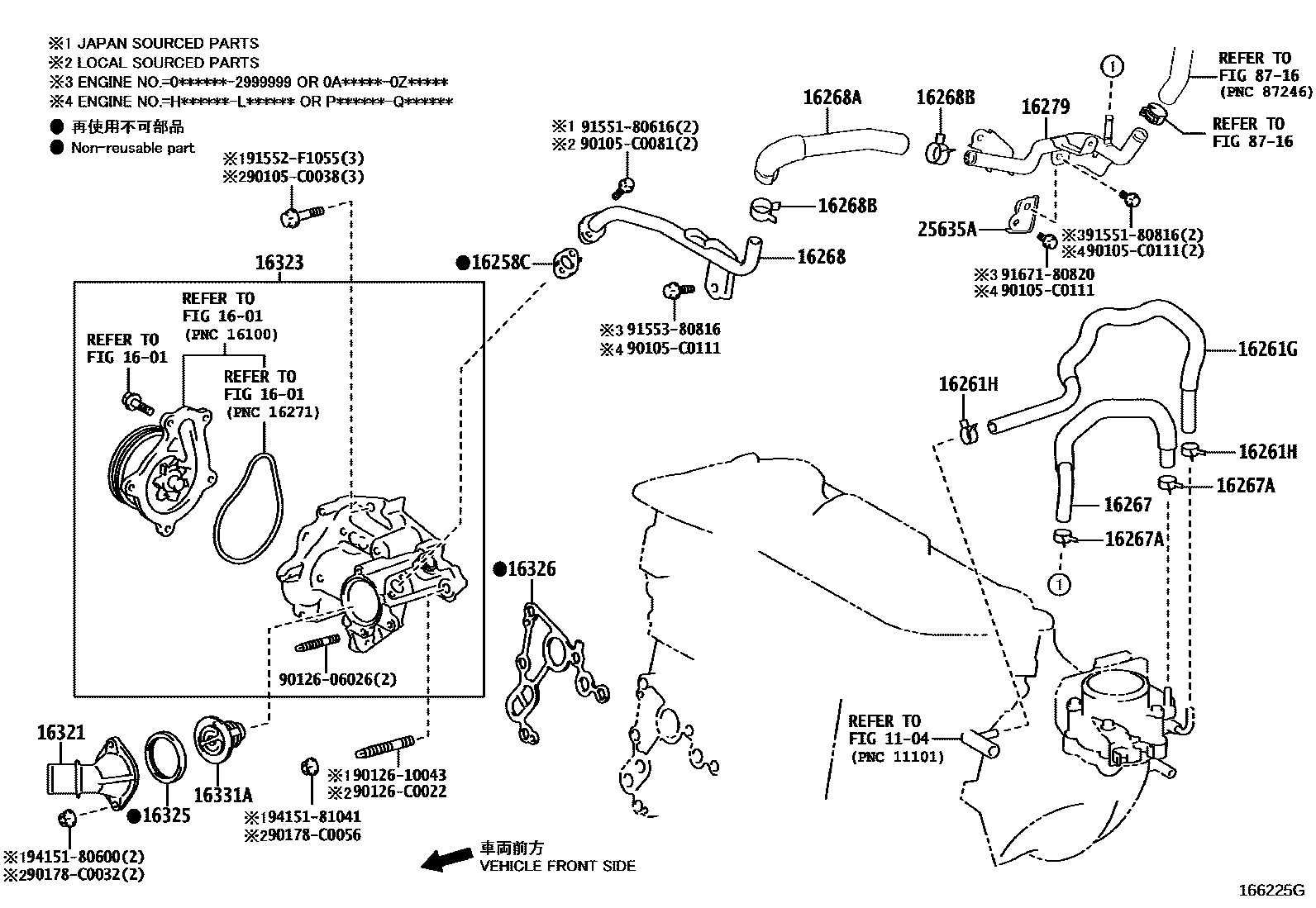

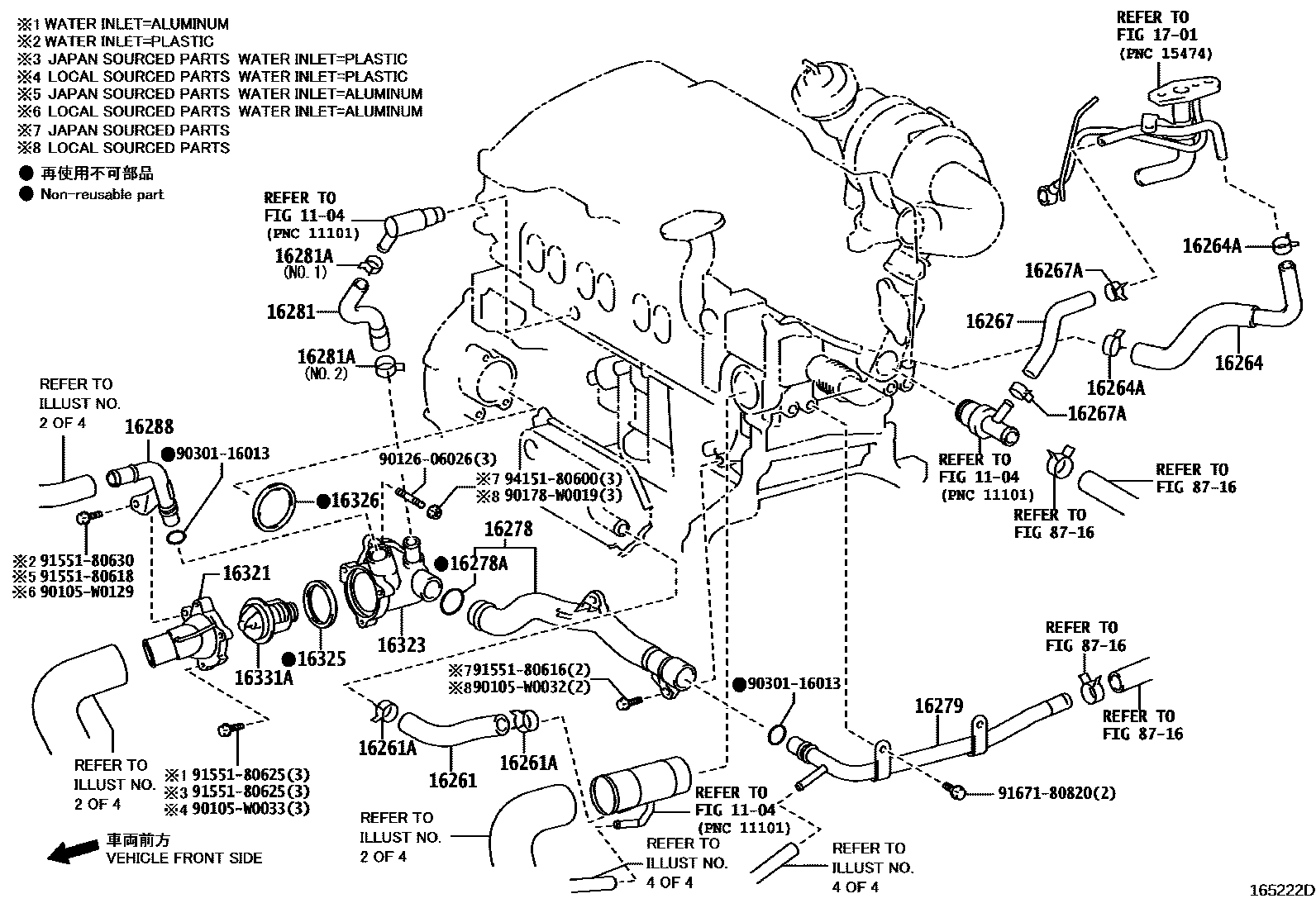

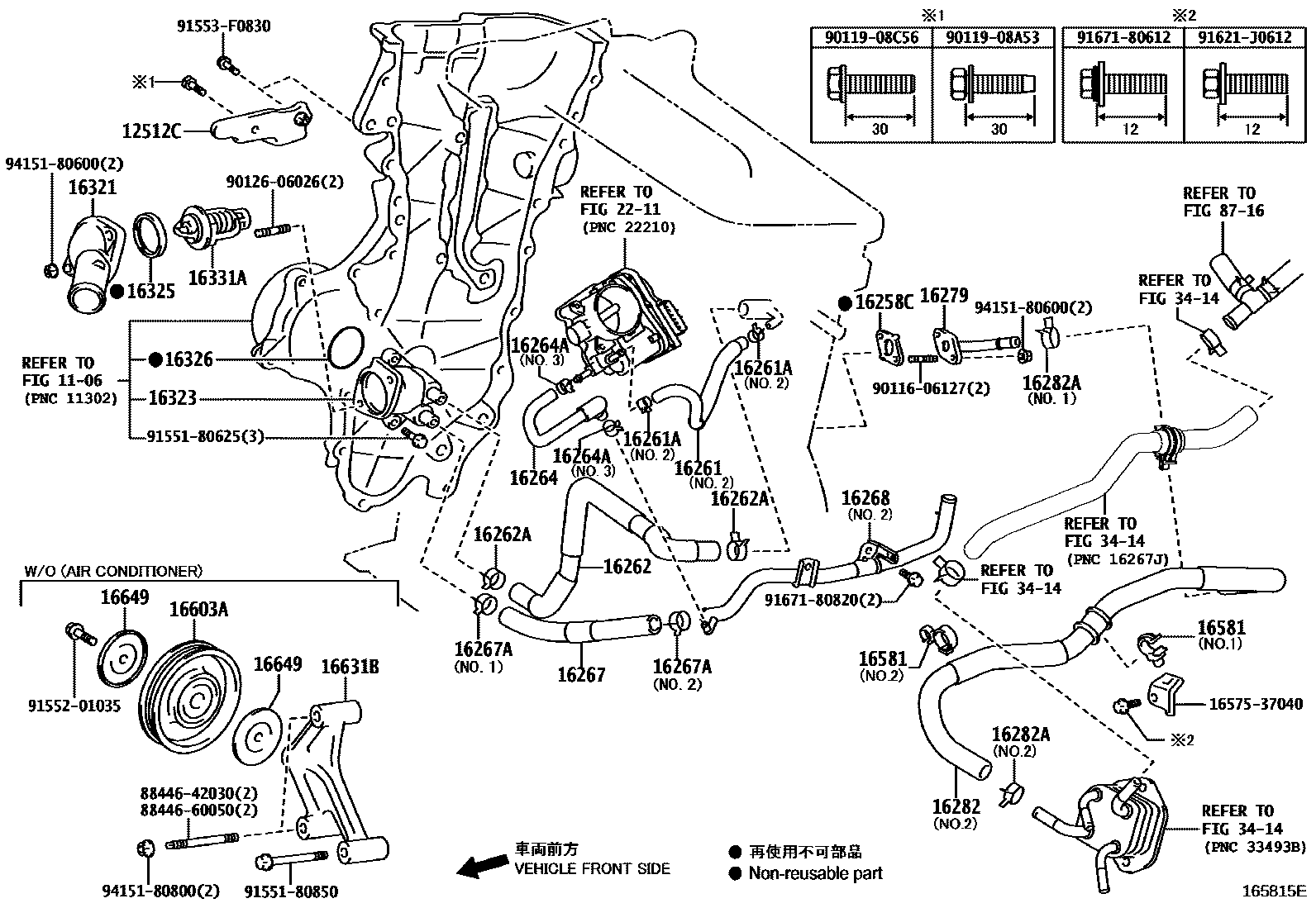

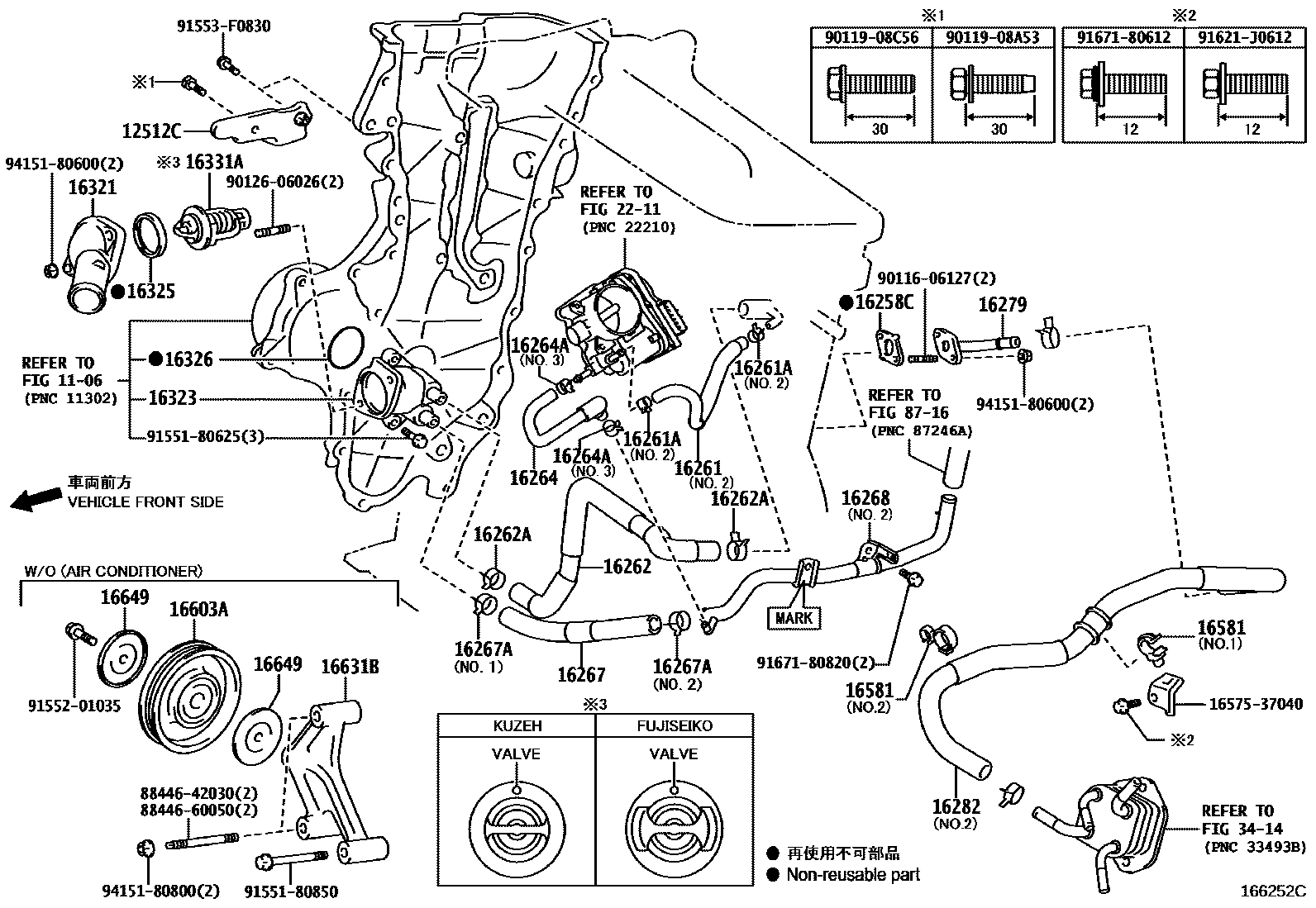

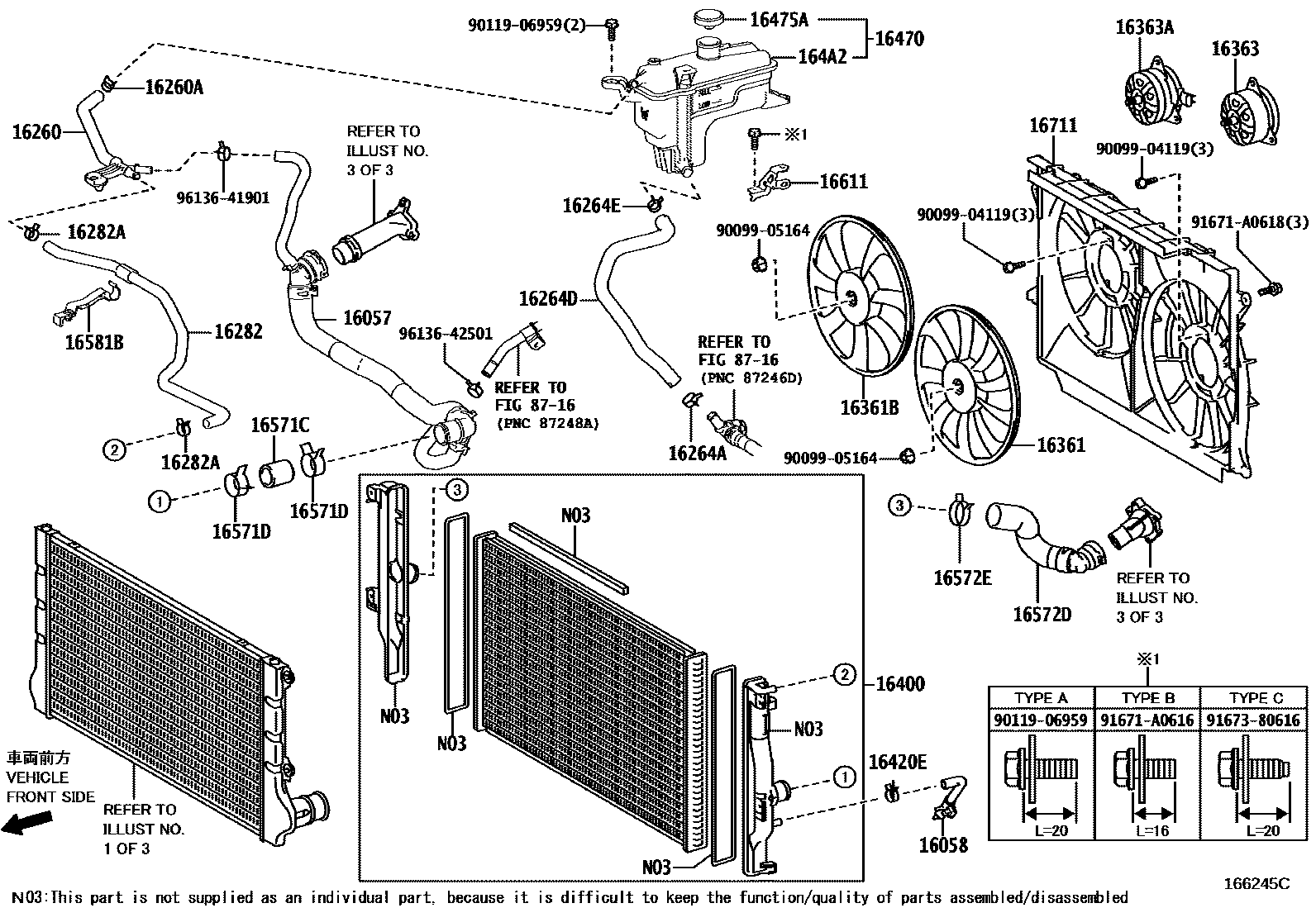

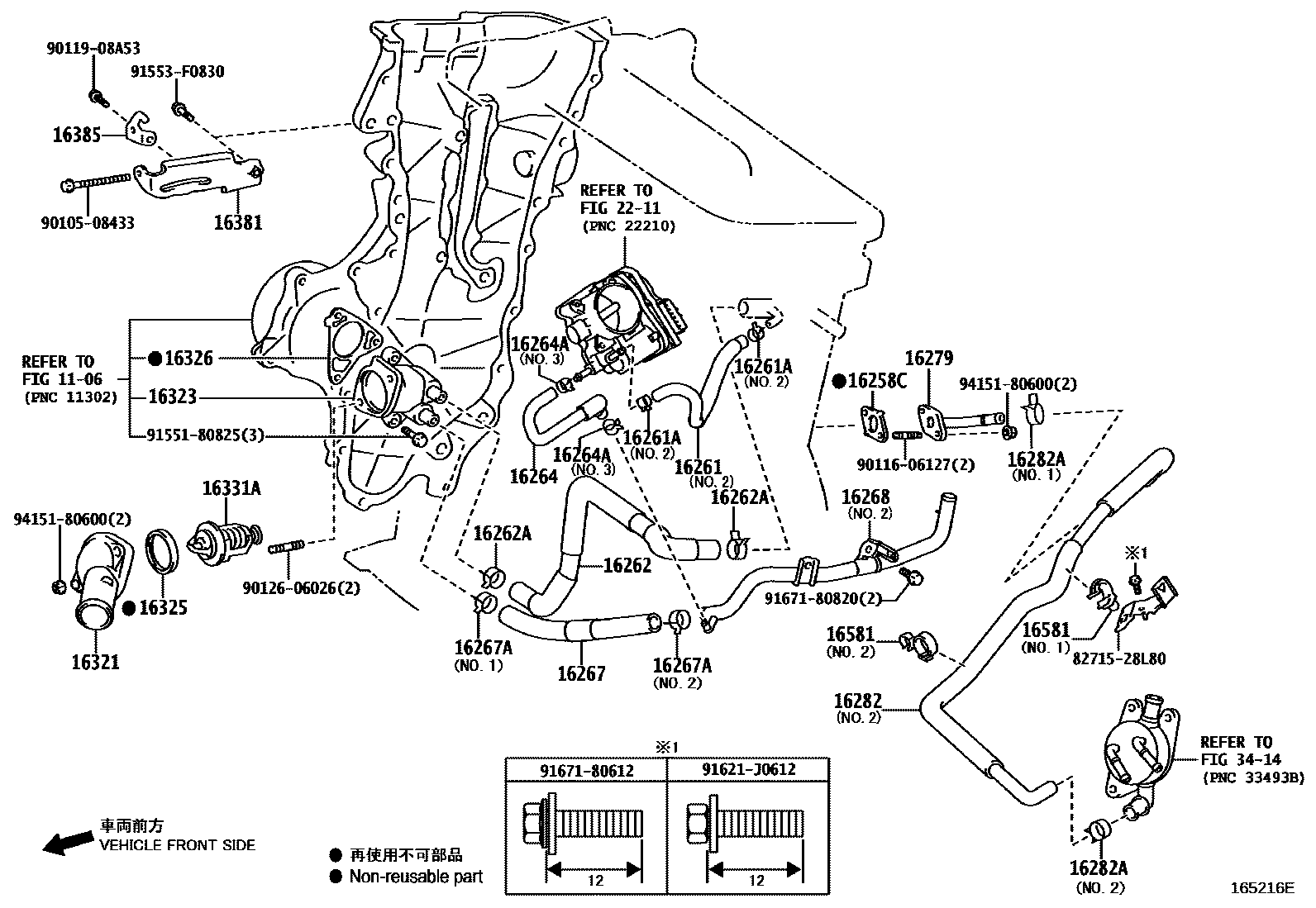

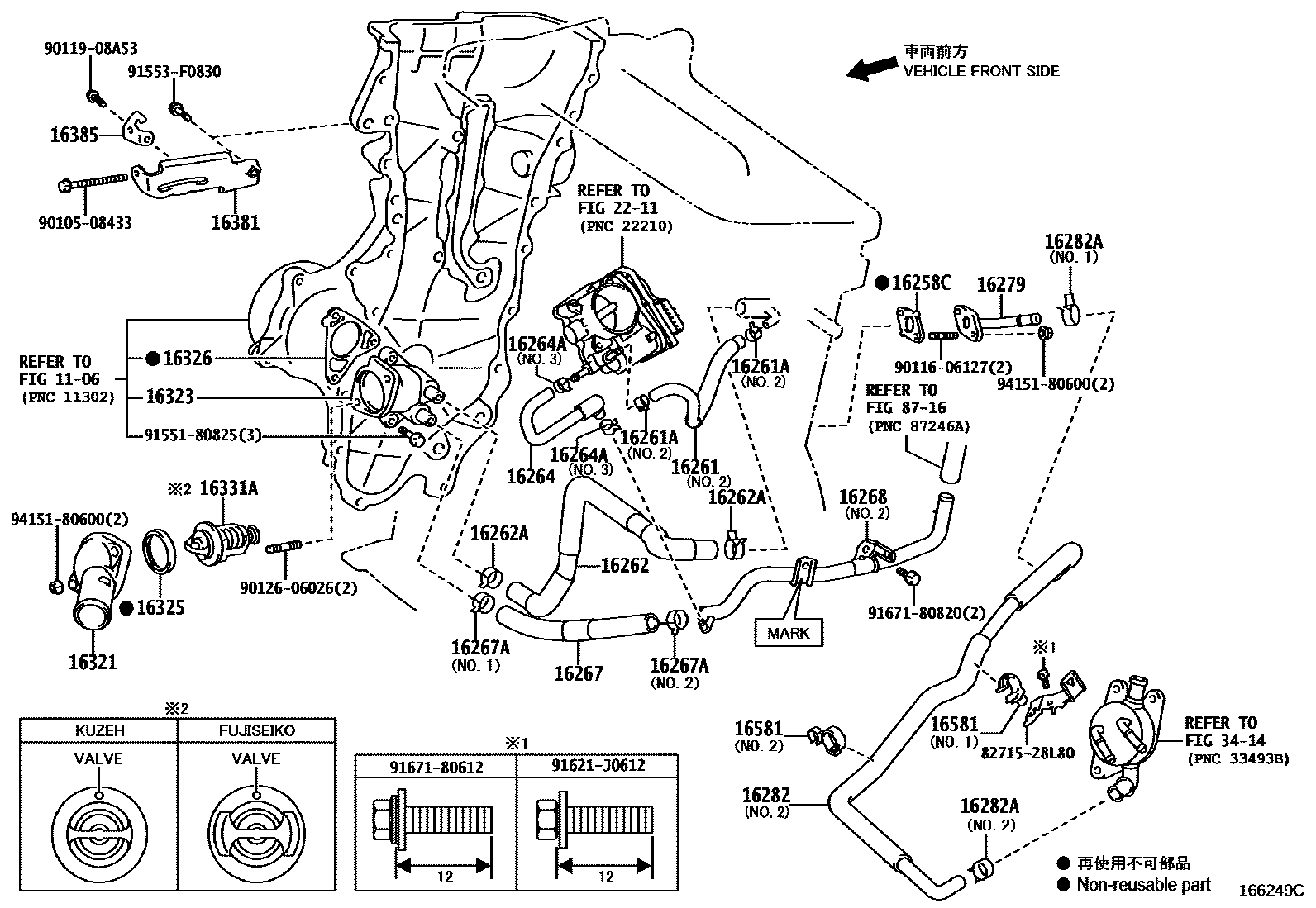

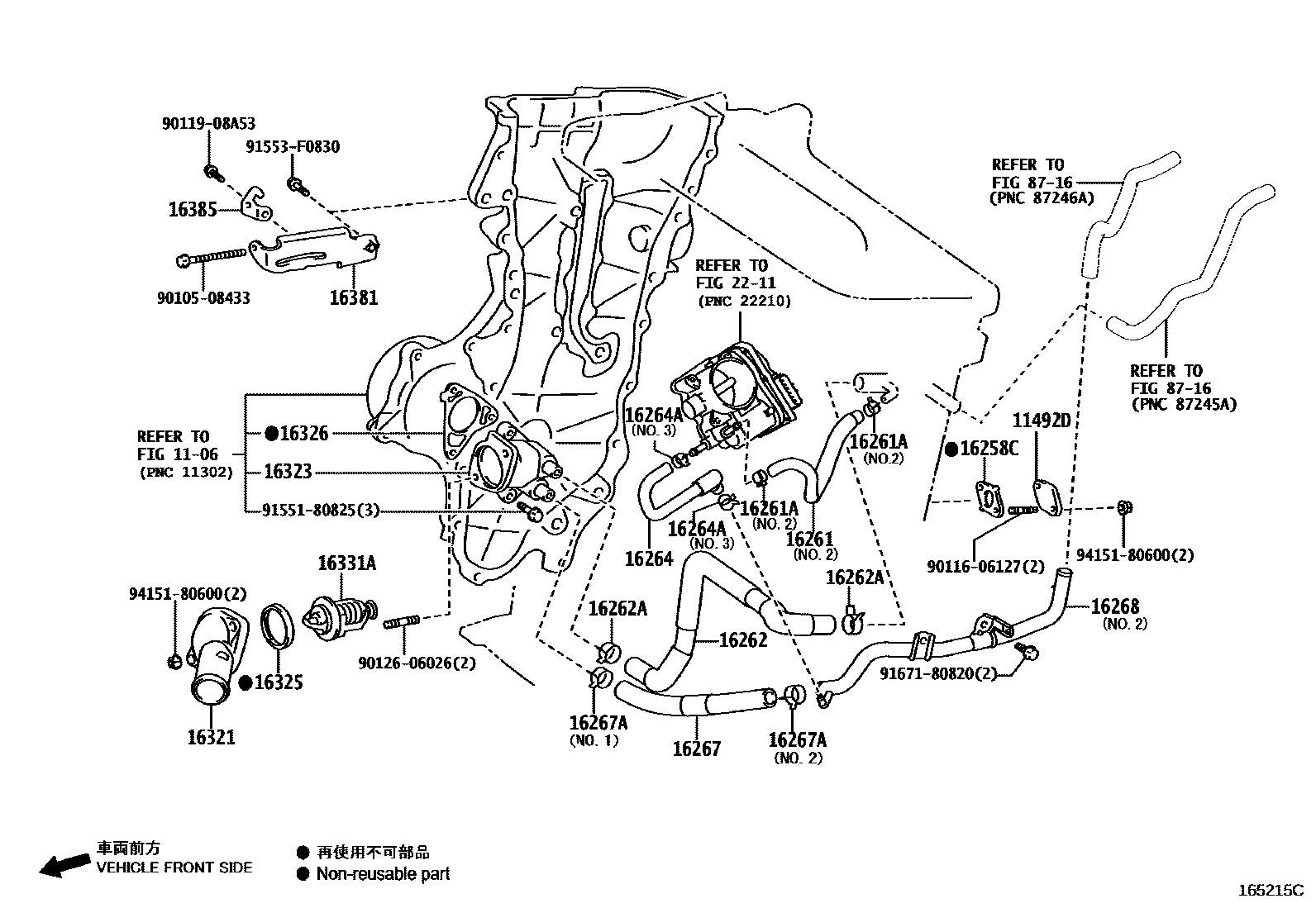

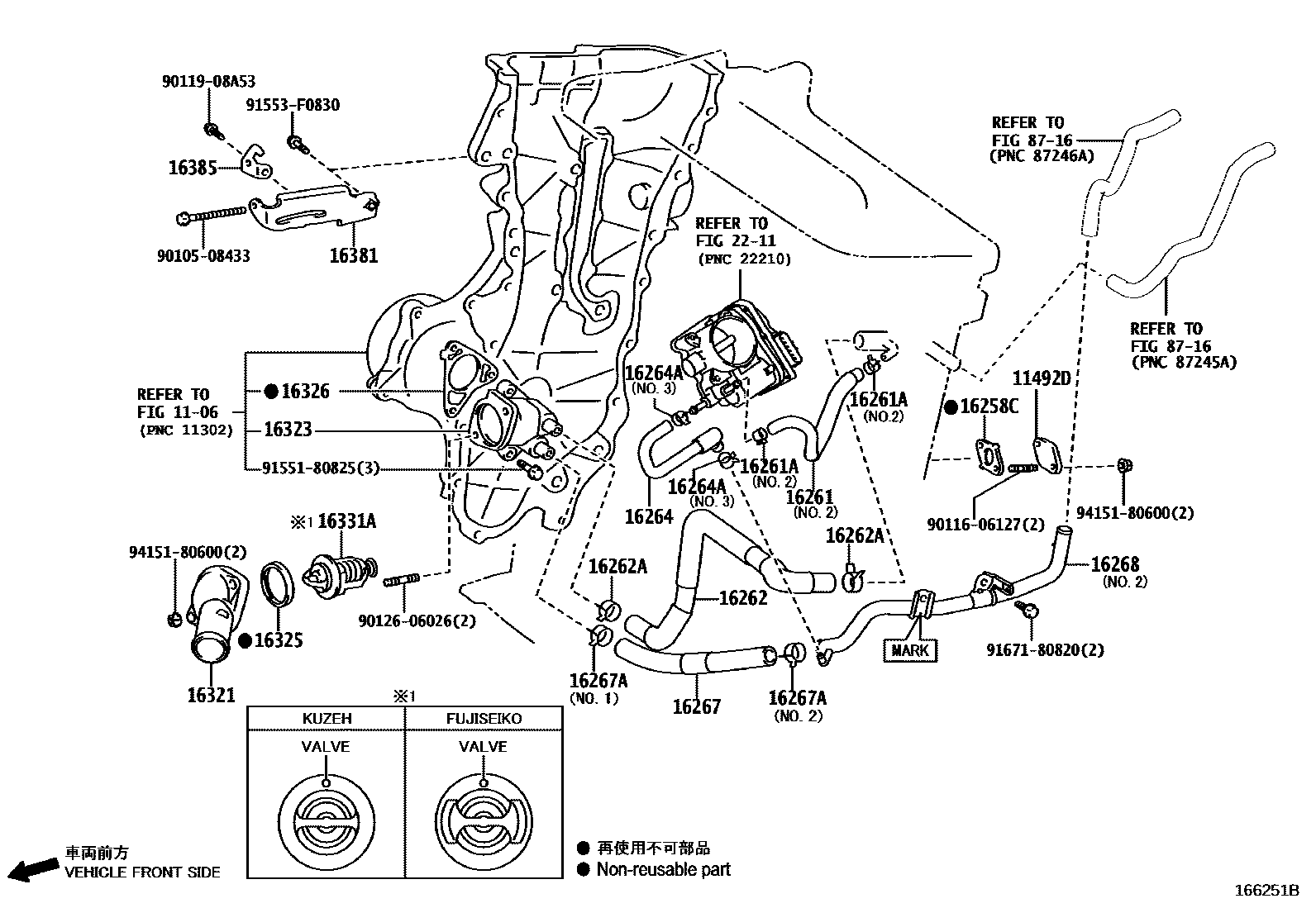

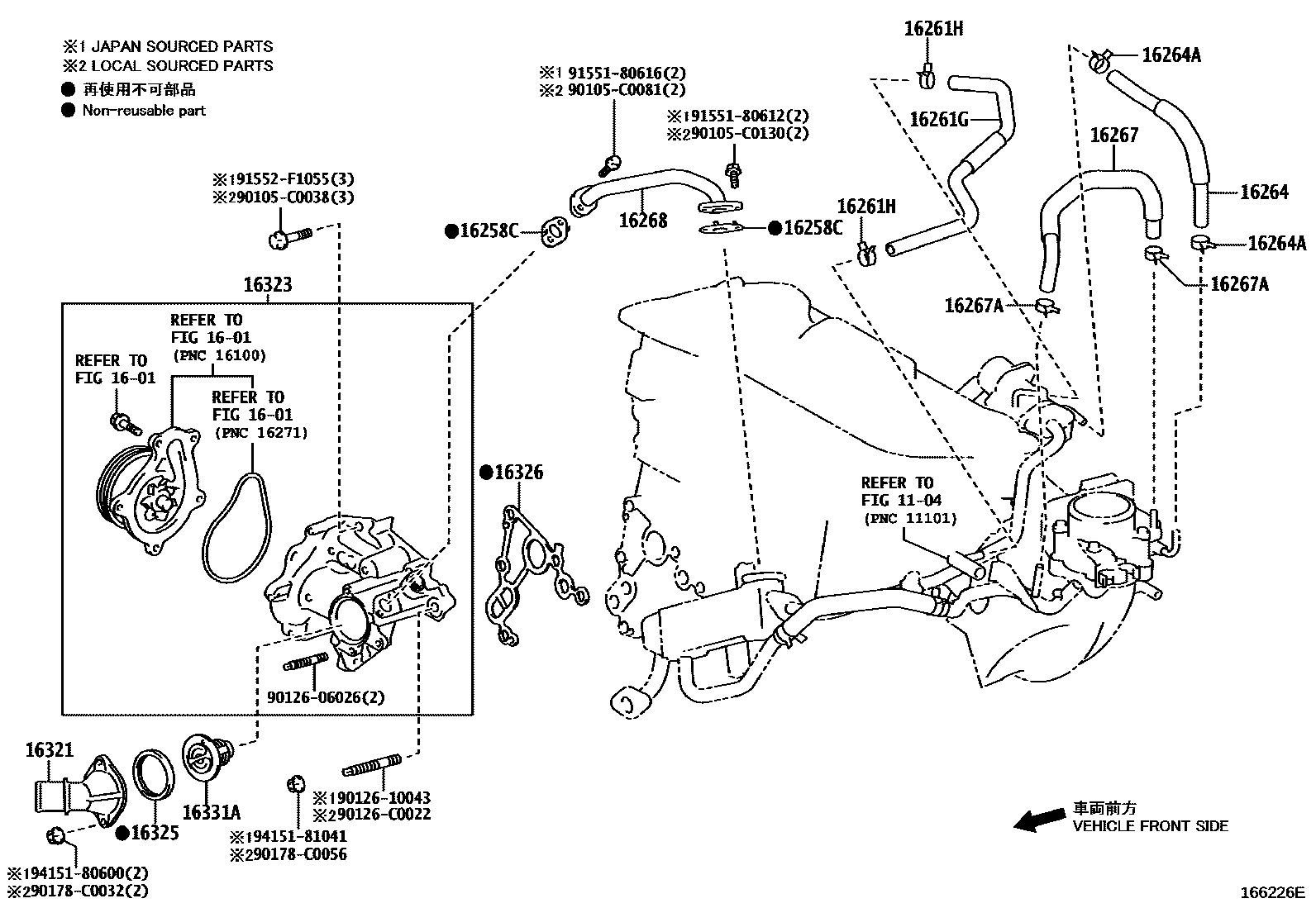

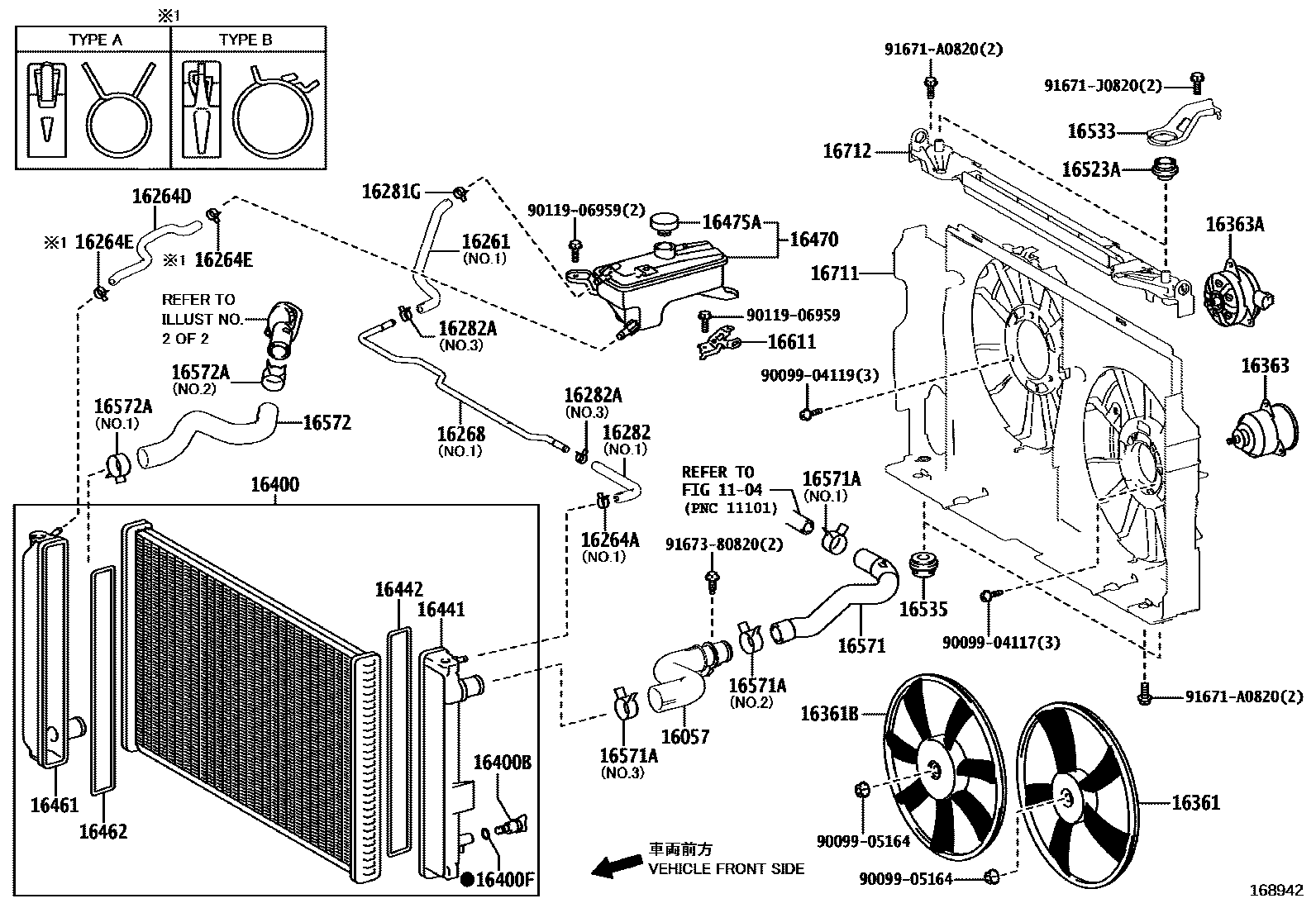

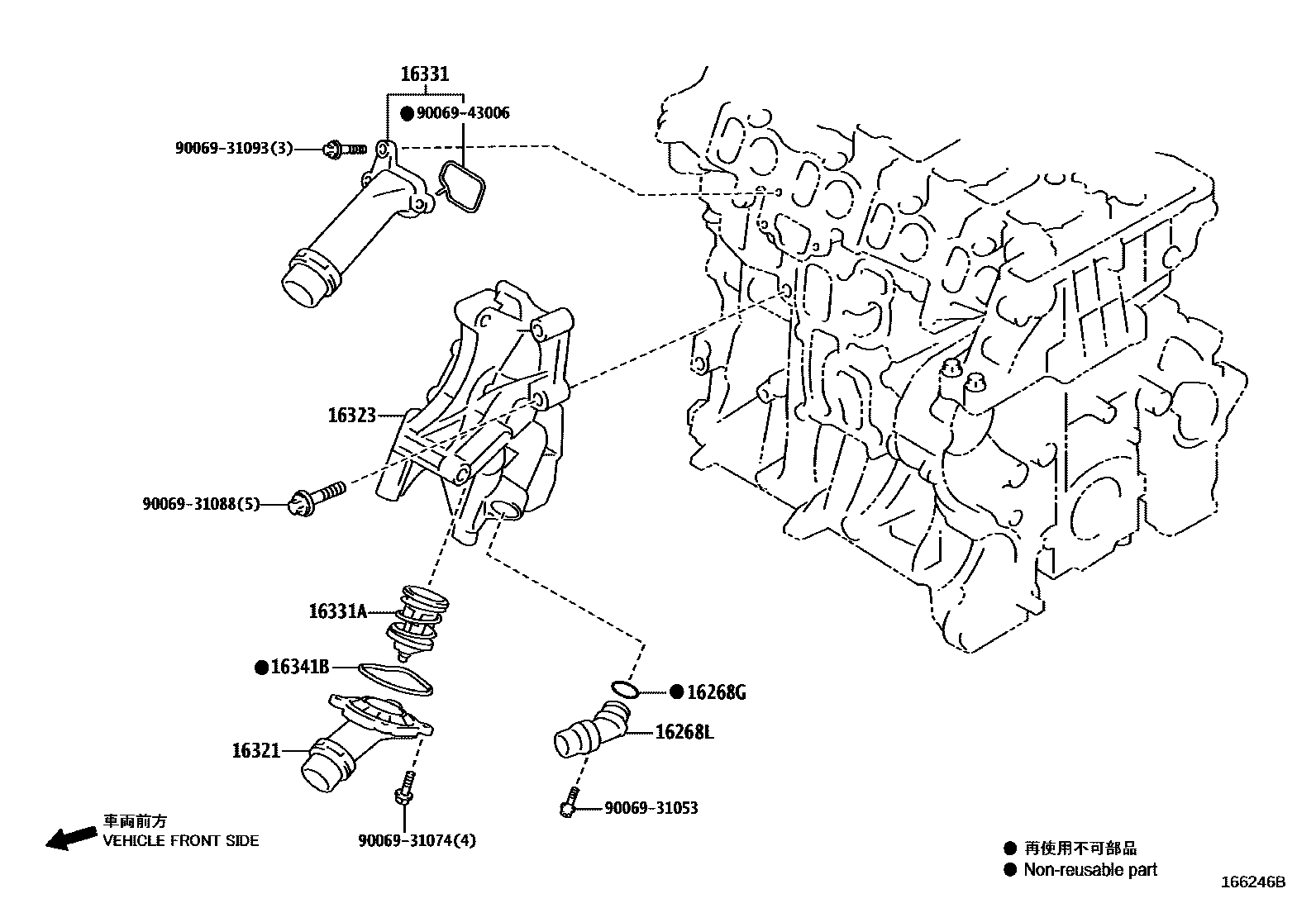

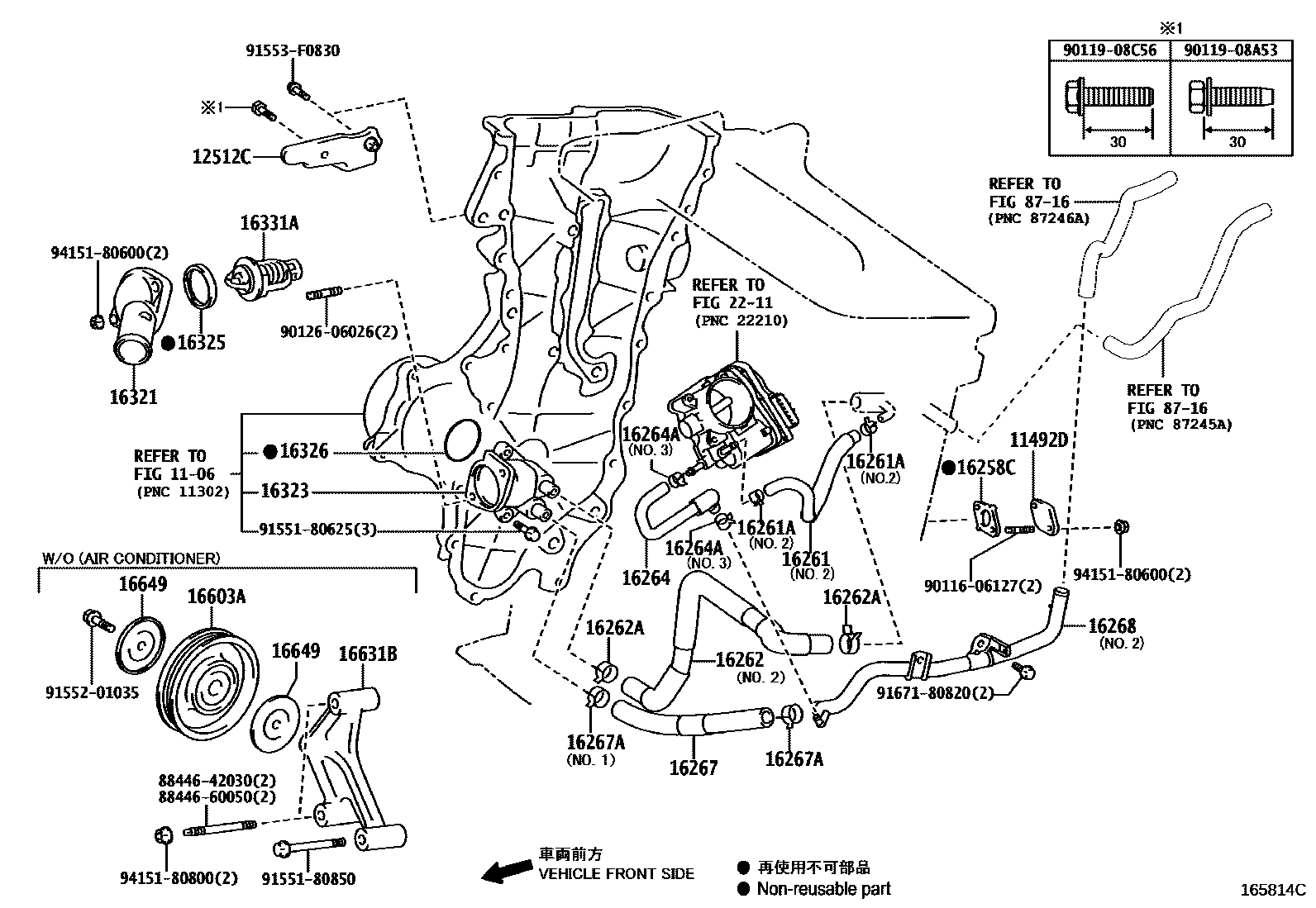

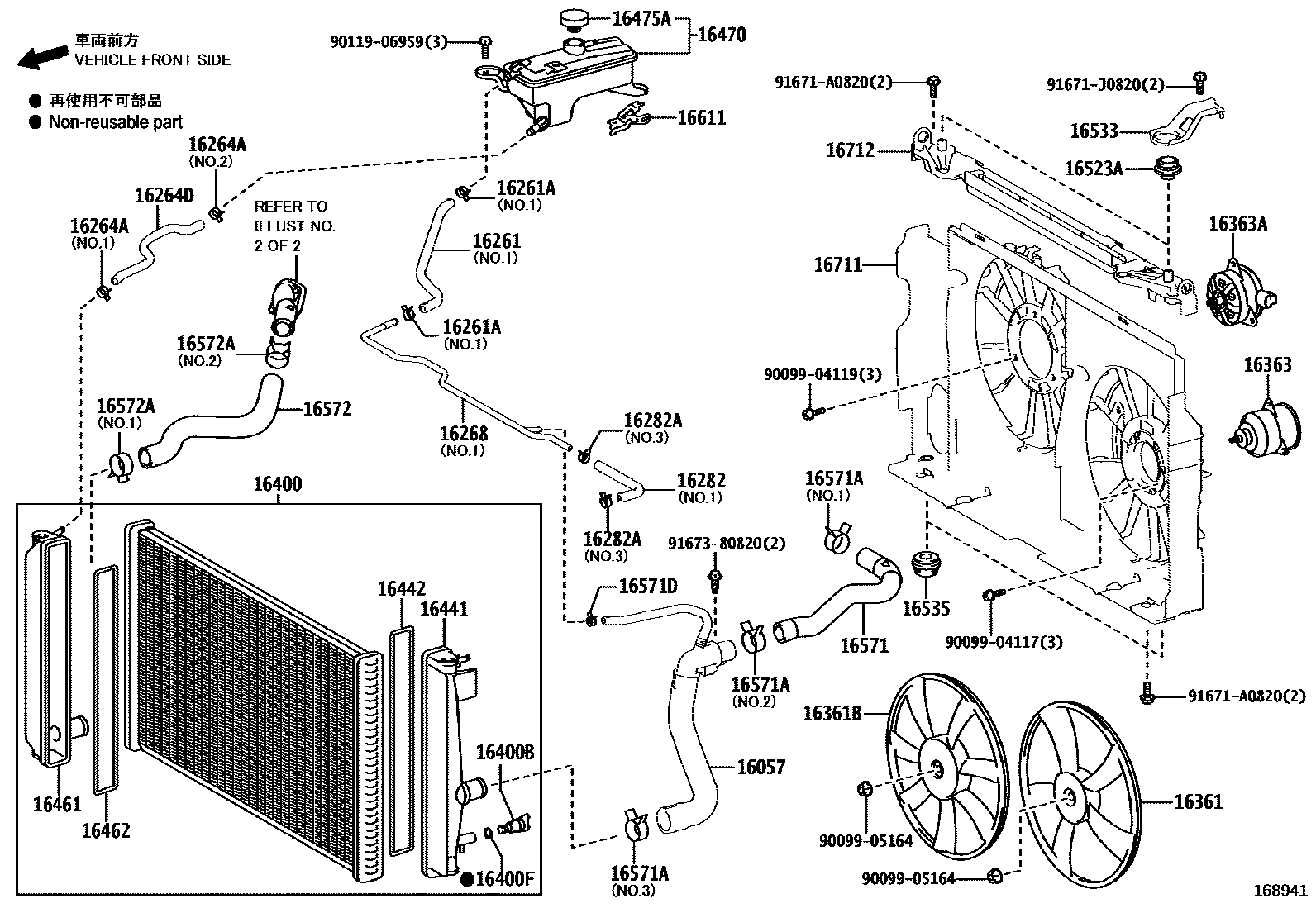

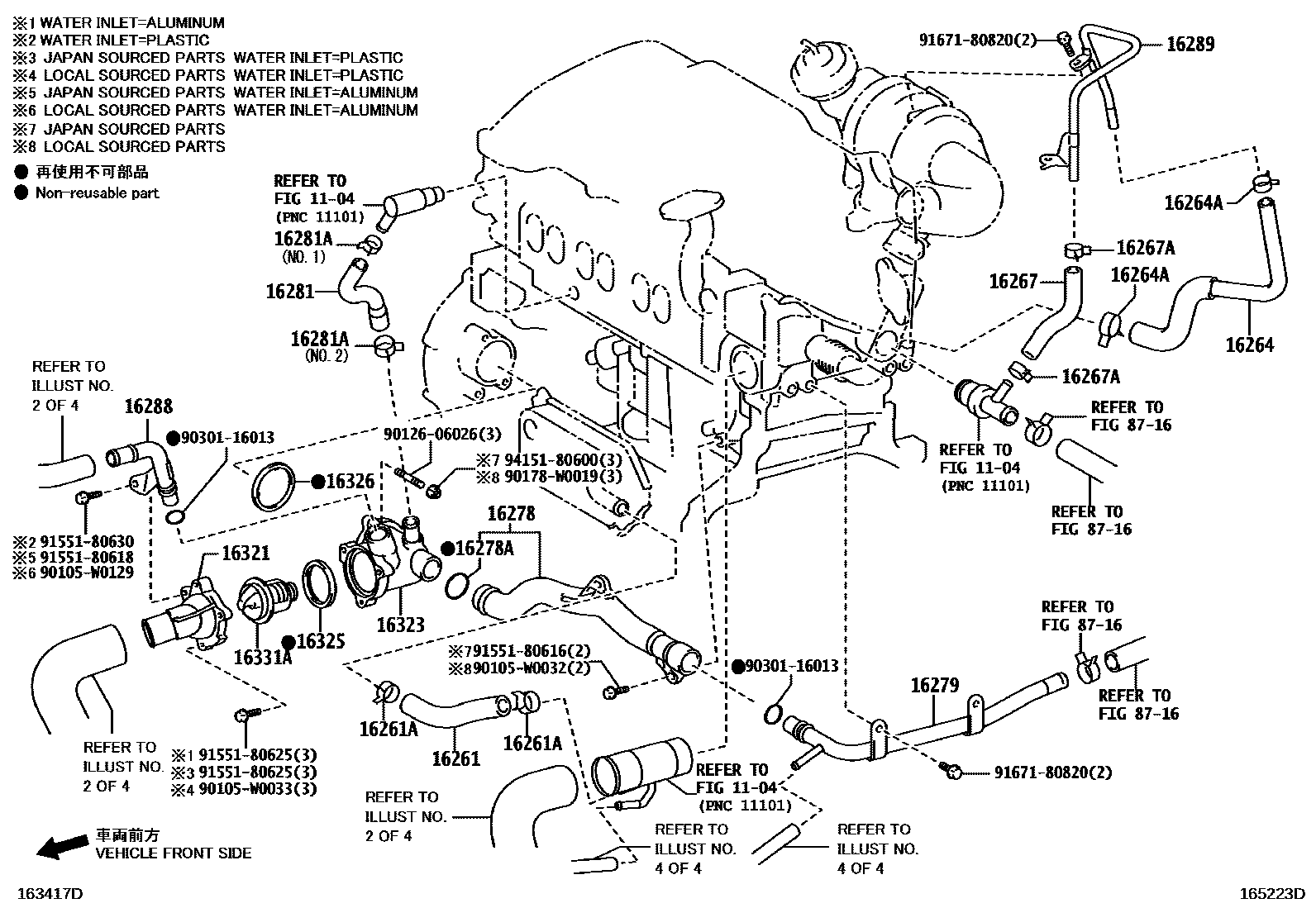

Toyota RAV4 EPC diagram 1603, RADIATOR & WATER OUTLET, with 23 images and 98 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11492D | No. 1 sealing plate | 11492-37010 |
| 12512C | No. 2 generator bracket | 12512-37010 |
| 16057 | Radiator hose sub-assembly | 16057-0X020 · 16057-26040 · 16057-26041 · 16057-36021 · 16057-37021 · 16057-37050 |
| 16058 | No. 2 radiator hose sub-assembly | 16058-53010 |
| 16258C | Gasket (for water bypass pipe) | 16258-0V010 · 16258-28040 · 16258-36010 · 16258-36100 |
| 16260 | Water bypass hose assembly | 16260-53010 |
| 16260A | Clamp (for water bypass hose assembly) | 90467-19022 |
| 16261 | HOSE, WATER BY-PASS | 16261-0R081 · 16261-0V030 · 16261-36010 · 16261-36050 · 16261-37052 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-C0026 · 90467-15022 · 90467-21006 · 96136-41901 · 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-26050 · 16261-36040 · 16261-36050 · 16261-36090 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-C0026 · 90467-19022 · 96137-41501 |
| 16262 | water inlet hose | 16262-37010 |
| 16262A | Clamp (for water inlet hose) | 96136-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0R030 · 16264-0V040 · 16264-26060 · 16264-26080 · 16264-36010 · 16264-36080 · 16264-37042 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0026 · 90467-15022 · 96134-51700 · 96136-41901 · 96136-42501 · 96137-41501 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-26070 · 16264-36040 · 16264-36130 · 16264-53020 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90467-21010 · 96134-51700 · 96136-41901 · 96136-42501 · 96136-42701 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0R070 · 16267-26021 · 16267-26080 · 16267-36080 · 16267-37020 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-C0026 · 90467-15022 · 96136-42501 · 96136-52701 · 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0V090 · 16268-36010 · 16268-36070 · 16268-36120 · 16268-36160 · 16268-36190 · 16268-37041 · 16268-37080 |
| 16268A | Hoses (for water bypass pipes) | 16282-36100 |
| 16268B | Hose clamp or clip (for water bypass pipe) | 90466-21001 |
| 16268G | Gasket (for water bypass pipe) | 90069-38030 |
| 16268L | PIPE, WATER BY-PASS | 16268-36070 · 16268-36120 · 16268-WA010 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-0R010 |
| 16278A | water bypass liner | 16258-0R010 |
| 16279 | No. 3 water bypass pipe | 16279-0R030 · 16279-0V010 · 16279-26050 · 16279-36021 · 16279-37010 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0R010 · 16281-0R030 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90467-21010 · 96134-52100 · 96136-42201 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90467-15022 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-26040 · 16282-26041 · 16282-36030 · 16282-36060 · 16282-37060 · 16282-37080 · 16282-53010 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90467-15022 · 96136-41901 · 96136-42101 · 96136-52201 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-0R010 · 16283-26060 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96136-41501 |
| 16283C | Clip or clip (for water bypass hose) | 90467-15022 |
| 16288 | No. 4 water bypass pipe | 16288-0R020 |
| 16289 | No. 5 water bypass pipe | 16289-26011 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-0R010 · 16295-26060 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 96136-41501 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-26020 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 96136-41501 |
| 16321 | water inlet | 16321-0R020 · 16321-0V020 · 16321-26030 · 16321-36010 · 16321-36060 · 16321-37010 · 16321-WA010 |
| 16323 | HOUSING, WATER INLET | 16032-0V030 · 16032-36011 · 16032-36021 · 16032-36040 · 16323-0R011 · 16323-26010 · 16323-37031 · 16323-37040 · 16323-WA010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0H030 · 16325-26011 · 16325-28010 · 16325-62010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-26011 · 16326-26020 · 16326-36010 · 16326-37010 · 16326-37030 |
| 16331 | Water outlet | 90069-42000 |
| 16331A | thermostat | 90916-03125 · 90916-03129 · 90916-03144 · 90916-03145 · 90916-03148 · 90916-C3001 · SU004-00002 |
| 16341B | water inlet gasket | 16341-WA010 |
| 16361 | Fan | 16361-28200 · 16361-28220 · 16361-36080 |
| 16361B | Fan No. 2 | 16361-26070 · 16361-28210 · 16361-28230 · 16361-36090 |
| 16361J | VENTILATEUR, MD | 16361-36150 |
| 16361K | VENTILATEUR, MG | 16361-36140 |
| 16363 | cooling fan motor | 16363-28020 · 16363-28170 · 16363-36100 |
| 16363A | Cooling fan motor No. 2 | 16363-26020 · 16363-26030 · 16363-28240 · 16363-36110 · 16363-36160 |
| 16363F | MOTEUR, VENTILATEUR REFROIDISSEMENT, MD | 16363-36190 |
| 16363G | MOTEUR, VENTILATEUR REFROIDISSEMENT, MG | 16363-36180 |
| 16366A | Cooling fan motor vibration isolation pad | 16366-36150 · 16366-36170 |
| 16381 | Fan belt adjustment lever | 16381-37040 |
| 16385 | Fan belt adjustment slider | 16385-37010 |
| 16400 | Radiator assembly | 16400-26411 · 16400-26412 · 16400-26421 · 16400-26422 · 16400-28560 · 16400-28570 · 16400-36080 · 16400-36090 · 16400-53030 |
| 16400B | Radiator drain switch screw plug | 16417-21280 · 16417-30170 |
| 16400F | Seal (for radiator drain switch) | 16418-15520 · 16492-21050 |
| 16420E | Secondary radiator hose clamp or clip | 96136-41901 |
| 16441 | Radiator water tank | 16441-28560 · 16441-36080 |
| 16442 | O-ring (for radiator tank) | 16442-28560 · 16442-36080 |
| 16461 | Radiator lower tank | 16461-28560 · 16461-36080 |
| 16462 | O-ring (for radiator lower tank) | 16442-28560 · 16442-36080 |
| 16466 | Radiator seal | 16466-26410 |
| 16467 | Side seal | 16467-26410 |
| 16470 | Radiator reservoir assembly | 16470-26121 · 16470-26122 · 16470-28111 · 16470-28112 · 16470-28113 · 16470-53030 |
| 16475A | Reservoir tank cover | 16475-28140 · 16475-37010 · 16475-37011 · 16475-53022 |
| 164A2 | Closed reservoir water tank without lid | 164A2-53010 |
| 16523A | Radiator bracket cushion | 16523-28030 |
| 16533 | Radiator upper bracket | 16533-26070 · 16534-26050 · 16534-26060 |
| 16533B | Radiator bracket No. 1 | 16533-26070 |
| 16534 | Radiator bracket No. 2 | 16534-26070 · 16534-26080 · 16534-53010 |
| 16535 | Radiator lower support | 16535-20030 · 16535-28060 · 16535-74230 |
| 16571 | Radiator water inlet hose | 16571-37130 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 96136-43901 · 96136-44301 · 96136-44801 |
| 16571C | Radiator hose No. 1 | 16571-36240 · 16571-53020 |
| 16571D | No. 1 radiator hose clip | 90467-13128 · 96136-44301 · 96136-44801 |
| 16572 | Radiator outlet hose | 16572-37160 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 96136-44301 · 96136-44801 |
| 16572D | Radiator hose No. 2 | 16572-0X030 · 16572-26110 · 16572-36130 · 16572-36160 |
| 16572E | No. 2 radiator hose clip | 96136-44301 · 96136-44801 |
| 16573C | No. 3 radiator hose clamp or clip | 96136-44801 |
| 16577B | Hose clamps or clips (for radiator pipes) | 90467-13128 |
| 16577C | radiator pipe | 16577-26020 |
| 16581 | Hose clamp (for water hose) | 16581-21030 · 16581-37010 · 16581-37100 |
| 16581B | Hose clamp (for radiator hose) | 16581-26070 |
| 16581K | No. 1 auxiliary radiator hose clip | 16581-36010 |
| 16603A | No. 1 idler pulley sub-assembly | 16603-50030 |
| 16611 | Radiator reservoir bracket | 16611-28030 · 16611-36010 |
| 16631B | Idler gear bracket | 16631-37010 |
| 16649 | Idler cover | 16649-50030 |
| 16711 | fan cover | 16711-26111 · 16711-26131 · 16711-36140 · 16711-36180 · 16711-37100 · 16711-53020 |
| 16712 | No. 2 fan cover | 16712-36030 · 16712-36080 |
| 25635A | No. 1 EGR tube holder | 25635-36010 |
