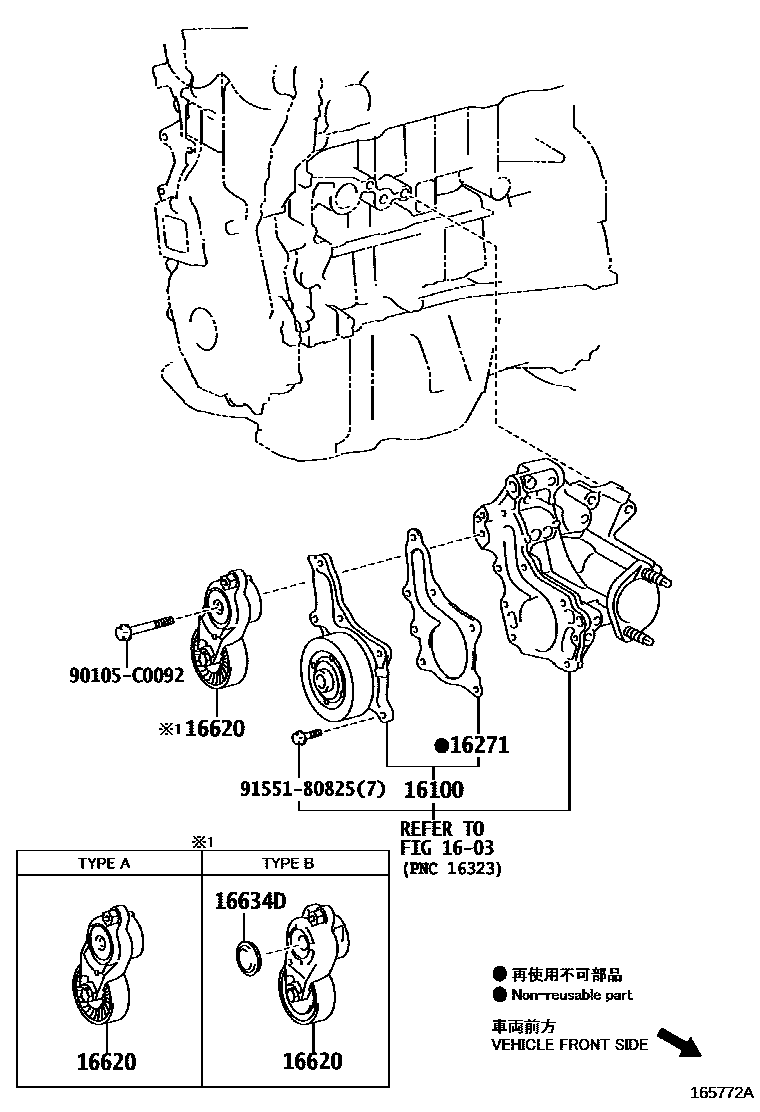

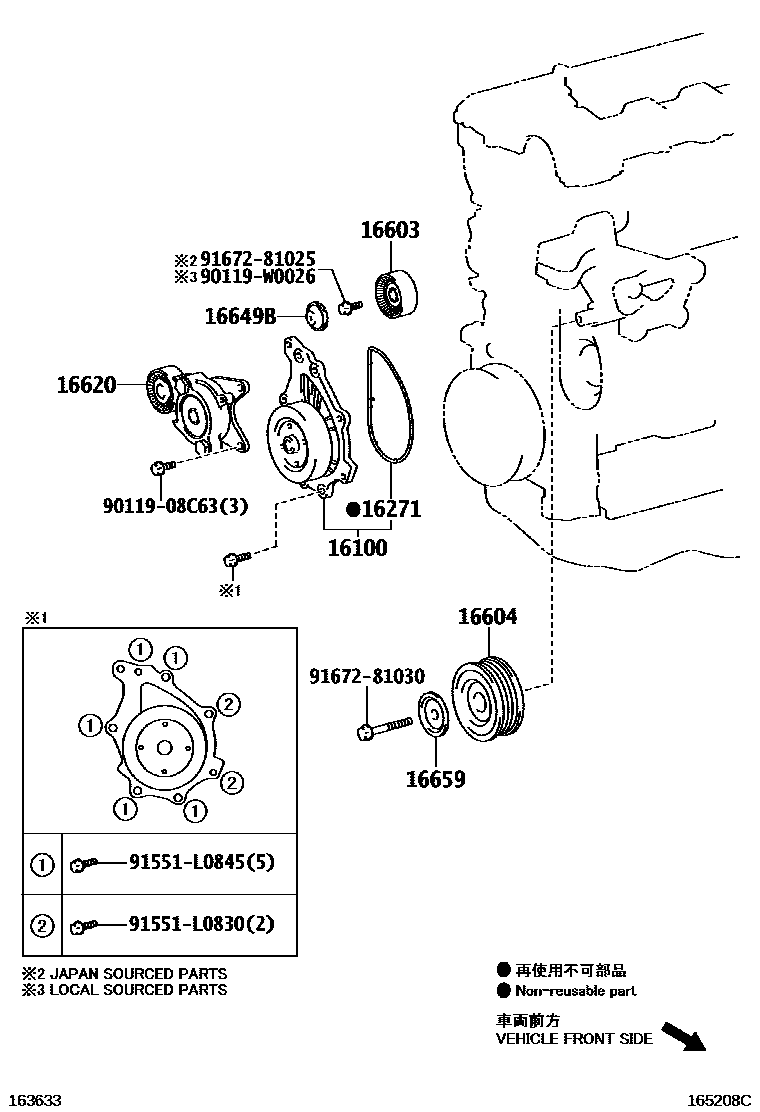

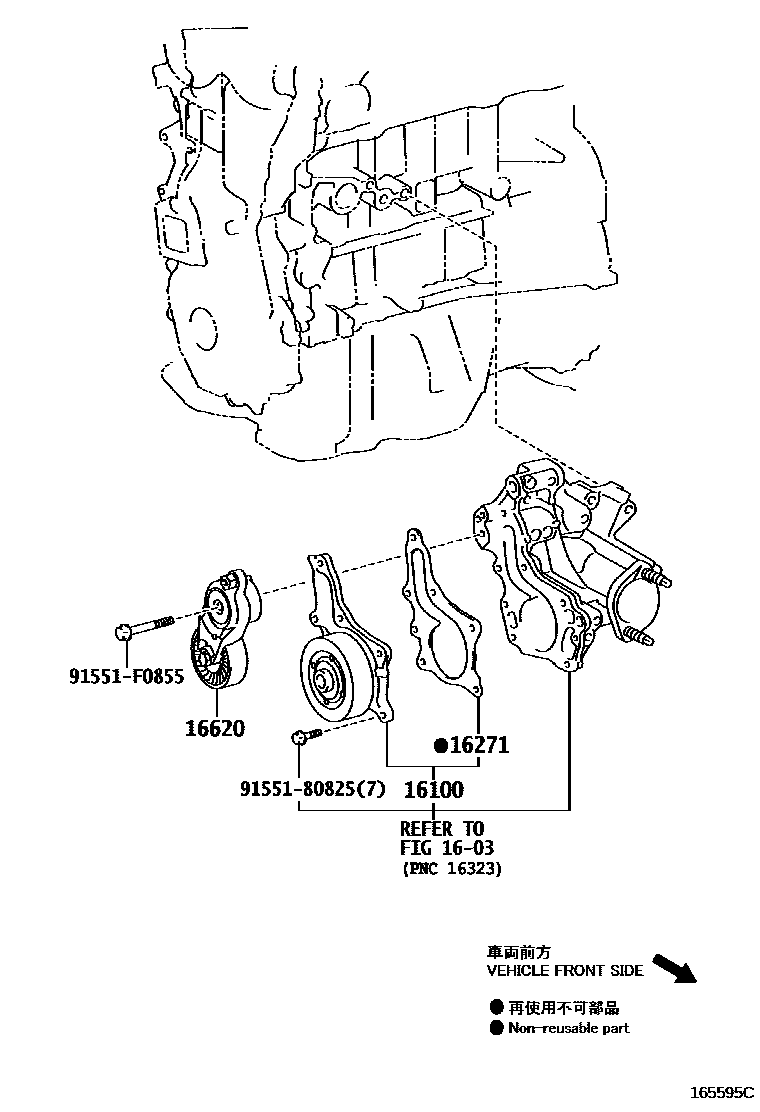

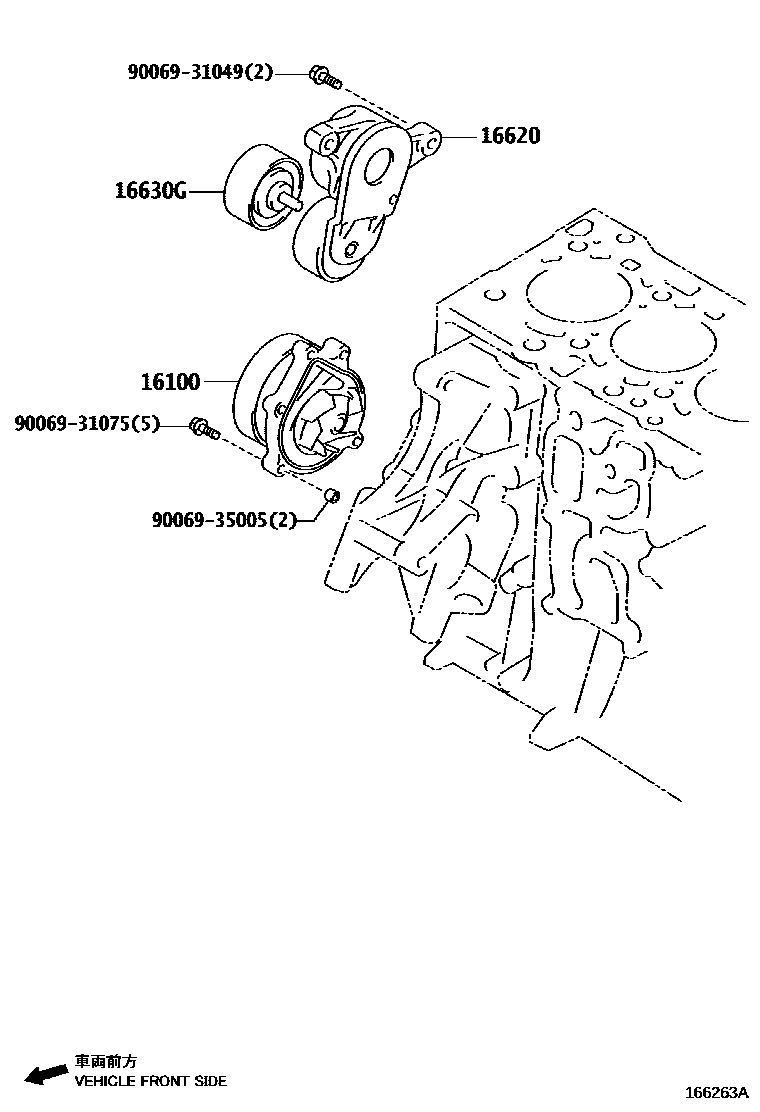

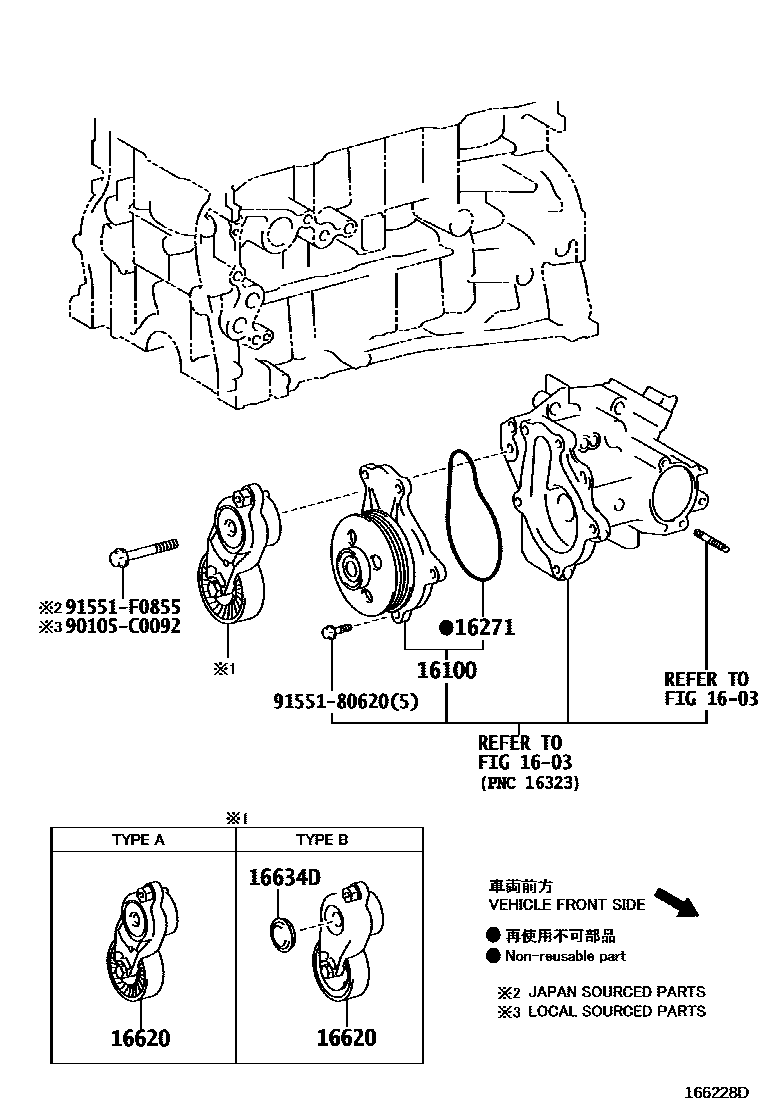

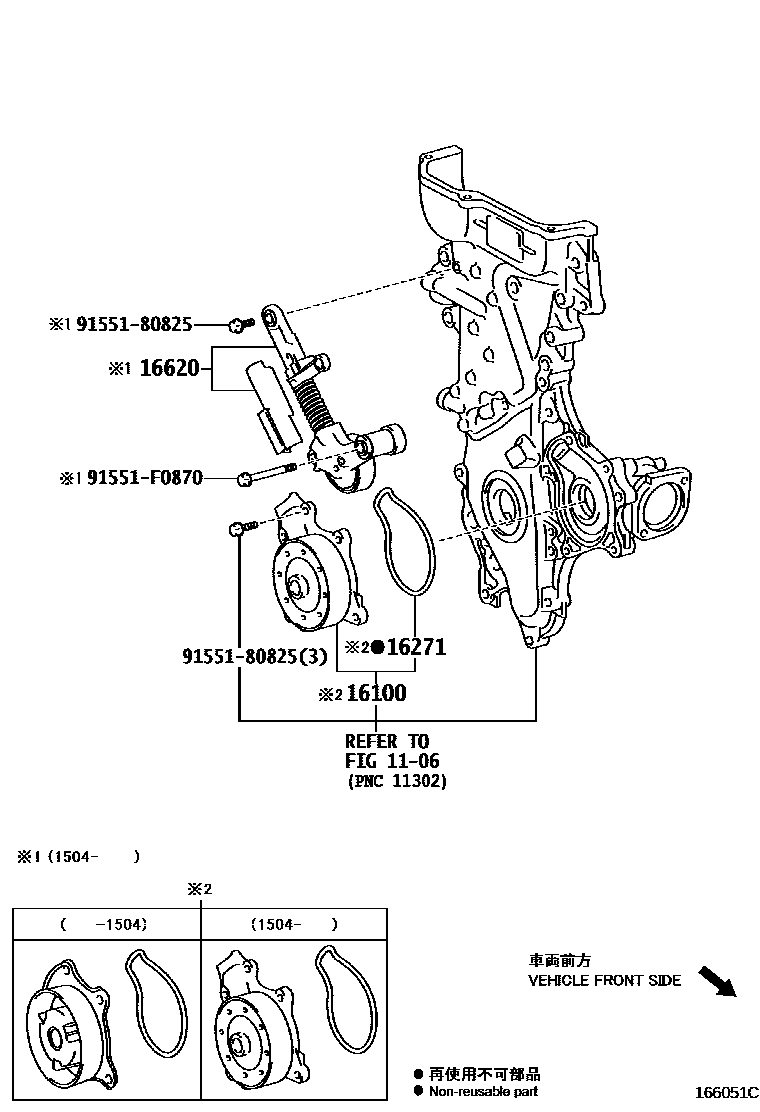

Toyota RAV4 Water Pump — Figure 1601
Toyota RAV4 EPC diagram 1601, Water Pump, with 6 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-09340 · 16100-09341 · 16100-09580 · 16100-09581 · 16100-09600 · 16100-29495 · 16100-29496 · 16100-39466 · 16100-39515 · 16100-39565 · 16100-39575 · 16100-WA010 |
| 16271 | water pump gasket | 16271-26010 · 16271-36010 · 16271-36030 · 16271-37010 · 16271-37030 |
| 16603 | No. 1 idler pulley sub-assembly | 16603-0R010 |
| 16604 | No. 2 idler pulley sub-assembly | 16604-26011 · 16604-26012 |
| 16620 | Poly V-belt tensioner assembly | 16620-0R010 · 16620-0V042 · 16620-0V051 · 16620-36012 · 16620-36013 · 16620-37011 · 16620-37030 · 16620-WA010 |
| 16630G | Idler gear assembly | 16630-WA010 |
| 16634D | dust cover | 16628-0V010 |
| 16649B | Idler cover | 16649-0R010 |
| 16659 | No. 2 idler cover | 16659-26010 |
