Toyota RAV4 Oil Filter — Figure 1502

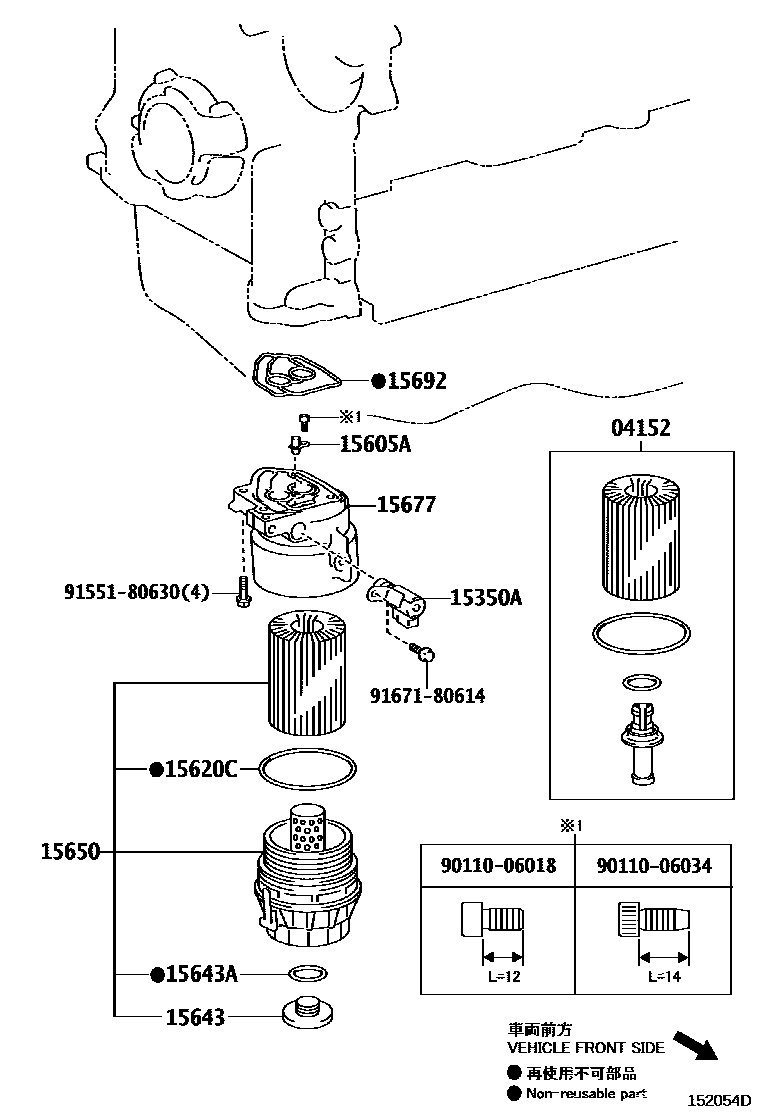

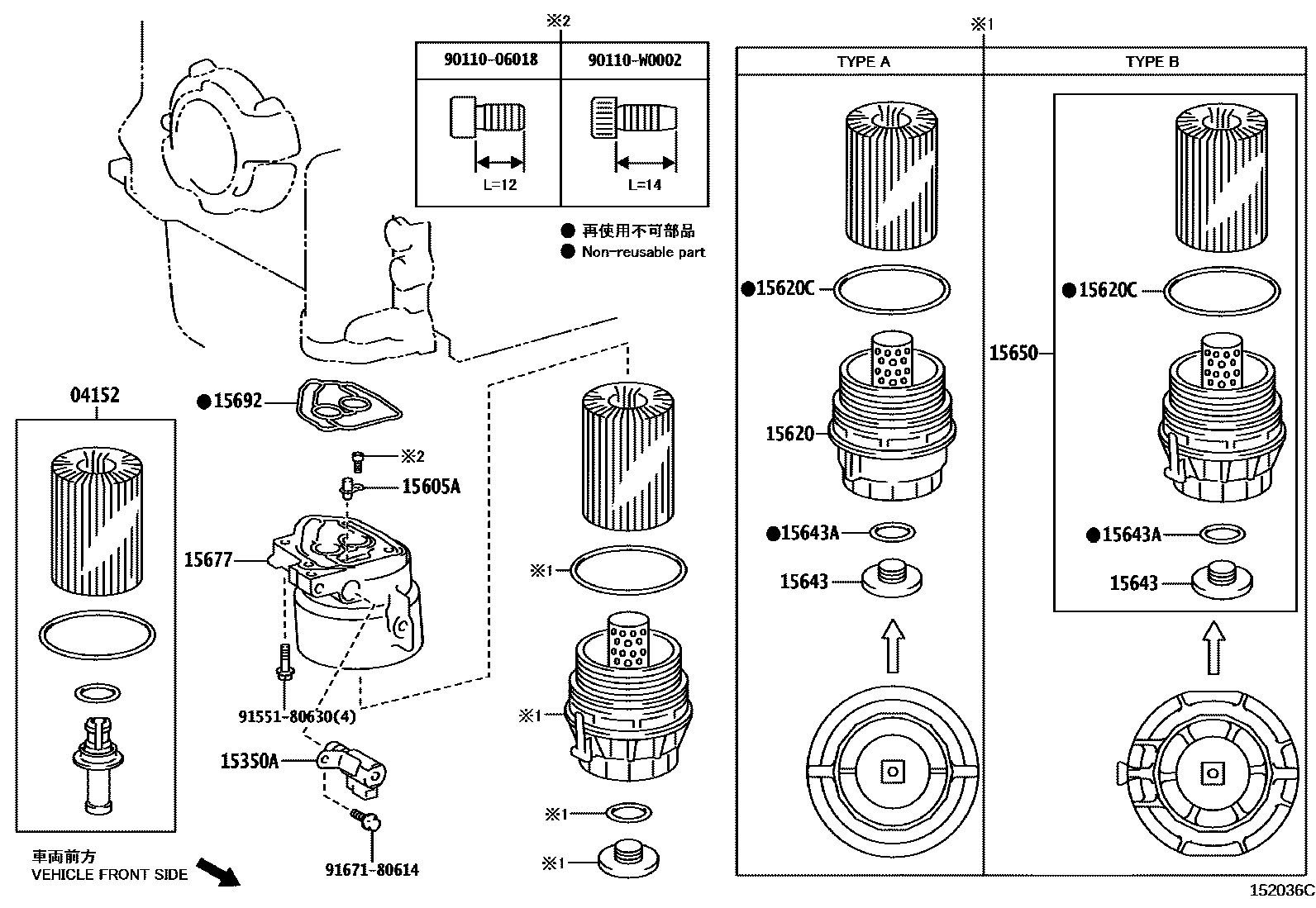

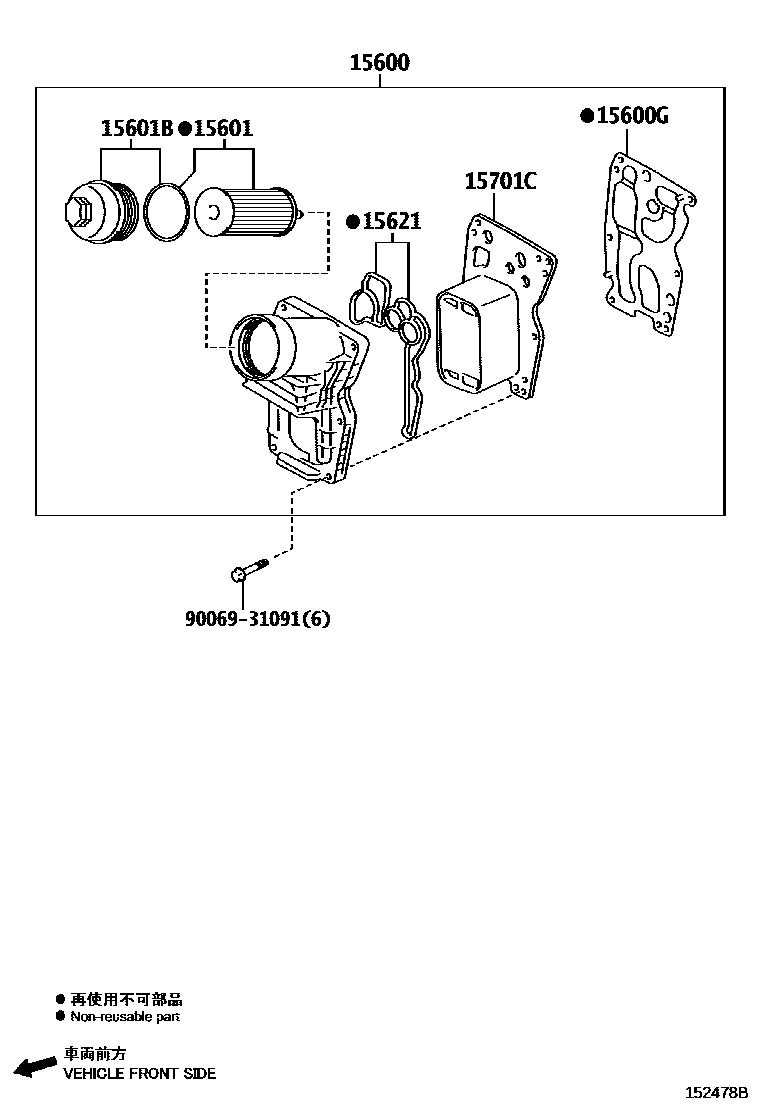

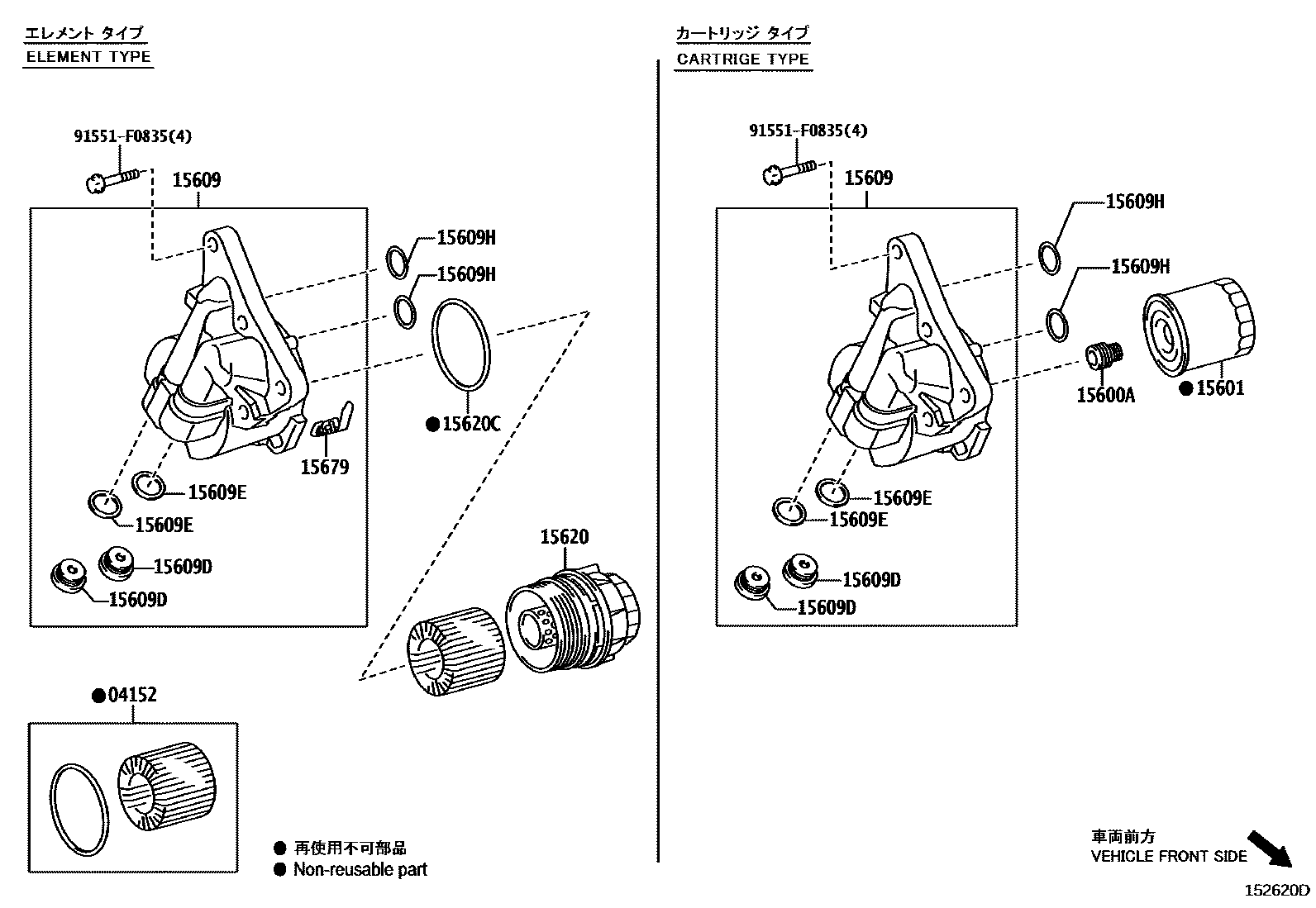

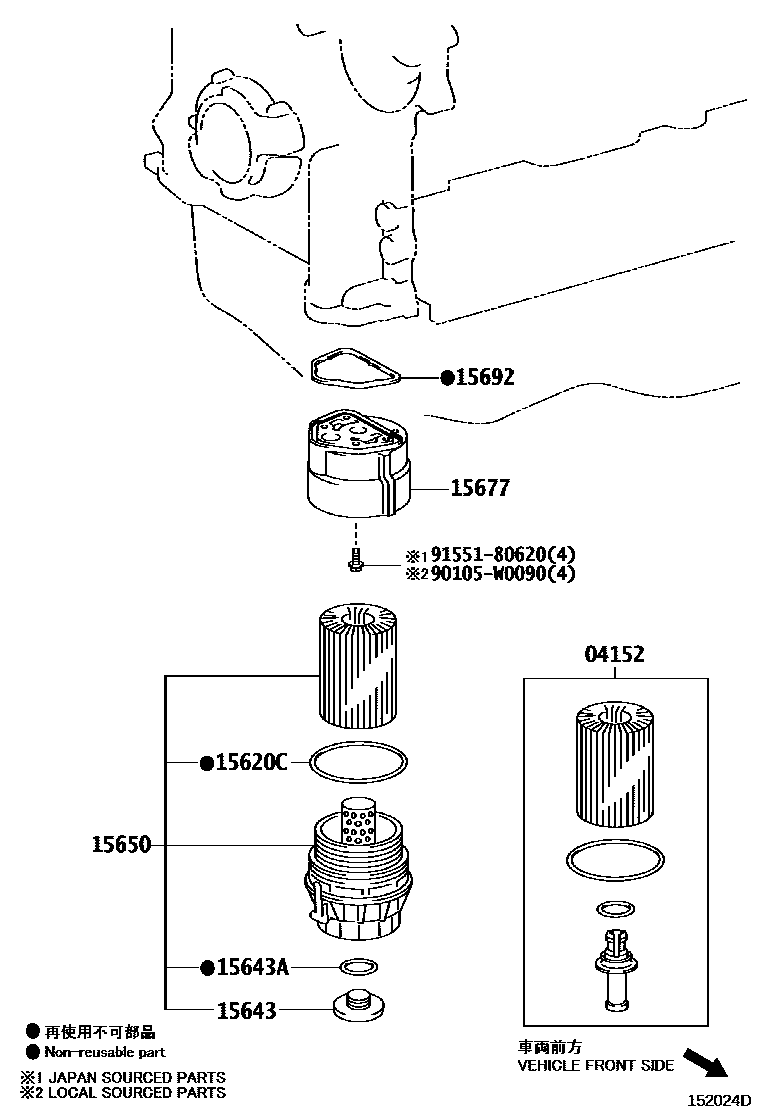

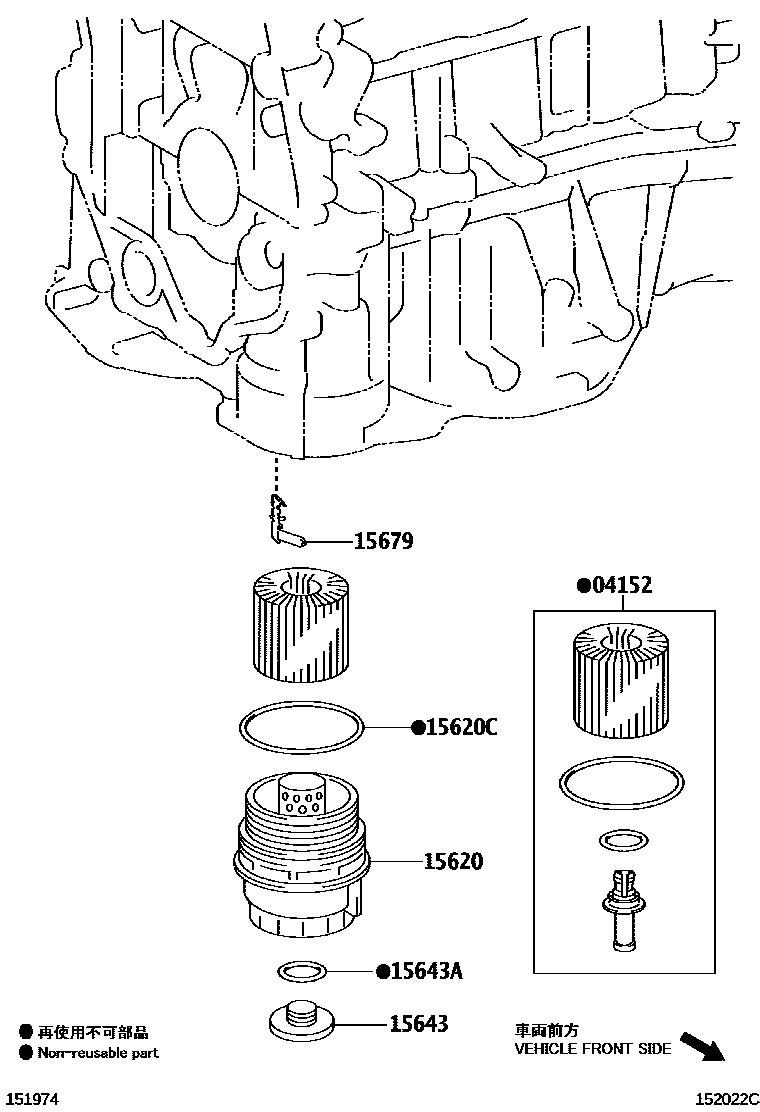

Toyota RAV4 EPC diagram 1502, Oil Filter, with 6 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04152 | Oil Filter Element Kit | 04152-0R010 · 04152-0V010 · 04152-31090 · 04152-37010 · 04152-38010 |
| 15350A | Oil pressure switch valve assembly | 15350-33012 |
| 15600 | Oil filter assembly | 15670-WA010 |
| 15600A | Connector (for oil filter) | 90904-04006 |
| 15600G | JOINT D'ETANCHEITE(POUR COUVERCLE DE FILTRE A HUILE) | 90069-43009 |
| 15601 | Oil filter sub-assembly | 04152-WA010 · 90915-10003 |
| 15601B | oil filter cover | 15620-WA010 |
| 15605A | Oil check valve sub-assembly | 15605-30040 |
| 15609 | Oil filter bracket sub-assembly | 15609-37010 · 15609-37040 · 15609-37041 · 15609-37060 |
| 15609D | Straight threaded plug with head (for oil filter bracket) | 90341-20002 |
| 15609E | Headed straight thread plug liner | 90430-20004 · 90430-20018 |
| 15609H | O-ring (for oil filter bracket) | 96723-24020 |
| 15620 | Oil filter cover assembly | 15620-0R011 · 15620-36020 · 15620-37010 |
| 15620C | Gasket (for oil filter cover) | 90301-69011 · 90301-79006 |
| 15621 | Oil filter body gasket | 90069-43012 |
| 15643 | Oil filter drain plug | 15643-0R010 · 15643-31050 |
| 15643A | O-ring (for oil filter drain plug) | 96723-35028 |
| 15650 | Oil filter cover assembly with filter element | 15650-0R020 · 15650-38020 |
| 15677 | Oil filter bracket | 15677-0R012 · 15677-0R020 |
| 15679 | Oil filter bracket clip | 15679-37010 · 15679-37011 |
| 15692 | Oil filter holder gasket | 15692-26010 · 15692-26030 |
| 15701C | Oil cooler cover sub-assembly | 15710-WA010 |
