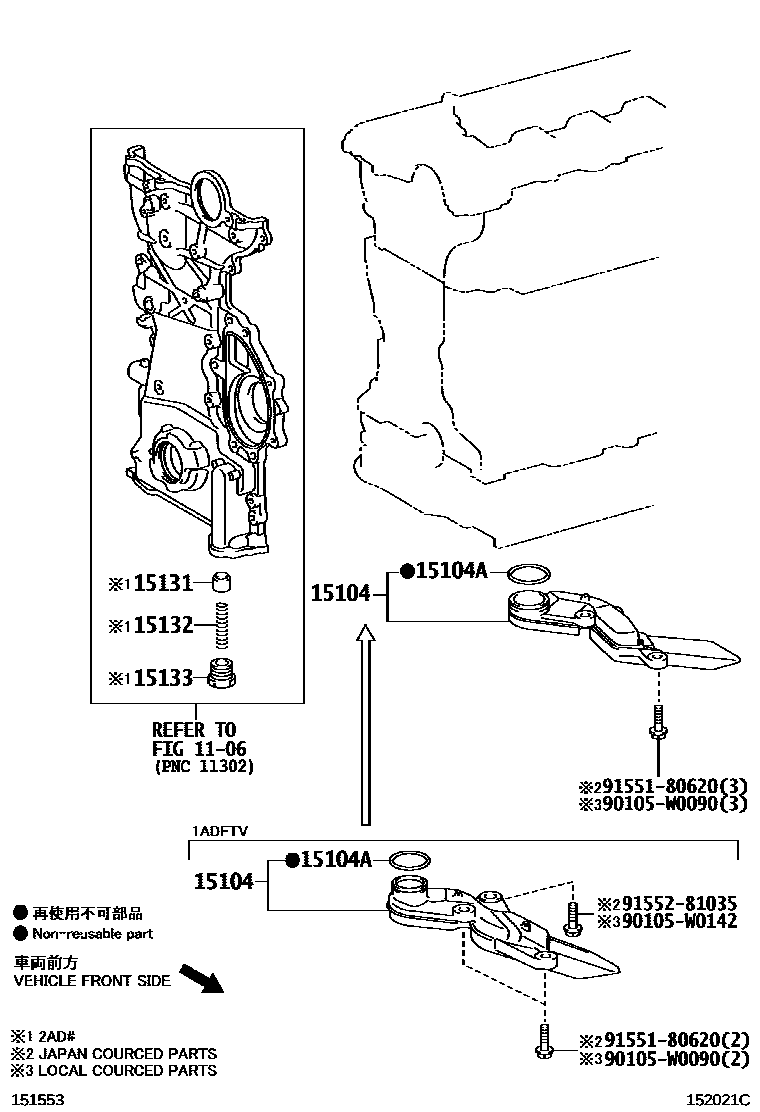

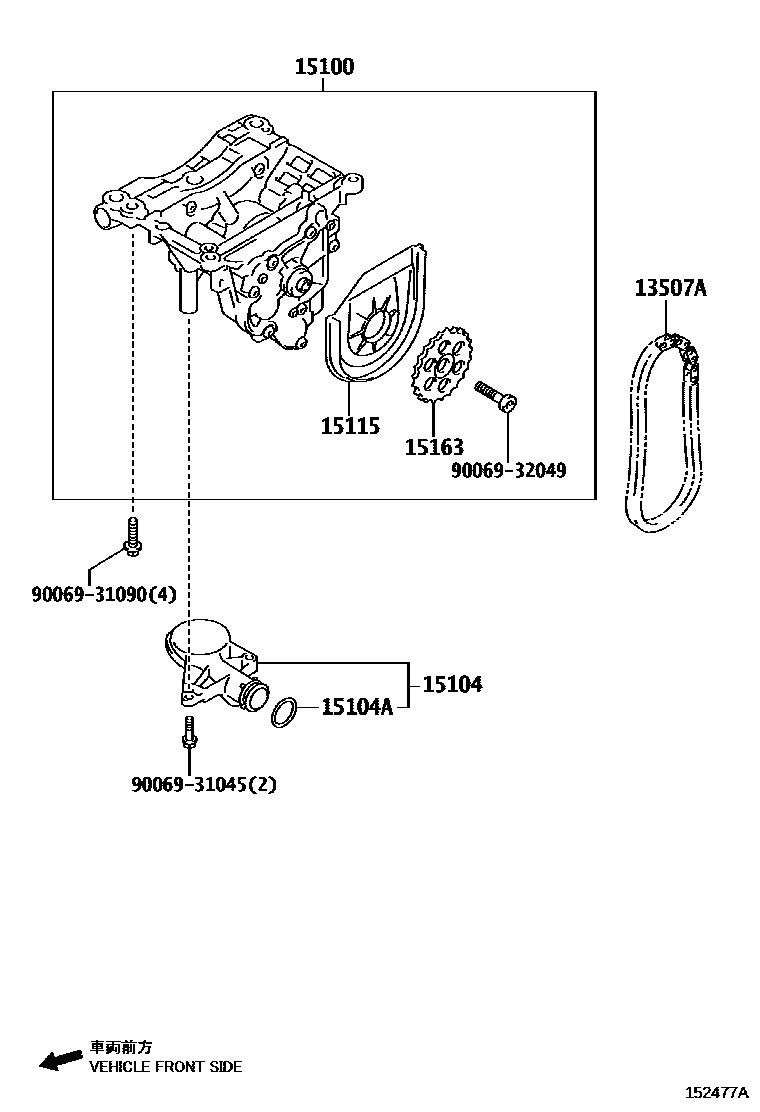

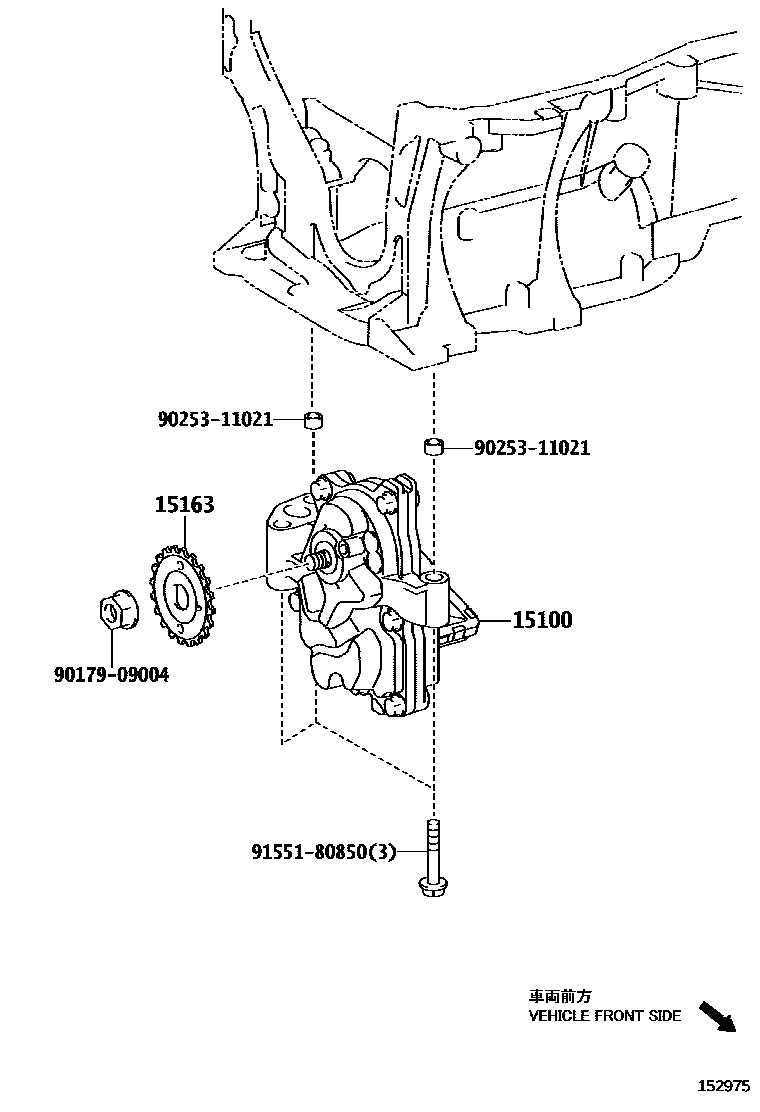

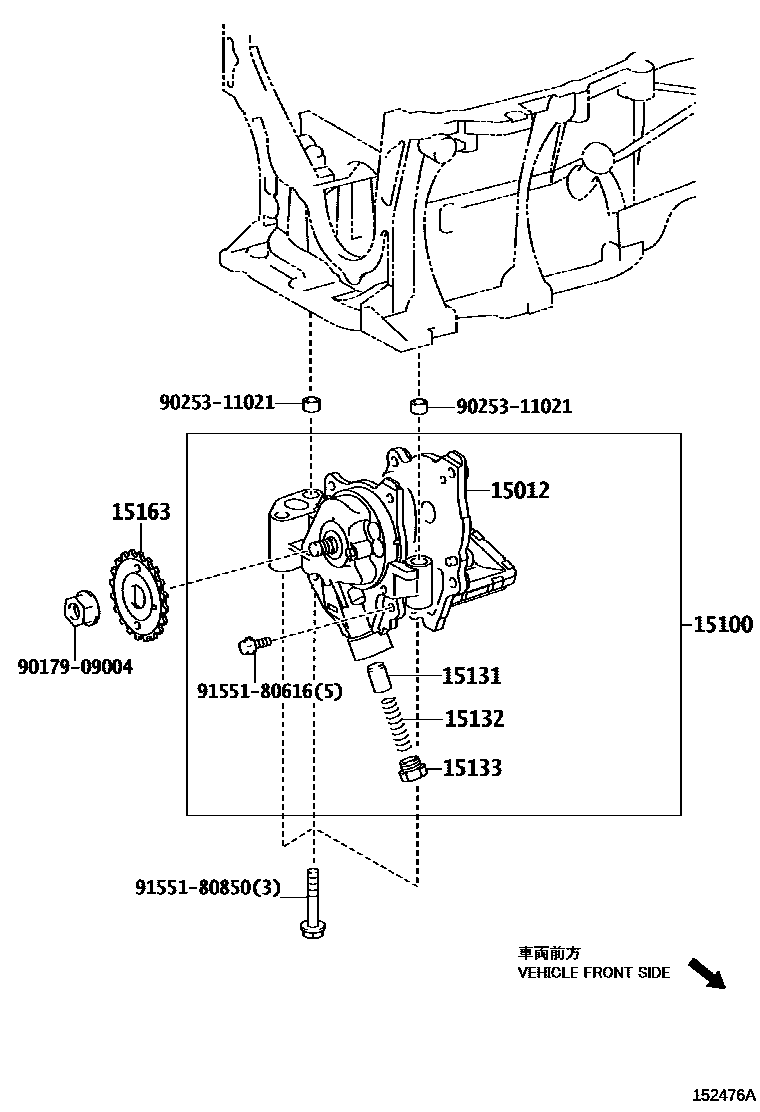

Toyota RAV4 Engine Oil Pump — Figure 1501
Toyota RAV4 EPC diagram 1501, Engine Oil Pump, with 5 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13507A | Oil pump drive chain sub-assembly | 13507-WA020 |
| 15012 | Oil pump cover sub-assembly | 15012-37010 |
| 15100 | Oil pump assembly | 15100-37020 · 15100-37021 · 15100-37030 · 15100-WA010 |
| 15104 | Oil filter sub-assembly | 15104-0V020 · 15104-26010 · 15104-26030 · 15104-36030 · 15104-WA010 |
| 15104A | O-ring (for oil filter) | 90069-38027 · 90301-27013 |
| 15115 | oil pump cover | 15120-WA010 |
| 15131 | Oil pump pressure reducing valve | 15131-0A040 |
| 15132 | Oil pump pressure reducing valve spring | 15132-26030 · 15132-46060 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-28020 · 15133-33040 |
| 15147 | Oil filter gasket | 15147-0V010 · 15147-36010 |
| 15163 | Oil pump drive shaft gear | 15163-28010 · 15163-WA010 |
