Toyota RAV4 Timing Gear Cover & Rear End Plate — Figure 1106

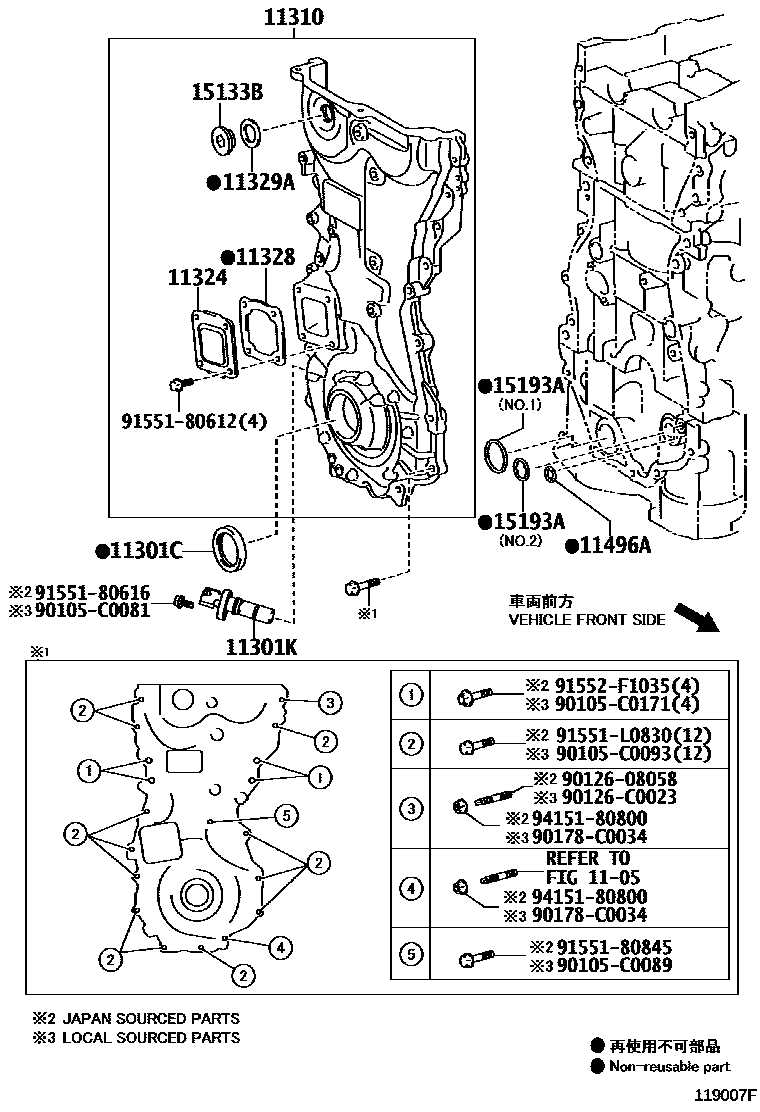

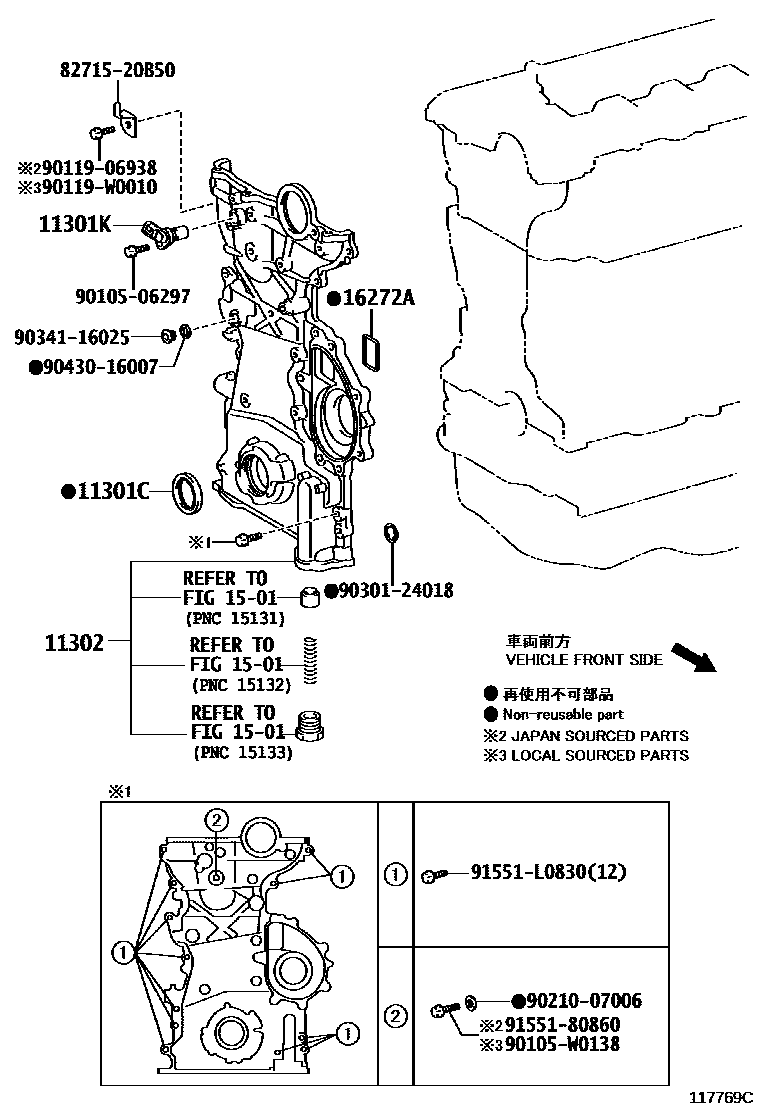

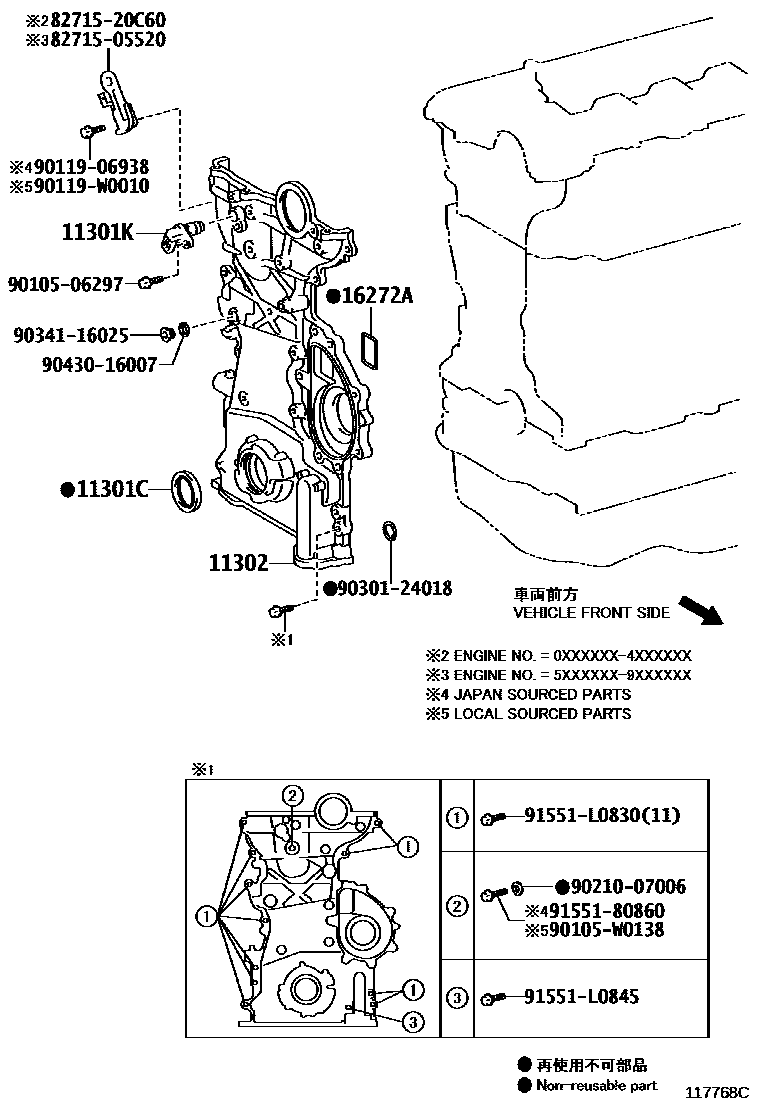

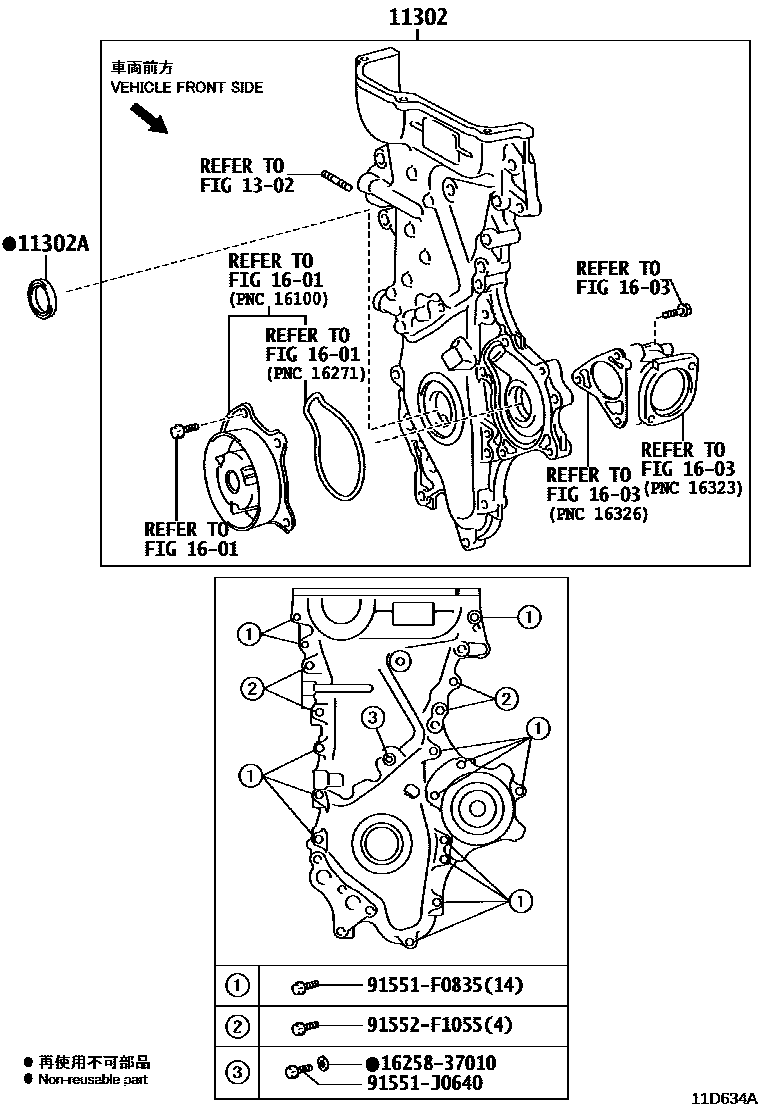

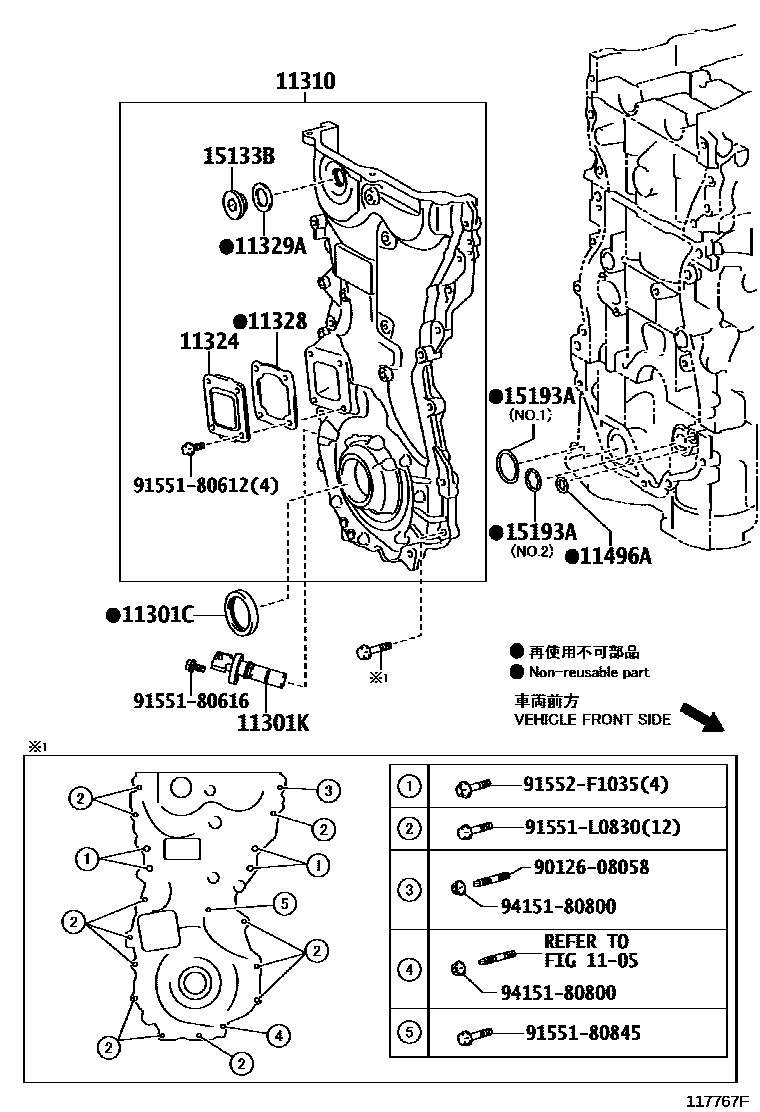

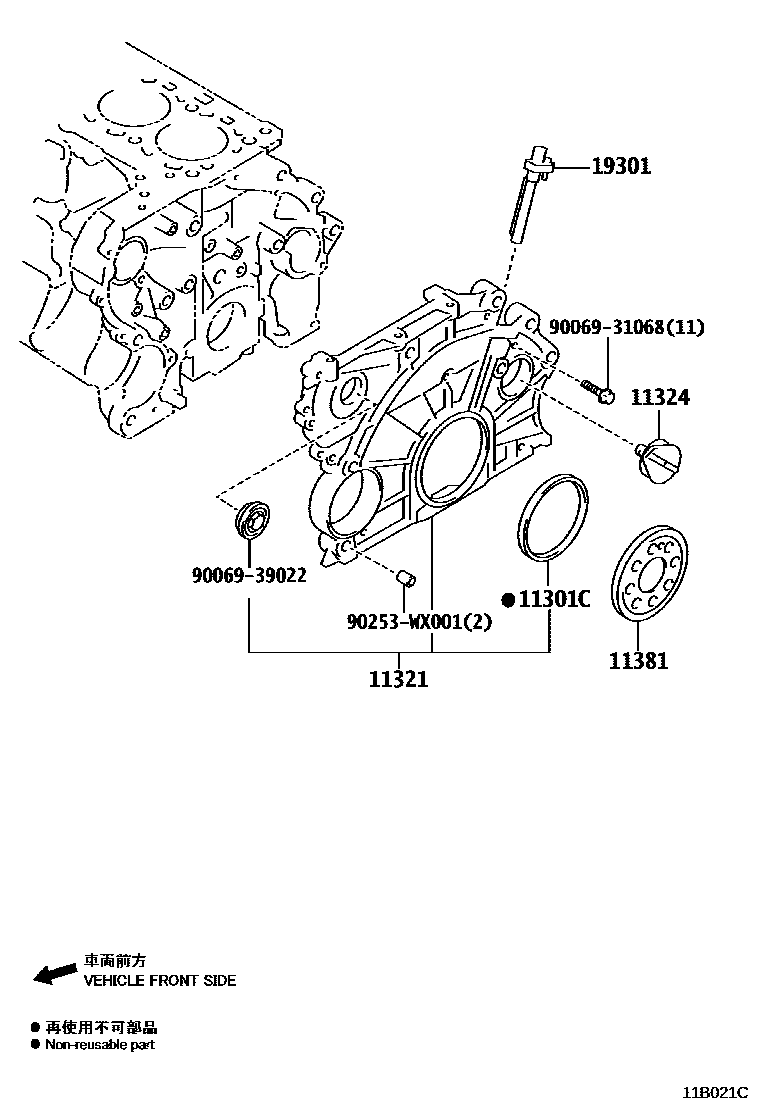

Toyota RAV4 EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 6 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90069-38025 · 90311-40042 · 90311-42061 · 90311-48030 · 90311-C0036 · 90311-W0009 · 90311-W0019 |
| 11301K | crankshaft position sensor | 90919-05029 · 90919-05061 · 90919-05070 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11302-0R020 · 11302-0R030 · 11302-26030 · 11310-37032 · 11310-37070 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90311-38096 |
| 11310 | ENSEMBLE COUVERCLE, CHAINE DE DISTRIBUTION | 11310-0V030 · 11310-36020 |
| 11321 | timing gearbox | 11321-WA010 |
| 11324 | Timing chain cover | 11324-36010 · 11324-WA010 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-36020 |
| 11329A | No. 2 timing belt or chain cover gasket | 11329-36020 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-WA010 · 11381-WA011 |
| 11496A | Oil hole cover gasket | 11496-0V010 · 11496-36010 |
| 15133B | PLUG, OIL PUMP RELIEF VALVE | 15133-36020 |
| 15193A | oil pump gasket | 15193-0V010 · 15193-36010 · 15197-0V010 · 15197-36010 |
| 16272A | No. 2 water pump gasket | 16272-26010 |
| 19301 | ENS. CAPTEUR, POSITION DU VILEBREQUIN | 19301-WA010 |
