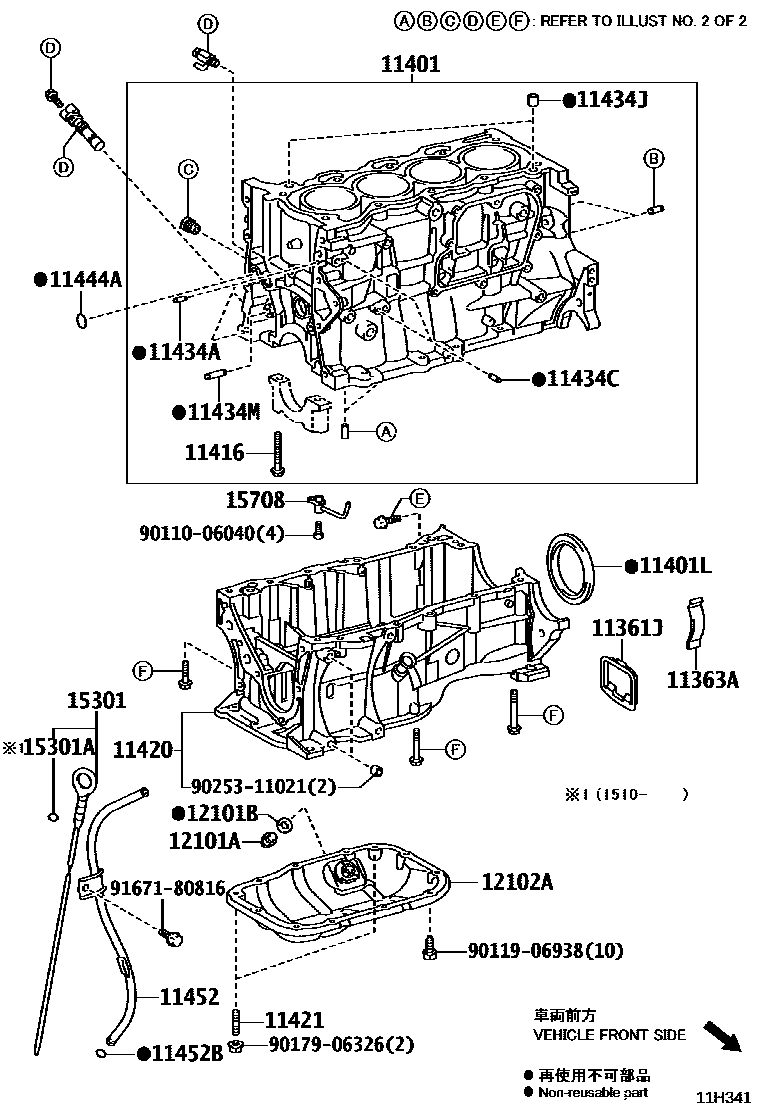

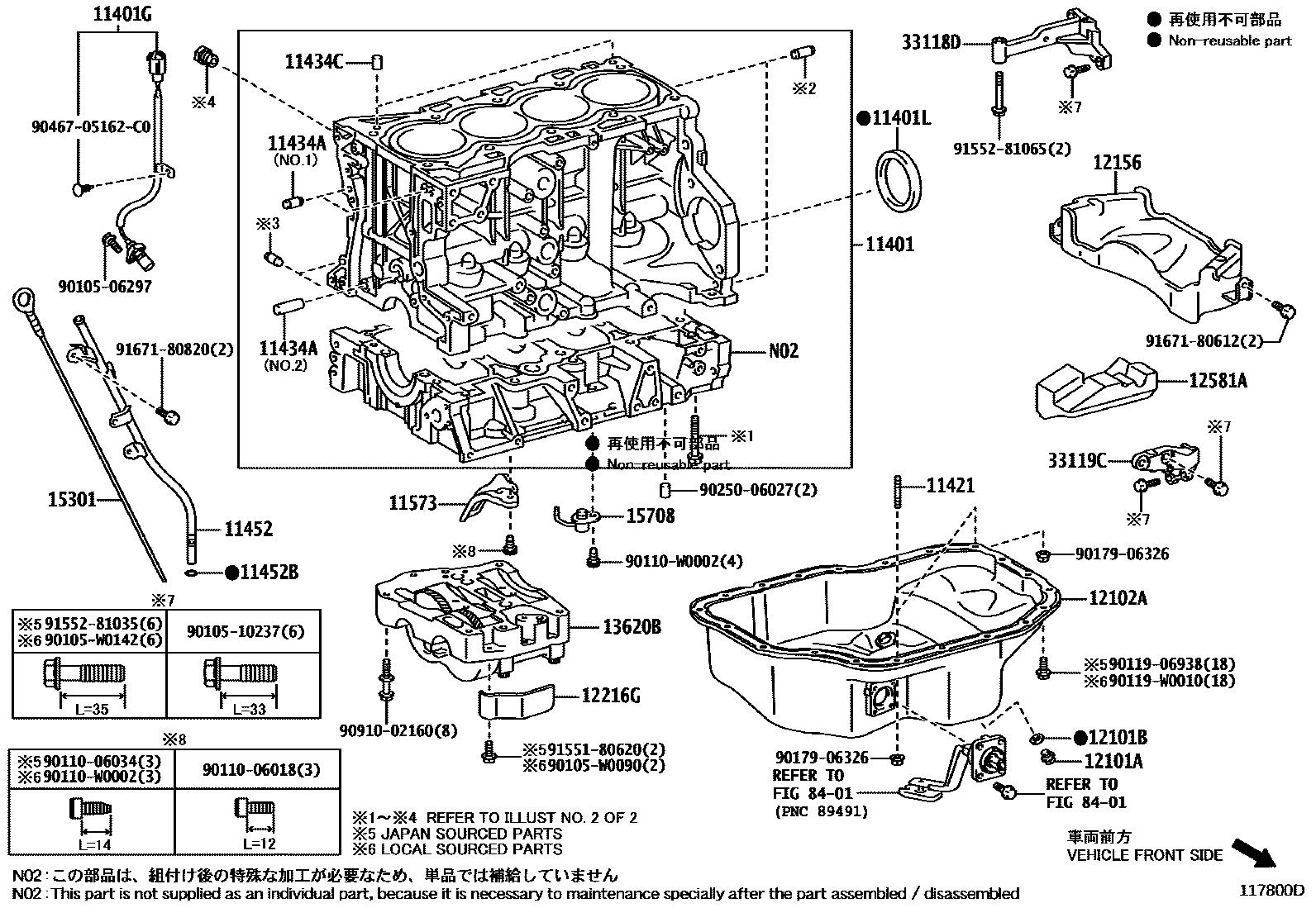

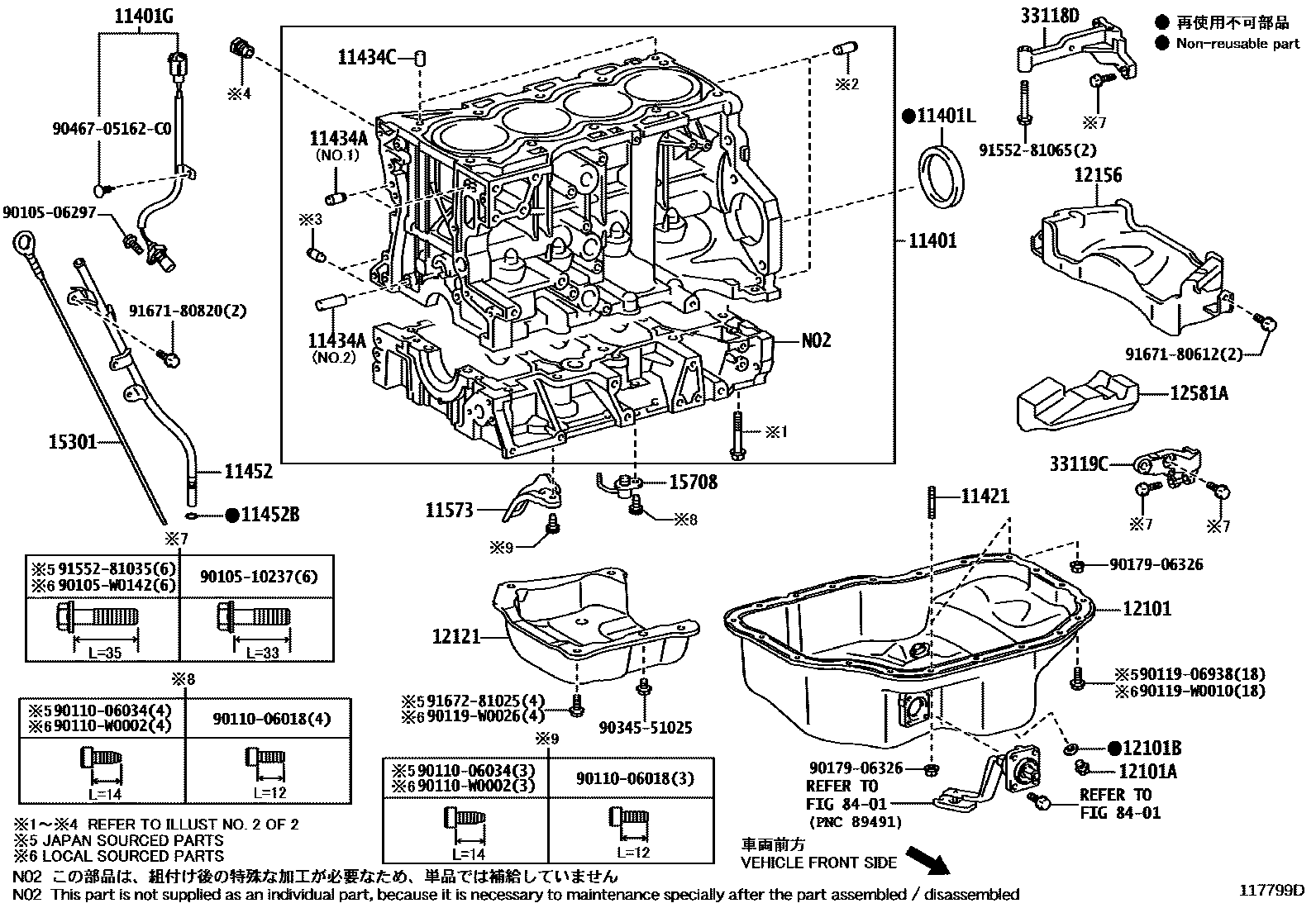

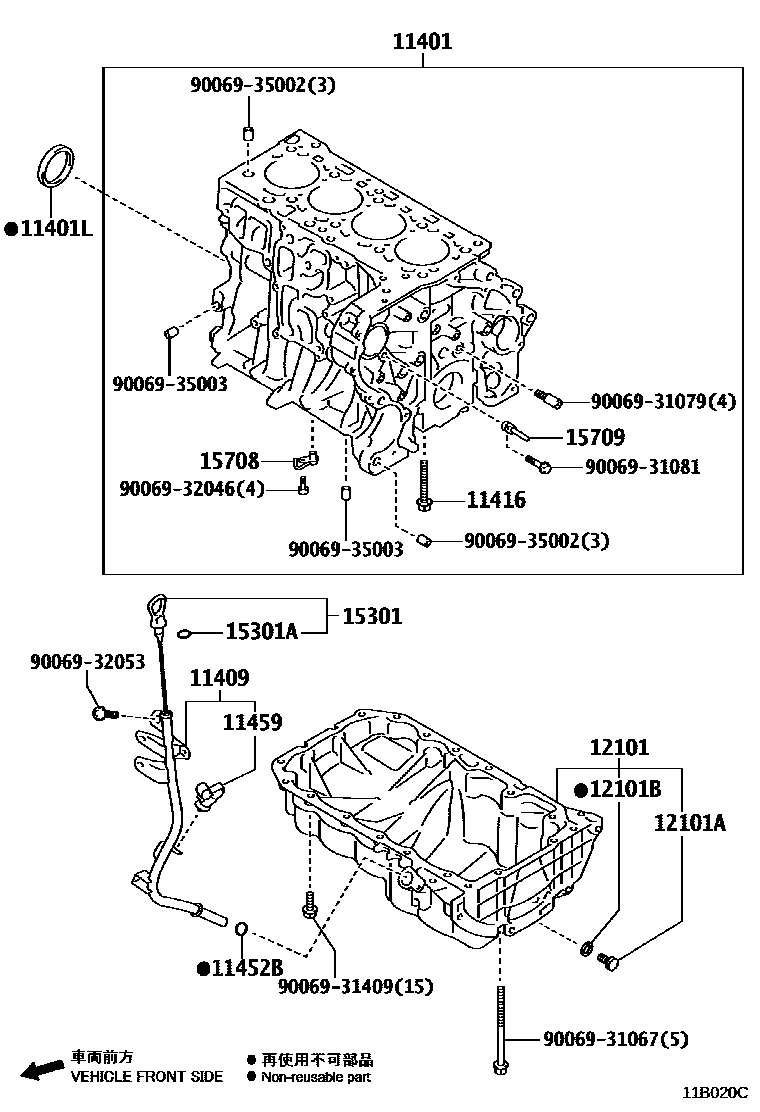

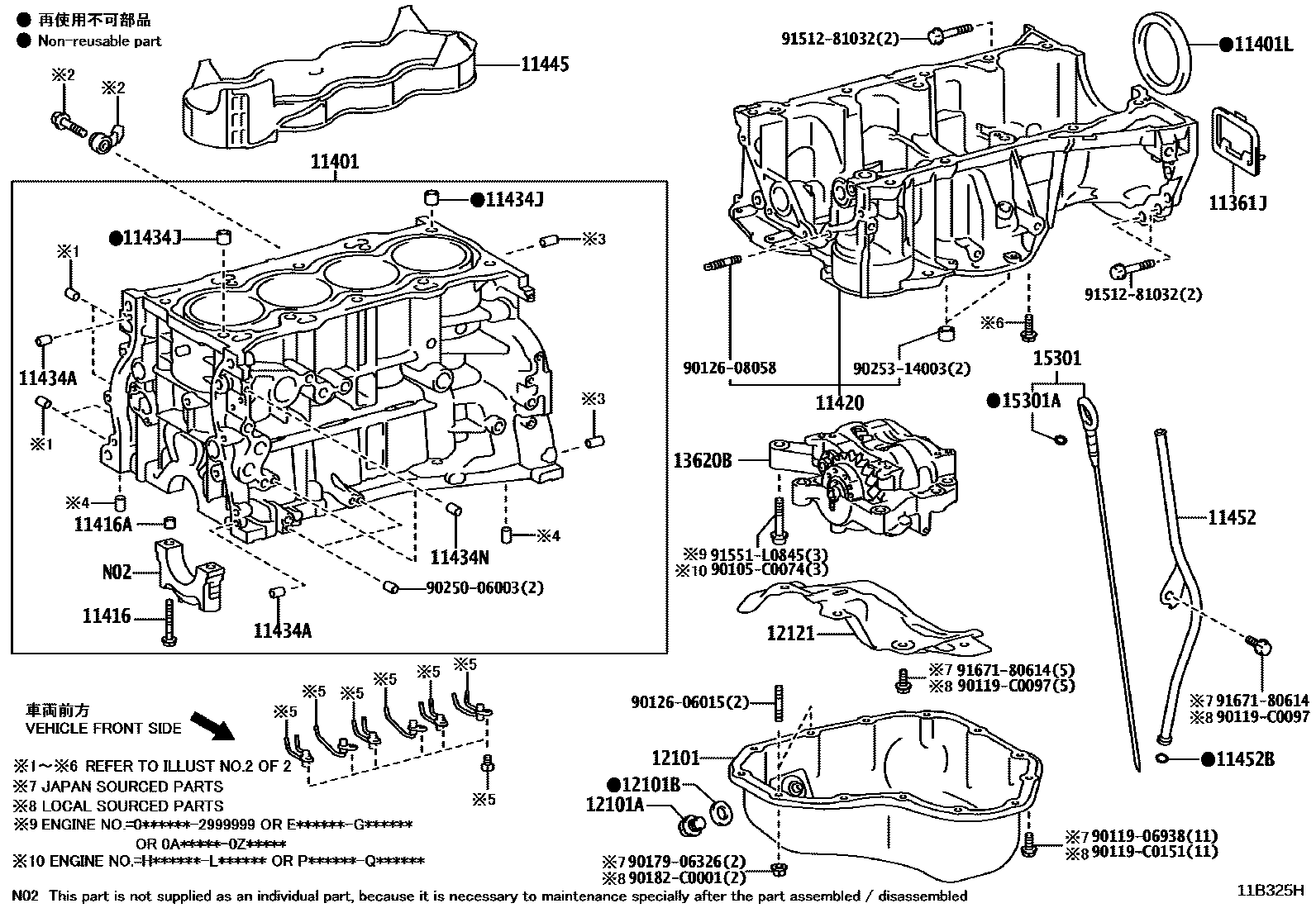

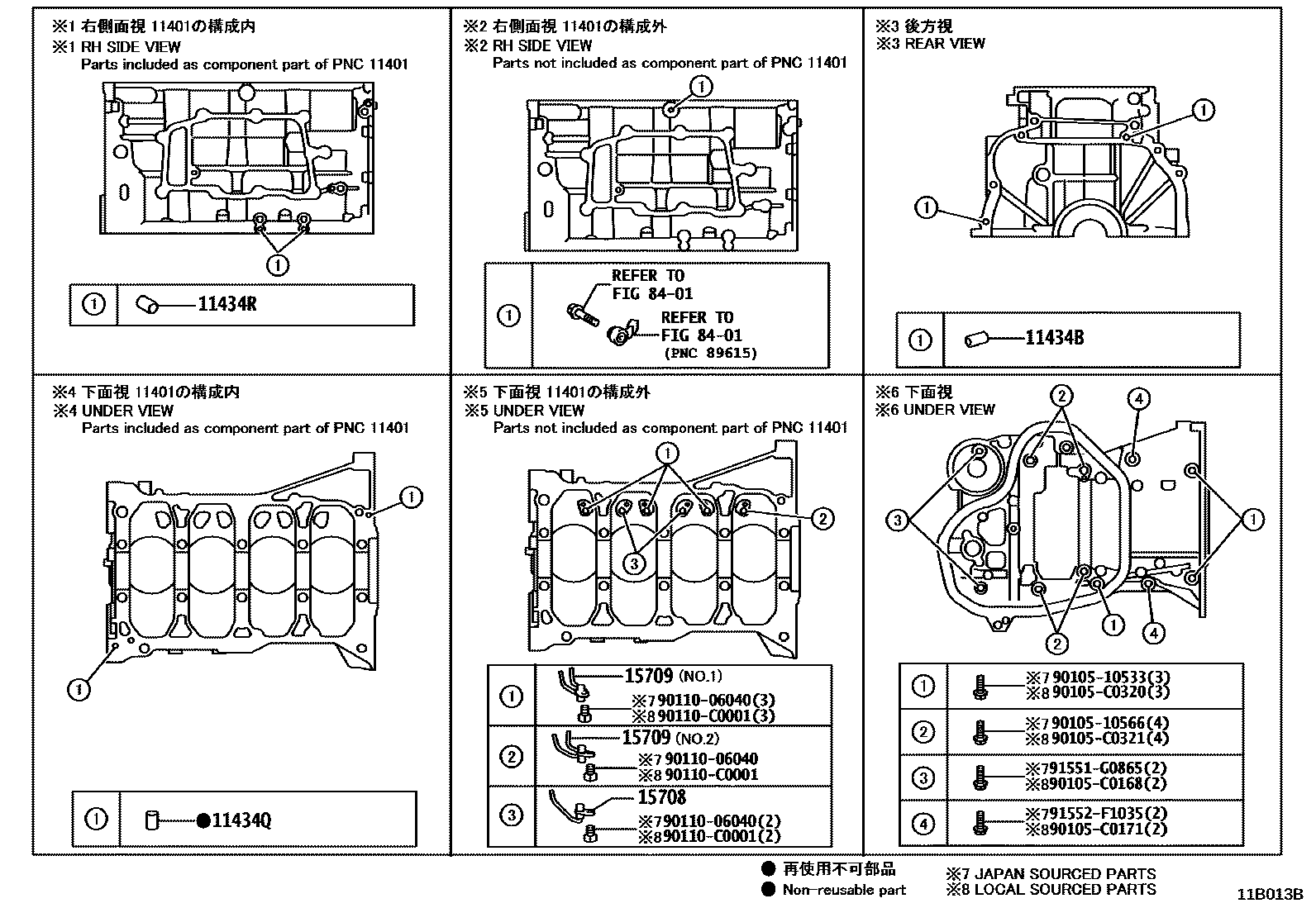

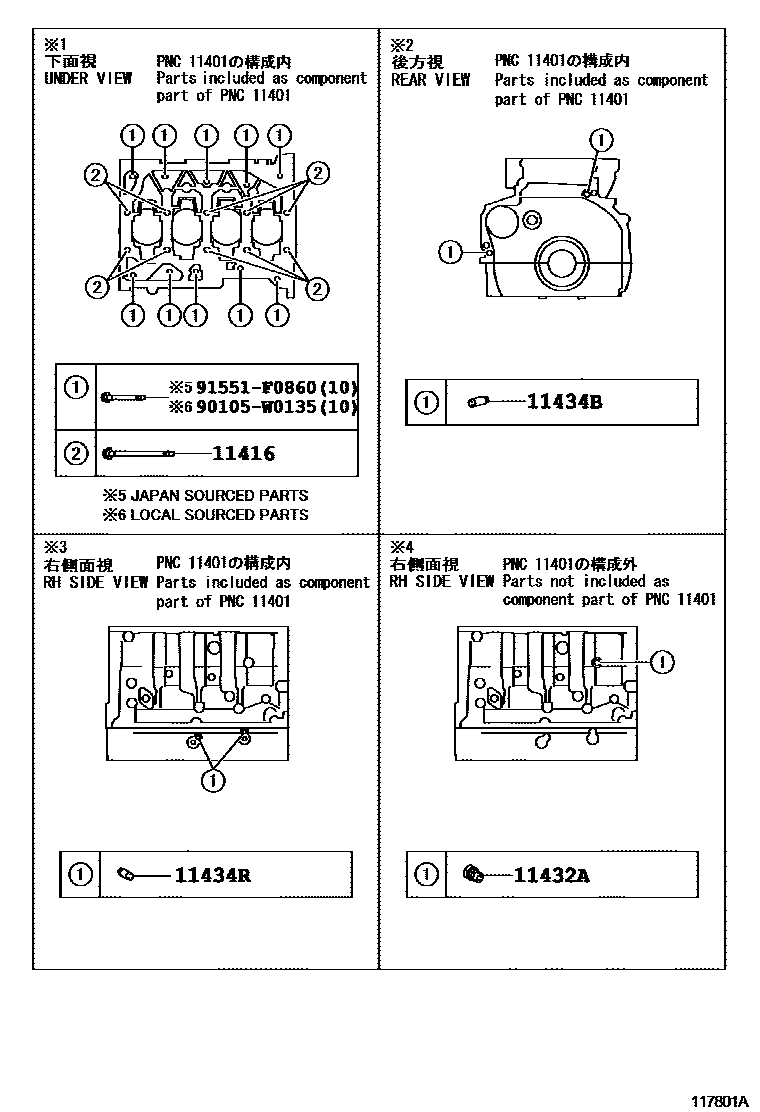

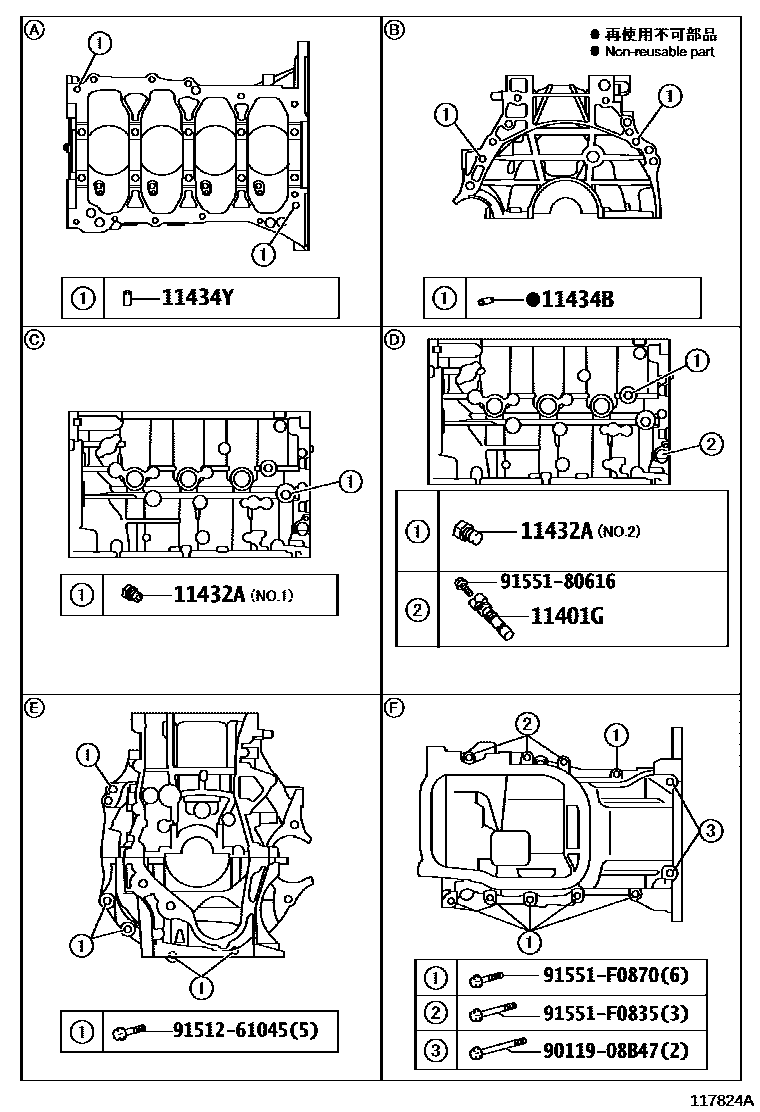

Toyota RAV4 Cylinder Block — Figure 1105

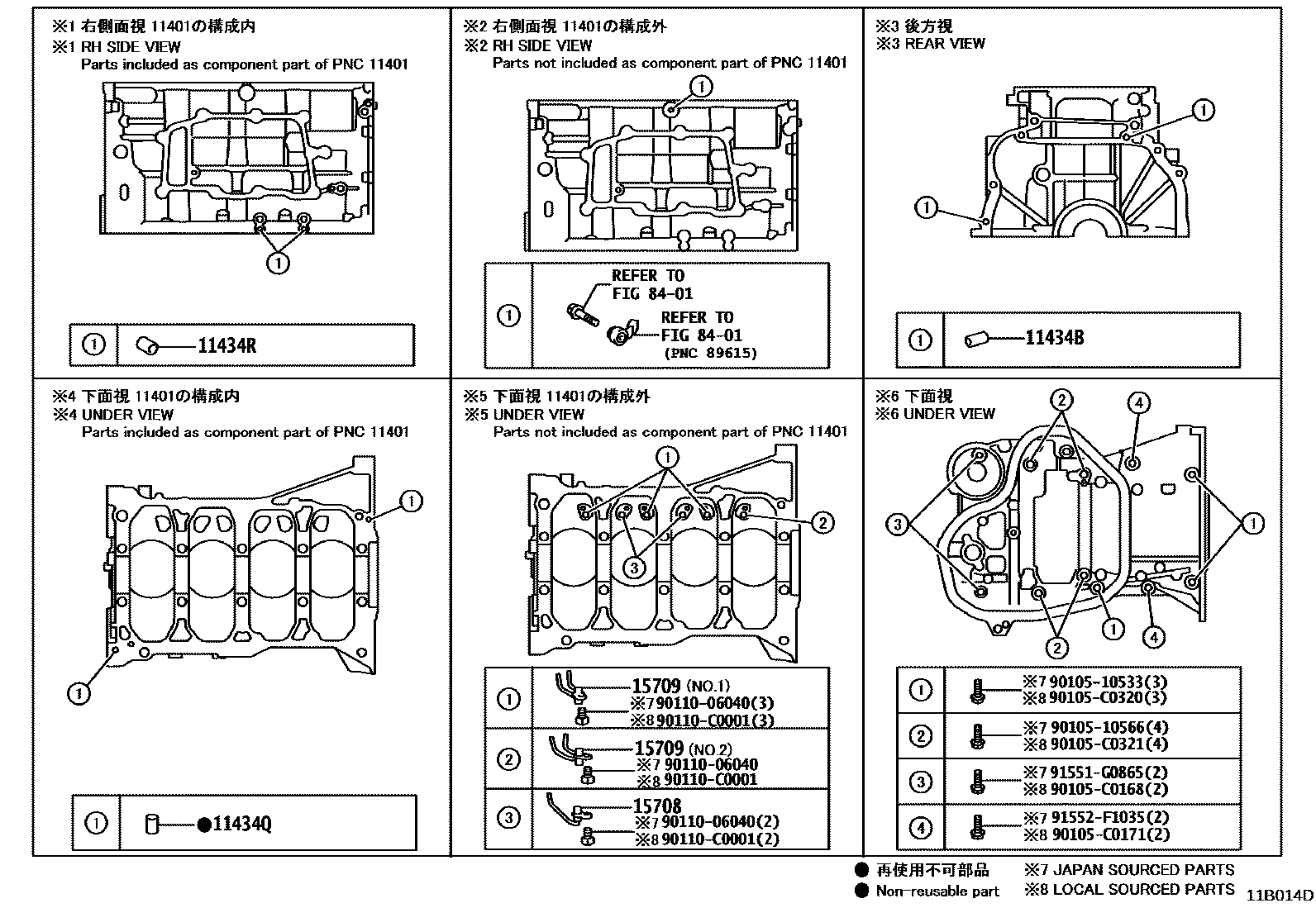

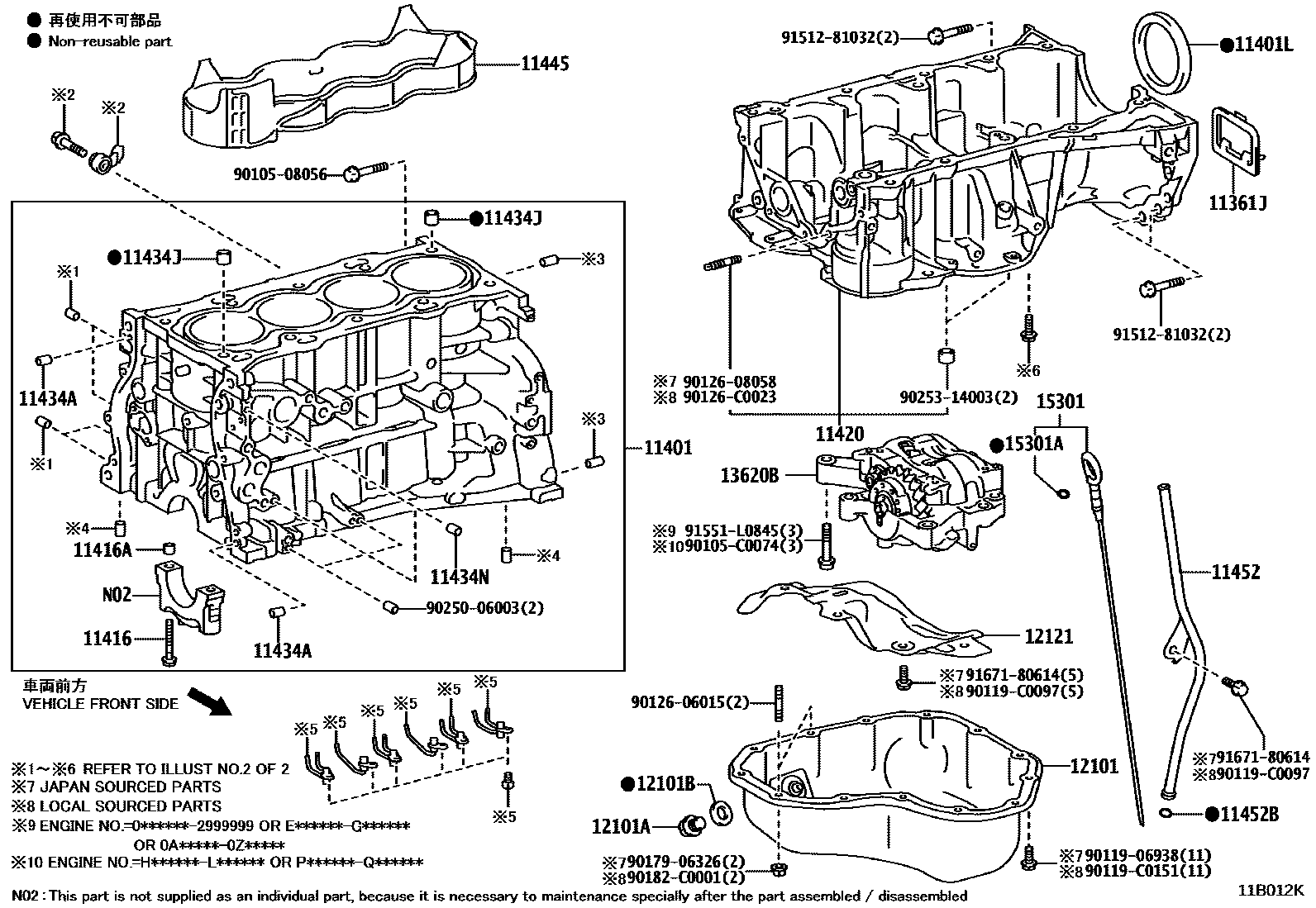

Toyota RAV4 EPC diagram 1105, Cylinder Block, with 10 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-21011 · 11361-28010 |
| 11363A | Flywheel housing side cover | 11363-21010 · 11363-33010 |
| 11401 | Cylinder block sub-assembly | 11401-WA030 · 11410-09406 · 11410-09416 · 11410-09417 · 11410-09570 · 11410-29406 · 11410-29416 · 11410-39035 · 11410-39036 · 11410-39037 · 11410-39126 |
| 11401G | crankshaft position sensor | 90919-05069 · 90919-05070 · 90919-05091 |
| 11401L | SEAL, ENGINE REAR OIL | 90069-38023 · 90311-76002 · 90311-78002 · 90311-89015 · 90311-90009 · 90311-C0023 · 90311-W0010 · 90311-W0020 |
| 11409 | Engine oil level gauge guide sub-assembly | 11409-YV010 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90069-31092 · 90910-02157 · 90910-02163 · 90910-02173 · 90910-C2005 |
| 11416A | Ring pin (for crankshaft bearing cap assembly) | 90253-13017 · 90253-C0006 |
| 11420 | Reinforce crankcase assembly | 11420-0V020 · 11420-36020 · 11420-37020 |
| 11421 | Stud bolts (for oil pan) | 90116-06134 · 90126-06028 |
| 11432A | No. 1 headed tapered thread plug | 90345-52001 · 90345-53006 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-04097 · 90250-06003 · 90250-08120 · 90250-10030 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 · 90250-C0012 |
| 11434C | Direct sales (for cylinder head components) | 90250-04097 · 90250-08074 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13001 · 90253-15001 · 90253-C0008 |
| 11434M | Direct pin (for chain tensioner) | 90250-10030 |
| 11434N | Direct sales (for water inlet housing) | 90250-06003 |
| 11434Q | Direct sales (for crankcase) | 90250-06003 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 · 90250-08120 |
| 11434Y | Direct sales (for oil pan) | 90250-08120 |
| 11444A | O-ring | 96723-24020 |
| 11445 | Cylinder block water jacket spacer | 11445-0V020 · 11445-36010 |
| 11452 | Engine oil level gauge guide | 11452-0V020 · 11452-26060 · 11452-36050 · 11452-37020 |
| 11452B | O-ring (for oil level gauge guide) | 90069-38029 · 90301-C0037 · 96721-19010 · 96741-19010 |
| 11459 | Oil level gauge guide bracket | 11459-WA010 |
| 11573 | Oil reflector baffle | 11573-26010 |
| 12101 | Oil pan sub-assembly | 12101-0V040 · 12101-26030 · 12101-36050 · 12101-WA010 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90069-39020 · 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90069-38021 · 90430-12031 · 90430-C0005 |
| 12102A | No. 2 oil pan sub-assembly | 12102-0R021 · 12102-0R022 · 12102-37010 |
| 12121 | No. 1 oil pan baffle | 12121-0V020 · 12121-26020 · 12121-36030 |
| 12156 | Oil pan vibration isolation pad | 12156-26020 |
| 12216G | Oil baffle | 12216-26011 |
| 12581A | No. 1 cylinder block vibration isolation pad | 12581-26010 |
| 13620B | Engine balancer assembly | 13620-26042 · 13620-36020 · 13620-36060 |
| 15301 | Engine oil level scoring assembly | 15301-0V010 · 15301-26070 · 15301-26080 · 15301-36031 · 15301-37040 · 15301-YV030 |
| 15301A | O-ring (for engine oil level gauge) | 90069-38028 · 96741-19005 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-0R011 · 15708-0R020 · 15708-0V020 · 15708-36010 · 15708-37012 · 15708-WA010 |
| 15709 | No. 2 oil nozzle sub-assembly | 15708-WA020 · 15709-36010 · 15709-36020 |
| 33118D | Right reinforcement plate | 33118-42010 |
| 33119C | Left reinforcement plate | 33119-42011 |
