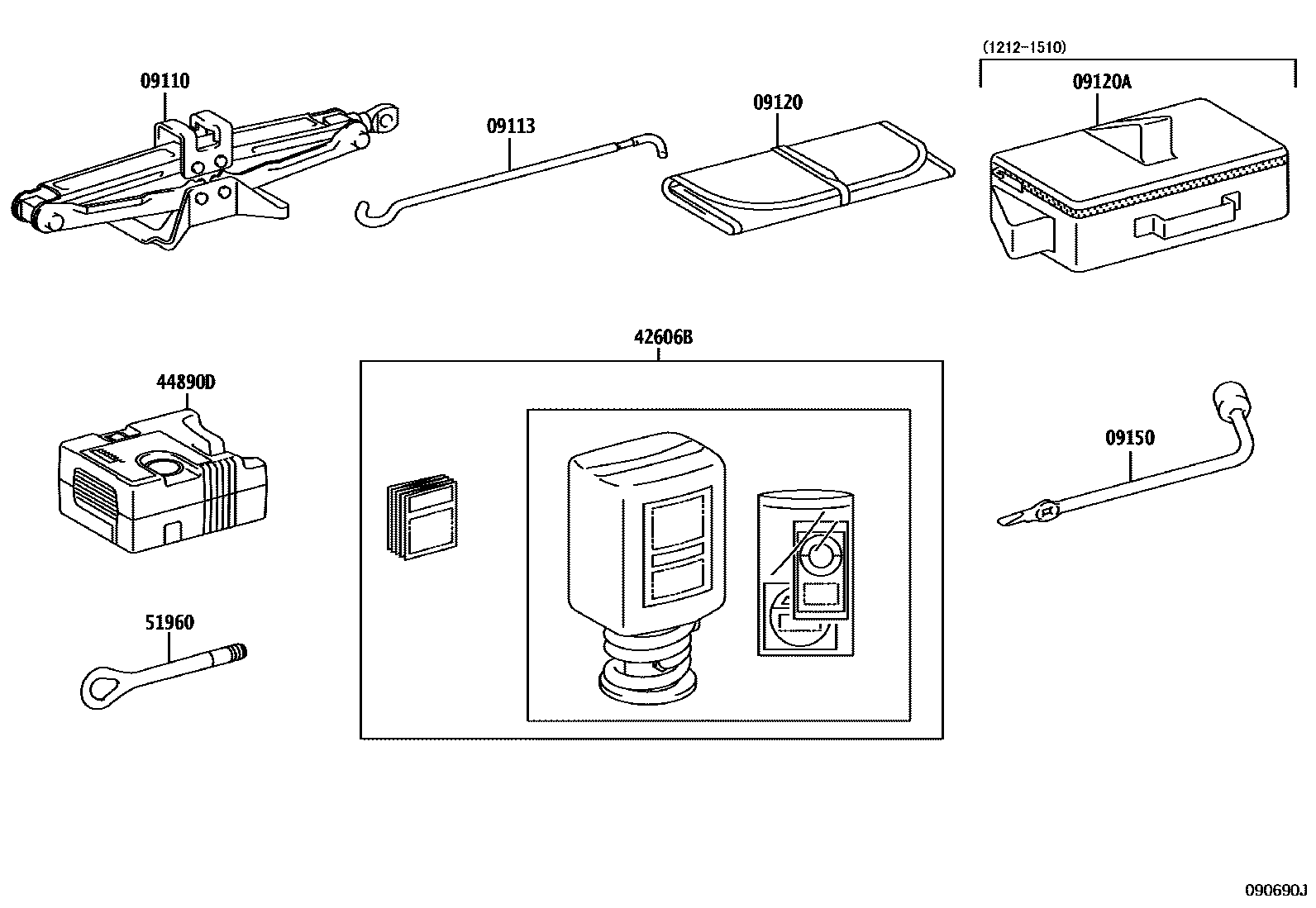

Toyota RAV4 Standard Tools — Figure 0901
Toyota RAV4 EPC diagram 0901, Standard Tools, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09110-42070 · 09111-0E011 · 09111-0R030 · 09111-0W140 · 09111-0W150 |
| 09113 | Jack Handle | 09113-42030 |
| 09120 | Tool Bag | 09120-10040 |
| 09120A | Tool Box | 09120-42050 |
| 09150 | Wheel Nut Wrench | 09150-42010 |
| 42606B | Tubeless tire repair components | 42606-50040 |
| 44890D | Air Compressor Assembly | 44890-42030 |
| 51960 | Front Towing Hook Assembly | 51961-42040 |
