Toyota RAV4 antenna — Figure 8604

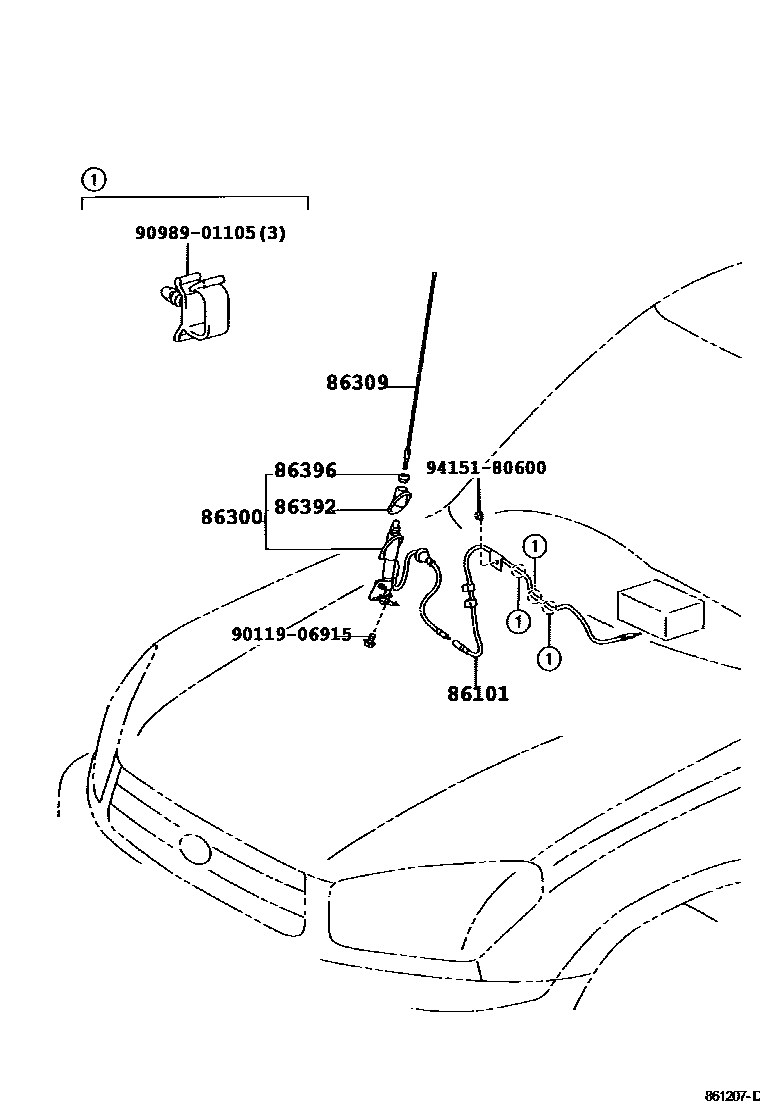

Toyota RAV4 EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-42130 |
| 86300 | Antenna assembly with fixing parts | 86300-42070 |
| 86309 | Cylindrical antenna sub-assembly | 86309-42040 · 86309-42041 |
| 86392 | Antenna decorative parts | 86392-42010 |
| 86396 | Antenna nut | 86396-16020 |
