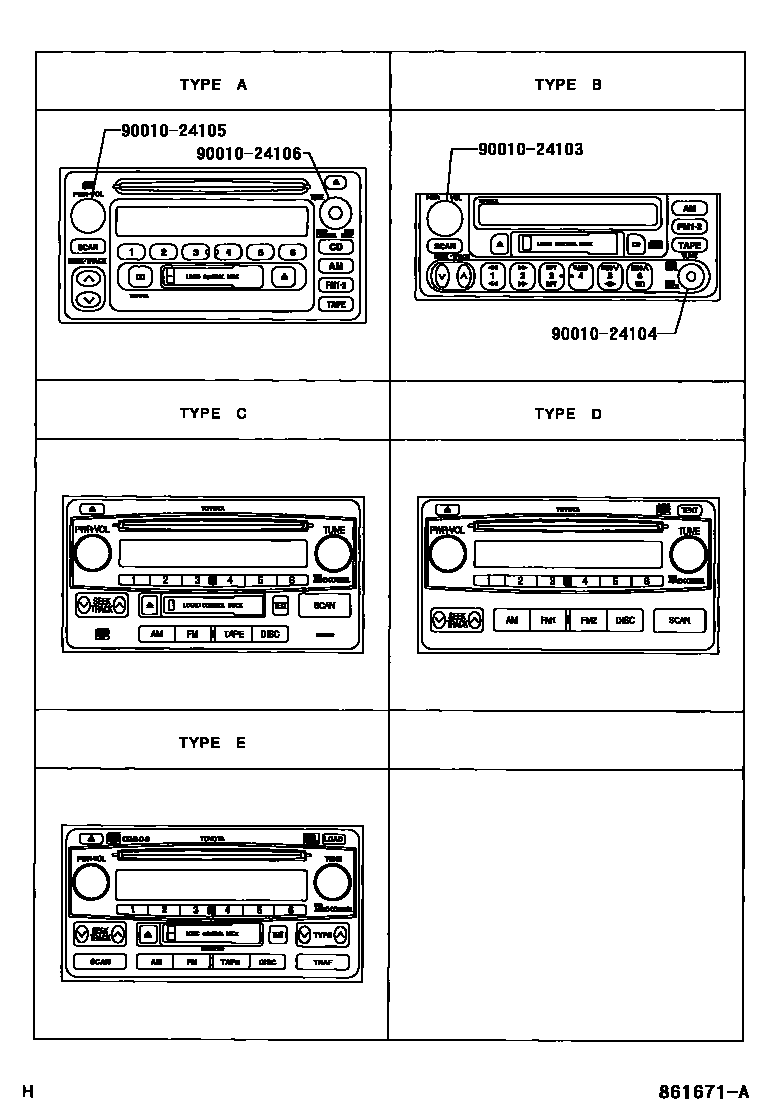

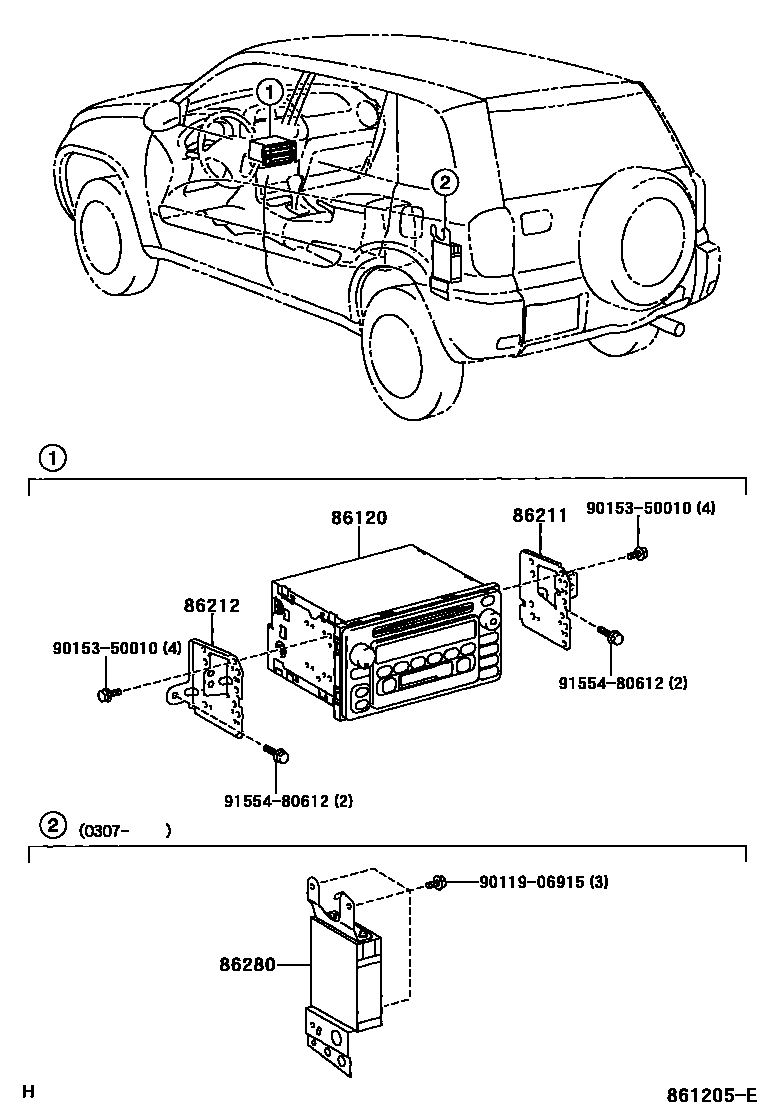

Toyota RAV4 收音机、放大器和冷凝器 — Figure 8601
Toyota RAV4 EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011C | Noise filter | 90980-05344 |
| 86120 | Radio assembly | 86120-2B760 · 86120-2B761 · 86120-35262 · 86120-42030 · 86120-42040 · 86120-42090 · 86120-42110 · 86120-42120 |
| 86211 | No. 1 radio bracket | 86211-42030 |
| 86212 | No. 2 radio bracket | 86212-42030 |
| 86280 | Stereo parts amplifier assembly | 86280-0W110 |
