Toyota RAV4 巡航控制(自动行驶) — Figure 8408

Toyota RAV4 EPC diagram 8408, 巡航控制(自动行驶), with 2 images and 8 PNC and OE references.

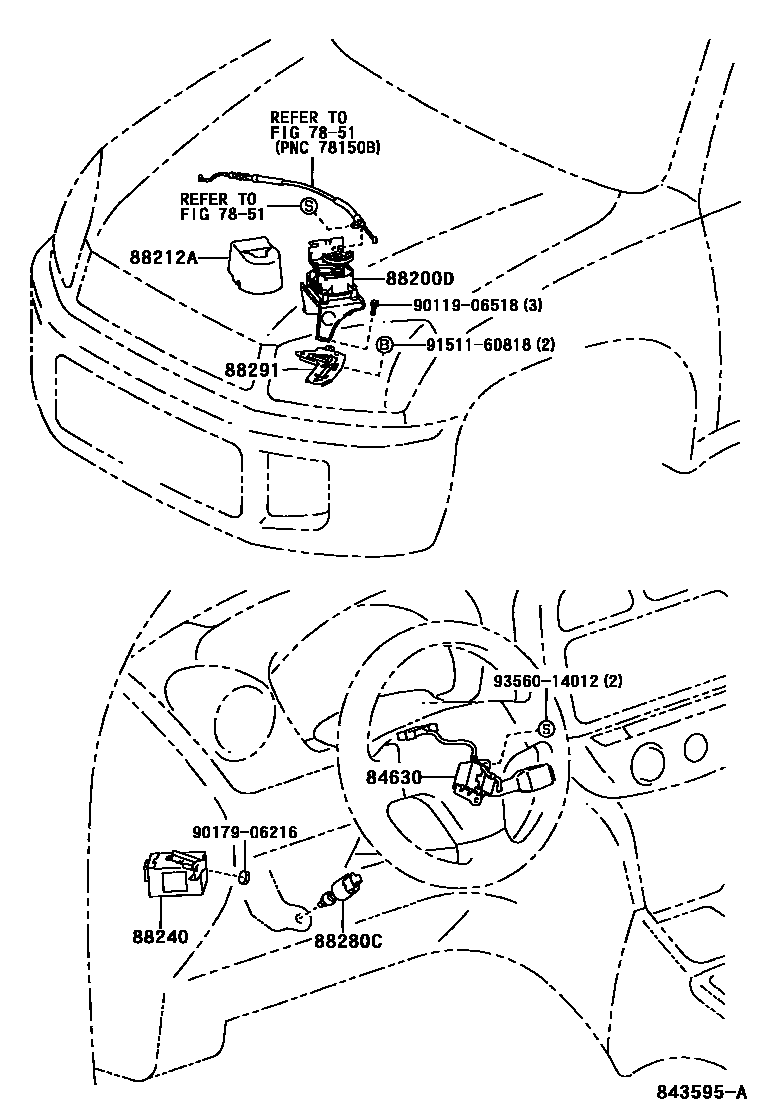

Toyota RAV4 巡航控制(自动行驶) EPC diagram — 843595A
巡航控制(自动行驶) — 843595A (200008 – 200307)

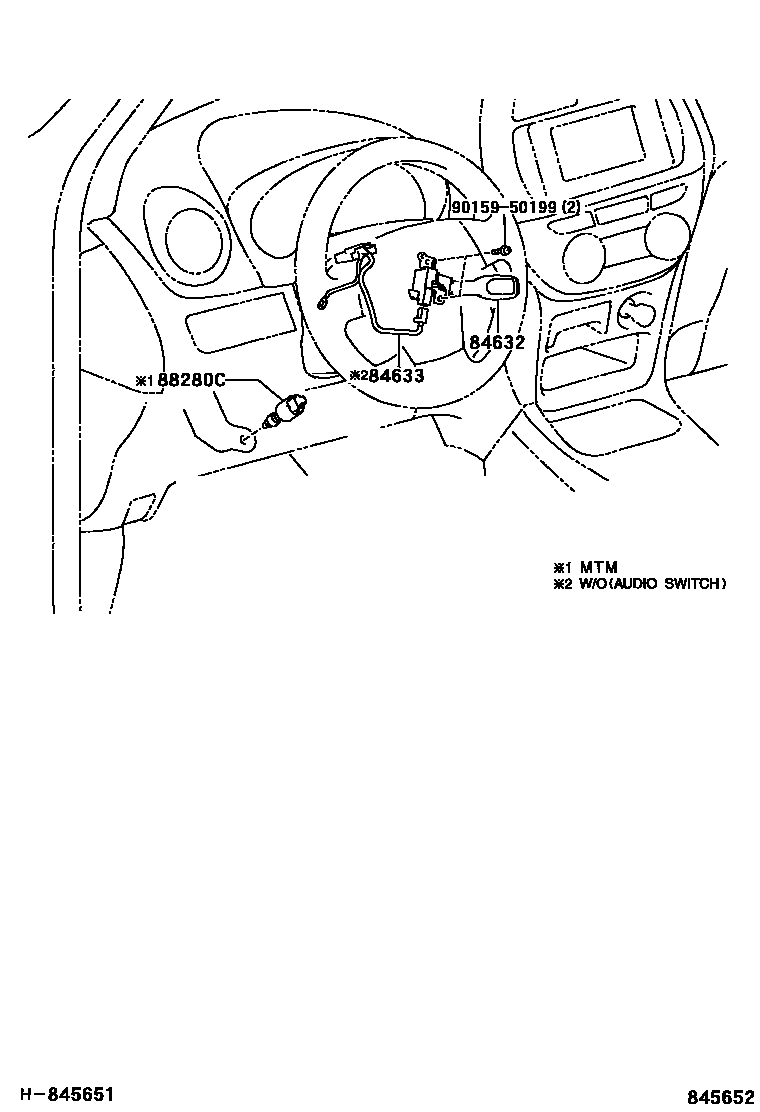

Toyota RAV4 巡航控制(自动行驶) EPC diagram — 845652
巡航控制(自动行驶) — 845652 (200307 – 999999)

PNC and OE references

PNCPart nameOE numbers
84630Cruise control main switch assembly84630-20150
84632cruise control master switch84632-34010 · 84632-34011
84633cruise control switch wiring harness84633-64010
88200DCruise control actuator assembly88200-42020
88212Acruise control actuator cover88212-42010
88240Cruise control ECU assembly88240-42040 · 88240-42050
88280CClutch switch assembly88280-14030
88291No. 1 cruise control (automatic driving) bracket17119-22050
