Toyota RAV4 电子燃油喷射系统 — Figure 8404

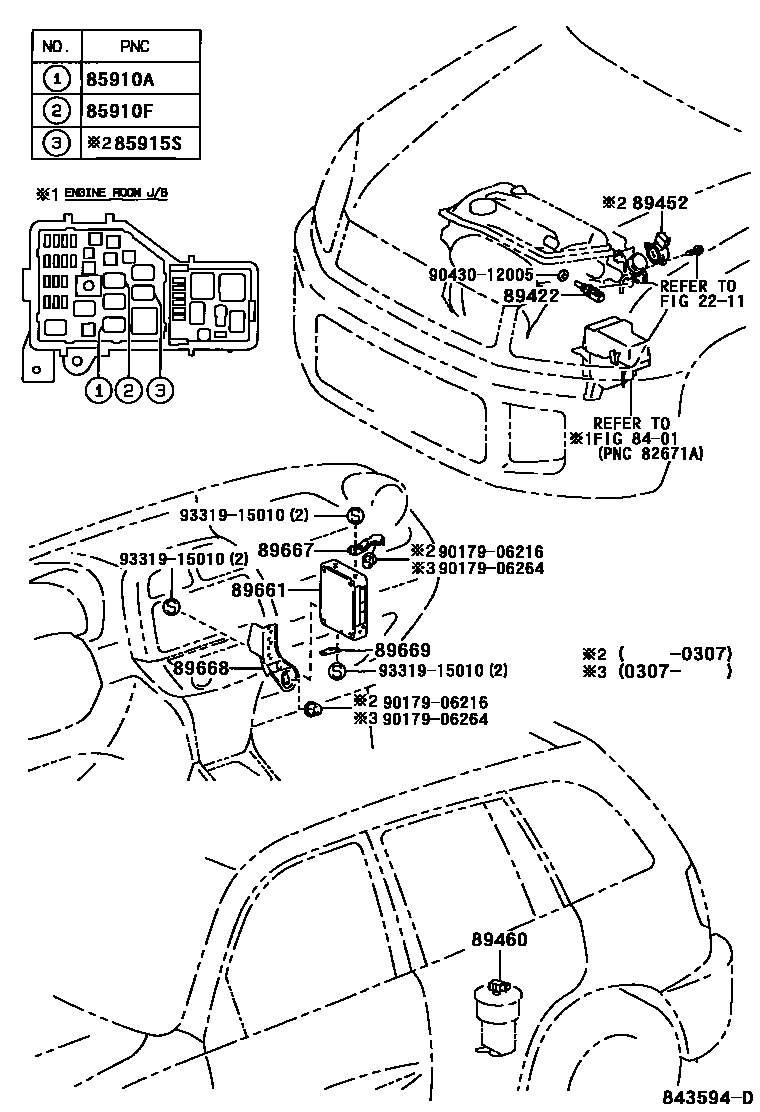

Toyota RAV4 EPC diagram 8404, 电子燃油喷射系统, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90987-02012 · 90987-02027 |
| 85910F | ECU relay (for EFI) | 90987-02012 · 90987-02027 |
| 85915S | Heater relay (for air-fuel ratio sensor) | 90987-02012 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 · 89422-35010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-33030 |
| 89460 | Steam pressure sensor assembly | 89461-35010 |
| 89661 | Engine control ECU | 89661-42630 · 89661-42631 · 89661-42632 · 89661-42640 · 89661-42641 · 89661-42642 · 89661-42650 · 89661-42651 · 89661-42652 · 89661-42660 · 89661-42661 · 89661-42662 · 89661-42790 · 89661-42791 · 89661-42800 · 89661-42801 · 89661-42810 · 89661-42811 · 89661-42820 · 89661-42821 · 89661-42860 · 89661-42861 · 89661-42870 · 89661-42871 · 89661-42880 · 89661-42890 · 89661-42A60 · 89661-42A70 · 89661-42A80 · 89661-42A81 · 89661-42A90 · 89661-42A91 · 89661-42B00 · 89661-42B01 · 89661-42B60 · 89661-42B70 · 89661-42B80 · 89661-42B90 |
| 89667 | Engine control ECU bracket | 89667-42040 |
| 89668 | No. 2 engine control ECU bracket | 89668-42040 |
| 89669 | No. 3 engine control ECU bracket | 89669-42040 |
