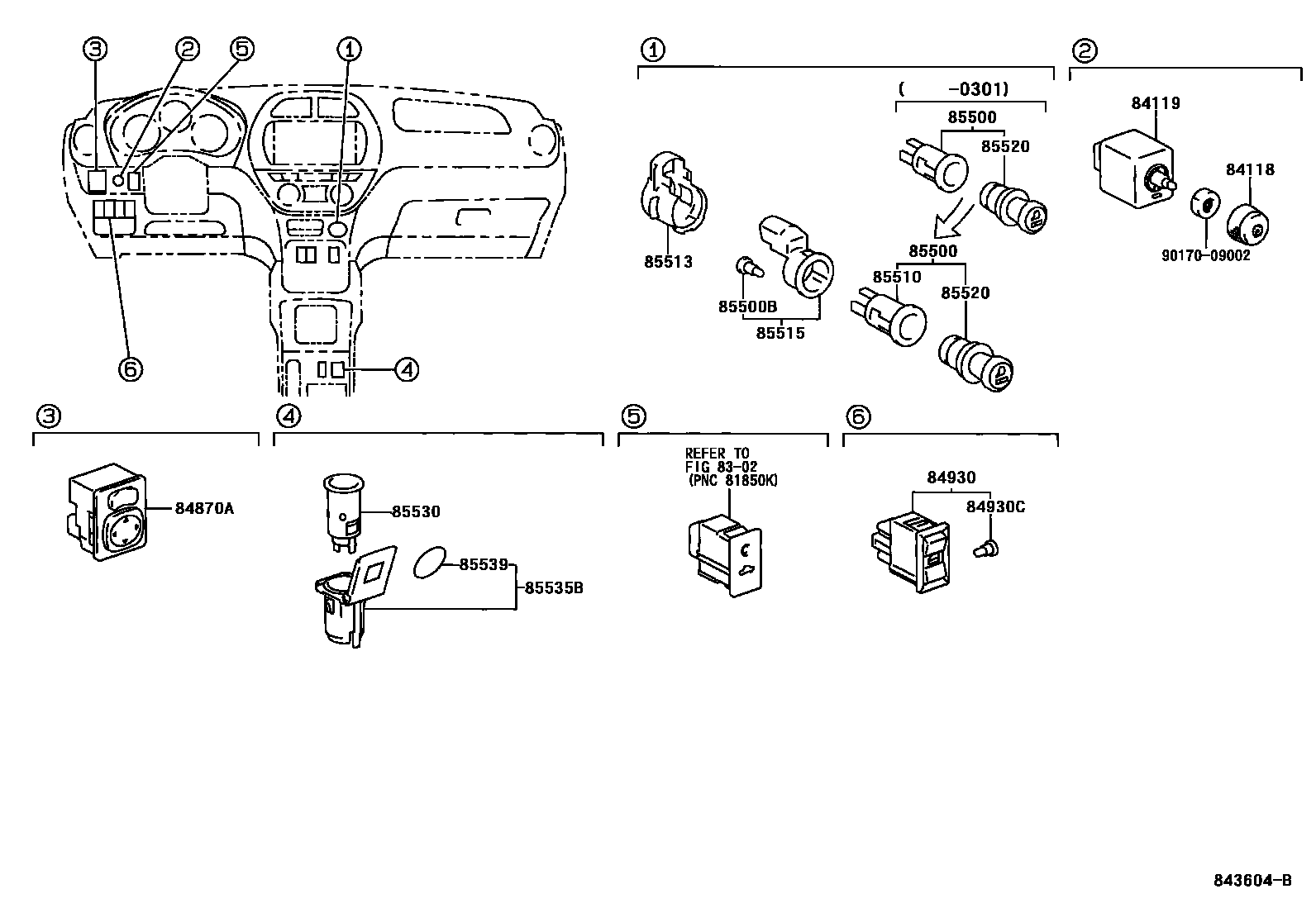

Toyota RAV4 开关和继电器和ECU — Figure 8401

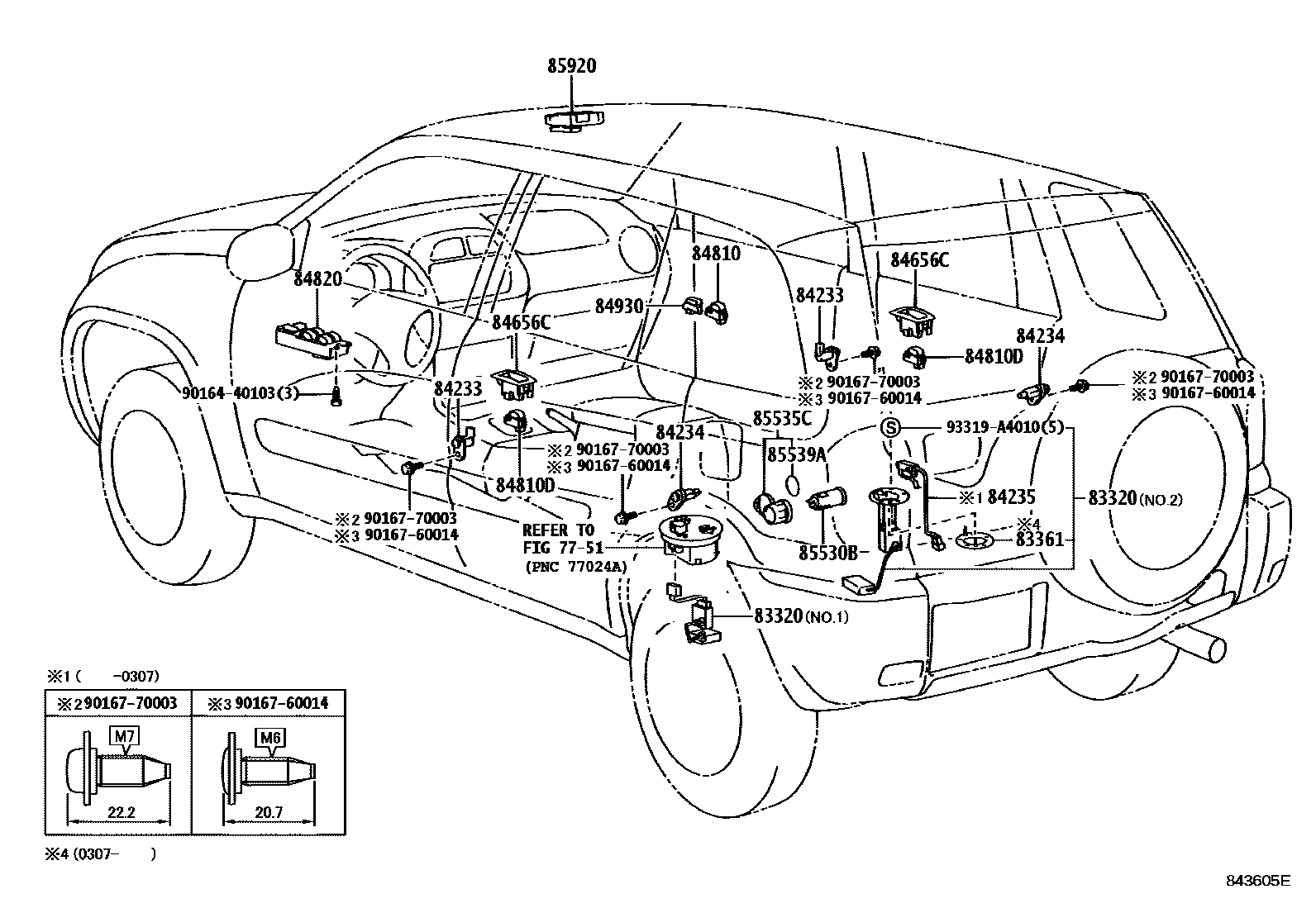

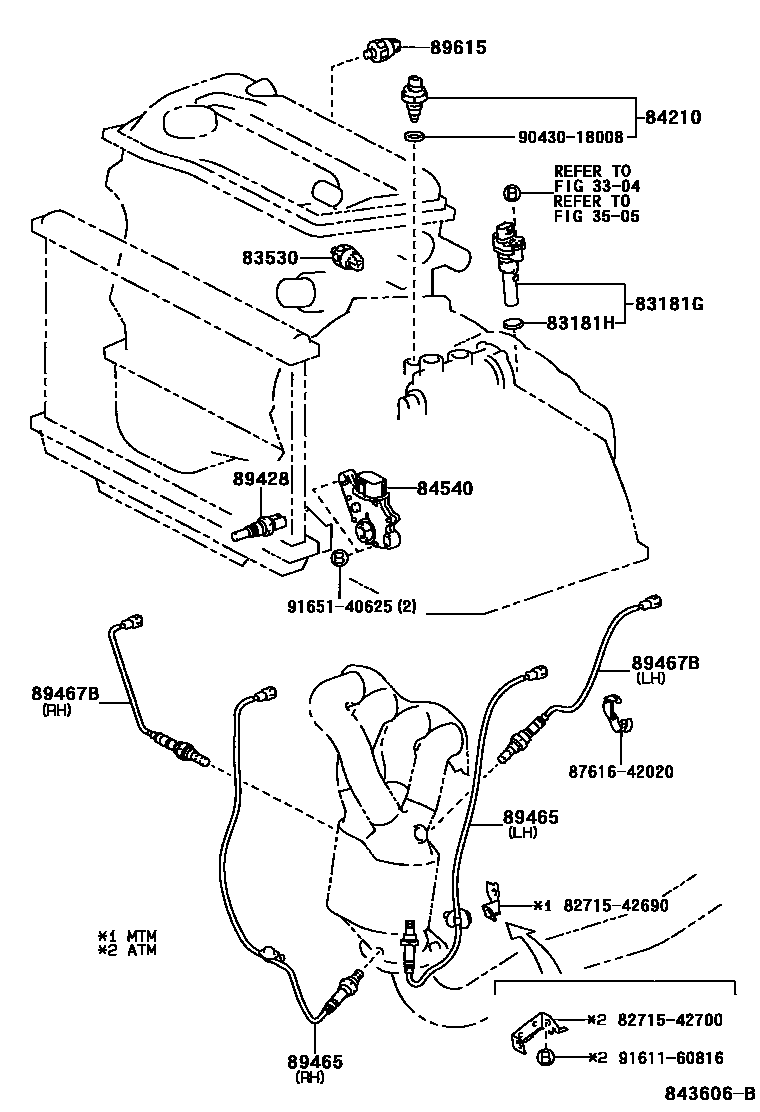

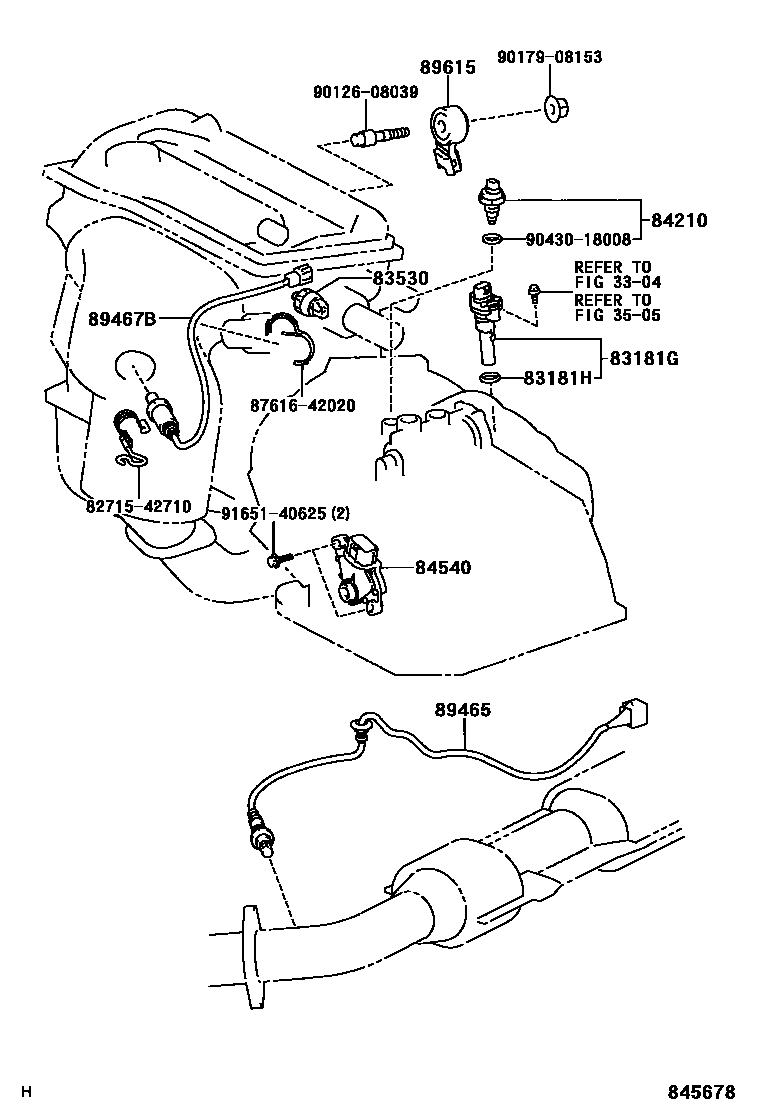

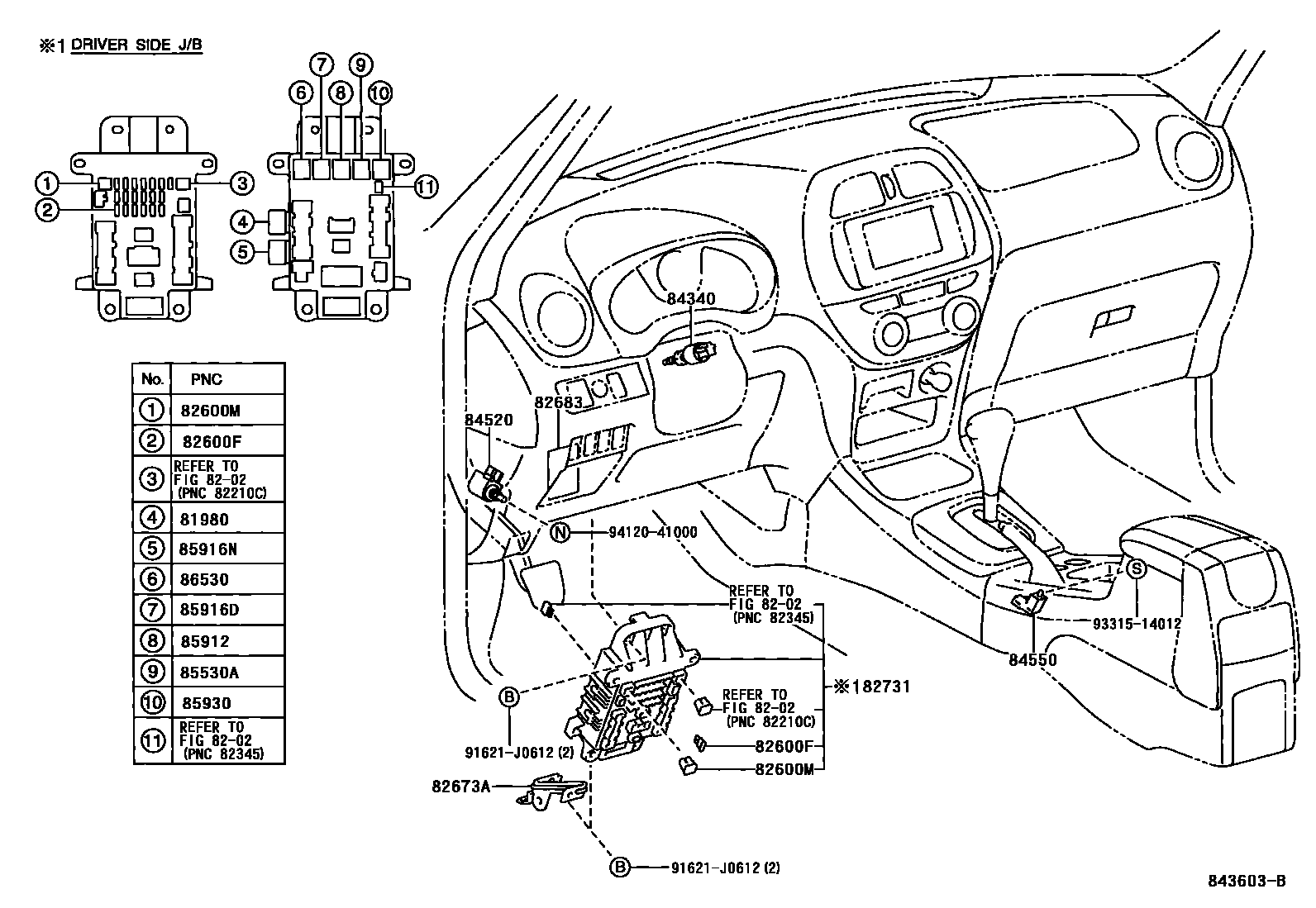

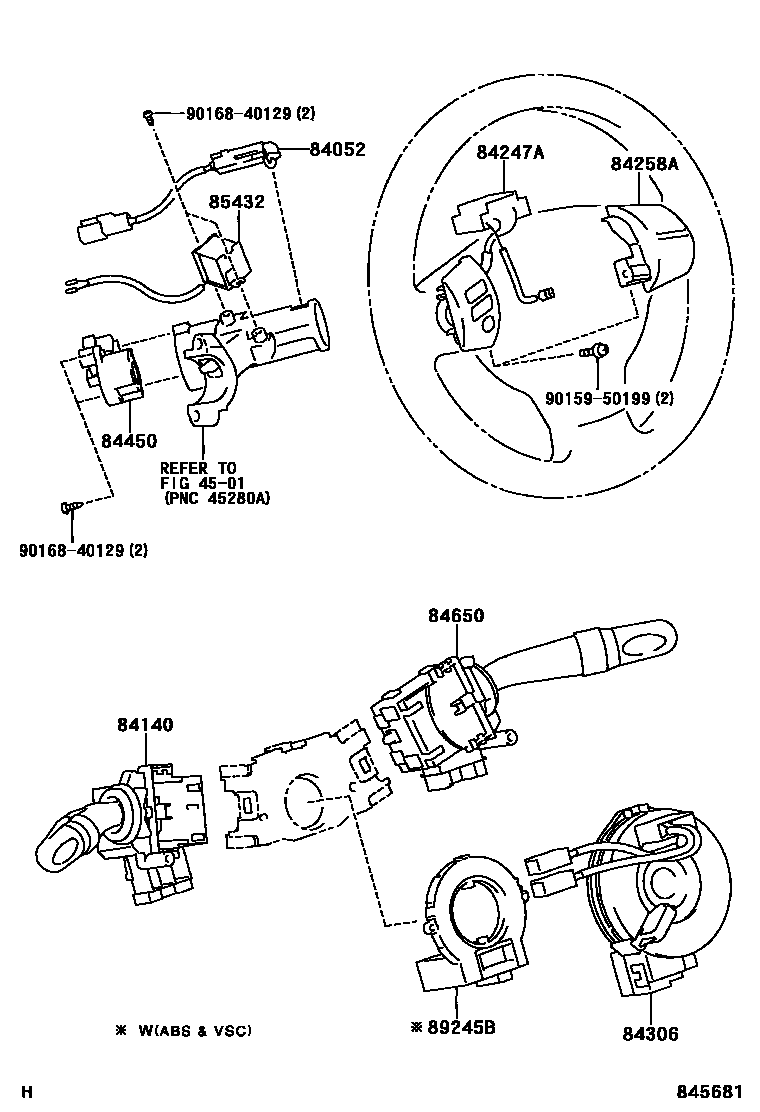

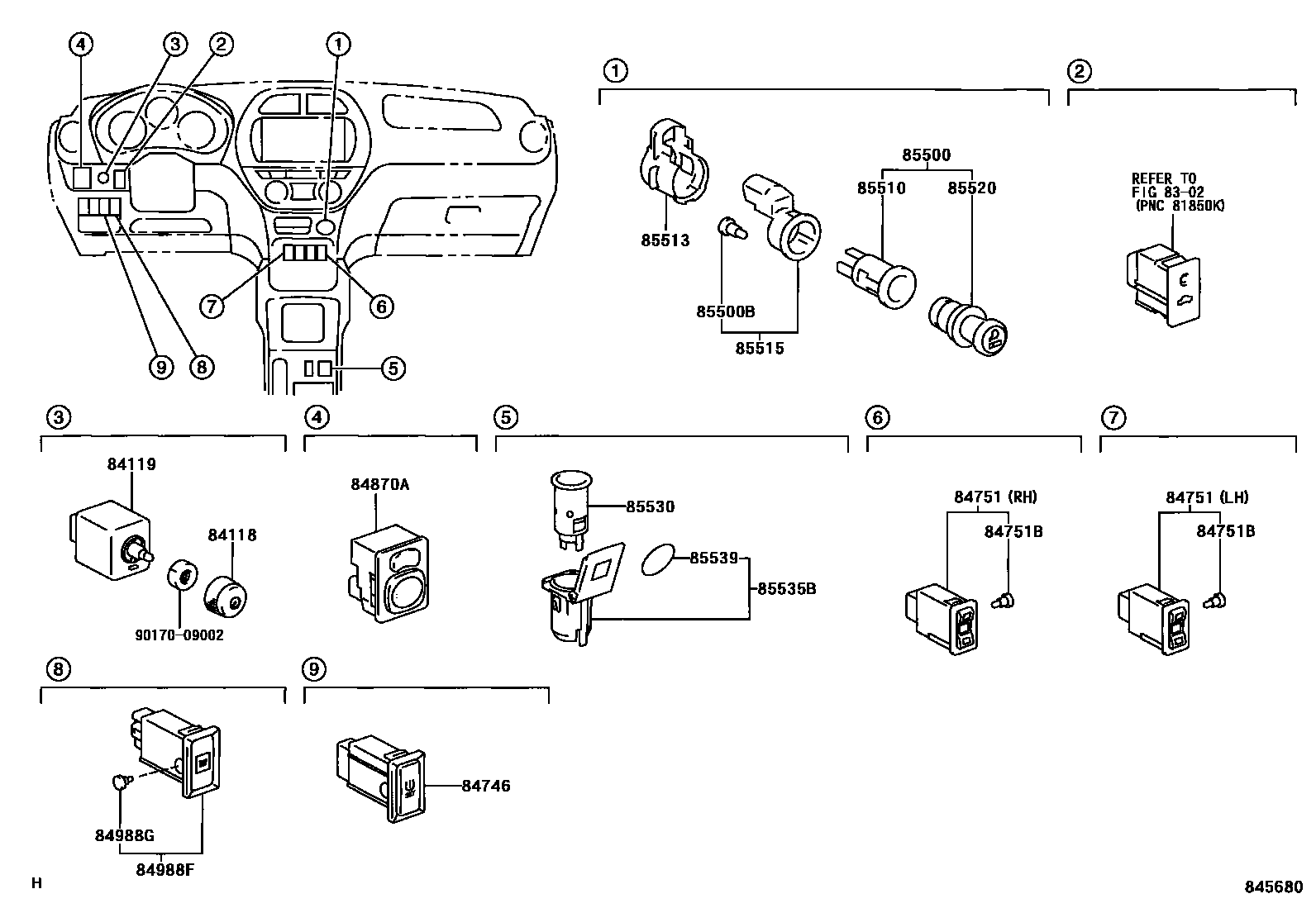

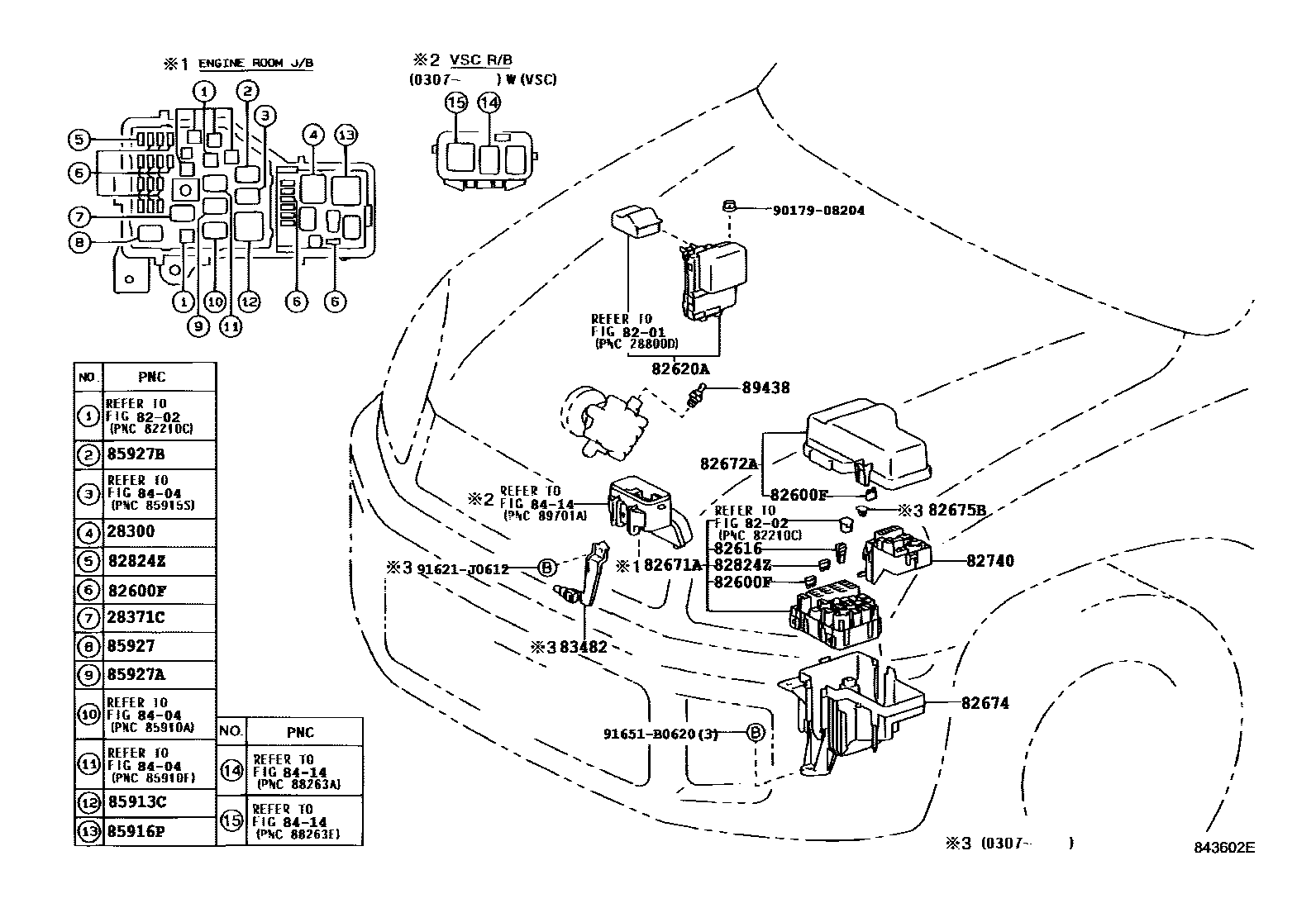

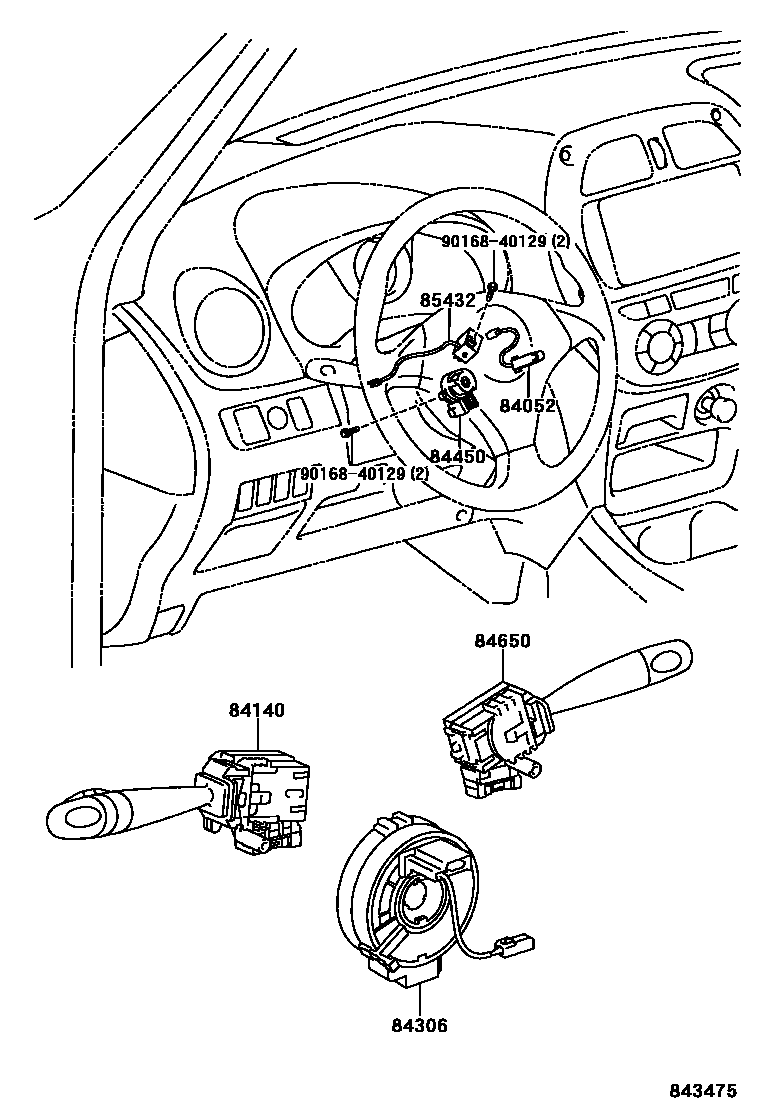

Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 9 images and 76 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 28371C | No. 2 ignition relay | 90987-02012 · 90987-02027 |
| 81980 | Turn signal flasher relay assembly | 81980-50030 |
| 82600F | Spare fuse | 90982-09007 · 90982-09008 · 90982-09009 · 90982-09010 · 90982-09011 · 90982-09012 · 90982-09013 |
| 82600M | medium current fuse | 90982-10001 |
| 82616 | fuse puller | 82616-20010 |
| 82620A | Fuse box assembly | 82620-42040 |
| 82671A | junction box | 82721-42020 · 82721-42040 |
| 82672A | Junction box cover | 82672-42070 · 82672-42090 · 82672-42140 |
| 82673A | Junction box bracket | 82673-42060 |
| 82674 | Junction box lower cover | 82674-42010 |
| 82675B | Terminal block | 82675-44010 |
| 82683 | Fuse box warning nameplate | 82683-42090 · 82683-42100 |
| 82731 | Driver's side junction box | 82731-42010 |
| 82740 | Engine room relay box assembly | 82740-42030 |
| 82824Z | Shorting pin | 82824-20140 |
| 83181G | speedometer sensor | 83181-12030 · 83181-12040 · 83181-12050 · 83181-42010 |
| 83181H | O-ring (for speedometer sensor) | 90301-18018 · 96711-24018 · 96711-24030 |
| 83320 | Fuel gauge sensor assembly | 83320-42040 · 83320-42041 · 83320-49165 · 83320-49195 |
| 83361 | fuel gauge sensor gasket | 77169-14020 |
| 83482 | Outside car ambient temperature sensor | 88790-42050 · 88790-42060 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-60020 |
| 84118 | Light control rheostat button | 84118-44010 |
| 84119 | Light control rheostat | 84119-20250 |
| 84140 | Headlight dimmer switch assembly | 84140-42010 · 84140-52020 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84233 | Door control light switch assembly (for front door) | 84231-53010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84235 | Door control light switch assembly (for back door) | 84231-42030 |
| 84306 | Spiral cable sub-assembly | 84306-32030 · 84306-42010 · 84306-52020 |
| 84340 | brake light switch assembly | 84340-42010 · 84340-42020 |
| 84450 | Ignition or starter switch assembly | 84450-52010 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-12230 · 84540-48010 |
| 84550 | Parking brake switch assembly | 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-1A830 · 84652-42110 · 84652-42120 |
| 84746 | tire pressure warning switch | 84746-42020 · 84746-42021 |
| 84751 | Seat heater switch | 84751-42020 · 84751-42030 |
| 84751B | Seat heater switch light bulb | 84999-10330 |
| 84810 | Electric window lift switch assembly | 84810-12080 |
| 84810D | Rear electric window lift switch assembly | 84810-12080 |
| 84820 | Electric window lift main switch assembly | 84820-42090 · 84820-42170 · 84820-42171 |
| 84870A | Exterior rearview mirror switch assembly | 84870-34010 |
| 84930 | Door control switch assembly | 84930-33080 · 84930-33100 · 84930-42020 |
| 84930C | Light bulb (for door control switch) | 84999-10310 |
| 84988F | traction control switch | 84988-42010 |
| 84988G | Traction control switch light bulb | 84999-10320 |
| 85432 | Key interlock solenoid valve | 85432-42020 |
| 85500 | Cigarette lighter assembly | 85500-12240 · 85500-28050 |
| 85500B | Cigarette lighter bulb | 90010-01030 |
| 85510 | Cigarette lighter socket and fixing bracket assembly | 85510-16040 |
| 85513 | Cigarette lighter cover | 85513-28010 |
| 85515 | Cigarette lighter frame bracket | 85515-22040 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-33020 · 85530-42010 |
| 85530A | power outlet relay | 90987-02020 · 90987-02027 |
| 85530B | No. 1 rear power socket assembly | 85530-33020 · 85530-42010 |
| 85539 | Power socket attention labels | 85539-60020 |
| 85539A | Note label on rear power outlet | 85539-60020 |
| 85912 | defogger relay | 90987-02020 · 90987-02027 |
| 85913C | Heater relay No. 1 | 90987-04006 · 90987-04010 |
| 85916D | fog light relay | 90987-02020 · 90987-02027 |
| 85916N | Tail light relay | 90987-02020 · 90987-02027 |
| 85916P | headlight relay | 90987-02016 · 90987-02025 |
| 85927 | cooling fan relay | 90987-02012 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02012 · 90987-02027 |
| 85930 | Electric window relay assembly | 90987-02020 · 90987-02027 |
| 86530 | Speaker relay assembly | 90987-02020 · 90987-02027 |
| 89245B | steering sensor | 89245-52010 |
| 89428 | No. 2 temperature detection switch | 89428-20110 |
| 89438 | Power steering oil pressure switch | 89438-33010 |
| 89465 | oxygen sensor | 89465-42090 · 89465-42100 · 89465-42130 |
| 89467B | air fuel ratio sensor | 89467-42010 · 89467-42020 · 89467-42040 |
| 89615 | knock control sensor | 89615-20090 · 89615-30080 · 89615-32030 · 89615-44010 |
