Toyota RAV4 仪表 — Figure 8301

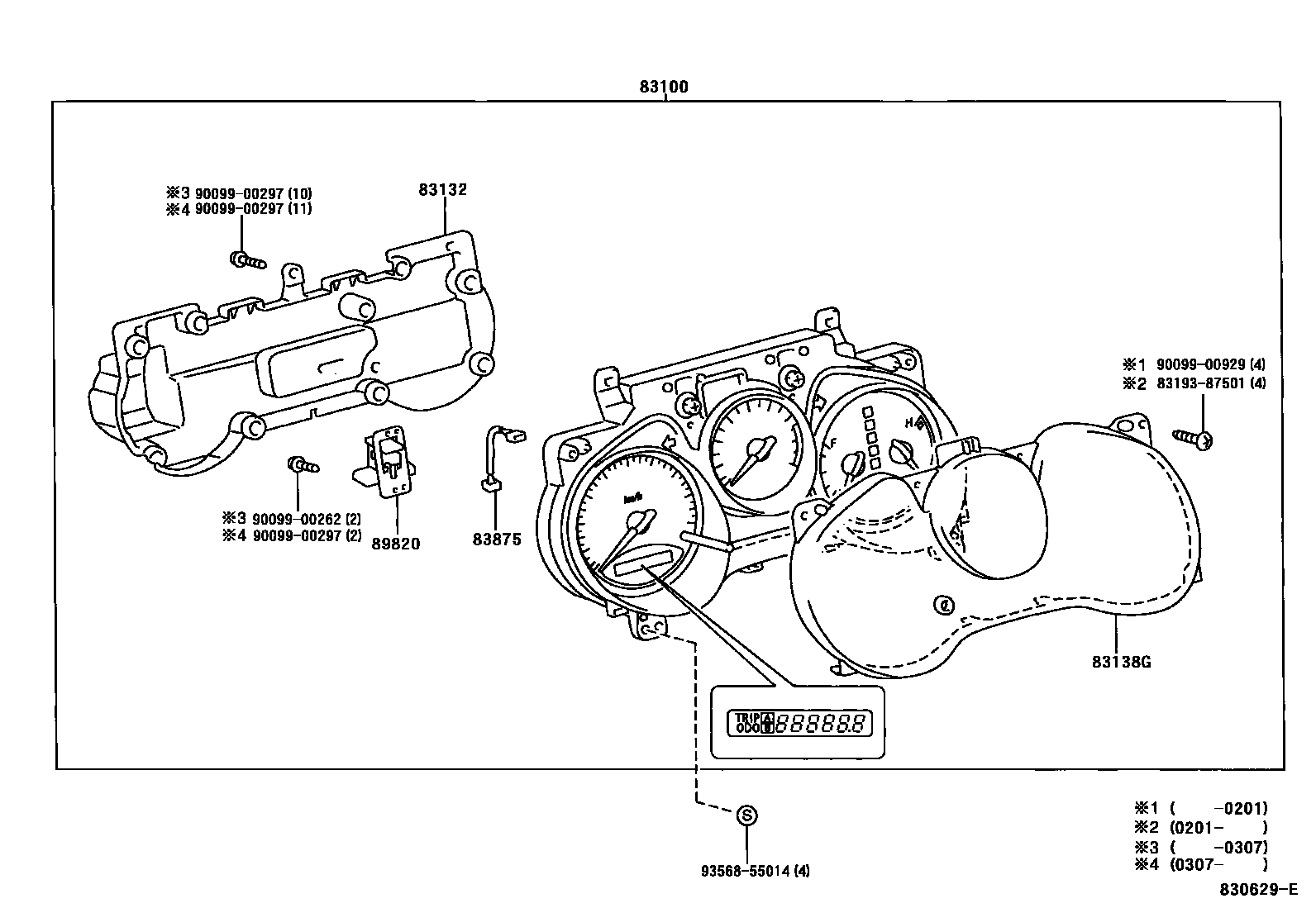

Toyota RAV4 EPC diagram 8301, 仪表, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-42B00 · 83800-42B10 · 83800-42B20 · 83800-42B30 · 83800-42B80 · 83800-42B90 · 83800-42C00 · 83800-42C10 · 83800-4A030 · 83800-4A031 · 83800-4A040 · 83800-4A041 · 83800-4A050 · 83800-4A051 · 83800-4A060 · 83800-4A061 |
| 83132 | Instrument cluster housing | 83821-42720 · 83821-42760 |
| 83138G | Instrument cluster glass | 83852-42760 |
| 83875 | No.1 instrument cluster wiring harness | 83875-42760 |
| 89820 | Inclination sensor assembly | 89820-35010 |
