Toyota RAV4 燃油箱和燃油管 — Figure 7751

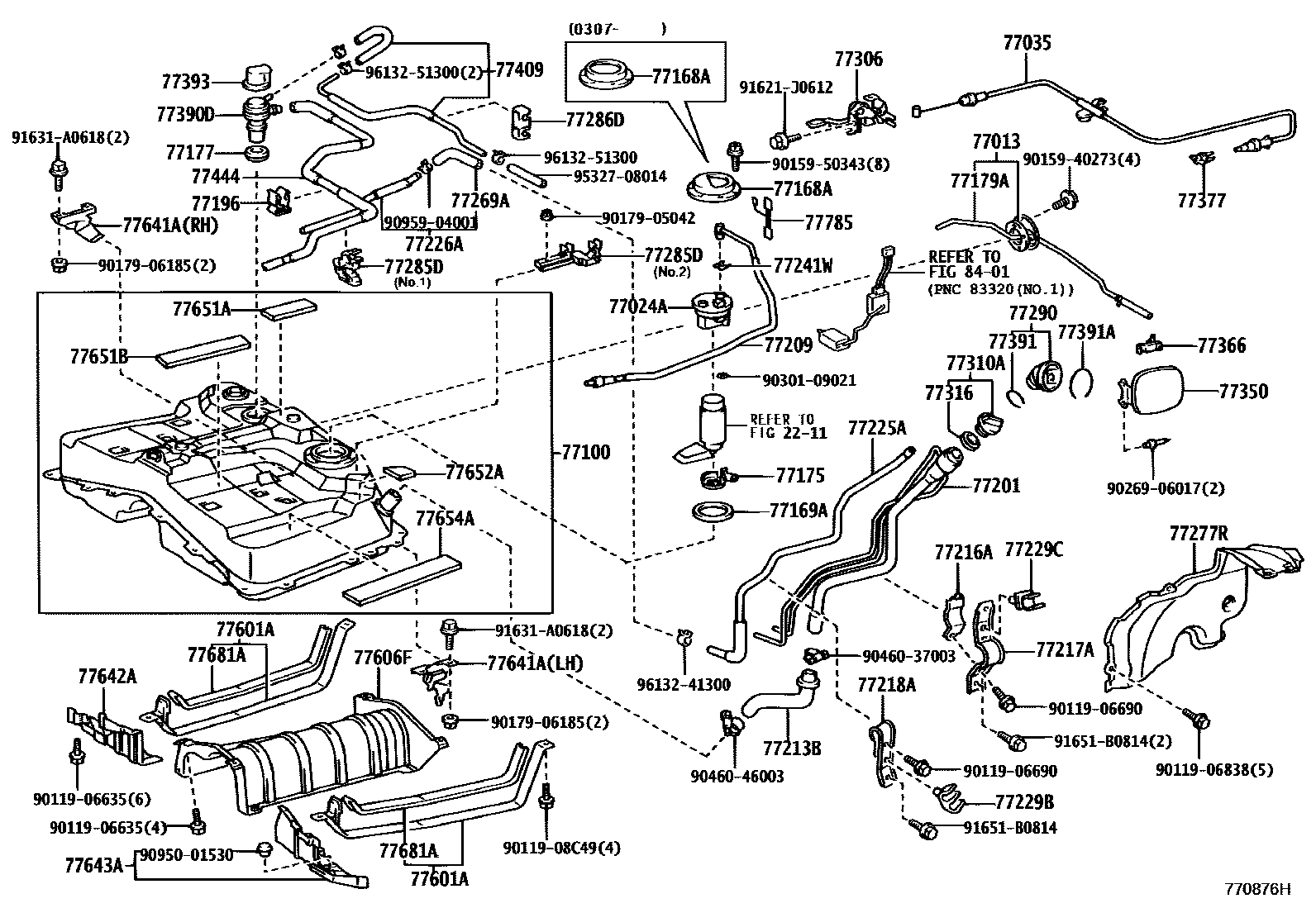

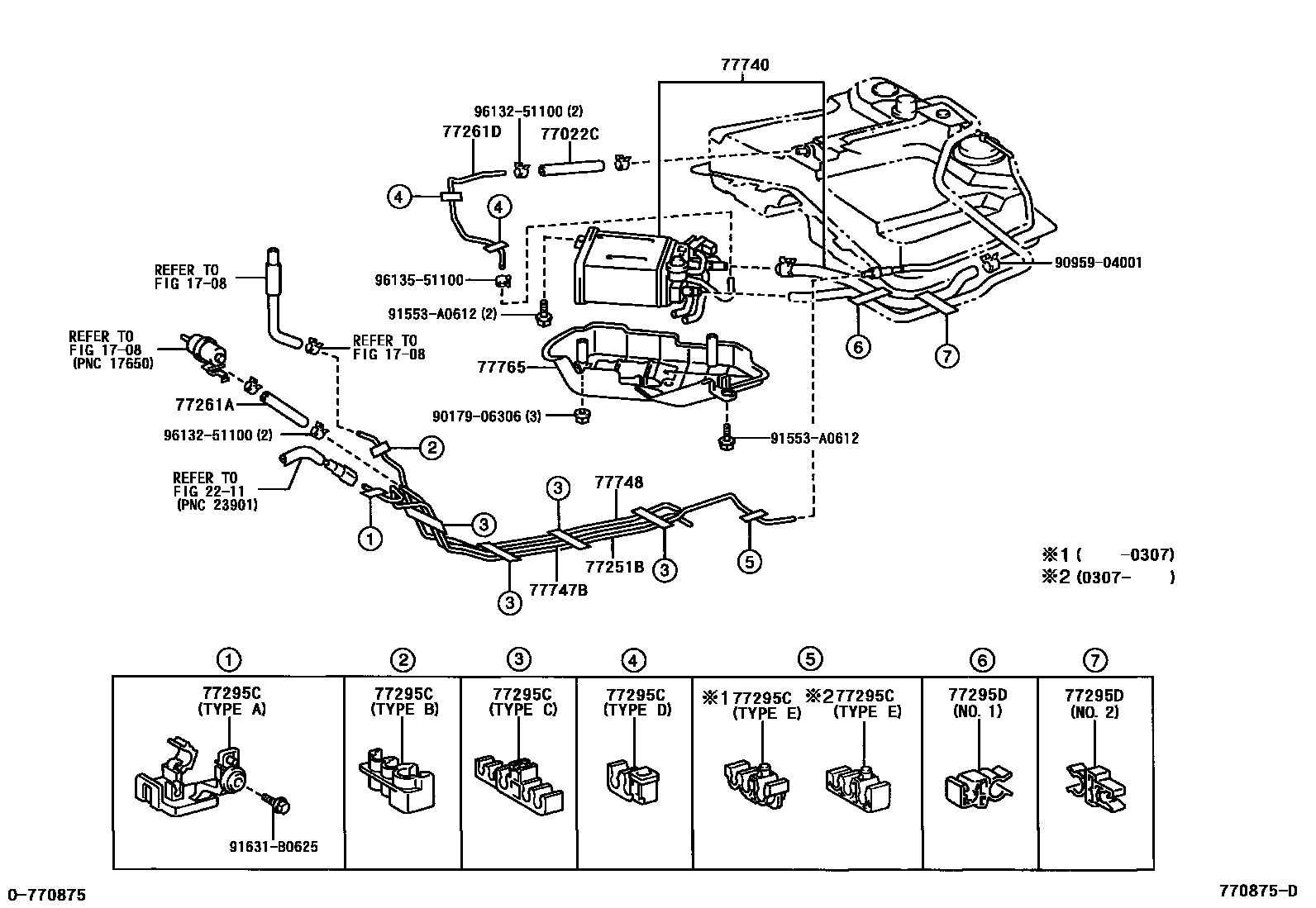

Toyota RAV4 EPC diagram 7751, 燃油箱和燃油管, with 2 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77013 | No. 2 fuel tank breather pipe sub-assembly | 77013-42010 |
| 77022C | Hoses or tubes (for fuel vapor separators) | 95337-06020 |
| 77024A | Fuel absorber sub-assembly | 77024-42010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-42100 |
| 77100 | fuel tank assembly | 77001-42090 · 77001-42130 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-12240 · 77168-33050 · 77168-52010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33020 |
| 77175 | No. 2 oil suction pipe bracket | 77175-52020 |
| 77177 | Check valve gasket | 77177-33010 |
| 77179A | fuel tank breather gasket | 77179-20040 |
| 77196 | No. 1 evaporation vent pipe clamp | 77196-24010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-42130 |
| 77209 | Fuel pipe connector sub-assembly | 77209-42050 · 77209-42110 |
| 77213B | Fuel tank to filler pipe hose | 77213-42070 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-42020 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-42010 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-42010 |
| 77225A | No. 5 fuel evaporation vent pipe | 77225-42010 |
| 77226A | No. 6 fuel tank breather pipe | 77226-42010 |
| 77229B | No. 3 fuel evaporation vent pipe | 77229-42030 |
| 77229C | Snorkel clamp | 77229-42020 |
| 77241W | Pipe joint clip | 77241-32060 |
| 77251B | main fuel pipe | 77251-42100 |
| 77261A | No. 1 fuel hose (for fuel evaporative drain pipe) | 95326-07014 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-42050 |
| 77269A | fuel tank breather hose | 77269-42020 |
| 77277R | Fuel tank filler pipe protection device | 77277-42040 |
| 77285D | No. 1 fuel pipe clamp | 77285-42040 · 77285-42060 |
| 77286D | No. 2 fuel pipe clamp | 77286-42030 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-42020 |
| 77295C | Fuel pipe retaining ring | 77295-42020 · 77295-42030 · 77295-42040 · 77295-42050 · 77295-42060 · 77295-42061 |
| 77295D | Fuel pipe retaining ring | 77295-42080 · 77295-42090 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-32020 |
| 77310A | Fuel tank cap assembly | 77300-53010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-42060 |
| 77366 | Fuel filler cap hinge spring | 77360-30030 · 77360-30070 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77390D | Fuel tank overfill check valve assembly | 77390-20070 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-20030 |
| 77393 | One-way valve protection device | 77393-42010 |
| 77409 | No. 3 fuel hose sub-assembly | 77409-42010 |
| 77444 | fuel tank vent hose | 77404-42010 · 77404-42011 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-42050 |
| 77606F | Fuel tank cover vent housing sub-assembly | 77606-42020 |
| 77641A | No. 1 fuel tank protective shell | 77641-42020 · 77641-42030 |
| 77642A | No. 2 fuel tank protective shell | 77642-42030 |
| 77643A | No. 3 fuel tank protective shell | 77643-42030 |
| 77651A | No. 1 fuel tank liner | 77653-26040 |
| 77651B | fuel tank liner | 77651-35060 |
| 77652A | No. 2 fuel tank liner | 77652-12100 |
| 77654A | No. 4 fuel tank liner | 77654-42010 · 77654-60030 |
| 77681A | Fuel tank strap seat | 77682-16010 |
| 77740 | Carbon canister assembly | 77740-42070 · 77740-42071 · 77740-42072 |
| 77747B | No. 1 carbon canister tube | 77747-42010 |
| 77748 | No. 2 carbon canister tube | 77748-42010 |
| 77765 | Carbon canister protective cover | 77765-42010 |
| 77785 | fuel pump wiring harness | 77785-32010 |
