Toyota RAV4 扰流板和侧挡泥板 — Figure 7652

Toyota RAV4 EPC diagram 7652, 扰流板和侧挡泥板, with 2 images and 29 PNC and OE references.

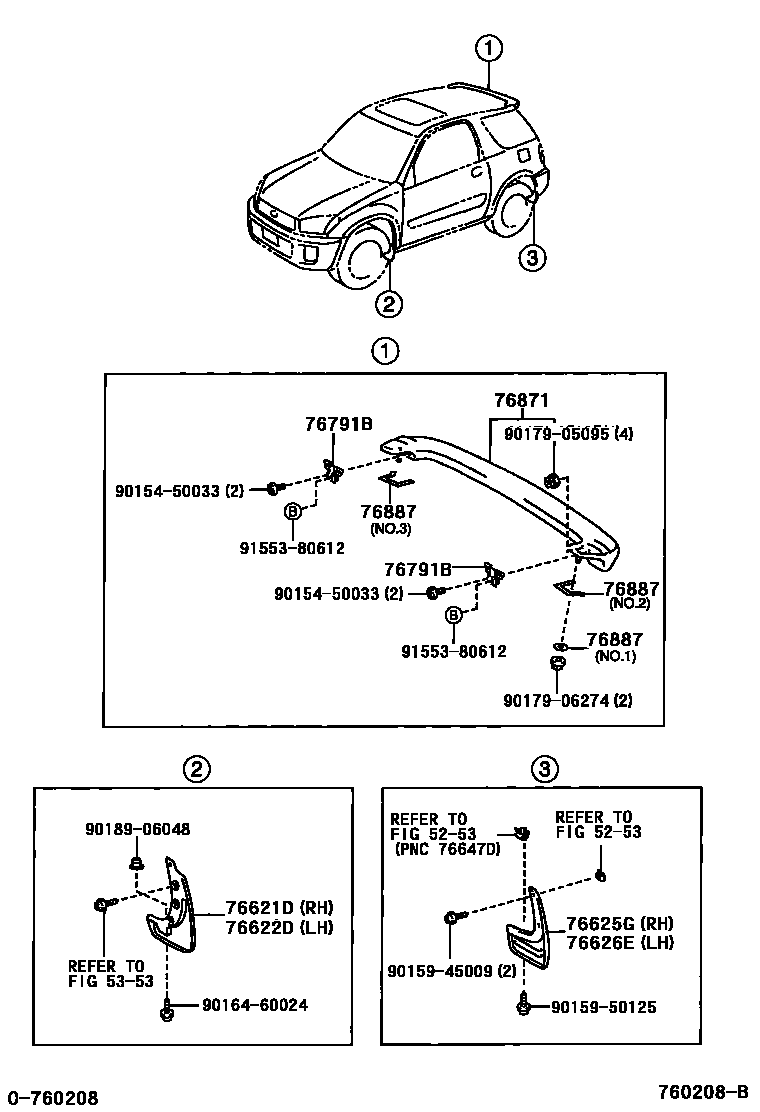

Toyota RAV4 扰流板和侧挡泥板 EPC diagram — 760208B
扰流板和侧挡泥板 — 760208B (200008 – 999999)

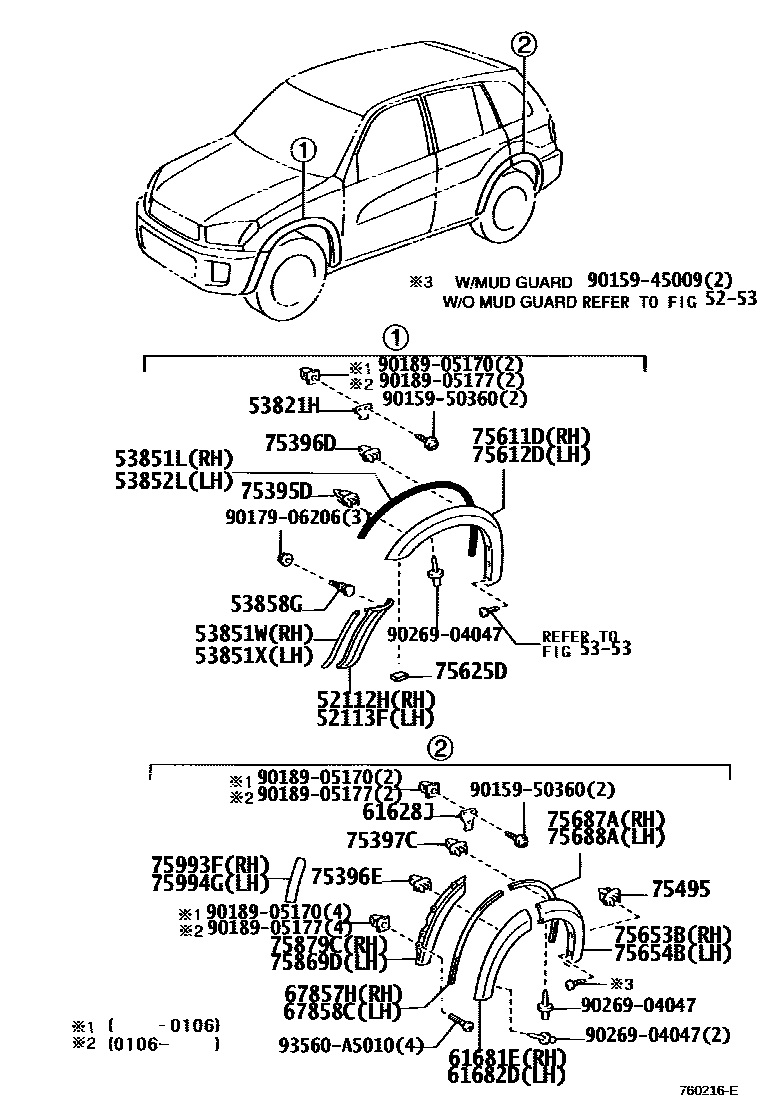

Toyota RAV4 扰流板和侧挡泥板 EPC diagram — 760216E
扰流板和侧挡泥板 — 760216E (200008 – 999999)

PNC and OE references

PNCPart nameOE numbers
52112HFront bumper right extension52112-42040
52113FFront bumper left extension52113-42040
53821HFront fender rear support53821-42010 · 53821-42011
53858GFender outer panel fixing bolts53858-60050
61628JFront side panel outer panel extension61628-42040 · 61628-42041
61681ERight rear fender No. 1 external connection plate61681-42030
61682DLeft rear fender No. 1 external connection plate61682-42030
67857HRight rear door panel protector67857-42020
67858CLeft rear door panel protector67857-42020
75395DNo. 1 outer protective strip clip75395-42020
75396DNo. 2 outer protective strip clip75396-42020
75396ENo. 2 outer protective strip clip75396-42020
75397CNo. 3 outer protective strip clip75397-42010
75495No. 4 outer protective strip clip75495-42010
75611DRight front fender outer front protective strip75611-42070
75612DLeft front fender outer front protective strip75612-42070
75625DFront fender outer upper protective strip pad75625-42010
75653BNo. 3 right side enclosure outer protective strip75653-42060
75654BNo. 4 side panel outer protective strip75654-42060
75869DLeft side panel opening fixing75869-42020 · 75869-42021
75879CRight side panel opening fixing75879-42020 · 75879-42021
75993FRight front side panel75991-42040
75994GLeft front side panel75992-42030
76621DRight front fender fender76621-42070 · 76621-42080
76622DLeft front fender fender76622-42070 · 76622-42080
76625GRight rear side fender76625-42080 · 76625-42090
76626ELeft rear side fender76626-42140 · 76626-42150
76791BRear spoiler bracket76791-42010
76887Rear spoiler seal76887-26020 · 76887-42090 · 76887-42100
