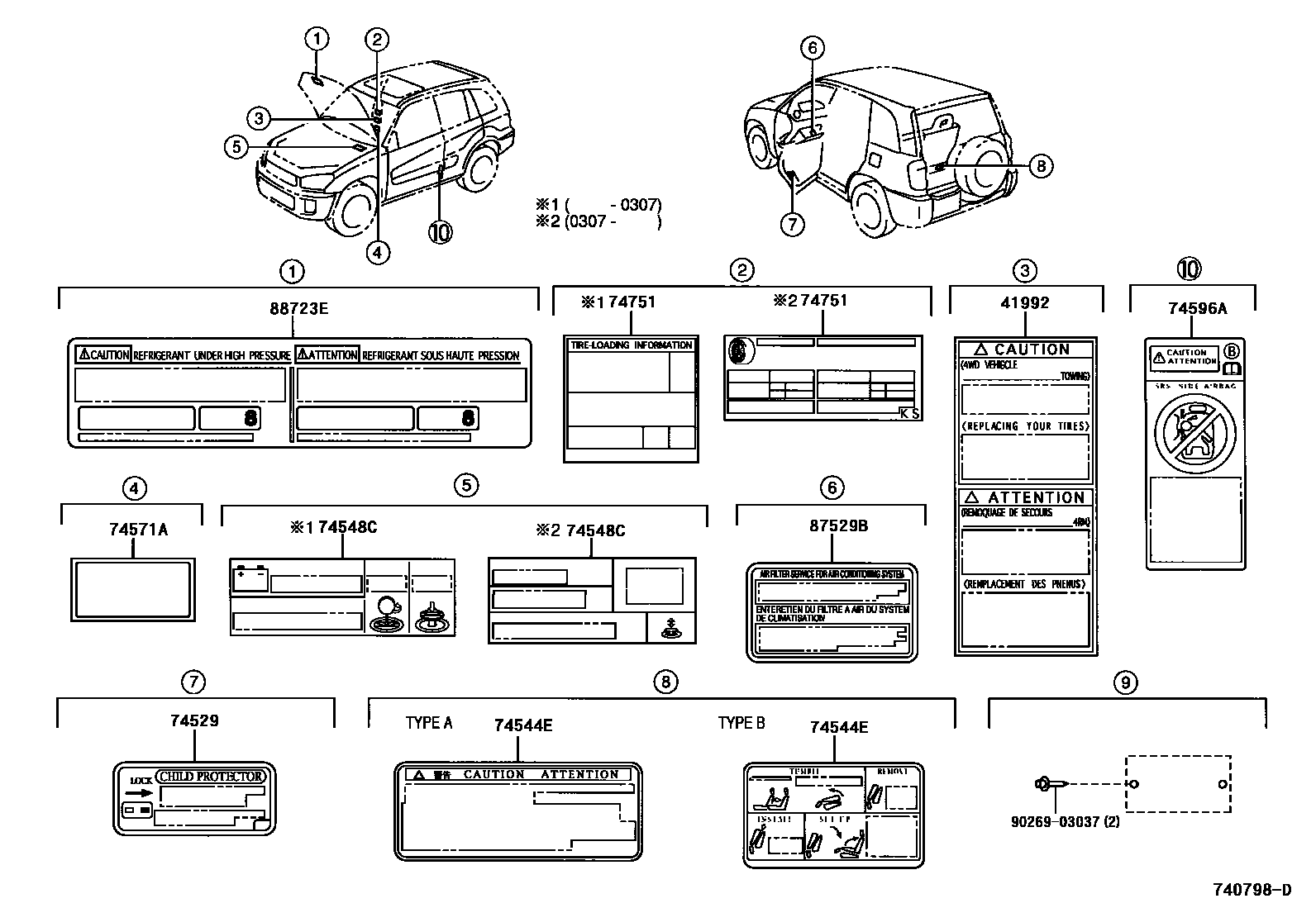

Toyota RAV4 warning nameplate — Figure 7455
Toyota RAV4 EPC diagram 7455, warning nameplate, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41992 | Differential attention label | 41992-48020 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-51010 · 69349-51010 |
| 74544E | Rear seat number 2 information label | 74544-42011 · 74554-42010 |
| 74548C | Battery cover warning label | 74548-42020 · 74548-42021 |
| 74571A | Label cover protective film | 74571-28020 · 74571-35020 |
| 74596A | Side air bag warning label | 74596-12020 |
| 74751 | tire pressure information label | 42661-42180 · 42661-42181 · 42661-42182 · 42661-42190 · 42661-42191 · 42661-42192 |
| 87529B | Cabin filter information label | 87529-50010 |
| 88723E | Cooler maintenance warning label | 88723-42040 |
