Toyota RAV4 座椅和座椅滑轨 — Figure 7151

Toyota RAV4 EPC diagram 7151, 座椅和座椅滑轨, with 4 images and 56 PNC and OE references.

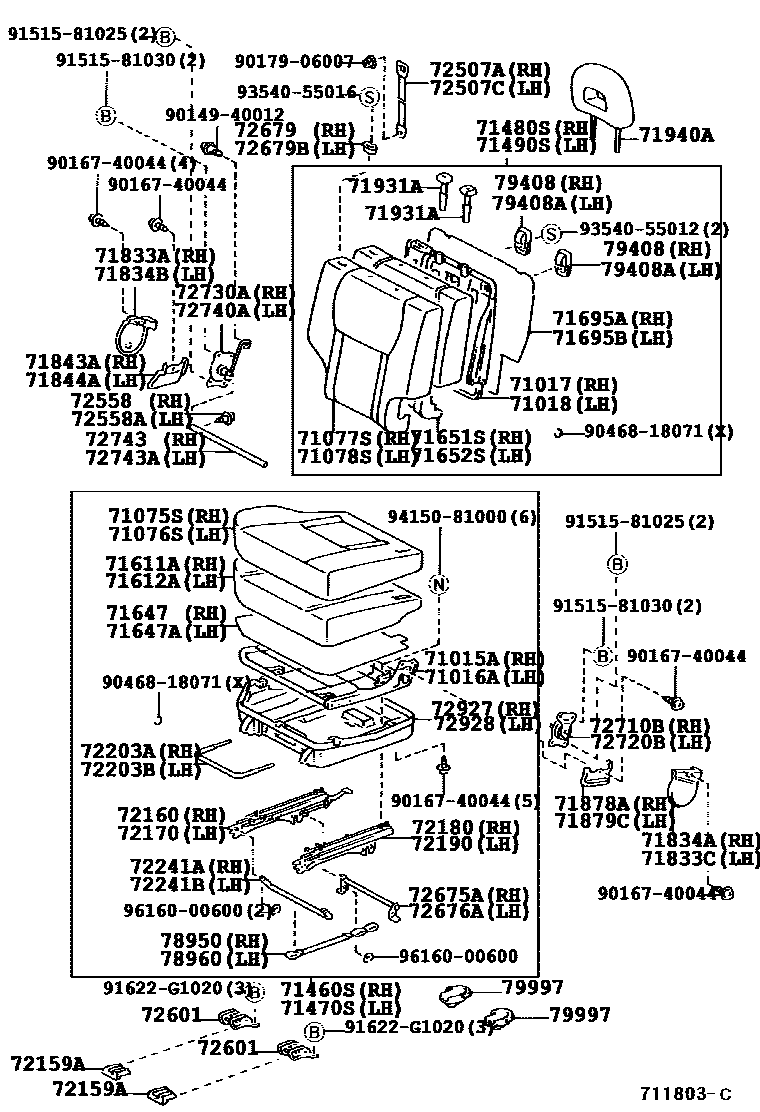

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 711803C
座椅和座椅滑轨 — 711803C (200008 – 999999)

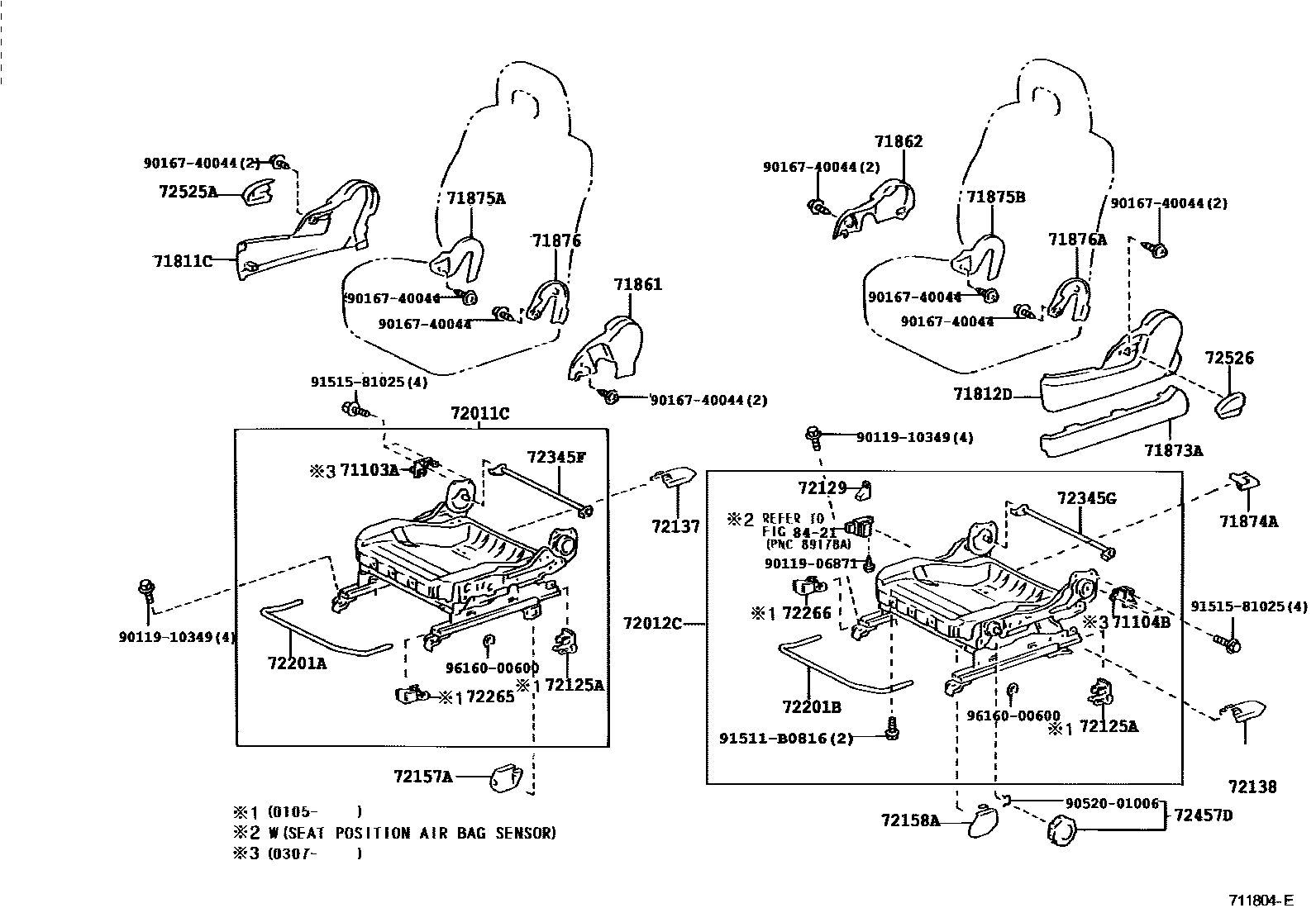

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 711804E
座椅和座椅滑轨 — 711804E (200008 – 999999)

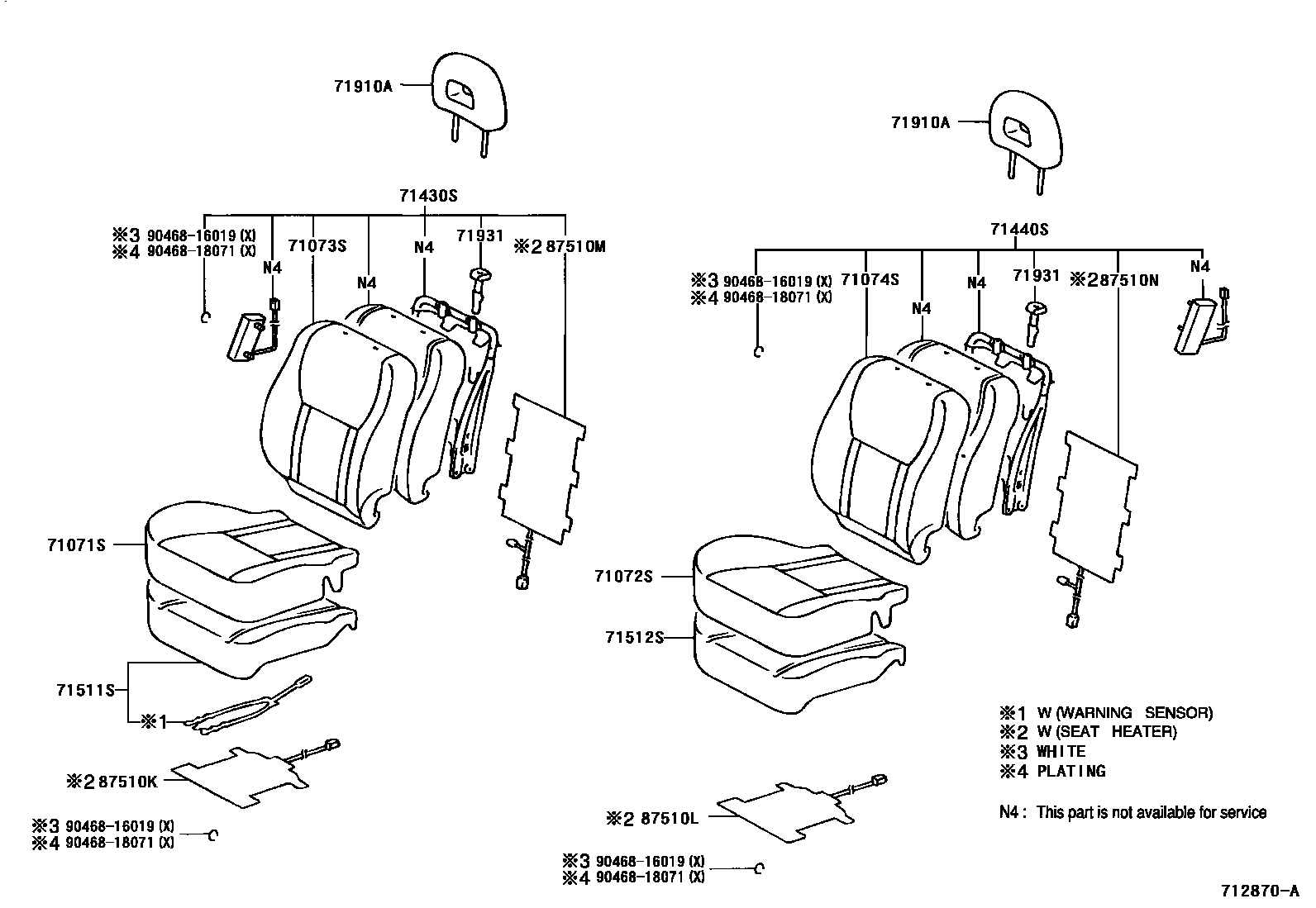

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 712870A
座椅和座椅滑轨 — 712870A (200307 – 999999)

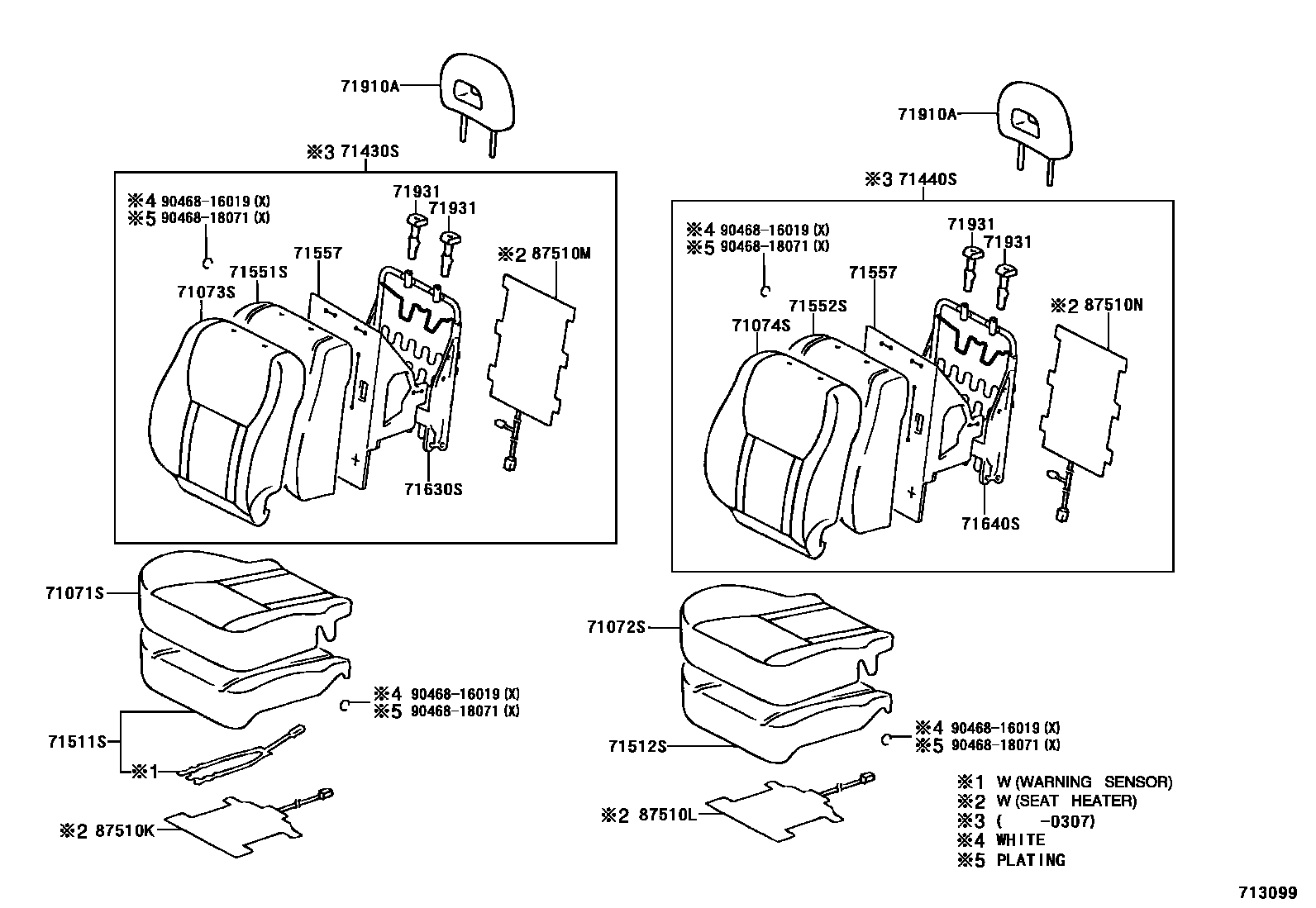

Toyota RAV4 座椅和座椅滑轨 EPC diagram — 713099
座椅和座椅滑轨 — 713099 (200008 – 999999)

PNC and OE references

PNCPart nameOE numbers
71015ARear right seat cushion frame sub-assembly71015-42130
71016ARear left seat cushion frame sub-assembly71016-42130
71017Right rear seat back frame sub-assembly71017-42090
71018Rear left seat back frame sub-assembly71018-42090
71103AFront right seat cushion hinge sub-assembly71103-42010
71104BFront left seat cushion hinge sub-assembly71104-42010
71511SFront right seat cushion cushion (for split seats)71052-42010 · 71052-42020
71512SFront left seat cushion cushion (for split seats)71511-42030 · 71511-42040 · 71511-42050 · 71511-42060
71551SFront right seat back cushion (for split seats)71551-42030 · 71551-42050
71552SFront left seat back cushion (for split seats)71551-42030 · 71551-42050
71557Lower lining of front seat backrest71557-44030 · 71578-42010
71611ARear right seat cushion71611-42050
71612ARear left seat cushion71612-42050
71630SFront right seat back spring assembly (for split seats)71630-42040 · 71630-42060
71640SFront left seat back spring assembly (for split seats)71630-42040 · 71630-42060
71647Rear seat cushion edge protective cover71647-42020
71647ARear left seat cushion cover rear cushion71647-42020
71651SRear right seat back cushion (for split seats)71651-42050
71652SRear left seat back cushion (for split seats)71652-42050
71695AProtective cover for seat No. 1 on the right side of the rear row71695-42020
71695BProtective cover for seat No. 1 on the left side of the rear row71696-42040
71874AFront left seat cushion lower guard71874-42010
72011CFront right seat adjuster sub-assembly72010-42010 · 72010-42011 · 72010-42080 · 72010-42120 · 72010-42150
72012CFront left seat adjuster sub-assembly72020-42020 · 72020-42021 · 72020-42050 · 72020-42070 · 72020-42160
72125ARear seat upper slide rail cover72125-13040
72129No. 1 seat slide rail lower rail protective cover72129-33040
72160Rear right seat outer slide rail assembly72160-42010
72170Rear left seat outer slide rail assembly72170-42010
72180Rear right seat inner slide rail assembly72180-42010
72190Rear left seat inner slide rail assembly72190-42010
72201ARight seat slide rail handle sub-assembly72201-42020
72201BLeft seat slide rail handle sub-assembly72201-42030
72203ARear right seat slide rail handle sub-assembly72203-42010
72203BRear left seat slide rail handle sub-assembly72203-42010
72241ASeat rail locking lever72241-42010
72241BSeat rail locking lever72241-42010
72265Right seat rail upper rail cover72265-13040
72266Left seat rail upper rail cover72265-13040
72345FRight seat back recliner connecting pipe72345-42020 · 72345-47010
72345GLeft seat back recliner connecting pipe72345-42020 · 72345-47010
72558Seat back tilt stop72558-42010 · 72558-44010
72558ASeat back tilt stop72558-42010 · 72558-44010
72601Rear seat lock sub-assembly72601-42030
72675ARight rear seat back lock control lever72675-42010
72676ARear left seat back lock control lever72676-42010
72710BRear right seat backrest inner adjuster assembly72710-42010
72720BRear left left seat backrest inner adjuster assembly72720-42010
72730ARear right seat backrest tilt adjuster assembly72730-42060
72740ARear left seat backrest angle adjuster assembly72740-42060
72743Rear seat backrest tilt lever72743-42010
72743ARear seat backrest tilt lever72743-42010
79997No. 1 seat leg box protection device79997-42020
87510KFront right seat cushion heater assembly87510-42110
87510LFront left seat cushion heater assembly87510-42110
87510MFront right seat back heater assembly87510-42130
87510NFront left seat back heater assembly87510-42130
