Toyota RAV4 背门板和背门玻璃 — Figure 6761

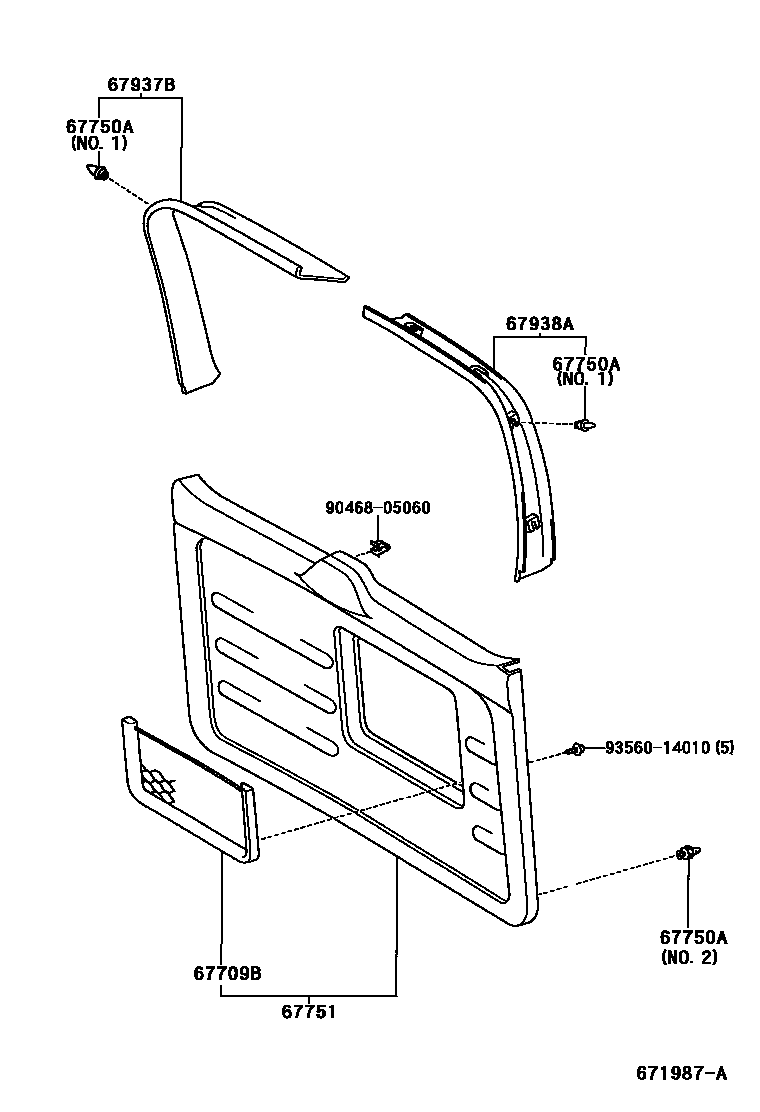

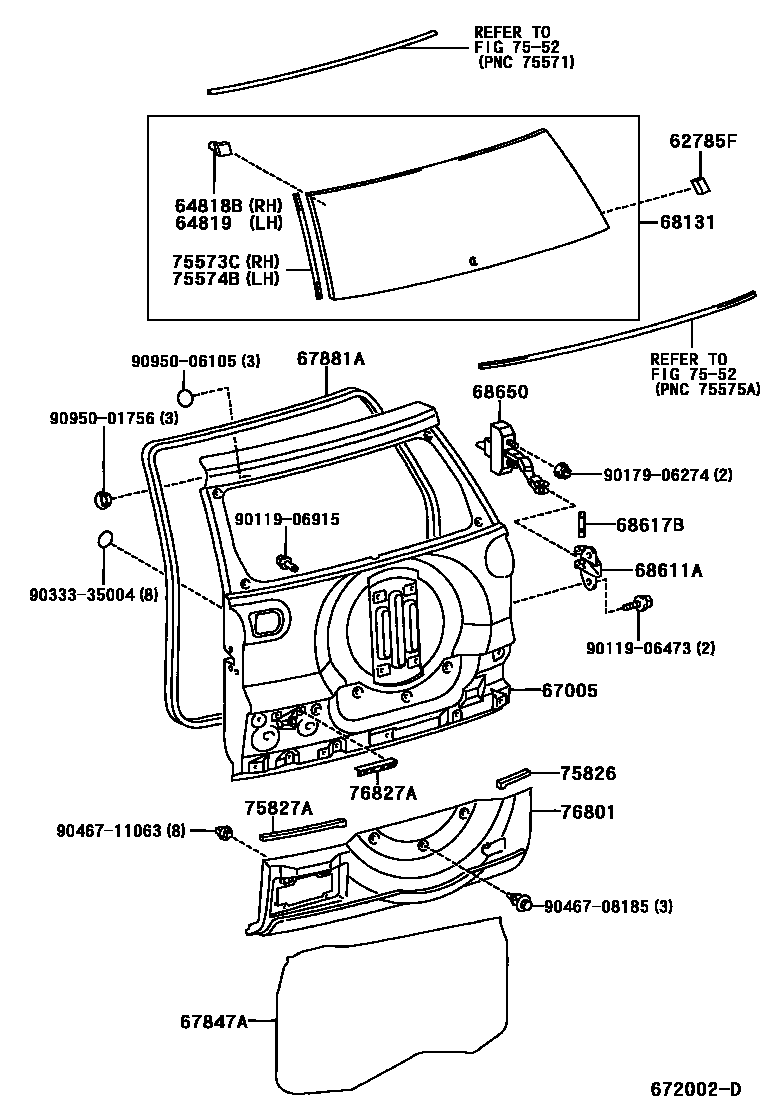

Toyota RAV4 EPC diagram 6761, 背门板和背门玻璃, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62785F | Back door glass spacer | 62785-16030 |
| 64818B | No. 1 back door glass spacer | 64818-42020 |
| 64819 | No. 2 back window glass spacer | 64819-42020 |
| 67005 | Rear door panel sub-assembly | 67005-42280 · 67005-42290 · 67005-42310 · 67005-42311 · 67005-42320 · 67005-42321 |
| 67750A | Clip (for rear door trim panel) | 90467-09206 · 90467-10161 |
| 67847A | Rear door access hole cover | 67847-42020 |
| 67881A | Back door seal | 67881-42030 |
| 68131 | back door glass | 68105-42020 · 68105-42021 · 68105-42040 · 68105-42060 · 68105-42080 |
| 68611A | Back door opening limiter base | 68611-42020 · 68611-42021 |
| 68617B | Back door opening limiter pin | 68617-20020 |
| 68650 | Back door opening limiter assembly | 68650-42040 |
| 75573C | Protective strip for rear window | 75573-42020 |
| 75574B | Rear window left outer protective strip | 75573-42020 |
| 75826 | Back door right outer protective strip pad | 75826-42030 |
| 75827A | Back door left outer protective strip pad | 75827-42030 |
| 76801 | Rear door exterior decorative strip sub-assembly | 75081-42240 · 76811-42900 |
| 76827A | No. 2 rear door trim strip fixings | 76827-42010 |
