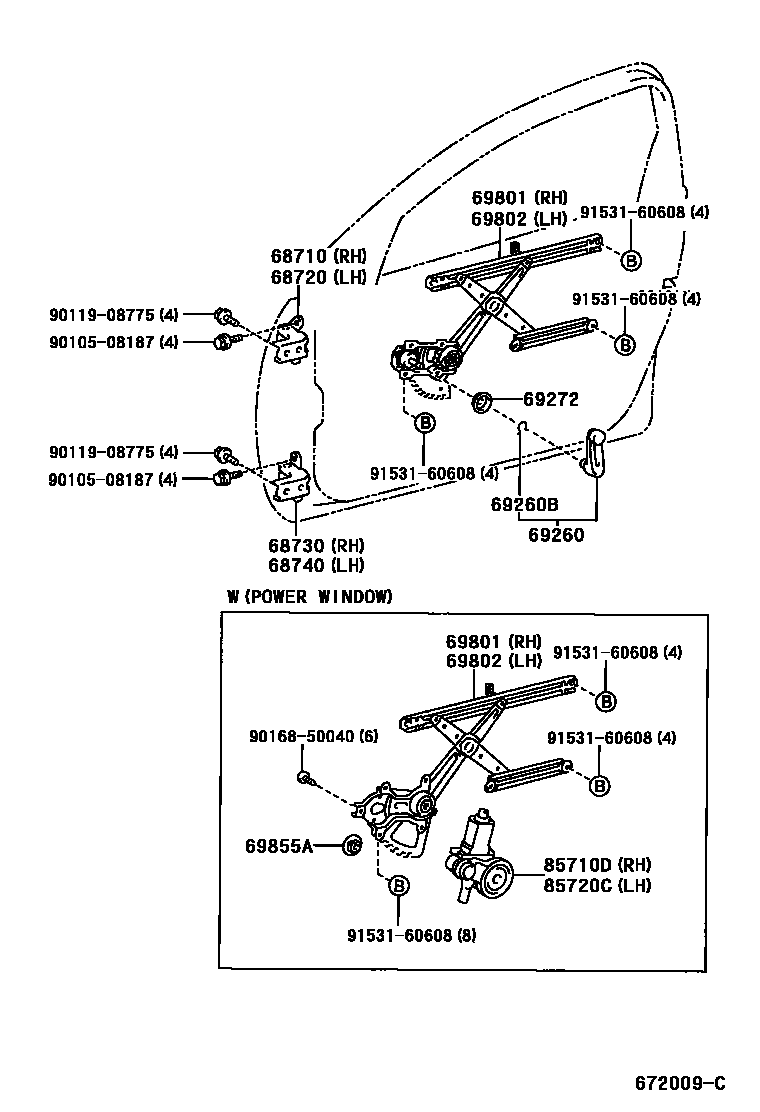

Toyota RAV4 前门车窗升降器和合页 — Figure 6754
Toyota RAV4 EPC diagram 6754, 前门车窗升降器和合页, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-30160 |
| 68720 | Left front door upper hinge assembly | 68720-30080 |
| 68730 | Right front door lower hinge assembly | 68730-33010 |
| 68740 | Left front door lower hinge assembly | 68740-33010 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01274 |
| 69272 | Front door window lift inner handle plate | 69268-20020 |
| 69801 | Right front door window lifter sub-assembly | 69801-42050 · 69810-42170 |
| 69802 | Left front door window lifter sub-assembly | 69802-42050 · 69820-42170 |
| 69855A | Door window regulator gear cover | 69855-20010 |
| 85710D | Right power window lift motor assembly | 85710-42070 |
| 85720C | Left electric window lift motor assembly | 85720-42070 |
