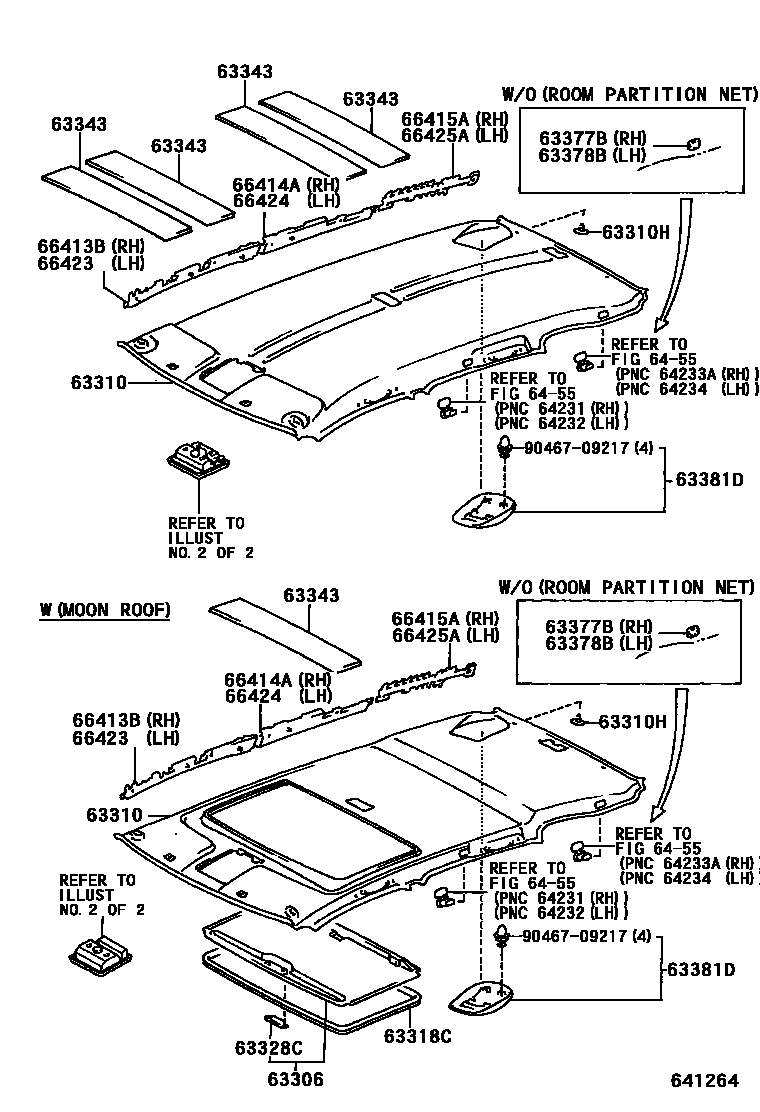

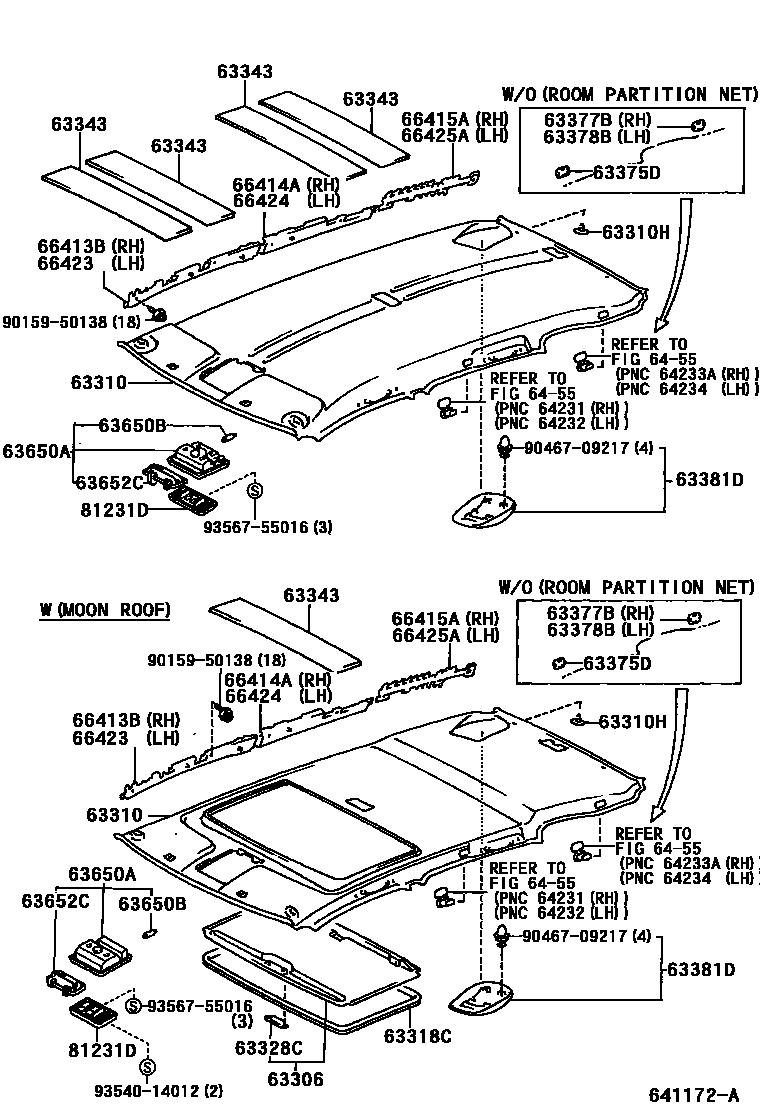

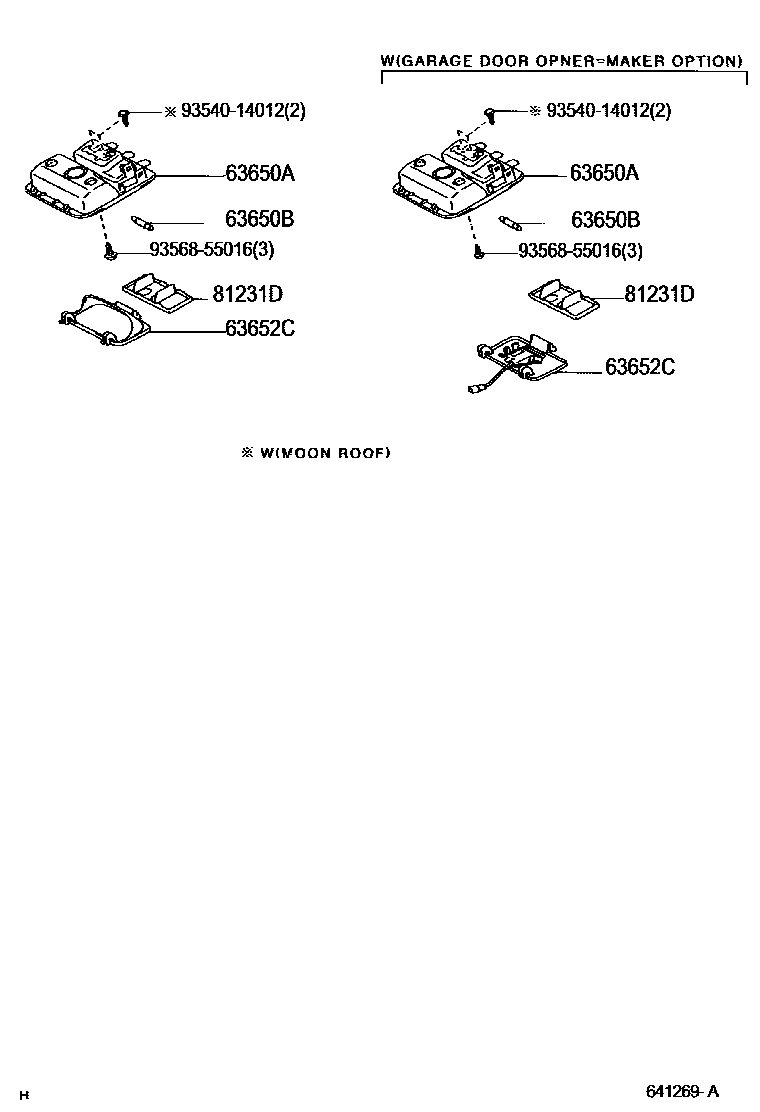

Toyota RAV4 车顶内衬和消声垫 — Figure 6452
Toyota RAV4 EPC diagram 6452, 车顶内衬和消声垫, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63343 | No. 3 roof muffler pad | 63341-42010 · 63343-32070 |
| 63650B | roof console light bulb | 90084-98049 |
| 66413B | Right front longitudinal member spacer | 66413-42010 · 66413-42020 · 66413-42080 · 66413-42090 |
| 66414A | Right rear longitudinal member spacer | 66414-42010 · 66414-42020 · 66414-42070 · 66414-42080 |
| 66415A | No. 2 right rear longitudinal beam spacer | 66415-42010 · 66415-42040 |
| 66423 | Left front longitudinal member spacer | 66423-42010 · 66423-42020 · 66423-42080 · 66423-42090 |
| 66424 | Left rear longitudinal member spacer | 66424-42010 · 66424-42020 · 66424-42050 · 66424-42060 |
| 66425A | No. 2 left rear longitudinal beam spacer | 66425-42010 · 66425-42020 |
| 81231D | door control lamp shade | 81231-0W010 · 81231-AA010 |
